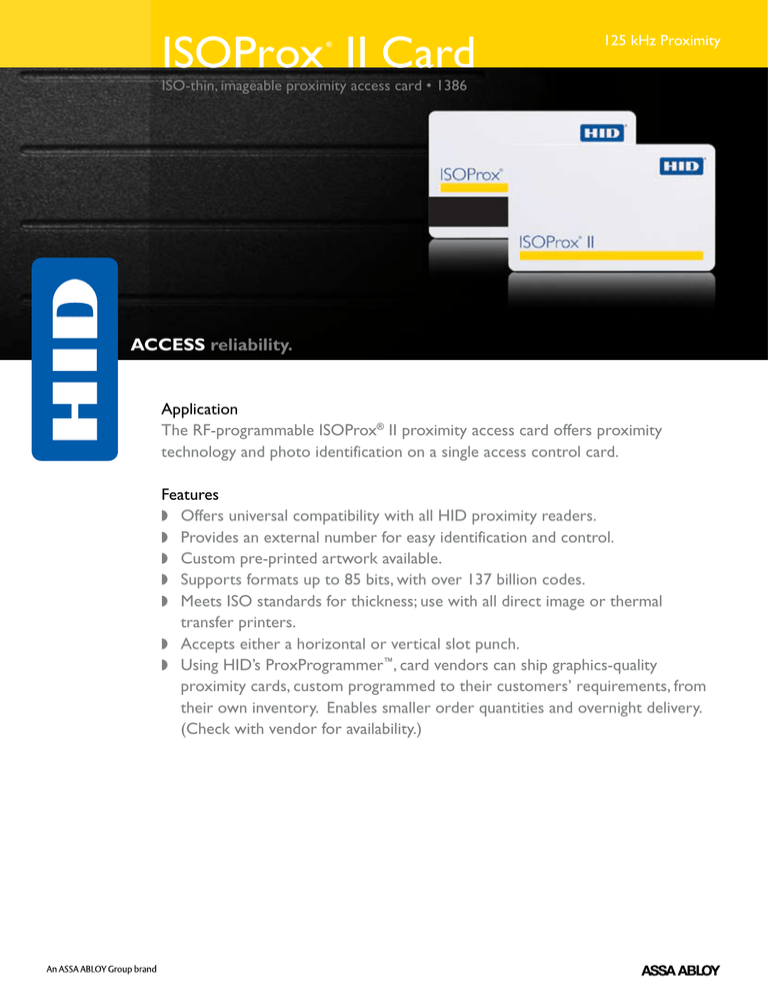

HID Identity ISOProx II

ISOProx II Card
®
125 kHz Proximity
ISO-thin, imageable proximity access card • 1386
ACCESS reliability.
Application
The RF-programmable ISOProx® II proximity access card offers proximity
technology and photo identification on a single access control card.
Features
w Offers universal compatibility with all HID proximity readers.
w Provides an external number for easy identification and control.
w Custom pre-printed artwork available.
w Supports formats up to 85 bits, with over 137 billion codes.
w Meets ISO standards for thickness; use with all direct image or thermal
transfer printers.
w Accepts either a horizontal or vertical slot punch.
w Using HID’s ProxProgrammer™, card vendors can ship graphics-quality
proximity cards, custom programmed to their customers’ requirements, from
their own inventory. Enables smaller order quantities and overnight delivery.
(Check with vendor for availability.)
Features
Specifications
Proven, Reliable
Technology
Offers extremely consistent read range. Unaffected by body
shielding or variable environmental conditions, even when close
to keys and coins.
Typical Maximum* Read Range
Thin
Can be carried with credit cards in a wallet or purse. Use with
a strap and clip as a photo ID badge.
Photo ID
Compatible
Cross-reference
Security
Long Life
Durability
Custom Artwork
Warranty
Print directly to the card with a direct image or thermal
transfer printer. Slot punch vertically or horizontally for easy
use.
ProxPoint® Plus reader-up to 2.5” (6.25 cm)
MiniProx® reader-up to 5” (12.5 cm)
ThinLine II® reader-up to 5” (12.5 cm)
ProxPro® reader-up to 7” (17.5 cm)
ProxPro® II reader-up to 8” (20 cm)
Prox80™-up to 5” (12.7 cm)
MaxiProx® reader-up to 20” (50 cm)
*Dependent on local installation conditions.
A cross-reference list correlating the external card number
and the programmed ID number is provided for easy system
administration.
Dimensions
Offers over 137 billion unique codes.
Card Construction
Passive, no-battery design allows for an infinite number of reads.
Strong, flexible and resistant to cracking and breaking.
2.125” x 3.370” x 0.030” ± 0.003” nominal
(5.4 x 8.6 x 0.076 ± 0.0076 cm)
Thin, flexible polyvinyl chloride (PVC) laminate.
Operating Temperature
-50° to 160° F (-45° to 70° C)
Custom multicolor graphics and text are available.
Note: custom graphics may increase overall card thickness.
Weight
Lifetime warranty against defects in materials and
workmanship (see complete sales policy for details).
Part Number
0.24 oz. (6.8 g)
Base Part No.: 1386
Description
RF-programmable, 125 kHz, customer-specified ID numbers,
locations marked for horizontal and vertical slot punch
Options
•
•
•
2.125"
(5.4 cm)
External card numbering (inkjet or
laser engraving)
Slot punch (horizontal or vertical)
Custom artwork (text or graphics)
(Please see “How to Order Guide” for a description of the
options and associated part numbers.)
3.370"
(8.6 cm)
0.030" ± 0.003"
(0.076 ± 0.0076 cm)
2.125"
5.4 cm)
3.370"
(8.6 cm)
0.030" ± 0.003"
(0.076 ± 0.0076 cm)
