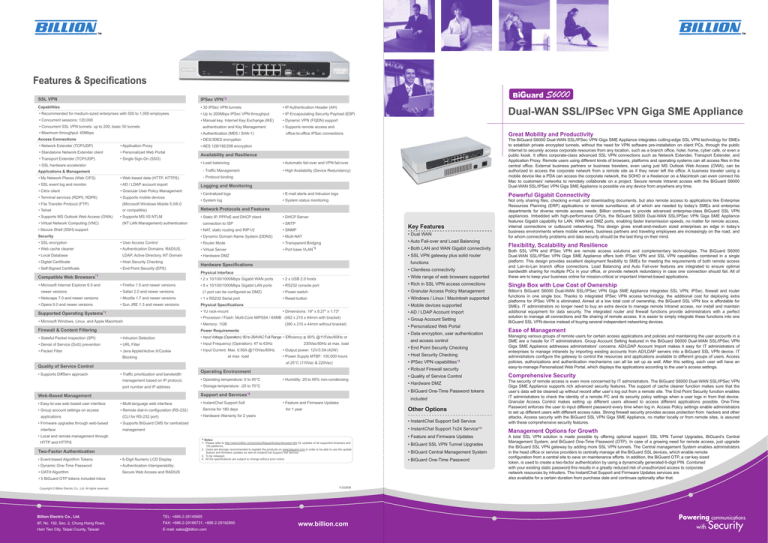

Billion BGDS3000 VPN security equipment

Features & Specifications
SSL VPN
IPSec VPN*3
Capabilities
• 30 IPSec VPN tunnels
• IP Authentication Header (AH)
• Recommended for medium-sized enterprises with 500 to 1,000 employees
• Up to 200Mbps IPSec VPN throughput
• IP Encapsulating Security Payload (ESP)
• Concurrent sessions: 120,000
• Manual key, Internet Key Exchange (IKE)
• Dynamic VPN (FQDN) support
• Concurrent SSL VPN tunnels: up to 200, basic 50 tunnels
authentication and Key Management
• Maximum throughput: 60Mbps
• Authentication (MD5 / SHA-1)
Access Connections
• DES/3DES encryption
• Network Extender (TCP/UDP)
• Application Proxy
• Personalized Web Portal
• Transport Extender (TCP/UDP)
• Single Sign-On (SSO)
- Traffic Management
Applications & Management
• My Network Places (Web CIFS)
• Web based data (HTTP, HTTPS)
• SSL event log and monitor
• AD / LDAP account import
• Citrix client
• Granular User Policy Management
• Terminal services (RDP5, RDP6)
• Supports mobile devices
(Microsoft Windows Mobile 5.0/6.0
• Virtual Network Computing (VNC)
The BiGuard S6000 Dual-WAN SSL/IPSec VPN Giga SME Appliance integrates cutting-edge SSL VPN technology for SMEs
to establish private encrypted tunnels, without the need for VPN software pre-installation on client PCs, through the public
Internet to securely access corporate resources from any location, such as a branch office, hotel, home, cyber café, or even a
public kiosk. It offers corporate-class advanced SSL VPN connections such as Network Extender, Transport Extender, and
Application Proxy. Remote users using different kinds of browsers, platforms and operating systems can all access files in the
central office. External business partners or business travelers, even using just MS Outlook Web Access (OWA), can be
authorized to access the corporate network from a remote site as if they never left the office. A business traveler using a
mobile device like a PDA can access the corporate network, the SOHO or a freelancer on a Macintosh can even connect his
Mac to customers’ networks to remotely collaborate on a project. Secure remote Intranet access with the BiGuard S6000
Dual-WAN SSL/IPSec VPN Giga SME Appliance is possible via any device from anywhere any time.
• Automatic fail-over and VPN fail-over
• High Availability (Device Redundancy)
- Protocol binding
Logging and Monitoring
• Centralized logs
• E-mail alerts and Intrusion logs
Powerful Gigabit Connectivity
• System log
• System status monitoring
Not only sharing files, checking e-mail, and downloading documents, but also remote access to applications like Enterprise
Resources Planning (ERP) applications or remote surveillance; all of which are needed by today’s SMEs and enterprise
departments for diverse remote access needs. Billion continues to provide advanced enterprise-class BiGuard SSL VPN
appliances. Imbedded with high-performance CPUs, the BiGuard S6000 Dual-WAN SSL/IPSec VPN Giga SME Appliance
features Gigabit capability for LAN, WAN and DMZ ports, enabling faster transmission speeds, no matter for remote access,
internal connections or outbound networking. This design gives small-and-medium sized enterprises an edge in today’s
business environments where mobile workers, business partners and traveling employees are increasingly on the road, and
for whom connectivity problems and data security should be the last thing on their mind.
Network Protocols and Features
or compatible)
• Supports MS Outlook Web Access (OWA)
Great Mobility and Productivity
office-to-office IPSec connections
Availability and Resilience
• Load balancing
• SSL hardware accelerator
• Telnet
• Supports remote access and
• AES 128/192/256 encryption
• Standalone Network Extender client
• File Transfer Protocol (FTP)
Dual-WAN SSL/IPSec VPN Giga SME Appliance
• Supports MS IIS NTLM
• Static IP, PPPoE and DHCP client
(NT LAN Management) authentication
• Secure Shell (SSH) support
connection to ISP
• NAT, static routing and RIP1/2
• DHCP Server
• SNTP
Key Features
• SNMP
• Dynamic Domain Name System (DDNS)
• Multi-NAT
• Dual WAN
• SSL encryption
• User Access Control
• Router Mode
• Transparent Bridging
• Auto Fail-over and Load Balancing
• Web cache cleaner
• Authentication Domains: RADIUS,
• Virtual Server
• Port base VLAN*3
• Both LAN and WAN Gigabit connectivity
Security
• Local Database
LDAP, Active Directory, NT Domain
• Digital Certificate
• Host Security Checking
• Self-Signed Certificate
• End Point Security (EPS)
Compatible Web Browsers*1
• Microsoft Internet Explorer 6.0 and
newer versions
• Firefox 1.5 and newer versions
• 8 x 10/100/1000Mbps Gigabit LAN ports
(1 port can be configured as DMZ)
• Mozilla 1.7 and newer versions
• 1 x RS232 Serial port
• Opera 9.0 and newer versions
• Sun JRE 1.3 and newer versions
Physical Specifications
• 1U rack-mount
• Microsoft Windows, Linux, and Apple Macintosh
Firewall & Content Filtering
• Clientless connectivity
Physical Interface
• Netscape 7.0 and newer versions
Supported Operating
• Wide range of web browsers supported
functions
Hardware Specifications
• Safari 2.0 and newer versions
Systems*1
• 2 x USB 2.0 hosts
Both SSL VPN and IPSec VPN are remote access solutions and complementary technologies. The BiGuard S6000
Dual-WAN SSL/IPSec VPN Giga SME Appliance offers both IPSec VPN and SSL VPN capabilities combined in a single
platform. This design provides excellent deployment flexibility to SMEs for meeting the requirements of both remote access
and Lan-to-Lan branch office connections. Load Balancing and Auto Fail-over features are integrated to ensure optimal
bandwidth sharing for multiple PCs in your office, or provide network redundancy in case one connection should fail. All of
these are to keep your business online for mission-critical or important Internet-based applications.
• SSL VPN gateway plus solid router
• Hardware DMZ
• 2 x 10/100/1000Mbps Gigabit WAN ports
• RS232 console port
• Rich in SSL VPN access connections
Single Box with Low Cost of Ownership
• Power switch
• Granular Access Policy Management
• Reset button
• Windows / Linux / Macintosh supported
Billion’s BiGuard S6000 Dual-WAN SSL/IPSec VPN Giga SME Appliance integrates SSL VPN, IPSec, firewall and router
functions in one single box. Thanks to integrated IPSec VPN access technology, the additional cost for deploying extra
platforms for IPSec VPN is eliminated. Aimed at a low total cost of ownership, the BiGuard SSL VPN box is affordable for
SMEs. IT administrators no longer need to buy an extra device to manage remote Intranet access, nor install and maintain
additional equipment for data security. The integrated router and firewall functions provide administrators with a perfect
solution to manage all connections and file sharing of remote access. It is easier to simply integrate these functions into one
BiGuard SSL VPN device instead of buying several independent networking devices.
• Mobile devices supported
• Dimensions: 19" x 8.27" x 1.73"
• Group Account Setting
• Memory: 1GB
• Personalized Web Portal
(390 x 210 x 44mm without bracket)
Power Requirements
• Input Voltage (Operation): 90 to 264VAC Full Range • Efficiency:
• Denial of Service (DoS) prevention
• URL Filter
• Input Frequency (Operation): 47 to 63Hz
• Packet Filter
• Java Applet/Active X/Cookie
• Input Current: Max. 0.95A @115Vac/60Hz
at max. load
Blocking
• Traffic prioritization and bandwidth
• Operating temperature: 0 to 40°C
port number and IP address
• Storage temperature: -20 to 70°C
• Multi-language web interface
• Group account settings on access
• Remote dial-in configuration (RS-232)
interface
Service for 180 days
and access control
• Output power: 12V/3.5A (42W)
• End Point Security Checking
• Host Security Checking
• IPSec VPN capabilities*3
• Robust Firewall security
• Humidity: 20 to 95% non-condensing
Comprehensive Security
The security of remote access is even more concerned by IT administrators. The BiGuard S6000 Dual-WAN SSL/IPSec VPN
Giga SME Appliance supports rich advanced security features. The support of cache cleaner function makes sure that the
user’s data will be cleaned up without record after user’s log out from a remote site. The End Point Security function enables
IT administrators to check the identity of a remote PC and its security policy settings when a user logs in from that device.
Granular Access Control makes setting up different users allowed to access different applications possible. One-Time
Password enforces the user to input different password every time when log in. Access Policy settings enable administrators
to set up different users with different access rules. Strong firewall security provides access protection from hackers and other
attacks. Access security with the BiGuard SSL VPN Giga SME Appliance, no matter locally or from remote sites, is assured
with these comprehensive security features.
included
Other Options
for 1 year
• InstantChat Support 5x8 Service
• Supports BiGuard CMS for centralized
management
*
HTTP and HTTPS
Two-Factor Authentication
• Event-based Algorithm Tokens
• 6-Digit Numeric LCD Display
• Dynamic One-Time Password
• Authentication Interoperability:
Notes:
1. Please refer to http://www.billion.com/product/biguard/sslvpnbrowser.htm for updates of all supported browsers and
OS platforms.
2. Users are strongly recommended to register the products on www.biguard.com in order to be able to use the update
feature and firmware updates as well as InstantChat Support 5x8 Service.
3. To be released.
4. All the specifications are subject to change without prior notice.
Secure Web Access and RADIUS
• 5 BiGuard OTP tokens included inbox
V.032608
Copyright © Billion Electric Co., Ltd. All rights reserved.
Billion Electric Co., Ltd.
TEL: +886-2-29145665
8F, No. 192, Sec. 2, Chung Hsing Road,
FAX: +886-2-29186731, +886-2-29182895
Hsin Tien City, Taipei County, Taiwan
E-mail: sales@billion.com
www.billion.com
Managing various groups of remote users for certain access applications and policies and maintaining the user accounts in a
SME are a hassle for IT administrators. Group Account Setting featured in the BiGuard S6000 Dual-WAN SSL/IPSec VPN
Giga SME Appliance addresses administrators’ concerns. AD/LDAP Account Import makes it easy for IT administrators of
enterprises to manage intranets by importing existing accounts from AD/LDAP servers into a BiGuard SSL VPN device. IT
administrators configure the gateway to control the resources and applications available to different groups of users. Access
policies, authorizations and authentication mechanisms can all be set up as well. After this setting, each user will have an
easy-to-manage Personalized Web Portal, which displays the applications according to the user’s access settings.
• Hardware DMZ
• BiGuard One-Time Password tokens
• Feature and Firmware Updates
Ease of Management
• Quality of Service Control
• Hardware Warranty for 2 years
(CLI for RS-232 port)
• Local and remote management through
• OATH Algorithm
• InstantChat Support 5x8
• Data encryption, user authentication
• Power Supply MTBF: 100,000 hours
Support and Services*2
• Easy-to-use web based user interface
• Firmware upgrades through web-based
230Vac/50Hz at max. load
Operating Environment
management based on IP protocol,
Web-Based Management
applications
80% @115Vac/60Hz or
at 25°C (110Vac & 220Vac)
Quality of Service Control
• Supports DiffServ approach
• AD / LDAP Account Import
• Processor / Flash: Multi-Core MIPS64 / 64MB (482 x 210 x 44mm with bracket)
• Intrusion Detection
• Stateful Packet Inspection (SPI)
Flexibility, Scalability and Resilience
• InstantChat Support 7x24 Service*3
Management Options for Growth
• Feature and Firmware Updates
A total SSL VPN solution is made possible by offering optional support: SSL VPN Tunnel Upgrades, BiGuard’s Central
Management System, and BiGuard One-Time Password (OTP). In case of a growing need for remote access, just upgrade
the BiGuard SSL VPN gateway by adding more SSL VPN tunnels. The Central management System enables administrators
in the head office or service providers to centrally manage all the BiGuard SSL devices, which enable remote
configuration from a central site to save on maintenance efforts. In addition, the BiGuard OTP, a car-key sized
token, is used to create a two-factor authentication by using a dynamically generated 6-digit PIN. Combined
with your existing static password this results in a greatly reduced risk of unauthorized access to corporate
network resources by intruders. The InstantChat Support and Firmware Updates services are
also available for a certain duration from purchase date and continues optionally after that.
• BiGuard SSL VPN Tunnel Upgrades
• BiGuard Central Management System
• BiGuard One-Time Password
Technology & Applications
Easy Management
Network Extender
Web-based Management Interface
Virtually extending your connection to the central office network allows you to access your office resources seamlessly from anywhere — as if you’d never left the
office. You can remotely access office files and applications through your computer, desktop or laptop, as if you were using a computer in your corporate network. A
sales person on a business trip who needs to know the product inventory can use the Network Extender technology in the BiGuard S6000, to connect to the
corporate network and access the stock database to check, instead of phoning back to head office and asking.
Through the web management interface, grouping users and customizing applications becomes quick and easy. The administrator’s interface enables
administrators to configure the BiGuard S6000 device and authorize access applications to different users according to different authorization levels. The
end-user’s web portal interface is a customized interface to support the user to run the authorized applications by just click and run.
The Quick Start Wizard provides administrators with a simple step-by-step guide to create, manage, and delete SSL VPN user accounts for remote users. The
BiGuard S6000 Dual-WAN SSL/IPSec VPN Giga SME Appliance also provides administrators with user-friendly tools such as SSL VPN logs to monitor remote
users’ access.
Group Account Management
Remote users will be able to access all the resources of the office network.
Transport Extender
Enables specific remote users or specific remote groups of users to use the SSL VPN tunnel to connect to the corporate network to access the services as configured
by IT administrators. Therefore the remote user does not have to change any specific settings in the web portal to make the service work. When a user remotely
accesses MS Outlook e-mail, for instance, the Transport Extender technology will transport the e-mail service through the SSL VPN tunnel to the e-mail server in
the corporate network, as configured by the IT administrator. Since the remote user doesn’t have to modify any settings in the web portal, the remote user will feel
as if they’re using MS Outlook in the office.
IT administrators can utilize the AD/LDAP Account Import feature to manage
intranets by importing existing accounts from AD/LDAP servers into a BiGuard
S6000 device. In addition, Group Account Setting makes it easy for IT
administrators to set up and grant different kinds of user groups on certain access
applications. If an IT administrator needs to set up many "sales" users in a single
group who need to retrieve the price information and other files in the intranet
while traveling, administrators can easily group them up and configure authorized
applications for that group. From time to time, should new users be added, IT
administrators simply authorize new users in the same user group the use of the
same authorized applications and inherit the existing Group Account Settings.
The Group Account Settings feature saves the effort of setting up various kinds of
users and access authorizations through a one-time setup.
Personalized Application Portal
The applications for each individual remote user are personalized, all the applications
each individual is allowed to access are shown in the web portal. A simply mouse click
can start an application shown in the web portal. By using a standard web browser,
remote users can access their personalized portal page.
Remote users will be able to access the resources configured for the users.
My Network Places
Just like the Windows Network Neighborhood, My Network Places allows users to browse network files on the office network. From a home computer or PDA, users
can connect directly to My Network Places and access information inside the office — from now on there is no need to go back to the office if users forget an
important document.
InstantChat Support Service
The MSN-like, web-based InstantChat Support Service provides users with online
technical support during office hours by logging on to http://www.biguard.com/.
Remote users will be able to access My Network Places via the Internet.
Application Proxy
Supports most commonly used applications through a web-based interface. The great advantage of the application proxy is that there is no need to pre-install any
client software for the applications users intend to download and share.
The supported applications include:
• Remote desktop service such as Terminal Services
(RDP5, RDP6), VNC
• HTTP- and HTTPS-based intranet data
• Remote control protocols: Telnet and SSH
• File Transfer Protocol (FTP)
• Network File sharing (CIFS)
• Citrix Client
• Outlook Web Access (OWA)
Remote users will be able to access applications through the Internet by simply using a web browser.
After logging onto the website, you can click on InstantChat Support Service and
send messages to request support help and “virtually” chat with a Billion support
specialist regarding the usage, implementation and configuration of the BiGuard
S6000 Dual-WAN SSL/IPSec VPN Giga SME Appliance.
During standard office hours, typically 5x8, and if necessary, the technical
assistant can remotely diagnose the event log of the device to help identify
software and hardware problem.
During “chat”, you can send files to the specialist, and record all chat transcripts by
email or print-out. Once your support issue is solved, you can rate the support
service you just received, so that your feedback can be used to further improve the
service quality of the InstantChat Support team.
To receive InstantChat Support Service, you will first need to complete the product
registration on http://www.biguard.com/. This support service is offered as a
courtesy for the first 180 days from product registration.
Tool Bar
