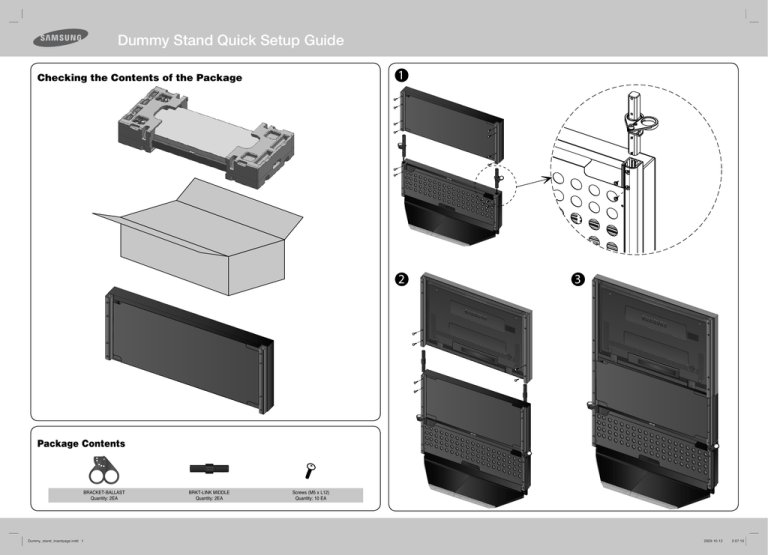

Dummy Stand Quick Setup Guide
1
Checking the Contents of the Package
2
3
Package Contents
BRACKET-BALLAST
Quantity: 2EA
Dummy_stand_insertpage.indd 1
BRKT-LINK MIDDLE
Quantity: 2EA
Screws (M5 x L12)
Quantity: 10 EA
2009-10-12
2:07:10
Product Specifications
MID40DS
MID462DS
Weight
- Net : 8.9kg
- Gross : 11.6 kg
Weight
- Net : 9.8kg
- Gross : 12.6 kg
Size
Size
Depth[mm]
Height[mm]
913.6
94.0
416.0
Set
Width[mm]
Depth[mm]
Height[mm]
1024.4
94.0
416.0
54.0 40.0
54.0 40.0
1024.4
27.5 45.0
45.034.8
140.6
130.0
416.0
416.0
130.0
45.0 27.5
140.6
913.6
34.8 45.0
Set
Width[mm]
MID46DS
Weight
- Net : 10.0kg
- Gross : 12.7 kg
Size
Depth[mm]
Height[mm]
1049.4
94.0
416.0
54.0 40.0
Set
Width[mm]
130.0
27.5 45.0
416.0
45.027.5
140.6
1049.4
