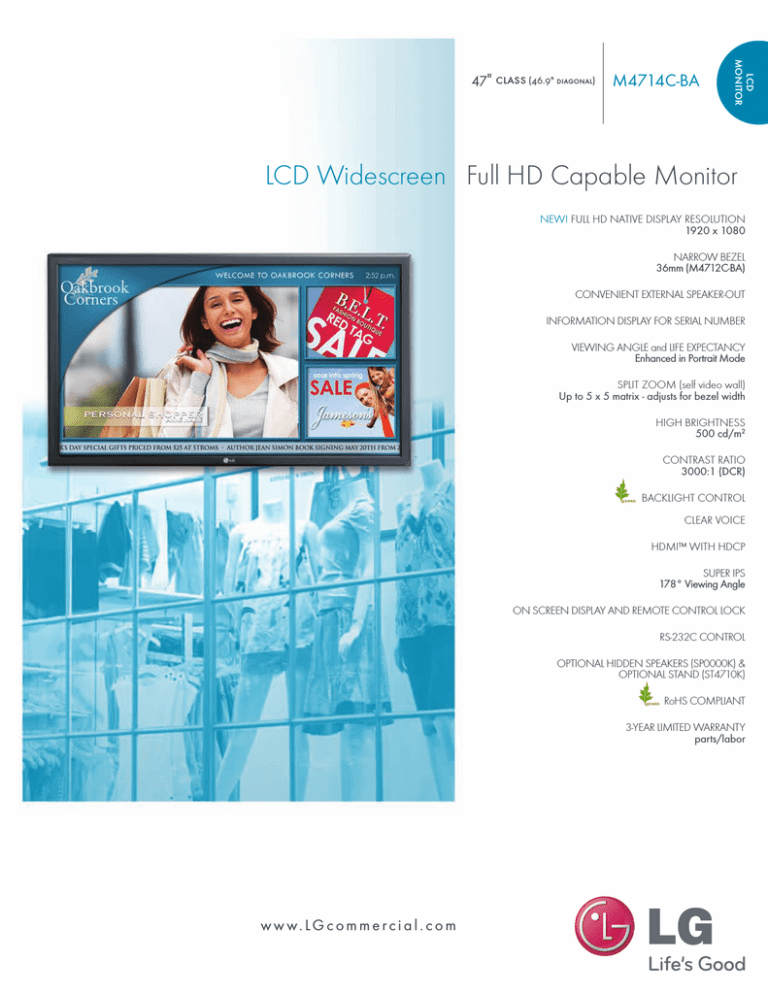

M4714C-BA
lcd
monitor
47" class (46.9" diagonal)
LCD Widescreen Full HD Capable Monitor
NEW! FULL HD NATIVE DISPLAY RESOLUTION
1920 x 1080
NARROW BEZEL
36mm (M4712C-BA)
CONVENIENT EXTERNAL SPEAKER-OUT
INFORMATION DISPLAY FOR SERIAL NUMBER
VIEWING ANGLE and LIFE EXPECTANCY
Enhanced in Portrait Mode
SPLIT ZOOM (self video wall)
Up to 5 x 5 matrix - adjusts for bezel width
HIGH BRIGHTNESS
500 cd/m2
CONTRAST RATIO
3000:1 (DCR)
BACKLIGHT CONTROL
CLEAR VOICE
HDMI™ WITH HDCP
SUPER IPS
178° Viewing Angle
ON SCREEN DISPLAY AND REMOTE CONTROL LOCK
RS-232C CONTROL
OPTIONAL HIDDEN SPEAKERS (SP0000K) &
OPTIONAL STAND (ST4710K)
RoHS COMPLIANT
3-YEAR LIMITED WARRANTY
parts/labor
w w w. LG c o m m e rc i a l . c o m
WITH SUPER IPS
WITHOUT SUPER IPS
Dramatization
Dramatization
Technology that delivers ultra-wide
viewing angles. Ideal for situations
where screens are positioned at
different angles.
SUPER IPS
Dramatization
NORMAL
VIEWING
ANGLE
SPLIT ZOOM
S E L F V I D E O WA L L
Dramatization
Display digital signage content to multiple screens by linking displays using a
15-pin D-Sub signal cable
3 x 3 Matrix (5 x 5 Max)
5 x 5 Matrix
VIEWING ANGLE and LIFE EXPECTANCY
Enhanced in Portrait Mode
BACKLIGHT CONTROL
Controls the brightness of the screen by adjusting the LCD panel brightness.
The result would be an increase in energy savings if brightness is reduced.
User2
Picture Mode
Color Temperature
Advanced
Aspect Ratio
Picture Reset
Screen
MENU
Vivid
Standard
Cinema
Sport
Game
User1
User2
ADJUST SET ID AND CHECK
SERIAL NUMBER AND
SOFTWARE VERSION
Information
Backlight
Contrast
Brightness
Color
Sharpness
Tint
Expert
20
90
50
50
50
50
Set ID
Serial No.
SW Version
MENU
MENU
HIDDEN SPEAKERS
SP0000K (optional)
Dimensions (WxHxD)
2.9" x 13.7" x 2.2"
Weight
0.80 lbs. each
10 Watts
Stand ST4710K (optional)
(fits M4714C-BA)
HIDDEN SPEAKERS
SP0000K (optional)
M4714C-BA
4.7”
2.9”
44.0”
1.61”
600mm
26.0”
23.2”
29.7”
11.6
400mm
41.1”
12.92”
11.06”
9.81”
12.6”
26.4”
OPTIONAL STAND
ST4710K
6.5”
0.5”
2.17”
8.4”
1.08”
12.6”
26.4”
REAR JACK PANEL
RS-232C
(CONTROL)
AC-IN
HDMI/DVI
RGB IN
AUDIO
(RGB/DVI)
Y
RGB OUT
IN
COMPONENT IN (BNC)
REMOTE
CONTROL IN
Pb
Pr
IN
L
R
AUDIO
VIDEO (BNC)
2
Y
Pb
Pr
SPK_OUT
AUDIO IN/OUT
1
OUT
L
R
L
VIDEO IN
(BNC)
OUT
L
R
R
AUDIO
R
S-VIDEO
L
specifications
lcd
monitor
M4714C-BA
47" class (46.9" diagonal)
PANEL
LCD Panel Type
Display Area
Aspect Ratio
Native Resolution
Pixels (H x V x 3)
Brightness
Contrast Ratio
Viewing Angle (H x V)
Color Depth
Response Time
Surface Treatment
MTBF
Super IPS
VIDEO
Max Input Resolution
Recommended Resolution
H-Scanning Frequency
V-Scanning Frequency
Pixel Frequency
Sync Compatability
Video Input
Picture mode
47"
46.9" diagonal
16 : 9
1920 x 1080
6,220,800
500cd/m2
3,000:1 (DCR)
178 x 178
1.07 Billion
9 ms (G to G)
Hard Coating (3H) Anti-glare
50,000 Hr. (Minimum) Portrait & Landscape
Yes
Color temperature
REAR INPUTS/OUTPUTS
Component Video
PC Input via 15-Pin Sub "D"
Composite Video Input/Output
Audio Output
Audio Inputs
HDTV Formats
PC Formats
HDMI with HDCP
RS-232C Input/Output
S-Video
Audio Jack Built-in (No Amp)
Discrete IR Input
External_Speaker Out
AUDIO
Auto Volume
Balance
Audio Power
Speaker On/off
Sound mode
POWER
Power Supply
Power Type
Power Switch Type
Power Saving
Normal
Stand-by/Suspend
DPM Off
Switch Off
1920 x 1080 @ 60Hz (RGB, HDMI/DVI)
1920 x 1080 @ 60Hz (Analog/Digital)
30 ~ 83kHz (RGB, HDMI/DVI)
56 ~ 75 Hz (RGB), 60 Hz (HDMI/DVI)
148.5 MHz (RGB, HDMI/DVI)
Separate / Composite / Digital
RGB, HDMI/DVI
Vivid/Standard/Cinema/Sports/Game/
User1/User2
Warm/Medium/Cool/User
2 Hi-Res (BNC)
1/1
1 (BNC) / 1 (BNC)
1in /1 out
3 Plus PC Sound
Component : 720p/1080i/1080p
HDMI :720p/1080i/1080p
Auto Scaling to XUGA
Yes
1/1
1 (S-Video has a priority but there is no input mode)
Yes
Yes
Yes
Yes
Yes
20W (10W x 2)
Yes
Clear Voice/Standard/Music/Cinema/
Sports/Game/User
100-240V~, 50/60Hz
Built-in Power
Tact Switch
SPECIAL FEATURES
Backlight Control
Temperature Sensor
Split Zoom (Self Video Wall, Max 5 x 5)
Source Selection
Brightness/Contrast
Color
Position
Tracking
Set-up
ISM Method
Advanced
Time
Yes
Yes
Yes, supports natural mode
Digital (HDMI/DVI)/Analog (RGB)/
Component 1/Component 2/AV
Yes
Warm/Medium/Cool
User Control (R/G/B)
H/V
Auto/Clock/Phase
Language(English/French/Spanish/
Italian/German/Portugues/
Korean/Japanese/Chinese/Russian)
Normal/White wash/Orbiter/
Inversion/Dot wash
Gamma/Film mode/Black level/
Noise Reduction
Clock/On/off timer/Auto sleep/
Power on Delay
Serial Number, SET ID, S/W Version
Yes
Yes
Yes
Yes
Yes
Information display
Mute
Sleep Timer
Auto Power/Source Memory
Key Lock
DPM Select
CABINET
Monitor Dimensions (W×H×D)
44.0" x 26.0" x 4.7"
Monitor Weight (W×H×D)
63.5Ibs
Monitor Dimensions w/opt. stand (W×H×D) 44.0” x 29.7” x 12.6”
Weight w/opt. stand
72.4 Ibs
Weight w/opt. stand and opt. speakers 75.5 Ibs
Packaging (W×H×D)
46.7" x 29.8" x 12.4"
Weight with Packaging
75.2 Ibs
Color
Black
VESA™ Standard Mount Interface
600mm x 400mm (M6 screw)
STANDARD (CERTIFICATION)
Safety
UL/c-UL/CB scheme/TUV/NEMKO
EMC
FCC Class "B"/VCCI/C-tick/CE/MIC
RoHS Compliance
Yes
UPC
7 19192 18538 8
SERVICE/LIMITED WARRANTY
Limited Warranty (Parts/Labor)
3 Years
OPTIONAL ACCESSORIES
SP0000K (speakers)
fits M4714C-BA
Dimensions (W x H x D) (each)
2.9" x 13.7" x 2.2"
Weight (2 speakers)
1.7 Ibs
Packaging Dimensions (W x H x D)
15.1" x 5.3" x 6.9"
Packed Weight
2.36 Ibs (2 Speakers/1 Package)
ST4710K (stand)
fits M4714C-BA
Dimensions (W x H x D)
26.4" x 8.4” x 12.6"
Weight
8.9 lbs
Packaging Dimensions (W x H x D)
44.0" x 29.5" x 12.6"
Packed Weight
17.52 lbs
300 W
≤1W (RGB)/4W (HDMI/DVI)
≤1W (RGB)/4W (HDMI/DVI)
≤1W
