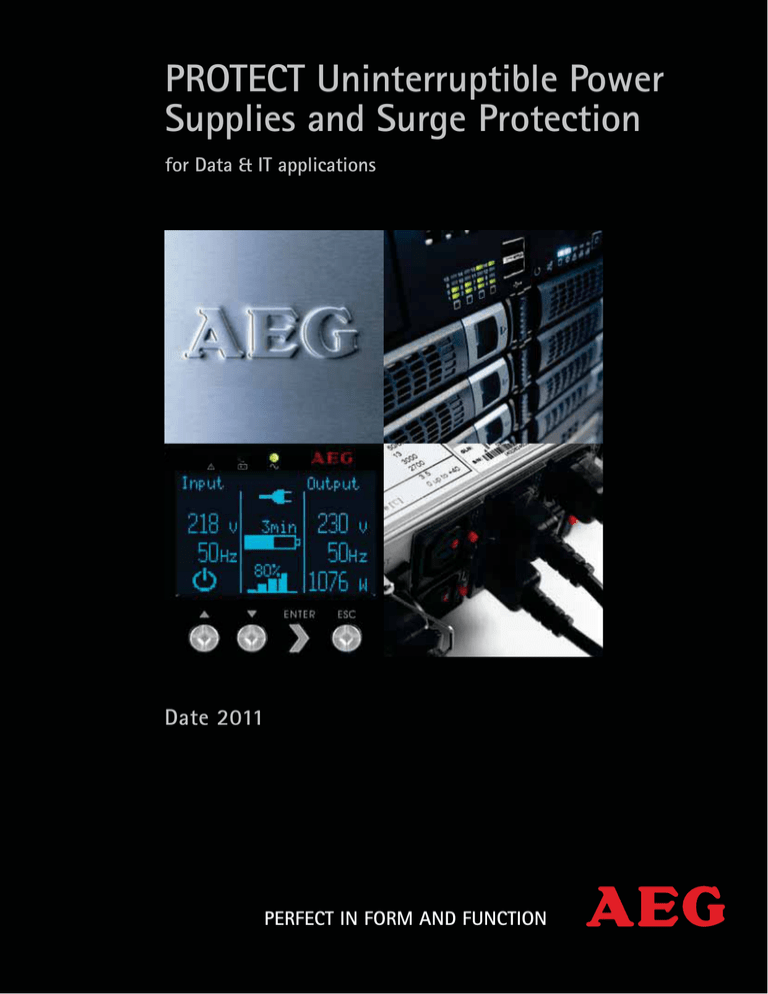

PROTECT Uninterruptible Power
Supplies and Surge Protection
for Data & IT applications
Date 2011
PERFECT IN FORM AND FUNCTION
2
UPS
The right UPS for every application.
AEG Power Solutions provides customized solutions
for protection against network disruptions and the
loss of data and costly downtime periods suffered
as a result.
”Plug & Safe“ options
Our range of compact UPS systems includes UPS
devices for private use, systems which can be
incorporated into racks for the IT cabinet and
“Plug & Safe” parallel switchable modular UPS
systems for computer centers and industry.
Product support
As a renowned and experienced company, AEG Power
Solutions is there to support you by providing easily
expandable products, reliable delivery and offering
trade-oriented support and service packages.
Our group and global experience
AEG Power Solutions is a world leading provider of
premium power electronics. Since September 2009,
the group is a listed company through its holding
company 3W Power holding SA. It offers one of the
world’s most comprehensive product and service
portfolios in power conversion and control, for
customers spanning the infrastructure markets of
energy, telecom, lighting, transportation, general
industrial, as well as new energies sectors. Since 2005,
the company has developed a full range of products
for the solar energy industry, from solar inverters to
turnkey solutions and is investing in solutions that
will enable distributed power generation and smart
micro-grids.
Committed to providing peak performance
With more than 250 engineers, technicians and
project managers, AEG Power Solutions achieves
outstanding results in the field of research and
development as well as in application engineering.
This really pays off, as more than 70 active patents
are currently pending in the power supply sector.
UPS
Milestones
2009 AEG Power Solutions becomes a listed company
through its holding company 3W Power SA
2008 Renaming of Saft Power Systems Group to
AEG Power Solutions
2005 Saft Power Systems Group becomes independent
1998 Saft acquires AEG SVS Power Supply Systems GmbH
in Belecke
1995 First UPS in the world with 100% digital control system
called Protect 3.
1988 Development of a UPS with IGBT transistors
(single and three phase)
1985 First rectifier Profitec S with microprocessor
1972 Development of the first switch mode power
supply 5/25
1969 Development of the power controller
1965 Development of the three phase thyristor inverter
1961 Development of the single phase thyristor inverter
1951 DC supply for the „Deutsche Bundespost“
(German Federal Post Office)
1947 Establishment of Saft Power Systems and development
of a wide range of innovative battery charging
equipment and power supply systems
1945 Establishment of the AEG plant in Warstein-Belecke
with 25 employees
CONTENT
P. 4 - 11
PRODUCT OVERVIEW
P. 12 - 15 SURGE PROTECTION
Protect Basic. / Travel. / Office. / Business.
Protect Entertainment. / TwinPower.
P. 16 - 17 UPS TOPOLOGIES
P. 18 - 21 UPS FOR SOHOS
Protect Home. / Protect A.
P. 22 - 29 UPS FOR SMALL AND MEDIUM IT
Protect B. / Protect B. PRO
Protect C. / Protect C. Rack
P. 30 - 35 UPS FOR MEDIUM DATACENTER
Protect D. / Protect 1. / Protect 1.M
P. 36 - 37 COMBINATION ARCHITECTURE
P. 38 - 43 UPS FOR LARGE DATACENTER
Protect 3.M / Protect 3.33 / Protect 4.33
P. 44 - 45 SOFTWARE SOLUTIONS
P. 46 - 49 UPS ACCESSORIES
P. 50 - 51 SERVICE PACKAGES
3
4
Surge protectors HOME
Protect Basic.
Protect Entertainment.
Protect TwinPower.
Protection for all
standard applications
Intelligent protection for
entertainment equipment
with Master-Slave-Function
Security for various
applications with
protected USB chargers
6 (GE6) / 7 (GE7)
9
-
6
9
4+1
2
9
2
-
cable fixture
(Basic.GE7)
antenna
connector
separated
surge protector
9
9
EQUIPMENT
Standard earthing sockets
EU sockets
Power switch
USB charger
Network protection
Special features
APPLICATIONS
Telephone systems/router
Televisions & receivers
Game consoles
Computer & periphery
Hifi & speakers
Mobiles & MP3 players
Small home appliances
9
9
9
9
9
9
9
9
9
9
Surge protectors OFFICE
Protect Travel.
Protect Office.
Protect TwinPower.
Protection on the move with
protected USB chargers
Compact protection for PC and
peripheral equipment
Business solutions with
surge protection and
USB chargers
1
2
2
-
3
9
2
9
6
9
2
9
flexible mains
input cable
audio
interface
folding
mechanism
9
9
9
9
9
9
9
9
9
9
9
9
9
5
6
Compact UPS: Home/Office IT
Page
Power (kVA)
Technology acc. to IEC 62040-3
Input/Output
Parallel operation
Autonomy time (min.) at full load
Protect Home. (GE/FR/UK) *
Protect A.
600 VA.
Comprehensive protection for
satellite, TV, phone, fax or modem.
500 to 1400 VA.
Protects PCs, workstations and
phone systems.
18
20
0.6 kVA
0.5 - 1.4 kVA
VFD (offline)
VI (Line – interactive)
1 ph~/1 ph~
1 ph~/1 ph~
no
no
3
3
Software “CompuWatch“
Our shutdown and UPS management software
“CompuWatch” is provided on CD for all single
and three-phase UPS devices
rStorage of system operations and graphical
representation of the UPS values
rDefinable (shutdown) processes can be
triggered in a time or event-controlled manner
via shell script
rEvent-controlled transmission of messages via
e-mail and SMS
rCommunication via Novell interface, RS232,
network and USB
rSupport for all major operating systems
rfurther information can be found on page 44
* Available with german, french and UK sockets
Compact UPS: IT equipment
Protect B.
Protect B. PRO
750 to 3000 VA.
Rack or tower for server and network components
with sinusoidal output.
750 to 3000 VA.
Efficient Rack/Tower-UPS with sinusoidal output
for small servers and networks
22
24
0.75 - 3 kVA
0.75 - 3 kVA
VI (Line – interactive)
VI (Line-interactive)
1 ph~/1 ph~
1 ph~/1 ph~
no
no
5–65
4–44
UPS topologies:
VFD - offline
VFD
VI
UPS output depends upon supply (mains) voltage and frequency variations
Advantages: compact dimensions possible; low cost solution
VI - line-interactive
UPS output depends upon supply (mains) frequency variations, but supply voltage are conditioned (independent)
Advantages: high efficiency, low running costs, extreme wide input voltage
VFI - onine
VFI
UPS output is independent of supply (mains) voltage and frequency variations
Advantages: highest availability, protection against all supply (mains) voltage disturbances; frequency converter mode possible
7
8
Compact UPS: medium-sized IT facilities
Page
Power (kVA)
Technology acc. to IEC 62040-3
Input/Output
Parallel operation
Autonomy time (min.) at full load
Protect C. *
Protect C. Rack *
1 to 10 kVA.
Tower UPS for sensitive networks,
small computer centres, Intranet and
Internet servers.
1 to 6 kVA.
UPS for rack usage to protect
sensitive networks, small computer
centres, Intranet and Internet servers.
26
28
1 - 10 kVA
1 - 6 kVA
VFI (double conversion)
VFI (double conversion)
1 ph~/1 ph~
1 ph~/1 ph~
yes (6 & 10 kVA)
no
5-60
5-60
Warranty
Our high standards and decades of experience mean we are also able to offer services which are cost-effective, efficient and quick. For the first 24 months
after the initial purchase we provide a comprehensive advanced replacement service for the device and battery from the compact UPS series.
36 months warranty on UPS and battery
Register your UPS within two months from date of purchase and you will get
the warranty extension “Pro-Care Garant“ for free. So we provide an overall
warranty for 36 months on UPS and battery.
The registration form is available at www.aegpartnernet.com
* Also available with enhanced battery charger for
autonomy times over a period of hours.
Compact UPS: medium-sized IT facilities
Protect D.
Protect 1.
1 to 10 kVA.
Compact UPS for rack usage protects server,
networks and IT equipment.
10 to 20 kVA.
For medium-sized data centers, protection of cash
till systems and facilities.
30
32
1 – 3 kVA (6 & 10 kVA in preparation)
10 – 20 kVA
VFI (double conversion)
VFI (double conversion)
1 ph~/1 ph~
3 ph~/1 ph~
no
yes
3-60
6–80
Service and warranty
Additional service packages such as warranty extension up to
60 months are available during the first year after purchasing
the UPS. We also recommend the optional maintenance during
a long term usage of the UPS to assure reliability in critical
situations. Repairs and individual service measures available on
request!
9
10
modular UPS: medium-sized datacenters
Page
Power (kVA)
Technology acc. to IEC 62040-3
Input/Output
Parallel operation
Autonomy time (min.) at full load
Protect 1.M
Protect 3.M 2.0
4 to 24 kVA.
Scaleable and modular high-performance UPS system for the IT sector.
20 to 120 kVA.
Modular UPS with “hot swappable”
design as scalable solution for
medium-sized data centers.
34
38
4 – 24 kVA
20 - 120 kVA
VFI (double conversion)
VFI (double conversion)
1 ph~ or 3 ph~/1 ph~
3 ph~/3 ph~
yes (internal)
yes (internal & external)
10–90
free configurable
Combination Architecture
Combination Architecture from AEG Power Solutions is the integration of renewable and alternative energy sources into power
systems to compensate for efficiency losses and/ or reduce carbon footprint.
Page 36
3 phase UPS: large datacenters
Protect 3.33
Protect 4.33
10 to 120 kVA.
High-availability-UPS for hosting, file servers,
workstations and data centers, also for their
integration in complex networks
160 to 1000 kVA.
High-availability-UPS for all critical applications in facility
control systems, data centers, telecommunication, internet
nodes, banks and insurances
40
42
10 - 120 kVA
160 - 1000 kVA
VFI (double conversion)
VFI (double conversion)
3 ph~/3 ph~
3 ph~/3 ph~
yes
yes
free configurable
free configurable
SuperCaps
SuperCaps have the ability to give fast peak power for indefinite cycles, they can be charged
or discharged several times and also have a long lifetime up to 20 years. More efficient
than conventional batteries, they do not release any heat during discharge and are up to
95% efficient in application. Additionally, they do not require special storage conditions and
maintenance for assured operation. Their scalable and modular nature makes SuperCaps a
compelling proposition for data center applications.
Page 37
11
12
Surge protection
When voltage rises ...
Surge protection
Surges can be caused, for example,by lightning striking near your premises.
Lightning induces voltage surges in conductors and cables that can damage
any connected equipment. Switching in households, with conventional power
supplies of fluorescent lamps for example, can also cause surges in the wiring
system of a building.
The steadily growing number of electronic household appliances and entertainment units over the last few years has also increased the extent of
damage. A single power surge can quickly lead to costly damages amounting
to thousands of Euros, as smaller components often have close tolerance limits
for the power supplied. If they are damaged, the entire unit has to be repaired.
This is often complicated and costly. AEG surge solutions provide effective
protection.
The following equipment is particularly at risk:
r Phone systems/router
r Television/LCD and plasma TVs
rGame consoles
r Computer & IT equipment
r TV receiver
r Speakers
10
YEARS
WARRANTY
Surge protection
13
Protect Basic.GE: Effective surge protection for sensitive home electronics
The surge protectors have five outlets for standard grounded power plugs, plus one
or two wider-spaced outlets designed to accommodate larger power adapters.
The surge protectors include filters to suppress high-frequency interference voltages.
To prevent tangled cables, they are also fitted with a cable management bracket at
one end.
Two LEDs indicate whether the power is on and surge protection is active. The power
switch enables the mains supply to connected equipment to be cut off.
Key features:
rFive grounded outlets plus one or two adapter-spaced outlets
rPower cord (1.8 m) with angled plug
rResetable automatic circuit breaker
rAll outlets are fitted with child locks
rPrepared for wall-mounting
rLEDs indicating operating state and active surge protection
rSurge protection up to 36.000 A & 10 years warranty
Protect Basic.GE7
Cable fixture avoids
tangled cables
Part number:
Protect Basic.GE6 # 600 000 7194
Protect Basic.GE7 # 600 000 7196 734
Protect Travel: Protection for travelling with additional USB charger
The Protect Travel. provides surge protection in the smallest of spaces. This makes it
ideal for travelling or for applications in confined spaces. Often, the power quality in the
country of travel is not sufficiently guaranteed. Be on the safe side and protect
your laptop, cell phone or digital camera against overvoltage while on the move.
With the additional USB charger unit, you save on extra chargers.
Key features:
r3 surge protected sockets
r2 USB chargers for cell phones or MP3 players
rIndicator shows active surge protection
rCompact dimensions for travelling
r90 degrees rotating mains input cord
rSurge protection up to 36.000 A & 10 years warranty
Protect Travel fits perfect
into travel bags
Part number:
Protect Travel # 600 000 7747
14
Surge protection
Protect Office: Compact protection for PC and peripheral equipment
Protect Office. is the compact power distribution for your desktop. The 3 power outlets
and network ports provide complete computer protection. During the development phase,
the compactness of design was paramount. The design also allows you to connect a
microphone and speakers. As a result, the annoying cable clutter on and behind the desk
can be avoided. Any peripheral units can be switched off via the central power button
thereby reducing standby costs.
Key features:
r3 protected sockets, one of them rotateable
r2 protected USB chargers
rData-line protection for network cable (RJ45)
rAdditional connectors for microphone and headset
audio cable extension included
rSurge protection up to 36.000 A & 10 years warranty
90° rotateable
earth protected socket
protected audio in- and output;
audio cable extension (1.8 m) included
2 protected
USB chargers
network line
protection (RJ45)
Part number:
Protect Office # 600 000 7746
Protect Business: Business solution with surge protection
Protect your laptop and projector at conferences. Thanks to its folding mechanism,
Protect Business. is suitable for conference tables and desktops. In addition, it offers
surge protection for data cables (RJ45) and a dual USB charger unit.
Key features:
r6 protected sockets
rSurge protection for network cables (RJ45)
and 2 protected USB charger
rFoldable mechanism for conference tables
rDust resistant and childproof sockets
rSurge protection up to 36.000 A & 10 years warranty
foldable mechanism
for space saving
2 protected
USB charger
network line
protection (RJ45)
Part number:
Protect Business # 600 000 7748
Surge protection
15
Protect Entertainment: Intelligent protection for entertainment equipment with Master-Slave-Function
Protect your sensitive equipment and save standby costs. With its Master-SlaveFunction, the PROTECT Entertainment. is especially suited to modern home theatres and
music systems. If the main unit (master) is turned off, then the electricity supply of the
other peripheral units (slaves) will be automatically cut off. In addition, this conductor
offers surge protection for antenna cables and network cables. As a result, all your
equipment is optimally protected against power surges.
Key features:
r1 master and 3 slave sockets, master/slave mode can be switched off;
adjustable master trigger level
r2 outlets always powered
rSurge protected antenna connector (coaxial)
rSurge protection for network cables (RJ45)
rDust resistant and childproof sockets
rSurge protection up to 36.000 A & 10 years warranty
Master-Slave-Function
can be switched off, so
all outlets are powered
network line
protection (RJ45)
surge protected
antenna connector
Part number:
Protect Entertainment # 600 000 7745
Protect TwinPower: Security for various applications with protected USB chargers
With PROTECT TwinPower., AEG offers you a flexible voltage solution for the desktop. Its 7
power outlets provide enough room for all peripheral devices around the computer. Owing
to its two-part design, the connection cables can be flexibly housed. The first part serves as
a power supply for the computer, printer and monitor. The other part of the surge protective
conductor has a power switch for disconnecting the TwinPower from the network. With this
feature, all connected devices do not consume electricity when in standby.
Furthermore, the desk unit has 3 other power sockets. Cell phones and MP3 players can be
charged using its two protected USB ports.
Key features:
rDivided surge protector, one part always powered
rOverall 4 + 3 protected sockets
r2 protected USB chargers
rEasily accessible power switch
rSurge protection up to 36.000 A &
10 years warranty
2 protected
USB chargers
easy accessible power switch
controls both parts of the
TwinPower
Part number:
Protect TwinPower # 600 000 7749
16
UPS technology
Optimal protection for every application
Outage-blackouts ( > 10ms)
VFD
VI
VFI
Sags/brownouts
Dynamic overvoltage
Undervoltage (continuous)
Overvoltage (continuous)
Transients/Surges
Frequency variations
Voltage distortions (bursts)
Voltage harmonics
Lightning
Uninterruptible power supply
The VFD technology protects against the mains variations caused
by network disruptions, brownouts and voltage peaks.
Mains voltage variations occur more often than expected.
The consequences of this are crashes, loss of data and cost
intensive downtimes. The solution is an uninterruptible
power supply (UPS) which offers various level of protection.
The VI technology protects against the most common mains
variations. It‘s a good compromise between protection and costs.
There are three different UPS topologies offering different
protection levels against all 10 types of mains disruption and
variation.
The highly reliable VFI technology offers the best protection
against mains disruptions and variantions. This technology
provides a clean and secure supply of power for all critical
applications and sensitive hardware.
UPS technologies
VFD
acc. to IEC 62040-3 (offline)
Advantages:
Disadvantages:
Mains
Transfer unit
r most compact solutions possible
r transfer gap (some ms)
Load
r high efficiency,
low running costs
r load is fed by unfiltered voltage
(no correction by the inverter)
r low cost solutions
VI
Rectifier
Battery
r output voltage often not sinusoidal
Inverter
acc. to IEC 62040-3 (line-interactive)
Advantages:
Disadvantages:
AVR
Mains
r high efficiency
r transfer gap (some ms)
Load
low running costs
AVR control rage/inverter transfer
r extremely wide input
voltage
r load is fed by unfiltered voltage
(no correction by the inverter)
Transfer unit
Rectifier
Battery
Inverter
Transformer
r robust concept
VFI
acc. to IEC 62040-3 (online/double conversion)
Advantages:
Mains
Disadvantages:
r no transfer gap
r lower efficiency in comparison to
SBS
Load
r protection against all supply (mains)
voltage disturbances
r sine-wave input current
r converter mode possible
r internal redundancy by addtional bypass
VI technology
r more cost intensive comparison to
Rectifier
Inverter
Battery
VFD technology
UPS
17
18
Protect Home.
Reliability
Protect Home: Uninterrupted Protection for PCs
Protection against data loss through uninterrupted
power protection with a size from 600 VA, the
Protect Home. offers professional and economical
protection against power outages, surges and sags.
VFD
Practical Protection
Especially for multi-media applications,
the Protect Home. offers data line
protection for telephones, faxes and
modems as well as surge protection for
satellite TV.
Connections are made directly to the
UPS outlets. Protect Home. proves
itself in critical situations with its high
availability due to a sturdy overload and
excess voltage protection.
USB and RS232 Connections
for Simple Control
The Protect Home. is quickly connected to a
USB or RS232 interface. Through the special
AEG shutdown software “CompuWatch”,
which is included, the unit allows you to
control the most important operations as
well as provides for automatic shutdown
during longer power outages.
Protection against Power
Outages and dangerous
Power Spikes
r Microprocessor controlled, robust UPS
technology for power outages and
dangerous power spikes
r Complete CompuWatch-Software, “plugand-play“
r USB and RS232 interface for overview and
control from a PC
Thanks to its user-friendly battery design
Protect Home. emphasizes its remarkable
economy.
r Overvoltage protection for satellite TV’s as
well as dataline protection for telephones,
faxes and modems
r User friendly battery design
Simple Operation
r Free 36 months warranty on UPS and
battery with advanced replacement service
(registration required)
The “One-Board-Design“ as well as LED
notification provides clear information
about the unit’s most important
operating conditions. With the addition
of an audible alarm the user is provided
with clear notification of critical events.
Input circuit breaker
LED lights with traffic light function for clear
information of the current operating condition
Mains connection
Overload protection
SAT TV/SAT receiver
Overload protection
telephone/fax/modem
USB
RS232
Excellent Provisions: all around protection for
satellite TV, Telephones, Faxes or Modems as
well as USB and serial connections for communication with your PC.
Protect Home.
and Multimedia.
Classification VFD SY 322 acc. to IEC 62040-3
PROTECT Home.
Type power
Part number
600 VA/300 W
600 000 3933
UPS INPUT
Input voltage
Frequency
Current consumption (max.)
230 Vac
50 Hz
3.0 A
UPS OUTPUT
Rated output voltage
Rated output voltage in battery mode
Frequency in battery mode
Output current
Transfer time at mains outage
Voltage waveform
Overload/Short Circuit Protection
230 Vac
± 10 %
50 Hz ± 1 Hz
2.6 A
2–6 ms (typical)
modified sinewave
yes
BATTERY
Type
Autonomy time for 1 PC with 17“ TFT
Overload/deep discharge protection
Recharge time (to 90 % of rated capacity)
sealed, maintenance free
~ 10 Min.
yes
8h
COMMUNICATION
Interfaces
Shutdown software (on CD)
Failure indicators (acoustical/optical)
USB and RS232 for status and measurement levels
Included for all typical operating systems (e.g. Windows, Linux, Mac)
Mains failure, overload, battery low, fault
GENERAL DATA
Audible noise (1 m distance)
Operating temperature range
Humidity
EMC conformity
Product safety
Overvoltage protection
Operation altitude
Outlets
< 40 dB (A) (fanless)
0°–40° C
20–90 %
EN 50091-2 Class A, EN 61000-3-2, EN 61000-3-3
EN62040-1-1
surge protection RJ11 (Phone, Fax, Modem), F-Connector for Satellite TV
up to 1000 m, at nominal load
4 shockproof sockets
(3 x with UPS-protection / 1 x with surge protection)
Blackline
125 x 85 x 300
3.5 kg
Mains-cord, USB and RS232 communication cable,
management software “CompuWatch“ (CD), user-manual
CE
Equipment colour
Size approx. W x H x D (mm)
Weight approx.
Shipment
Certification
Protect Home.FR
Protect Home.UK
19
20
Protect A.
Reliability
Protect A: Uninterruptible security for PCs, workst
Protection against power
failure and voltage fluctuations
r Modern VI (line-interactive) technology
against power failure and dangerous
overvoltage
r Automatic voltage regulation against
mains voltage deviations (AVR)
r Double mains filter against voltage peaks
r Easy installation ensured by cables
supplied and optimum operation
VI
r Use of sealed, maintenance-free leadacid batteries with exhaustive discharge
protection
r USB port and RS232-interface
Indication of fault inductions
r Data line protection for phone, fax,
modem (RJ11) and from 1000 VA on
inclusive network protection (RJ45)
Operating status display
r Free 36 months warranty on UPS and
battery with advanced replacement service
(registration required)
Autonomy time (min.)
UPS input voltage
Load (%)
UPS output voltage
Battery voltage
Display screen of Protect A.1000 / A.1400
USB
RS232
USB
Overvoltage protection for
data interface, fax, modem
UPS output with
overvoltage protection
UPS outputs with
battery backup and
overvoltage protection
Overvoltage protection
for data interface, fax,
modem and network
UPS outputs with
battery backup and
overvoltage protection
RS232
UPS input
UPS outputs with
overvoltage protection
Mains input fuse
UPS input
Rear view A.500 / A.700
Rear view A.1000 / A.1400
Mains input miniature
circuit breaker
Protect A.
ations and telephone systems.
Classification VI SY 322 acc. to IEC 62040-3
Type rating
Part number
A. 500
A. 700
A. 1000
A. 1400
500 VA
300 W
600 000 6435
700 VA
420 W
600 000 6436
1000 VA
600 W
600 000 6437
1400 VA
840 W
600 000 6438
UPS INPUT
Nominal connection voltage
Voltage range without battery operation
Frequency (automatic detection)
220 Vac/230 Vac/240 Vac
160–290 Vac
170–280 Vac
50 Hz/60 Hz ± 5 Hz
UPS OUTPUT
Rated output voltage/AVR technology
Rated output voltage in battery operation
Frequency in battery operation
Nominal output current (at 230 Vac)
Changeover time in the event of mains failure
Voltage curve
Overload protection
230 Vac
± 10 %
50 Hz/60 Hz ± 1 Hz
2,2 A
3,0 A
4,3 A
2–6 ms (typical)
approximated sinewave
yes
yes
yes
6,1 A
yes
BATTERY
Type
Autonomy time for 1 PC with 17‘‘ TFT
Exhaustive discharge protection/protection against excess load
Charging time (to 90 % of rated capacity)
sealed, maintenance-free
~ 20 min.
~ 30 min.
yes
yes
8 hrs
~ 15 min.
yes
~ 40 min.
yes
COMMUNICATION
Interfaces
Shutdown software (on CD)
Alarms (acoustic/optical)
Status display
USB and RS232 (with status messages and measured values)
included in delivery, for all major operating systems (e.g. Windows, Linux, Mac)
mains failure, overload, battery discharged, replace battery, fault
LCD with additional display of important aspects of
the operating status like autonomy time
GENERAL DATA
Inherent noise (1 m distance)
Operating temperature range
Relative humidity
Load outputs
EMC conformity
Product safety
Overvoltage protection for data lines
Housing colour
Dimensions approx. W x H x D (mm)
Weight approx.
Scope of delivery
Conformity
< 40 dB (A)
(fanless)
< 45 dB (A) (AC-operation < 40 dB (A))
speed-controlled fan
0°–40° C
0–90 % (without condensation)
3 + 1 x IEC 320 C13
4 + 2 x IEC 320 C13
EN 62040-2 Class C2, EN 61000-3-2, EN 61000-3-3
EN 62040-1-1
RJ11 (phone, fax, modem)
RJ11/RJ45 (add. network), Ethernet 10 & 100 Mbps
Blackline
100 x 140 x 330
145 x 205 x 405
6 kg
6.5 kg
9.5 kg
10 kg
Mains connection, 2 device connecting cables, management software
“CompuWatch“ (CD) incl. 1 network licence,
USB and RS232 communication cable, operating instructions
CE
21
22
Protect B.
Reliability
Protect B: Uninterruptible security with sine wave
High level flexibility,
intelligent functions
r Modern VI (line-interactive) protection
technology with sine wave output
voltage
r Compact construction/variable use
due to combination design tower/rack
r Robust design: overload capability and
short circuit protection
r Intelligent monitoring system with
USB and RS232 interfaces
VI
r User-friendly battery design in hotswappable version (from 1500 VA)
r Operator friendly display for optimal
readability/configuration
r Over voltage protection (RJ11/RJ45)
for ISDN, Fax, modem and network
Protect B. operator panel
LEDs for
fault diagnosis
r Expansion slot for extension cards
SNMP/potential free contacts (from
1500 VA)
Battery capacity UPS capacity utilisation
Mains operation
Battery operation
Operating mode
UPS On/Off button
UPS test switch
Configuration
Confirmation button
r Free 36 months warranty on UPS and
battery with advanced replacement
service (registration required)
Rated output voltage
Protect B.1500 /#r3FBSWJFX
space for AC output
distribution box
AC output
communication
slot
EPO
USB port
RS232
Surge protection
RJ11/RJ45 for
fax, modem, network
SNMP Slot
Height = 2 U
AC Input
EPO
AC input
Protect B. Tower
750 VA
Standard autonomy time
1 additional BatteryPack
2 additional BatteryPacks
3 additional BatteryPacks
4 additional BatteryPacks
5 additional BatteryPacks
1SPUFDU#r3FBSWJFX
5 /15
-
RS232
External battery connector
autonomy time (full-/halfload) [in min.]
1000 VA 1500 VA
2000 VA 3000 VA
5 /15
-
no integrated battery
5/15
5/14
15/45
15/35
30/80
27/65
50/110
40/85
65/150
50/110
5/14
24/55
45/90
55/140
75/180
-
USB
Port
External
Battery
Connector
Protect B. Rack
Standard autonomy time
1 additional 19” battery insert
2 additional 19” battery insert
3 additional 19” battery insert
4 additional 19” battery insert
AC Output
Modem/Network
Surge Protection
Output Breaker
autonomy time (full-/halfload) [in min.]
750 VA 1000 VA 1500 VA 2000 VA 3000 VA
5 /15
-
5 /15
-
5 /15
30/80
65/150
-
5/14
27/65
50/110
-
5/14
24/55
45/90
55/140
75/180
Protect B.
output for server and network components.
Classification VI SS 211 acc. to IEC 62040-3
Type power
Part number (BatteryPack)
B. 750
B. 1000
B. 1500*
B. 2000*
B. 3000*
750 VA
500 W
600 000 3916
1000 VA
700 W
600 000 3917
1500 VA
1050 W
600 000 3918
600 000 4095
2000 VA
1340 W
600 000 3919
600 000 3921
3000 VA
2100 W
600 000 3920
600 000 4921
UPS INPUT
Input voltage
Input voltage range without battery mode
Frequency (auto selection)
Current consumption (max.)
220 Vac/230 Vac/240 Vac
161/184–276 Vac (adjustable)
50 Hz/60 Hz ± 5 Hz (> 40 Hz generator operation)
8A
10 A
10 A
5A
16 A
UPS OUTPUT
Rated output voltage/AVR-technology
Rated output voltage in battery mode
Frequency in battery mode
Output current (at 230 Vac)
Transfer time at mains outage
Voltage waveform
Overload response at mains operation
Overheat and short-circuit protection
220 Vac/230 Vac/240 Vac
±5%
50 Hz/60 Hz ± 0,1 Hz
4.3 A
6.5 A
8.7 A
2–4 ms (typical), 6 ms max.
sinusoidal
110 % for 3 Min./150 % for 200 ms
yes
yes
yes
3.2 A
yes
13.0 A
yes
BATTERY
Type
Rated voltage
Autonomy time at rated load
Overload/deep discharge protection
Recharge time (to 90 % of rated capacity)
24 Vdc
5 min.
yes
3h
sealed, maintenance free; hot swappable (from 1500 VA)
48 Vdc
96 Vdc
5 min.
5 min.
5 min.
5 min.
Runtime extension with scalable ext. battery packs
yes
yes
yes
yes
3h
3h
3h
3h
COMMUNICATION
Interfaces
Shutdown software (on CD)
Failure indicators (acoustical/optical)
USB and RS232 for status and measurement levels, Slot for enhanced communications
(pot.-free contacts / SNMP), EPO port for emergency power off
Configuration panel for voltage preselection and setting of operating mode
Included for all typical operating systems (e.g. Windows, Linux, Mac),
single licence CompuWatch with a 5 fold network licence
Separate LED bar graphs for UPS load and battery capacity,
indicators for mains failure, overload, battery discharge, battery replace, failure
GENERAL DATA
Audible noise (1 m distance)
Operating temperature range
EMC conformity
Product safety
Data lines protection
Humidity
Installation height
Number of outlets
Equipment colour
Size approx. W x H x D (mm) UPS unit
Size approx. W x H x D (mm) battery unit
Weight approx. (kg) UPS unit
Weight approx. (kg) battery unit
Shipment
Certification
* only available until Q1 2011
< 45 dB (A)
0°–35° C
EN 50091-2 Class A, EN 61000-3-2, EN 61000-3-3
EN 62040-1-1
RJ11 (Phone, Fax, Modem) / RJ45 (Ethernet 10 Mbit/s / 100 Mbit/s)
0–90 % (non condensing)
up to 1000 m, at nominal load
4 x IEC 320 C13
6 x IEC 320 C13
8 x IEC 320 C13
removable module
1 x IEC 320 C19
Blackline
235 x 88 x 383
217 x 88 x 414
438 x 88 x 582
217 x 88 x 414
438 x 88 x 582
8.5 kg
9.5 kg
6.5 kg
31.5 kg
12 kg
40.5 kg
Mains-cord, 2 load-cords IEC 320-10A, USB and RS232 communication cable,
management software “CompuWatch“ (CD), user-manual
CE
23
24
Protect B. PRO
Reliability
Protect B. PRO: Efficient protection with innovative
High level flexibility,
intelligent functions
r Modern VI (line-interactive) protection
technology with sine wave output
voltage
r Lower operating costs by higher
efficiency (0.9lag power factor)
r compact construction and variable use
due to combination design tower/rack,
display rotateable
r robust design: overload capability and
short circuit protection
VI
r overvoltage protection (RJ11/RJ45) for
phone, fax, modem and network
r configuration directly via multilanguage display
LED operation display
r comprehensive display with most
important UPS values
Load
Status display
r intelligent monitoring with USB- and
RS232 interfaces; parallel mode with
expansion slot possible
UPS figures
Operating mode
Battery status
r Free 36 months warranty on UPS and
battery with advanced replacement
service (registration required)
Control buttons
1SPUFDU#130r%JTQMBZ& control terminal
RS232 & USB
communication interfaces
Network connection
Mains input
Expansion slot
EPO
fan
8 x IEC320 C13 outlets,
4 of them controllable
1SPUFDU#130r3FBSWJFX
easy battery exchange by foldable front design:
SPUBUBCMFEJTQMBZrEFWJDFTUBOET
Protect B. PRO
features for server and networks.
Classification VI SS 211 acc. to IEC 62040-3
B. 750 PRO
B. 1000 PRO B. 1400 PRO B. 1800 PRO B. 2300 PRO B. 3000 PRO
Type power
750 VA
675 W
1000 VA
900 W
1400 VA
1260 W
Part number
600 000 8422
600 000 8424
600 000 8426
1800 VA
1620 W
600 000 8428
600 000 8429 (BP)
2300 VA
2070 W
3000 VA
2700 W
600 000 8431
600 000 8432
11 A
14.5 A
UPS INPUT
Input voltage
Input voltage range without battery mode
Frequency (auto selection)
Current consumption (max.)
3.6 A
220 Vac / 230 Vac / 240 Vac
182 Vac to 280 Vac
50 Hz / 60 Hz ± 5Hz
6.7 A
9.8 A
4.8 A
UPS OUTPUT
Rated output voltage/AVR-technology
Frequency in battery mode
Output current (on 230Vac)
Transfer time at mains outage
Voltage waveform
Overload response (VI operation)
Overload response (battery operation)
3.2 A
220 Vac / 230 Vac (Voreinstellung) / 240 Vac ± 10% (± 3% free running)
50 Hz / 60 Hz ± 1Hz
4.3 A
6.1 A
7.8 A
10 A
2-6 ms (typical), 8 ms max.
sinusoidal
< 120% for 5min. / 120-150% for 10s / >150% for 1s
< 110% for 1min. / 110-150% for 10s / 150-200% for 500ms
13 A
BATTERY
Type
integrated
Rated voltage
yes
24 Vdc
yes
yes
72 Vdc
temperature compensated with overload and deep discharge protection;
automatic battery test; batterypack detection
Battery management
Autonomy time in min. (full/half load, cos phi=0.9lag.)
sealed, maintenance free, hot swappable
yes
no (external)
48 Vdc
yes
4,5 / 10,5
3,5 / 9,5
10 / 28 (1xBP)
26 / 62 (2xBP)
44 / 100 (3xBP)
5,5 / 13,5
Charging time (to 90% of rated capacity)
4 / 14
4 / 11
6h
COMMUNICATION
User interface
Interface
Shutdown software (on CD)
Failure indicators (acoustical/optical)
LCD display with digital indication of UPS relevant values
RS232 & USB (with status notfication and UPS figures), additional communication slot in parallel mode
(SNMP/relay card); input contact for emergency power off
5 network licenses for all common OS (e.g. Windows, Linux, Mac)
3 LED indicators show UPS status, detailed indication via LCD display (mains failure, overload,
battery discharge, battery replace, fan failure)
GENERAL DATA
Efficiency (in ECO mode)
(at whole AVR range)
Audible noise at 1 m distance (max.)
Ditto at ECO mode and max. 70% load
Operating temperature range
Storage temperature range
EMC conformity
Product safety
Data lines protection
Humidity
Installation height / transportation
Mains input
Number of outlets / of them controllable
via connectors
Equipment colour
Size approx. W x H x D [mm]
Net weight approx. [kg]
Shipment
Certification
> 97%
> 90 %
≤ 45 dB (A)
≤ 40 dB (A)
≤ 55 dB(A)
≤ 45 dB(A)
0° bis +40°C
-20° bis +50°C
EN 62040-2 Class C1, EN 61000-3-2, EN 61000-3-3
EN 62040-1
RJ11 (Phone, Fax, Modem) / RJ45 (Ethernet 10 Mbit/s / 100 Mbit/s)
0 - 90% (non condensing)
operation up to 1000m at full load / air freight up to 10600 m
IEC 320 C14
IEC 320 C20
8/4
7/3
8 x IEC320 C13
6 x IEC320 C13
1 x IEC320 C19
black metal case / silver front
440 (19“) x 88 (2 U) x 420
440 (19“) x 88 (2 U) x 520
440 (19“) x 88 (2 U)x 640
14,6
15,1
21,8
14,4 / 29,5 (BP)
29
29,5
mains input cord (1 x EU, 1 x UK)
CE
25
26
Protect C.
Reliability
Protect C: High performance UPS-system for IT and el
Reliable technology
for your safety
r VFI-topology (double-conversion): Protects against
all mains power disturbances
r Microprocessor control/DSP guarantees highest
availability
r Sine wave shaped current consumption (High
frequency PWM with IGBTs)
r Automatic bypass, additional integrated service
bypass at 6 and 10 kVA (tower)
VFI
r Redundancy due to n+x configuration at 6 and
10 kVA; increase in power output/safety and
availability
r Expansion slot for extension cards SNMP/relaycard/USB/potential free contacts
r Free 36 months warranty on UPS and battery
with advanced replacement service
(registration required)
fan
RS232 communication interface
expansion slot
for communication cards
Parallel operations
port for parallel operation
Protect C. 6000 and C. 10000 are also able to be
switched parallel. Demand for greater availability by
providing an active redundancy as well as a need for
increased output power is met here. The combined
power increase in connection with active redundancy
can be achieved by the parallel switch having the
ability to connect a maximum of 3 devices. The key
factors are meeting the highest requirements for safety
and availability as well as maintaining a cost efficient
implementation.
external battery connector
input fuse
manual bypass switch
mains input & outlets
via connection terminal
Protect C. 10 kVA Rear view
1SPUFDU$r"VUPOPNZUJNFT
Protect C.
autonomy time (full-/halfload) [in min.]
1000 VA 2000 VA 3000 VA 6000 VA 10000 VA
Standard autonomy time
1 additional BatteryPack
2 additional BatteryPacks
3 additional BatteryPacks
4 additional BatteryPacks
6/20
38/97
76/170
-
10/30
55/130
106/237
-
5/16
30/85
60/149
-
8/26
26/67
47/112
60/157
94/203
5/16
16/42
27/60
42/97
53/118
Protect C.
ectronic data processing in medium-sized companies.
Classification VFI SS 211 acc. to IEC 62040-3
Classification VFI SS 111 acc. to IEC 62040-3
Type rating
Part number (Tower)
Part number (BatteryPack)
Part number (Tower S-Version)
C. 1000
C. 2000
C. 3000
1000 VA
700 W
2000 VA
1400 W
3000 VA
2100 W
600 000 5735
600 000 5739
600 000 4337
600 000 5736
600 000 5740
600 000 4338
600 000 5738
600 000 5740
600 000 4339
C. 6000
C. 10000
6000 VA
10000 VA
4200 W
7000 W
can be operated in parallel mode
600 000 5877
600 000 5878
600 000 5879
600 000 5880
600 000 4340
600 000 4341
UPS INPUT
Input voltage
Input voltage range without battery mode
Frequency
Power factor
Current consumption (max.)
220 Vac/230 Vac/240 Vac
160–300 Vac
176–276 Vac
50 Hz/60 Hz ± 4 Hz
7A
λ ≥ 0.96
10 A
λ ≥ 0.98
16 A
31 A
50 A
UPS OUTPUT
Rated output voltage
Frequency in battery mode
Output current (at 230 Vac)
Transfer time at mains outage
Voltage waveform
Overload response (online mode)
4.3 A
Crest factor
Short-circuit response
220 Vac/230 Vac/240 Vac ± 2 %
220 Vac/230 Vac/240 Vac ± 1 %
50 Hz/60 Hz ± 0.2 %
50 Hz/60 Hz ± 0.1 %
8.7 A
13 A
26 A
43.4 A
0 ms (zero transfer)
sinusoidal, THD < 4 %
140 % 30 s/150 % 300 ms
130 % 10 min/>130 % 1 s
subsequent, transfer to bypass mode
3:1
short-circuit-proof
BATTERY
Type
Rated voltage
Overload/deep discharge protection
Recharge time (to 90 % of rated capacity)
36 Vdc
yes
5h
yes
5h
sealed, maintenance free
96 Vdc
yes
5h
240 Vdc
yes
7h
yes
7h
COMMUNICATION
Interfaces
Shutdown software (on CD)
RS232 for UPS configuration, status and measurement levels, SNMP, AS 400, USB optional
Included for all typical operating systems (e.g. Windows, Mac, Linux, Unix, Sun, etc),
single licence CompuWatch with a 5 fold network licence
LED bar graph for UPS load and battery capacity,indicators for mains failure, overload,
battery discharge, battery replace, failure
Failure indicators (acoustical/optical)
GENERAL DATA
Efficiency total
Audible noise (1 m distance)
Operating temperature range
EMC conformity
Product safety
Data lines protection
Humidity
Installation height
Number of outlets
Equipment colour
Size approx. W x H x d (mm)
Weight approx.
Shipment
Certification
≥ 85 %
< 45 dB (A)
Tower
Tower
Battery
Tower
Battery
≥ 88 %
> 90 %
< 50 dB (A)
< 55 dB (A)
0°–40° C
EN 62040-2 Class C2, EN 61000-3-2, EN 61000-3-3
EN 50091-2
EN-62040-1
RJ11 (Phone, Fax, Modem) / RJ45 (Ethernet 10 Mbit/s / 100 Mbit/s)
0–90 % (non condensing)
up to 1000 m, at nominal load
4 x IEC 320 C13
6 x IEC 320 C13
4 x IEC 320 C13
Terminal block
+ 1 x IEC 320 C19
Blackline
145 x 220 x 400
192 x 340 x 460
260 x 717 x 570
integrated (not at S-version, same dimensions as tower)
15 kg
34 kg
35 kg
90 kg
19 kg
49 kg
49 kg
86 kg
Mains-Cord, 3 load-cords (type C.1000, C.2000, C.3000), communication cable,
management software “CompuWatch”, user-manual
CE
93 kg
89kg
27
28
Protect C. Rack
Reliability
Protect C. Rack: High performance UPS-system for IT
Due to true online/double-conversion technology
Protect C. is well suited for mission-critical applications such as sensitive networks, small computer
centers, Intranet and Internet servers, telecom
applications as well as for industrial applications.
The Protect C. employs VFI topology to protect
loads against all public grid disturbances. On the
input side sine wave shape current consumption
is achieved for all load conditions. High integrated
circuits reduce the number of electric connections
and components as well as a robust IGBT module, the result: less and more robust components
increasing reliability. An automatic bypass provides
security during overload.
VFI
Reliable technology
for your safety
r VFI-topology (double-conversion): Protects against all
mains power disturbances
Extension
slot
4 x IEC320 C13
UPS outputs
RS232 communication
interface
r Microprocessor control/DSP guarantees highest
availability
r Sine wave shaped current consumption (High frequency
PWM with IGBTs)
r Automatic bypass, additional integrated service bypass at
6 and 10 kVA (tower)
r Redundancy due to n+x configuration at 6 and 10 kVA;
increase in power output/safety and availability
r Expansion slot for extension cards SNMP/relay-card/USB/
potential free contacts
Surge protection for
networks
r Free 36 months warranty on UPS and battery with
advanced replacement service (registration required)
External battery
connector
Protect C.2000R & C.2030R BPr3FBSWJFX
1SPUFDU$3BDLr"VUPOPNZUJNFT
Protect C. Rack
Standard autonomy time
1 additional BatteryPack
2 additional BatteryPacks
3 additional BatteryPacks
4 additional BatteryPacks
5 additional BatteryPacks
autonomy time (full-/halfload) [in min.]
1000 VA 2000 VA 3000 VA 6000 VA
6/20
38/97
10/30
76/170 30/85
55/130
83/180
106/237
5/16
17/49
30/85
48/114
60/149
8/26
26/67
47/112
67/157
94/203
Protect C. Rack
29
and electronic data processing in medium-sized companies.
Classification VFI SS 211 acc. to IEC 62040-3
Classification VFI SS 111 acc. to IEC 62040-3
Type rating
Part number (Rack)
Part number (BatteryPack)
Part number (Rack S-Version)
C. 1000 R
C. 2000 R
C. 3000 R
1000 VA
700 W
600 000 3846
600 000 3851
600 000 4342
2000 VA
1400 W
600 000 3847
600 000 3852
600 000 4343
3000 VA
2100 W
600 000 3848
600 000 3852
600 000 4344
C. 6000 R
6000 VA
4200 W
600 000 3850
600 000 3927
UPS INPUT
Input voltage
Input voltage range without battery mode
Frequency
Power factor
Current consumption (max.)
220 Vac/230 Vac/240 Vac
160–300 Vac
176–276 Vac
50 Hz/60 Hz ± 4 Hz
λ ≥ 0.96
10 A
7A
16 A
λ ≥ 0.98
31 A
UPS OUTPUT
Rated output voltage
Frequency in battery mode
Output current (at 230 Vac)
Transfer time at mains outage
Voltage waveform
Overload response (online mode)
4,3 A
Crest factor
Short-circuit response
220 Vac/230 Vac/240 Vac ± 2 %
220 Vac/230 Vac/240 Vac ± 1 %
50 Hz/60 Hz ± 0.2 %
50 Hz/60 Hz ± 0.1 %
8,7 A
13 A
26 A
0 ms (zero transfer)
sinusoidal, THD < 4 %
140 % 30 s/150 % 300 ms
130 % 10 min/>130 % 1 s
subsequent, transfer to bypass mode
3:1
short-circuit-proof
BATTERY
Type
Rated voltage
Overload/deep discharge protection
Recharge time (to 90 % of rated capacity)
36 Vdc
yes
5h
yes
5h
sealed, maintenance free
96 Vdc
yes
5h
240 Vdc
yes
7h
COMMUNICATION
Interfaces
Shutdown software (on CD)
RS232 for UPS configuration, status and measurement levels, SNMP, AS 400, USB optional
Included for all typical operating systems (e.g. Windows, Mac, Linux, Unix, Sun, etc),
single licence CompuWatch with a 5 fold network licence
LED bar graph for UPS load and battery capacity,indicators for mains failure, overload,
battery discharge, battery replace, failure
Failure indicators (acoustical/optical)
GENERAL DATA
Efficiency total
Audible noise (1 m distance)
Operating temperature range
EMC conformity
Product safety
Data lines protection
Humidity
Installation height
Number of outlets
Equipment colour
Size approx. W x H x D (mm)
Weight approx.
Shipment
Certification
≥ 85 %
< 45 dB (A)
Rack
Rack
Battery
Rack
Battery
≥ 88 %
> 90 %
< 50 dB (A)
< 55 dB (A)
0°–40° C
EN 62040-2 Class C2, EN 61000-3-2, EN 61000-3-3
EN 50091-2
EN-62040-1
RJ11 (Phone, Fax, Modem) / RJ45 (Ethernet 10 Mbit/s / 100 Mbit/s)
0–90 % (non condensing)
up to 1000 m, at nominal load
4 x IEC 320 C13
1 x IEC 320 C13
Permanent connection
+ 1 x IEC 320 C19
+ 4 x IEC 320 C13
Blackline
482.6 x 88 x 450
82.6 x 88 x 450
482.6 x 132 x 600
integrated
482.6 x 88 x 450
482.6 x 132 x 600
16.5 kg
10 kg
11 kg
18 kg
29 kg
29 kg
64 kg
Mains-Cord, 3 load-cords (type C.1000, C.2000, C.3000), communication cable,
management software “CompuWatch”, user-manual
CE
30
Protect D.
Reliability
Protect D: Efficient high-performance UPS ideal
Valuable features and
easy control
r VFI topology (online double-conversion): protects
against all mains power disturbances
r 20% higher available power by 0.9 lagging power
factor
r Increase of efficiency through ECO and ECO+ mode
r Improved battery charging technology for optimal
battery lifetime
r Hot-swappable batteries, easy exchange via flipover cover
VFI
r Additional Battery Packs for individual scaling of
autonomy times
r Expansion slot for communication cards, parallel
operation via RS232/USB and SNMP
r Maximize your rack space as the UPS is only 2U
including integrated batteries
r Controllable UPS outlets with innovative lock
mechanism, prevents accidental disconnection of
connected cables
Fan
EPO
4 x IEC320 C13 outputs
mains input
USB & RS232
communication interfaces
r Graphical display shows UPS parameters, easy
configuration of settings via control panel
r Data logger synchronized to real time clock
r Programmable potential-free contact & EPO
switch
r Frequency converter mode
2 x 2 controllable
IEC320 C13 outlets
potential-free
contact
expansion slot for
communication cards
r Free 36 months warranty on UPS and battery
with advanced replacement service (registration
required)
Protect D.
(cos ϕ = 0.9 lagging)
autonomy time (full-/halfload) [in min.]
1000 VA 1500 VA 2000 VA 3000 VA
Standard autonomy time
1 additional BatteryPack
2 additional BatteryPacks
3 additional BatteryPacks
4 additional BatteryPacks
6/16
31/68
51/110
82/192
100/246
Display of UPS input
Display of current UPS mode
Display of UPS output
Indicator
UPS mode
5,5/14
25/61
46/112
69/172
90/221
6/16,5
33/71
59/129
88/183
119/260
3,5/9
18/45
34/84
53/122
69/165
FYUFOTJPOTMPUrMPDLBCMFPVUMFUTrFBTZCBUUFSZFYDIBOHF
Control panel
Protect D.
for rack usage.
Classification VFI SS 211 acc. to IEC 62040-3
Type rating
Part number (UPS)
Part number (BatteryPack)
D. 1000
D. 1500
1000 VA
900 W
600 000 8434
600 000 8441
1500 VA
1350 W
600 000 8436
600 000 8442
D. 2000
D. 3000
2000 VA
3000 VA
1800 W
2700 W
600 000 8437
600 000 8438
600 000 8443
UPS INPUT
Nominal input voltage
Voltage range w/o battery operation (load-dependent)
Frequency (automatic detection)
Mains current (system disturbance factor)
Current consumption at full load (max.)
160–276 Vac
5A
200 Vac/230 Vac/240 Vac
180–276 Vac
50 Hz/60 Hz ± 10%
λ ≥ 0.99 (THDi ≤ 8%)
7.5 A
10 A
14 A
UPS OUTPUT
208 Vac / 220 Vac / 230 Vac (default) / 240 Vac ± 2 %
50 Hz/60 Hz ± 0.25 Hz
4.3 A
6.5 A
8.7 A
0 ms (without interruption)
sinusoidal, distortion THD < 3 %
< 130% for 5 min. / 130% - 150% for 15 s
< 130% for 12 s / 130% - 150% for 2 s
3:1
short-circuit-proof ( 4 x In for 100ms)
Rated output voltage (adjustable)
Frequency in battery/converter mode
Nominal output current (at 230 Vac)
Changeover time at mains failure
Voltage curve shape
Overload ability (double-conversion mode)
Overload ability (battery mode)
Crest factor
Short circuit ability
13 A
BATTERY
Type
Nominal DC voltage (intermediate circuit)
Battery management
Charging time (to 90 % of rated capacity)
sealed, maintenance-free, lead acid, integrated, hot-swappable
36 Vdc
48 Vdc
72 Vdc
temperature compensated with discharge protection, autom. battery test & battery pack detection
3h
COMMUNICATION
Interfaces
RS232, USB, communication slot (can be used parallel to RS232/USB),
terminals for EPO and a potential-free contact
five network licences included (Windows, Linux, Mac, Unix, Sun etc.)
3 LEDs arranged for quick operational status check, detailled indication via LCD display,
(alarms at mains failure, overload, battery discharged, replace battery, fan fault, RTC event logger)
Shutdown software (on CD)
Alarms (acoustical/optical)
GENERAL DATA
Efficiency at full load (ECO+ mode)
Efficiency at full load (double-conversion mode)
Operating temperature range
Inherent noise (1 m distance/full load)
Humidity
EMC conformity
Product safety
Max. site altitude
Load outputs
Casing Material
Dimensions W x H x D (mm)
Weight approx.
Delivery scope
Conformity
≥ 95 %
> 88 %
Rack
Rack
Battery
Rack
Battery
≥ 98 %
> 89 %
0° to 40° C
> 90 %
< 45 dB (A)
< 52 dB (A)
< 95% (without condensation)
EN 62040-2 Class C1, EN 61000-3-2, EN 61000-3-3
EN 62040-1
up to 3000 m at full load
8 x IEC 320 C13 (2+2)
6 x IEC 320 C13 (3+3)
6 x IEC320 C13 (2+2)
+ 1 x IEC 320 C19
Metal case with Aluminium front
482.6 (19") x 88 (2U) x 430
482.6 (19") x 88 (2U) x 600
482.6 (19") x 88 (2U) x 430
482.6 (19") x 88 (2U) x 600
16 kg
19.5 kg
29 kg
29.5 kg
23 kg
28 kg
41 kg
41 kg
mains input cable (1 x EU, 1 x UK), UPS management software „CompuWatch” (CD),
communication cables (RS232 & USB), operating and safety instructions
device connection cables 3 x IEC320 C13 (D.1000-D.2000), 3x IEC320 C13 + 1 x IEC320 C19 (D.3000)
CE
31
32
Protect 1.
Reliability
Protect 1: Online UPS systems for networks and
r True online UPS including static bypass
(double-conversion VFI-technology)
r Power range 10,15, 20 kVA, space-saving
design n + x technology (DSP controlled)
to increase output power and/or for
redundancy
r State-of-the-art: High reliability and
efficiency by digital signal processing
(DSP), CAN bus system, and high frequency
IGBT technology.
r Uses battery systems with up to ten years
battery service life, according to EUROBAT
VFI
r Communication via RS232, expansion slot
for e.g. relaycard and SNMP
r 24 months warranty with pre-exchange
service
r Free 36 months warranty on UPS and
battery with advanced replacement service
(registration required)
expansion slot for
communication cards
fans
LV-Distribution
UPS-Input
parallel port
RS232 communication port
input fuse
manual bypass switch
connection terminal cover
Parallel Panel/Manual Bypass
plus UPS-Distribution
Protect 1. in parallel operation
AUTONOMY TIME – BATTERY PACKS GENERALLY IN Protect 1. DESIGN
Coupled
battery cabinets
1 x Protect 1.100 BP
2 x Protect 1.100 BP
3 x Protect 1.100 BP
1 x Protect 1. BP 20
2 x Protect 1. BP 20
3 x Protect 1. BP 20
4 x Protect 1. BP 20
5 x Protect 1. BP 20
Autonomy time (full load/half load) [min.]
Protect 1.100
Protect 1.150
Protect 1.200
16/42
42/97
60/134
19/47
47/103
78/177
103/243
138/312
10/29
29/68
47/103
68/153
85/202
6/19
19/47
34/62
47/103
63/138
}
“Plug & play” connection via a
battery connection cable which is
protected against polarity reversal
}
Ready-for-connection battery
cabinets, preassembled
Service life of the integrated
batteries: 10-12 years according
to EUROBAT
Rear view Protect 1.200
Protect 1.
computer centers 10-20 kVA.
Classification VFI SS 111 acc. to IEC 62040-3
Type power
Part number (Tower)
Protect 1.100
Protect 1.150
Protect 1.200
n + x technology scalable (parallel operation of up to 3 units)
10 kVA
15 kVA
20 kVA
7 kW
10.5 kW
14 kW
600 000 4434
600 000 4435
600 000 4436
UPS INPUT
Rated connected voltage
Votlage range without battery mode
Frequency (auto selection)
Powerfactor
Current consumption maximum
13 A/46 A (Bypass)
400/230 Vac (3/N/PE~)
304–478 Vac (Bypass: 176–261 Vac)
50 Hz/60 Hz ± 4 Hz
λ > 0.95
19 A/68 A (Bypass)
25 A/91 A (Bypass)
UPS OUTPUT
Rated AC voltage (single-phase)
Frequency in battery mode
Output current (at 230 Vac)
Transfer time at mains failure
Voltage wave form
Overload response
43.4 A
Crest factor for non-linear load
Short Circuit Reaction
220 Vac/230 Vac/240 Vac ± 1 %
50 Hz/60 Hz ± 0.1 % (slew rate 1 Hz/s)
65.2 A
0 ms (zero transfer)
sinusoidal, THD < 2 %
130 % for 10 min/> 130 % for 1 s
automatic transfer to bypass mode (zero transfer)
3:1
short circuit proof
86.9 A
BATTERY
Rated voltage
Load characteristic
Autonomy time
Overload/deep discharge protection
240 Vdc
IU-characteristic curve (charging voltage 274 Vdc/charging current max. 4.2 Adc)
Runtime extension with scalable external battery packs
yes
COMMUNICATION
Interface
Shutdown software (on CD)
Alarms (audible/optical)
RS232 with status message and measured values
Communication-Slot (potential-free contacts, USB, SNMP)
Included for common Operating Systems (Windows, Linux, Mac)
single licence CompuWatch with a 5 fold network licence
LED bar graph showing UPS load, battery capacity,
Indicators for mains failure, overload, battery low, battery replacement, fault
GENERAL DATA
Efficiency total AC-AC (at full load)
Noise level (1 m distance)
Operating temperature
Installation height
EMC conformity
Product safety
Humidity
Equipment colour
Size approx. W x H x D (mm) UPS unit
Size approx. W x H x D (mm) battery unit
> 90 %
≤ 55 dB (A)
≤ 60 dB (A)
0°–40° C
up to 1000 m above sea level, at nominal load
EN 62040-2 Class C3
EN 62040-1-1
0–95 % (non condensing)
Blackline
260 x 720 x 670
260 x 720 x 570
(Protect 1.100 BP)
260 x 720 x 795
(Protect 1. BP 20)
Weight approx. (kg) UPS unit
Weight approx. (kg) battery unit
Shipment
Certification
39 kg
135 kg
(Protect 1.100 BP)
55 kg
170 kg (Protect 1. BP 20)
Parallel operation cable, communication cable, management software
“CompuWatch“ (CD), user-manual
CE
33
16
34
Protect 1.M
Reliability
Protect 1.M: Modular high performance UPS system
r High power reserves max. 24 kVA total
output
r High safety reserves n+x technology
r Integrated static bypass switch
r 3 phase or 1 phase connection of the
complete system; 1 phase output
r High autonomy time during power failure
r Manufacturer independent standard
batteries
r Intelligent battery management
r Hot-swappable - easy to exchange modules
VFI
r Module design in slide-in type in the
compact tower
r Communication module with LCD display,
Dual monitoring interface with extension
slot
„Dual-Monitoring“-Interface
r Software “CompuWatch“ on CD
Expansions-Slot
RS485
RS485
RS232
RS485
Advantages
of n + x technology
r higher reliability
r easy to increase overall capacity
r modules hot-swapable
(without any interruption)
Expansion slot for
r relaycard with potential-free contacts
r SNMP and SNMPpro cards with connector
for remote control and sensors
Rear view
Front view
OYUFDIOPMPHZr3FEVOEBODZMFWFM
QUANTITY OF UPS MODULES
Load
4 kVA
1 module 2 modules 3 modules
no
n+1
n+2
redundancy (4 kVA)
(8 kVA)
8 kVA
no
n+1
redundancy (4 kVA)
12 kVA
no
redundancy
16 kVA
4 modules
n+3
(12 kVA)
n+2
(8 kVA)
n+1
(4 kVA)
no
redundancy
20 kVA
5 modules
n+4
(16 kVA)
n+3
(12 kVA)
n+2
(8 kVA)
n+1
(4 kVA)
no
redundancy
24 kVA
6 modules
n+5
(20 kVA)
n+4
(16 kVA)
n+3
(12 kVA)
n+2
(8 kVA)
n+1
(4 kVA)
no
redundancy
ALLOCATION OF THE BATTERY CABINETS AVAILABLE EX STOCK - IN PROTECT 1.M CONFIGURATION
4 kVA
8 kVA
15 min.
–––
1 x 1.M BP28
20 min.
–––
–––
30 min.
–––
1 x 1.M BP42
40 min.
1 x 1.M BP28
1 x 1.M BP56
60 min.
1 x 1.M BP42
1 x 1.M BP84
75 min.
–––
2 x 1.M BP65
12 kVA
16 kVA
1 x 1.M BP42
1 x 1.M BP56
1 x 1.M BP65
–––
–––
1 x 1.M BP84
2 x 1.M BP65
2 x 1.M BP84
–––
3 x 1.M BP65
20 kVA
–––
1 x 1.M BP84
5 x 1.M BP65
1x 1.M BP84
2 x 1.M BP65
2 x 1.M BP84
1 x 1.M BP42
4 x 1.M BP65
4 x 1.M BP65
24 kVA
1 x 1.M BP84
1 x 1.M BP42
1 x 1.M BP84
1 x 1.M BP42
1 x 1.M BP84
1 x 1.M BP84
1 x 1.M BP42
3 x 1.M BP65
90 min.
1 x 1.M BP56
1 x 1.M BP84
1 x 1.M BP42
3 x 1.M BP65
4 x 1.M BP65
5 x 1.M BP65
6 x 1.M BP65
Other designs are available on request.
2 x 1.M BP84
Protect 1.M
for IT environments.
Classification VFI SS 111 acc. to IEC 62040-3
Protect 1.040
Type power
UPS module
4 kVA
2.8 kW
Part number
600 000 3928
Protect 1.M
System unit with max. 6 x 4 kVA
24 kVA
16.8 kW
n+x-scalable technology
600 000 3930
UPS INPUT
Input voltage (auto. detection)
Input voltage range without battery mode
Frequency
Current consumption (max.)
Power factor
230 Vac (1/N/PE~) or 400/230 Vac (3/N/PE~)
160–300 Vac (1 ph~) or 277–520 Vac (3 ph~)
50 Hz/60 Hz ± 4 Hz
22 A (1 ph~) bzw. 7.3 A (3 ph~)
132 A (1 ph~) bzw. 44 A (3 ph~)
λ ≥ 0.98
UPS OUTPUT
Rated output voltage
Frequency in battery mode
Output current
Transfer time at mains outage
Voltage waveform
Overload response (online mode)
Crest factor
220 Vac/230 Vac/240 Vac ± 2 %
50 Hz/60 Hz ± 0.2 Hz
17.4 A
104.4 A
0 ms (zero transfer)
sinusoidal, THD < 3 %
125 % for 30 s/130 % for 2 s
subsequent, transfer to bypass mode (zero transfer)
3:1
BATTERY
Nominal voltage
Load characteristic
Autonomy time
Overload/deep discharge protection
120 Vdc
IU-characteristic curve (charging voltage 137 Vdc/charging current max. 3.5 Adc)
free to choose runtime extension with scalable external battery pack
(available modules with 28, 42 or 65 Ah),
service life: 10-12 years (EUROBAT)
yes
COMMUNICATION
Interfaces (dual monitoring)
Shutdown software (on CD)
Failure indicators (acoustic/visual display)
RS232/RS485 for status and measurement levels,
communication slot (for volt free contacts/SNMP)
Included for all typical operating systems
(e.g. Windows, Mac, Linux, Unix, FreeBSD, Novell, Sun, etc.),
single licence CompuWatch with a 5 fold network licence
LCD with digital information of input and output parameters
(voltage, frequency, power etc.), battery parameter incl. failure diagnosis by password
protected level, LED for status and main failures
GENERAL DATA
Efficiency
Audible noise (1 m distance)
Operating temperature range
EMC conformity
Product safety
Humidity
Installation height
Equipment colour
Size approx. W x H x D (mm) UPS unit
Size approx. W x H x D (mm) battery unit
Weight approx. (kg) UPS unit
Weight approx. (kg) battery unit
Shipment
Certification
> 89 %
< 55 dB (A)
> 88 %
< 62 dB (A)
0°–40°C
EN 62040-2 Class C2
EN 62040-1-1
20 %–90 %
up to 1500 m, at nominal load
Black
442 x 965 x 700 (chassis)/module: 405 x 87 x 530
442 x 965 x 700
75 kg (chassis) + 15 kg each module
MBP 28: 160 kg, MBP 42: 200 kg, MBP 56: 255 kg, MBP 65: 270 kg,
MBP 84: 335 kg
Parallel operation cable, communication cable, management software “CompuWatch“ (CD), user-manual
CE
35
36
Combination Architecture
Next-generation UPS for a new world
Combination Architecture
Ever-tightening controls on carbon emissions. The need for
ever greater computing capacity. And the challenge of
controlling power costs. Always at the forefront of power
innovation, AEG Power Solutions is first to recognise the
growing pressure on data centres to control power
consumption and increase energy efficiency. And with UPS
systems accounting for a substantial part of energy used by
today’s facilities, we understand that optimising efficiency is
a critical step forward in rising to meet these challenges.
Architecture© systems will deliver what you need most –
a way to drive down infrastructure operating costs, boost
computing capacity and reduce carbon footprint to help
make our world greener and cleaner.
That’s why we’re developing Combination Architecture© – a
range of next-generation UPS systems capable of harnessing
renewable and alternative energy sources and storage. By
using lower carbon alternatives, our unique Combination
r Fuel cells
r SuperCaps© (ultracapacitors)
r Solar cell and wind power energy
AEG Power Solutions’ Combination Architecture© includes
innovative standby and power protection systems that can
utilise low-impact, cost-efficient technologies as secondary
sources of power, including:
SuperCaps
The SuperCaps© Advantage
Combination Architecture© from AEG Power Solutions brings
you the SuperCaps© advantage to deliver a highly effective
energy storage solution for data centres and mission critical
power applications. SuperCaps© (or ultracapacitors) provide
an environmentally effective option for businesses that are
concerned with reducing energy consumption, lowering total
cost of ownership and carbon footprint.
SuperCaps© offer the functionality, life cycle costs, and reliability
characteristics required for use in the power systems which
ensure continuous availability. Their high power density is
ideally suited to supply bridge power for short periods of around
30 to 100 seconds, while secondary generation systems come
up to speed. On the other hand, battery banks are typically sized
to deliver power over longer periods. In fact if sized for the
actual duration required, batteries may have difficulty supplying the necessary power which often results in systems which
are physically much
larger than necessary.
SuperCaps© operate
on a different principle
to batteries and are
capable of holding a
charge for extended
periods without any
loss of capacity.
Batteries, however, by virtue of their electro chemical composition, require high maintenance with cell replacement not
uncommon and still present the risk of not having sufficient
capacity just when it’s needed most. SuperCaps© provide
fast, short-term peak power for indefinite cycles, They can be
charged or discharged several times, charge isntantly and have
a long lifetime up to 20 years. They do not release any heat
during discharge and are up to 95% efficient in application –
more efficient, in fact, than conventional batteries. Additionally,
SuperCaps© do not require special storage conditions and
maintenance for assured operation. Their scalable and modular
nature makes them an ideal solution for data centre applications. They are compact compared to batteries, and, using 3-D
Flexibility© from AEG Power Solutions, they can be combined
with other technologies including fuel cells to provide highly
effective energy storage solutions.
Get 3-D Flexibility© and reduce the carbon footprint of your
power infrastructure
Standby power protection from AEG Power Solutions adds 3-D
Flexibility© to your energy storage options. Whether you choose
any of our standard and modular UPS systems for your data
centre, or ask us to design a custom solution to meet a specific
requirement, 3-D Flexibility© gives you the option to specify
how energy is stored to ensure ride through power
transients. For example, you could select a super capacitor
storage solution to replace or enhance a bank
of batteries.
Just ask us how we can design a solution, incorporating
fuel cell, SuperCap© or battery storage to help reduce the
environmental impact of your facility and reduce its running
costs.
37
16
38
Protect 3.M 2.0
Power Safety
Protect 3.M 2.0: Modular UPS system for medium
A technically convincing solution that is flexible to fulfill the
growing requirements of modern datacenters:
r Sufficient power and security reserves
rEasy handling and low maintenance costs
rOptimal price-performance ratio
Power failures, overloads and undervoltage can lead in the worst case
to loss of data. Denied access to company-critical applications almost
always leads to operational disturbances, even to loss of production.
Networks, workstations, intranet and internet servers, telecommunications and other company applications must therefore be available at all
times and must also be protected against any disturbances to the power
supply. Implementation of the VFI (double conversion) technology of
AEG’s Protect 3.M 2.0 protects your system reliably against all power
supply problems, e.g. power failure, surges, undervoltage, voltage fluctuations, non-linear distortions, frequency fluctuations, etc.
VFI
Modularity provides safety reserves
Protect 3.M 2.0 is an uninterruptible power supply which is highly reliable and efficient. The modular design of Protect 3.M 2.0 permits a flexible increase of the UPS power up to 480 kVA maximum with 20 kVA
automatic contact hot-swap modules. This technology allows the system
to be extended during operation. Modules are hot-swappable. Additional
cabling is not necessary.
Battery management
As far as operation and service are concerned, intelligent monitoring via the display or system software, as well as the possibility of
using standard batteries, make Protect 3.M 2.0 your preferred choice
system.
r Manufacturer-independent standard batteries
for initial equipment or later replacement.
r Scheduled battery test
for extended battery lifecycle.
r Intelligent battery management;
battery current measuring to provide useful charging & discharging
data for “advanced battery management”.
r Hot-swappable – easy to exchange modules
- Simple plug & play principle for replacing modules
- Module removal/addition during operation
- Automatic connection, no additional cable connections necessary
rHigh-power reserves with a maximum total power output of 480 kVA
- Up to 6 UPS modules with 20 kVA each can be installed in one P3.M
2.0 cabinet
- Up to 4 UPS cabinets up to 120 kVA each can be paralleled
rParallel Operation
N+X technology allows a flexible adjustment of the power capacity of
your UPS at any time. At the same time the modular construction provides active parallel redundancy and thereby a high safety reservoir.
Additional features
r Increased power factor (pf > 0.99)
r Less pollution (THDi < 5%)
r Higher efficiency > 94% (at 25% load)
r ECO mode (efficiency > 97%)
r IGBT technology
r Separate rectifier and dual bypass input
r Full digital control (DSP)
r PFC technology
r Load depending fan speed
r Multi-language and big LCD for user-friendly handling
r Communication via SNMP adapter and RS232/RS485 interfaces
Integrated bypass switch
r Passive redundancy by static Integrated bypass switch increases
availability of the whole system during overload.
r An additional integrated manual bypass switch protects the system
against operational failure and allows bypassing the UPS for
maintenance.
Intelligent monitoring
The Protect 3.M 2.0 uses an efficient communication module to collect
all relevant data of the several modules over the internal network. All
information are displayed clearly on the LCD for easier UPS handling.
5FSNJOBMT
r$PNNVOJDBUJPOJOUFSGBDFTr
.PEVMFMPDL
Protect 3.M 2.0
-sized datacenters
Classification VFI SS 111
acc. to IEC 62040-3
Type power
Max. modules per rack
Protect 3.M 80
Protect 3.M 120
80 kVA
120 kVA
64 KW
96 KW
4
6
UPS INPUT
Input voltage
Frequency
Frequency range
Power factor
THD (i)
400/230Vac
50/60Hz (Auto-Selectable)
+/-5 Hz
> 0.99 (Full Load)
<5%
UPS OUTPUT
Rated output voltage
Frequency
THD (v)
Transfer time at mains outage
Voltage waveform
400/230Vac
50/60Hz +/-0,05%
≤3%
0 ms (zero transfer)
sinusoidal
<125% for 10 min.
<150% for 1 min
>150% for 0,3 sec
2,5 : 1
Overload response (online mode)
Crest factor
BATTERY
Nominal voltage
± 240 Vdc
Free to choose runtime extension with
additional external battery
yes
Autonomy time
Overload/deep discharge protection
COMMUNICATION
Interfaces
Failure indicators (acoustic/optical)
RS232/RS485 for status and measurement values, communication slot
(for pot.-free contacts and SNMP adapter)
LCD with digital information of input and output parameters (voltage, frequency, power etc.) battery
parameter etc., LED for status and main failures
GENERAL DATA
< 95% (< 98% in ECO Mode)
64 to 69 dBA (depends on load)
0 – 40 °C
EN62040-2 Class C3, EN 61000-6-2, EN 61000-6-4
EN62040-1
<90%
up to 3000 m at nominal load
RAL 7035
Efficiency (total)
Audible noise (1 m distance)
Operating temperature range
EMC conformity
Product safety
Humidity
Installation height
Equipment colour
WEIGHTS AND DIMENSIONS
30 kg
Weight approx. (module)
(Empty rack)
(with maximum modules)
Size approx. W x H x D (mm)
139 kg
259 kg
520 x 1165 x 910
204 kg
384 kg
520 x 1665 x 975
operating buttons ON / OFF
UPS status LEDs:
rnormal
rbattery
rbypass
rfailure
EPO
Display Protect 3.M
39
16
40
Protect 3.33
Power Safety
Protect 3.33: Online UPS system for datacenters a
Robust and Reliable
Protect 3.33 is extremely robust, both electrically and mechanically.
It is custom-designed for use in harsh industrial environments.
The UPS offers a very high level of protection for users and
connected equipment
r High intermittent overload capacity
r High level short circuit strength
r N-conductor with fulI loading capacity (3 phase systems)
r Excellent dynamic response can easily handle high cyclic loads
Exact solutions engineered for each application
r Single systems
r Parallel systems
r Other input/output voltages
Additional system equipment
r Bypass transformer
r Voltage stabilizer
r Maintenance Bypass Switch
r AC distribution panels
r Battery cubicles
r Explosion proof battery circuit breaker enclosures
Unique Design
r Parallel operation for capacity and performance
Flexible Multi Master Technology and CAN bus communication
enables up to 8 UPS to be connected in parallel for increased
power, redundancy or system upgrade.
r Parallel UPS can be operated with a central battery.
r Three microprocessor control system
These microprocessors simultaneously monitor and control the
rectifier, inverter and static switch units. This control has been
specially designed to provide a problem-free power supply.
Key features
r Full digital control
- High reliability (no potentiometers)
- High flexibility (software controlled parameters)
- Fast dynamic response
r Ergonomic control unit with multilingual graphical display
r High effi ciency even at low output power
- Reduced operating costs
- Reduced air conditioning requirements
- Reduced battery Ah requirements
r Oversized components
- Higher reliability and MTBF
- High overload capacity
r Output isolation transformer
r Standardized modules
r Low maintenance
r Short circuit resistant
r More EMC robust than UPS Standard IEC 62040-2 by a factor
of 2 to 3
r Redundant controls
Separate microprocessors for Rectifier, Inverter, Static Switch
and Communication
r Separate and redundant power supplies for control cards
VFI
r High protection degree (IP rating) possible
Ready for harsh environment
r Strong mechanical design
r Remote monitoring and control capabilities (programmable)
r Capable of communicating with computer and control systems (SCADA,
ESD, DCS, BMS)
- Modbus/JBus
- Profi bus
- Monitoring software
- Ethernet, SNMP …
r System and alarm status via volt-free contacts
r Complete system
Protect 3.33 is a true on-line double conversion UPS classified as VFI SS
111 according to IEC 62040-3.
r This outstanding UPS range features
- On-line operation ensuring permanent service
- Microprocessor-driven control and command system to provide
reliable power supply
r A battery management system that boosts life time and cuts operating
costs
r A broad range of output power ratings, battery autonomies and options to
meet the needs of complex industrial applications.
r The UPS offers a very high level of protection for users and connected
equipment
- High intermittent overload capacity
- High level short circuit strength
- N-conductor with fulI loading capacity (3 phase systems)
- Excellent dynamic response can easily handle high cyclic loads.
r Redundant and individually monitored fans
r Compatible with vented Lead Acid, Valve Regulated Lead Acid
(VRLA) and Nickel Cadmium batteries
r Intelligent Battery management, test and status diagnostics
r Designed to operate with Diesel Generators
r Frequency converter operation
r EcoMode+ (as option)
Protect 3.33
nd internet nodes
MODEL
Type power (at cos ϕ 0.8 lag) in kVA
3.33-10
3.33-20
3.33-30
3.33-40
3.33-60
3.33-80
3.33-100
3.33-120
10
20
30
40
60
80
100
120
130
163
195
123
164
205
246
6 pulse
Filter
6 pulse
12 pulse
6 pulse
12 pulse
6 pulse
12 pulse
116
145
173
80
100
120
1710
1815
1200
735
800
1710
1815
1200
735
900
1710
1815
1200
735
900
RECTIFIER UNIT
Input nominal voltage
operating range (min./max. )
Frequency
Input current in A at nominal load
Input current in A at nominal load
+ battery charging
17
33
50
3 x 400 V
340 V – 460 V
45 – 66 Hz
66
98
21
41
62
82
Charging characteristic to IEC 478-10
Nominal DC voltage
Max. charging voltage
Total harmonic distortion
- Standard
- Optional
IU
384 V
461 V
6 pulse
Filter
6 pulse
Filter
6 pulse
Filter
6 pulse
Filter
INVERTER UNIT
Nominal DC input min./max.
Nominal AC voltage
Adjustable min./max.
Static response
Dynamic response
Correction time
Frequency
Frequency tolerance without mains
Frequency synchronisation range
Power factor range cos ϕ
Output phase current in A
Voltage wave form
Voltage distortion
Crest factor
Overload response 1 min.
Overload response 10 min.
Short circuit response of I nom typical
307 V / 461 V
3 x 400 V
380 V / 415 V
< ±1 %
< ±5 %
2 ms
50/60 Hz
±0.1 %
±1 %
cap-1-ind
14
29
43
58
87
sinus
≤3%
3:1
150 %
125 %
300 %
STATIC BYPASS SWITCH
AC voltage min./nominal/max.
Frequency
Nominal power in kVA
Overload
10
20
30
3 x 380 V / 400 V / 415 V
50/60 Hz
40
60
500 %
GENERAL DATA
Efficiency total up to
Eco px (option)
Noise level depending on type
EMC compatibility acc. EN 60040-2
Air cooling with redundant
and monitored fans
Operating temperature range min./max.
Storage temperature range min./max.
Installation height NN
Protection degree acc. IEC 529 / EN 60529
Equipment colour
94 %
up to 98 %
< 55–65 dB(A)
C2
Yes
–5° C/+40° C
–30° C/+75° C
1000 m
IP20
RAL 7035
WEIGHTS AND DIMENSIONS
Height standard UPS (mm)
Height with max. options (mm)
Width (mm)
Depth (mm)
Weight (kg)
1710
1815
600
735
350
1710
1815
600
735
370
1710
1815
600
735
450
1710
1815
600
735
470
1710
1815
750
735
550
41
16
42
Protect 4.33
Power Safety
Protect 4.33: Online UPS system for large datacen
Key features:
r Highest operating safety
r Optimum efficiency, even in the partial load range
r Fully loadable neutral conductor
r Short circuit proof
r Overload capacity available
r Standardised components
r Intelligent battery charging management
r Integrated logbook function with real time clock
r Terminal emulation/VT100 via RS232
r Security thanks to internal redundancy: separate -microprocessor for control of rectifiers, inverters and -electronic
bypass
r Ergonomic full grafical display for ease of operation
(clear letter indication 17 diff. languages)
r Integrated network interface incl. SNMP agent for -network
management (optional)
r Reliable shutdown and reboot using AEG PSS network
software CompuWatch via RS232-C bridge
r Manufactured to DIN ISO 9001
r CE-compliant
r Low maintenance requirement
r Remote servicing via modem
r Comprehensive service support
r Redundant fans
VFI
Classification VFI SS 111 according IEC/EN62040-3
The PROTECT 4. is a compact ready-to-install unit, with a maximum single unit capacity
of 1000 kVA available now for the first time and opening up completely new dimensions
in protection. Whether used to protect computer centres, file servers, telecommunications or industrial processes, the PROTECT 4. means additional safety and reliability for
your systems.
Environmentally friendly
The PROTECT 4. offers the highest reliability with efficient modern technology and 12
pulse rectifier for sinusoidal input current consumption to DIN 41773. Thanks to its
excellent efficiency level of up to 94 %, up to 8000 € can be saved per year in every
day online use.
Increased power and reliability through parallel operation
The PROTECT 4. can be used in parallel operation with up to 8 units. This increases the
power capacity, or allows for even greater safety via N+1 redundancy.
Unique control capability with three custom microprocessors
A key feature of the unit’s design are the three control microprocessors.
These were specially developed by AEG PS for use in UPS. They monitor and control the
rectifier, inverter and static switch units simultaneously.
Protect 4.33
ters and internet nodes
Type power at cos
ϕ 0,8 lag. in kVA
160
220
300
400
500
600
800
1000
811
1025
973
1230
1300
1600
1624
2000
12
12
12
12
723
867
1156
1445
3 x 380/400/415
50/60
400
500
600
800
1000
1960
2210
2400
960
3800
2210
2210
4050
1060
5700
RECTIFIER UNIT
Nominal voltage in V
Operating range min./max. in V
Frequency in Hz
Input current in A at nominal load
Input current in A at nominal load + battery charging
Charging characteristic acc. IEC 478-10
Nominal DC voltage
Max. charging voltage in V
Total harmonic distortion
standard/option (pulse)
3 x 400
340/460
45–66
259
328
357
451
486
615
649
820
IU
384
461
6/12
12
12
12
INVERTER UNIT
Nominal DC voltage min./max. in V
Nominal AC voltage in V
Adjustable min./max. in V
Static response
Dynamic response 0 %–100 %–0 %
Correction time
Frequency in Hz
Frequency tolerance without mains
Frequency synchronisation range
Power factor range cos ϕ
Output phase current in A
Voltage wave form
Voltage distortion
Crest factor
Overload response for 1 min.
Overload response for 10 min.
Short circuit response of Inom typical
307/461
3 x 400
380/415
< ±1 %
< ±5 %
2 ms
50/60
±0,1 %
±1 %
cap-1-ind
231
318
434
578
sinus
≤3%
3:1
150 %
125 %
300 %
STATIC BYPASS SWITCH
AC voltage min./nominal/max. in V
Frequency in Hz
Nominal power in kVA
Overload
160
220
300
500 %
GENERAL DATA
94 %
up to 98 %
> 69
C2
EN 62040-1-1
yes
Efficiency total up to
ECOpx®
Noise level in dB(A) depending on type
EMC compatibility acc. EN 60040-2
Product safety
Air cooling with redundant/
monitored fans
Operating-temperature range min./max. in °C
Storage-temperature range min./max. in °C
Installation height NN
Protection degree acc. IEC 529/EN 60529
Equipment colour
–5/+40
–30/+75
1000 m
IP 20
RAL 7035
DIMENSIONS
Height standard device in mm
Height with max. options in mm
Width in mm
Depth in mm
Weight in kg
1910
2015
1200
960
1670
1915
2210
1200
960
1950
1925
2210
1500
960
2030
1915
2210
2100
960
3200
1915
2210
2100
960
3480
43
44
CompuWatch
Ease of use
Software solutions
„CompuWatch“ – the Shutdown- and UPS management software
… for automation in data processing.
Based on the TCP/IP network protocol, CompuWatch is applicable to heterogeneous networks where servers
and computer systems with diverse operating systems require a safe (i.e. where all open files are closed) and
automatic shutdown process for particular situations. It carries out its functions by passing information through
security mechanisms to all UPS protected servers and computer systems by way of an intelligent UPS-to-server
communications interface as well as the existing network topology. Appropriate software modules in these
servers and computer systems make it possible for them to react accordingly. A terraced shutdown sequence can
be achieved by configuring these software modules on the affected servers. All CompuWatch modules run as
service or background processes. Individual procedures can be launched by a shell script or batch programming
techniques.
The CompuWatch client, a graphic front-end for all Microsoft Windows operating systems, permits all UPS
systems connected to the network to be monitored and controlled. Aside from this, a scheduler can also be used
to control the entire network. Products from AEG Power Solutions provide a total security solution for network
power from a single source: the Total Network Security Solution.
Total Network Security Solution
Special features:
r Software in client/server technology
r Integration as a background process
r Supports multi-server shutdown in homogeneous and
heterogeneous networks
r System activities can be programmed via scheduler and
configured by event manager
r Monitoring UPS devices locally and remotely via network
r Selectable bar graphs for measured values
r Support of the wake-up-on-LAN function for sequential
reboot
r Customizable batch files and scripts for the shutdown
procedure
r Alerting of events via network messages, e-mails and SMS
r SSL encryption for multi-server shutdown
r Logging of all events in a log file
r Visit www.aegpartnernet.com for an overview about all
supported operating systems
Example:
The Figure illustrates a heterogeneous network with a Windows
NT server configured as the master and various slave servers that
have other operating systems. The potential to implement the
automation of shutdown and reboot procedures for the entire
network, including the UPS, is inherent to these products. This
means that during a power outage of long duration the entire
data net can be safely shut down and turned off; the Shutdown
function. Following a specified delay after power has been
restored, the network will also be automatically restarted and
systems will be initialised; the Reboot function.
Network-Management-Software
Control of datacenters
with UPS management
Smoke
detector
Motion
detector
Temperature
sensor
Access
control
UPS
with SNMP
adapter
Hamburg
Berlin
Server
farm
SSL
encryption
Intranet
Frankfurt
UPSMonitor
Administrator
At failure: alarm via
e-mail or pop-up.
Munich
Web based AEG Network
Management Software
Network management for UPS devices
Integrated solution of UPS management
… a solution for intelligent network management.
The network management software for UPS devices allows an easy control
of many UPS devices even in disturbed networks. It gives the administrator
an overview about all installed UPS devices and shows the actual status of
the several locations. This increases the security and availability and allows
a centralized administration.
The combination of network management software for remote
control and the UPS management software “CompuWatch” offers an
integrated solution for administration of several datacenters. With
the optional sensors shutdown processes can be automated whenever
there are problems in the datacenter enviroment. An SSL encrypted
communication between the UPS and server secures against
unauthorized access.
The software sends an alert e.g. by email whenever a problem occurs. The
network management software is supported by every common web browser
and gives the necessary flexibility in administrating larger networks. UPS
status information, log history and reports can be viewed everywhere via
web browser.
Special features:
Special features:
r Secured communication between UPS and server by SSL encryption
r Web-based remote monitoring of power supply systems in the network
r Simple operation of a complex power supply management system
r Alerting of events via network messages, emails, Short Message Services
(SMS)
r Storage of all events in a logbook
r Graphics for statistical analysis
r Customized presentations with background graphics are possible
A free basic version of the software is available for
up to nine UPS devices on the “CompuWatch”-CD.
r Environmental control by sensors like temperature, humidity, smoke
and motion detectors
r Local alerts by actuators like warning light or audible alarm
rAlerts via network messages, emails oder SMS
r Complete automated server management via programmable actions
45
46
Accessories: Hardware
Ease of use
Hardware: Extensions & accessories
Part numbers
Remote Panel
Power distribution units
Remote signal indicator for professional
datacenter management
Power distribution for professional
datacenters
The remote panel displays remote UPS status in real time.
An additional bar graph shows the current UPS load and
remaining capacity in emergency power mode. Besides the
visual indicators, the panel has an acoustic alarm (which
can be disabled), plus a shutdown contact to enable a
remote UPS shutdown in the event of an emergency. The
remote panel can be installed at a distance of up to 500
meters. Data and power are supplied to the remote panel
over a conventional patch cable. The remote panel is
available for Protect C. Tower (6 kVA and higher), Protect
1. and Protect 1.M UPS units.
These power distribution units are designed to distribute
power from UPS outlets to multiple connected loads.
Various models are available with a choice of grounded
IEC320 C13 and C19 sockets for connecting equipment.
The sockets are protected against overloading, either individually or in pairs, depending on the connector type. The
connection options provide an effective means of defining
selection criteria to meet required power-down conditions. LEDs indicate the current operating state.
Thanks to slot-in rack flanges, the PDUs are easy to install
in a standard rack chassis. For flexibility, the flanges
can be removed for desktop use. The PDUs have robust
aluminum enclosures offering exceptional rigidity and
durability.
Remote Panel # 600 000 5881
PDU 10-1 # 600 000 6684
PDU 16-1 # 600 000 6829
PDU 10-2 # 600 000 6831
PDU 16-2 # 600 000 6832
IEC Distribution Bar # 600 000 9254
Accessories: Hardware
Manual Bypass Switch
Power Distribution Box
Manual bypass switch for maintenance and
battery tests
Parallel board, manual bypass and distribution
The external manual bypass switch, an optional add-on for the
Protect B., B. PRO, C., C.R, D., 1. and 1.M series of UPS systems,
is used to bypass a UPS – for example, to carry out maintenance – without interrupting the supply of power to connected
loads. Besides simple bypass operation, it features an additional
setting to enable UPS testing. The switch is equipped with individually protected power connectors to supply power to loads
directly.
The external manual bypass switch has three settings:
With the compact parallel switch panel, users can set up a parallel system comprising up to three Protect C.6000 / C.10000 or
up to three Protect 1.100 / 1.150 or 1.200 units without needing
to restructure an existing low-voltage main distribution system.
Combining up to 24 separately protected, ready-made circuits
in an output distribution unit built into a parallel switch panel,
the PDB box eliminates the need to set up or reorganize a subdistribution system.
Offering active redundancy and designed for use with the Protect
C. range of single-phase UPS units (up to 30 kVA or 20 kVA) and
the Protect 1. range of three-phase-input UPS units (up to 60
kVA or 40 kVA), the switch panel allows users to connect devices
in parallel for enhanced performance and single or multiple
redundancy. Each UPS unit can be disconnected – from the mains
supply on the input side and from the protected busbar – without interrupting the supply of power to connected loads. In addition, the manual bypass can disconnect the entire parallel UPS
system – for maintenance, for example –without cutting power
to attached devices. A remote signaling contact indicates the
current operating status.
1. UPS mode: Loads are supplied with power via the UPS.
2. Service mode: Connected loads are powered directly from
the mains supply. This setting also enables the UPS to be
tested.
3. Bypass mode: In this mode, loads are powered directly from
the mains supply. The attached UPS is fully disconnected from
the circuit and can be removed for maintenance or replacement.
MBS 2000 # 600 000 3039
PDB for Protect C. # 100 000 1852
MBS 3000 # 600 000 3040
PDB for Protect 1. # 100 000 1853
MBS 6000 Rack # 600 000 5205
MBS 10000 # 600 000 7684
MBS 24000 # 100 000 2021
47
48
Accessories: Communication
Ease of use
Communication: Extensions & accessories
Part numbers
Relay card
SiteManager
Communication device for AS / 400
Network based UPS management device
This relay card is an option for UPS series Protect B./B.
PRO/C./C.R/D./1. and 1.M and enables the communication
via potential free contacts. The contacts can be configured as open and shut. The status notifications will be
transmitted by a 9 pin Sub-D socket. The relay cards are
optimized for the IBM AS400 but can also be used for
other applications.
The SiteManager is a professional-grade monitoring system. The 19” rack unit can be used to monitor equipment
cabinets and rooms as well as industrial applications.
With its plug-and-play support for a range of sensors
and actuators, the SiteManager is exceptionally quick
and easy to install. It has eight digital ports that accept
an extensive range of contact sensors, including smoke
detectors, motion detectors and door contacts.
It additionally includes eight inputs for analog signals
(0-10V). Each input is individually configurable to support everything from temperature and humidity sensors
to custom sensor devices. There are also eight separate
relay outputs for controlling loads. These outputs can be
controlled either manually by users or automatically in
response to defined events. All alarm states are indicated
on the front panel be light-emitting diodes. The electrical connections are located on the monitoring unit’s rear
panel.
Relay card for Protect B. from 1500 VA # 600 000 5196
SiteManager # 600 000 7349
Relay card for Protect C. / C.R / 1. / 1.M # 600 000 3932
Temperature sensor # 800 002 2489
Relay card for Protect B. PRO # 600 000 9252
Smoke detector # 800 002 2495
Relay card for Protect D. # 600 000 9253
Motion detector # 800 002 2494
Audible alarm # 600 000 7361
Accessories: Communication
Environment Manager
SNMP(pro) Adapter
Management device for several environment sensors
UPS management device via network
The Environment Manager is a universal sensor management
device designed as a system add-on for the SNMP PRO Adapter.
It can manage up to eight analog sensors, four digital contacts
and four digital switches simultaneously. The device can also
work with other kinds of sensor units – for humidity, pressure,
tank fill levels and chemical concentrations, for example – provided the signal voltages from the attached sensors are within
defined values (0-10V for analog inputs, 48V/500mA for digital
inputs/outputs). The digital outputs can be configured for a
default state of open or closed. Sensors are simply connected
to a free RJ11 port. If more than four sensor devices need to
be attached, sensors are available that are equipped with an
expansion connector, allowing multiple sensors to be connected
to one another. If all the RJ11 ports are occupied, splitters can
be used to provide additional ports.
Available in two versions, the SNMP adapter enables users to
monitor the status of UPS units via the Web or WAP. It can also
initiate a staggered shutdown of key servers if the need arises,
and can restart the servers via wake-on-LAN, providing automatic system shutdown and reboot capabilities. In addition to
these features, the adapter has an integrated RFC1628-compliant
SNMP agent, allowing the UPS to be configured and monitored
in HP OpenView, SunNet Manager or other network management
software.
The PRO version of the SNMP adapter can additionally incorporate room access control, air-conditioning, and smoke and fire
detector systems. In combination with the EnvironmentManager,
the SNMP PRO Adapter is even capable of processing temperature and humidity sensor data.
Environment Manager # 800 002 2488
SNMP adapter # 600 000 4036
Temperature sensor # 800 002 2489
SNMPpro adapter # 600 000 1271
Motion detector # 800 002 2494
External SNMPpro adapter # 800 000 9965
Smoke detector # 800 002 2495
Temperature sensor # 800 002 0878
Audible alarm # 600 000 7361
External relay board # 600 000 5994
49
50
Service: Compact UPS
Competence
Service: Your Power Partner for reliability
„Only a professionally serviced and maintained UPS offers the highest possible
availability with effective cost control.“
Based on our high standards and decades of experience, we are also cost-effective, efficient and rapid when it comes to servicing.
Pro-Care Comfort Maintenance service for PROTECT C, 1 and 1.M. Can be ordered as a service package at any time.
For the first 24 months after the initial purchase we provide a comprehensive advanced replacement service for the device and battery
from the Compact UPS series (Protect Home. / A. / B. / B. PRO / C. / C. Rack / D. / 1. / 1.M). Additional service packages, which address all
of the user‘s needs, are available when purchasing the UPS. These packages ensure optimal cost control over a period of up to 60 months.
The following service packages are available:
Pro-Care Garant
Pro-Care Garant PLUS
Register your UPS within two months from date of
purchase and you will get the warranty extention
“Pro-Care Garant“ for free. So we provide an overall
warranty for 36 months on UPS and battery.
Warranty extension to 60 months from the date of
purchase with advanced replacement of the UPS
within the warranty period. This can be optionally
arranged during the first year after purchase.
The registration form is available at
www.aegpartnernet.com
Available for the Protect C. / C. Rack / D. / 1. and 1.M
series.
Repairs and individual service measures available on
request!
Service: 3 phase UPS
Rely on the experts to reduce failure costs and increase system availability
Because AEG Power Solutions is a world class system provider, you can rely on a global network of 20 Services Centers supported by over 150
field engineers and more than 100 certified service partners around the world. From power solution selection to process installation and commissioning, our certified experts exceed your expectations. Their excellent service helps you achieve the lowest operating cost for your missioncritical power solution. A Global Service Team renowned for its short response time and trouble shooting efficiency ensures the reliability of
your installed power solution.
Choose the right service maintenance contract for your power solution
Pro Care Safe
Pro Care Excel
Pro Care Premium
Annual scheduled
on-site preventive
maintenance
Annual scheduled on-site
preventive maintenance
including defective parts
replacement
Annual scheduled on-site
preventive maintenance
including defective parts
and battery replacement
Organic and inorganic
contaminants removal
Battery efficiency examination
Computerized numerical
diagnostic
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
Parameters adjustment
and optimization
4
4
4
Same day repair upon
customer approval
Maintenance protocol registration
Functional walk through
Software update
24/7 hotline
Complementary phone support
Standard work week hours
Includes travel expenses
and on-site service engineers
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
Service Description
Visual inspection
Functional assessments
Includes defective
parts
!!
1
'
replacement
Includes battery replacement
1
Battery units replacement based
on overall system lifetime
3-year service contract
Subscription at end
of warranty period
1 Excludes unrelated failures or acts of god
4
4
4
51
Toronto, Canada
Prague,
Czech Republic
Budapest, Hungary
Lannion, France
Paris, France
Vitoria, Spain
Madrid,
Spain
Moscow,
Russia
Chambray-lésVimercateTours,
Milan,
France
Italy
Beijing,
China
Dallas, Texas
Shanghai,
China
Chengdu,
China
Mexico
Dubai,
United Arab Emirates
Hong Kong,
China
Bengalor,
India
Penang,
Malaysia
Singapore
Capetown, South Africa
PERFECT IN FORM AND FUNCTION
Mayflex UK Ltd
Excel House, Junction Six Industrial Park
Electric Avenue, BIRMINGHAM, B6 7JJ, United Kingdom
Tel: +44 (0)121 326 7557
Email: sales@mayflex.com
Fax: +44 (0)121 327 5886
Web: www.mayflex.com
Kuala Lumpur,
Malaysia
Due to our policy of continuous development, data in this document is subject to change without notice and becomes contractual only after written confirmation.
Amsterdam,
Zwanenburg
The Netherlands Belecke,
Germany
London, United Kingdom
