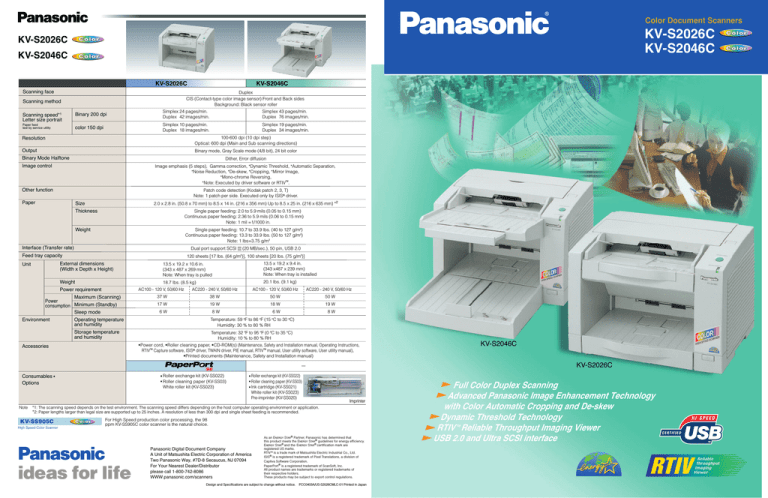

KV-S2026C

KV-S2046C

Scanning face

Scanning method

Scanning speed* 1

Letter size portrait

Resolution

Output

Binary Mode Halftone

Image control

Binary 200 dpi color 150 dpi

Other function

Paper Size

Thickness

Weight

Interface (Transfer rate)

Feed tray capacity

Unit External dimensions

(Width x Depth x Height)

Environment

Weight

Power requirement

Maximum (Scanning)

Minimum (Standby)

Sleep mode

Operating temperature and humidity

Storage temperature and humidity

Accessories

KV-S2026C KV-S2046C

Duplex

CIS (Contact-type color image sensor) Front and Back sides

Background: Black sensor roller

Simplex 24 pages/min.

Duplex 42 images/min.

Simplex 43 pages/min.

Duplex 76 images/min.

Simplex 10 pages/min.

Duplex 18 images/min.

Simplex 19 pages/min.

Duplex 34 images/min.

100-600 dpi (10 dpi step)

Optical: 600 dpi (Main and Sub scanning directions)

Binary mode, Gray Scale mode (4/8 bit), 24 bit color

Dither, Error diffusion

Image emphasis (5 steps), Gamma correction, * Dynamic Threshold, * Automatic Separation,

* Noise Reduction, * De-skew, * Cropping, * Mirror Image,

* Mono-chrome Reversing,

* Note: Executed by driver software or RTIV TM .

Patch code detection (Kodak patch 2, 3, T)

Note: 1 patch per side. Executed only by ISIS

®

driver.

2.0 x 2.8 in. (50.8 x 70 mm) to 8.5 x 14 in. (216 x 356 mm) Up to 8.5 x 25 in. (216 x 635 mm) * 2

Single paper feeding: 2.0 to 5.9 mils (0.05 to 0.15 mm)

Continuous paper feeding: 2.36 to 5.9 mils (0.06 to 0.15 mm)

Note: 1 mil =1/1000 in.

Single paper feeding: 10.7 to 33.9 lbs. (40 to 127 g/m 2 )

Continuous paper feeding: 13.3 to 33.9 lbs. (50 to 127 g/m 2 )

Note: 1 lbs=3.75 g/m

2

13.5 x 19.2 x 10.6 in.

(343 x 487 x 269 mm)

Note: When tray is pulled

18.7 lbs. (8.5 kg)

AC100 - 120 V, 50/60 Hz AC220 - 240 V, 50/60 Hz

37 W 38 W

17 W

6 W

Dual port support SCSI (20 MB/sec.), 50 pin, USB 2.0

120 sheets [17 lbs. (64 g/m 2 )], 100 sheets [20 lbs. (75 g/m 2 )]

19 W

8 W

13.5 x 19.2 x 9.4 in.

(343 x487 x 239 mm)

Note: When tray is installed

20.1 lbs. (9.1 kg)

AC100 - 120 V, 50/60 Hz AC220 - 240 V, 50/60 Hz

50 W

18 W

6 W

50 W

19 W

8 W

Temperature: 59 o F to 86 o F (15 o C to 30 o C)

Humidity: 30 % to 80 % RH

Temperature: 32 o F to 95 o F (0 o C to 35 o C)

Humidity: 10 % to 80 % RH

•Power cord, •Roller cleaning paper, •CD-ROM(s) (Maintenance, Safety and Installation manual, Operating Instructions,

RTIV TM Capture software, ISIS ® driver, TWAIN driver, PIE manual, RTIV TM manual, User utility software, User utility manual),

•Printed documents (Maintenance, Safety and Installation manual)

Consumables

Options

Roller exchange kit (KV-SS022)

Roller cleaning paper (KV-SS03)

White roller kit (KV-SS023)

Roller exchange kit (KV-SS022)

Roller cleaning paper (KV-SS03)

Ink cartridge (KV-SS021)

White roller kit (KV-SS023)

Pre-imprinter (KV-SS020)

Note *1: The scanning speed depends on the test environment. The scanning speed differs depending on the host computer operating environment or application.

* 2: Paper lengths larger than legal size are supported up to 25 inches. A resolution of less than 300 dpi and single sheet feeding is recommended.

KV-SS905C

High Speed-Color Scanner

For High Speed production color processing, the 98 ppm KV-SS905C color scanner is the natural choice.

Imprinter

Panasonic Digital Document Company

A Unit of Matsushita Electric Corporation of America

Two Panasonic Way, #7D-8 Secaucus, NJ 07094

For Your Nearest Dealer/Distributor please call 1-800-742-8086

WWW.panasonic.com/scanners

As an E

NERGY

S

TAR®

Partner, Panasonic has determined that this product meets the E

NERGY

S

TAR®

guidelines for energy efficiency.

E

NERGY

S

TAR® and the registered US marks.

RTIV

ISIS

TM

®

E

NERGY

S

TAR® certification mark are

is a trade mark of Matsushita Electric Industrial Co., Ltd.

is a registered trademark of Pixel Translations, a division of

Captiva Software Corporation.

PaperPort ® is a registered trademark of ScanSoft, Inc.

All product names are trademarks or registered trademarks of their respective holders.

These products may be subject to export control regulations.

Design and Specifications are subject to change without notice. PCC0403A/US-S2026CMLC-01 Printed in Japan

KV-S2046C

KV-S2026C

Full Color Duplex Scanning

Advanced Panasonic Image Enhancement Technology with Color Automatic Cropping and De-skew

Dynamic Threshold Technology

RTIV

TM

Reliable Throughput Imaging Viewer

USB 2.0 and Ultra SCSI interface

Color Document Scanners

KV-S2026C

KV-S2046C

Color Document Scanners

and Departmental Document Management Solutions.

The KV-S2026C WorkGroup color scanner and the

KV-S2046C Departmental color scanner provide you superior durability with advanced image processing, all at a compact size and price.

Both of these scanners are revolutionary in design, with superb paper handling and a small footprint, making them an ideal desktop solution for file management and critical image processing applications.

43 ppm

ipm

4,000/ Duty cycle

24 ppm

ipm

3M

4,000/ Duty cycle

De-Skewing De-Skewing

Technology Technology

KV-S2046C

.

High Durability and

Reliable Paper Handling.

3M

4,000/

Duty cycle

The KV-S2026C and the KV-S2046C have undergone stringent testing, including a three million-page test that both units exceeded, placing them in the upper classification in their respective categories.

Both the KV-S2026C and the KV-S2046C have feeding rollers providing reliable processing of irregular paper sizes and weights from

10.7 lbs to 33.9 lbs and support of non-carbon paper.

Application Environment.

The scanners are suitable for various types of industries and businesses such as Banks,

Securities, Telephone companies, Communication companies, Government offices, Selfgoverning bodies, Hospitals, Insurance companies, Manufacturing companies,

Transportation companies, and so on.

KV-S2026C

Suitable for the following environments.

Distributed Processing. Desktop Scan Station.

Workgroup Process Station. Departmental Process Station.

Shown with the paper tray pulled out.

KV-S2026C

Easy Maintenance.

The clamshell design allows for quick and easy access to the consumables.

Server

Distributed Processing.

KV-S2026C KV-S2046C

Color Automatic Cropping

Documents of various sizes can be scanned in one batch without having to configure individual paper size settings.

Now available in color, Automatic

Cropping technology captures only the size of the document and not excess image data.

This will also help eliminate unnecessary file size.

Only the actual size is scanned.

De-Skewing

Color Automatic De-Skew

Imperfect originals when scanned through the automatic document feeder may become skewed. Automatic De-Skew technology corrects the skewed data.

Smoothing

Scanned data skewed.

De-Skewing

With skew removed, the document is in the correct position.

In some cases the degree of skew may be too great for the automatic De-Skew to work correctly and may result in distorted characters or lines.

Smoothing Traditional de-skew software may produce jagged edges, but Panasonic's Smoothing function makes characters' edges remain smooth and precise even after de-skew.

Color

Out

Color Drop Out

Red, Green, and Blue colors can be dropped out to allow the scanned images and data to be presented more clearly for use in OCR and other data capture applications.

Blue color drop out Red color drop out

Technology

Dynamic Threshold

Data contained on documents with backgrounds of various colors and densities is difficult to capture. Dynamic Threshold technology automatically detects these background concerns and selects the correct image enhancement settings to allow for the best possibility of capturing the data.

SELECT THE BEST MATCH !!

Panasonic High Speed Scanners Lineup

Model

KV-SS855D/U

KV-S2065W/L

KV-S6055W/U

Scan Method Paper Source Scan Speed Resolution Paper Size

ADF

ADF

ADF+FB

Duplex

Duplex

Duplex

85 ppm

160 ipm

60 ppm

112 ipm

53 ppm

90 ipm

100-400dpi A3

100-600dpi A3/Letter

100-600dpi A3

KV-S6050W/U ADF+FB Simplex 100-600dpi A3

KV-SS55EX/U ADF

KV-SS50EX/U ADF

KV-SS25D/U ADF

Duplex

Simplex

Duplex

53 ppm

40 ppm

40 ipm

40 ppm

20 ppm

20 ipm

100-200dpi B4

100-200dpi B4

100-300dpi A4

Sample Material

Normal brightness setting

SELECT THE BEST MATCH !!

Panasonic High Speed Scanners Lineup

Model

Scan Method Paper Source Scan Speed Resolution Paper Size

KV-SS855D/U

KV-S2065W/L

KV-S6055W/U

KV-S6050W/U

ADF

ADF

ADF+FB

ADF+FB

Duplex

Duplex

Duplex

Simplex

160 ipm 100-400dpi A3

60 ppm

112 ipm 100-600dpi A3/Letter

90 ipm

53 ppm

100-600dpi A3

100-600dpi A3

KV-SS55EX/U

KV-SS50EX/U

KV-SS25D/U

ADF

ADF

ADF

Duplex

Simplex

Duplex

100-200dpi B4

40 ppm 100-200dpi B4

20 ipm

100-300dpi A4

Dynamic Threshold

SELECT THE BEST MATCH !!

Panasonic High Speed Scanners Lineup

Model

KV-SS855D/U

KV-S2065W/L

KV-S6055W/U

KV-S6050W/U

KV-SS55EX/U

KV-SS50EX/U

KV-SS25D/U

Scan Method Paper Source Scan Speed Resolution Paper Size

ADF Duplex

85 ppm

ADF

ADF+FB

Duplex

Duplex

160 ipm 100-400dpi A3

60 ppm

112 ipm 100-600dpi A3/Letter

53 ppm

100-600dpi A3

ADF+FB

ADF

ADF

ADF

Simplex

Duplex

Simplex

Duplex

90 ipm

53 ppm

40 ppm

40 ipm

100-600dpi A3

100-200dpi B4

40 ppm 100-200dpi B4

20 ppm

20 ipm

100-300dpi A4

Model

KV-SS855D/U

KV-S6050W/U

KV-SS55EX/U

Scan Method

ADF

KV-S2065W/L ADF

KV-S6055W/U ADF+FB

ADF+FB

ADF

Paper Source Scan Speed Resolution

Duplex 85 ppm

Paper Size

100-400dpi A3

Duplex

Duplex

Simplex

Duplex

112 ipm

53 ppm

90 ipm

53 ppm

100-600dpi A3/Letter

100-600dpi A3

100-600dpi A3

100-200dpi B4

KV-SS50EX/U

KV-SS25D/U

ADF

ADF

Simplex

Duplex

40 ppm

20 ipm

100-200dpi B4

100-300dpi A4 the colored area

The Dynamic Threshold technology automatically adjusts for every background color creating the most suitable settings.

Results may vary depending on the background and quality of the documents.
