HP Compaq Business PC
dc7600 Series Personal Computer
© 2005 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
Development Company, L.P.

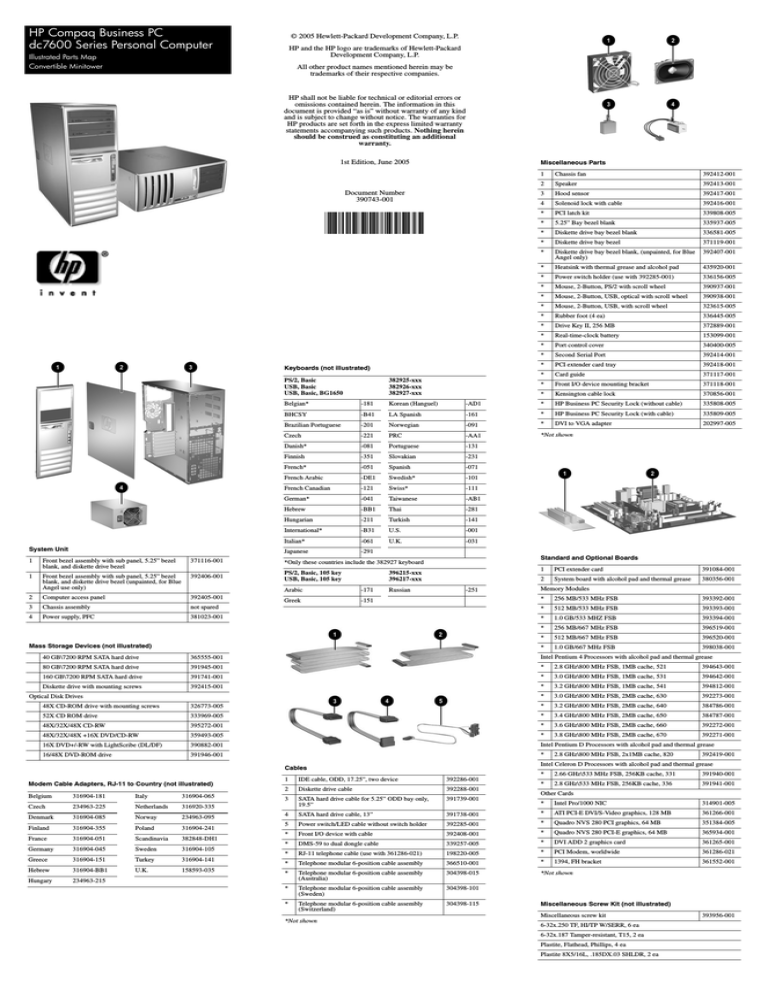

Illustrated Parts Map
Convertible Minitower
All other product names mentioned herein may be
trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided “as is” without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
warranty.
1st Edition, June 2005
Miscellaneous Parts
Document Number
390743-001
Keyboards (not illustrated)
382925-xxx
382926-xxx
382927-xxx
PS/2, Basic
USB, Basic
USB, Basic, BG1650
System Unit
1
Chassis fan
392412-001
2
Speaker
392413-001
3
Hood sensor
392417-001
4
Solenoid lock with cable
392416-001
*
PCI latch kit
339808-005
*
5.25” Bay bezel blank
335937-005
*
Diskette drive bay bezel blank
336581-005
*
Diskette drive bay bezel
371119-001
*
Diskette drive bay bezel blank, (unpainted, for Blue
Angel only)
392407-001
*
Heatsink with thermal grease and alcohol pad
435920-001
*
Power switch holder (use with 392285-001)
336156-005
*
Mouse, 2-Button, PS/2 with scroll wheel
390937-001
*
Mouse, 2-Button, USB, optical with scroll wheel
390938-001
*
Mouse, 2-Button, USB, with scroll wheel
323615-005
*
Rubber foot (4 ea)
336445-005
*
Drive Key II, 256 MB
372889-001
*
Real-time-clock battery
153099-001
*
Port control cover
340400-005
*
Second Serial Port
392414-001
*
PCI extender card tray
392418-001
*
Card guide
371117-001
*
Front I/O device mounting bracket
371118-001
*
Kensington cable lock
370856-001
Belgian*
-181
Korean (Hanguel)
-AD1
*
HP Business PC Security Lock (without cable)
335808-005
BHCSY
-B41
LA Spanish
-161
*
HP Business PC Security Lock (with cable)
335809-005
DVI to VGA adapter
202997-005
Brazilian Portuguese
-201
Norwegian
-091
*
Czech
-221
PRC
-AA1
*Not shown
Danish*
-081
Portuguese
-131
Finnish
-351
Slovakian
-231
French*
-051
Spanish
-071
French Arabic
-DE1
Swedish*
-101
French Canadian
-121
Swiss*
-111
German*
-041
Taiwanese
-AB1
Hebrew
-BB1
Thai
-281
Hungarian
-211
Turkish
-141
International*
-B31
U.S.
-001
Italian*
-061
U.K.
-031
Japanese
-291
Standard and Optional Boards
1
Front bezel assembly with sub panel, 5.25” bezel
blank, and diskette drive bezel
371116-001
*Only these countries include the 382927 keyboard
1
Front bezel assembly with sub panel, 5.25” bezel
blank, and diskette drive bezel (unpainted, for Blue
Angel use only)
392406-001
PS/2, Basic, 105 key
USB, Basic, 105 key
2
Computer access panel
392405-001
*
256 MB/533 MHz FSB
393392-001
3
Chassis assembly
not spared
*
512 MB/533 MHz FSB
393393-001
4
Power supply, PFC
381023-001
*
1.0 GB/533 MHZ FSB
393394-001
*
256 MB/667 MHz FSB
396519-001
*
512 MB/667 MHz FSB
396520-001
*
1.0 GB/667 MHz FSB
398038-001
396215-xxx
396217-xxx
Arabic
-171
Greek
-151
Russian
-251
Mass Storage Devices (not illustrated)
1
PCI extender card
391084-001
2
System board with alcohol pad and thermal grease
380356-001
Memory Modules
40 GB\7200 RPM SATA hard drive
365555-001
Intel Pentium 4 Processors with alcohol pad and thermal grease
80 GB\7200 RPM SATA hard drive
391945-001
*
2.8 GHz\800 MHz FSB, 1MB cache, 521
394643-001
160 GB\7200 RPM SATA hard drive
391741-001
*
3.0 GHz\800 MHz FSB, 1MB cache, 531
394642-001
Diskette drive with mounting screws
392415-001
*
3.2 GHz\800 MHz FSB, 1MB cache, 541
394812-001
*
3.0 GHz\800 MHz FSB, 2MB cache, 630
392273-001
Optical Disk Drives
48X CD-ROM drive with mounting screws
326773-005
*
3.2 GHz\800 MHz FSB, 2MB cache, 640
384786-001
52X CD ROM drive
333969-005
*
3.4 GHz\800 MHz FSB, 2MB cache, 650
384787-001
48X/32X/48X CD-RW
395272-001
*
3.6 GHz\800 MHz FSB, 2MB cache, 660
392272-001
48X/32X/48X +16X DVD/CD-RW
359493-005
*
3.8 GHz\800 MHz FSB, 2MB cache, 670
392271-001
16X DVD+/-RW with LightScribe (DL/DF)
390882-001
Intel Pentium D Processors with alcohol pad and thermal grease
16/48X DVD-ROM drive
391946-001
*
Cables
Modem Cable Adapters, RJ-11 to Country (not illustrated)
Belgium
316904-181
Italy
316904-065
Czech
234963-225
Netherlands
316920-335
Denmark
316904-085
Norway
234963-095
Finland
316904-355
Poland
316904-241
France
316904-051
Scandinavia
382848-DH1
Germany
316904-045
Sweden
316904-105
Greece
316904-151
Turkey
316904-141
Hebrew
316904-BB1
U.K.
158593-035
Hungary
234963-215
2.8 GHz\800 MHz FSB, 2x1MB cache, 820
392419-001
Intel Celeron D Processors with alcohol pad and thermal grease
1
IDE cable, ODD, 17.25”, two device
392286-001
2
Diskette drive cable
392288-001
3
SATA hard drive cable for 5.25” ODD bay only,
19.5”
391739-001
*
2.66 GHz\533 MHz FSB, 256KB cache, 331
391940-001
*
2.8 GHz\533 MHz FSB, 256KB cache, 336
391941-001
Other Cards
*
Intel Pro/1000 NIC
314901-005
ATI PCI-E DVI/S-Video graphics, 128 MB
361266-001
4
SATA hard drive cable, 13”
391738-001
*
5
Power switch/LED cable without switch holder
392285-001
*
Quadro NVS 280 PCI graphics, 64 MB
351384-005
Quadro NVS 280 PCI-E graphics, 64 MB
365934-001
361265-001
*
Front I/O device with cable
392408-001
*
*
DMS-59 to dual dongle cable
339257-005
*
DVI ADD 2 graphics card
198220-005
*
PCI Modem, worldwide
361286-021
1394, FH bracket
361552-001
*
RJ-11 telephone cable (use with 361286-021)
*
Telephone modular 6-position cable assembly
366510-001
*
*
Telephone modular 6-position cable assembly
(Australia)
304398-015
*Not shown
*
Telephone modular 6-position cable assembly
(Sweden)
304398-101
*
Telephone modular 6-position cable assembly
(Switzerland)
304398-115
Miscellaneous Screw Kit (not illustrated)
Miscellaneous screw kit
*Not shown
6-32x.250 TF, HI/TP W/SERR, 6 ea
6-32x.187 Tamper-resistant, T15, 2 ea
Plastite, Flathead, Phillips, 4 ea
Plastite 8X5/16L, .185DX.03 SHLDR, 2 ea
393956-001
Clearing CMOS
The computer's configuration (CMOS) may occasionally be corrupted. If it is, it is necessary to clear the CMOS
memory using switch SW50.
To clear and reset the configuration, perform the following procedure:
1. Turn off the computer and any external devices, and disconnect the power cord from the power outlet.
Ä
2.
3.
4.
5.
CAUTION: The power cord must be disconnected from the power source before pushing the Clear CMOS
Button (NOTE: All LEDs on the board should be OFF). Failure to do so may damage the system board.
Remove the access panel.
Press the CMOS button located on the system board.
Replace the access panel.
Turn the computer on and run Computer Setup (F10 Setup Utility) to reconfigure the system.
Disabling or Clearing the Power-On and Setup Passwords
1.
2.
3.
4.
5.
6.
7.
8.
System Board Connectors and Jumpers (position of some untitled components may vary in location)
CMOS
CMOS button
P20
Primary IDE
CR1
5V_AUX LED
P23
Front audio
E14
Boot block
P24
Front panel USB
E49
Password jumper
P52
Serial port header
J20
PCI slot 1
P60
Primary Serial ATA (SATA) Port connector
J21
PCI slot 2
P61
Secondary Serial ATA (SATA) Port connector
J30
PCI slot extender
P62
Third Serial ATA (SATA) Port connector
J31
PCI Express slot x1
P63
Fourth Serial ATA (SATA) Port connector
J41
PCI Express slot x16
P70
CPU fan
P1
Main power (24 pin)
P124
Hood lock
P3
Processor 12V header
P125
Hood sensor
P5
Front panel
XBT2
Battery
P6
Internal chassis speaker
XMM1
Memory socket
P8
Chassis fan
XMM2
Memory socket
P9
Secondary chassis fan
XMM3
Memory socket
P10
Diskette drive
XMM4
Memory socket
P11
Aux audio in
XU1
Microprocessor socket
PCI Extender Card Connectors
J23
PCI slot 4
J24
PCI slot 5
P30
Male expansion plug
System Hardware Interrupts
IRQ
System Function
IRQ
System Function
0
Timer Interrupt
8
Real-Time Clock
1
Keyboard
9
Unused
2
Interrupt Controller Cascade
10
Unused, available for PCI
3
Serial Port (COM B)
11
Unused, available for PCI
4
Serial Port (COM A)
12
Mouse
5
Unused, available for PCI
13
Coprocessor
6
Diskette Drive
14
Primary ATA (IDE) Controller
7
Parallel Port (LPT 1)
Computer Diagnostic LEDs (on front of computer)
LED
Color
LED/Beep Activity
State/Message
Power
Green
On
(S0) Computer on
Power
Green
1 blink every 2 seconds
(S1) Suspend Mode
Power
Green
1 blink every 2 seconds
(S3) Suspend to RAM
Power
Clear
Off
(S4) Hibernation Mode
Power
Clear
Off
(S5) Computer off
Power
Red*
2 blinks 1 second apart
CPU thermal shutdown
Power
Red*
3 blinks 1 second apart
CPU not installed
Power
Red*
4 blinks 1 second apart
Power supply overload (crow bar)
Power
Red*
5 blinks 1 second apart
Defective or missing memory
Power
Red*
6 blinks 1 second apart
Defective or missing graphics
Power
Red*
7 blinks 1 second apart
System board failure (detected prior to video)
Power
Red*
8 blinks 1 second apart
Invalid ROM based on checksum
Power
Red*
9 blinks 1 second apart
System not fetching code
Power
Red*
10 blinks 1 second apart
System hang while loading an option ROM
Hard Drive
Green
Blinking
Hard drive activity
*Blinking codes are repeated after a 2 second pause. Beeps stop after fifth iteration but LEDs continue until problem is
resolved.
Turn off the computer and any external devices, and disconnect the power cord from the power outlet.
Remove the access panel.
Locate the header and jumper labeled E49.
Remove the jumper from pins 1 and 2. Place the jumper over pin 2 only, in order to avoid losing it.
Replace the access panel.
Plug in the computer and turn on power. Allow the operating system to start.
NOTE: Placing the jumper on pin 2 clears the current passwords and disables the password features.
To re-enable the password features, repeat steps 1-3, then replace the jumper on pins 1 and 2.
Repeat steps 5-6, then establish new passwords.
Refer to the Desktop Management Guide and the Computer Setup (F10) Utility Guide for instructions on
establishing new passwords.
Computer Setup (F10) Utility Features (not all features may be available)
File
System Information
About
Set Time and date
Flash system ROM
Replicated Setup
Default Setup
Apply Defaults and Exit
Ignore Changes and Exit
Save Changes and Exit
Storage
Device Configuration
Storage Options
DPS Self-Test
Boot Order
Security
Smart Card Options
Setup Password
Power-On Password
Password Options
Smart Cover
Embedded Security
Device Security
Network Service Boot
System IDs
Drivelock Security
OS Security
Data Execution Prevention
Power
OS Power Management
Hardware Power Management
Thermal
Advanced
Power-On Options
Execute Memory Test
BIOS Power On
Onboard Devices
PCI Devices
PCI VGA Configuration
Bus Options
Device Options
Note: See the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD.
