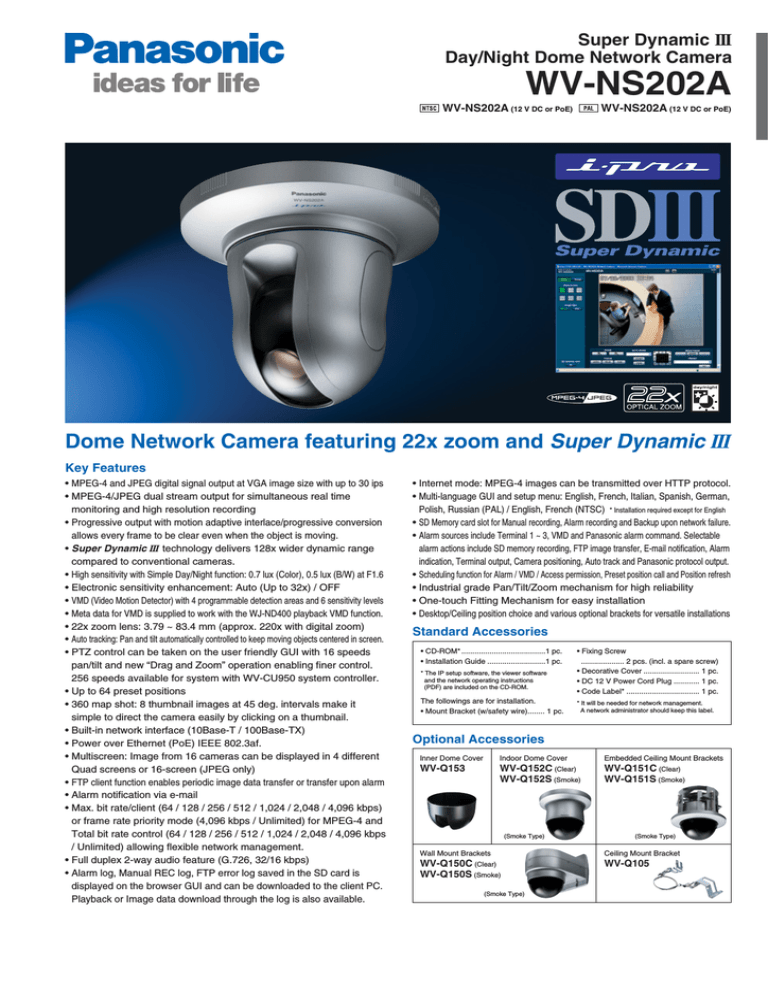

Super Dynamic III
Day/Night Dome Network Camera
WV-NS202A
WV-NS202A (12 V DC or PoE)
WV-NS202A (12 V DC or PoE)
Dome Network Camera featuring 22x zoom and Super Dynamic III
Key Features
• MPEG-4 and JPEG digital signal output at VGA image size with up to 30 ips
• MPEG-4/JPEG dual stream output for simultaneous real time
monitoring and high resolution recording
• Progressive output with motion adaptive interlace/progressive conversion
allows every frame to be clear even when the object is moving.
• Super Dynamic III technology delivers 128x wider dynamic range
compared to conventional cameras.
• High sensitivity with Simple Day/Night function: 0.7 lux (Color), 0.5 lux (B/W) at F1.6
• Electronic sensitivity enhancement: Auto (Up to 32x) / OFF
• VMD (Video Motion Detector) with 4 programmable detection areas and 6 sensitivity levels
• Meta data for VMD is supplied to work with the WJ-ND400 playback VMD function.
• 22x zoom lens: 3.79 ~ 83.4 mm (approx. 220x with digital zoom)
• Auto tracking: Pan and tilt automatically controlled to keep moving objects centered in screen.
• PTZ control can be taken on the user friendly GUI with 16 speeds
pan/tilt and new “Drag and Zoom” operation enabling finer control.
256 speeds available for system with WV-CU950 system controller.
• Up to 64 preset positions
• 360 map shot: 8 thumbnail images at 45 deg. intervals make it
simple to direct the camera easily by clicking on a thumbnail.
• Built-in network interface (10Base-T / 100Base-TX)
• Power over Ethernet (PoE) IEEE 802.3af.
• Multiscreen: Image from 16 cameras can be displayed in 4 different
Quad screens or 16-screen (JPEG only)
• FTP client function enables periodic image data transfer or transfer upon alarm
• Alarm notification via e-mail
• Max. bit rate/client (64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps)
or frame rate priority mode (4,096 kbps / Unlimited) for MPEG-4 and
Total bit rate control (64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps
/ Unlimited) allowing flexible network management.
• Full duplex 2-way audio feature (G.726, 32/16 kbps)
• Alarm log, Manual REC log, FTP error log saved in the SD card is
displayed on the browser GUI and can be downloaded to the client PC.
Playback or Image data download through the log is also available.
• Internet mode: MPEG-4 images can be transmitted over HTTP protocol.
• Multi-language GUI and setup menu: English, French, Italian, Spanish, German,
Polish, Russian (PAL) / English, French (NTSC) * Installation required except for English
• SD Memory card slot for Manual recording, Alarm recording and Backup upon network failure.
• Alarm sources include Terminal 1 ~ 3, VMD and Panasonic alarm command. Selectable
alarm actions include SD memory recording, FTP image transfer, E-mail notification, Alarm
indication, Terminal output, Camera positioning, Auto track and Panasonic protocol output.
• Scheduling function for Alarm / VMD / Access permission, Preset position call and Position refresh
• Industrial grade Pan/Tilt/Zoom mechanism for high reliability
• One-touch Fitting Mechanism for easy installation
• Desktop/Ceiling position choice and various optional brackets for versatile installations
Standard Accessories
• CD-ROM* .......................................1 pc.
• Installation Guide ...........................1 pc.
* The IP setup software, the viewer software
and the network operating instructions
(PDF) are included on the CD-ROM.
The followings are for installation.
• Mount Bracket (w/safety wire)........ 1 pc.
• Fixing Screw
.................... 2 pcs. (incl. a spare screw)
• Decorative Cover .......................... 1 pc.
• DC 12 V Power Cord Plug ............ 1 pc.
• Code Label* .................................. 1 pc.
* It will be needed for network management.
A network administrator should keep this label.
Optional Accessories
Inner Dome Cover
Indoor Dome Cover
Embedded Ceiling Mount Brackets
WV-Q153
WV-Q152C (Clear)
WV-Q152S (Smoke)
WV-Q151C (Clear)
WV-Q151S (Smoke)
(Smoke Type)
(Smoke Type)
Wall Mount Brackets
Ceiling Mount Bracket
WV-Q150C (Clear)
WV-Q150S (Smoke)
WV-Q105
(Smoke Type)
Specifications
Tilting Range
Tilting Speed
Browser
GUI
Proportional Pan/Tilt Control
Number of Preset Positions
Auto Mode
Image Hold
PTZ Position Display
Map Shot
Camera Control
Display Mode
SD Memory Data Download
Clock Display
GUI / Setup
Menu Language
System Log
Supported OS
Supported Browser
Network
Alarm
Input/
Output
Network IF
Image Resolution
Image Compression
Image Refresh Rate
(JPEG)
Audio Compression
Audio Mode
Total Bit Rate
Max. Bit Rate/Client (MPEG-4)
Supported Protocol
FTP Client
No. of Simultaneous Users
SD Memory Card
(Option)
User Registration
User Level
Security Method
Alarm Source
Alarm Actions
Alarm Log
Schedule
Monitor Output
External I/O Terminals
Microphone Input
General
Audio Output
Safety/EMC Standard
Power Source/Consumption
Ambient Operating
Temperature/Humidity
ø115 mm x 154 mm (H) (ø4-17/32" x 6-1/16" (H)) (excluding the DC 12 V power cord plug)
Dimensions
Weight
Camera: approx. 850 g (1.87 lbs.)
Accessories (Camera mounting bracket, decorative cover): approx. 200 g (0.44 lbs.)
Camera
Panasonic Logo Plate
SD Memory Card Slot Cover
SD Memory Card Error Indicator
SD Memory Card Slot
Link LED
Network Connector
DC 12 V Power Terminals
Power LED
Access LED
[INITIAL SET] Button
Cable Guide
Audio Output Connector
Monitor Out Connector
Safety Wire Holder
Microphone In Connector
External I/O Terminals
Mounting Bracket
Safety Wire
Decorative Cover
Appearance
4-ø7(4-ø9/32")
8-ø5(8-ø3/16")
83.5(3-9/32")
110(4-5/16")
132(5-3/16")
ø185(ø7-9/32")
Unit: mm (inches)
1/4-20UNC
For Camera Mount
(Depth: 6mm(1/4"))
ø115(ø4-17/32")
121.5(4-25/32")
Pan and
Tilt
Rear View
60(2-3/8")
64(2-17/32")
Lens
Privacy Zone
Up Side Down
Camera Title
Type
Angular Field of View
Min. Object Distance
Panning Range
Panning Speed
Front View
46
(1-13/16")
White Balance
Light Control
AGC
Super Dynamic III
Dynamic Range
Electronic Shutter
Electronic Sensitivity UP
Digital Noise Reduction
Black and White Mode
Video Motion Detector
Part Names and Functions
NTSC
PAL
1/4 inch interline transfer CCD, Effective pixeles: 768 (H) x 494 (V), Scanning Area: 3.59 (H) x 2.70 (V) mm
2:1 interlace scan (with motion adaptive interlace/progressive conversion)
Color (30 IRE): 0.7 lux (Sen up: OFF), 0.02 lux (Sens up: 32x) at F1.6
B/W (10 IRE): 0.5 lux (Sens up: OFF), 0.015 lux (Sens up: 32x) at F1.6
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Automatic integration of ALC/ELC
ON (LOW) / ON (MID) / ON (HIGH) / OFF
ON or OFF (with BLC masking)
52 dB typical (Super Dynamic III: ON, Shutter speed: OFF)
OFF (1/60), AUTO, 1/100
OFF / AUTO (2x, 4x, 6x, 10x, 16x, 32x)
High / Low
OFF / Auto (No IR moving)
For preset position: 4 programable detection areas, Sensitivity: 6 steps
Non-preset position: Detects entire screen except clock area, Sensitivity: 6 steps
Up to 8 zones, Gray/Mosaic
ON (desktop) / OFF (ceiling)
Up to 16 characters (alphanumeric characters, marks)
22x (3.79 mm ~ 83.4 mm) zoom lens, 220x with 10x digital zoom. F: 1:1.6 (Wide) ~ 3.0 (Tele)
H: 2.6° (Tele) ~ 51.7° (Wide), V: 2.0° (Tele) ~ 39.9° (Wide)
1.6 m
0° ~ 350°
Manual: approx.1°/s ~ 100°/s, Up to 256 steps (depending on the controller)
Preset: up to approx. 300°/s
–30° ~ 90° (upward-level-downward) Tilting angle limit: 0° / –5° / –10° / –15° / –20° / –25° / –30°
Manual: approx. 1°/s ~ 100°/s, Up to 256 steps (depending on the controller)
Preset: up to approx. 100°/s
Yes
64
OFF/ preset sequence / auto pan / auto track
ON / OFF
ON / OFF
360° map shot / preset map shot
Pan/Tilt (16 steps), Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode
Image from 16 cameras can be displayed in 4 different Quad screens
or 16-screen (JPEG only). 20 characters camera title available.
Images recorded in the SD memory card can be downloaded.
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
English, French, Italian, Spanish, German, Polish,
English, French
(Installation required for French)
Russian (Installation required except for English)
Alarm log, Manual REC log, FTP error log (SD memory required)
Microsoft® Windows Vista® Business 32 bit, Microsoft® Windows® XP Home/Professional SP2,
Microsoft® Windows® 2000 Professional SP4 English, French, Italian, Spanish, German
Windows® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business 32 bit),
Microsoft® Internet Explorer® 6.0 SP2 (Microsoft® Windows® XP Home/Professional SP2),
Microsoft® Internet Explorer® 6.0 SP1 (Microsoft® Windows® 2000 Professional SP4)
10Base-T / 100Base-TX, RJ45 connector
VGA (640 x 480) / QVGA (320 x 240)
MPEG-4: Image quality: LOW/NORMAL/FINE, Transmission type: UNICAST/MULTICAST
JPEG: Image quality: 10 steps, Transmission type: PULL/PUSH
0.1 / 0.2 / 0.33 / 0.5 / 1 / 2 / 3 / 5 / 6 / 10 / 15 / 30 ips (Max. rate will be 5 ips-VGA,
10 ips-QVGA when transmitting JPEG and MPEG-4 simultaneously)
G.726 (ADPCM) 32 kbps/16 kbps
OFF / Mic input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps / Unlimited
64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps or Frame rate priority (4,096 kbps / Unlimited)
TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP
Alarm image transfer, Periodic image transfer
Up to 8 users
Manual REC/Alarm REC/Backup upon network failure. Compatible SD card: Panasonic
64 MB, 128 MB, 256 MB, 512 MB, 1 GB, 2 GB model. SDHC standard card not supported.
Up to 16 users
3 Levels: Administrator, Camera control, Live only
User authentication (ID and Password), Host authentication (IP address)
3x Terminal inputs, VMD, Command alarm
SD memory recording, E-mail notification, Indication on browser, Camera positioning,
FTP image transfer, Terminal output, Panasonic protocol output, Auto track
With SD memory card: 5,000 logs, Without SD memory card: 1,000 logs
Alarm/VMD/Access permission, Preset position call, Position refresh
1.0 V [p-p] / 75 Ω,
1.0 V [p-p] / 75 Ω,
NTSC composite, ø3.5 mm mini jack PAL composite, ø3.5 mm mini jack
ALARM IN 1, ALARM IN 2/ALARM OUT, ALARM IN3/AUX OUT
MIC IN (Applicable microphone; Plug-in power type)
Supply voltage: 2.5 V ±0.5 V Input impedance: 3 KΩ ±10 %
AUDIO OUT ø3.5 mm stereo mini jack (monaural output) Line level
UL (6500), FCC (Part15 ClassA),
CE (EN55022 ClassB, EN55024),
C-UL (CAN/CSA E60065), DOC (ICES003 ClassA) GOST (GOST R 51558)
DC 12 V: approx. 1,000 mA, PoE: approx.12.0 W (IEEE802.3af compliant, Class 0 device)
–10 °C ~ +50 °C (14 °F ~ 122 °F), 90 % or less (without condensation)
38
154(6-1/16") (1-1/2")
156(6-5/32")
2(3/32")
153.5(6-1/32")
2(3/32")
151.5(5-31/32")
TV System
Camera
Image Sensor
Scanning Mode
Minimum Illumination
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S.
and other countries.
– "Super Dynamic", "SDII", "SDIII" and "i-Pro" logos are trademarks or registered
trademarks of Panasonic Corporation.
Important
– Safety Precaution: carefully read the operating instructions and installation manual
before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer
products that reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
DISTRIBUTED BY:
http://panasonic.net/security/
Printed in Japan (2A-003AA)
