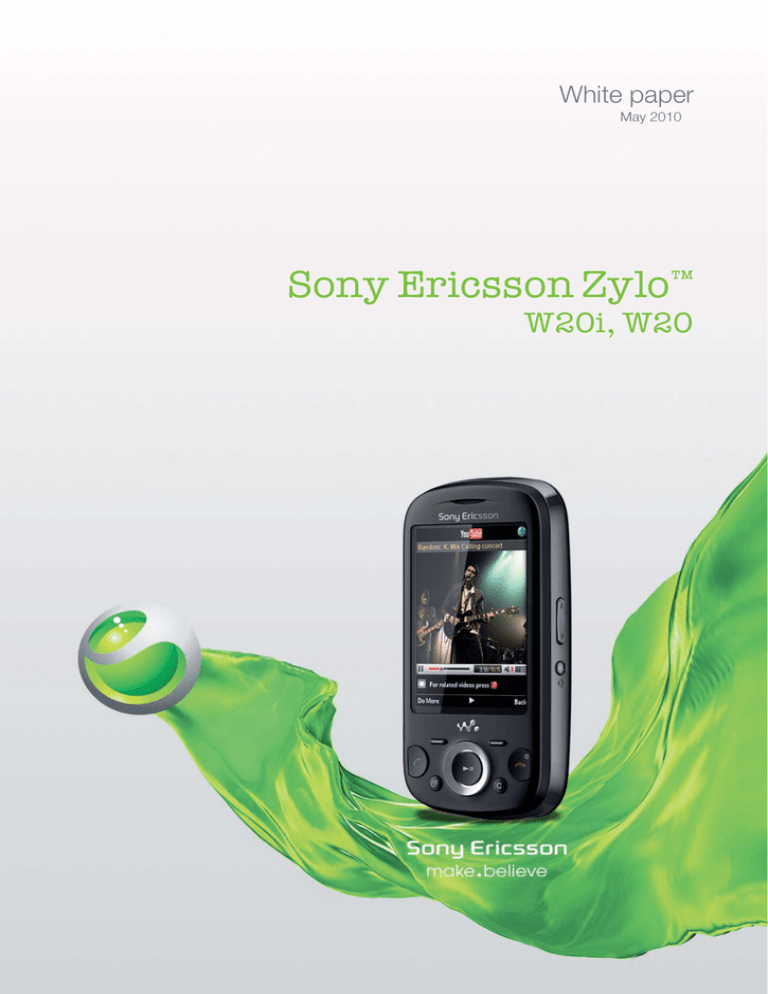

White paper
May 2010
Sony Ericsson Zylo™
W20i, W20
White paper | Sony Ericsson Zylo™
Purpose of this document
Sony Ericsson product White papers are intended to give an overview of a product and provide details in
relevant areas of technology.
Document history
Version
April 2010
First released version
Version 1
May 2010
Second released version
Version 2
Sony Ericsson Developer World
For the latest Sony Ericsson technical documentation and development tools, go to
www.sonyericsson.com/developer
This document is published by Sony Ericsson Mobile
Communications AB, without any warranty*.
Improvements and changes to this text necessitated by
typographical errors, inaccuracies of current
information or improvements to programs and/or
equipment, may be made by Sony Ericsson Mobile
Communications AB at any time and without notice.
Such changes will, however, be incorporated into new
editions of this document. Printed versions are to be
regarded as temporary reference copies only. Some
features profiled in this White Paper may not be
supported in all countries or regions.
This White paper is published by:
Sony Ericsson Mobile Communications AB,
SE-221 88 Lund, Sweden
www.sonyericsson.com
© Sony Ericsson Mobile Communications AB,
2009-2010. All rights reserved. You are hereby
granted a license to download and/or print a
copy of this document.
Any rights not expressly granted herein are
reserved.
*All implied warranties, including without limitation the
implied warranties of merchantability or fitness for a
particular purpose, are excluded. In no event shall
Sony Ericsson or its licensors be liable for incidental or
consequential damages of any nature, including but not
limited to lost profits or commercial loss, arising out of
the use of the information in this document.
Second released version (May 2010)
Publication number: 1238-5742
2
May 2010
White paper | Sony Ericsson Zylo™
Table of contents
Product overview ........................................................................................................4
Sony Ericsson Zylo™ – Moonwalk to work ...........................................................4
Facts – dimensions, weight, performance and networks ......................................5
Full feature list – categorised list of features ........................................................7
Technologies in detail .................................................................................................9
Device-to-device communications (local) .............................................................9
Bluetooth™ wireless technology ........................................................................9
Java™ ..................................................................................................................10
Messaging ...........................................................................................................11
Provisioning (OMA CP, OMA DM) .......................................................................12
Synchronisation (OMA DS, EAS) .........................................................................12
Multimedia (audio and video) ...............................................................................13
Web browser .......................................................................................................14
Trademarks and acknowledgements ..................................................................15
3
May 2010
White paper | Sony Ericsson Zylo™
Product overview
Sony Ericsson Zylo™ – Moonwalk to work
Breakdance at the bus stop. Rap in the rain. Let loose. Show your true music style with all your pop icons
and hip hop legends on Sony Ericsson Zylo™ phone. Rich bass beats. Enhanced stereo sound. Cool
styles for the Walkman™ player. Ready to rock? Pop in the earbuds, blast the music and spread some
good vibes.
Find the band in the fitting room
Amazing voice. From the speaker in the fitting room. On the radio. Who is it? Get the answer with the
TrackID™ application. Record and send to receive. Artist, title, album. Want it? Check out the PlayNow™
service* online. Or play more of the music you already have. Choose artist, album or genre, and Sony
Ericsson Zylo™ phone creates the playlist for you.
Nothing to do? Tweet about it
Share the fun, the ordinary and the utterly boring. On Facebook™* or Twitter™*. Watch crazy corny
classic clips on YouTube™. With friends in the mall or a stranger on the train. On the 2.6” large screen.
Love to freeze moments? Dive into the unknown with camera and Google Maps™. Discover. Shoot. Then
post the past in artistic stills on Picasa™ and Flickr®.
Make a music call
Bought a song? Dying to share it? Call someone. Play it in the background. Sing along. Or choose a
background sound for a prank call. Traffic noise. Office sounds. Still at work? Sure. Then hang up and
play Music Genie to your own music. Fight a friend. Move your feet. And dance your way to victory.
* This service may not be available in all markets.
4
May 2010
White paper | Sony Ericsson Zylo™
Facts – dimensions, weight, performance and
networks
Size
103 x 52 x 11.5 (16) mm
Weight
115 grams
Available colours
Jazz Black
Chacha Silver
Swing Pink
Main screen
Colours
262,144 color TFT
Resolution
240x320 pixels
Size (diagonal)
2.6 inches
Input mechanisms
Text input
Zi
Motion sensor
Accelerometer
Memory
Phone memory
Up to 260 MB
Memory card support
microSD™, up to 16 GB
Networks
W20i
UMTS HSPA 900 (Band VIII), 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
W20
UMTS HSPA 2100 (Band I)
GSM GPRS/EDGE 850, 900, 1800, 1900
Data transfer speeds
GSM GPRS (Class 10 CS4)
Up to 80 kbps (download). Up to 40 kbps (upload)
GSM EDGE (Class 10 MCS9)
Up to 247 kbps (download). Up to 123 kbps (upload)
UMTS HSPA (cat. 5 upload)
Up to 2.0 Mbps
UMTS HSPA (cat. 8 download)
Up to 7.3 Mbps
Talk time (GSM)
4 hours *
Standby time (GSM)
339 hours *
* According to GSM Association Battery Life Measurement Technique.
Talk time (UMTS)
3 hours 30 min *
Standby time (UMTS)
403 hours *
5
May 2010
White paper | Sony Ericsson Zylo™
Video call time
Up to 2 hours **
Music listening time
Up to 26 hours **
Battery
920 mAh
* According to GSM Association Battery Life Measurement Technique.
** Battery performance may vary depending on network conditions and configuration, and phone usage.
6
May 2010
White paper | Sony Ericsson Zylo™
Full feature list – categorised list of features
Camera
Music
Web
3.2 megapixel camera
2x digital zoom
Geo tagging
Photo feeds
Photo fix
Send to web (photos and videos)
Video recording
Album art
Automatic playlist creation
Bluetooth™ stereo (A2DP)
Clear bass
Clear stereo
PlayNow™ service*
SensMe™ application
Shake control
TrackID™ application
Walkman™ music player
Walkman™ styles
Access NetFront™ Web browser
Bookmarks
Google™ search
Mouse pointer
HTML 4.01
XHTML 1.1
Web feeds
Communication
Messaging
Design
Call list
Conference calls
Polyphonic ringtones
Speakerphone
Vibrating alert
Video calling (main camera)
Conversations
Email
Microsoft® Exchange ActiveSync®
Instant messaging
Picture messaging (MMS)
Predictive text input
Sound recorder
Text messaging (SMS)
Unified messaging
Activity menu key
Auto rotate
Gesture control
Navigation key
Picture wallpaper
Wallpaper animation
* This service is not available in all markets.
7
May 2010
White paper | Sony Ericsson Zylo™
Entertainment
Organiser
Connectivity
3D games
Facebook™ application*
FM radio with RDS
Java™
Media browser
Music Call
Music Genie
Twitter™ application*
Video streaming
Video viewing
WalkMate
YouTube™*
Alarm clock
Calculator
Calendar
Flight mode
Notes
Phone book
Stopwatch
Tasks
Timer
Bluetooth™ technology
Google Maps™
Modem
Synchronisation
USB mass storage
USB High speed 2.0 support
* This service is not available in all markets.
8
May 2010
White paper | Sony Ericsson Zylo™
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Ericsson Developers World
or your Sony Ericsson contact person where applicable.
Device-to-device communications (local)
Bluetooth™ wireless technology
Bluetooth™ profiles supported
Advanced Audio Distribution Profile
Audio/Video Remote Control Profile
Basic Imaging Profile
Dial-up Networking Profile
File Transfer Profile
Generic Access Profile
Generic Object Exchange Profile
Handsfree Profile
Headset Profile
Object Push Profile
Personal Area Networking Profile
Phonebook Access Profile
Serial Port Profile
Synchronisation Profile
SyncML™ OBEX binding
Core version and supported
features
2.1+EDR
Connectable devices
Interoperability and compatibility among Bluetooth™
devices varies. The device generally supports products
utilising Bluetooth™ spec. 1.1, or higher, and at least one
of the profiles above.
More information:
www.sonyericsson.com/developer
www.bluetooth.com
9
May 2010
White paper | Sony Ericsson Zylo™
Java™
Java™ Platform, Micro Edition
JSR-75 PDA Optional Packages for J2ME™
JSR-82 Bluetooth™ Wireless Technology API
JSR-118 MIDP 2.0
JSR-118 MIDP 2.1
JSR-120 Wireless Messaging API
JSR-135 Mobile Media API 1.1
JSR-139 CLDC 1.1
JSR-172 J2ME™ Web Services Specification
JSR-177 Security and Trust Services API for J2ME™
JSR-179 Location API
JSR-180 SIP API for J2ME™
JSR-184 Mobile 3D Graphics API for J2ME™
JSR 185 Java™ Technology for the Wireless Industry
JSR-205 Wireless Messaging API 2.0
JSR-211 Content Handler API
JSR-226 SVG API for J2ME™
JSR-229 Payment API
JSR-234 Advanced Multimedia Supplements
JSR-238 Mobile Internationalization API
JSR-239 OpenGL® ES
JSR-248 Mobile Services Architecture
JSR-256 Mobile Sensor API (Accelerometer)
Nokia UI Extension API
Java 3D
MascotCapsule® Micro3D Version 3
JSR-239 OpenGL® ES
JSR-184 Mobile 3D Graphics API for J2ME™
10
May 2010
White paper | Sony Ericsson Zylo™
Messaging
(MMS) Multimedia Messaging Service
According to OMA Multimedia Messaging Service v1.2 + SMIL
Email
Bearer type (IP)
GSM Data (IP) GPRS and HSCSD
Character sets
USASCII
UTF-7
UTF-8
UTF-16
UTF-17LE
UTF-16BE
UCS-2 / ISO10646 UCS2
ISO-8859-1
ISO-8859-2 Eastern Europe
ISO-8859-5 Cyrillic
ISO-8859-7 Greek
ISO-8859-9 Turkish
ISO-8859-10 Nordic
ISO-8859-11 Thai
ISO-8859-15 Western MR5
KOI8
GB18030 Simplified Chinese
GB2312 Simplified Chinese
BIG5
ISO2022JP
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1255 Hebrew
Windows® 1258 Vietnamese
Shift JIS
Note: GB2312 is available in Simplified Chinese
variants only, that is, Mainland China variants.
BIG5 is only available in Traditional Chinese variants, that
is, Hong Kong and Taiwan variants.
OTA provisioning solution
OMA Client Provisioning 1.1
Protocols
POP3, SMTP and IMAP4
Push email
IMAP IDLE (extension of IMAP4 Rev1), OMA Email
Notification 1.0 and scheduled checking, Microsoft®
Exchange ActivSync® (EAS)
Secure email
SSL/TLS, both port methods (POPS/IMAPS) and STARTTLS
HTML mail
Yes
More information: www.sonyericsson.com/developer, www.openmobilealliance.org
11
May 2010
White paper | Sony Ericsson Zylo™
Provisioning (OMA CP, OMA DM)
OMA CP version 1.1
OMA DM version 1.2
Related information:
www.sonyericsson.com/developer
Synchronisation (OMA DS, EAS)
OMA Data Synchronisation protocol versions 1.1.2 and 1.2
OMA Data Formats: vCard 2.1, vCalendar 1.0, vBookmark 1.0, notes as text/plain
Microsoft® Exchange ActiveSync® protocol version 2.5
Related information
www.sonyericsson.com/developer
12
May 2010
White paper | Sony Ericsson Zylo™
Multimedia (audio and video)
Audio Playback
Decoder format
Audio decoding MPEG-1/2/2.5,
audio layer 3
AAC, AAC+, eAAC+
Supported in file format
MP3 (.mp3)
AMR-NB
WMA versions 2, 7, 8: Class 1
WMA version 9: Level 3
WMA Pro (profile M0a)
General MIDI (GM)
GML
SP-MIDI
DLS (Mobile DLS supported)
Linear/A-law/.-law PCM
iMelody
FLAC
3GP (.3gp); AAC (.aac); MP4
(.mp4, .m4a)
3GP (.3gp); AMR (.amr)
WMA (.wma)
WMA (.wma)
WMA (.wma)
SMF (.mid)
SMF (.mid)
SMF (.mid); XMF (.xmf, .mxmf)
XMF (.xmf)
WAV (.wav)
iMelody (.imy)
FLAC (.flac)
Audio Recording
Encoder format
AMR-NB
AAC-LC
Supported in file format
AMR (.amr)
MP4 (.m4a)
Video Playback
Decoder format
MPEG-4 Visual Simple Profile
H.264 Baseline Profile
H.263 Profile 0
VC-1 (WMV9)
Supported in file format
3GP (.3gp); MP4 (.mp4)
3GP (.3gp); MP4 (.mp4)
3GP (.3gp)
ASF (.asf, .wmv)
Video Recording
Encoder format
- Video: H.263 Profile 0
- Audio: AMR-NB
- Video: MPEG-4 Visual Simple
Profile
- Audio: AAC-LC
Supported in file format
3GP (.3gp)
Audio/Video Streaming
Streaming transport
RTSP according to 3GPP™
DRM
DRM (Digital Rights Management) features the rights and
copy protection of downloaded
content.
OMA DRM 1.0, 2.0, 2.1
Microsoft® DRM Janus
13
MP4 (.mp4)
May 2010
White paper | Sony Ericsson Zylo™
Web browser
Browser version
Access NetFront™ 3.5
Bookmarks
Folders and sorting supported
Bookmark export/import
Bookmarks can be sent and received in vBookmark format using
Bluetooth™ technology, SMS, MMS and email
Navigation/rendering
Pan & Zoom (page overview model)
Landscape/portrait rendering
Full page PC rendering
Search
Internet Search
Find on page
Browser compliancy
HTML 5.0 Canvas
HTML version 4.01
XHTML Basic version 1.0
XHTML version 1.1
XHTML Mobile Profile version 1.1
WML 1.3
CSS 2.1
WCSS Version 26-Oct-2001
ECMA-script 262 3rd edition
ECMAScript Mobile Profile 1.0
HTTPXMLRequest AJAX
DOM 2.0
SVG Tiny, version 1.2
Browser plugin
SVG-T
Adobe™ Flash Lite™
Audio/Video
Web feeds
Feeds detection in Browser
Feeds reader
Podcasting
Web albums
Publish to Picasa™ site
Publish to a social site
Publish to a Blogger™ page
Publish to a Flickr™ page
Protocol Compliancy
HTTP/1.1
TLS 1.0 and SSL 3.0
OMA Download 1.0
RSS 2.0
Related information: www.access-company.com/products/mobile_solutions
14
May 2010
White paper | Sony Ericsson Zylo™
Trademarks and acknowledgements
The Liquid Identity and Liquid Energy logos, Sony Ericsson Zylo, PlayNow, TrackID and SensMe are
trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. Sony, "make.believe",
Walkman and MEGA BASS are trademarks or registered trademarks of Sony Corporation. Media Go is a
trademark or registered trademark of Sony Media Software and Services. Ericsson is a trademark of
Telefonaktiebolaget LM Ericsson.
NetFront is a trademark or a registered trademark of ACCESS Co., Ltd. PictBridge is a trademark or
registered trademark of Canon Kabushiki Kaisha Corporation. TrackID is powered by Gracenote™ Mobile
MusicID™. Gracenote and Mobile MusicID are trademarks or registered trademarks of Gracenote, Inc.
Bluetooth is a trademark or registered trademark of Bluetooth SIG Inc. and any use of such mark by Sony
Ericsson is under license.
Google, Google Maps, YouTube, Picasa and Blogger are trademarks or registered trademarks of Google,
Inc. Flickr is a trademark or registered trademark of Yahoo! Inc.
Wi-Fi is a trademark or registered trademark of the Wi-Fi Alliance. microSD is a trademark or registered
trademark of SanDisk Corporation. Adobe Flash Lite is a trademark or registered trademark of Adobe
Systems Incorporated in the United States and/or other countries.
Microsoft, Windows, Vista and ActiveSync are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
3GPP is a trademark or a registered trademark of ETSI. SyncML is a trademark or registered trademark of
Open Mobile Alliance Ltd. Java and all Java-based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
End-user license agreement for Sun Java™ J2ME™:
1. Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by
Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in
part.
2. Export Regulations: Software including technical data, is subject to U.S. export control laws, including
the U.S. Export Administration Act and its associated regulations, and may be subject to export or import
regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responisibility to obtain licenses to export, re-export, or import Software. Software
may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba,
Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of
Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders.
3. Restricted Rights: Use, duplication or disclosure by the United States government is subject to the
restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS
252.227-7013(c) (1) and FAR 52.227-19(c) (2) as applicable.
Wisepilot is a trademark of Appello Systems AB and its products are the property of Appello Systems AB
and are protected against unauthorised use by trademark laws. Facebook is a trademark or registered
trademark of Facebook, Inc. Twitter is a trademark or a registered trademark of Twitter, Inc.
MascotCapsule is a registered trademark of HI CORPORATION in Japan.
All other trademarks and copyrights are the property of their respective owners.
15
May 2010
