HP Compaq Elite 8000 Elite

QuickSpecs
HP Compaq 8000 Elite PC
Overview

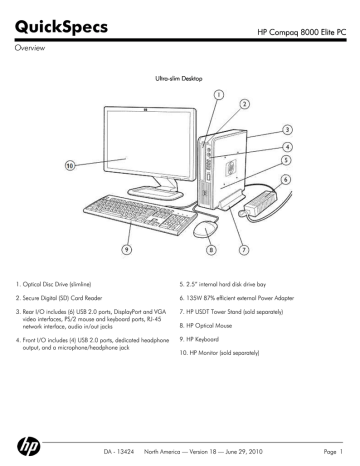

Ultra-slim Desktop
1. Optical Disc Drive (slimline)
5. 2.5” internal hard disk drive bay
2. Secure Digital (SD) Card Reader
6. 135W 87% efficient external Power Adapter
3. Rear I/O includes (6) USB 2.0 ports, DisplayPort and VGA
video interfaces, PS/2 mouse and keyboard ports, RJ-45
network interface, audio in/out jacks
7. HP USDT Tower Stand (sold separately)
4. Front I/O includes (4) USB 2.0 ports, dedicated headphone
output, and a microphone/headphone jack
9. HP Keyboard
DA - 13424
8. HP Optical Mouse
10. HP Monitor (sold separately)
North America — Version 18 — June 29, 2010
Page 1
QuickSpecs
HP Compaq 8000 Elite PC
Overview
Small Form Factor
1. Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse
and keyboard ports, RJ-45 network interface, DisplayPort and
VGA video interfaces, and audio in/out jacks
6. 3.5” external drive bay supporting a media card reader or a
secondary hard disk drive
7. 5.25” external drive bay supporting an optical disk drive
2. Low profile expansion slots include (1) PCI slot, (2) PCI Express
8. 3.5” internal drive bay supporting primary hard disk drive
x1 slots and (1) PCI Express x16 graphics slot
3. Front I/O includes (4) USB 2.0 ports, dedicated headphone
output, and a microphone/headphone jack
9. 240W standard or 89% high efficiency Power Supply
10. HP Monitor (sold separately)
4. HP Optical Mouse
5. HP Keyboard
DA - 13424
North America — Version 18 — June 29, 2010
Page 2
QuickSpecs
HP Compaq 8000 Elite PC
Overview
Convertible Minitower
1. (3) 5.25” external drive bays supporting optical disk drives,
removable hard disk drives, or the HP Media Card Reader
2. 320W standard or 89% high efficiency Power Supply
3. Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse
and keyboard ports, RJ-45 network interface, DisplayPort and
VGA video interfaces, and audio in/out jacks
4. Front I/O includes (4) USB 2.0 ports, dedicated headphone
output, and an auto detecting microphone/headphone jack
5. (3) 3.5” internal drive bays supporting multiple hard disk drives
6. Full height expansion slots include (3) full-length PCI slots, (1)
PCI Express x1 slot, and (2) full-length PCI Express x16 graphics
slots
NOTE: 2nd PCIe x16 slot has x4 connectivity.
7. HP Optical Mouse
8. HP Keyboard
9. HP Monitor (sold separately)
DA - 13424
North America — Version 18 — June 29, 2010
Page 3
QuickSpecs
HP Compaq 8000 Elite PC
Overview
At A Glance
Designed for long-term deployment within corporate, enterprise, public sector and mid-market commercial organizations
Choice of three professional chassis form factors to accommodate any desired mix between expandability and size
BIOS developed and engineered by HP for better security, manageability and software image stability
Intel® Q45 Express chipset featuring integrated GMA 4500 integrated graphics
DDR3 Synchronous Dynamic Random Access Memory (SDRAM)
Intel® Core 2 Processor with vPro Technology (requires select processors)
Supports industry standard management protocols including Intel Standard Manageability and DASH 1.1 (via optional
Broadcom NIC card)
Integrated dual independent monitor support via both a VGA and DisplayPort video interface
Standard efficiency or 89% high efficiency energy saving power supplies available on the CMT and SFF models
87% efficient energy saving external power adapter standard with USDT models
ENERGY STAR qualified models available (dependent upon the desired configuration)
CMT and SFF models can be configured with multiple hard disk drives in a RAID array
Guaranteed lengthy purchase lifecycles and image stability
Software image fully compatible across all models and form factors
Created using industry leading Design for Environment standards
Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals
(http://h10019.www1.hp.com/business-site/index.html)
Tailored HP Factory Express deployment and lifecycle services available
(http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx)
Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions
and exclusions apply)
Tool-less serviceability features for easier upgrades and repairs
DA - 13424
North America — Version 18 — June 29, 2010
Page 4
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
Operating Systems
Preinstalled
Genuine Windows Vista Business (32-bit)1
Genuine Windows Vista Home Basic1
Genuine Windows 7 Home Basic Edition (32-bit)2
Genuine Windows 7 Home Premium Edition (32-bit or 64-bit)2
Genuine Windows 7 Professional Edition (32-bit or 64-bit)2
Genuine Windows 7 Professional Edition with a custom downgrade to Genuine Windows XP
Professional2,3
FreeDOS
Supported
Genuine Windows Vista Enterprise Edition1
Genuine Windows 7 Enterprise Edition2
Genuine Windows 7 Ultimate Edition2
Certified
Novell SUSE Linux Enterprise Desktop 114
Red Hat Enterprise Linux 644
1
Certain Windows Vista product features require advanced or additional hardware. See
www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and www.microsoft.com/windowsvista/getready/capable.mspx for
details. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit: www.windowsvista.com/upgradeadvisor
2
System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and
take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
3
Windows 7 Professional disk may be included for future upgrade if desired. To qualify for this downgrade an end user must be a
business (including governmental or educational institutions) and is expected to order at least 25 customer systems with the same
custom image.
4
The following features are not supported on Linux certified systems:
HP 22-in-1 media card reader
Trusted Platform Module (TPM) 1.2 Security Chip
Intel Gigabit CT Desktop NIC Card
Broadcom NetXtreme GbE Ethernet Plus NIC
HP 802.11b/g/n wireless NIC (SFF and MT)
Intel WiFi Link 5100 a/b/g/n wireless NIC (USDT)
LSI 56K Int'l SoftModem
HP USB Smartcard keyboard
HP Serial port adapter
HP Parallel port adapter
HP eSATA port adapter
HP FireWire/IEEE 1394 I/O card
SATA Blu-Ray Writer Drive
ATI Radeon HD 4550 Graphics Card
ATI Radeon HD 4650 DP (1GB) PCIe x16 Graphics Card
DA - 13424
North America — Version 18 — June 29, 2010
Page 5
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
Nvidia GeForce 310 DP PCIe x16 Graphics Card
Nvidia Quadro NVS 290 Graphics Card
Nvidia Quadro NVS 295 Graphics Card
Value Added Software (included with all models; not included when configured with FreeDOS)
HP ProtectTools Security Suite
HP Software Management Agent
Computrace for Desktops agent (optional)
HP Insight Diagnostics
PDF Complete
Value Added Software (included with select models; not included when configured with FreeDOS)
Computer Setup Utility
HP Total Care Advisor
McAfee Total Protection Anti-Virus*
Microsoft Office Trial Version
Roxio Creator Business
Firefox HP Virtual Browser
HP Power Manager
Corel WinDVD
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to receive updates. First
update included. Subscription required for updates thereafter.
HP Client Management Solutions (available for free download from the Internet)
http://www.hp.com/go/easydeploy)
HP Client Automation Starter*
HP SoftPaq Download Manager
* Available from your HP Sales Representative or HP Channel Partner
HP Client Catalog for Microsoft SMS
HP Systems Software Manag
Value Added Services and Features
HP Stable Platform Program
Intel Stable Platform Program
Business-to-Business Portals
HP Global Series Services
* TPM module disabled where restricted by law, i.e. Russia.
Factory Express Deployment and Lifecycle Services
Intel Standard Manageability
Intel Core 2 Processor with vPro Technology
Trusted Platform Module (TPM) v1.2*
Service and Support
On-site warranty and service¹: three year (3/3/3) limited warranty and service offering delivers three years of parts, labor and on-site
repair. Response time is next business day² and includes free telephone support³ 24 x 7. Global coverage² ensures any product
purchased in one country and transferred to another non-restricted country will remain fully covered under the original warranty and
service offering. Some countries/regions do not offer one year onsite and labor.
1 Terms and conditions may vary by country. Certain restrictions and exclusions apply.
2
On-site services may be provided pursuant to a service contract between HP and an authorized HP third party provider, and is not
available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by
country.
3
Technical telephone support applies only to HP configured, HP and HP qualified third party hardware and software. Toll-free
calling and 24 x 7 support may not be available in some countries.
DA - 13424
North America — Version 18 — June 29, 2010
Page 6
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
Chipset
Intel Q45 Express
Processor
Intel Celeron Processors (dual core):
Intel Celeron E3200 Processor
2.40 GHz, 1M L2 cache, 800 MHz FSB
Intel Celeron E3300 Processor
2.50 GHz, 1M L2 cache, 800 MHz FSB
Intel Pentium Processors:
Intel Pentium E5300 Processor
2.60 GHz, 2M L2 cache, 800 MHz FSB
Intel Pentium E5400 Processor
2.70 GHz, 2M L2 cache, 800 MHz FSB
Intel Pentium E6300 Processor
2.80 GHz, 2M L2 cache, 1066 MHz FSB
Intel Pentium E6500 Processor
2.93 GHz, 2M L2 cache, 1066 MHz FSB
Intel Core 2 Duo Processors:
Intel Core 2 Duo E7500 Processor
2.93 GHz, 3M L2 cache, 1066 MHz FSB
Intel Core 2 Duo E7600 Processor
3.06 GHz, 3M L2 cache, 1066 MHz FSB
Intel Core 2 Duo E8400 Processor
3.0 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Duo E8500 Processor
3.16 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Duo E8600 Processor
3.33 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Processors:
Intel Core 2 Quad Q8400 Processor
2.66 GHz, 4M L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q8400s Processor (low power)
2.66 GHz, 4M L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q9500 Processor
2.83 GHz, 6M L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q9505 Processor
2.83 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Q9505s Processor (low power)
2.83 GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Q9550 Processor
2.83 GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology
Intel Core 2 Quad Q9550s Processor (low power)
2.83 GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology
DA - 13424
North America — Version 18 — June 29, 2010
USDT
SFF
CMT
X
X
X
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Page 7
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
Intel Core 2 Quad Q9650 Processor
3.0 GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology
X
X
Intel Core 2 Processor with vPro Technology
All HP Compaq 8000 Elite Series models featuring this technology include processors which are part of the Intel 2010 Stable Image
Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP Compaq 8000 Elite
Series Business PC, thus making these models the most stable, secure, and manageable platforms available to enterprises today.
The 2010 SIPP processors are:
Core 2 Duo E8400, E8500, E8600
Core 2 Quad Q9505, Q9505s, Q9550, Q9550s, Q9650
Intel's Core 2 Processor with vPro Technology suite of features includes:
Intel Advanced Management Technology (AMT) v5.0 – An advanced set of remote management features and functionality which
provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client systems
regardless of the system's health or power state. AMT 5.0 includes all features described as part of Intel Standard Manageability plus
the following advanced management functions:
Fast Call for Help – a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections, or
alert triggered connection
Remote Scheduled Maintenance – pre-schedule when the PC connects to the IT or service provider console for maintenance.
Remote PCs can get required patches, be inventoried, etc by connecting to their IT console or Service Provider when it's
convenient
Remote Alerts – automatically alert IT or service provider if issues arise
Access Monitor – Provides oversight into Intel® AMT actions to support security requirements
Microsoft NAP Support – Allows AMT 5.0 to gain access to a Microsoft NAP enabled 802.1x network OOB to enable OOB SW
updates, inventories, remote diagnostics, etc. NAP is a new platform and solution that controls access to network resources based
on a client computer's identity and compliance with corporate governance policy. NAP allows network administrators to define
granular levels of network access based on who a client is, the groups to which the client belongs, and the degree to which that
client is compliant with corporate governance policy. If a client is not compliant, NAP provides a mechanism to automatically bring
the client back into compliance and then dynamically increase its level of network access.
When a client attempts to access the network or communicate on the network, it must present its system health state or proof of
health compliance. If a client cannot prove it is compliant with system health requirements (for example, that it has the latest
operating system and antivirus updates installed), its access to the network or communication on the network can be limited to a
restricted network containing server resources so that health compliance issues can be remedied. After the updates are installed, the
client requests access to the network or attempts the communication again. If compliant, the client is granted unlimited access to the
network or the communication is allowed.
Redundant Array of Independent Drives (RAID)
Flexible implementation:
implementation
DriveLock is supported while in RAID mode. Users can manage the DriveLock password from within F10 Setup. Locked drives
will be displayed as such in the RAID option ROM interface.
Hard drive information can be viewed within F10 Setup while in RAID mode. Previously, the hard drives will not appear in
Drive Configuration when switching to RAID mode.
DA - 13424
North America — Version 18 — June 29, 2010
Page 8
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
DPS Self Test can be executed on physical hard drives while in RAID mode.
The RAID Setup Utility (accessed through CTRL-I) can be protected by the F10 Setup password.
NOTE: RAID 1 is the only RAID configuration offered via factory configurations. The pre-configured systems:
Are only available on the CMT and SFF form factors. The USDT does not support RAID as it does not allow for more than one
hard disk drive.
Are complete RAID systems and have both drives installed. If the CMT is configured with three hard disk drives, the third drive
is would be unpartitioned and not part of the RAID array
Have the necessary Option ROM configuration.
Are pre-loaded and pre-installed with all required Intel software.
Include a preinstalled operating system that is mirrored mode out of the box.
Please refer to the HP White Paper titled “Advanced Host Controller Interface (AHCI) and Redundant Array of Independent Disks
(RAID) on HP Compaq 8000 Elite Series PCs” at: http://www.hp.com for more information and instructions.
DDR3 Synchronous DRAM NON-ECC System Memory
Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent
all possible memory configurations. The HP Compaq 8000 Elite Series PC supports non-ECC DDR3 PC3-10600 (1333 MHz) and
PC3-8500 (1066 MHz) memory.
CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules.
Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an
active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board.
Ultra-slim Desktop
Maximum Memory*
Supports up to 8 GB of DDR3 SDRAM using SO-DIMM modules. Slot 1 is black and must always be
populated. Not all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements.
SO-DIMM Size
Slot
Channel A (black)
1 GB
1 GB
Channel B (white)
1 GB
2 GB
1 GB
(dual channel symmetric)
4 GB
2 GB
2 GB
(dual channel symmetric)
8 GB
4 GB
4 GB
(dual channel symmetric)
* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions.
Management Engine memory is shared with system memory. If the PC contains a single SO-DIMM, 16 MB of memory is preallocated for it at system startup. If the PC contains two SO-DIMMs, 32 MB of memory is pre-allocated. This memory is not made
available to the operating system, just as pre-allocated video memory is not available.
DA - 13424
North America — Version 18 — June 29, 2010
Page 9
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
Small Form Factor and Convertible Minitower
Maximum Memory*
Supports up to 16 GB of DDR3 SDRAM using DIMM modules. Slot 1 is black and must always be
populated. Not all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements. Addressing memory above 4
GB requires a 64-bit operating system.
DIMM Size
Slot
Channel A
1 (black)
1 GB
1 GB
Channel B
2 (white)
3 (white)
4 (white)
1 GB
2 GB
1 GB
(dual channel symmetric)
4 GB
1 GB
1 GB
1 GB
1 GB
(dual channel symmetric)
8 GB
2 GB
2 GB
2 GB
2 GB
(dual channel symmetric)
16 GB
4 GB
4 GB
4 GB
4 GB
(dual channel symmetric)
* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions.
Management Engine memory is shared with system memory. If the PC contains a single DIMM, 16 MB of memory is pre-allocated for
it at system startup. If the PC contains two DIMMs, 32 MB of memory is pre-allocated. This memory is not made available to the
operating system, just as pre-allocated video memory is not available.
Memory Configurations
1-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (1 x 1GB)
2-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (1 x 2GB)
2-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (2 x 1GB)
3-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (1GB + 2GB)
4-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (4 x 1GB)
4-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (1 x 4GB)
4-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (2 x 2GB)
8-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (2 x 4GB)
8-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (4 x 2GB)
16-GB DDR3 SDRAM PC3-10600 (1,333MHz) Non ECC (4 x 4GB)
DA - 13424
North America — Version 18 — June 29, 2010
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Page 10
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
Ultra-slim Desktop
Small Form Factor
Convertible Minitower
Storage - Drive Support
Quantity Supported
Position
SDR
USDT
ODD
1
1
1
2
HDD
SSD
1
3
MCR
SFF
ODD
1
1
1
3
HDD
SSD
2
2,1
MCR
CMT
ODD
1
3
2
1,2
USDT
Hard Disk Drives
160GB 2.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
160GB 3.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
160GB 2.5” Hard Disk Drive
10,000 rpm, 16MB cache, 3.0 GB/s, NCQ, Smart III
160GB Removable Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
X
250GB 2.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
250GB 3.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
250GB Removable Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
X
320GB 3.5” Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
DA - 13424
North America — Version 18 — June 29, 2010
HDD
SSD
3
4,5,6
SFF
CMT
X
X
X
X
X
X
X
X
X
X
X
X
Page 11
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
320GB Removable Hard Disk Drive
7,200 rpm, 8MB cache, 3.0 GB/s, NCQ, Smart IV
X
X
500GB 3.5” Hard Disk Drive
7,200 rpm, 16MB cache, 3.0 GB/s, NCQ, Smart IV
500GB Removable Hard Disk Drive
7,200 rpm, 16MB cache, 3.0 GB/s, NCQ, Smart IV
X
X
X
X
1 TB 3.5” Hard Disk Drive
7,200 rpm, 16MB cache, 3.0 GB/s, NCQ, Smart IV
X
X
SFF
CMT
SFF
CMT
X
X
X
X
X
X
SFF
CMT
USDT
Solid State Drives
64GB 2.5” Solid State Drive
X
USDT
5.25-inch Optical Drives
DVD-ROM Drive1
SuperMulti LightScribe DVD Writer Drive1,2,3
Blu-Ray Writer Drive
USDT
Slimline Optical Drives
DVD-ROM Drive1
X
1,2,3
SuperMulti LightScribe DVD Writer Drive
X
1For playing DVDs, Corel WinDVD 8
2For writing CDs, choice of Sonic/Roxio Easy Media Creator 9 orRoxio Business Creator 10
3For writing CDs and DVDs, video editing and authoring DVDs, choice of Sonic/Roxio Easy Media Creator 9 or Roxio Business
Creator 10
USDT
Media Card Readers
Media Card Reader (22-in-1)
Media Card Reader (22-in-1) with 1394 port
Secure Digital (SD) HC Reader
DA - 13424
SFF
CMT
X
X
X
X
X
North America — Version 18 — June 29, 2010
Page 12
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
USDT
Security
SFF
Trusted Platform Module (TPM) 1.21
X
X
2
Stringent Security (via BIOS)
X
X
SATA Port Disablement (via BIOS)
X
X
Drive Lock
X
X
RAID Configurations
X
HP ProtectTools Embedded Security Software
X
X
Serial, Parallel, USB enable/disable (via BIOS)
X
X
Optional USB Port Disable at factory (user configurable via BIOS)
X
X
Removable Media Write/Boot Control
X
X
Power-On Password (via BIOS)
X
X
Setup Password (via BIOS)
X
X
Solenoid Hood Lock / Sensor
X
Hood Sensor
X
Support for chassis padlocks and cable lock devices
X
X
1TPM module disabled where use is restricted by law; for example, Russia.
2This setting is defaulted to disable, but when enabled, the PW jumper will not clear the BIOS pre-boot authentication
passwords.
Network Interface Connection
Intel 82567LM GbE Network Connection (integrated)
Intel Gigabit CT Desktop NIC Card
Broadcom NetXtreme GbE Ethernet Plus NIC (PCIe x1)
NOTE: The integrated network connection is required to support the vPro Technology features.
HP 802.11 b/g/n Wireless NIC (PCIe x1)
Intel Wi-Fi Link 5100 a/b/g/n Wireless NIC (mini PCI)
NOTE: These wireless network interface solutions will disable the vPro Technology features.
Intel Graphics Media Accelerator 4500 (integrated)
Nvidia GeForce 310 DP PCIe x16 Graphics Card
Nvidia Quadro NVS 290 Graphics Card
Nvidia Quadro NVS 295 Graphics Card
ATI Radeon HD 4550 Graphics Card*
ATI Radeon HD 4650 DP (1GB) PCIe x16 Graphics Card
DA - 13424
North America — Version 18 — June 29, 2010
X
SFF
CMT
X
X
X
X
X
X
X
X
X
SFF
CMT
X
X
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
X
X
X
X
X
LSI Hi-Speed 56K International Soft Modem (PCIe x1)
Graphics
X
X
X
X
X
X
X
X
X
X
X
X
USDT
USDT
Modem
CMT
Page 13
QuickSpecs
HP Compaq 8000 Elite PC
Standard Features and Configurable Components (availability may vary by country)
HP ADD2 SDVO + DVI-D Video Adapter
* Not available until January 2010.
HP DisplayPort to DVI-D Adapter
HP DisplayPort to VGA Adapter
Audio/Visual
X
X
X
X
X
X
X
X
USDT
SFF
CMT
High Definition Audio with Realtek ALC261 codec (all ports are stereo)
X
X
X
Microphone/Headphone* and dedicated headphone front ports
X
X
X
Line-out and Line-In rear Ports*
X
X
X
Multi-streaming capable*
X
X
X
Internal Speaker (standard)
X
X
X
HP Thin USB Powered Speakers
X
X
X
HP TV Tuner Mini PCIe Card
X
HP TV Tuner PCIe x1 Card
X
X
* The front microphone port is re-taskable as a Line-in, Microphone-in or Headphone . Rear audio input ports are re-taskable
as Line-in or Microphone-in. External speakers must be powered externally. Multistreaming can be enabled in the Realtek
control panel to allow independent audio streams to be sent to/from the front and rear jacks. This allows for different audio
applications to use separate audio ports on the system. For example, the front jacks could be used with a headset for a
communications application while the rear jacks are being used with external speakers and a multimedia application.
USDT
SFF
CMT
PS/2 Standard Keyboard
USB Standard Keyboard
USB SmartCard Keyboard
USB Mini Keyboard
USB & PS/2 Washable Keyboard
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
PS/2 Optical Scroll Mouse
USB Optical Scroll Mouse
USB Laser Scroll Mouse
X
X
X
X
X
X
X
X
X
USDT
SFF
CMT
X
X
X
X
X
X
X
X
X
X
Input Devices
Miscellaneous
FireWire (IEEE 1394) Card
Serial Port Adapter
Parallel Port Adapter
eSATA Port Adapter
PC Tower Stand
Configure CMT in desktop orientation
Rear Port/Cable Control Cover
DA - 13424
X
X
North America — Version 18 — June 29, 2010
Page 14
QuickSpecs
HP Compaq 8000 Elite PC
After-Market Options (availability may vary by region)
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
X
X
X
FH971AA
FS215AA
FH969AA
FH970AA
DC131C
SFF
CMT
Part Number
ATI Radeon HD 4550 Graphics Card*
ATI Radeon HD 4650 DP (1GB) PCIe x16 Graphics Card
Nvidia Quadro NVS 290 PCIe x16 Graphics Card
Nvidia Quadro NVS 290 PCIe x1 Graphics Card
Nvidia Quadro NVS 295 Graphics Card
Nvidia GeForce 310 DP PCIe x16 Graphics Card
HP ADD2 SDVO + DVI-D Video Adapter
* Not available until January 2010.
X
X
X
X
X
X
X
AT042AA
VN566AA
KG748AA
KN586AA
FY943AA
VG885AA
DY674A
DMS59 DVI Dual-head Connector Cable
HP DVI to DVI cable
HP DisplayPort To DVI-D adapter
HP DisplayPort To DL DVI-D adapter
HP DisplayPort to VGA Adapter
HP DisplayPort Cable Kit
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
DL139A
DC198A
FH973AA
NR078AA
AS615AA
VN567AA
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
X
X
X
X
X
PY277AT
PY278AA
KW347AA
FH966AA
RY102AA
RY103AA
Communications
HP Wireless 802.11 b/g/n NIC Card
Broadcom NetXtreme GbE Ethernet Plus NIC Card
Intel Gigabit CT Desktop NIC Card
LSI Hi-Speed 56K Int'l Soft Modem Card
RJ11 Modem Adapter Kit
NOTE: The use of a NIC Card (wired or wireless) will disable the vPro Technology features.
USDT
Graphics
Hard Disk Drives
X
X
X
X
X
HP 160GB SATA NCQ SMART IV Hard Disk Drive
HP 250GB SATA NCQ SMART IV Hard Disk Drive
HP 500GB SATA NCQ SMART IV Hard Disk Drive
HP eSATA Adapter
HP Removable SATA Hard Drive Enclosure (frame & carrier)
HP Removable SATA Hard Drive Enclosure (Carrier Only)
DA - 13424
North America — Version 18 — June 29, 2010
Page 15
QuickSpecs
HP Compaq 8000 Elite PC
After-Market Options (availability may vary by region)
USDT
SFF
CMT
Part Number
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB Gray Keyboard
HP 2.4GHz Wireless Keyboard & Mouse
HP USB Mini Keyboard
HP USB Washable Keyboard
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
DT527A
DT528A
DT529A
NB896AA
AS601AA
VF097AA
HP PS/2 Optical Scroll Mouse
HP USB Optical Scroll Mouse
HP USB Laser Mouse
X
X
X
X
X
X
X
X
X
EY703AA
DC172B
GW405AA
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
AT023AA
TBD
AT024AA
VH640AA
TBD
VH641AA
USDT
SFF
CMT
Part Number
USDT
SFF
CMT
Part Number
X
X
X
KK912AA
X
X
X
X
X
X
AR629AA
VP033AA
AR630AA
VP034AA
AR482AA
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
DC141B
AR941AA
AR942AA
Input/Output Devices
DDR3 SDRAM System Memory
1 GB DIMM
1 GB SO-DIMM
2 GB DIMM
2 GB SO-DIMM
4 GB DIMM
4 GB SO-DIMM
X
X
X
HP Monitors
All HP monitors are supported that accept a graphics output provided by this PC.
Multimedia Devices
HP Thin USB Powered Speakers
DVD-ROM Drive
DVD-ROM Drive (Slimline)
SuperMulti LightScribe Drive
SuperMulti LightScribe Drive (Slimline)
Blu-Ray Writer Drive
X
X
Removable Media Storage
HP USB External Diskette Drive
HP Media Card Reader (22-in-1)
HP Media Card Reader (22-in-1) with FireWire (IEEE 1394)
DA - 13424
North America — Version 18 — June 29, 2010
Page 16
QuickSpecs
HP Compaq 8000 Elite PC
After-Market Options (availability may vary by region)
Security Devices
HP/Kensington MicroSaver Cable Lock
HP Business PC Security Lock
HP (2009) USDT Rear Port Controller Cover
HP 2009 (SFF) Solenoid Lock and Hood Sensor
HP (CMT) Solenoid Lock and Hood Sensor
HP Wall Mount/Security Sleeve
HP ProtectTools version 5.0 (1 User)
HP USB SmartCard Keyboard
Software Solutions
HP Client Automation Standard
Stands and Accessories
HP Integrated Work Center Stand
HP (2009) USDT Tower Stand
HP (2009) SFF Tower Stand
HP Serial Port Adapter
HP Parallel Port Adapter
HP 5.25” Blank Bezel Kit (50 pack)
HP FireWire (IEEE 1394) Card
DA - 13424
USDT
SFF
CMT
Part Number
X
X
X
X
X
X
X
X
X
X
X
X
X
X
PC766A
PV606AA
VN571AA
BP428AA
DE618A
VN570AA
TBD
ED707AA
USDT
SFF
CMT
Part Number
X
X
X
T3488AA (qty 1)
TA599AA
(qty 10)
TA600AA
(qty 100)
TA601AA
(qty 500)
T3489AA
(qty 1000)
USDT
SFF
CMT
Part Number
X
X
X
X
GN783AA
VN568AA
VN569AA
PA716A
KD061AA
DC177B
PA997A
X
X
X
X
X
X
X
X
X
North America — Version 18 — June 29, 2010
Page 17
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications
Ultra-slim Desktop
Small Form Factor
Convertible Minitower
Dimensions
Chassis
(H x W x D)
System Volume
2.6 x 9.9 x 10 in
3.95 x 13.30 x 14.9 in
66 x 251.5 x 254 mm
100 x 338 x 378.5 mm
257.5 cu in
790.26 cu in
4.22 L
12.95 L
Tower Stand
1.07 x 4.92 x 6.69 in
1.12 x 7.01 x 7.87 in
(H x W x D)
27.2 x 124.9 x 169.9 mm
28.5 x 178 x 200 mm
Packaging
8.60 x 15.68 x 19.68 in
9.00 x 19.68 x 23.38 in
(H x W x D)
218.4 x 398.3 x 499.9 mm
228.6 x 499.9 x 593.85 mm
System Weight*
6.75 lb
16.72 lb
3.07 kg
7.6 kg
Shipping Weight*
14.42 lb
17.86 lb
6.54 kg
8.1 kg
Max Supported Weight
77 lb
77 lb
(desktop orientation)
35 kg
35 kg
*Configured with 1 hard drive, 1 optical drive, no diskette drive, and no PCI card.
I/O Ports
USB 2.0
Serial
Parallel
eSATA
PS/2
Video
DVI output
Audio
NIC
Slots
Type and quantity
Ultra-slim Desktop
Small Form Factor
17.63 x 7.00 x 17.5 in
447.8 x 177.8 x 444.5 mm
2160 cu in
35.4 L
N/A
22.64 x 12.72 x 24.41 in
575.0 x 323 x 620 mm
24.54 lb
11.15 kg
34.0 lb
15.42 kg
77 lb
35 kg
Convertible Minitower
Front – four (4) ports
Rear – six (6) ports
N/A
one port standard; second port available optionally
N/A
one port available as an option
N/A
one port available as an option
color coded support for keyboard (purple) and mouse (green)
VGA and DisplayPort provide integrated dual independent monitor support
available via optional DisplayPort to DVI Adapter
Front – microphone & headphone
Rear – line input (supports microphone or line input), line out
NOTE: See Audio/Visual section for information on re-taskable audio ports.
Industry standard RJ-45 port accesses the integrated network interface controller
Ultra-slim Desktop
(1) mini PCI Express
Slot specifications
Small Form Factor
(1) PCI
(2) PCI Express x1
(1) PCI Express x16
Low profile cards
25W cards
Convertible Minitower
(3) PCI
(1) PCI Express x1 (half-length)
(2) PCI Express x16
Full height
Primary x16 slot supports
75W or 35W card
Secondary x16 slot supports
35W card
Secondary slot functions
electrically as a x4 slot
DA - 13424
North America — Version 18 — June 29, 2010
Page 18
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications
PCI Slots
N/A
PCI Express x16 Slot
(Supports discrete
graphics cards)
N/A
PCI Express x1 Slot
N/A
1 slot
low profile – 2.5"
length – 6.6"
max. power – 25W
1 slot
low profile – 2.5"
length – 6.6"
max. power –25W
2 slots
low profile – 2.5"
length – 6.6"
max. power – 10W
Ultra-slim Desktop
Bays
3 slots
full height – 4.2"
full length
max. power – 25W
2 slots
full height – 4.2"
full length
max. power – 75W (primary)
max. power – 35W (secondary)
1 slot
half height – 2.5"
half length
max. power – 10W
Small Form Factor
3.5" external
N/A
5.25" external
N/A
Slimline
Secure Digital (SD)
Reader
Internal Drive Bays
1 bay for ODD
SD Reader or blank
N/A
N/A
3 bays
Top two bays accept drives
up to 8.19" depth
Bottom bay accepts drives
up to 5.7" depth
N/A
N/A
1 bay for 2.5" drive
Ultra-slim Desktop
1 bay for 3.5" drive
Small Form Factor
3 bays for 3.5" drives
Convertible Minitower
Controller
Hard Drive Controller
SATA Interfaces
Host SATA Controller
1 bay available for Media Card
Reader unless used for a
secondary hard drive
1 bay – 8.19" depth
Convertible Minitower
N/A
Serial ATA
Supports SATA 1.5-GB/s and 3.0-GB/s
(1) Total
(4) Total:
(5) Total:
(3) common SATA
(4) common SATA
(1) eSATA
(1) eSATA
Advanced Host Controller Interface (AHCI) Revision 1.2. The specification includes a description
of the hardware/software interface between system software and the host controller hardware.
DA - 13424
North America — Version 18 — June 29, 2010
Page 19
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications
Unit Environment and Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is
operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's recirculated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign
matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 50° to 95° F (10° to 35° C)*
Non-operating: –22° to 140° F(–30° to 60° C)
Relative Humidity
Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)
Maximum Altitude
Operating: 10,000 ft (3048 m)
(unpressurized)
Non-operating: 30,000 ft (9144 m)
*Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained
sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.
Power Supply
Standard Efficiency
High Efficiency*
Ultra Slim Desktop
N/A
135W active PFC
87% efficient
Small Form Factor
240W active PFC
240W active PFC
87/89/85% efficient at
20/50/100% load
90 – 264 VAC
100 – 240 VAC
50/60 Hz
47 – 63 Hz
Convertible Minitower
320W active PFC
320W active PFC
87/89/85% efficient at
20/50/100% load
90 – 264 VAC
100 – 240 VAC
50/60 Hz
47 – 63 Hz
Operating Voltage Range
90 – 264 VAC
Rated Voltage Range
100 – 240 VAC
Rated Line Frequency
50/60 Hz
Operating Line Frequency
47 – 63 Hz
Range
Rated Input Current
N/A
4A
5.5A
Rated Input Current with
2.4A
4A
5.5A
Energy Efficient* Power Supply
Current Leakage
< 250 µA
< 275 µA
< 450 µA
(NFPA 99)
Power Supply Fan
N/A
92mm variable speed
92mm variable speed
External Power Adapter
Dimensions
6.7 x 2.6 x 1.5 in
N/A
N/A
Total Cord Length
12 ft 8 in
N/A
N/A
*High efficiency power supply is a requirement for ENERGY STAR qualification in conjunction with a select range of processors and
modules
DA - 13424
North America — Version 18 — June 29, 2010
Page 20
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications
ROM BIOS Information
Key features of the HP BIOS include:
Deployment and manageability – HP BIOS provides several technologies that help integrate the HP Elite PC into the
enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.
Select models feature either Intel Standard Manageability or Core 2 processor with vPro Technology.
Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and
advanced change notification.
Computrace agent – For tracking and tracing services, available in select countries, separate software and purchase of a
subscription is required.
Thermal and power management – The HP BIOS provides and enables thermal and power management technologies so
component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in any
enterprise environment.
Acoustic performance – Industry leading acoustic emissions across the range of operating conditions.
Serviceability – HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS
updates from within DOS (Flashbin), BIOS updates from within Windows (HPQFlash), HP Client Manager, and fail-safe
recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is
available from within the BIOS software and from the support website.
Additional HP BIOS Features
Power-On password – Helps prevent an unauthorized user from powering on the system.
Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system
configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made
to BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration
management, allowing operating systems and applications to manage power based on activity and usage. HP Elite models
use ACPI to provide power conservation features.
S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down below 1W is S5 (when
turned off). When S5 Max Power Savings feature is enabled power to slots is turned off along with WOL functionality.
Other Features
Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or poweredoff state without affecting other elements of the system.
System Management BIOS v2.6
Intel Wired for Management support; industry wide initiative to make Intel architecture based PCs, servers and mobile
computers more inherently manageable out-of-the-box and over the network
Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button
DA - 13424
North America — Version 18 — June 29, 2010
Page 21
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications
Serviceability Features
Dual colored power LED on front of computer to indicate either normal or fault condition
Diagnostic LED Explanation Table:
Number of 1-second red LED blinks followed by a 2-second pause, then repeats:
2 – processor thermal protection activated
3 – processor not installed
4 – power supply failure
5 – memory error
6 – video error
7 – PCA failure (ROM detected failure prior to video)
8 – invalid ROM, bootblock recovery mode
9 – system not fetching code
10 – system hang while loading an option ROM
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy replacement
Flash Recovery with Video Configuration Record Software
5 Aux Power LED on System PCA
Processor ZIF Socket for easy Upgrade
Over-Temp Warning on Screen (Requires IM Agents)
Clear Password Jumper
DIMM Connectors for easy Upgrade
Clear CMOS Button
NIC LEDs (integrated) (Green & Amber)
Dual Color Power and HD LED – To Indicate Normal Operations and Fault Conditions
Color coordinated cables and connectors
Tool-less Hood Removal
Front power switch
System memory can be upgraded without removing the system board or any internal components
Tool-less Hard Drive, CD & Diskette Removal
Green Pull Tabs, and Quick Release Latches for easy Identification
NOTE: thumb screw release mechanism is used with the Ultra-slim Desktop chassis cover.
Additional Features
Description
Intel Standard Manageability
Includes the following:
NOTES:
Basic PC management capabilities such as asset inventory, HW alerting, SOL/IDE-R,
remote configuration, agent presence, and system defense
Requires the utilization of the
integrated network connection
Available with selected processors,
those not part of Intel's Stable Intel
Platform Program (SIPP)
Intel Core 2 Processor with vPro
Technology
DASH 1.1 compliance for support of industry standards. Support for profile updates.
Host VPN* support for local management VPN tunneling
Includes the following:
Intel Advanced Management Technology (AMT) v5.0
NOTES:
Requires the utilization of the
DA - 13424
Intel Standard Manageability technologies (see above for a list of features)
Fast Call for Help – client outside the firewall may initiate a call for help via BIOS
North America — Version 18 — June 29, 2010
Page 22
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications
integrated network connection
Available with selected processors,
those part of Intel's Stable Intel
Platform Program (SIPP)
screen, periodic connections, or alert triggered connection
Audit Logs – policy based log of AMT actions to deter rogue administrator actions
Microsoft NAP Support – allows AMT to gain access to a Microsoft NAP enabled 802.1x
network OOB to enable OOB SW updates, inventories, remote diagnostics, etc.
Remote Scheduled Maintenance – Pre-schedule when the PC connects to the IT or
service provider console for maintenance
Remote Alerts – automatically alert IT or service provider if issues arise
Access Monitor – Provides oversight to support security requirements
DASH 1.1 support (Desktop and Mobile
A standards initiative for representing out-of-band management capability for computer
Architecture for System Hardware)
systems. It is a secure, web-services based successor to ASF.
ASF 2.0 support (Alert Standard Format)
Industry-standard specification for network alerting in operating system-absent
environments
TXT (Trusted Execution Technology) and VTTXT allows for secure management (via TPM) and measured launch of VMM, as
d (Virtualized devices)
well as teardown of secrets in unexpected reset case. TXT support provided in
select Intel processors.
VT-d is a chipset technology that virtualizes directed I/O
Together, TXT and VT-d may be used to support verified launch of a known trusted VMM
that also may protect VMs from accessing each other's memory.
Computrace agent support standard
Product can be oriented as a tower (in addition to desktop orientation)
Implementation of the industry standard ATA Security feature set. When enabled, it
prevents software access to user data on the drive until one or two user-defined
passwords are provided.
DPS Access through F10 Setup during Boot
Computrace
Tower
Drive Lock
Drive Protection System
A diagnostic hard drive self test. It scans critical physical components and every
sector of the hard drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through a
Windows-based diagnostics utility or through the computer's setup procedure. It
produces an evaluation on whether the hard drive is the source of the problem
and needs to be replaced.
SMART Technology (Self-Monitoring,
Analysis and Reporting Technology)
The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain types
of failures.
Allows hard drives to monitor their own health and to raise flags if imminent failures
were predicted
SMART I – Drive Failure Prediction
SMART II – Off-Line Data Collection
SMART III – Off-Line Read Scanning with
Defect Reallocation
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry
count
By avoiding actual hard drive failures, SMART hard drives act as "insurance"
against unplanned user downtime and potential data loss from hard drive failure
IOEDC: I/O Error Detection Circuitry
Detects errors in Read/Write buffers on HDD cache RAM
SMART IV – End-to-End CRC for hard
DA - 13424
North America — Version 18 — June 29, 2010
Page 23
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications
drives
Interface in F10 setup provides confirmation of SMART IV support.
DA - 13424
North America — Version 18 — June 29, 2010
Page 24
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Audio
High Definition Audio
Type
High Definition Stereo
Codec
Audio Jacks
Integrated
Yes - Realtek 4-channel ALC261 codec
Front microphone-In (150-K ohm Input Impedance)
Rear Line-In/Microphone input (150-K ohm Input Impedance, function is
configurable by audio driver)
Rear Line-Out* (190 ohms Output Impedance, expects at least a 10-K ohm
load)
Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a 32
ohm load)
Front Microphone/Headphone jack is re-task able to provide Microphone
input, line-in or Headphone output to support connecting two headphones to
the front of the system. When configured as a second front headphone
output, both front headphone outputs are always driven with the same signal.
Internal Speaker Amplifier is for the internal speaker only. External speakers need to be powered
externally. Rear Line-In audio port is re-task able as Line-In or Microphone-In.
Multistreaming Capable Multistreaming can be enabled in the Realtek control panel to allow
independent audio streams to be sent to/from the front and rear jacks.
8 kHz - 192 kHz
Sampling
Yes - Uses OS soft wavetable
Wavetable Syntheses
(software)
Yes
Analog Audio
Number of Channels on Stereo (Left & Right channels)
Line-Out
(mono/stereo)
1.5 W
Internal Audio Speaker
Power Rating
Yes
Internal Speaker
Yes
External Speaker Jack
(Line-Out)
DA - 13424
North America — Version 18 — June 29, 2010
Page 25
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Audio
HP Thin USB Powered
Speakers
On/Off/Volume Controls
Power LED
Frequency response
Watts
Dimensions (H x W x D)
Net weight
Environmental
(all conditions
non-condensing)
Speaker cable length
Right side of right speaker
Front of right speaker (green)
FO to 20kHz
2/3 watt (normal/maximum)
Speakers: 5.72 x 3.74 x 0.96 in (14.52 x 9.50 x 2.45 cm) per speaker
0.68 lbs (0.31kg)
Temperature (operating) 14° to 104° F (-10° to 40° C)
40% to 90%
Relative Humidity
(operating)
Input cord: 5.91 ft (1800mm±35mm)
L-channel cord: 3.28 ft (1000mm±35mm)
USB cord: 5.91 ft (1800mm±35mm)
black
Color
DA - 13424
North America — Version 18 — June 29, 2010
Page 26
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Communications
Intel 82567LM Gigabit
Network Connection
(integrated)
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data transfer mode
RJ-45
Intel 82567LM Gigabit platform LAN Connect Networking Controller
24 KB FIFO packet buffer memory
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3 ab and 802.3u compliant
GLCI, LCI interface. Intel specific MAC to PHY interface
At gigabit GLCI (Intel proprietary 802.3 series-based interface) is for Data,
LCI (parallel bus) for MDIO, at 10/100 LCI for both data and MDIO, GLCI
is idle.
Hardware certifications
FCC B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
Power requirement
Requires 3.3V,1.9/1.8V and 1.0V or just 3.3V with integrated regulators
Power consumption 1.3 Watts for 82567 whole LOM
ACBS
Intel Auto Connect Battery Saving feature
Boot ROM support
Yes
Network transfer mode
Full-duplex
Half-duplex (not supported for the 1000BASE-T transceiver)
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Environmental
32° to 131°F (0° to 55° C)
Operating temperature
To 70° C for external regulator
85% at 131° F (55° C)
Operating humidity
Management capabilities WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable
diagnostic.
Alerting
ASF 2.0 support, AMT 3.0 support
DA - 13424
North America — Version 18 — June 29, 2010
Page 27
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Communications
Broadcom NetXtreme
GbE Ethernet Plus NIC
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data transfer mode
Hardware certifications
RJ-45
Broadcom 5761 PCI-Express LAN Controller
8 MB NVRAM serial Flash
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3AB, 802.3u, and 802.3x
PCI-Express
Single Channel PCI-Express
Bus Master DMA
FCC class B, Canada and US NRTL Mark, C-Tick for Australia, BSMI for
Taiwan, VCCI for Japan, MIC for Korea, GOST for Russia, UL listed
(E212044), European Union Notice (CE 0682)
Power requirement
Boot ROM support
Network transfer mode
1.8W @ 3.3V
Yes
Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Environmental
32° to 131°F (0° to 55° C)
Operating temperature
131° F (55° C) with 5% to 95% non-condensing
Operating humidity
humidity
Dimensions
2.75 in x 4.13 in (7 cm x 10.5 cm), low profile compatible
Operating system driver Windows Vista 32-bit SP1, Windows Vista x64 SP1, Windows XP 32 bit
support
professional
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility,
ASF2.0, DASH 1.0 and DASH 1.1 profiles
DA - 13424
North America — Version 18 — June 29, 2010
Page 28
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Communications
Intel Gigabit CT Desktop Connector
NIC
Controller
Memory
Data rates supported
Compliance
RJ-45
Intel 82574L Gigabit Ethernet Controller
40KB configurable transmit/receive FIFO Buffers
10/100/1000 Mbps
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control, 802.1as Time synch offload
Bus architecture
PCIe Base 1.1 (2.5 GT/s) x1
Data path width
X1, 250 MB/s, Bi-directional interface
Data transfer mode
Bus-master DMA
Hardware certifications
(see EPS for more certification details)
EMI: FCC Class B
Intel 25-GS3000 Environmental Specification.
EN-55024: 1998 specification (see EPS for details)
EN-55022: Class A 1998 specification.
EN-60950-1 first Edition specification.
C-Tick specification, Class A
VCCI Class 1 specification.
CE specification and CE Mark.
UL 60950-1 first Edition specification.
CSA 60950-1 first Edition specification.
BSMI CNS13438 Class A specification
Korean MIC Class A specification.
European RoHS directive
China RoHS directive
Power requirement
3.3V and 3.3V Aux, 2.1 Watts max in 1000Base-T (D0)
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Environmental
0 °C to 55 °C (operating)
Operating temperature
-40 to 70 °C (non-operating)
85% at 131° F (55° C)
Operating humidity
Dimensions
Low-profile, half-length form factor conforming to PCIe* CEM v1.1 (55 mm
x 119 mm)
Management capabilities SMBus, WOL, PXE
HP Wireless 802.11b/g/n Dimensions (L x H)
(PCIe)
Weight
Controller
System interface
Network standard
Frequency band
DA - 13424
3.3 x 4.7 inches (8.5 x 12 cm)
0.08 pounds (40 g)
Ralink RT2790
PCIExpress x1
802.11 b/g/n
2.400 - 2.497 GHz
North America — Version 18 — June 29, 2010
Page 29
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Communications
Operating temperature
Storage temperature
Humidity
Operating voltage
Power consumption
Output power
(approximately)
Receive sensitivity
Data transfer rate
DA - 13424
14° to 149°F, operating (-10° to 65°C, operating)
-40° to 176°F, non-operating (-40° to 80°C, non-operating)
10-90% operating
5-95% non-operating
3.3V +/- 9%
12V +/- 8%
Platform/WLAN Mode
Power Consumption
Maximum Power
10 Watts
Consumption
Transmit Only
4 Watts maximum averaged power over 1
second
Transmit Packet or Active
Scanning
Receive Only Mode or Idle
without IEEE PSP mode
enabled
Idle, with IEEE PSP mode
enabled
Transmit Disabled (turned
off in software)
Platform in S3 or S4
(power removed from Low
Profile PCI Express Card)
802.11b modes
+19 dBm +/- 1.0 dB
maximum
1000 mA peak current for 100 microseconds or
longer
3 Watts maximum averaged over 1 second
802.11g modes
+17 dBm +/- 1.0 dB
maximum
Mode
802.11b
802.11b
802.11g
802.11g
802.11g
802.11g
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
Data Rate (MCS)
1 Mbps (802.11 b)
2 Mbps (802.11 b)
5.5 Mbps (802.11 b)
Data rate
1 Mbps
11 Mbps
6 Mbps
18 Mbps
48 Mbps
54 Mbps
6.5 Mbps
54 Mbps
81 Mbps
162 Mbps
270 Mbps
300 Mbps
Minimum Throughput
700 kbps
1.4 Mbps
3.5 Mbps
1.0 Watts maximum averaged over 1 second
50 mW maximum, averaged over 1 second
5 mW maximum, averaged over 1 second
North America — Version 18 — June 29, 2010
EWC modes
+17 dBm +/- 1.0 dB
maximum (total power
in all transmit chains)
Sensitivity
-94 dBm
-85 dBm
-91 dBm
-85 dBm
-75 dBm
-72 dBm
-87 dBm
-82 dBm
-78 dBm
-74 dBm
-68 dBm
-64 dBm
Page 30
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Communications
11 Mbps (802.11 b)
12 Mbps (802.11 g)
18 Mbps (802.11 g)
24 Mbps (802.11 g)
36 Mbps (802.11 g)
48 Mbps (802.11 g)
54 Mbps (802.11 g)
6.5 Mbps (20 MHz EWC)
13 Mbps (20 MHz EWC)
19.5 Mbps (20 MHz
EWC)
Security
Antenna
Certifications
Certifications for use by
country
DA - 13424
5.9 Mbps
6 Mbps
9 Mbps
12 Mbps
18 Mbps
21 Mbps
22.5 Mbps
4.5 Mbps
9 Mbps
13.5 Mbps
26 Mbps (20 MHz EWC) 18 Mbps
39 Mbps (20 MHz EWC) 27 Mbps
52 Mbps (20 MHz EWC) 36 Mbps
58.5 Mbps (20 MHz
40 Mbps
EWC)
65 Mbps (20 MHz EWC) 45 Mbps
78 Mbps (20 MHz EWC) 54 Mbps
104 Mbps (20 MHz EWC) 72 Mbps
117 Mbps (20 MHz EWC) 81 Mbps
130 Mbps (20 MHz EWC) 91 Mbps
13.5 Mbps (40 MHz
8 Mbps
EWC)
27 Mbps (40 MHz EWC) 16 Mbps
40.5 Mbps (40 MHz
24 Mbps
EWC)
54 Mbps (40 MHz EWC) 32 Mbps
81 Mbps (40 MHz EWC) 48 Mbps
108 Mbps (40 MHz EWC) 64 Mbps
121.5 Mbps (40 MHz
72 Mbps
EWC)
135 Mbps (40 MHz EWC) 81 Mbps
IEEE and WiFi compliant 64 / 128 bit WEP encryption
AES: CCM
802.1x authentication
WPA: 802.1x. WPA-PSK and TKIP
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through V5
HP part number 497792-001
Wi-Fi certified
United States, Canada, Peru, Taiwan
North America — Version 18 — June 29, 2010
Page 31
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Communications
Intel WiFi Link 5100
Wireless LAN Standards
a/b/g/n (USDT) Wireless
NIC
Interoperability
Frequency Band
Antenna Structure
Data Rates
Modulation
Security1
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (draft 2.0)*
* The specifications for 802.11n draft 2.0 are draft specifications and are
not final. If the final specifications differ from the draft specifications, it may
affect the ability of the notebook to communicate with other 802.11n WLAN
devices. In countries where n draft 2.0 is not allowed, this capability is not
enabled.
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP
Tested with wireless access points from several major manufacturers
2.4 GHz and 5 GHz
1 transmit; 2 receive (1x2)
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding Scheme,
and Guard Interval used, as defined in IEEE 802.11n (draft) specification
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES
(support for key sizes of 128, 192, and 256 bits), 802.1x authentication
types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet
infrastructure products through the Cisco Compatible Extensions Program
Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Ad-hoc (Peer to Peer)
Models
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
2
Output Power (for CCK) 15 dBm
Output Power (for OFDM; 15 dBm
power varies by data
rate)2
Transmit: 2.3 Watts (average, with one spatial streams)
Power Consumption
Receive: 1.9 Watts (average with two receive chains)
Idle mode3: 30 mW (average)
Radio off: 20 mW (max)
ACPI compliant power management
Power Management
802.11 compliant power saving mode
4
300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm
Receiver Sensitivity
DA - 13424
North America — Version 18 — June 29, 2010
Page 32
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Communications
Antenna Connections
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility5
3 U.FL type connectors, 50 ohm nominal impedance
802.11 a - Typical
600 feet - Outdoor Open Area
(@6 Mbps)
150 feet - Indoor, Office environment
802.11 b - Typical
1200 feet - Outdoor Open Area
(@1 Mbps)
300 feet - Indoor, Office environment
802.11 g - Typical
1200 feet - Outdoor Open Area
(@1 Mbps)
300 feet - Indoor, Office environment
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3V +/- 9%, 1.5V +/- 5%
Operating
32° to 176° F (0° to 80° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 90% (non-condensing)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
Microsoft Windows XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Intel PROSet for Microsoft Windows XP (required for Cisco Compatible
Extensions support)
Microsoft Windows Vista
1.
2.
3.
4.
5.
Microsoft Windows Vista Wireless Network Connection Manager.
Intel IHV extensions for Windows Vista available to support Cisco
Compatible Extensions.
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
In Power Save Polling mode and on battery power.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
LSI PCIe x1 56K
Data Transmission
International SoftModem
Data Speeds
DA - 13424
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem
speed. FCC limitations allow a maximum of 53 Kbps during download
transmissions.
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/
16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
North America — Version 18 — June 29, 2010
Page 33
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Communications
Data Standards
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,
and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
Fax Speeds
Fax Mode Capabilities
Error Correction and
Data Compression
Power Management
PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2,
Appendix A. D0, D3hot, and D3cold. Wake on Ring state when in D3cold. If
the power management event (PME) feature is enabled in D3cold, a modem
can wake the system via WAKE# (WAKEN) or beacon. Meets PCI Express
1.1 standard.
Driver upgradeable for future enhancements
Upgradeability
Video
Other
Operating Temperature
Operating Humidity
Power
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
EMC
Telecom
Other
DA - 13424
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
20% to 90%, non-condensing
Requires a 3.3-V auxiliary power rail on PCI express bus
Uses only one PCI express load (i.e., one grant/request pair), one shared
IRQ, one electrical load
LSI SV92EX - Integrated PCI interface with 3.3-V tolerant buffers and
CardBus support
Complies with PCI express low profile specifications-6.7 x 2.3 in (17.0 x 5.8
cm) and supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
The SV92EX device is packaged in a 32-pin micro leadless chip carrier
(MLCC). The SV92EX is fully compliant with the PCI Express revision 1.1
specification. WHQL approved; ASPM compliant.
North America — Version 18 — June 29, 2010
Page 34
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
Integrated Intel
3D/2D Controller
Graphics Media
VGA Controller
Accelerator (GMA)
DisplayPort
4500
Bus Type
RAMDAC
Memory
Microsoft DirectX® 10 based with support for Pixel Shader 3.0
Integrated
Integrated, Multimode capable; supports HDCP
PCI Express™ x16
Integrated, 350 MHz
Graphics memory is shared with system memory. Graphics memory usage varies
depending on the amount of system memory installed, BIOS settings, operating
system, and system load. 32 MB is pre-allocated for graphics use at system boot time.
Additional memory can be allocated at boot time by the BIOS for PAVP (Protected
Audio Video Playback) support for playback of protected video content. For Vista, use
of PAVP heavy mode preallocates an additional 96MB.
Additional memory is allocated for graphics as needed using Intel's Dynamic Video
Memory Technology (DVMT), to provide an optimal balance between graphics and
system memory use.
Windows XP Memory Usage:
Usage
Total System Memory
.5GB
1.0GB
1.5GB
2GB & more
Pre-Allocated (MB)
32
32
32
32
DVMT (MB)
128
512
768
1024
Windows Vista Memory Usage:
Usage
(Assumes Management Engine , VT-d enabled and other memory allocated for other
BIOS usage)
System
Memory
1 GB
2 GB
4 GB
6 GB
8 GB
PVAP
Lite
Heavy
Lite
Heavy
Lite
Heavy
Lite
Heavy
Lite
Heavy
Avail
System
Memory
(MB)
952
856
1976
1880
4024
3928
6072
5976
8120
8024
Total Avail Dedicated
GFX
Video
Memory
Memory
(MB)
(MB)
252
32
294
122
764
32
806
122
1759
32
1759
122
1759
32
1759
122
1759
32
1759
122
System
Video
Memory
(MB
96
6
96
6
96
6
96
6
96
6
Shared
System
Memory
(MB)
124
166
636
678
1631
1631
1631
1631
1631
1631
Total Available GFX Memory:
Memory Total graphics memory available to the system as
reported by the OS.
Dedicated Video Memory:
Memory Memory owned and locked for graphics use as reported
by the OS. (Preallocated)
System Video Memory:
Memory System memory locked and dedicated for graphics use.
DA - 13424
North America — Version 18 — June 29, 2010
Page 35
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
HW Video Decode
Maximum Color Depth
Maximum Vertical
Refresh Rate
Multi-display Support
Graphics/Video API
Support
Shared System Memory:
Memory Memory dynamically allocated for Graphics use
Hardware Accelerated decode for MPEG2 encrypted video; support for PAVP Lite
(default) and Heavy ( or Paranoid) modes
32 bits/pixel
85 Hz at up to 1920x1440, 75 Hz at 2048x1536. Varies with mode and
configuration. See table below.
Integrated dual independent monitor support facilitated via one VGA port and one
DisplayPort integrated on the back plane of the system board and presented as part of
the rear I/O set of interfaces. DVI supported via optional HP DisplayPort to DVI-D
adapter.
Microsoft DirectX® 10, OpenGL® 1.5 (OpenGL® 2.0 available in a driver update)
Resolutions Supported
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Maximum Refresh Rate (Hz)
Analog Connection
Digital Connection
85
60
85
60
85
60
85
60
85
60
75
60
85
60
75
60
85
60-R
85
60-R
85
N/A
75
N/A
N/A
60*
60
Resolution
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
2560x1600
* Only supported when using a DisplayPort connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections.
DA - 13424
North America — Version 18 — June 29, 2010
Page 36
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
NVIDIA Quadro NVS 290 Form Factor
256MB PCIe Dual Head Bus Type
Memory
Low Profile
PCIe x16
256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture
storage
Connector
DMS-59; includes one DMS-59 to Dual VGA cable. A DMS-59 to Dual DVII cable is available as an option.
Display resolution support Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1920x1200 (single-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
RAMDAC
Integrated dual 400MHz
Color planes
Overlay planes
nView architecture
Multi-Monitor support
DVI support
High-definition Video
Processor (HDVP)
Supported graphics APIs
NVIDIA Quadro NVS 290 Bus type
PCIe x1 Graphics Card
Graphics Controller
Memory
Connector
Dimensions
Multi-monitor support
RAMDAC
Maximum pixel clock
Overlay planes
High-definition Video
Processor (HDVP)
DA - 13424
32-bit color buffer
Hardware supported
Advanced multi-display desktop & application management seamlessly
integrated into Microsoft Windows.
Dual monitor support
DMS-59 (to dual DVI-SL)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
OGL 2.1 & DX10 Support; Shader Model 4.0
PCIe x1
Low profile, both ATX and low profile brackets included
Integrated Quadro 290 2D graphics processor unit (GPU)
256 MB DDR2
Single high-density DMS-59 Flex Connector
Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)
Dual analog or digital (Single Link DVI) monitors
(DVI support requires optional DVI cable kit DL139A)
Dual 350 MHz (integrated)
350 MHz
One 1-bit Video overlay plane
Full screen, full frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
North America — Version 18 — June 29, 2010
Page 37
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
Input/Output connectors
Board display options
DMS-59
Supports two displays via included DMS-59 to dual VGA cable or 2 DVI
monitors via optional DMS-59 to dual DVI-I single-link connectors cable
kit part number: DL139A.
Board configuration
Specification
Description
Description
G86-825
Core clock
460 MHz
Memory clock
400 MHz
Frame buffer
256 MB DDR2, 64 bit wide
NVIDIA Quadro NVS 290 PCIe x1 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Maximum Refresh Rate (Hz)
Resolution
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
N/A
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections.
NVIDIA Quadro NVS 295 Form Factor
Graphics Card
Graphics Controller
Bus Type
Memory
Connectors
Maximum Resolution
Display Output
DA - 13424
2.731 inches (H) × 6.600 inches (L), Half-Height
NVIDIA Quadro NVS 295 Graphics Board
PCI Express x16, Generation 2.0
256 MB GDDR3 SDRAM unified graphics memory
2 DisplayPort
Comes with 2 DisplayPort to VGA Adapters
NOTE: When purchased as an after-market option, this comes instead with
2 DisplayPort to DVI-D adapters.
Two DisplayPort outputs drive two digital displays up to 2560 x 1600
Drives DisplayPort enabled digital displays at resolutions up to 2560
× 1600 at 60 Hz with reduced blanking
Drives DVI enabled digital displays at resolutions up to 1920 × 1200
at 60 Hz with reduced blanking (through DisplayPort to DVI-D (single
link) cable)
North America — Version 18 — June 29, 2010
Page 38
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
Supported Graphics APIs OpenGL 3.0
DirectX 10.0
NVIDIA GeForce
310 DP PCIe x16
Graphics Card
Bus type
PCI Express (x16 lanes)
85 Hz
Maximum vertical
refresh rate
Integrated 400 MHz RAMDAC
Display support
Display max resolution 2560x1600 digital, 2048 x 1536 analog
NVIDIA GeForce 310 DP PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Resolution
Maximum Refresh Rate (Hz)
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
60*
60
* Only supported when using a dual-link DVI or DP connection.
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections.
Board display options
Board configuration
Supports two displays via the DisplayPort and DVI connectors
Description
Specification
Graphics Chip
RV620
Core clock
750 MHz
Memory clock
500 MHz
Frame buffer
512 MB DDR3, 64 bit wide
Audio Support (through Integrated HD Audio codec supports linear PCM and Dolby® Digital (7.1) audio
HDMI only)
formats for HDMI output
Operating systems
Windows 7 Home Basic*, Windows 7 Home Premium*, Windows 7 Professional
support
Edition 32*, Windows 7 Professional Edition 64*, Windows 7 Ultimate Edition 32*,
Windows 7 Ultimate Edition 64*, Windows Vista Business 32†, Windows Vista Business
64†, Windows Vista Home Basic 32†, Windows Vista Home Basic 64†, Windows XP
Professional or Windows XP Home 32†.
*This system may require upgraded and/or separately purchased hardware and/or a
DVD drive to install the Windows 7 software and take full advantage of Windows 7
functionality. See http://www.microsoft.com/windows/windows-7/ for details.
DA - 13424
North America — Version 18 — June 29, 2010
Page 39
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
Windows 7 Business disk may be included for future upgrade if desired. To qualify for
this downgrade an end user must be a business (including governmental or
educational institutions) and is expected to order at least 25 customer systems with the
same custom image
† Certain Windows Vista product features require advanced or additional hardware.
Windows Vista Upgrade Advisor can help you determine which features of Windows
Vista will run on your computer. To download the tool, visit:
http://www.windowsvista.com/upgradeadvisor. For Windows Vista system
requirements, visit: http://www.windowsvista.com/systemrequirements.
Linux x86 and x86_64 distributions using XFree86 or X.Org‡.
Core power
Dimensions (H x D)
Weight
Option kit contents
Compliance standards
‡Linux drivers are available from ATI's website and may be available in a Linux
distribution. Refer to the Open Source and Linux from HP website:
http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
22 W (max)
2.71 in x 6.60 in (68.90 mm x 167.65 mm)
0.30 lb (134.3 g)
NVIDIA GeForce 310 DP PCIe x16 Graphics Cardwith full height bracket
attached
DVI to VGA adapter
Software CD with graphics drivers
Low profile bracket to convert the card for using in a low profile chassis
Warranty documentation
EMC Emissions:
a) FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices for
Home & Office Use
b) CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of
radio disturbance characteristics of Information Technology Equipment
c) Canadian Standard ICES-003 is equivalent to CISPR22
d) Taiwanese Standard BSMI
e) Japanese VCCI
f) Australian C-Tick
g) Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment - Immunity
Characteristics - Limits and Methods of Measurement.
ATI Radeon HD 4550
Dual Head PCIe x16
Graphics Card
Bus type
Maximum vertical refresh rate
Display support
Display max resolution
Board display options
DA - 13424
PCI Express (x16 lanes)
85 Hz
Integrated 400 MHz RAMDAC
1900 x 1200 digital, 2048 x 1536 analog
Supports two displays via included DMS-59 to dual VGA cable or 2 DVI
monitors via optional DMS-59 to dual DVI cable kit part number:
DL139A. 4-pin mini-DIN S-video connector for TV output
North America — Version 18 — June 29, 2010
Page 40
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
Board configuration
Languages supported
Compliance standards
Specification
Description
Graphics Chip
RV710
Core clock
600MHz
Memory clock
800 MHz
Frame buffer
512 MB DDR3, 64 bit wide
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,
Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
EMC Emissions:
a) FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing
Devices for Home & Office Use
b) CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of
measurement of radio disturbance characteristics of Information
Technology Equipment
c) Canadian Standard ICES-003 is equivalent to CISPR22
d) Taiwanese Standard BSMI
e) Japanese VCCI
f) Australian C-Tick
g) Korean (KCC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.
ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Resolution
Maximum Refresh Rate (Hz)
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
N/A
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections.
DA - 13424
North America — Version 18 — June 29, 2010
Page 41
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
ATI Radeon HD
PCI Express (x16 lanes)
Bus type
4650 DP (1GB)
Maximum vertical
85 Hz
PCIe x16 Graphics refresh rate
Card
Display support
Integrated 400 MHz RAMDAC
Display max resolution 2560 x 1600 digital, 2048 x 1536 analog
ATI Radeon HD 4650 DP (1GB) PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP
Resolution
Maximum Refresh Rate (Hz)
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
60*
* Only supported when using a dual-link DVI or DP connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections
Board display options
Board configuration
Languages supported
Operating systems
support
Supports two displays via included two DisplayPort and one Dual Link DVI-I
connectors.
Specification
Description
Graphics Chip
RV635
Core clock
725 MHz
Memory clock
500 MHz
Frame buffer
1 GB DDR3, 128 bit wide
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Thai, Turkish
Windows 7 Home Basic*, Windows 7 Home Premium*, Windows 7 Professional
Edition 32*, Windows 7 Professional Edition 64*, Windows 7 Ultimate Edition 32*,
Windows 7 Ultimate Edition 64*, Windows Vista Business 64**, Windows Vista
Business 32**, Windows Vista Home Basic 32**, Windows XP Professional or Windows
XP Home 32**.
*This system may require upgraded and/or separately purchased hardware and/or a
DVD drive to install the Windows 7 software and take full advantage of Windows 7
functionality. See http://www.microsoft.com/windows/windows-7/ for details.
DA - 13424
North America — Version 18 — June 29, 2010
Page 42
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
** Certain Windows Vista product features require advanced or additional hardware.
Windows Vista Upgrade Advisor can help you determine which features of Windows
Vista will run on your computer. To download the tool, visit:
http://www.windowsvista.com/upgradeadvisor. For Windows Vista system
requirements, visit: http://www.windowsvista.com/systemrequirements.
Linux x86 and x86_64 distributions using XFree86 or X.Org***.
*** Linux drivers are available from ATI's website and may be available in a Linux
distribution. Refer to the Open Source and Linux from HP website:
http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
Core power
56 W
Option kit contents
ATI Radeon HD 4650 DP (1GB) PCIe x16 Graphics Card with full height
bracket attached
DVI to VGA adapter
DisplayPort to DVI-D adapter
Software CD with graphics drivers
Warranty documentation
Compliance standards EMC Emissions:
a) FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices for
Home & Office Use
b) CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement
of radio disturbance characteristics of Information Technology Equipment
c) Canadian Standard ICES-003 is equivalent to CISPR22
d) Taiwanese Standard BSMI
e) Japanese VCCI
f) Australian C-Tick
g) Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment - Immunity
Characteristics - Limits and Methods of Measurement.
HP ADD2 SDVO PCIe
DVI-D Adapter
Models
Form Factor
DVI-D Connector
Dual Head Support
Display Devices
Supported
HP ADD2 SDVO DVI-D Out Adapter
Low-profile card
Digital connection only
Yes, when used with the integrated VGA connector
HP L1740
HP L1940T
HP L2045W
HP LP1965
NOTE: These graphics adapters offer optimal performance with any display that meets applicable VESA
standards.
All modes support 8-bpp, 16-bpp, and 24-bpp color depths
Color Depth
Host Interface Connector Mechanically compliant with PCI-E standard
Complies with the Intel ADD2 and Intel Serial Digital Video Output (SDVO)
specifications
165 MHz maximum
Dot Clock
DA - 13424
North America — Version 18 — June 29, 2010
Page 43
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Graphics
Display Modes
Resolution
Blanking
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
HP DisplayPort to DVI-D
Adapter
VGA
SVGA
XGA
SXGA
UXGA
Connectors
Adapter length
Adapter weight
Supports display modes that require up to 165-MHz bandwidth on the link,
as shown in the following table.
60-Hz LCD
5% reduced
Yes
Yes
Yes
Yes
Yes
60-Hz
GTF
Yes
Yes
Yes
Yes
Yes
75-Hz
GTF
Yes
Yes
Yes
No
No
85-Hz
GTF
Yes
Yes
Yes
No
No
DisplayPort and DVI-D single link connector
7.5 in (19.0 cm)
.10 lbs (.05 kg)
HP DisplayPort to VGA
Adapter
Connectors
DisplayPort and VGA connector
8 in (20 cm)
Adapter length
.1 lbs (.06 kg)
Adapter weight
Maximum vertical refresh rate 85 Hz
162 MHz RAMDAC
Display support
1600x1200
Display max resolution
HP DisplayPort to VGA adapter display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Using
the HP DisplayPort to VGA Adapter may require an update to the graphics driver installed on your system. To install the most up-todate graphics driver go to: www.hp.com.
Resolution
Max refresh rate
640x480
85
800x600
85
1024x768
85
1280x720
85
1280x1024
85
1440x900
75
1600x1200
60
1680x1050
60
1920x1080
60-R
1920x1200
60-R
NOTE: 60-R denotes reduced blanking timings are used. Not all monitors support reduced blanking timing.
DA - 13424
North America — Version 18 — June 29, 2010
Page 44
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Hard Drives
2.5” 7200 RPM Serial
ATA Hard Drives
250 GB
Capacity
Height (Nominal)
Width (Nominal)
250,059,350,016 bytes
0.374 in (9.5 mm)
Media diameter: 2.5 in (63.5 mm)
Physical size: 2.75 in (70 mm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Cache
2.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
12 ms
overhead, including
Full-Stroke
22 ms
settling)
Rotational Speed
Logical Blocks
Operating Temperature
160 GB
Capacity
Height (Nominal)
Width (Nominal)
160,041,885,696 bytes
0.374 in (9.5 mm)
Media diameter: 2.5 in (63.5 mm)
Physical size: 2.75 in (70 mm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Cache
2.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
12 ms
overhead, including
Full-Stroke
22 ms
settling)
Rotational Speed
Logical Blocks
Operating Temperature
3.5” 7200 RPM Serial
ATA Hard Drives
500 GB
7,200 rpm
488,397,168
41° to 131° F (5° to 55° C)
7,200 rpm
312,581,808
41° to 131° F (5° to 55° C)
Capacity
Height
Width
500,107,862,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
16 MB
Buffer
DA - 13424
North America — Version 18 — June 29, 2010
Page 45
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Hard Drives
320 GB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Single Track
2.0 ms
Average
11 ms
Full-Stroke
21 ms
Capacity
Height
Width
320,069,031,690 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
7,200 rpm
976,773,168
41° to 131° F (5° to 55° C)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Buffer
1.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
8.5 ms
overhead, including
Full-Stroke
18 ms
settling)
Rotational Speed
Logical Blocks
Operating Temperature
250 GB
160 GB
7,200 rpm
625,142,448
41° to 131° F (5° to 55° C)
Capacity
Height
Width
250,059,350,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Buffer
1.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
8.5 ms
overhead, including
Full-Stroke
18 ms
settling)
Rotational Speed
Logical Blocks
Operating Temperature
7,200 rpm
488,397,168
41° to 131° F (5° to 55° C)
Capacity
Height
160,041,885,696 bytes
1 in (2.54 cm)
DA - 13424
North America — Version 18 — June 29, 2010
Page 46
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Hard Drives
Width
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Buffer
0.9 ms
Seek Time (typical reads, Single Track
includes controller
Average
9.3 ms
overhead, including
Full-Stroke
18 ms
settling)
7,200 rpm
Rotational Speed
10,000 RPM Serial ATA
Hard Drives
160 GB
Logical Blocks
Operating Temperature
312,581,808
41° to 131° F (5° to 55° C)
Capacity
Height
Width
160,041,885,696 bytes
1 in (2.54 cm)
Media diameter: 3.0 in (7.62 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (1.5 Gb/s), Native Command Queuing
enabled
Up to 3.0 Gb/s
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 13424
16 Mbytes
Single Track
0.3 ms
Average
4.6 ms
Full-Stroke
10.2 ms
10,000 rpm
312,581,808
41° to 131° F (5° to 55° C)
North America — Version 18 — June 29, 2010
Page 47
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Hard Drives
Solid State Drive
64 GB
Capacity
NAND Flash Memory
Interface type
Dimensions-external
(W x H x D)
Weight
Internal transfer rate
Host transfer rate
Power
64 GB
Multi Level Cell (MLC) with wear leveling controller
SATA 3Gb/sec
2.74 x 0.37 x 4 in (6.98 x 0.95 x 10.2 cm)
0.14 lb (65 g)
Write speed
Read speed
Ultra DMA mode
DC power requirement
Total power consumption
Up to 220 MB/s
Up to 120 MB/s
Up to 150 MB/s
5 VDC 5%-100 mV ripple p-p
<1.12Watt
Environmental
(all conditions, noncondensing)
Temperature (operating) 32° to 158° F (0° to 70° C)
5% to 95%
Relative Humidity
(operating)
84° F (29° C)
Maximum Wet Bulb
Temperature (operating)
Regulations
UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS
13438, AS/NZS CISPR 22:2002 Class B, R1113 and
C1172 Class B
NOTE: For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted
capacity of this drive before a portion of the drive is reserved for flash management
features. Actual capacity varies by content and will be less than 15.8GB.
DA - 13424
North America — Version 18 — June 29, 2010
Page 48
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Input/Output Devices
USB Standard Keyboard
Physical
characteristics
Keys
Dimensions (L x W x H)
Weight
Operating voltage
Power consumption
System interface
ESD
EMI - RFI
Electrical
Microsoft® PC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
Mechanical
Environmental
Approvals
Ergonomic compliance
Kit contents
DA - 13424
104, 105, 106, 107, 109 layout (depending
upon country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
Keyboard, installation guide, warranty card, safety and comfort guide
North America — Version 18 — June 29, 2010
Page 49
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Input/Output Devices
PS/2 Standard Keyboard Physical
characteristics
Keys
Dimensions (L x W x H)
Weight
Operating voltage
Power consumption
System interface
ESD
EMI - RFI
Electrical
Microsoft PC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
Mechanical
Environmental
Approvals
Ergonomic compliance
HP USB Smartcard
Keyboard
Physical
characteristics
Electrical
DA - 13424
104, 105, 106, 107, 109 layout (depending
upon country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
PS/2 6-pin mini din connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
Keys
Form factor
Colors
Dimensions (H x W x D)
Weight
Operating voltage
104, 105, 106, 107, 109 layout (depending
upon country)
USB basic Smart Card keyboard
Carbonite/Silver
18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
North America — Version 18 — June 29, 2010
Page 50
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Input/Output Devices
Power consumption
System interface
ESD
EMI - RFI
Mechanical
Environmental
SMARTCARD function
DA - 13424
Microsoft PC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
Switch type
Key-leveling mechanisms
Cable length
Microsoft PC 99 - 2001
Acoustics
Operating temperature
Non-operating
temperature
Operating humidity
Non-operating humidity
Operating shock
Non-operating shock
Operating vibration
Non-operating vibration
Drop (out of box)
Drop (in box)
Support
Interface
100-mA maximum (with four LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
30+ available
Low-profile design
55 g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Contamination-resistant membrane
For all double-wide and greater-length keys
6 ft (1.8 m)
Mechanically compliant
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
42 in (107 cm) on concrete, 16-drop sequence
All ISO 7816 smart cards
Reads from and writes to all ISO7816-1, 2, 3, 4
memory and microprocessor smart cards (T=0,
T=1)
Chipset
SCM STCII
Standard APIs supported PC/SC, EMV2000, SET
Power
USB Port
Short circuit detection (protects smart card and
reader)
Power supply compliant with ISO7816 and EMV
(5V, 60 mA)
Supports 3-V and 5-V cards
Power consumption
250-mA maximum draw (50 mA for the
keyboard with three LEDs ON and 200-mA
maximum startup current using a high-current,
60-mA smart card)
North America — Version 18 — June 29, 2010
Page 51
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Input/Output Devices
Communication
Landing mechanism
Interface modes
Reader performance
interface
Electro-magnetic
standards
HP PS/2 Optical Scroll
Mouse
Dimensions (H x L x W)
Weight
Environmental
Electrical
Mechanical
DA - 13424
From card
Programmable from
9,600 baud to
115,200 baud
From computer
Up to 38,400 baud
Contact device
Friction contact
Card insertions rating Up to 100,000
insertion cycles
USB communications through USB port
SCM protocol
Automatic card insertion/removal detection
USB connection
Europe
USA
89/336/CEE guideline
USAFCC part 15
3.95 x 6.21 x 11.7 cm (1.56 x 2.44 x 4.61 in)
4.44 oz (126 g)
-32° to 104°F (0° to 40° C)
Operating temperature
-4° to 140°F ( -20° to 60° C)
Non-operating
temperature
10% to 90% (non condensing at ambient)
Operating humidity
Non-operating humidity 10% to 90% non condensing
40 g, 6 surfaces
Operating shock
80 g, 6 surfaces
Non-operating shock
2 g peak acceleration
Operating vibration
Non-operating vibration 4 g peak acceleration
80 cm height onto asphalt tile over concrete or
Drop (out of box)
equivalent, 5-drop in 5 direction except the cable
face
5 VDC ± 10%
Operating voltage
100mA
Power consumption
PS/2 mini-din connector
System consumption
CE level 4, 15 kV air discharge
ESD
Conforms to FCC rules for a Class B computing
EMI-RFI
device
Microsoft PC99 - 2001 Functionally compliant
400 ± 20% DPI
Resolution
10 in/s (25.4 cm/s) maximum
Tracking speed
100 in/s/s (2.54 m/s/s)
Acceleration
61 g nominal peak force
Switch actuation
3,000,000 operations (using Hasco modified
Switch life
tester)
Low force micro-switches
Switch type
North America — Version 18 — June 29, 2010
Page 52
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Input/Output Devices
Tracking mechanism life
Cable length
Microsoft PC99 - 2001
Width
Diameter
Maximum rotation speed
Switch type
Switch life
Mechanical life
Compliant
Scroll wheel
Regulatory approvals
155 mi (250 km) at average speed of 10 in/s
6 ft (1.8 m)
Mechanically compliant
8 mm
1.01 in (25.6 mm)
48 rats/sec
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI,
BSMI, C-Tick, MIC
HP USB Optical Scroll
Mouse
Dimensions (H x L x W)
Weight
Cable length
System requirements
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
0.27 lb (0.12 kg)
72.8 in (185 cm)
Microsoft Windows 95, 98, 2000, Me, XP and Vista
Available USB port
HP USB 2-Button Laser
Mouse
Scroll Wheel
Maximum Rotation Speed
Switch Type
Switch Life
24
48 rats/sec
wheel
Button - 3,000,000
Wheel - 1,000,000 times
Tilt switch - 500,000 times
Operating Temperature
Non-operating
Temperature
Operating Humidity
Non-operating Humidity
Operating Shock
Non-operating Shock
Operating Vibration
Non-operating Vibration
Operating Voltage
Power Consumption
MTBF
ESD
Environmental
Electrical
Mechanical
DA - 13424
EMI-RFI
PC98
Resolution
Tracking Speed
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
+ 5VDC ± 5%
> 150,000 hrs
IEC-61000-4-2 criteria B, Contact discharge:
+/- 4kV, Air discharge: +/- 8kV
FCC Class B
PC 99 Compliant
800dpi
25 cm/sec
North America — Version 18 — June 29, 2010
Page 53
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Input/Output Devices
Acceleration
Switch Actuation
Switch Life
Regulatory Approvals
DA - 13424
0.5mm
0.6N (60gf)
Button - 3,000,000
Wheel - 1,000,000 times
Tilt switch - 500,000 times
Cable Length
1850mm
PC98-99
PC99 compliant
UL60950-1, UL 94, UL 746 (A-E), UL 796
TUV/GS: EN 60950-1, EN 60825-1
FCC Class B, UL 1950, cUL, TUV GS, CE, C-tick, VCCI, BSMI, RRL
North America — Version 18 — June 29, 2010
Page 54
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Optical Storage
HP Blu-ray Writer Drive
Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Write speed
Read speeds
Sustained Transfer rate
Burst Transfer rate
DA - 13424
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
50 GB DL or 25 GB standard
5.9 x 1.7 x 7.5 in (15.0 x 4.4 x 19.0 cm)
2.0 lb (907g)
Double-layer
Single-layer
2x, 4x CLV, 6x CAV
2x, 4x CLV
BD-R
2.3x
2x CLV
BD-RE
2x, 4x CLV, 8x ZCLV,
2x, 4x CLV
DVD-R
8x, 12x PCAV, 16x CAV
1x, 2x, 4x, 6x CLV
Not supported
DVD-RW
2.4x, 4x CLV, 8x ZCLV, 2.4x, 4x CLV
DVD+R
8x, 12x PCAV, 16x CAV
2.4x, 4x, 6x CLV, 8x
Not supported
DVD+RW
ZCLV
2x, 3x CLV, 3-5x PCAV
DVD-RAM
8x,16x CLV, 24x, 32x PCAV, 40x CAV
CD-R
4x, 10x, 16x CLV, 24x ZCLV
CD-RW
Single-layer
Double-layer
6x CAV
4.8x CAV
BD-ROM
6x CAV
4.8x CAV
BD-R
4.8x CAV
4.8x CAV
BD-RE (SL/DL)
16x CAV
8x CAV
DVD-ROM
12x CAV
8x CAV
DVD-R
10x CAV
Not support
DVD-RW
12x CAV
8x CAV
DVD+R
10x CAV
Not support
DVD+RW
BDMV (AACS Compliant 4.8x CAV
Disc)
2x, 3x CLV, 3x-5x PCAV
DVD-RAM
8x CAV
DVD-Video (CSS
Compliant Disc)
40x / 40x / 40x CAV
CD-R/RW/ROM
32x CAV
CD-DA (DAE)
16x CAV
80 mm CD
26.97 MB/s (6x) max
BD-ROM
16.62 MB/s (16x) max.
DVD-ROM
6,000 KB/s (40x) max.
CD-ROM
1.5Gbps bits/s (10b side)
1.2Gbps bits/s (8b side)
North America — Version 18 — June 29, 2010
Page 55
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Optical Storage
Multimedia MPC-3
compliant
Access times
(typical reads, including
setting)
Power
Yes
Random
Full Stroke
Source
DC Power Requirement
DC Current
Environmental
(all conditions
non-condensing)
Temperature (operating)
Relative Humidity
(operating)
Maximum Wet Bulb
Temperature (operating)
HP SuperMulti LightScribe Height
DVD Writer Drive
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Write speeds
Read speeds
Access time
(typical reads, including
settling)
Power
DA - 13424
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC -1000 mA typical, 1600 mA maximum
12 VDC -600 mA typical, 1400 mA maximum
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 12X
DVD-RAM
Up to 16X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 8X
DVD-R DL
Up to 16X
DVD-R
Up to 6X
DVD-RW
Up to 48X
CD-R
Up to 32X
CD-RW
Up to 12X
DVD-RAM
Up to 8X
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
Up to 8X
DVD-ROM DL
Up to 16X
DVD-ROM, DVD+R,
DVD-R
Up to 48X
CD-ROM, CD-R
Up to 32X
CD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
SATA DC power receptacle
Source
North America — Version 18 — June 29, 2010
Page 56
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Optical Storage
DC Power Requirement
DC Current
Environmental conditions Temperature
(operating - nonRelative Humidity
condensing)
Maximum Wet Bulb
Temperature
HP DVD-ROM Drive
Height
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Read speeds
Removable Storage Media Compatibility DVD-ROM
Access times
(typical reads, including
setting)
DA - 13424
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 16X
DVD-ROM
Up to 4X
DVD-RAM
Up to 40X
CD-ROM, CD-R
Up to 32X
CD-RW
Media
Read
Write
Yes
No
CD-ROM
Yes
No
CD-R
Yes
No
CD-RW
Yes
No
DVD-ROM
Yes
No
DVD-ROM DL
Yes
No
DVD-RAM
Yes
No
DVD+R
Yes
No
DVD+R DL
Yes
No
DVD+RW
Yes
No
DVD-R
Yes
No
DVD-RW
Yes
No
DVD-R DL
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
2 MB (minimum)
Cache Buffer
North America — Version 18 — June 29, 2010
Page 57
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Optical Storage
Data Transfer Modes
Power
Source
DC Power Requirement
DC Current
HP Slim SuperMulti
LightScribe DVD Writer
Drive
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC - <1000 mA typical, < 1600 mA
maximum
12 VDC -< 600 mA typical, < 1400 mA
maximum
41° to 122° F (5° to 50° C)
10% to 90%
Environmental
(all conditions
non-condensing)
Temperature
Relative Humidity
Height
Orientation
Interface type
Disc recording capacity
Dimensions (W x H x D)
Weight (max)
Write speeds
12.7mm height
Either horizontal or vertical
SATA/ATAPI
Up to 8.5 GB DL or 4.7 GB standard
5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
0.42 lb (190 g)
Up to 5X
DVD-RAM
Up to 4X
DVD-R DL
Up to 8X
DVD+R
Up to 4X
DVD+RW
Up to 4X
DVD+R DL
Up to 8X
DVD-R
Up to 6X
DVD-RW
Up to 24X
CD-R
Up to 16X
CD-RW
Up to 5X
DVD-RAM
Up to 8X
DVD-RW, DVD+RW
Up to 6X
DVD-R DL, DVD+R DL
Up to 8X
DVD+R, DVD-R
Up to 8X
DVD-ROM DL, DVDROM
Up to 24X
CD-ROM, CD-R
Up to 24X
CD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
< 4 seconds
Stop Time
2 MB (minimum)
Cache Buffer
Maximum Wet Bulb
Temperature
Read speeds
Access time
(typical reads, including
settling)
DA - 13424
86° F (30° C)
North America — Version 18 — June 29, 2010
Page 58
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Optical Storage
Data Transfer Modes
Power
Source
DC Power Requirement
DC Current
Total Drive Power
(standby mode)
Audio output
Line-Out
Signal-to-Noise Ratio
Channel Separation
Environmental conditions Temperature
(operating - nonRelative Humidity
condensing)
Maximum Wet Bulb
Temperature
HP Slim DVD-ROM Drive Height
Orientation
Interface type
Dimensions (W x H x D)
Weight (max)
Read speeds
Access time
(typical reads, including
settling)
Power
DA - 13424
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s - default)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
< 2.5 Watt
0.7 VRMS
74 dB
65 dB
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
12.7mm
Either horizontal or vertical
SATA/ATAPI
5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
0.42 lb (190 g)
Up to 4X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 8X
DVD-ROM
Up to 24X
CD-ROM, CD-R
Up to 24X
CD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Random DVD
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Random CD
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
Data Transfer Modes
DMA mode 2 (16.7 MB/s)
Four-pin, DC power receptacle
Source
5 VDC ± 5%-100 mV ripple p-p
DC Power Requirement
5 VDC - <1000 mA typical, < 1600 mA
DC Current
maximum
< 2.5 Watt
Total Drive Power
(standby mode)
North America — Version 18 — June 29, 2010
Page 59
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Optical Storage
Audio output
Environmental (all
conditions noncondensing)
DA - 13424
Line-Out
Signal-to-Noise Ratio
Channel Separation
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature (operating)
0.7 VRMS
74 dB
65 dB
41° to 122° F (5° to 50° C)
5% to 85%
86° F (30° C)
North America — Version 18 — June 29, 2010
Page 60
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Removable Storage
HP 22-in-1 Media Card
Reader (with 1394)
USB Interface
USB 2.0 High-speed interface
NOTE: Requires the USB cable to be connected to the internal USB
2.0 port or a USB 2.0 PCI card.
1394 Interface
Two IEEE-1394a external ports; 1 IEEE-1394a internal port (connects to the
pass through cable on the media card reader)
Advance protocol support
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports MS 4-bit parallel transfer mode
Supports MS-PRO 4-bit parallel transfer mode
Supports MS PRO-HG Duo 4-bit parallel transfer mode
Supports SD 4-bit parallel transfer mode
Supports high-speed 50Mhz SD 4-bit card (version 2.0)
Supports high-speed 52Mhz MMC 8-bit card (version 4.2)
Supports CF v4.0 with PIO mode 6 and Ultra DMA mode
Supported media type
CompactFlash Type I
CompactFlash Type II
Microdrive
MultiMediaCard (MMC)
Reduced Size MultiMediaCard (RS MMC)
MultiMediaCard 4.2 (MMC Plus, including MMC Plus HC)
Reduced Size MultiMediaCard 4.2 (MMC Mobile, including MMC
Mobile HC)
Secure Digital Card (SD)
Secure Digital High Capacity (SDHC)
miniSD
miniSD High Capacity
Micro SD (T-Flash)
Micro SD HC
Memory Stick
Memory Stick Select
Memory Stick Duo (MS Duo)
Memory Stick PRO (MS PRO)
Memory Stick PRO Duo (MS PRO Duo)
Memory Stick PRO-HG Duo
MagicGate Memory Stick (MG)
MagicGate Memory Stick Duo
xD-Picture Card
Memory Stick Micro (M2)
Supported media type
with card adapter
MMC Micro
Environmental
Test Parameters/Conditions - Power applied, unit
Operational
Environmental Extremes operating on system ±5%
nominal supply voltage.
10°C 10% R.H. = 24 hours
10°C 90% R.H. = 24 hours
20°C 90% R.H. = 24 hours
30°C 90% R.H. = 24 hours
40°C 90% R.H. = 24 hours
50°C 90% R.H. = 24 hours
DA - 13424
North America — Version 18 — June 29, 2010
Page 61
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Removable Storage
Approvals
DA - 13424
50°C 10% R.H. = 24 hours
Storage Environmental
Test Parameters/Conditions
Extremes
140°F (60°C) @ 80% R.H. for 96 hours
-22°F (-30°C) @ 20% R.H. for 48 hours
No power applied
Delta °C < 1.0°C/min
Delta % R.H. < 1.5% R.H./min
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport
Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design
Guide V. 1.3
FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T
North America — Version 18 — June 29, 2010
Page 62
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Eco Data
Eco-Label Certifications & This product has received or is in the process of being certified to the following approvals and may be
declarations
labeled with one or more of these marks:
US ENERGY STAR ®
IT ECO declaration
EPEAT Gold where HP registers commercial desktop products. See http://www.epeat.net for
registration status in your country
Ultra-Slim Desktop
Energy Consumption
(typically configured)
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Dissipation
Normal Operation
Sleep
Off
115 VAC
230 VAC
100 VAC
26.96 W
3.585 W
27.61 W
3.63 W
27.12 W
3.582 W
1.361 W
1.411 W
1.359 W
115 VAC
230 VAC
100 VAC
92 BTU/hr
94 BTU/hr
93 BTU/hr
12 BTU/hr
12 BTU/hr
12 BTU/hr
5 BTU/hr
5 BTU/hr
5 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Idle
Fixed Disk
(random writes)
Batteries
Sound Power
(LWAd, bels)
3.8
3.8
Sound Pressure
(LpAm, decibels)
28
28
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see:
www.epeat.net
DA - 13424
North America — Version 18 — June 29, 2010
Page 63
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Eco Data
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0.40% post consumer recycled plastic (by wt.)
This product is 92.3% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated 3637.5 g
Internal:
Polyethylene low density 7.6 g
The corrugated packaging material contains at least 80% recycled content.
The corrugated packaging material contains at least 0% recycled content.
Small Form Factor
Energy Consumption
(typically configured)
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Dissipation
Normal Operation
Sleep
Off
115 VAC
230 VAC
100 VAC
41.4254 W
2.7652 W
40.8627 W
2.9789 W
41.5632 W
2.7294 W
1.3332 W
1.4949 W
1.3320 W
115 VAC
230 VAC
100 VAC
142 BTU/hr
140 BTU/hr
142 BTU/hr
9 BTU/hr
10 BTU/hr
9 BTU/hr
5 BTU/hr
5 BTU/hr
5 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Idle
Fixed Disk
(random writes)
Sound Power
(LWAd, bels)
3.7
3.7
DA - 13424
Sound Pressure
(LpAm, decibels)
27
27
North America — Version 18 — June 29, 2010
Page 64
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Eco Data
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP registers
commercial desktop products. See http://www.epeat.net for registration status in your country.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is 86.2% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated Carton 1362 g
Corrugated 343 g
Internal:
EPE - Expanded Polyethylene 198 g
Polyethylene low density foam 39 g
The Corrugated Carton packaging material is made from 75% recycled content.
The EPE - Expanded Polyethylene packaging material is made from 100% recycled content.
The Polyethylene low density foam packaging material is made from 100% recycled content.
Convertible Minitower
Energy Consumption
(typically configured)
Normal Operation
Sleep (Energy Star low
power mode)
Off
Heat Dissipation*
Dissipation
Normal Operation
Sleep
Off
115 VAC
230 VAC
100 VAC
42.224 W
2.962 W
42.076 W
2.886 W
42.366 W
2.894 W
0.646 W
0.802 W
0.652 W
115 VAC
230 VAC
100 VAC
144 BTU/hr
144 BTU/hr
145 BTU/hr
10 BTU/hr
10 BTU/hr
10 BTU/hr
2 BTU/hr
3 BTU/hr
2 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
DA - 13424
North America — Version 18 — June 29, 2010
Page 65
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Eco Data
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
3.8
3.8
System Fan Off
Idle
Fixed Disk
(random writes)
Batteries
Sound Pressure
(LpAm, decibels)
28
28
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP registers
commercial desktop products. See http://www.epeat.net for registration status in your country.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is 91.7% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated 2550g
Internal:
Polyethylene high density 160g
The Corrugated packaging material is made from 38% recycled content.
The Polyethylene high density packaging material is made from 100% recycled content.
Ultra-Slim Desktop, Small Form Factor, Convertible Minitower
RoHS Compliance
Material Usage
Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations,
including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to
exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis.
By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for
all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is
no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
This product does not contain any of the following substances in excess of regulatory limits (refer to the
HP General Specification for the Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html):
Asbestos
DA - 13424
North America — Version 18 — June 29, 2010
Page 66
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Eco Data
Packaging
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
and Recycling
To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by
recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
Hewlett-Packard
For more information about HP's commitment to the environment:
Corporate Environmental Global Citizenship Report
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
DA - 13424
North America — Version 18 — June 29, 2010
Page 67
QuickSpecs
HP Compaq 8000 Elite PC
Technical Specifications - Eco Data
Copyright © 2010 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows 7, and Windows Vista are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Intel, Core 2 Quad, Core 2 Duo, Pentium and Celeron are registered trademarks or
trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the
U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 13424
North America — Version 18 — June 29, 2010
Page 68
