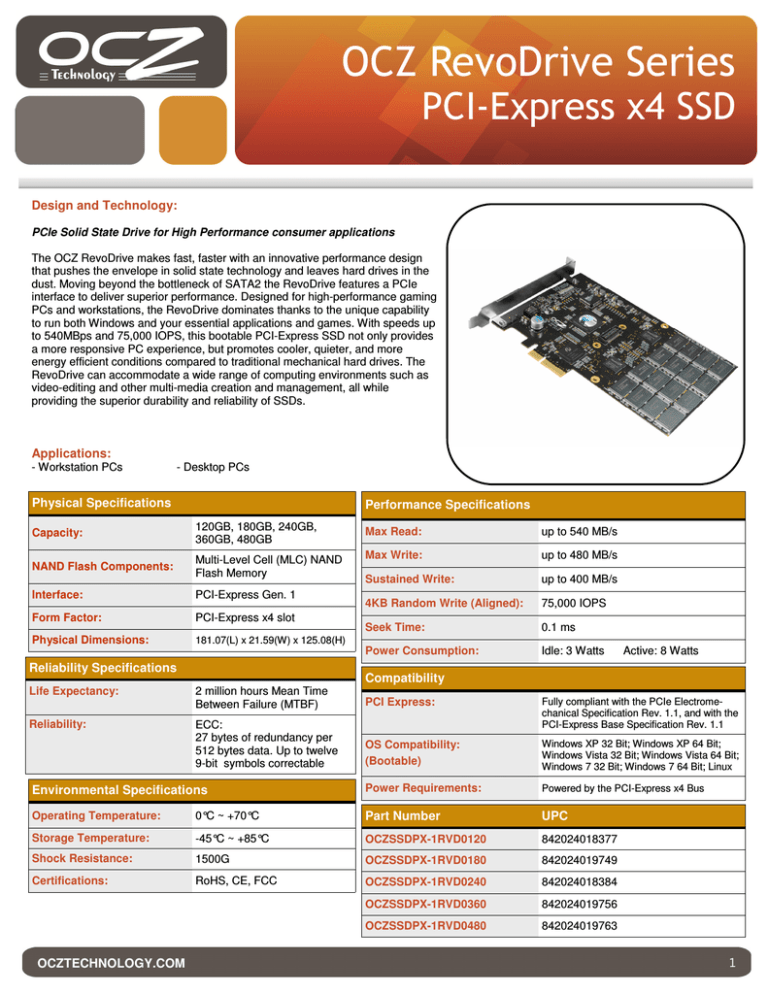

OCZ RevoDrive Series
PCI-Express x4 SSD
Design and Technology:
PCIe Solid State Drive for High Performance consumer applications
The OCZ RevoDrive makes fast, faster with an innovative performance design
that pushes the envelope in solid state technology and leaves hard drives in the
dust. Moving beyond the bottleneck of SATA2 the RevoDrive features a PCIe
interface to deliver superior performance. Designed for high-performance gaming
PCs and workstations, the RevoDrive dominates thanks to the unique capability
to run both Windows and your essential applications and games. With speeds up
to 540MBps and 75,000 IOPS, this bootable PCI-Express SSD not only provides
a more responsive PC experience, but promotes cooler, quieter, and more
energy efficient conditions compared to traditional mechanical hard drives. The
RevoDrive can accommodate a wide range of computing environments such as
video-editing and other multi-media creation and management, all while
providing the superior durability and reliability of SSDs.
Applications:
- Workstation PCs
- Desktop PCs
Physical Specifications
Performance Specifications
Capacity:
120GB, 180GB, 240GB,
360GB, 480GB
Max Read:
up to 540 MB/s
Multi-Level Cell (MLC) NAND
Flash Memory
Max Write:
up to 480 MB/s
NAND Flash Components:
Sustained Write:
up to 400 MB/s
Interface:
PCI-Express Gen. 1
4KB Random Write (Aligned):
75,000 IOPS
Form Factor:
PCI-Express x4 slot
Seek Time:
0.1 ms
Physical Dimensions:
181.07(L) x 21.59(W) x 125.08(H)
Power Consumption:
Idle: 3 Watts
Reliability Specifications
Life Expectancy:
Active: 8 Watts
Compatibility
2 million hours Mean Time
Between Failure (MTBF)
PCI Express:
ECC:
27 bytes of redundancy per
512 bytes data. Up to twelve
9-bit symbols correctable
Fully compliant with the PCIe Electromechanical Specification Rev. 1.1, and with the
PCI-Express Base Specification Rev. 1.1
OS Compatibility:
(Bootable)
Windows XP 32 Bit; Windows XP 64 Bit;
Windows Vista 32 Bit; Windows Vista 64 Bit;
Windows 7 32 Bit; Windows 7 64 Bit; Linux
Environmental Specifications
Power Requirements:
Powered by the PCI-Express x4 Bus
Operating Temperature:
0°C ~ +70°C
Part Number
UPC
Storage Temperature:
-45°C ~ +85°C
OCZSSDPX-1RVD0120
842024018377
Shock Resistance:
1500G
OCZSSDPX-1RVD0180
842024019749
Certifications:
RoHS, CE, FCC
OCZSSDPX-1RVD0240
842024018384
OCZSSDPX-1RVD0360
842024019756
OCZSSDPX-1RVD0480
842024019763
Reliability:
OCZTECHNOLOGY.COM
1
OCZ RevoDrive Series
PCI-Express x4 SSD
Mechanical Specifications
OCZTECHNOLOGY.COM
2
