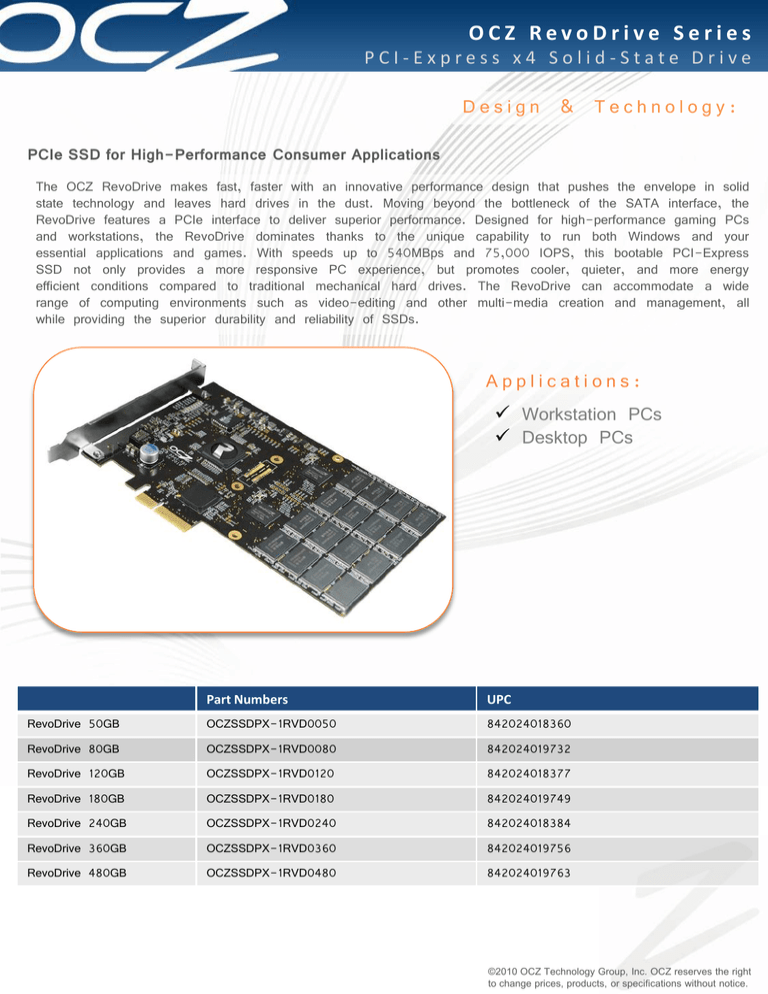

OCZ RevoDrive Series
PCI-Express x4 Solid-State Drive
Design
&
Technology:
PCIe SSD for High-Performance Consumer Applications
The OCZ RevoDrive makes fast, faster with an innovative performance design that pushes the envelope in solid
state technology and leaves hard drives in the dust. Moving beyond the bottleneck of the SATA interface, the
RevoDrive features a PCIe interface to deliver superior performance. Designed for high-performance gaming PCs
and workstations, the RevoDrive dominates thanks to the unique capability to run both Windows and your
essential applications and games. With speeds up to 540MBps and 75,000 IOPS, this bootable PCI-Express
SSD not only provides a more responsive PC experience, but promotes cooler, quieter, and more energy
efficient conditions compared to traditional mechanical hard drives. The RevoDrive can accommodate a wide
range of computing environments such as video-editing and other multi-media creation and management, all
while providing the superior durability and reliability of SSDs.
Applications:
 Workstation PCs
 Desktop PCs
Part Numbers
UPC
RevoDrive 50GB
OCZSSDPX-1RVD0050
842024018360
RevoDrive 80GB
OCZSSDPX-1RVD0080
842024019732
RevoDrive 120GB
OCZSSDPX-1RVD0120
842024018377
RevoDrive 180GB
OCZSSDPX-1RVD0180
842024019749
RevoDrive 240GB
OCZSSDPX-1RVD0240
842024018384
RevoDrive 360GB
OCZSSDPX-1RVD0360
842024019756
RevoDrive 480GB
OCZSSDPX-1RVD0480
842024019763
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.
OCZ RevoDrive Series
PCI-Express x4 Solid-State Drive
Specifications:
RevoDrive 50 – 80GB
RevoDrive 120 – 480GB
PERFORMANCE
Max Read¹
up to 540 MB/s
up to 540 MB/s
Max Write¹
up to 450 MB/s
up to 480 MB/s
Sustained Write²
up to 350 MB/s
up to 400 MB/s
4KB Random Write³
70,000 IOPS
75,000 IOPS
Seek Time
0.1 ms
0.1 ms
PHYSICAL
Usable Capacities (IDEMA)
50GB, 80GB, 120GB, 180GB, 240GB, 360GB, 480GB
NAND Components
Multi-Level Cell (MLC)
Interface
PCI-Express Gen. 1
Form Factor
PCI-Express x4 slot
Controller
2 x SandForce 1222
Dimensions (L x W x H)
181.07 x 21.59 x 125.08 mm
Weight
106g (may vary slightly depending on capacity)
ENVIRONMENTAL
Power Consumption
Idle: 3 Watts
Active: 8 Watts
Operating Temperature
0°C ~ +70°C
Storage Temperature
-45°C ~ +85°C
Shock Resistance
1500G
Certifications
RoHS, CE, FCC
RELIABILITY
MTBF
2 million hours
ECC Recovery
Up to 24 bytes correctable per 512-byte sector
COMPATIBILITY
PCI-Express
Fully compliant with the PCIe Electromechanical Specification Rev. 1.1, and with the PCIExpress Base Specification Rev. 1.1
Operating System
Windows XP 32/64 Bit; Windows Vista 32/64 Bit; Windows 7 32/64 Bit
Power Requirements
Powered by the PCI-Express x4 Bus
ADDITIONAL
FEATURES
Performance Optimization
Onboard RAID 0
System Integration
Bootable
Service & Support
3-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support
¹ Maximum Sequential Speeds are determined using ATTO
² Sustained transfer rate is measured using Iometer 2008, Queue Depth 32, 128KB
³ Small file I/O performance is measured using Iometer 2008, Queue Depth 32, 4KB Aligned
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.
OCZ RevoDrive Series
PCI-Express x4 Solid-State Drive
Mechanical
Specifications:
