S
P
E
C
F
I
L
E

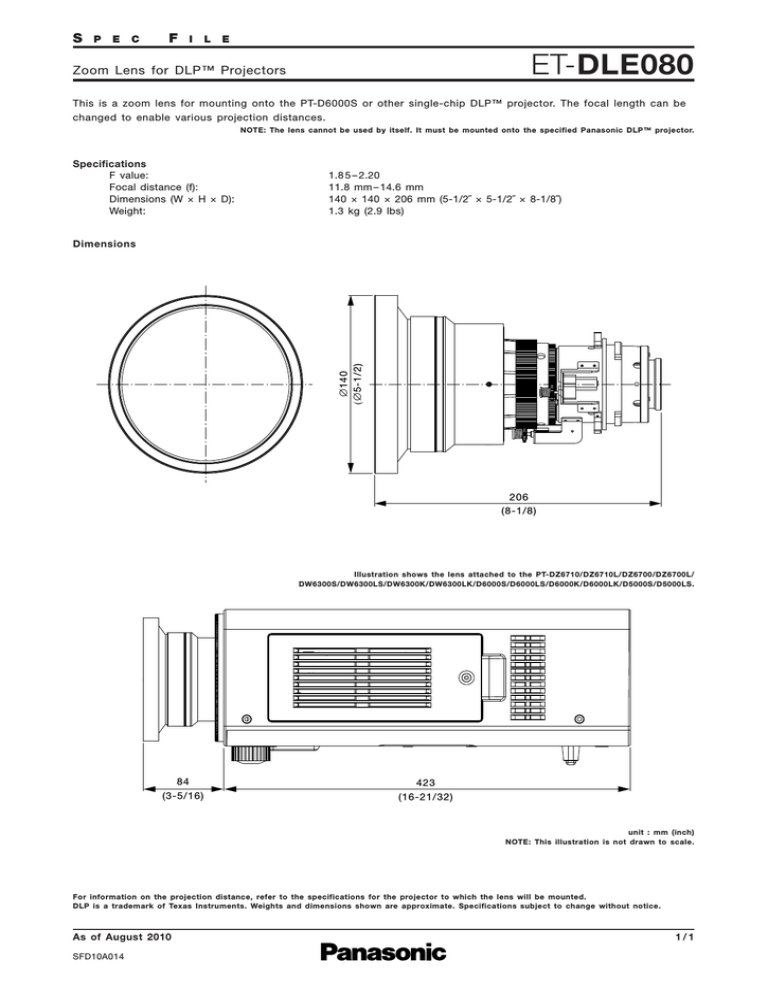

ET-DLE080
Zoom Lens for DLP™ Projectors
This is a zoom lens for mounting onto the PT-D6000S or other single-chip DLP™ projector. The focal length can be
changed to enable various projection distances.
NOTE: The lens cannot be used by itself. It must be mounted onto the specified Panasonic DLP™ projector.
Specifications
F value:
Focal distance (f):
Dimensions (W × H × D):
Weight:
1.8 5 – 2.20
11.8 mm – 14.6 mm
140 × 140 × 206 mm (5-1/2˝ × 5-1/2˝ × 8-1/8˝)
1.3 kg (2.9 lbs)
∅140
(∅5-1/2)
Dimensions
206
(8-1/8)
Illustration shows the lens attached to the PT-DZ6710/DZ6710L/DZ6700/DZ6700L/
DW6300S/DW6300LS/DW6300K/DW6300LK/D6000S/D6000LS/D6000K/D6000LK/D5000S/D5000LS.
84
(3-5/16)
423
(16-21/32)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
For information on the projection distance, refer to the specifications for the projector to which the lens will be mounted.
DLP is a trademark of Texas Instruments. Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of August 2010
SFD10A014
