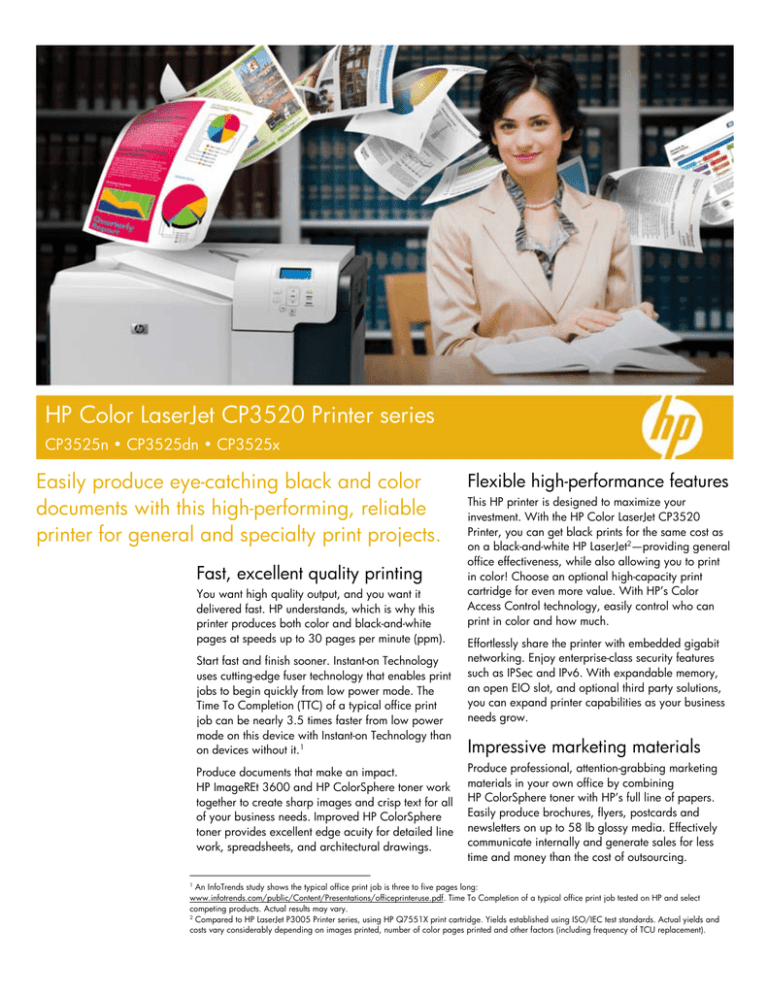

HP Color LaserJet CP3520 Printer series
CP3525n • CP3525dn • CP3525x
Easily produce eye-catching black and color
documents with this high-performing, reliable
printer for general and specialty print projects.
Fast, excellent quality printing
You want high quality output, and you want it
delivered fast. HP understands, which is why this
printer produces both color and black-and-white
pages at speeds up to 30 pages per minute (ppm).
Start fast and finish sooner. Instant-on Technology
uses cutting-edge fuser technology that enables print
jobs to begin quickly from low power mode. The
Time To Completion (TTC) of a typical office print
job can be nearly 3.5 times faster from low power
mode on this device with Instant-on Technology than
on devices without it.1
Produce documents that make an impact.
HP ImageREt 3600 and HP ColorSphere toner work
together to create sharp images and crisp text for all
of your business needs. Improved HP ColorSphere
toner provides excellent edge acuity for detailed line
work, spreadsheets, and architectural drawings.
Flexible high-performance features
This HP printer is designed to maximize your
investment. With the HP Color LaserJet CP3520
Printer, you can get black prints for the same cost as
on a black-and-white HP LaserJet2—providing general
office effectiveness, while also allowing you to print
in color! Choose an optional high-capacity print
cartridge for even more value. With HP’s Color
Access Control technology, easily control who can
print in color and how much.
Effortlessly share the printer with embedded gigabit
networking. Enjoy enterprise-class security features
such as IPSec and IPv6. With expandable memory,
an open EIO slot, and optional third party solutions,
you can expand printer capabilities as your business
needs grow.
Impressive marketing materials
Produce professional, attention-grabbing marketing
materials in your own office by combining
HP ColorSphere toner with HP’s full line of papers.
Easily produce brochures, flyers, postcards and
newsletters on up to 58 lb glossy media. Effectively
communicate internally and generate sales for less
time and money than the cost of outsourcing.
An InfoTrends study shows the typical office print job is three to five pages long:
www.infotrends.com/public/Content/Presentations/officeprinteruse.pdf. Time To Completion of a typical office print job tested on HP and select
competing products. Actual results may vary.
2
Compared to HP LaserJet P3005 Printer series, using HP Q7551X print cartridge. Yields established using ISO/IEC test standards. Actual yields and
costs vary considerably depending on images printed, number of color pages printed and other factors (including frequency of TCU replacement).
1
HP Color LaserJet CP3520 Printer series
1
A powerful 515 MHz
processor and 512 MB
memory, upgradeable to
1 GB
2
EIO expansion slot for
optional networking, storage,
and connectivity options
3
One available internal Flash
memory slot for font cards or
third-party solutions
4
HP Jetdirect Gigabit Ethernet
embedded print server
5
Hi-speed USB 2.0 port for
easy direct connections
6
Security lock slot
7
250-sheet top output bin
8
Intuitive, four-line color
display with a built-in help
function
9
Access door to the four
preinstalled print cartridges
with ColorSphere toner and
the toner collection unit
10
Built-in automatic two-sided
printing
11
250-sheet input tray 2
12
500-sheet tray 3 for total
input capacity of 850 sheets
(supports up to 58 lb bond
glossy media); HP postcard
media insert tray (for use in
tray 3) supports 4 by 6 inch
media
13
Single-door paper path
access
14
100-sheet multipurpose tray
for specialty papers
HP Color LaserJet CP3525x Printer shown
7
8
1
2
3
4
5
6
9
10
11
12
Front view
13
14
Right side view
Series at a glance
CP3525n
CP3525dn
CP3525x
CC469A
CC470A
CC471A
√
√
√
500-sheet tray 3
Optional
Optional
√
HP postcard media insert tray (for use in tray 3)
Optional
Optional
√
Part number
100-sheet multipurpose tray, 250-sheet tray 2
Memory
HP Jetdirect Gigabit Ethernet print server
256 MB
384 MB
512 MB
Embedded
Embedded
Embedded
Manual
Automatic
Automatic
HP Marketing Starter Kit
√
√
√
Meets ENERGY STAR® guidelines
√
√
√
Two-sided printing
This printer is simple to use, install, and maintain.
Effortless operation
Easily navigate printer functions with the intuitive 4-line
color display control panel. An accessible paper path
door makes clearing jams quick and easy. Original
HP print cartridges are preinstalled when your printer
arrives so you can begin printing right out of the box
(includes introductory print cartridges that yield
approximately 3,000 pages color, 3,000 pages
black).3 Replenishing supplies is simple with single-door
access to all consumables.
HP’s proven all-in-one cartridge design ensures easy,
reliable operation. Intelligence in the print cartridge
enables automatic print quality adjustments. It also alerts
you when supplies are low and provides convenient
options for online reordering through HP SureSupply.4
Enhance productivity with powerful management tools.
HP Easy Printer Care helps you monitor and maintain
2 to 20 HP LaserJet and select inkjet printers. Reduce
IT intervention with the fleet management capabilities of
HP Web Jetadmin.
Get the most out of your printer with HP accessories, supplies, and services.
HP 500-sheet Paper Tray
Supports media including 58 lb bond coated
glossy media.
CE522A
HP Postcard Media Insert Tray (for tray 3)
Print on 4 by 6 in postcard media (up to
58 lb bond glossy media) in large
quantities.
CC497A
HP high-performance secure EIO hard disk
Advanced security features protect sensitive
information without impacting device
performance.
J8019A
HP Professional Presentation Book
Easy, elegant way to professionally bind
presentations, proposals, and reports without
any additional equipment.
Q6291A
HP Support Services
Minimize the cost of downtime
Because printer downtime can have serious business consequences,
HP provides high-quality services that extend beyond the standard warranty
and help you avoid unbudgeted repair costs.
Benefits include reduced printing and infrastructure costs, maximized uptime,
expert technical phone support and delivery services, and predictable and
consistent service delivery across multiple locations.
Choose:
• Installation Service with Network Configuration: expert assembly of
HP accessories, hardware verification, network configuration, and basic
administrator familiarization
• Same Day Onsite Service: technician arrives at your site within four hours
after service call is received, if this time falls within the coverage window
• Next Day Onsite Service: technician-delivered onsite service the next
business day after the service call
Any of the above options can be purchased as:
• HP Care Pack Services: easy-to-buy, easy-to-use support packages
• HP Contractual Services: a comprehensive portfolio for maintaining
maximum IT availability
HP also offers Managed Print Services: a solution scalable from imaging
and printing devices and toner cartridges, to installation, management,
maintenance, and support.
Replacement print cartridges with HP ColorSphere toner
HP Color LaserJet Black Print Cartridge (5,000-page yield)3
HP Color LaserJet Black Print Cartridge (10,500-page yield)3
HP Color LaserJet Cyan Print Cartridge (7,000-page yield)3
HP Color LaserJet Yellow Print Cartridge (7,000-page yield)3
HP Color LaserJet Magenta Print Cartridge (7,000-page yield)3
Supplies
HP Color LaserJet Toner Collection Unit
110 Volt Preventative Maintenance Kit
220 Volt Preventative Maintenance Kit
Paper handling
HP 500-sheet Paper Tray
HP Postcard Media Insert Tray
Memory/storage
HP High-performance EIO Hard Disk
HP High-performance Secure EIO Hard Disk
HP 128 MB, 200-pin DDR DIMM
HP 256 MB, 200-pin DDR DIMM
HP 512 MB, 200-pin DDR DIMM
HP 1 GB, 200-pin DDR DIMM
Connectivity
HP Jetdirect 620n Fast Ethernet Print Server
HP Jetdirect 630n IPv6 Gigabit Ethernet Print Server
HP Jetdirect 635n IPv6/IPSec Internal Print Server
HP Jetdirect 690n Wireless Print Server
HP Jetdirect en3700 Fast Ethernet Print Server
HP Jetdirect en1700 IPv4/IPv6 Print Server
HP Jetdirect ew2400 802.11g Wireless Print Server
HP 1284B Parallel Card
Services
3-year Next Business Day Hardware Support
3-year 4-hour 9 by 5 Same Day Hardware Support
3-year 4-hour 13 by 5 Same Day Hardware Support
1-year Technical Phone Support Service
Onsite Installation and Network Configuration
Paper
www.hp.com/go/paper
1-800-477-5010
Solutions
www.hp.com/go/gsc
CE250A
CE250X
CE251A
CE252A
CE253A
CE254A
CE484A
CE506A
CE522A
CC497A
J7989G
J8019A
CC409AX
CC410AX
CC411AX
CC412AX
J7934G
J7997G
J7961G
J8007G
J7942G
J7988G
J7951G
J7972G
UL367E
UL370E
UL371E
HC130PE
H3110E
For more information visit: www.hp.com/go/printservices.
Introductory cartridges: average continuous composite cyan/yellow/magenta cartridge yield 3,000 pages and average continuous black cartridge yield 3,000 pages. Replacement cartridges: average
continuous composite cyan/yellow/magenta cartridge yield 7,000 standard pages, average continuous composite CE250A black cartridge yield 5,000 standard pages, and average continuous composite
CE250X high-capacity black cartridge yield 10,500 standard pages. Declared yield values for replacement cartridges in accordance with ISO/IEC 19798. Actual yields vary considerably based on images
printed and other factors. For more information, visit www.hp.com/go/learnaboutsupplies.
4
For more information, visit www.hp.com/learn/suresupply. Order consolidation available on printers with HP Easy Printer Care Software installed.
3
HP Color LaserJet CP3520 Printer series
Technical specifications
Print speed5
Document delivery speed
Print resolution
Processor
Memory
Durability ratings
Paper
Input
Output
Two-sided printing
Sizes
Weights
Types
Connectivity
Interfaces
Languages and fonts
Client operating systems
Network operating systems
Network protocols
Security
Dimensions (w by d by h)
Weight (includes print cartridge)
What’s in the box
Also includes
Warranty
Environmental ranges
Recommended temperature
Storage temperature
Recommended relative humidity
Storage relative humidity
Acoustics
Sound power
Bystander sound pressure
Power specifications
Required input voltage
HP Color LaserJet CP3525n Printer (CC469A)
HP Color LaserJet CP3525dn Printer (CC470A)
HP Color LaserJet CP3525x Printer (CC471A)
Black-and-white and color: up to 30 ppm, letter
First page out: as fast as 11 seconds from Ready mode; as fast as 16.5 seconds from Sleep (after 30 minute sleep); as fast as 17 seconds from Sleep (after
60 minute sleep); Time To Completion for a typical print job:6 as fast as 23 seconds, letter
HP ImageREt 3600 technology; 600 by 600 dpi and 1200 by 600 dpi for fine details and line art
515 MHz
256 MB (upgradeable to 1 GB)
384 MB (upgradeable to 1 GB)
512 MB (upgradeable to 1 GB)
Recommended monthly volume:7 1,500 to 5,000 pages; Duty cycle:8 up to 75,000 pages
100-sheet multipurpose tray 1, 250-sheet tray 2, optional 500-sheet tray 3,
optional HP postcard media insert tray (for use with tray 3)
100-sheet multipurpose tray 1, 250-sheet tray 2,
500-sheet tray 3, HP postcard media insert tray (for
use with tray 3)
250-sheet output bin
Manual
Automatic
Multipurpose tray 1: 3.9 by 5.8 in to 8.5 by 14 in; letter, legal, executive, statement, 4 by 6, 5 by 7, 5 by 8, 8.5 by 13, envelopes (No. 9, No. 10,
Monarch)
Tray 2: 5.8 by 8.3 in to 8.5 by 11.7 in; letter, executive
Tray 3: 5.8 by 8.3 in to 8.5 by 14 in; letter, legal, executive, 8.5 by 13; HP postcard media insert tray must be installed for: 4 by 6 in
Automatic two-sided printing unit: letter, legal, executive
Multipurpose tray 1: plain paper: 16 to 58 lb bond; glossy paper: 28 to 58 lb bond
Tray 2: 16 to 47 lb bond; glossy paper: 28 to 58 lb bond
Tray 3: plain paper: 16 to 47 lb bond; glossy paper: 28 to 58 lb bond
Automatic two-sided printing unit: 16 to 43 lb bond
Paper (plain, light, bond, recycled, mid-weight, heavy, mid-weight glossy, heavy glossy, extra heavy, extra-heavy glossy, cardstock, card glossy) color
transparency, labels, letterhead, envelope, preprinted, pre-punched, colored, rough, opaque film, user-defined
Hi-Speed USB 2.0 port, one host USB 2.0-like port for third-party connections, one available EIO slot, HP Jetdirect Gigabit Ethernet embedded print server
HP PCL6, HP PCL5, HP postscript level 3 emulation, direct PDF printing v 1.4; 80 scalable TrueType PostScript typefaces
Certified for Microsoft® Windows Vista® 32/64-bit, Windows® 2000, Windows XP® 32/64-bit, Windows Server 2003 32/64-bit, Windows Server
2008 32/64-bit; Mac OS X v10.3.9, v10.4, v10.5 or later; Red Hat Linux 7.x and later; SuSE Linux 8.x and later
Via HP Jetdirect print servers: Microsoft Windows 2000, Server 2003, XP, Vista, 2003 64-bit, XP 64-bit, Vista 64-bit (for Microsoft IPv6 compatible with
Windows 2003, XP, and Vista); Novell 5.1 and later; Mac OS X v10.2.8, v10.3, v10.4, v10.5, and later; Red Hat Linux 7.x and later; SuSE Linux 8.x
and later; HP-UX 10.20, 11.x, 11.i; Solaris 2.5 and later (SPARC systems only); IBM AIX 3.2.5 and later 1; MPE-iX; Citrix MetaFrame Server; Windows
Terminal Services
Via HP Jetdirect print servers: TCP/IP (IP Direct Mode; may require software from the NOS vendor or third-party vendor: LPD, FTP, IPP), IPX/SPX, DLC/LLC,
AppleTalk, Auto-IP, Apple Bonjour-compatible, NDS, Bindery, NCP, Telnet, SLP, IGMP, BOOTP/DHCP, WINS, SNMP v 1, 2c, 3, HTTP
Management security: SNMPv3, SSL/TLS (HTTPS), 802.1x authentication (EAP-PEAP, EAP-TLS), IPSec/Firewall with Kerberos, Certificate, and PreShared
Key Authentication; Wireless network security (requires HP Jetdirect 690n Wireless Print Server): 802.1x (EAP-PEAP, EAP-TLS), WPA, WPA2 authentication,
AES, TKIP, WEP (40/64- and 128-bit) encryption
20.2 by 19.3 by 14.1 in
20.2 by 19.3 by 20.5 in
72.5 lb
89.3 lb
9
Printer, four preinstalled introductory HP Color LaserJet print cartridges with HP ColorSphere toner that yield approximately 3,000 pages black and 3,000
pages color; toner collection unit, in-box documentation (Getting Started Guide), software drivers and documentation on CD-ROM, power cable, 100-sheet
multipurpose tray, 250-sheet input tray, HP Jetdirect Gigabit Ethernet embedded print server, HP Marketing Starter Kit
Built-in automatic two-sided printing
Built-in automatic two-sided printing, 500-sheet tray
3, HP postcard media insert tray (for use in tray 3)
One-year, next-day, onsite limited warranty backed by HP Customer Care, service and support; one-year technical phone support
Power consumption
59 to 81 degrees F
32 to 95 degrees F
20 to 60 percent
10 to 90 percent
Active: 6.9 B(A)
Active: 54 dB(A)
Ready: 4.6 B(A)
Ready: 33 dB(A)
115 to 127 V (±10 percent), 60 Hz (±2 Hz), 12 A
220 to 240 V (±10 percent), 50 Hz (±2 Hz), 6 A
Active: 643 watts; Ready: 60 watts; Sleep 1: 35.1 watts; Sleep 2: 10 watts;
Off: 0.48 watts
Typical Electricity Consumption (TEC): 4.212 kWh/Week
ENERGY STAR qualified models, see www.hp.com/go/energystar
Certifications
Safety
IEC 60950-1 (International), UL/cUL Listed (US/Canada); other safety approvals as
required by individual countries
EMC
CISPR 22: 2005/EN 55022: 2006 Class B, EN 61000-3-2: 2000+A2, EN 61000-33: 1995+A1, EN 55024: 1998+A1+A2, FCC Title 47 CFR, Part 15 Class B (USA),
ICES-003, Issue 4, (Canada); other EMC approvals as required by individual countries
Works with HP SureSupply. To learn more, visit www.hp.com/learn/suresupply
Exact speed varies depending on system configuration, software application, driver, and document complexity.
An InfoTrends study shows the typical office print job is three to five pages long: www.infotrends.com/public/Content/Presentations/officeprinteruse.pdf. Time To Completion of a typical office print job tested on HP and select
competing products. Actual results may vary.
7
HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
8
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate
deployment of printers and MFPs.
9
Introductory cartridges: average continuous composite cyan/yellow/magenta cartridge yield 3,000 pages and average continuous black cartridge yield 3,000 pages. Replacement cartridges: average continuous composite
cyan/yellow/magenta cartridge yield 7,000 standard pages, average continuous composite CE250A black cartridge yield 5,000 standard pages, and average continuous composite CE250X high-capacity black cartridge yield
10,500 standard pages. Declared yield values for replacement cartridges in accordance with ISO/IEC 19798. Actual yields vary considerably based on images printed and other factors. For more information, visit
www.hp.com/go/learnaboutsupplies.
5
6
ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Linux is a U.S. registered trademark of Linus Torvalds. Microsoft, Windows, and Windows XP are
registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other
countries. PostScript is a trademark of Adobe Systems Incorporated.
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors
or omissions contained herein.
To learn more, visit www.hp.com
4AA1-5162ENUC, July 2008
