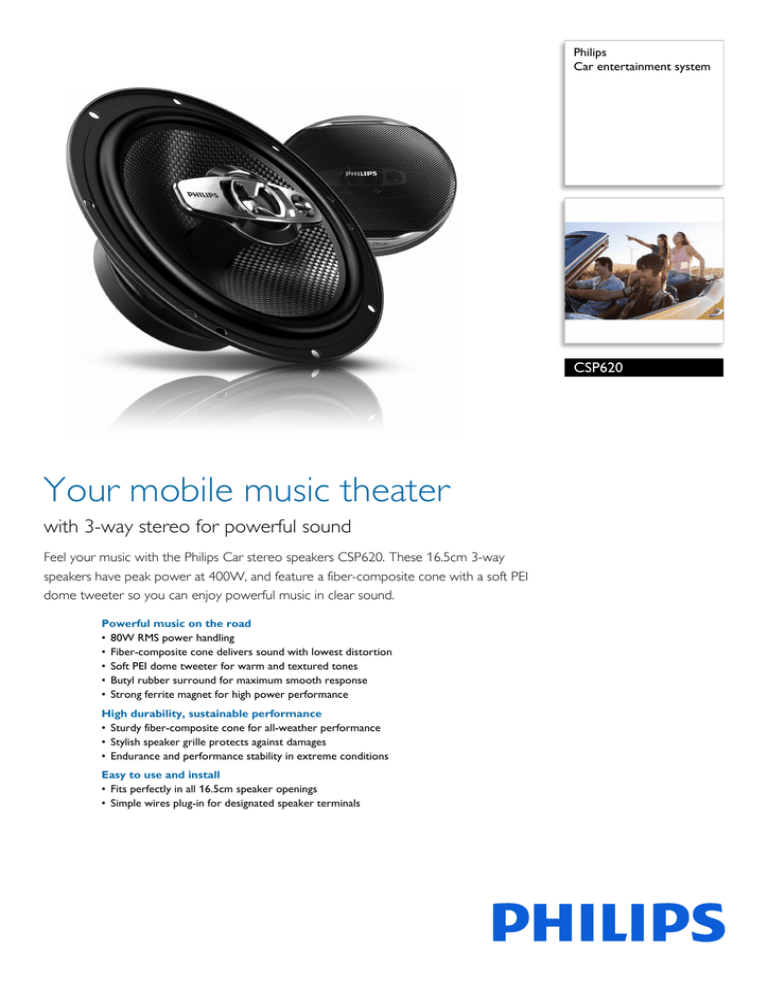

Philips
Car entertainment system
CSP620
Your mobile music theater
with 3-way stereo for powerful sound
Feel your music with the Philips Car stereo speakers CSP620. These 16.5cm 3-way
speakers have peak power at 400W, and feature a fiber-composite cone with a soft PEI
dome tweeter so you can enjoy powerful music in clear sound.
Powerful music on the road
• 80W RMS power handling
• Fiber-composite cone delivers sound with lowest distortion
• Soft PEI dome tweeter for warm and textured tones
• Butyl rubber surround for maximum smooth response
• Strong ferrite magnet for high power performance
High durability, sustainable performance
• Sturdy fiber-composite cone for all-weather performance
• Stylish speaker grille protects against damages
• Endurance and performance stability in extreme conditions
Easy to use and install
• Fits perfectly in all 16.5cm speaker openings
• Simple wires plug-in for designated speaker terminals
CSP620/55
Car entertainment system
Specifications
Sound
•
•
•
•
•
Output power (RMS): 80W
Peak Music Power: 400W
Sensitivity: 90dB
Frequency response: 35-32k Hz
Impedance: 4 Ohms
Loudspeakers
•
•
•
•
Speaker type: Coaxial speaker
Number of ways: 3-way
Speaker size: 16.5cm (6.5")
Number of Loudspeakers: 2
Woofer
•
•
•
•
•
•
•
•
Diaphragm: Cone
Diaphragm material: Polypropylene
Surround: Rubber
Voice coil: Single
Voice coil material: Copper
Magnet: Ferrite
Magnet mass: 8.6 Oz
Damper: Conex
Mid-range
•
•
•
•
Size: 38mm (1-1/2")
Diaphragm: Dome
Diaphragm material: PEI
Magnet: Neodynium
Tweeter
•
•
•
•
Size: 15mm (3/5" )
Diaphragm: Dome
Diaphragm material: PEI
Magnet: Neodynium
Accessories
• Speaker grille: With metal net
• Quick start guide: English, Simplified Chinese
• Cables: Speaker wires
Dimensions
• Product dimensions (W x H x D):
172 x 76 x 172 mm
• Mounting depth: 58 mm
• Tweeter protrusion: 6.7 mm
•
Issue date 2014-02-12
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 56229
EAN: 87 12581 50426 7
www.philips.com
