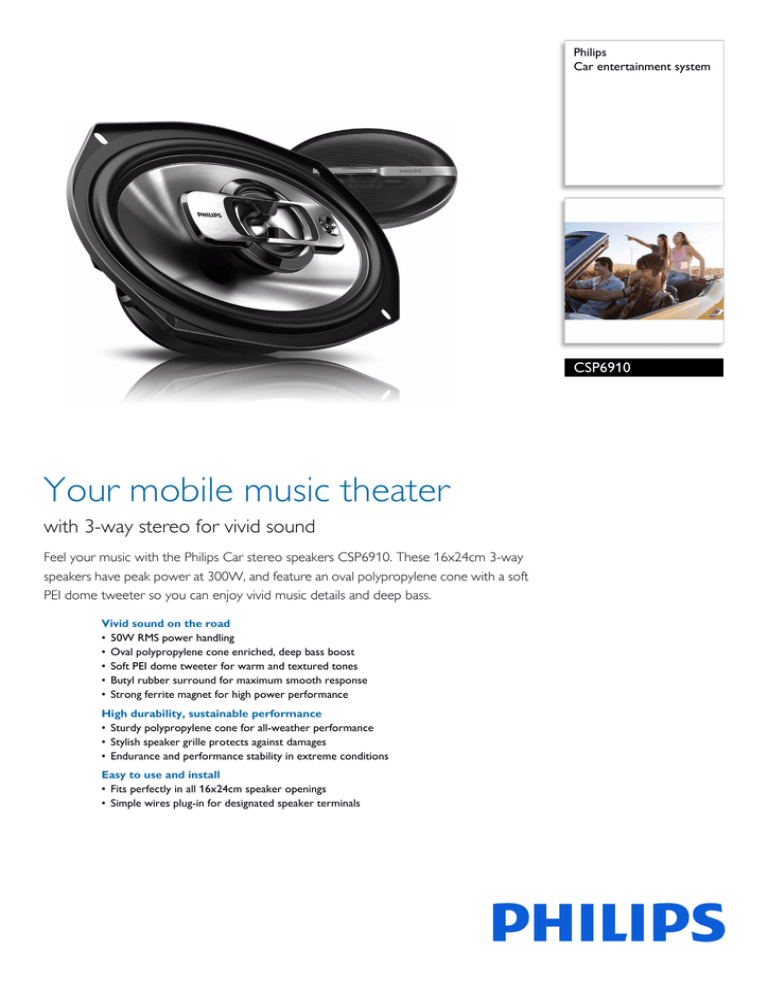

Philips
Car entertainment system
CSP6910
Your mobile music theater
with 3-way stereo for vivid sound
Feel your music with the Philips Car stereo speakers CSP6910. These 16x24cm 3-way
speakers have peak power at 300W, and feature an oval polypropylene cone with a soft
PEI dome tweeter so you can enjoy vivid music details and deep bass.
Vivid sound on the road
• 50W RMS power handling
• Oval polypropylene cone enriched, deep bass boost
• Soft PEI dome tweeter for warm and textured tones
• Butyl rubber surround for maximum smooth response
• Strong ferrite magnet for high power performance
High durability, sustainable performance
• Sturdy polypropylene cone for all-weather performance
• Stylish speaker grille protects against damages
• Endurance and performance stability in extreme conditions
Easy to use and install
• Fits perfectly in all 16x24cm speaker openings
• Simple wires plug-in for designated speaker terminals
CSP6910/55
Car entertainment system
Specifications
Sound
•
•
•
•
•
Output power (RMS): 50W
Peak Music Power: 300W
Sensitivity: 90dB
Frequency response: 28-32k Hz
Impedance: 4 Ohms
Loudspeakers
•
•
•
•
Speaker type: Coaxial speaker
Number of ways: 3-way
Speaker size: 16x24cm (6x9")
Number of Loudspeakers: 2
Woofer
•
•
•
•
•
•
•
•
Diaphragm: Cone
Diaphragm material: Polypropylene
Surround: Rubber
Voice coil: Single
Voice coil material: Copper
Magnet: Ferrite
Magnet mass: 12.6 Oz
Damper: Conex
Mid-range
•
•
•
•
Size: 54 mm (2-1/8")
Diaphragm: Cone
Diaphragm material: Paper
Magnet: Neodynium
Tweeter
•
•
•
•
Size: 15mm (3/5" )
Diaphragm: Dome
Diaphragm material: PEI
Magnet: Neodynium
Accessories
• Speaker grille: With metal net
• Quick start guide: English, Simplified Chinese
• Cables: Speaker wires
Dimensions
• Product dimensions (W x H x D):
263 x 104 x 192 mm
• Mounting depth: 77.5 mm
• Tweeter protrusion: 17 mm
•
Issue date 2014-02-12
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 56231
EAN: 87 12581 50427 4
