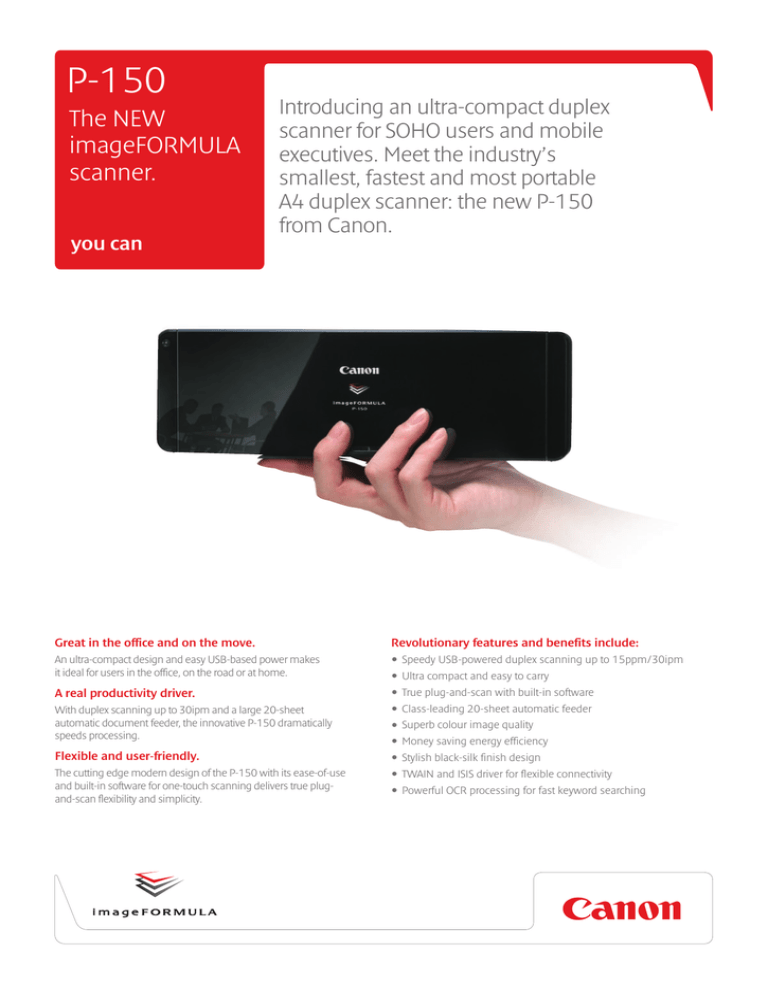

P-150
The NEW
imageFORMULA
scanner.
you can
Introducing an ultra-compact duplex
scanner for SOHO users and mobile
executives. Meet the industry’s
smallest, fastest and most portable
A4 duplex scanner: the new P-150
from Canon.
Great in the office and on the move.
An ultra-compact design and easy USB-based power makes
it ideal for users in the office, on the road or at home.
A real productivity driver.
With duplex scanning up to 30ipm and a large 20-sheet
automatic document feeder, the innovative P-150 dramatically
speeds processing.
Flexible and user-friendly.
The cutting edge modern design of the P-150 with its ease-of-use
and built-in software for one-touch scanning delivers true plugand-scan flexibility and simplicity.
Revolutionary features and benefits include:
•Speedy USB-powered duplex scanning up to 15ppm/30ipm
•Ultra compact and easy to carry
•True plug-and-scan with built-in software
•Class-leading 20-sheet automatic feeder
•Superb colour image quality
•Money saving energy efficiency
•Stylish black-silk finish design
•TWAIN and ISIS driver for flexible connectivity
•Powerful OCR processing for fast keyword searching
Specifications: imageFORMULA P-150 scanner
Document Reading Sensor
Optical Resolution
Light Source
Reading Sides
Interface
Dimensions
Weight
Power Requirements
Power Consumption
Operating Environment
Environmental Compliance
CMOS CIS Sensor
600dpi
RGB LED
Front / Back / Duplex
High Speed USB 2.0
Tray Closed: 280 (W) x 95 (D) x 40 (H) mm
Tray Opened: 280 (W) x 222.7 (D) x 202.2 (H) mm
Approx. 970g
USB Cable Only: 5VDC 0.5A; USB Cable & Power Supply; USB Cable:
5VDC, 1A; Using Optional AC Power Adapter: 6VDC, 0.8A
Scanning: 5W (2 USB cables), 2.5W (1 USB cable)
Sleep Mode: 1W Power Turned Off: 0.1W
10 - 32.5°C (50 - 90.5°F), Humidity: 20 - 80% RH
RoHS and ENERGY STAR
READING SPEED*
(200dpi, Portrait, A4)**
with 2 USB Cables /
AC Power Cable
with 1 USB Cable
B & W
15ppm (Simplex) /
30ipm (Duplex)
12ppm (Simplex) /
14ipm (Duplex)
Greyscale
15ppm (Simplex) / 30ipm (Duplex)
12ppm (Simplex) /
14ipm (Duplex)
Colour
10ppm (Simplex) / 20ipm (Duplex)
10ppm (Simplex) /
10ipm (Duplex)
DOCUMENT
SPECIFICATIONS
Size
Thickness
PRODUCT FEATURES
Image Processing
Device
Auto Page Size Detection & Deskew
Skip Blank Page
Text Orientation Recognition
Auto Colour Detection
Colour Dropout (RGB) / Enhancement (Red)
Moire Reduction
Prevent Bleed Through / Remove Background
Batch Separation
Scan Area Setting
Edge Emphasis
Prescan
Rapid Recovery System
Double Feed Detection by Length
BUNDLED SOFTWARE ISIS / TWAIN Drivers (Windows 2000 / XP Pro / XP Home / Vista / 7)
CaptureOnTouch, CaptureOnTouch Lite (Built-in),
Nuance PaperPort, Presto! BizCard Reader
AC Power Adapter, Soft Carrying Case
Separation Pad, Feed Roller Unit
Options
Consumables
Suggested Daily Duty Cycle
Approx 500 scans / day
*
Actual scanning speed may vary depending on your system configuration and PC specifications
** The P-150 is capable of the same scanning speeds at 300dpi when scanning in B&W or Greyscale
Paper Separation
Feeder Capacity
Output Resolution
OUTPUT MODE
Binary
Greyscale
Colour
Width – 50.8 - 216mm
Length – 70 - 356mm
Automatic Feeding – 52 - 128g/m² (0.06 - 0.15mm)
(Embossed Card / Thick Card Scanning Not Supported)
Separation Pad
20 sheets (64 g/m²)
150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi,
600 x 600dpi
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing
methods. This leaflet and the specifications of the product have been developed prior to the date
of product launch. Final are subject to change without notice.™ and ®: All company and/or product
names are trademarks and/or registered trademarks of their respective manufacturers in their markets
and/or countries.
B&W / Error Diffusion / Advanced Text Enhancement II
8bit (256 level) Greyscale
24bit Colour
Canon Electronics Inc.
www.canon.com
Canon Europa
www.canon-europe.com
English Edition 0139W979
© Canon Europa 2009 (1009)
