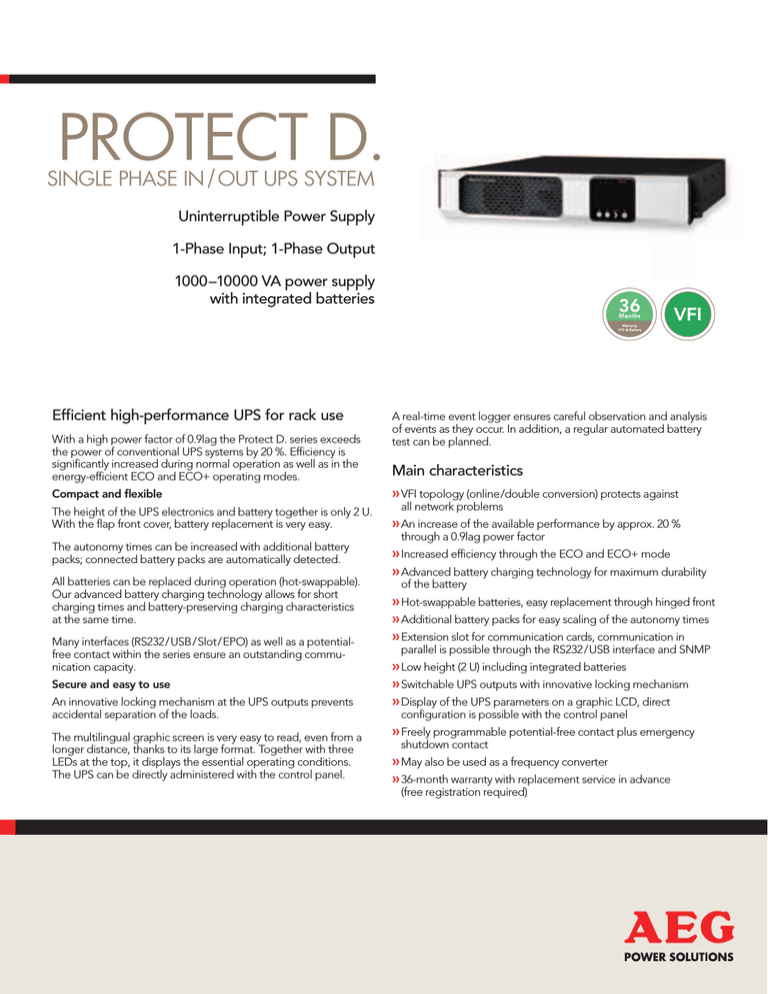

PROTECT D.
SINGLE PHASE IN / OUT UPS SYSTEM
Uninterruptible Power Supply
1-Phase Input; 1-Phase Output
1000 –10000 VA power supply
with integrated batteries
Efficient high-performance UPS for rack use
With a high power factor of 0.9lag the Protect D. series exceeds
the power of conventional UPS systems by 20 %. Efficiency is
significantly increased during normal operation as well as in the
energy-efficient ECO and ECO+ operating modes.
A real-time event logger ensures careful observation and analysis
of events as they occur. In addition, a regular automated battery
test can be planned.
Compact and flexible
Main characteristics
» VFI topology (online /double conversion) protects against
The height of the UPS electronics and battery together is only 2 U.
With the flap front cover, battery replacement is very easy.
» An increase of the available performance by approx. 20 %
The autonomy times can be increased with additional battery
packs; connected battery packs are automatically detected.
All batteries can be replaced during operation (hot-swappable).
Our advanced battery charging technology allows for short
charging times and battery-preserving charging characteristics
at the same time.
Many interfaces (RS232 / USB / Slot / EPO) as well as a potentialfree contact within the series ensure an outstanding communication capacity.
Secure and easy to use
An innovative locking mechanism at the UPS outputs prevents
accidental separation of the loads.
The multilingual graphic screen is very easy to read, even from a
longer distance, thanks to its large format. Together with three
LEDs at the top, it displays the essential operating conditions.
The UPS can be directly administered with the control panel.
all network problems
through a 0.9lag power factor
» Increased efficiency through the ECO and ECO+ mode
» Advanced battery charging technology for maximum durability
of the battery
» Hot-swappable batteries, easy replacement through hinged front
» Additional battery packs for easy scaling of the autonomy times
» Extension slot for communication cards, communication in
parallel is possible through the RS232 / USB interface and SNMP
» Low height (2 U) including integrated batteries
» Switchable UPS outputs with innovative locking mechanism
» Display of the UPS parameters on a graphic LCD, direct
configuration is possible with the control panel
» Freely programmable potential-free contact plus emergency
shutdown contact
» May also be used as a frequency converter
» 36-month warranty with replacement service in advance
(free registration required)
2
Classification VFI SS 211 acc. to IEC 62040-3
D. 1000
D. 1500
D. 2000
D. 3000
Power type rating
1000 VA
1500 VA
2000 VA
3000 VA
900 W
1350 W
1800 W
2700 W
Part number
(UPS including integrated battery system)
600 000 8434
600 000 8436
600 000 8437
600 000 8438
Part number (additional battery pack)
600 000 8441
600 000 8442
600 000 8443
UPS input
Input voltage
220 V AC / 230 V AC / 240 V AC
Voltage range without battery mode
(load dependent)
120 – 276 V AC
140 – 276 V AC
Frequency (auto selection)
50 Hz / 60 Hz ± 5 Hz
λ ≥0.99 (THDi ≤8 %)
Mains current (system reaction)
Current consumption at nominal load (max.)
4.8 A
7.2 A
9.6 A
13.7 A
UPS output
Rated output voltage (adjustable)
200 V AC / 208 V AC / 220 V AC / 230 V AC (default) / 240 V AC ±2%
Frequency in battery- / frequency converter mode
Output current (at 230 V AC)
50 Hz / 60 Hz ±0.25 Hz
4.3 A
6.5 A
Transfer time at mains outage
8.7 A
13 A
0 ms (without interruption)
Voltage waveform
Sinusoidal, distortion THD <3 %
Overload response (double conversion mode)
<130 % for 5 min. / 130 % – 150 % for 15 s
Overload response (battery mode)
<130 % for 12 s / 130 % – 150 % for 2 s
Crest factor
3:1
Short circuit response
Short circuit proof (4 x IN for 100 ms)
Battery
Type
Rated voltage (linked)
Sealed, maintenance free (proprietary brand), integrated, hot swappable
36 V DC
Battery management
48 V DC
72 V DC
Temperature compensated with discharge protection,
automatic battery test (programmable) and battery pack detection
Charging time (to 90 % rated capacity)
3h
Communication
Interfaces (dual monitoring)
RS232, USB, communication slot (can be used parallel with RS232 / USB),
input contact for emergency shutdown, programmable potential free contact
Shutdown software (on CD)
5 network licenses for all common OS (e.g. Windows, Linux, Mac, Unix, Sun etc.)
Failure indicators (acoustic /visual)
3 LED’s with traffic light display, detailed indication via LCD display
(alarms: at mains failure, overload, battery charging, battery replacement, fan fault,
data logger – with clear text display incl. date and time history)
General data
Efficiency (ECO+ mode)
Efficiency at nominal load
(double conversion mode)
Audible noise (1 m distance)
>95 %
>98 %
≥88 %
>88 %
<44 dB(A)
< 45 dB(A)
Operating temperature range
>89 %
≥90 %
<52 dB(A)
0°– 40 °C
Humidity
0 – 95 % (without condensation)
Operation altitude
Up to 3000 m at nominal load
EMC conformity
EN 62040-2 Class C1, EN 61000-3-2, EN 61000-3-3
Product safety
EN 62040-1
Number of outputs (switchable)
automatically locked
6 x IEC 320 C13 (2+2)
Housing
8 x IEC 320 C13 (2+2)
6 x IEC 320 C13 (3+3)
+ 1 x IEC 320 C19
Blackline metal case with aluminum front
Dimensions approx. W x H x D (mm) UPS
482.6 (19") x 88 (2 U) x 430
Dimensions approx. W x H x D (mm) battery
482.6 (19") x 88 (2 U) x 430
482.6 (19") x 88 (2 U) x 600
482.6 (19") x 88 (2 U) x 430
Weight approx. UPS incl. integrated battery
16 kg
19.5 kg
19 kg
29.5 kg
Weight approx. battery extension unit
23 kg
28 kg
41 kg
41 kg
Shipment
Mains input cord (1 x EU, 1 x UK), UPS management software “CompuWatch” (CD),
communications cables (RS232 & USB), operating instructions, rack rails,
device cables: 3 x IEC 320 C13 (D. 1000 – D. 2000), 3 x IEC 320 C13 +1 x IEC 320 C19 (D. 3000)
Conformity
CE
3
PROTECT D.
6000/10000
top performance in
rack format
Protect D. 6000 and D. 10000
compliment the range of the
successful Protect D. series.
With Protect D. 10000, a power
level of 10 kVA in rack design
is available for the first time.
Protect D. 6000 and
Protect D. 10000 have the
same advantages and
characteristics as the smaller
models, including the high
power factor of 0.9lag.
Compact housing dimensions
Thanks to their compact
design, the devices can also
be used in IT cabinets with
a depth of only 800 mm.
Protect D. 6000 including
battery, connection unit and
manual bypass unit fits within
3 standard height units. The
10 kVA version, with a complete
battery system, connection
unit and integrated manual
maintenance bypass fits within
5 standard height units.
The sophisticated design with
removable connection unit and
battery systems with plug-in
technology make the assembly
in the rack and the electrical
installation as easy as possible.
The weight is unimportant as
the batteries can be mounted
at the end of the installation.
Flexible and
maintenance friendly
The equipment offers separate
feed for the rectifiers and
bypass, Protect D. 6000 and
10000 can also be operated
with only one feed. Both
options are provided to deliver
highest flexibility and security.
To increase power or to be
able to serve the demand for
active redundancy, Protect
D. 6000 and Protect D. 10000
are prepared for parallel
operation.
In order to ease maintenance
work, a manual bypass is
already integrated into the
removable connection unit.
Special characteristics
» Suitable for IT cabinets
with a depth of 800 mm
» High power density in
a compact housing
» Very easy assembly through
removable connection
unit and batteries with
plug-in technology
» Dual or single input
» Prepared for parallel operation
» Integrated manual
maintenance bypass
(foolproof operation)
» 36-month warranty
with replacement
service in advance (free
registration required)
Classification VFI SS 111 acc. to IEC 62040-3
Power type rating (Ready for redundant or
increased performance parallel operation)
Shutdown software (on CD)
Failure indicators (acoustic /visual)
General data
Efficiency (ECO mode)
Efficiency at nominal load (double conversion mode)
Audible noise (1 m distance)
Operating temperature range
Humidity
Operation altitude
EMC conformity
Product safety
AC input
Number of outputs automatically locked
Housing
Dimensions approx. W x H x D (mm)
without front panel
Dimensions approx. W x H x D (mm)
battery extension unit incl. front panel
Weight approx. without batteries
Weight approx. with batteries
Weight approx. battery extension unit
Shipment
220 V AC / 230 V AC / 240 V AC
176 V AC (120 V AC to 50 % utilization) – 276 V AC
184 – 264 V AC
50 Hz / 60 Hz ±10 %
λ ≥0.99 (THDi <5 %)
29 A
47 A
200 V AC / 208 V AC / 220 V AC / 230 V AC (default) / 240 V AC ±1%
50 Hz / 60 Hz ±0.5 %
26 A
43.4 A
0 ms (without interruption)
Sinusoidal, distortion THD <2 %
<130 % for 2 min. / 130 – 150 % for 30 s, then automatically switches over to electronic bypass: 0 ms
3:1
Short circuit proof (3 x IN for 100 ms)
Sealed, maintenance free (proprietary brand), integrated, hot swappable
180 V DC
240 V DC
Temperature compensated with discharge protection, automatic battery test (programmable) and battery pack detection
3h
RS232, USB, communication slot (can be used parallel with RS232 / USB),
input contact for emergency shutdown, programmable potential free contact
5 network licenses for all common OS (e.g. Windows, Linux, Mac, Unix, Sun etc.)
3 LED’s with traffic light display, detailed indication via LCD display (alarms: at mains failure, overload, battery charging,
battery replacement, fan fault, data logger – with clear text display incl. date and time history)
>96 %
>92 %
>97 %
>93 %
<55 dB(A)
0° – 40°C
0 – 95 % (without condensation)
Up to 1000 m at nominal load
EN 62010-2 Class C2
EN 62040-1
Permanent connection via terminals, separate power option from rectifier and bypass connector unit with removable
integrated manual bypass (for installation or subsequent maintenance of UPS) with optional cable entry from top or rear
1 x fixed connection on terminal block plus
1 x fixed connection on terminal block plus
2 x IEC 320 C13, 1 x IEC 320 C19
4 x IEC 320 C19
Metal casing, blackline with aluminum cabinet front
48.6 (19") x 132 (3 U) x 715
48.6 (19") x 220 (5 U) x 715
depth with front panel plus 35 mm
depth with front panel plus 35 mm
Conformity
AEG Power Solutions
Approach your local AEG Power Solutions
representative for further support.
Contact details can be found on:
www.aegps.com
D. 10000
10000 VA
9000 W
600 000 8440
600 001 1044
482.6 (19") x 132 (3 U) x 595
20 kg
32.5 kg
46 kg
82.5 kg
44.5 kg
63 kg
Rack rails kit, 16 A IEC device cable, UPS management software “CompuWatch” (CD)
incl. 5 network licenses, RS232 and USB cable, operating instructions
CE
AEGPS - Protect D. - EN - Monat/Jahr V1 - Due to our policy of continuous development, the data in this document is subject to change without notice.
AEG is a registered trademark used under licence from AB Electrolux.
Part number (UPS incl. internal battery system)
Part number (additional battery pack)
UPS input
Input voltage
Voltage range without battery mode
Voltage range bypass input
Frequency (auto selection)
Mains current (system reaction)
Current consumption at nominal load (max.)
UPS output
Rated output voltage (adjustable)
Frequency in battery / frequency converter mode
Output current (at 230 V AC)
Transfer time at mains outage
Voltage waveform
Overload response (double conversion mode)
Crest factor
Short circuit response
Battery
Type
Rated voltage (linked)
Battery management
Charging time (to 90 % rated capacity)
Communication
Interfaces (dual monitoring)
D. 6000
6000 VA
5400 W
600 000 8439
600 001 1042
