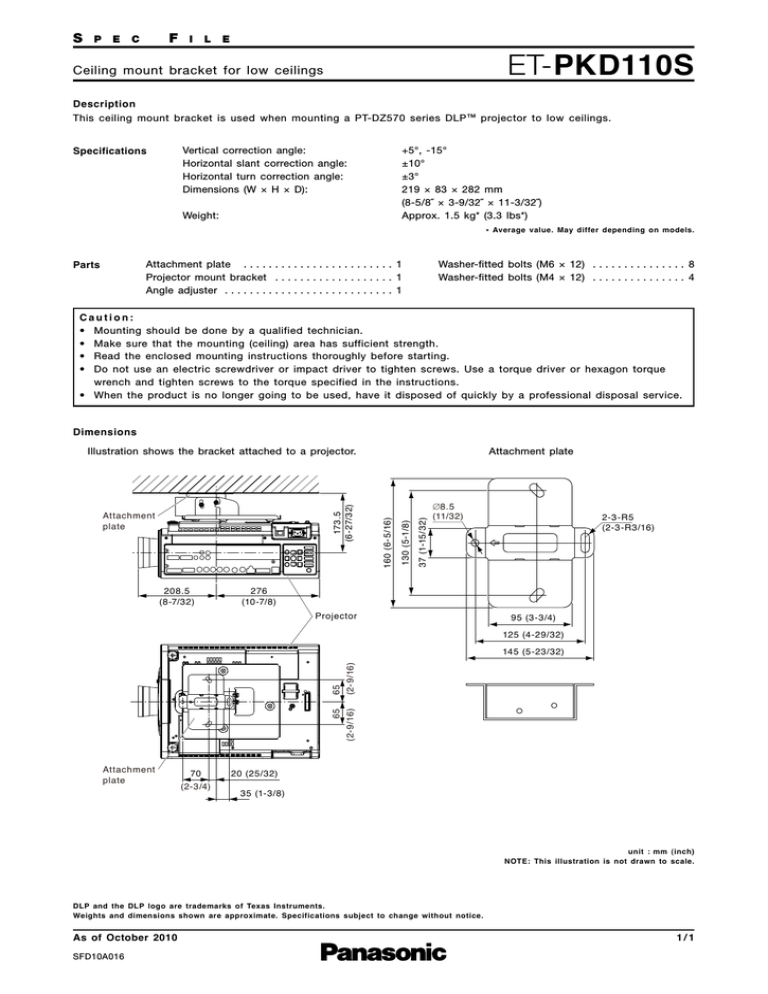

ET-PKD110S
Ceiling mount bracket for low ceilings
­D escription
This ceiling mount bracket is used when mounting a PT-DZ570 series DLP ™ projector to low ceilings.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W × H × D):
+5°, -15°
±10°
±3°
219 × 83 × 282 mm
(8-5/8˝ × 3-9/32˝ × 11-3/32˝)
Approx. 1.5 kg* (3.3 lbs*)
Weight:
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Attachment plate . . . . . . . . . . . . . . . . . . . . . . . . 1
Projector mount bracket . . . . . . . . . . . . . . . . . . . 1
Angle adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Washer-fitted bolts (M6 × 12) . . . . . . . . . . . . . . . 8
Washer-fitted bolts (M4 × 12) . . . . . . . . . . . . . . . 4
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
Dimensions
208.5
(8-7/32)
130 (5-1/8)
37 (1-15/32)
Attachment
plate
Attachment plate
160 (6-5/16)
173.5
(6-27/32)
Illustration shows the bracket attached to a projector.
’8.5
(11/32)
2-3-R5
(2-3-R3/16)
276
(10-7/8)
Projector
95 (3-3/4)
125 (4-29/32)
65
(2-9/16)
65
(2-9/16)
145 (5-23/32)
Attachment
plate
70
(2-3/4)
20 (25/32)
35 (1-3/8)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
DLP­ and­ the­ DLP­ logo­ are­ trademarks­ of­ Texas­ Instruments.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ October­ 2010
SFD10A016
