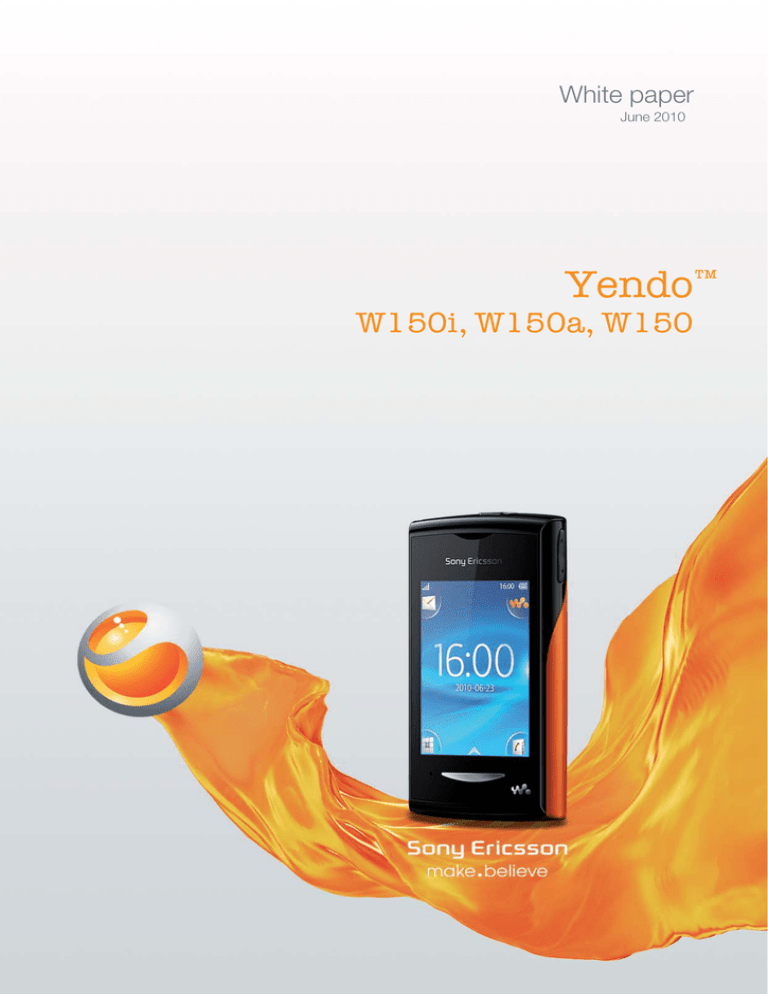

White paper
June 2010
Yendo™
W150i, W150a, W150
White paper | Yendo™
Purpose of this document
Sony Ericsson product White papers are intended to give an overview of a product and provide details in
relevant areas of technology.
Document history
Version
June 2010
First released version
Version 1
June 2010
Second released version
Revision 1
Sony Ericsson Developer World
For the latest Sony Ericsson technical documentation and development tools, go to
www.sonyericsson.com/developer
This document is published by Sony Ericsson Mobile
Communications AB, without any warranty*. Improvements and
changes to this text necessitated by typographical errors,
inaccuracies of current information or improvements to programs
and/or equipment, may be made by Sony Ericsson Mobile
Communications AB at any time and without notice. Such changes
will, however, be incorporated into new editions of this document.
Printed versions are to be regarded as temporary reference copies
only.
This White paper is published by:
Sony Ericsson Mobile Communications AB,
SE-221 88 Lund, Sweden
www.sonyericsson.com
This document may reference services or applications provided by
third parties. Use of such programming or services may require
separate registration with the third party provider and may be
subject to additional terms of use. For applications accessed on or
through a third-party website, please review such website’s terms of
use and applicable privacy policy in advance. Sony Ericsson does
not warrant or guaranty the availability or performance of any thirdparty websites or offered services.
© Sony Ericsson Mobile Communications AB,
2009-2010. All rights reserved. You are hereby
granted a license to download and/or print a
copy of this document.
Any rights not expressly granted herein are
reserved.
Some features described in this document are not supported by all
networks and/or service providers in all areas. Please contact your
network operator or service provider to determine availability of any
specific service or feature and whether additional access or usage
fees apply.
*All implied warranties, including without limitation the implied
warranties of merchantability or fitness for a particular purpose, are
excluded. In no event shall Sony Ericsson or its licensors be liable
for incidental or consequential damages of any nature, including but
not limited to lost profits or commercial loss, arising out of the use of
the information in this document.
Second released version (June 2010)
Publication number: 1238-5191
2
June 2010
White paper | Yendo™
Table of contents
Product overview ........................................................................................................4
Yendo™ – Touch the screen. Start the concert ....................................................4
Facts – dimensions, weight, performance and networks ......................................5
Categorised list of features ....................................................................................7
Technologies in detail .................................................................................................8
Device-to-device communications (local) .............................................................8
Bluetooth™ wireless technology ........................................................................8
Java™ ....................................................................................................................8
Messaging .............................................................................................................9
Multimedia (audio and video) ...............................................................................10
Web browser .......................................................................................................11
Trademarks and acknowledgements ..................................................................12
3
June 2010
White paper | Yendo™
Product overview
Yendo™ – Touch the screen. Start the concert
Flick. Touch. Play. Scream. Or just lean back and drift away. To the music that moves you. Living is easy,
especially through the 2.6” touchscreen. Four corners, four icons and everything you want. One touch
away, in the simplest possible way. Isn’t that how it should be?
Hit on the right hits
Touch to listen, skip, fast forward, replay. The tracks you love through the 3.5 mm stereo jack, or
Bluetooth™ headset. Hit on the right hits with TrackID™ and the PlayNow™ service*. What’s your
favourite playlist? Easily move your music and your other files from your PC to Yendo™ with Media Go. In
an instant.
All your true colours
Reinvent yourself. Through styles. Through colours. And tell everyone. With a quick text to Facebook™* or
Twitter™. Speaking of colour. What’s yours? Red for undying love? Shimmering silver from the glass
skyscraper? Yellow for beach sunsets? There’s up to ten to choose from, so finding your favourite could
take time.
* This service is not available in all markets.
4
June 2010
White paper | Yendo™
Facts – dimensions, weight, performance and
networks
Size
94 x 52 x 16 mm
Weight
81 grams
Available colours
Black
Blue
Green
Orange
Pink
Purple
Red
Silver
White
Yellow
Main screen
Colours
262,144k color TFT
Resolution
320x240 pixels (QVGA)
Size (diagonal)
2.6 inches
Input mechanisms
Text input
Quick text (Zi), Onscreen 12 key keyboard
Touch screen
Capacitive (single touch)
Memory
Phone memory
Up to 5 MB
Memory card support
microSD™, up to 16 GB
Camera
Camera resolution
2 megapixel
Digital zoom
2x
Video recording
Yes
Networks
W150i
GSM GPRS/EDGE 900, 1800
W150a
GSM GPRS/EDGE 850, 1900
W150
GSM GPRS/EDGE 900, 1800
Data transfer speeds
GSM GPRS
Up to 85.6 Kbps
GSM EDGE
Up to 236.8 Kbps
5
June 2010
White paper | Yendo™
Talk time (GSM)
4 hours *
Standby time (GSM)
400 hours *
Music listening time
30 hours **
Battery
970 mAh
* According to GSM Association Battery Life Measurement Technique.
** Battery performance may vary depending on network conditions and configuration, and phone usage.
6
June 2010
White paper | Yendo™
Categorised list of features
Camera
Music
Internet
2 megapixel camera
2x digital zoom
Video recording
Bluetooth™ stereo (A2DP)
Music tones (MP3/AAC)
PlayNow™ service *
TrackID™ application
Walkman™ player
Bookmarks
Web browser (Obigo™ Q7)
Web feeds
Communication
Messaging
Design
Call list
Conference calls
Facebook™ application *
Polyphonic ringtones
Speakerphone
Twitter™ application
Conversations
Email
Picture messaging (MMS)
Predictive text input
Sound recorder
Text messaging (SMS)
Four-corner home screen
Keyboard (onscreen, 12-key)
Touchscreen
Entertainment
Organiser
Connectivity
Java™
Radio (FM)
Video viewing
Alarm clock
Calculator
Calendar
Flight mode
Notes
Phone book
Stopwatch
Tasks
Timer
3.5 mm audio jack (AVP)
Bluetooth™ technology
USB mass storage
USB support
* This service is not available in all markets.
7
June 2010
White paper | Yendo™
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Ericsson Developer World
or your Sony Ericsson contact person where applicable.
Device-to-device communications (local)
Bluetooth™ wireless technology
Bluetooth™ profiles supported
Generic Access Profile
Generic Object Exchange Profile
Handsfree Profile
Headset Profile
Object Push Profile
Core version and supported
features
2.0
Connectable devices
All products supporting Bluetooth spec. 2.0, or higher,
and at least one of the profiles above
More information:
www.sonyericsson.com/developer
www.bluetooth.com
Java™
Java™ Platform, Micro Edition
JSR-75 PDA Optional Packages for J2ME™
JSR-118 MIDP 2.0
JSR-120 Wireless Messaging API
JSR-135 Mobile Media API 1.1
JSR-139 CLDC 1.1
JSR-172 J2ME Web Services Specification
JSR-185 Java™ Technology for the Wireless Industry
Nokia UI Extension API
8
June 2010
White paper | Yendo™
Messaging
(MMS) Multimedia Messaging Service
According to OMA Multimedia Messaging Service v1.1 + SMIL
Email
Bearer type (IP)
GSM Data (IP) GPRS and HSCSD
Character sets
USASCII
UTF-8
UTF-16
UTF-17LE
UTF-16BE
UCS-2 / ISO10646 UCS2
ISO-8859-1
ISO-8859-2 Eastern Europe
ISO-8859-7 Greek
ISO-8859-9 Turkish
ISO-8859-10 Nordic
KOI8
GB2312 Simplified Chinese
BIG5
ISO2022JP
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1255 Hebrew
Shift JIS
Note: GB2312 is available in Simplified Chinese
variants only, that is, Mainland China variants.
BIG5 is only available in Traditional Chinese variants, that
is, Hong Kong and Taiwan variants.
OTA provisioning solution
OMA Client Provisioning 1.1
Protocols
POP3, SMTP and IMAP4
9
June 2010
White paper | Yendo™
Multimedia (audio and video)
Audio Playback
Decoder format
Audio decoding MPEG-1/2/2.5,
audio layer 3
AAC, AAC+, eAAC+
Supported in file format
MP3 (.mp3)
AMR-NB
General MIDI (GM)
Linear/A-law/.-law PCM
iMelody
3GP (.3gp); AAC (.aac); MP4
(.mp4, .m4a)
3GP (.3gp); AMR (.amr)
SMF (.mid)
WAV (.wav)
iMelody (.imy)
Audio Recording
Encoder format
AMR-NB
AAC-LC
MP3
Supported in file format
AMR (.amr)
MP4 (.m4a)
MP3 (.mp3)
Video Playback
Decoder format
MPEG-4 Visual Simple Profile
H.263 Profile 0
Supported in file format
3GP (.3gp); MP4 (.mp4)
3GP (.3gp)
Video Recording
Encoder format
- Video: H.263 Profile 0
- Audio: AMR-NB
- Video: MPEG-4 Visual Simple
Profile
- Audio: AAC-LC
Supported in file format
3GP (.3gp)
10
MP4 (.mp4)
June 2010
White paper | Yendo™
Web browser
Browser version
Obigo™ Q7
Bookmarks
Folders and sorting supported
Bookmark export/import
Bookmarks can be sent and received in vBookmark format using
Bluetooth™ technology, SMS, MMS and email
Navigation/rendering
Full page PC rendering
Search
Internet Search
Browser compliancy
HTML version 4.01
XHTML Basic version 1.0
XHTML version 1.1
XHTML Mobile Profile version 1.1
WML 1.3
CSS 2.1
WCSS Version 26-Oct-2001
ECMAScript Mobile Profile 1.0
DOM 2.0
Protocol Compliancy
HTTP/1.1
TLS 1.0 and SSL 3.0
OMA Download 1.0
11
June 2010
White paper | Yendo™
Trademarks and acknowledgements
The Liquid Identity and Liquid Energy logos, Yendo, PlayNow and TrackID are trademarks or registered
trademarks of Sony Ericsson Mobile Communications AB. Sony, "make.believe" and Walkman are
trademarks or registered trademarks of Sony Corporation. Ericsson is a trademark of Telefonaktiebolaget
LM Ericsson.
TrackID is powered by Gracenote Mobile MusicID. Gracenote and Gracenote Mobile MusicID are
trademarks or registered trademarks of Gracenote, Inc. The Bluetooth word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under licence.
microSD and Transflash are trademarks or registered trademarks of SanDisk Corporation. XHTML is a
registered trademark of the W3C. Adobe Flash Lite is a trademarks or registered trademark of Adobe
Systems Incorporated in the United States and/or other countries.
3GPP™ is a trademark of ETSI in France and other jurisdictions. SyncML is a trademark or registered
trademark of Open Mobile Alliance Ltd. Java and all Java based trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
Twitter is a trademark or registered trademark of Twitter, Inc. Facebook is a trademark or registered
trademark of Facebook, Inc. Obigo is a registered trademark of Obigo AB - a Teleca company. Windows
is a trademark or registered trademark of Microsoft Inc.
Java, JavaScript and Java-based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc., in the U.S. and other countries.
End-user license agreement for Sun Java Platform, Micro Edition
1. Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by
Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in
part.
2. Export Regulations: Software including technical data, is subject to U.S. export control laws, including
the U.S. Export Administration Act and its associated regulations, and may be subject to export or import
regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software
may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba,
Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of
Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders.
3. Restricted Rights: Use, duplication or disclosure by the United States government is subject to the
restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS
252.227-7013(c) (1) and FAR 52.227-19(c) (2) as applicable.
All other trademarks and copyrights are the property of their respective owners.
12
June 2010
