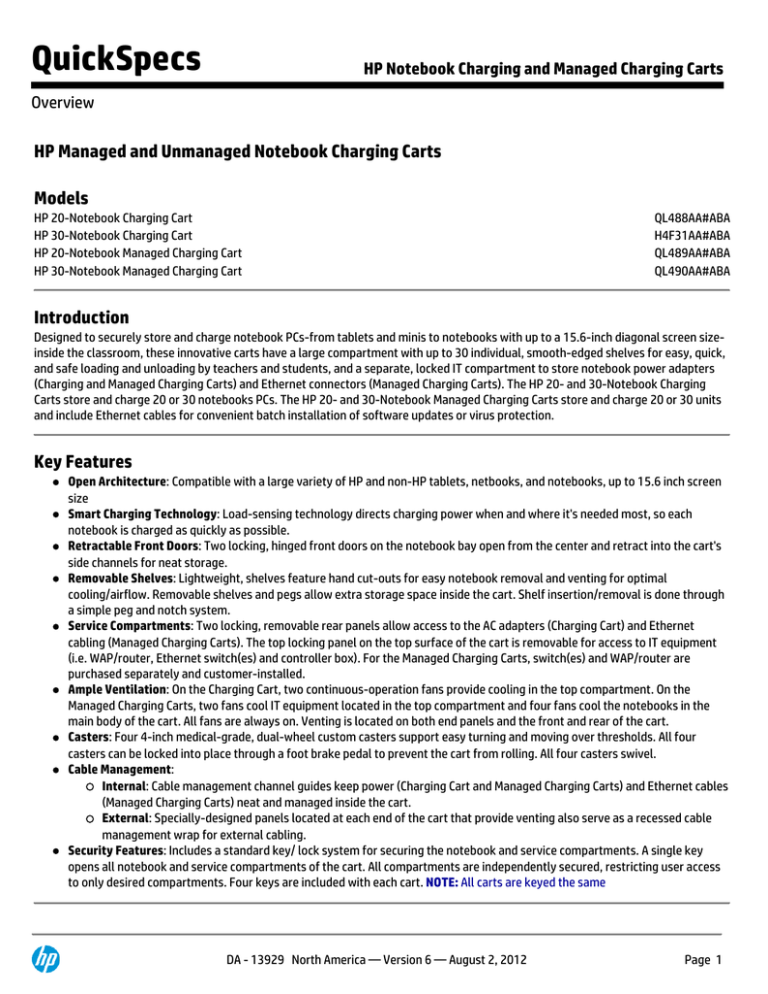

QuickSpecs
HP Notebook Charging and Managed Charging Carts
Overview
HP Managed and Unmanaged Notebook Charging Carts
Models
HP 20-Notebook Charging Cart
HP 30-Notebook Charging Cart
HP 20-Notebook Managed Charging Cart
HP 30-Notebook Managed Charging Cart
QL488AA#ABA
H4F31AA#ABA
QL489AA#ABA
QL490AA#ABA
Introduction
Designed to securely store and charge notebook PCs-from tablets and minis to notebooks with up to a 15.6-inch diagonal screen sizeinside the classroom, these innovative carts have a large compartment with up to 30 individual, smooth-edged shelves for easy, quick,
and safe loading and unloading by teachers and students, and a separate, locked IT compartment to store notebook power adapters
(Charging and Managed Charging Carts) and Ethernet connectors (Managed Charging Carts). The HP 20- and 30-Notebook Charging
Carts store and charge 20 or 30 notebooks PCs. The HP 20- and 30-Notebook Managed Charging Carts store and charge 20 or 30 units
and include Ethernet cables for convenient batch installation of software updates or virus protection.
Key Features
Open Architecture: Compatible with a large variety of HP and non-HP tablets, netbooks, and notebooks, up to 15.6 inch screen
size
Smart Charging Technology: Load-sensing technology directs charging power when and where it's needed most, so each
notebook is charged as quickly as possible.
Retractable Front Doors: Two locking, hinged front doors on the notebook bay open from the center and retract into the cart's
side channels for neat storage.
Removable Shelves: Lightweight, shelves feature hand cut-outs for easy notebook removal and venting for optimal
cooling/airflow. Removable shelves and pegs allow extra storage space inside the cart. Shelf insertion/removal is done through
a simple peg and notch system.
Service Compartments: Two locking, removable rear panels allow access to the AC adapters (Charging Cart) and Ethernet
cabling (Managed Charging Carts). The top locking panel on the top surface of the cart is removable for access to IT equipment
(i.e. WAP/router, Ethernet switch(es) and controller box). For the Managed Charging Carts, switch(es) and WAP/router are
purchased separately and customer-installed.
Ample Ventilation: On the Charging Cart, two continuous-operation fans provide cooling in the top compartment. On the
Managed Charging Carts, two fans cool IT equipment located in the top compartment and four fans cool the notebooks in the
main body of the cart. All fans are always on. Venting is located on both end panels and the front and rear of the cart.
Casters: Four 4-inch medical-grade, dual-wheel custom casters support easy turning and moving over thresholds. All four
casters can be locked into place through a foot brake pedal to prevent the cart from rolling. All four casters swivel.
Cable Management:
Internal: Cable management channel guides keep power (Charging Cart and Managed Charging Carts) and Ethernet cables
(Managed Charging Carts) neat and managed inside the cart.
External: Specially-designed panels located at each end of the cart that provide venting also serve as a recessed cable
management wrap for external cabling.
Security Features: Includes a standard key/ lock system for securing the notebook and service compartments. A single key
opens all notebook and service compartments of the cart. All compartments are independently secured, restricting user access
to only desired compartments. Four keys are included with each cart. NOTE: All carts are keyed the same
DA - 13929 North America — Version 6 — August 2, 2012
Page 1
QuickSpecs
HP Notebook Charging and Managed Charging Carts
Overview
Compatibility
HP Managed and Unmanaged Notebook Charging Carts are compatible with tablets, netbooks, and notebooks from 10.1 to 15.6 inch
diagonal screen size.
NOTE: Due to height limitations of the notebook bay, the following externally-attached batteries cannot be used with the HP Notebook
Charging Carts: AJ359AA, AT486AA, BJ803AA, QK639AA, QK640AA, QK645AA, RX932AA.
Service and Support
HP Managed and Unmanaged Notebook Charging Carts are supported by a one-year limited warranty. Additional support is available by
phone as well as online support forums.
DA - 13929 North America — Version 6 — August 2, 2012
Page 2
QuickSpecs
HP Notebook Charging and Managed Charging Carts
Technical Specifications
HP 20-Notebook Charging
Cart
Dimensions
(L x W x H)
HP 20-Notebook
Managed Charging Cart
HP 30-Notebook
Charging Cart
HP 30-Notebook
Managed Charging
Cart
35.25 x 24.8 x 42.0 in (89.5 x 63 x 106.7 cm)
48.65 x 24.8 x 42.0 (123.6 x 63 x 106.7 cm)
Packaged Dimensions
(L x W x H)
40.6 x 30.3 x 50.4 in (103.1 x 77 x 128 cm)
54 x 30.3 x 50.4 in (137.2 x 77 x 128 cm)
Cart Weight
(estimated, w/o
computer equipment)
170 lb (77 kg)
199 lb (90 kg)
Cart Weight
(estimated, with
notebooks and
managing equipment)
385 lb (175 kg)
Packaged Weight
405 lb (184 kg)
521 lb (243 kg)
234 lb (106 kg)
556 lb (253 kg)
280 lb (127 kg)
Rated Weight Capacity
of Top Work Surface
25 lb (11.3 kg)
Notebook Bay
Dimensions (W x D x H)
12.4 x 17.13 x 2.4 in (31.5 x 43.5 x 6.1 cm)
Note: To increase the height of a bay, adjacent shelves may be removed.
Power Adapter Cradle
Dimensions
(L x W x H)
6.7 x 2.6 x 1.5 in (17 x 6.6 x 3.8 cm)
Power Adapter Cradle
Weight Capacity
0.9 lb (0.4 kg)
Operating
Assumptions
Custom power controller design – capable of operating within the standard electrical requirements of the
country of purchase.
AC Power Adapter
One HP AC adapter used for powering the controller box is included with the cart. AC adapters for powering
notebooks are customer supplied and installed.
Grade "0;" Cart structurally engineered to preclude liquids
Liquid Ingress
Protection
Requirement
Internal User Power
Outlets (Country
Specific)
20 notebook AC
adapters
20 notebook AC
adapters
1 WAP* (always on)
1 for Ethernet switch*
2 not used (120v
version)
1 not used (230v
version)
*sold separately
30 notebook AC
adapters
30 notebook AC
adapters
1 WAP* (always
on)
2 for Ethernet
switches*
1 not used
(120v version)
* sold
separately
Notebook outlets are safety controlled by temperature. Intelligent electrical system senses power needs and
allocates power as needed throughout the cart. Notebook are cycled on based on power budget and charge
priority
DA - 13929 North America — Version 6 — August 2, 2012
Page 3
QuickSpecs
HP Notebook Charging and Managed Charging Carts
Technical Specifications
External User Auxiliary
2
2
2
2
Outlets
NOTE: On Managed Charging Carts, an LED indicator displays when power is distributed to the external
outlets. If there is available current while the Aux outlets are in use, it will be directed to charging the
notebooks. Once external equipment is unplugged or turned off, full charging activity resumes. First-level
power priority is given to the auxiliary, switch and WAP outlets. Notebook outlets will receive current if there
is remaining power available.
Timer Controller
Sorting/prioritizing of power allocation happens when the cart is plugged in and when a new factor (such as
plugging in an additional notebook, use of the external auxiliary outlets, etc) is introduced or at regular
intervals if no new event occurs.
Fast Response Inrush Phases the power of the notebook outlets up over four (20 unit carts) or six banks (30 unit carts), preventing
breaker from tripping on start up of charging. All notebook outlets are powered up in groups of five after the
Current Limit
turn-on delay and will remain powered up until an over-temperature fault, circuit breaker trip, AC cord
removal, charging or managing the next bank, auxiliary outlet is used or site power is removed.
LED Status Indicators None
Eight LED lights with
None
Ten LED lights with
corresponding icons are
corresponding icons
located on the top work
are located on the top
surface for easy read out.
work surface for easy
Indicators show the following
read out. Indicators
power information:
show the following
power information:
White Solid – HP logo
Blue Solid – Power to
White Solid – HP
the cart
logo
White Solid – Power to
Blue Solid –
the external outlets
Power to the
Blue Slow Flashing –
cart
Bank (1-4) is charging
White Solid –
Blue Fast Flashing –
Power to the
Cart is sensing the
external outlets
current draw
Blue Slow
Amber Flashing – Max
Flashing – Bank
recommended
(1-6) is charging
temperature is
Blue Fast
exceeded and power is
Flashing – Cart
removed from the
is sensing the
notebooks (overtemp)
current draw
Amber Flashing
– Max
recommended
temperature is
exceeded and
power is
removed from
the notebooks
(overtemp)
NOTE: At cart start up, the system initiates a current sensing action. During
this time, the bank being sensed will flash fast until the sensing activity is
complete. Interval length is optimized at 30 seconds per bank for current
sensing and 10 minutes per group for charging.
DA - 13929 North America — Version 6 — August 2, 2012
Page 4
QuickSpecs
HP Notebook Charging and Managed Charging Carts
Technical Specifications
Notebook Charging
Status
Cart design assumes that charge status of each individual notebook will be displayed on the notebook and not
indicated on the cart.
Fault Conditions
Unmanaged Carts: None
Managed Carts: : Temperature sensor shuts down charging if the maximum internal temperature is exceeded.
Once operating temp returns to safe levels, charging will automatically resume operation. The Amber LED
light flashes to indicate fault. Power is not removed from the controller box, aux outlets or WAP/Wireless
router during high-temperature conditions.
Unmanaged Carts: The Controller Box accepts power from an input cord and is distributed through two circuit
breakers (Line and Neutral) to the Power Control Board. It also utilizes an HP standard AC adapter to convert
AC to DC for fan and digital control and provides DC power to two fans. It is designed to meet all applicable
standards. The Controller Box houses the PC board that directs the intelligent electrical system.
Managed Carts: The Controller Box accepts power from an input cord and is distributed through two circuit
breakers (Line and Neutral) to the Power Control Board. It also utilizes an HP-standard AC adapter to convert
AC to DC for fans and digital control and provides DC power to six fans and digital signals to the LED and
temperature sense board. It is designed to meet all applicable standards. The Controller Box houses the PC
board that directs the intelligent electrical system.
Unmanaged Carts: Two 5-volt DC continuous operation fans in the top compartment of the cart
Managed Carts: Four 12-volt DC continuous operation cooling fans in the notebook bay. Two 5-volt DC
continuous operation cooling fans in the top compartment.
Controller Box
Cooling
NOTE: Temperature sensing is located in the cart to monitor inlet air of the notebooks to verify safe
operation. The size and power requirements of the fans are dependent upon thermal analysis of the heat load
and cooling schema. They are connected to the Power Control Box via a modular connector of the appropriate
current rating.
RJ-45 Interconnect
Cables
Ethernet Switch
External RJ-45 Cable
(from switch to the
wall)
If the over temperature threshold is met, power to the AC power adapters (notebook charging) and Ethernet
outlets is removed and the high-temperature LED is enabled. When the high-temperature situation is
corrected, power is restored to the AC adapters without user intervention; the high-temperature LED is
disabled.
None
20 custom-length Ethernet
20 custom-length
30 custom-length
cables
Ethernet cables None Ethernet cables
Unmanaged Carts: Not included, cart is not upgradeable
Managed Carts: Switch not included, cart may be upgraded by customer if desired. Ethernet switch 1U
mounting brackets and dedicated space for one Ethernet switch is provided within the secured upper
compartment of the cart. Cart electrical system power budget and outlet layout is designed for use of one
Ethernet switch for managing the notebooks/support of Wake on LAN functionality assumed. NOTE: Space
for one Ethernet switch is provided.
N/A
14 ft (4.3 m) cable included
N/A
14 ft (4.3 m) cable
included
WAP (Wireless Access Unmanaged Carts: WAP/router is not included, cart is not upgradeable
Point) or Wireless
Managed Carts: WAP/router not included, cart may be upgraded by customer if desired. Cart electrical system
Router
power budget and outlet layout assumes the use of a 15-watt max WAP or wireless router. The WAP/wireless
router receptacle is always on.
Country-Specific
Provide power for:
Provide power for:
Provide power for:
Provide power for:
Power Distribution
20 AC-DC Adapters for
20 AC-DC Adapters for
30 AC-DC
30 AC-DC
each notebook via four,
each notebook via four,
Adapters for
Adapters for
DA - 13929 North America — Version 6 — August 2, 2012
Page 5
QuickSpecs
HP Notebook Charging and Managed Charging Carts
Technical Specifications
five-outlet countryspecific power strips.
Two external auxiliary
country-specific outlets
DC Power Adapters
Power Cord to Cart
(from cart to the wall)
five-outlet countryspecific power strips.
Combined power
distribution for one
country-specific
Ethernet switch and one
country-specific
WAP/router
Two external auxiliary
country-specific outlets
each notebook
via four, fiveoutlet countryspecific power
strips.
Two external
auxiliary
country-specific
outlets
each notebook
via six fiveoutlet countryspecific power
strips.
Combined
power
distribution for
two countryspecific
Ethernet
switches and
one countryspecific
WAP/router
Two external
auxiliary
country-specific
outlets
Not Required. Cart will use customer-supplied power adapters to supply charge to the notebook. Customer
will install each power adapter using adapter storage cradle and securing strap for cable management.
12-ft detachable pre-installed country-specific straight cord
External Power Switch Unplug main AC power cord to disconnect power. No on/off switch is provided
Product Storage and
Transportation
Temperature
–40° to +60° C (–40°to 140° F)
Relative Humidity
(Storage)
5 to 95% (non condensing)
Operating
Temperature
0 to 30° C (32 to 86° F)
Operating Relative
Humidity
10 to 90% (non condensing)
Altitude
2,000 meters maximum
Acoustics
Following ISO 7779 and ISO 9296, when operating with doors closed
Overall Cart and
Electrical
Certifications
Assumed
RoHS
REACH
The system must be Listed, Verified, and Certified to:
UL 60950-1
CAN/CSA C22.2 No. 60950
UL 1667
ICES-003 Issue 4, Class A
FCC Part 15 Class A
And others as required.
DA - 13929 North America — Version 6 — August 2, 2012
Page 6
QuickSpecs
HP Notebook Charging and Managed Charging Carts
Technical Specifications
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 13929 North America — Version 6 — August 2, 2012
Page 7
