Panasonic AG-AF101EJ is a professional HD camera recorder with a Micro Four Thirds mount, offering a wide range of interchangeable lenses, including cinema lenses. It features a 4/3-type MOS image sensor with about the same imaging area as 35mm cinema film, enabling stunning, film-like images. The camera boasts superb image quality, extended recording time, and a variable frame rate function. Its advanced gamma functions address seven different shooting scenarios, including the cine-like gamma for a characteristic warm tone.
advertisement

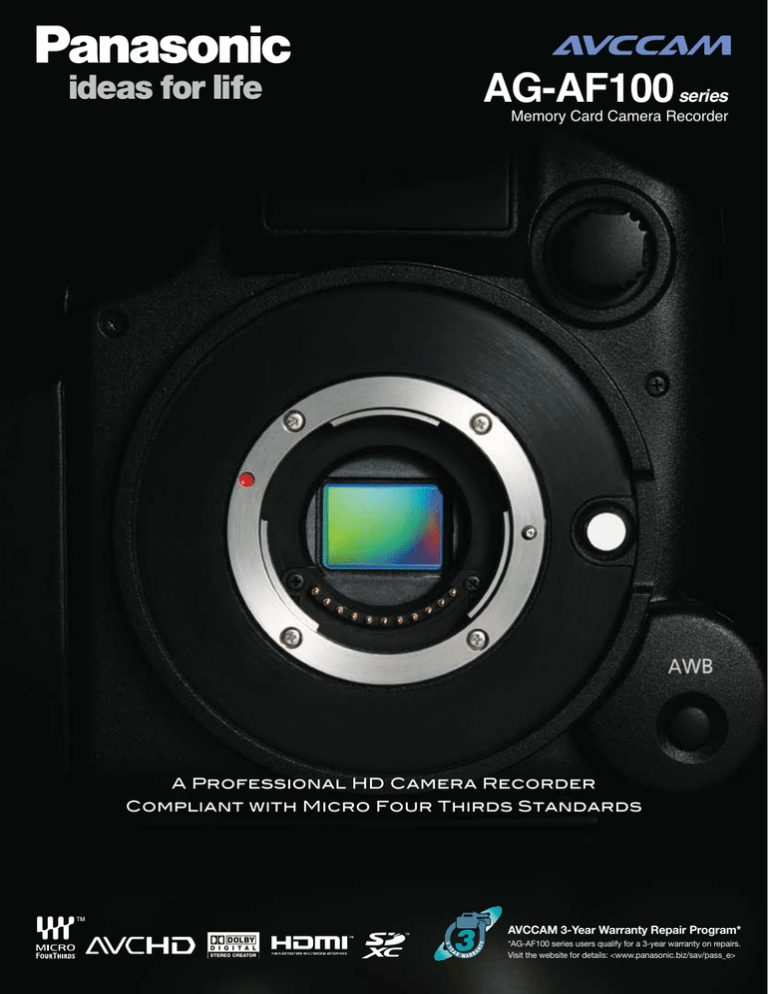

AG-AF100
series
Memory Card Camera Recorder
A Professional HD Camera Recorder
Compliant with Micro Four Thirds Standards
AVCCAM 3-Year Warranty Repair Program*
*AG-AF100 series users qualify for a 3-year warranty on repairs.
Visit the website for details: <www.panasonic.biz/sav/pass_e>
* This photo is intended only to show the general image of the product. Panasonic does not guarantee the compatibility or performance of all lenses that are mountable on the AG-AF100 series. Use a support system when mounting a lens weighing more than 1 kg (2.2 lb).
A New Story Is About to Unfold...
AG-AF100
series
Micro Four Thirds Mount Professional HD Video Camera Recorder
The world's first*
1
professional HD camera recorder with a Micro Four Thirds mount*
2
unleashes creativity in motion picture production.
The imaging area of the new camera recorder is almost the same as that of 35mm cinema film and enables an exquisite film-like shallow depth of field. The short flange back distance of the Micro Four Thirds
Mount allows the use of a wide range of lenses, including cinema lenses. In the AG-AF100 series, Panasonic has brought shallow depth of field control to a professional AVCCAM camera recorder.
T h e A G - A F 1 0 0 s e r i e s o ff e r s a n e w l e v e l o f H D m o t i o n i m a g e quality with extended recording time, the variable frame rate function, and the operating system and system interfaces designed natively for video production. This lets the AG-AF100 series record high-quality images with greater operating ease than even a digital SLR camera can offer. The AG-AF100 series can unleash your creativity.
*1: As of November 2010 (based on a Panasonic survey).
*2: The AG-AF100 series complies with the Micro Four Thirds standards, but compatibility with all Micro Four Thirds standard lenses is not guaranteed.
.
Samples Recorded with the AG-AF100 series
A single frame captured from an HD video file (1920 x 1080) recorded with the AG-AF100 series.
Beautiful Shallow Depth of Field and CINE-LIKE Gamma
Samples Recorded with the AG-AF100 series.
Samples Recorded with the AG-AF100 series.
.
A single frame captured from an HD video file (1920 x 1080) recorded with the AG-AF100 series.
Superb Image Quality Free of Aliasing Noise
An example of an image with aliasing noise (from a DSLR camera).
An image without aliasing noise recorded with the AG-AF100 series.
.
Samples Recorded with the AG-AF100 series.
PL Mount 24mm PL Mount 10mm
The Micro Four Thirds System Provides Rich Expression with a Wealth of Interchangeable Lenses.
The 4/3-type image sensor has about the same imaging area as that of 35mm cinema film and achieves stunning, film-like images. The short flange back distance enables the use of a wealth of interchangeable lenses, including cinema lenses.*
In addition, the AG-AF100 series features high-performance image processing and correction functions designed exclusively for HD motion images.
* Panasonic does not guarantee the compatibility or performance of all lenses that are mountable on the AG-AF100 series.
A sample 1080/24p image.
An example of an image recorded in undercrank mode
(quick motion effect).
An example of an image recorded in overcrank mode
(slow motion effect).
AVCCAM — Functions and Specifications Refined
Through Extensive Professional Video Use.
The AVCCAM HD recorder section has been improved and refined through extensive use in broadcasting and movie production. The AG-AF100 series boasts superb image quality, extended recording time, variable frame rate function like the VariCam, the operating ease and mobility that you need for motion image acquisition.
* The photo shows one example of an applicable system. The matte box is sold by Vocas. For details, visit the Vocas website
(http://www.vocas.com/).
* Panasonic does not guarantee the compatibility or performance of all lenses that are mountable on the AG-AF100 series.
Use a support system when mounting a lens weighing more than
1 kg (2.2 lb).
The Camera Section Features a Four Thirds Image Sensor and Design Especially for Video Use, Approaching 35mm Cinematic Expression.
Comparison of Image Sensor Standards
22 mm (7/8 inches)
17.3 mm (11/16 inches)
9.6 mm (3/8 inches)
World's First* to Adopt
Micro Four Thirds
The AG-AF100 series is the first professional HD camera recorder to adopt the Micro
Four Thirds standards. These standards were announced in 2008 as an extension of the
Four Thirds standards for DSLR (Digital Single
Lens Reflex) cameras. Panasonic and some other manufactures have already released a number of digital cameras and interchangeable lenses based on the Micro
Fourth Thirds standards.
The "Four Thirds" name is derived from the
4/3-type (approx. 17.3 mm x 13 mm/ approx.
0.68 inches x 0.51 inches) image sensor. The size of the image sensor, the standardized lens mount developed for it, and interchangeable lenses designed exclusively for digital cameras form the core of the Four
Thirds standards. These standards were established to offer an optimal solution for digital cameras, breaking loose the confines of film camera standards. In establishing the
Micro Four Thirds standards, the flange back distance (the distance from the lens mount surface to the image sensor) was reduced by about half and the mount diameter was made about 6 mm (0.24 inches) smaller than that of the Four Thirds mount. The image sensor size is the same as that of the 4/3 type used in the
Four Thirds standard. The Micro Four Thirds standards have made it possible to reduce the size and weight of cameras and lenses, and to achieve greater interchangeability of lenses together with video recording capability.
*1: As of November 2010 (based on a Panasonic survey).
35 mm Cinema Film 4/3-type Image Sensor 2/3-type Image Sensor
* Numerical value shown are approximate.
4/3-type MOS Image Sensor
The 4/3-type MOS image sensor in the
AG-AF100 series has about the same imaging area* as that of 35mm cinema film.
The depth of field and the focal range are also close to those of film cameras. With the
AG-AF100 series, you can record beautiful, shallow depth of field, film-like images.
The MOS sensor has two control lines as compared to the three lines required by a conventional CMOS sensor, thus providing a larger light receiving area. This has achieved a high level of sensitivity rivaling that of a
CCD sensor. Extensive noise reduction measures are also employed, such as embedded photodiodes isolated from noise sources and low-voltage operation. By guiding more light to the pixels, the
AG-AF100 series achieves a wide dynamic range and detailed gradation with minimal blocked shadows or blown highlights in high-contrast scenes, for true-to-life textures and rich colors.
* The effective imaging area is trimmed to a 16:9 aspect ratio.
A Low-Pass Filter for High-Quality
HD Motion Images
The AG-AF100 series' optical low-pass filter is optimized for HD motion images and reduces the aliasing noise that often occurs in motion images captured by an image sensor with a high pixel density. In addition, the MOS image sensor is scanned at a high speed in order to minimize skew distortion.
High-Performance 18-bit DSP
The AG-AF100 series is equipped with a high-performance 18-bit digital signal processor (DSP) for image processing.
Optimized for HD video recording, the DSP handles various image rendering processes, such as dynamic range stretch
(DRS), gamma, 12-axis
MOS sensor of AG-AF100 series
Receptor ratio 50%
Receptor Circuit
Pixel
CMOS sensor
Receptor ratio 35%
Receptor
Circuit
FOUR THIRDS
MICRO
FOUR THIRDS
FOUR THIRDS Flange Back
MICRO FOUR THIRDS Flange Back
Pixel
CCD sensor
Receptor ratio 50%
Receptor Transfer
Lens Mount Lens Mount Image Sensor
Pixel
The Camera Section Features a Four Thirds Image Sensor and Design Especially for Video Use, Approaching 35mm Cinematic Expression.
An example of an image with aliasing noise
(from a DSLR camera).
ND Filter independent color correction* and detail enhancement, as well as conversion to HD/
SD video formats − all with exceptional precision and high image quality.
*12-axis independent color correction can’t be controlled manually by a customer.
Internal Optical ND Filter
The AG-AF100 series has an internal neutral density (ND) filter that is essential for video recording. The dedicated dial on the camera body lets you adjust the setting in three steps (1/4ND, 1/16ND, and 1/64ND) with any type of lenses.
Dynamic Range Stretch Function
DRS recognizes the average brightness of highlight and shadow areas and then automatically adjusts the aperture and uses knee control to suppress blocking in the shadow areas. In scenes with mixed dark and light areas, DRS automatically provides a wider dynamic range with minimal blown highlights and blocked shadows.
Image with DRS OFF
Image with VIDEO GAMMA
7-Mode Gamma for Richer Gradation
Drawing on technologies developed for the
VariCam, Panasonic has equipped the
AG-AF100 series with advanced gamma functions that address seven different shooting scenarios and enhance your creative abilities. This includes the cinelike gamma, which produces the characteristic warm tone of film recordings.
AG-AF100 series Gamma Modes
HD NORM: Suitable for HD recording.
LOW:
SD NORM:
Works to flatten out a high contrast scene.
Normal setting for SD (this was available in the DVX100 series).
HIGH:
B.PRESS:
Expands the tone of dark parts and makes a brighter image.
The contrast softens.
Makes the contrast sharper than LOW
CINE-LIKE D: The Cine-Like mode shifted to prioritize dynamic range.
CINE-LIKE V: The Cine-Like mode shifted to prioritize contrast.
Advanced Image Adjustments
• Color setting with matrix table: Norm
1, Norm 2, Fluo and Cine-Like.
• Adjustable H detail level, V detail level, detail coring and skin detail.
• Adjustable chroma level, chroma phase and master pedestal.
An image without aliasing noise recorded with the AG-AF100 series.
Image with DRS ON
Image with CINE-LIKE GAMMA
• Adjustable color temp: 2400K to 9900K
(preset 3200K/5600K).
• Knee point settings: Auto, Low, Mid and
High.
• Adjustable auto-iris level.
Full-HD (1080p) Variable Frame Rate Recording. An AVCHD Recording for Creative, High-Quality Image Production.
Normal cinematic shooting (at 24 fps, 25 fps or 30 fps) refers to the same rate as used in film cameras.
The AG-AF100 series can record in 24 fps. 25 fps and 30 fps are the standard frame rates used in the production of TV commercials, music clips and video software.
Lower-speed shooting (at under 22 fps*) lets you attain a fast-motion effect. This technique can be combined with a warp-speed effect to give special emphasis to flowing water, fast-moving clouds, etc.
* When the standard speed is 24 fps in 59.94 Hz mode. For a standard speed of 25 fps in 50 Hz mode, anything under 24 fps will be undercranked.
Higher-speed shooting (at over 25 fps*) produces slow-motion effects. This is especially effective for high-action scenes like car chases or crashes, or to create a dramatic impact in a scene.
* When the standard speed is 24 fps in 59.94 Hz mode. For a standard speed of 25 fps in 50 Hz mode, anything over 26 fps will be overcranked.
Frame rate and effect (59.94Hz)
28p
30p
32p
34p
36p
24p
25p
26p
27p
40p
44p
48p
54p
60p
Frame
Rate
12p
15p
18p
20p
21p
22p
Speed Effect in 24p base
200% Quick
160% Quick
133% Quick
120% Quick
114% Quick
109% Quick
Speed Effect in 30p base
250% Quick
200% Quick
167% Quick
150% Quick
143% Quick
136% Quick
100% (Standard) 125% Quick
96% Slow 120% Quick
92% Slow
89% Slow
115% Quick
111% Quick
86% Slow
80% Slow
75% Slow
71% Slow
67% Slow
60% Slow
55% Slow
50% Slow
44% Slow
40% Slow
107% Quick
100% (Standard)
94% Slow
88% Slow
83% Slow
75% Slow
68% Slow
63% Slow
56% Slow
50% Slow
(50Hz)
27p
28p
30p
32p
34p
23p
24p
25p
26p
37p
42p
45p
48p
50p
Frame
Rate
12p
15p
18p
20p
21p
22p
Speed Effect in 30p base
208% Quick
167% Quick
139% Quick
125% Quick
119% Quick
114% Quick
109% Quick
104% Quick
100% (Standard)
96% Slow
93% Slow
89% Slow
83% Slow
78% Slow
74% Slow
68% Slow
60% Slow
56% Slow
52% Slow
50% Slow
AVCHD PH Mode for the High Image
Quality Required by Professional
Applications
The AG-AF100 series uses the AVCHD recording format and also supports the highimage-quality PH mode. AVCHD complies with MPEG-4 AVC/H.264 High Profile, the latest motion picture compression technology. Boasting a compression efficiency that is more than twice that of the
MPEG-2 system (such as HDV), this advanced video file format delivers superb image quality and low data rates. The PH mode was developed for AVCCAM by
Panasonic exclusively for high-quality professional video production. This mode boasts a maximum AVCHD bit rate of 24
Mbps (average: 21 Mbps) and records 1920 x 1080 full-HD images.
Uncompressed LPCM 2-Channel
Recording for High-Quality Sound
The PH mode supports uncompressed 16-bit
LPCM 2-channel digital audio recording for high-quality sound in addition to Dolby Digital
2-channel audio. The HA/HE mode employs
Dolby Digital 2-channel audio recording only.
Multi HD Format Compatibility
The AVCHD PH mode is compatible with multiple HD formats, such as 1080/60i,
1080/30p, 1080/24p and 720/60p.
Additionally, the AG-AF100 series lets you select 60 Hz or 50 Hz to support HD systems used around the world. (For details, see the video format table on the right page.)
* Actual recording is at 60 Hz = 59.94 Hz, 30 Hz = 29.97 Hz, and 24 Hz = 23.98 Hz, respectively.
1080p Variable Frame Rate
Recording
The AG-AF100 series has inherited and further advanced the acclaimed functions of the VariCam that is widely used in producing movies, TV programs and TV commercials.
The new Variable Frame Rate (VFR) function* supports full-HD (1920 x 1080) progressive mode. Armed with a 20-step undercrank
(lower frame rate)/overcrank (higher frame rate) function, the AG-AF100 series is capable of producing cinematic images such as a 1/2.5x slow-motion effect and 2x fastmotion effect when played in 24p mode.
* Cannot be played in 1080/60p mode. 720p VFR not supported. Class 6 or higher SDXC/SDHC/SD Memory
Card is required for VFR recording.
SDXC Memory Card Supported
The AG-AF100 series supports the new SDXC
Memory Card. The SDXC
Memory Card is a nextgeneration large-capacity data storage device with upgraded versions of the file system (FAT) and physical specifications of the SDHC Memory Card. Thanks to a large storage capacity, which exceeds the 32 GB limit of the SDHC Memory Card, the SDXC
Memory Card can handle large data volumes of 48 GB or 64 GB. It also boasts a high maximum data transfer speed of 22 MB/s* and a wide operating temperature range of
-25° to 85°C (-13°F to 185°F).
The AG-AF100 series can also use the
SDHC and SD Memory Cards.
* The data transfer speed varies depending on the operating system of the SD-compatible devices. The indicated rate was measured at a maximum specification point specified by Panasonic.
Two Card Slots for Relay Recording
The AG-AF100 series has two memory card slots. The active slot for recording can be switched, and the internal relay recording function enables continuous recording by automatically changing the recording card media. By using two SDXC
Memory Cards, the AG-AF100 series can record up to 12 hours in PH mode or 48 hours in HE mode*. Video clips can be copied between cards mounted in the two slots.
*When two 64-GB SDXC Memory Cards are used.
The maximum continuous recording time is 12 hours regardless of the recording mode. A Class 4 or higher
SDXC/SDHC/SD Memory Card is required for recording in
PH or HA mode. For other recording modes, use a Class 2 or higher SDXC/SDHC/SD Memory Card. (The use of a
Panasonic SDXC Memory Card is recommended.)
Full-HD (1080p) Variable Frame Rate Recording. An AVCHD Recording for Creative, High-Quality Image Production.
Comparison of HD Recording Formats
Pixel (H x V)
HDV
1440 × 1080
Compression Method MPEG-2
AVCHD
1920 × 1080
MPEG-4 AVC/H.264
HD image format of AG-AF100 series
Image Format 59.94 Hz 50 Hz
1080
1080
720
(only PH mode)
(only PH mode)
1080/59.94i
1080/29.97p
1080/23.98p
720/59.94p
720/29.97p
720/23.98p
1080/50i
1080/25p
720/50p
720/25p
SMPTE Time-Code Recording and
Synchro Function
The built-in SMPTE time-code generator lets you select the Drop Frame/Non-Drop Frame and Free Run/Rec Run modes and preset.
User bits are also provided.
Connecting two cameras with a TC preset in/out (video out) connector allows the slave camera, to synchronize with the master camera*.
*After synchronization, each camera’s time-code runs separately and not be guaranteed to match precisely.
Still Image Capture (Still Picture)
A frame can be captured from HD video as a still image equivalent to two megapixels
(1920 x 1080).
* Still images cannot be captured during motion image recording or in Pre-rec mode.
Camera Metadata Recording
Camera settings for recording operation can be saved as metadata in a clip file. By loading a clip file, the saved settings can be immediately applied.
Diverse Recording Functions
• Clip thumbnail display: You can preview a clip and also quickly delete a clip from the thumbnail list displayed on the LCD monitor.
• Interval Rec: Records one frame at a time in set intervals (1 sec, 10 sec, 30 sec,
Sample comparison: When a flash causes large contrast differences and reduces depth perception, HDV shows considerable block noise, while AVCHD in PH mode minimizes break-up.
AVCHDHD Recording Mode of AG-AF100 series
Recording
Mode
Bit Rate Image Size
PH Mode
Approx. 21 Mbps (Average),
Max 24Mbps
1920 x 1080
1280 x 720
HA Mode Approx. 17 Mbps (Average) 1920 x 1080
HE Mode
Audio
Max. Recording Time
(64GB SDXC Memory Card x 2)
LPCM 2 ch
Dolby Digital 2 ch
Approx. 12 hours*
Dolby Digital 2 ch Approx. 16 hours*
Approx. 6 Mbps (Average) 1440 x 1080 Dolby Digital 2 ch Approx. 48 hours*
* When two 64-GB SDXC Memory Cards are used.
The maximum continuous recording time is 12 hours regardless of the recording mode.
1 min, 2 min). Only in 1080/24p and 25p mode. Audio recording not possible.
• Pre-rec: While in standby mode, you can continuously store, and subsequently record, up to approx. 3 seconds. This helps to ensure that you always get the shot you want.
• Shot mark: Allows convenient OK or NG marking, and can be added to each clip during or after recording.
• Index: Scenes can be marked with up to
100 index flags per clip.
• Rec check: You can check the end of the most recently recorded clip with one-touch ease.
• Last clip delete: Only the most recently recorded clip is deleted with this one-touch function, adding practical convenience to everyday operation. It can be assigned as a User button function if desired.
SDI (24Psf) Output and Auto Rec
The HD/SD SDI output terminal can output
HD signals, including 1080/24Psf, or down-converted SD video signals
(selectable from the menu). The terminal also supports Auto Rec to enable backup recording in link with Rec Start/Stop when a Panasonic recorder equipped with the same function, such as the AG-HPG20, is used. Embedded audio is also supported.
*The 24PsF output recording is only possible on the
AJ-HPM200 or other third party recorders which support
24PsF input.
HDMI Digital HD Output Terminal
The AG-AF100 series is equipped with a next-generation HDMI (High Definition
Multimedia Interface) output terminal for digital transferring of high-quality HD video and audio signals.
* A separately purchased cable may be required for connecting the AG-AF100 series to a professional monitor via HDMI.
XLR Input for Pro-Quality Audio
In addition to the internal highperformance stereo microphone, the
AG-AF100 series comes equipped with two-channel XLR audio input terminals with a 48 V phantom power supply. Each channel can be selected from the internal microphone, external microphone or line input. Large, easy-to-use level dials are also provided.
Down-Converted SD Video Output
The AG-AF100 series has an internal down-converter so that it can output SD
(480/576) signals from SDI, HDMI or VIDEO
OUT. The 16:9/4:3 aspect conversion mode can be selected from three types
(side crop, letterbox, squeeze).
* Side crop output cannot be selected when an SDI/HDMI output terminal is used.
Marker/Grid Display
The LCD monitor and viewfinder can display a safety zone marker of 90%, 4:3,
14:9, 1.85:1, 2:1 or 2.35:1, or a 3x3 grid similar to the one in a digital SLR camera.
Professional System Design
• Grip: The large grip is easy to hold and is also detachable. The grip allows comfortable use in any shooting situation.
• Handle: The large handle is designed for professional use. It has a shoe adaptor and threaded holes for mounting various peripheral accessories. The handle is also detachable.
• Sensor marker/measuring hook: This makes it easy to measure the distance from the subject.
Functions and Specifications
Designed for Professional Use
• Scene file: Saves six sets of camera settings and allows for a quick change of settings.
• Mode check: Displays a list of the camera settings on the viewfinder and monitor.
• Zebra: Select any two levels from among
50% to 105%, in 5% steps.
• Color bar: Outputs a color bar signal.
• Remote terminal: Enables remote operation of iris, focus, Rec Start/Stop and index functions.
• USB 2.0: Type mini-B USB port for connection of a PC in DEVICE mode.
• Tally lamps: Provided on the unit's front and rear.
XLR Audio Input
Light
Micro Four Thirds Lens*
Four Thirds Lens
DMW-MA1
Mount Adaptor
Mount Adaptor
Cinema Lens
35 mm Film Lens
Compatible Lens Adaptor
Other Lens
Other Lens Adaptor
AG-MC200G
Microphone
Handle and Upper
Control Button
Measuring Hook
SDXC/SDHC/SD
Memory Cards
Detachable Handle and Grip
Shoulder Strap
Battery Pack
DC Cable
AC Adaptor/Charger
AG-AF100 series
Tripod
HD SDI
(Include 24PsF)
HD Recorder or HD Monitor
SD SDI
HDMI
SD Monitor
HDMI Monitor
USB 2.0
Supplied Accessories
* Panasonic does not guarantee the compatibility or performance of all lenses that are mountable on the AG-AF100 series.
Windows PC or Mac
Ideal Controls for Image Production. Unique System Design and a Wealth of Interfaces.
FILM CAM Mode for Movie
Production
The AG-AF100 series features switchable
FILM CAM and VIDEO CAM modes. In
FILM CAM mode, the variable frame rate can be used. In addition, the synchro scan and shutter can be indicated and set with the opening angle, instead of seconds, while the sensitivity can be indicated and set in ISO, instead of dB. This makes operation easier for users who are familiar with film camera operation.
Screen displayed in FILM CAM mode.
New Functions: Area Focusing and
Area Iris Functions
(Compatible lens only)
Using the newly provided function knob
(cursor key), you can select a desired area in the frame and set it as a target zone for focusing, iris adjustment and YGET
(brightness measurement). This new function facilitates the recording of images in which the subject is not in the center of the frame. In addition to the above three modes, there are two other modes: simultaneous focusing/iris adjustment and simultaneous focusing/YGET. You can select and set any of these five modes.
Wide ISO Sensitivity (Gain)
Setting Range
The sensitivity can be set between ISO 200 and ISO 3200 (in FILM CAM mode), or the gain can be adjusted between 18 dB and
-6 dB (in VIDEO CAM mode). The 3-position
(L, M, H) gain switch can be assigned with three desired settings for quick switching.
The negative gain (-3 dB, -6 dB) is effective for reducing sensitivity and reducing noise.
Slow/Synchro/High-speed Shutter
The shutter speed can be set from a slow
1/2 sec to a fast 1/2000 sec in VIDEO CAM mode. The AG-AF100 series is also equipped with a synchro scan function to allow setting from 10° to 360° in 0.5° steps
(including 172.8°) in FILM CAM mode.
When combined with the variable frame rate, this function enables detailed settings for a blurred or time-lapse effect.
Simplified Waveform and
Vectorscope Display
The AG-AF100 series has waveform and vectorscope display functions as well. A single touch of the WFM key displays the waveform or vectors of the captured video signal on the LCD monitor.
Three User Buttons
Three user buttons are provided for one-touch operation of frequently used functions. Two buttons are located on the control panel, and one button is placed at the upper part of the grip handle. Each button can be assigned with any of the following 14 functions.
Assignable Functions
INH: No assigned function
REC CHECK: Recording check
FACE DETECT: Face detection function
FOCUS ASSIST: Displays edge in red
CAPTURE:
ATW:
Records the image as a
JPEG file on an SD card
ATW (auto-tracking white balance) on/off
ATW Lock: ATW lock on/off
SHOT MARK: Adds shot marks to the clip
INDEX:
LAST CLIP:
Scene indexing
Deletes the most recently recorded clip
BACKLIGHT: Automatic aperture correction for scenes with backlighting
SPOTLIGHT: Automatic aperture correction for scenes with spotlights
BLACK FADE: Fade-in/fade-out from and to black
WHITE FADE: Fade-in/fade-out from and to white
WAVE VECTOR
Large Viewfinder and LCD Monitor
The large, high-quality viewfinder (11.43 mm (0.45 inches), approx. 1,226,000-dot equivalent [852 x 480 x 3 (RGB)]) can be tilted up to a 90° angle. The variable angle color monitor features a color LCD panel (87.63 mm (3.45 inches), approx.
921,000 dots [1920 x 480]) with an aspect ratio of 16:9, and facilitates low-angle/ high-angle shooting, viewing and menu setting.
Screen displayed when the area function is in use.
Focus Assist Function
The AG-AF100 series is equipped with an
HD focus assist function. The focus bar indicates the focus level and the focusin-red display shows the focus area. These two display functions help you to focus more smoothly. A face detection function is also provided, and area auto focus and area auto iris are possible.
Focus assist ON
PC Software and a Wealth Of Options to Support Professional Workflows
AVCCAM Viewer
Viewing Software for AVCHD files
(download free* 1 )
AVCCAM Viewer for Windows ® PC/
Mac* 2 makes it easy to preview
AVCCAM files. Files can be played from an SD Memory Card, Blu-ray
Disc, or hard disk, and saved to a PC
(hard disk) from an SD Memory Card or Blu-ray Disc. Files can also be copied to an SD Memory Card or
Blu-ray Disc* 2 or deleted and meta data can be displayed and input.
AVCCAM Viewer System Requirement
[for Windows PC] • CPU: Intel ® Core™2 Duo (2.4 GHz or faster) • OS: Microsoft ®
Windows7 (32bit), Windows Vista ® (32bit), Windows XP SP3 (32bit) • RAM: 1GB or more
(2GB or more recommended)
[for Mac] • CPU: Intel ® Core™2 Duo 2.6 GHz or faster • OS: Mac OS X 10.6 (Snow
Leopard), 10.5 (Leopard) or 10.4 (Tiger) • RAM: 1 GB or more (2 GB or more recommended)
*1: AVCCAM Viewer software can be downloaded for free from the following Panasonic website. PASS registration is required. For details, please visit the following website and click on “Support and Downloading Information.”
<https://eww.pavc.panasonic.co.jp/pro-av/support/desk/e/download.htm>
*2: Copying and playing data on Blu-ray Discs (BD-RE Ver 3.0) are not supported by Mac
OS X 10.4 (Tiger). Do not insert a disc [DVD (AVCHD)] produced with the provided HD
Writer 2.5E software into a device that does not support the AVCHD standard. If it is inserted into such a device, the disc may not eject. Also, do not play the disc with a device that does not support the AVCHD standard.
Optional Accessories
AVCCAM Restorer
HD Content File Restore Software
(supplied with CD-ROM* 1 )
AVCCAM Restorer software can also be used to restore files that were damaged, for example, by a power interruption during recording.
AVCCAM Restorer System Requirement
[for Windows PC] • Intel ® Core™2 Duo 2.4 GHz or higher CPU is recommended.
• OS: Microsoft Windows7 (32bit), Windows Vista (32bit), Windows XP SP3 (32bit)
• RAM: 1GB or more (2GB or more recommended)
[for Mac] • CPU: Intel ® Core™ Duo 2.0 GHz or faster (including compatible CPU)
• OS: Mac OS X 10.6 (Snow Leopard), 10.5 (Leopard) or 10.4 (Tiger) • RAM: 1 GB or more
(2 GB or more recommended)
*1: AVCCAM Restorer is included in the supplied CD-ROM. This software can also be downloaded free. For details, please visit the following website and click on “Support and
Downloading Information.”
<https://eww.pavc.panasonic.co.jp/pro-av/support/desk/e/download.htm>
AVCCAM SD Card File Recovery
File Recovery Software
(download free* 1 )
This application recovers accidentally deleted video data on an SD
Memory Card recorded by an AVCCAM camera recorder.
AVCCAM SD Card File Recovery System Requirement
[for Windows PC] • Intel ® Pentium III 1.0 GHz or higher CPU ( PC/AT PC) is recommended. • OS: Microsoft Windows7, Windows Vista, Windows XP SP3
• RAM: 1GB or more (2GB or more recommended)
[for Mac] • CPU: Intel ® Core™ Duo 2.0 GHz or faster (including compatible CPU)
• OS: Mac OS X 10.6 (Snow Leopard), 10.5 (Leopard) or 10.4 (Tiger)
• RAM: 1 GB or more (2 GB or more recommended)
*1: AVCCAM SD Card File Recovery can be downloaded for free from the following
Panasonic website.
<https://eww.pavc.panasonic.co.jp/pro-av/support/desk/e/download.htm>
As of November, 2010
BT-LH2550
647.7mm (25.5 inches) Wide
HD/SD LCD monitor
VW-VBG6
Battery Pack
• 7.2 V, 5,800 mAh
BT-LH1760
431.8 mm (17 inches) Wide
HD/SD LCD monitor
Panasonic
Micro Four Thirds Lens
H-FS045200
LUMIX G VARIO
45-200mm/F4.0-F5.6/MEGA O.I.S.
H-FS014045
LUMIX G VARIO
14-45mm/F3.5-F5.6 ASPH./MEGA O.I.S.
H-F007014
LUMIX G VARIO
7-14mm/F4.0 ASPH.
H-VS014140
LUMIX G VARIO HD
14-140mm/F4.0-F5.8 ASPH./MEGA O.I.S.
H-H020
LUMIX G
20mm/F1.7 ASPH.
H-F008
LUMIX G
FISHEYE 8mm/F3.5
H-ES045
LEICA DG MACRO-ELMARIT
45mm/F2.8 ASPH./MEGA O.I.S.
Panasonic
Four Thirds Lens
L-ES014050
LEICA D VARIO-ELMARIT
14-50mm/F2.8-3.5 ASPH./MEGA O.I.S.
L-RS014050
LEICA D VARIO-ELMAR
14-50mm/F3.8-5.6 ASPH./MEGA O.I.S.
L-RS014150
LEICA D VARIO-ELMAR
14-150mm/F3.5-5.6 ASPH./MEGA O.I.S.
L-X025
LEICA D SUMMILUX
25mm/F1.4 ASPH.
DMW-MA1
Mount adaptor
(for Four Thirds Lens)
DMW-MA1
*These options are not available in some areas.
AG-MC200G
XLR Microphone
• Sensitivity: -40 dB ±3.5 dB
(0dB=1V/Pa, at 1kHz)
• Maximum Input level: 127 dB
(1000Hz, Distortion within 1%)
• S/N: More than 69 dB
SDXC/SDHC/SD
Memory Card
BT-LH1710
431.8 mm (17 inches) Wide
HD/SD LCD monitor
BT-LH900A
213.36 mm (8.4 inches)
HD/SD LCD monitor
BT-LH80WU
200.66 mm (7.9 inches) Wide
HD/SD LCD monitor
Other Manufacturers’ Products
ZUIKO DIGITAL ED
14-35mm f2.0 SWD
[OLYMPUS]
Specifications
As of November, 2010
[GENERAL]
Power Supply: DC 7.2 V (when the battery is used)
DC 7.3 V (when the AC adaptor is used)
Power Consumption: 12.4 W (when recording)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 10 % to 80 % (No condensation)
Weight: Approx. 1.3 kg (Approx. 2.9 lb.)
(Excluding the handle, grip, battery and accessories)
Dimensions (W x H x D): 163.4 mm × 195 mm × 290.4 mm
(6-7/16 inches × 7-11/16 inches × 11-7/16 inches)
(Including the handle and grip)
[CAMERA]
Pick-up Device:
Picture Elements:
4/3 MOS fixed pickup device, single panel (primary color filter)
Effective picture elements: Approx. 12,400,000 pixels
Single panel (16:9)
Image Size:
Lens:
Lens Mount:
ND Filter:
Valid image range: Approx. 17.8 mm (H) × Approx. 10.0 mm (V)
Not included
Micro Four Thirds system Lens mount
1/4, 1/16, 1/64
Gain Settings: [VIDEO CAM mode] −6dB to 18dB (3dB step)
[FILM CAM mode] ISO200 to ISO3200
Color Temperature settings: ATW, ATW LOCK, preset 3200K, preset 5600K, preset VAR, Ach, Bch
Shutter Speed:
(Preset)
Shutter Speed:
(Syncro Scan)
[59.94 Hz]
60i/p mode: 1/60 sec. 1/100 sec., 1/120 sec., 1/500 sec.,
1/1000 sec., 1/2000 sec.
30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
24p mode: 1/24 sec., 1/50 sec., 1/60 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
[50 Hz]
50i/p mode: 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec.,
1/500 sec., 1/1000 sec., 1/2000 sec.
25p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
[VIDEO CAM mode/ 59.94Hz]
60i/p mode: 1/60.0 sec. to 1/250.6 sec.
30p mode: 1/30.0 sec. to 1/250.6 sec.
24p mode: 1/24.0 sec. to 1/250.6 sec.
[VIDEO CAM mode/ 50Hz]
50i/p mode: 1/50.0 sec. to 1/250.0 sec.
25p mode: 1/25.0 sec. to 1/250.0 sec.
[FILM CAM mode]
10.0 d to 180.0 d to 360.0 d (0.5 d step)
Shutter Speed:
(Slow)
[59.94Hz]
60i/p mode:1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.
VIDEO CAM mode only 30p mode:1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
24p mode:1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
[50Hz]
50i/p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
25p mode:1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
Normal Sensitivity: F8.0 normal (2000lx, 3200K, 89.9% reflex, 1080 59.94i)
Horizontal Resolution: 800 TV lines (at center standard)
[Video/Recording/Playback]
Recording Format: AVCHD compliant (MPEG-4 AVC/H.264)
Recording Media*: SD Memory Card: Up to 512MB, 1 GB, 2 GB (FAT12, FAT16)
SDHC Memory Card: 4 GB, 6 GB, 8 GB, 12 GB, 16 GB,
32 GB (FAT32)
SDXC Memory Card : 48 GB, 64GB (exFAT)
*However, above Class4 is supported in PH and HA modes, and above Class6 is supported during VFR recording.
Recording Format: [59.94Hz] PH mode: 1080/59.94i, 1080/29.97p,
1080/23.98p, 720/59.94p, 720/29.97p, 720/23.98
HA/HE mode: 1080/59.94i
[50Hz] PH mode: 1080/50i, 1080/25p, 720/50p,
720/25p, HA/HE mode: 1080/50i
Transmission Rate:
Interval Recording:
Recording Time:
VFR Recording:
PH mode: Approx. 21 Mbps (VBR)
HA mode: Approx. 17 Mbps (VBR)
HE mode: Approx. 6 Mbps (VBR)
Off/1 sec. /10 sec. /30 sec. /1 min. /2 min.
* Recording mode is fixed to PH 1080/24p (59.94 Hz) and
PH 1080/25p (50 Hz) and the maximum shooting time is 24 hours.
Approx. 12 hours (PH mode 1920 x 1080 or
1280 x 720 with two 64GB SDXC memory cards)
[1080/24p, 30p] 12/15/18/20/21/22/24/25/26/
27/28/30/32/34/36/40/44/48/54/60 frame/sec.
[1080/25p] 12/15/18/20/21/22/23/24/25/26/
27/28/30/32/34/37/42/45/48/50 frame/sec.
Maximum Number of Clips: Continual recording: 900 Clips (SD Memory Card x 1)
(Record after memory card is formatted and without removing the SD Memory Card.)
Playback: 1000 Clips (up to 1000 clips displayed)
Still Image Capture Function: Recording Format: JPEG
Function: 9 thumbnail displays, Clip deletion, Protect, Format
[Video Output]
SDI (HD/SD):
HDMI:
VIDEO:
BNC x 1, 0.8 V [p-p], 75Ω
[59.94Hz] 1080/60i, 1080/24psF, 720/60p, 480/60i
[50Hz] 1080/50i, 720/50p, 576/50i
HDMI x 1, (HDMI TypeA terminal), VIERA Link not supported
[59.94Hz] 1080/60i, 720/60p, 480/60p
[50Hz] 1080/50i, 720/50p, 576/50p
RCA pin jack, 1.0 V [p-p], 75Ω
[59.94Hz] 480/60i [50Hz] 576/50i
[Audio recording playback]
Recording Format: PH mode: Dolby Digital/2ch, linear PCM digital/2ch switch
HA/HE mode: Dolby Digital/2ch
Sampling Frequency: 48 kHz
Encoding: 16 bit
Compressed Bit Rate: Dolby Digital: PH mode: 384 kbpsHA, HE mode: 256 kbps
[Audio Input/Output]
Built-in Microphone:
Audio Input:
AUDIO Output:
SDI Output:
HDMI Output:
Headphone:
Speaker:
Stereo microphone
XLR (3 pin) x 2 (INPUT 1, INPUT 2),
LINE/MIC selectable, high impedance
LINE: 0 dBu, MIC: −50 dBu/−60 dBu (menu selectable)
RCA pin jack × 2 (CH1, CH2), 316 mV, 600 Ω
2ch (linear PCM)
2ch (linear PCM)/5.1ch (Dolby Digital)
3.5mm diameter, stereo mini jack × 1
20 mm (round) × 1
[Other Connectors]
Camera Remote:
INDEX Remote:
Super mini jack (2.5 mm diameter) (S/S)
Mini jack (3.5 mm diameter) (FOCUS, IRIS)
Super mini jack (2.5mm diameter)
TC PRESET IN/OUT : IN: 1.0 V to 4.0 V [p-p], 10 kΩ
(also used for VIDEO OUT) OUT: 2.0 V ±0.5 V [p-p], low impedance
USB: Card reader function (no copyright protection support)
Type mini B connector (compliant with USB ver. 2.0)
[Monitor]
LCD Monitor:
Viewfinder
3.45 type, wide LCD color monitor (Approx. 920,000 dots) wide 0.45 type LCD color monitor
(Approx. 1,226,000 dots equivalent)
[Standard Accessories]
Battery, AC adaptor/Battery charger, AC power supply cable/DC cable,
Wireless remote control and battery, Eye cup, Microphone holder,
Microphone holder screws, Microphone holder adaptor, Cable clamper.
Screws for cable clamper, Manuals, CD-ROM
Weight and dimensions shown are approximate. Specifications are subject to change without notice.
SD Memory Card Recorder: Lower Operating Costs, Better for the Environment
SD Reduces Total Cost of Ownership
(1) Faster, easier editing because digitization is not necessary
(2) Lower media costs because memory cards are reusable
(3) Lower maintenance costs because there is no moving mechanism
By reducing editing, media and maintenance costs,
AVCCAM can help improve your bottom line. Users can also take advantage of a special 3-year free-repair service program that Panasonic offers for AVCCAM equipment.
The SD Memory Card Helps Preserve the Environment with Its Reusability and Low Power Consumption
The SDHC/SD Memory Card media for the AVCCAM camcorder is totally free from abrasion and dropout. There is no drive mechanism required, as there is for tape and disc-based recorders, so power consumption is low and size and weight are reduced. Malfunctions are less likely to occur, and there is no need to replace heads or transport components. This translates into lower costs and
Reuse
Initialisation easier maintenance, greater energy savings, and less waste when the unit is eventually disposed of. All of these features help to conserve the environment.
Recording
SD Memory Card
*AVCHD and the AVCHD logo are registered trademark of Sony Corporation and Panasonic Corporation. Dolby and the double-D symbols are trademarks of Dolby Laboratories. HDMI and the
HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. SD Logo is a trademark. SDHC logo marks are a registered trademark.
SDXC logo marks are a registered trademark. Apple, Macintosh, Mac OS, Quick Time and Final Cut Studio are trademarks of Apple Inc., registered in the U.S. and other countries. Pentium,
Core and Xeon are trademarks of Intel Corporation, registered in the U.S. and other countries. Microsoft, Windows and the Windows logo are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries. Micro Four Thirds and Micro Four Thirds Logo marks are trademarks or registered trademarks of Olympus Imaging Corp., in
Japan, the United States, the European Union and other countries.
Please refer to the latest Non-linear Compatibilty Information, AVCHD
Support and Downlord and Service Information, etc. at panasonic web site.
http://pro-av.panasonic.net/
Panasonic Corporation
Systems Business Group
2-15 Matsuba-cho, Kadoma, Osaka 571-8503
Japan
Phone +81 6 6901 1161 Fax +81 6 6908 5969 http://pro-av.panasonic.net/
[Countries and Regions]
Argentina
Australia
+54 1 308 1610
+61 2 9986 7400
Belgium
Brazil
Canada
China
Hong Kong +852 2313 0888
Czech Republic +420 236 032 552/511
Egypt +20 2 23938151
Finland, Latvia, Lithuania, Estonia
France
Greece
+358 (9) 521 52 53
+33 (0) 1 55 93 66 67
+30 210 96 92 300
+36 (1) 382 60 60
+62 21 385 9449
India
Indonesia
Iran
(Vida)
(Panasonic Office) +98 2188791102
Italy
Jordan
Kazakhstan +7 727 298 0891
+96 522431385
Lebanon
Malaysia
Netherlands
New Zealand
Norway
Pakistan
Palestine
Panama
+96 11665557
+60 3 7809 7888
Philippines
Poland
Portugal
Puerto Rico
Romania
Russia & CIS
Singapore +65 6270 0110
Slovak Republic +421 (0) 2 52 92 14 23
Slovenia, Albania, Bulgaria, Serbia,
Croatia, Bosnia, Macedonia, Montenegro
South Africa
+36 (1) 382 60 60
+27 11 3131622
Sweden
Syria
+507 229 2955
+51 1 614 0000
+63 2 633 6163
+48 (22) 338 1100
+351 21 425 77 04
+1 787 750 4300
+40 21 211 4855
+7 495 6654205
Taiwan
Thailand
+886 2 2227 6214
+66 2 731 8888
+90 216 578 3700
U.A.E. (for All Middle East)
Ukraine
U.K.
U.S.A.
Vietnam +848 38370280
Factories of Systems Business Group have received
ISO14001:2004-the Environmental Management
System certification. (Except for 3rd party’s peripherals.)
SP- AGAF100
30K201011ZP-1 Printed in Japan
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Micro Four Thirds mount for use with a wide range of lenses
- 4/3-type image sensor for stunning, film-like images
- High-performance image processing and correction functions for HD motion images
- AVCCAM HD recorder section for superb image quality and extended recording time
- Variable frame rate function for slow motion and quick motion effects
- Operating system and system interfaces designed natively for video production
