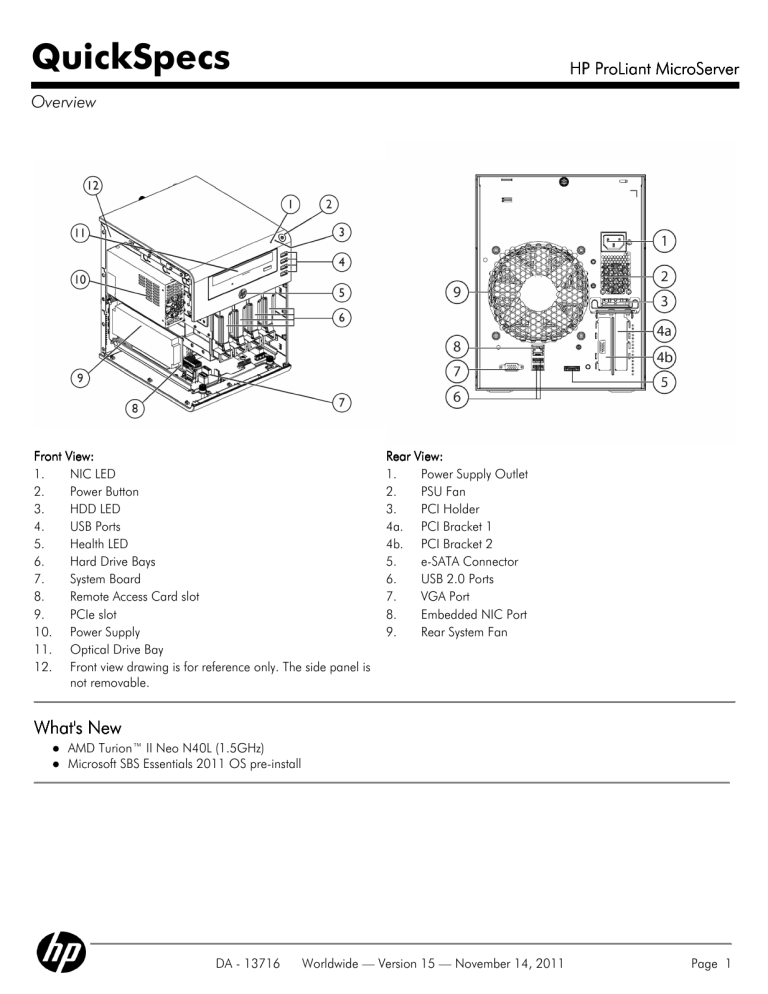

QuickSpecs
HP ProLiant MicroServer
Overview
Front View:
1.
NIC LED
2.
Power Button
3.
HDD LED
4.
USB Ports
5.
Health LED
6.
Hard Drive Bays
7.
System Board
8.
Remote Access Card slot
9.
PCIe slot
10. Power Supply
11. Optical Drive Bay
12. Front view drawing is for reference only. The side panel is
not removable.
Rear View:
1.
Power Supply Outlet
2.
PSU Fan
3.
PCI Holder
4a. PCI Bracket 1
4b. PCI Bracket 2
5.
e-SATA Connector
6.
USB 2.0 Ports
7.
VGA Port
8.
Embedded NIC Port
9.
Rear System Fan
What's New
AMD Turion™ II Neo N40L (1.5GHz)
Microsoft SBS Essentials 2011 OS pre-install
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 1
QuickSpecs
HP ProLiant MicroServer
Overview
At A Glance
Processor:
Processor
AMD Turion™ II Neo N40L (1.5GHz)
AMD RS785E/SB820M chipset
Memory:
Memory
Two (2) DIMM slots
2GB (1x2GB) Standard or 4GB (1x4GB)/8GB Maximum, using PC3-10600E DDR3 Unbuffered (UDIMM) ECC
memory, operating at max. 800MHz
Storage Controller:
Controller
Embedded AMD SATA controller with RAID 0, 1
Embedded AMD eSATA controller for connecting external storage devices via the eSATA connector in the rear of the
server
Internal Drive Support:
Support
4 Internal HDD Support
Maximum internal SATA storage capacity of up to 8.0TB (4 x 2TB 3.5" SATA drives)
Network Controller:
Controller
Embedded NC107i PCI Express Gigabit Ethernet Server Adapter
Expansion Slots:
Slots
Slot 1: PCI-Express Gen 2 x16 connector with x16 link
Slot 2: PCI-Express Gen 2 x1 connector with x1 Link
Slot 2-2: PCI-Express x4 slot for optional management card
USB 2.0 Ports:
Ports
Seven (7) USB 2.0 ports: 4 front , 2 rear, 1 internal (for tape)
Power Supply:
Supply
150 Watts Non-Hot Plug, Non Redundant Power Supply
Management:
Management
Optional MicroServer Remote Access Card
Operating System:
System
Supports Windows and Red Hat Linux
Form Factor:
Factor
Ultra Micro tower
Warranty:
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP
Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase.
Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services
are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or
three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 1 year Next Day Parts replacement, 0-Years Labor, 0-Years Onsite support. Additional
information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 2
QuickSpecs
HP ProLiant MicroServer
Standard Features
Processor
Dual-Core Processor
AMD Athlon II Processor Model Neo N36L (1.30 GHz, 15W, 2MB)
AMD Turion II Processor Model Neo N40L (1.50 GHz, 15W, 2MB)
Cache Memory
2x 1MB Level 2 cache
Chipset
AMD RS785E/SB820M
Memory Protection
ECC
Memory
Type
Standard
PC3-10600E unbuffered DDR3 ECC operating at 800MHz
1 GB (1x1GB)
2GB (1x2GB)
4GB (1x4GB)
8 GB
Maximum
Network Controller
Expansion Slots #
1
2
Embedded NC107i PCI Express Gigabit Ethernet Server Adapter
Technology
Bus Width**
Width
PCI-e
x16
Connector
Width
x16
Bus Number*
Number
Form Factor
Notes
1h
Half height, half
length slot
PCI-e
x1
x1
2h
Half height, half
length slot
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus
assignment number.
** Indicates the number of physical electrical lanes running to a PCI-e connector.
Storage Controller
Integrated SATA controller with embedded RAID (0, 1)
NOTE: Embedded RAID setup instructions are located in the MicroServer User Guide.
Internal Storage Devices
Optical Drive
Hard Drives
Optional: Half-Height SATA DVD-RW drive
1x250GB NHP SATA 7200 rpm Drive
Maximum Internal
Storage
Non-Hot Plug SATA
8TB (4 x 2TB) 3.5" SATA
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 3
QuickSpecs
HP ProLiant MicroServer
Standard Features
Interfaces
Graphics
USB 2.0 Ports
Network RJ-45 (Ethernet)
eSATA Gen 2
On board VGA
7 total (2 rear, 4 front panel, 1 internal)
1 (10/100/1000 bits/s)
1 rear
Graphics
128MB shared supporting 1920x1200 @ 60Hz
Form Factor
Ultra Micro Tower
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI 2.3 Compliant
PXE Support
WOL Support
IPMI 2.0 compliant
USB 2.0
SATA Gen 2
Security
Setup password
Security - TPM
The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to
authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.
Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module
(TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server
running Windows Server 2008 has not been tampered with while the system was offline.
NOTE: For more information about TPM, including a white paper, go to: www.hp.com/go/TPM
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing
the key could result in data loss.
Server Power Cords
7 country specific, lowline NEMA power cord.
Power Supply
150 Watts Non-Hot Plug, Non redundant Power Supply
System Fans
One (1) - Non-redundant system fan shipped standard
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 4
QuickSpecs
HP ProLiant MicroServer
Standard Features
Operating Systems
Microsoft Windows 2008 Standard Edition R2
Microsoft Windows Small Business Server 2011 Essentials
Red Hat Enterprise Linux (RHEL)
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
http://www.hp.com/go/wincert and our driver download page http://www.hp.com/support/microserver.
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 5
QuickSpecs
HP ProLiant MicroServer
Service and Support
Service and Support
For increased uptime, productivity and ROI -HP Care Pack packaged services for Servers
These days, you need to get the most out of your server investment-you can't afford not to. When you buy
HP server products and solutions, it's also a good time to think about what levels of service and support
you may need. To help take the worry out of deploying, designing, maintaining, and managing your
environment, we've designed a portfolio of service options that are as: flexible, reliable and scalable as
your server. Unlike server-only vendors, we take a holistic approach to your entire environment, bridging
storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services
for Servers.
HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold
separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides
a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical
Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and
technical services. HP Proactive Select menu offers a broad set of service options that you can mix and
match depending on your specific requirements. Proactive service options include offers for server,
storage, network, SAN device, software, environment and education services.
HP server and storage lifecycle support services offer a full spectrum of customer care-from technology
support to complex migrations to complete managed services. HP Factory Express provides
customization, integration and deployment services for turnkey solutions. HP Education Services offer
flexible, comprehensive training on to help your IT staff get the most out of your server and storage
investments. HP Financial solutions extend innovative financing and cost-effective asset management
programs-from purchase to equipment retirement.
Learn more: www.hp.com/services/servers and www.hp.com/services/storage
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order
configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 6
QuickSpecs
HP ProLiant MicroServer
Service and Support
Recommended HP Care Pack Services for optimal satisfaction with your HP product
Recommended Services
3-Year HP Hardware Support Onsite Service, 4-hour response, 13x5
Delivers increased equipment availability and productivity with rapid remote support and onsite response
for your HP server and storage hardware.
The benefits include:
Help improve or maintain system uptime
Convenient onsite support
Committed response time
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf
3-Year HP Hardware Support Onsite Service, Next-day response (9x5)
Provides high-quality remote assistance and onsite support for your covered hardware, helping you to
improve product uptime.
The benefits include:
Help improve or maintain system uptime
Convenient onsite support
Reliable response time
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner.
Expedited installation, with all service prerequisites met before the installation is performed
Installation in accordance with manufacturer's specifications, enhancing the supportability of your
HP-installed hardware and software
Service delivery at a mutually scheduled time
Allows your IT resources to stay focused on their core tasks and priorities
Availability of an HP service specialist to answer questions during the onsite delivery of this service
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 7
QuickSpecs
HP ProLiant MicroServer
Service and Support
Optional HP Care Pack Services that will enhance your HP product experience
Optional Services
3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
As an alternative to our recommended support level, for customers who need same day response service
level 24x7.
Provides you with an HP authorized representative who will arrive at the Customer's site any time and day
of the year to begin hardware maintenance service within 4 hours of the service request being logged.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf
3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour
As an alternative to our recommended support level, for customers who need committed call-to-repair
for server hardware.
Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the
system to help return the hardware to operating condition within 6 or 24 hours of the initial service
request to the HP Global Solution Center.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EN.pdf
HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services and education courses.
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 8
QuickSpecs
HP ProLiant MicroServer
Service and Support
Customer Technical
Training
HP Education Services
In today's cost-conscious business environment, IT professionals, developers, consultants and users face
an interesting challenge: how to keep up with the latest technologies and expand important skills while
delivering profitable results on current projects. To help address this challenge, HP offers innovative
training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix,
Microsoft® and open source/Linux-related topics-while spending less time away from business-critical
activities.
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction.
Additional Services
Information
To learn more on HP ProLiant servers and HP BladeSystem, please contact your HP sales representative
or HP Authorized Channel Partner, or visit: www.hp.com/services/proliant or
www.hp.com/services/bladesystem
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 9
QuickSpecs
HP ProLiant MicroServer
Models
SATA Models
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
Processor
(1) AMD Athlon™ II Neo N36L processor (1.3 GHz, 15W, 2MB)
HP ProLiant N36L 1P
1GB-U Emb SATA NHP Cache Memory
2x 1MB Level 2
SATA 250GB LFF 150W
1GB (1 x 1GB) PC3-10600E DDR3 UB ECC
Memory
PS MicroServer
Embedded NC107i PCI Express Gigabit Ethernet Server Adapter
Network Controller
633724-xx1
Embedded SATA Controller with Embedded RAID (0, 1)
Storage Controller
1x250GB Non-hot plug LFF SATA
Hard Drive
Non-Hot Plug SATA 8.0TB (4 x 2TB) Maximum
Internal Storage
None ships standard
Optical Drive
150W Non-Hot Plug, Non-Redundant Power Supply
Power Supply
Ultra Micro Tower
Form Factor
HP ProLiant N40L 1P
2GB-U Emb SATA NHP
250GB LFF 150W PS
MicroServer
658553-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Form Factor
(1) AMD Turion™ II Neo N40L processor (1.5 GHz, 15W, 2MB)
2x 1MB Level 2
2GB (1 x 2GB) PC3-10600E DDR3 UB ECC
Embedded NC107i PCI Express Gigabit Ethernet Server Adapter
Embedded SATA Controller with Embedded RAID (0, 1)
1x250GB Non-hot plug LFF SATA
Non-Hot Plug SATA 8.0TB (4 x 2TB) Maximum
None ships standard
150W Non-Hot Plug, Non-Redundant Power Supply
Ultra Micro Tower
HP ProLiant N40L 1P
4GB-U Emb SATA NHP
2x500GB LFF SBS Ess
150W PS MicroServer
658552-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Operating System
Form Factor
(1) AMD Turion™ II NEO N40L processor (1.5 GHz, 15W, 2MB)
2x 1MB Level 2
4GB (1 x 4GB) PC3-10600E DDR3 UB ECC
Embedded NC107i PCI Express Gigabit Ethernet Server Adapter
Embedded SATA Controller with Embedded RAID (0, 1)
2x500GB Non-hot plug LFF SATA with RAID 1 pre-configured
Non-Hot Plug SATA 8.0TB (4 x 2TB) Maximum
None ships standard
150W Non-Hot Plug, Non-Redundant Power Supply
Microsoft Small Business Server Essential 2011 (pre-installed)
Ultra Micro Tower
NOTE: Server model PN (66447-425) available in Europe only.
(1) AMD Turion™ II NEO N40L processor (1.5 GHz, 15W, 2MB)
HP Micro N40L NHP EU Processor
Svr
2x 1MB Level 2
Cache Memory
664447-425
4GB (1 x 4GB) PC3-10600E DDR3 UB ECC
Memory
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 10
QuickSpecs
HP ProLiant MicroServer
Models
Country Code Key
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Warranty
Form Factor
Embedded NC107i PCI Express Gigabit Ethernet Server Adapter
Embedded SATA Controller with Embedded RAID (0, 1)
None
Non-Hot Plug SATA 8.0TB (4 x 2TB) Maximum
SATA DVD-RW JB Drive
150W Non-Hot Plug, Non-Redundant Power Supply
1-1-1
Ultra Micro Tower
xx=00
US
xx=20
xx=29
xx=37
xx=42
xx=AA
Brazil
Japan
APD
Europe (Available Europe only (PN 66447-425)
PRC (Except PN 658552-xx1)
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 11
QuickSpecs
HP ProLiant MicroServer
Core Options
HP Memory
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
593923-B21
HP Optical Drives
HP Half-Height SATA DVD-RW Black Bezel Optical Drive Kit
HP Half-Height SATA DVD-ROM Optical Drive
624192-B21
447326-B21
HP Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller,
and the server backplane) should operate at the same data transfer rate or the system
bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard
Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard
Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty
Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard
Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard
Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
HP Networking
HP NC112T PCI Express Gigabit Server Adapter
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information: www.hp.com/go/ProLiantNICs
DA - 13716
Worldwide — Version 15 — November 14, 2011
593921-B21
500668-B21
507774-B21
507772-B21
458941-B21
571232-B21
458947-B21
503746-B21
Page 12
QuickSpecs
HP ProLiant MicroServer
Additional Options
HP Remote Management HP MicroServer Remote Access Card Kit
615095-B21
HP Security (TPM)
HP Trusted Platform Module Option
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline. For more information about TPM, including a white paper, go to:
www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM
deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.
488069-B21
HP Backup & Recovery
Software
Data Protector Express
HP Data Protector Express V5.0 for 1 Server E-LTU
NOTE: To see available options: http://www.hp.com/go/dataprotectorexpress
HP Tape Backup
NOTE: For the complete range of tape drives, autoloaders, libraries and media see:
http://www.hp.com/go/tape. For hardware and software compatibility of HP tape
backup products see: http://www.hp.com/go/connect.
HP DAT 40 USB Internal Tape Drive
HP DAT 72 External Drive
HP Disk Backup
NOTE: For the complete range of RDX drives and media see:
http://www.hp.com/go/rdx
USB Removable Media RDX Disk Backup Systems
HP StorageWorks RDX320 External Removable Disk Backup System
HP StorageWorks RDX320 Internal Removable Disk Backup System
HP StorageWorks RDX160 External Removable Disk Backup System
HP StorageWorks RDX160 Internal Removable Disk Backup System
DA - 13716
Worldwide — Version 15 — November 14, 2011
TC330AAE
DW022A
Q1523B
AJ768A
AJ767A
AJ766A
AJ765A
Page 13
QuickSpecs
HP ProLiant MicroServer
Additional Options
HP Uninterruptible Power HP Tower - UPS
Systems
HP T750 G2 750VA NA Tower Uninterruptible Power System
HP T750 G2 750VA INTL Tower Uninterruptible Power System
HP T750J JP Uninterruptible Power System
NOTE: For additional information please go to:
http://www.hp.com/go/rackandpower (Worldwide)
NOTE: Please see QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13160_div/13160_div.html
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com
HP USB and SD Options HP USB BFR with PVC Free US Keyboard/Mouse Kit
HP USB BFR with PVC Free UK Keyboard/Mouse Kit
HP USB BFR with PVC Free FR Keyboard/Mouse Kit
HP USB BFR with PVC Free ES Keyboard/Mouse Kit
HP USB BFR with PVC Free DE Keyboard/Mouse Kit
HP USB BFR with PVC Free JP Keyboard/Mouse Kit
HP USB BFR with PVC Free IT Keyboard/Mouse Kit
HP USB BFR with PVC Free CN Keyboard/Mouse Kit
HP USB BFR with PVC Free AE Keyboard/Mouse Kit
HP USB BFR with PVC Free RU Keyboard/Mouse Kit
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13972_div/13972_div.html
(Worldwide)
HP USB-P/S2 Mouse
HP USB Standard Keyboard
DA - 13716
Worldwide — Version 15 — November 14, 2011
AF446A
AF447A
AF456A
631341-B21
631344-B21
631346-B21
631348-B21
631358-B21
631360-B21
631362-B21
631364-B21
638212-B21
638214-B21
DC369A
DT528A#ABA
Page 14
QuickSpecs
HP ProLiant MicroServer
Additional Options
HP Care Pack Services
HP 3 year Next business day ProLiant MicroServer Hardware Support
HP 3 year 4 hour 13x5 ProLiant MicroServer Hardware Support
HP 3 year 4 hour 24x7 ProLiant MicroServer Hardware Support
HP 4 year Next business day ProLiant MicroServer Hardware Support
HP 4 year 4 hour 13x5 ProLiant MicroServer Hardware Support
HP 4 year 4 hour 24x7 ProLiant MicroServer Hardware Support
HP 5 year Next business day ProLiant MicroServer Hardware Support
HP 5 year 4 hour 13x5 ProLiant MicroServer Hardware Support
HP 5 year 4 hour 24x7 ProLiant MicroServer Hardware Support
HP 3 year 24x7 24 hour Call to Repair ProLiant MicroServer Hardware Support
UR482E
UR483E
UR484E
UR496E
UR498E
UR500E
UR502E
UR504E
UR506E
UR492E
HP 3 year 24x7 6 hour Call to Repair ProLiant MicroServer Hardware Support
HP Install ProLiant MicroSever Service
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/services/carepack.
UR494E
UR508E
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 15
QuickSpecs
HP ProLiant MicroServer
Memory
HP ProLiant Micro Server
Standard Memory
2GB (1x2GB) or 4GB (1x4GB) of PC3-10600E DDR3 UDIMM Memory kit installed
Standard Memory Replaced with Optional Memory
Up to 8GB of memory is available with the removal of the standard 2GB of memory and the optional installation of 2 x 4 GB PC310600E DDR3 UDIMM Memory kits.
NOTE: The below chart does not represent all possible memory configurations.
Memory
Slot
1A
2B
Standard
1 GB
1 GB
Empty
Optional
2 GB
2 GB
Empty
Optional
2 GB
1 GB
1 GB
Optional
4 GB
4 GB
Empty
Optional
4 GB
2 GB
2 GB
Maximum
8 GB
4 GB
4 GB
Following are memory options available from HP:
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
HP Memory
Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
DA - 13716
Worldwide — Version 15 — November 14, 2011
593923-B21
593921-B21
500668-B21
Page 16
QuickSpecs
HP ProLiant MicroServer
Storage
1
2, 3, 4, 5
Optical Drive Bay
Four (4) Non-Hot Plug Drive Bays
Drive Support
Removable Media
DVD-RW Drive
Quantity
Supported
Position
Supported
1
1
Controller
Integrated SATA
Hard Drives (SATA Models only)
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the
same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
Controller
2TB 3G SATA 7.2K
Up to 4
2-5
SATA controller with Embedded RAID on Motherboard (0,1)
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
Quantity
Position
Supported
Supported
250GB 3G SATA 7.2K
Up to 4
2-5
160GB 3G SATA 7.2K
DA - 13716
Controller
SATA controller with Embedded RAID on Motherboard (0,1)
Worldwide — Version 15 — November 14, 2011
Page 17
QuickSpecs
HP ProLiant MicroServer
Storage
Maximum Storage Capacity
SATA
Internal
8.0TB (4 x 2TB)
Tape Drives and Disk-Based Backup
NOTE: For the complete range of tape drives, autoloaders, libraries and media, including the internal fitting models, see:
http://www.hp.com/go/tape. For the complete range of D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete
range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk and tape
backup products see: http://www.hp.com/go/connect.
HP USB Tape Drives
DAT 40
DAT 72
HP USB RDX Removable
Disk Backup System
RDX160
RDX320
Position
Internal
Recommended Controller
USB 2.0 Port
Part Number
N/A
External
Internal or
External
DA - 13716
USB 2.0 port
Worldwide — Version 15 — November 14, 2011
N/A
Page 18
QuickSpecs
HP ProLiant MicroServer
Power Specifications
Part Number
Operational Input Voltage Range (Vrms)
Frequency Range (Nominal) (Hz)
Nominal Input Voltage (Vrms)
Max Rated Output Wattage Rating
Nominal Input Current (A rms)
Max Rated Input Wattage Rating (Watts)
Max. Rated VA (Volt-Amp)
Efficiency (%)
Power Factor
Leakage Current (mA)
Maximum Inrush Current (A peak)
Maximum Inrush Current duration (mS)
630295-001
100 to 127 and 200 to 240 V auto ranging
50 to 60 Hz
100
115
208
150
150
150
N/A
3.5
N/A
191.4
N/A
N/A
N/A
N/A
N/A
70%
70%
N/A
N/A
0.9
N/A
N/A
3.5
N/A
N/A
No
N/A
component
was damaged
and input fuse
shall not blow
N/A
N/A
N/A
220
150
2
N/A
N/A
N/A
N/A
N/A
N/A
N/A
230
150
2
184.9
N/A
70%
0.9
3.5
No
component
was damaged
and input fuse
shall not blow
N/A
240
150
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at
URL: http://www.hp.com/go/hppoweradvisor
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 19
QuickSpecs
HP ProLiant MicroServer
System Specifications
HP ProLiant MicroServer Fully Configured
Fully Loaded System output Wattage (W)
Fully Loaded System Input Current (A rms)
Fully Loaded System Thermal (BTU- Hr)
Fully Loaded System VA (Volt-Amp)
System Leakage with all power supplies loaded (mA)
System Inrush Current with all power supplies loaded (A)
Power cord requirements
Power Cords
Country
Australia
Brazil
Euro
France
Germany
India
Japan
PRC
Philippines/Thailand
Taiwan
UK
US
Power**
Power
(see**)
72.3 W
0.63A@115V; 0.35A@230V
115v@247.055; 230v@274.505
115v@72.45; 230v@80.5
0.91
No component damaged
Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
**Power shown is for a fully configured system consisting of (1)
CPU, (2) double-sided DIMMs, (4) HDDs, (1) DVD-ROM, (1) PCIe
X16 card & (1) PCIe X1 card and (1) power supply.
Power Cord Part Number
100661-001
438723-001
100614-009
100614-009
100614-009
397138-002
139867-005
286496-001
285052-003
393312-001
100613-008
121565-001
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 20
QuickSpecs
HP ProLiant MicroServer
Technical Specifications
System Unit
Dimensions (HxWxD)
(with feet)
Weight (approximate)
Input Requirements
(per power supply)
10.5 x 8.3 x 10.2 in (26.7x 21.0 x 26.0 cm)
Maximum
(all hard drives, power
supplies, and processors
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
Rated Line Voltage
21.16 lb (9.6 kg)
13.18 lb (5.98 kg)
100 -- 127 VAC,
200 - 240 VAC
Rated Input Current
3.5 A (at 110 VAC),
2 A (at 200 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
191.4 W (at 100 VAC),
184.9 W (at 200 VAC)
BTU Rating
Maximum
247.055 BTU/hr (at 100 VAC),
274.505 BTU/hr (at 200 VAC)
Power Specifications
To review typical system power ratings use the Power Advisor which is
available via the online tool located at URL:
http://www.hp.com/go/hppoweradvisor
Power Supply Output
Rated Steady-State Power 150 W (at 100 VAC),
(per power supply)
150 W (at 200 VAC)
Maximum Peak Power
200 W (at 100 VAC),
200 W (at 200 VAC
System Inlet Temperature Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if operating
with a fan fault or above 35°C (95°F).
Non-operating
10 to 90% relative humidity (Rh), 28°C
5 to 95% relative humidity (Rh), 38.7°C
Altitude
Operating
3050 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Idle
(Fully Loaded)
L WAd
3.9 BELS
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 21
QuickSpecs
HP ProLiant MicroServer
Technical Specifications
L pAm
Operating
L WAd
L pAm
Idle
L WAd
L pAm
Operating
L WAd
L pAm
Acoustic Noise
(Lightly Loaded)
Emissions Classification
(EMC)
HP 250GB 3G SATA
7.2K rpm LFF (3.5-inch)
Non-hot Plug Entry 1y
Warranty Hard Drive
571232-B21
4.1 BELS
24.4 dBA
3.7 BELS
21.3 dBA
3.8 BELS
22.0 dBA
FCC Rating
Normative Standards
Class B
CISPR 22; EN55022; EN55024; FCC CFR 47,
Pt 15; ICES-003; CNS13438; GB9254;
K22;K24; EN 61000-3-2; EN 61000-3-3; EN
60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and
statements.
Capacity
Height
Maximum drive dimension
Width
Depth
Maximum drive dimension
Interface
Transfer rate synchronous
(maximum)
Native Command
Queuing
Seek time (typical reads,
including settling)
Physical Configuration
Operating Temperature
DA - 13716
22.3 dBA
250,059MB
1.028 in. (26.1 mm)
4.0 in. (101.6 mm)
5.787 in (147.0 mm)
Serial ATA
3Gb/s
Supported
Single track
2.0 ms
Average
11 ms
Full-stroke
21.0 ms
Rotational speed
7,200 rpm
Bytes/Sector
512
Logical Blocks
488,397,168
50° to 95° F (10° to 35° C)
Worldwide — Version 15 — November 14, 2011
Page 22
QuickSpecs
HP ProLiant MicroServer
Technical Specifications
Embedded SATA
controller
SATA Protocol
SATA Ports
Port transfer rate
Maximum Capacity
RAID Levels Supported
Logical RAID Volumes
Supported
Embedded NC107i PCIe Network Interface
Gigabit Server Adapter
Compatibility
10Base-T/100Base-TX/1000Base-TX
Data Transfer Method
Controller
Network Transfer Rate
Connector
Cable Support
Environment-friendly
Products and Approach
SATA 2, 3Gb/s
5 internal
3Gb/s total
up to 8.0TB (4 x 2TB non-hot plug SATA HDD)
RAID 1 (Mirroring)
RAID 0 (Striping)
NOTE: On SATA models with embedded RAID, setup instructions are
located in the MicroServer User Guide
End-of-life Management
and Recycling
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Single lane (x1), 100MHz PCI Express Reference Clock
BCM5723
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and
2000Mb/s
Full-Duplex)
RJ-45 connector
10Base-T
Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100 m)
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 23
QuickSpecs
HP ProLiant MicroServer
Technical Specifications
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.
AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13716
Worldwide — Version 15 — November 14, 2011
Page 24
