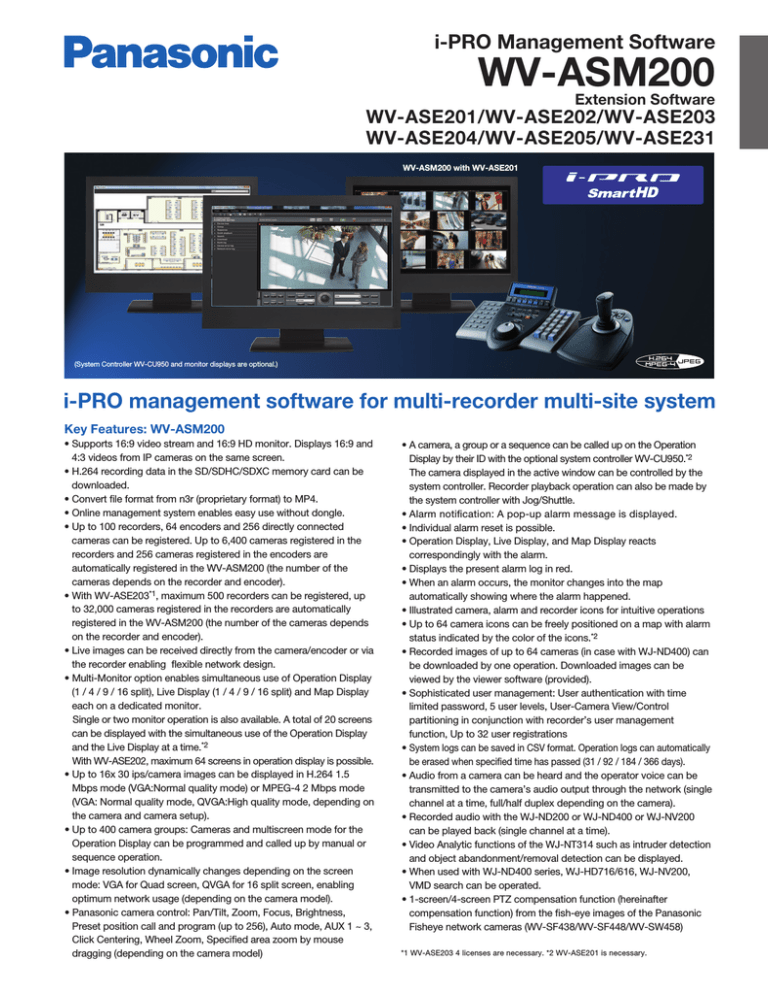

i-PRO Management Software

WV-ASM200

Extension Software

WV-ASE201/WV-ASE202/WV-ASE203

WV-ASE204/WV-ASE205/WV-ASE231

WV-ASM200 with WV-ASE201

(System Controller WV-CU950 and monitor displays are optional.)

i-PRO management software for multi-recorder multi-site system

Key Features: WV-ASM200

• Supports 16:9 video stream and 16:9 HD monitor. Displays 16:9 and

4:3 videos from IP cameras on the same screen.

• H.264 recording data in the SD/SDHC/SDXC memory card can be downloaded.

• Convert file format from n3r (proprietary format) to MP4.

• Online management system enables easy use without dongle.

• Up to 100 recorders, 64 encoders and 256 directly connected cameras can be registered. Up to 6,400 cameras registered in the recorders and 256 cameras registered in the encoders are automatically registered in the WV-ASM200 (the number of the cameras depends on the recorder and encoder).

• With WV-ASE203 *1 , maximum 500 recorders can be registered, up to 32,000 cameras registered in the recorders are automatically registered in the WV-ASM200 (the number of the cameras depends on the recorder and encoder).

• Live images can be received directly from the camera/encoder or via the recorder enabling flexible network design.

• Multi-Monitor option enables simultaneous use of Operation Display

(1 / 4 / 9 / 16 split), Live Display (1 / 4 / 9 / 16 split) and Map Display each on a dedicated monitor.

Single or two monitor operation is also available. A total of 20 screens can be displayed with the simultaneous use of the Operation Display and the Live Display at a time.

*2

With WV-ASE202, maximum 64 screens in operation display is possible.

• Up to 16x 30 ips/camera images can be displayed in H.264 1.5

Mbps mode (VGA:Normal quality mode) or MPEG-4 2 Mbps mode

(VGA: Normal quality mode, QVGA:High quality mode, depending on the camera and camera setup).

• Up to 400 camera groups: Cameras and multiscreen mode for the

Operation Display can be programmed and called up by manual or sequence operation.

• Image resolution dynamically changes depending on the screen mode: VGA for Quad screen, QVGA for 16 split screen, enabling optimum network usage (depending on the camera model).

• Panasonic camera control: Pan/Tilt, Zoom, Focus, Brightness,

Preset position call and program (up to 256), Auto mode, AUX 1 ~ 3,

Click Centering, Wheel Zoom, Specified area zoom by mouse dragging (depending on the camera model)

• A camera, a group or a sequence can be called up on the Operation

Display by their ID with the optional system controller WV-CU950.

*2

The camera displayed in the active window can be controlled by the system controller. Recorder playback operation can also be made by the system controller with Jog/Shuttle.

• Alarm notification: A pop-up alarm message is displayed.

• Individual alarm reset is possible.

• Operation Display, Live Display, and Map Display reacts correspondingly with the alarm.

• Displays the present alarm log in red.

• When an alarm occurs, the monitor changes into the map automatically showing where the alarm happened.

• Illustrated camera, alarm and recorder icons for intuitive operations

• Up to 64 camera icons can be freely positioned on a map with alarm status indicated by the color of the icons.

*2

• Recorded images of up to 64 cameras (in case with WJ-ND400) can be downloaded by one operation. Downloaded images can be viewed by the viewer software (provided).

• Sophisticated user management: User authentication with time limited password, 5 user levels, User-Camera View/Control partitioning in conjunction with recorder’s user management function, Up to 32 user registrations

• System logs can be saved in CSV format. Operation logs can automatically be erased when specified time has passed (31 / 92 / 184 / 366 days).

• Audio from a camera can be heard and the operator voice can be transmitted to the camera’s audio output through the network (single channel at a time, full/half duplex depending on the camera).

• Recorded audio with the WJ-ND200 or WJ-ND400 or WJ-NV200 can be played back (single channel at a time).

• Video Analytic functions of the WJ-NT314 such as intruder detection and object abandonment/removal detection can be displayed.

• When used with WJ-ND400 series, WJ-HD716/616, WJ-NV200,

VMD search can be operated.

• 1-screen/4-screen PTZ compensation function (hereinafter compensation function) from the fish-eye images of the Panasonic

Fisheye network cameras (WV-SF438/WV-SF448/WV-SW458)

*1 WV-ASE203 4 licenses are necessary. *2 WV-ASE201 is necessary.

Extension Softwares

Key Features:

WV-ASE201

• Add Live window, Map window in addition to the Operation

window (3 monitors)

• Control using the Ethernet System Controller WV-CU950

• Expand the maximum numbers of screens to 20.

* To use the multi-monitor function, it is necessary to install an additional video card on the PC in use.

WV-ASE202

• Expand the maximum numbers of screens to 64.

• Up to 4 live windows.

• Multi-monitor function using up to 6 PC monitors.

• To display the operation window, the map window and the 4 map

windows simultaneously.

WV-ASE203

• Expand the maximum numbers of registered recorders,

encoders and cameras to 100, 64 and 256 respectively.

• Up to 4 licenses for the WV-ASE203 can be added.

WV-ASE204

• Decoder registration: Up to 10 decoders

WV-ASE205

• Visibility Enhancement Function

Spatial Tonal Correction Snowfall and Rainfall Noise Reduction Multi-frame Synthesis Noise Reduction

Spatial Tonal Correction , Snowfall and Rainfall Noise Reduction

WV-ASE231

• Extension software for connecting to Facial Recognition Analytics Platform (WV-ASF900)

Face Search Face Matching People Counting, Age and Gender Statistics

* WV-ASF900 is necessary.

Face Search

Optional Accessory

Ethernet System Controller with

3D-Joystick & Jog/Shuttle

WV-CU950

(WV-ASE201 is necessary.)

People Counting,

Age and Gender Statistics i-VMD

(Intelligent Video Motion Detection) track path display

* WV-ASE200 is required for each cameras.

Software Comparison Chart

Functions

WV-ASM200 (V.2.0 or later)

Management Software - Basic

Main Functions / Description

Supported

Devices

Camera

Recorder

Direct

Via Recorder

NVR

Max. Devices

DVR

Encoder

Decoder

Controller

Camera Direct

Via Recorder

Live / Playback / Control i-PRO series

i-PRO series, BB series *1

WJ-ND400 series, WJ-ND300 series,

WJ-ND200 series,WJ-NV200 series

WJ-HD716/616, WJ-HD300A series

WJ-GXE500

256

6,400 (with WJ-ND400 series)

+WV-ASE201

Extension

Software

WV-CU950

3,200 (with WJ-ND300 series)

1,600

(with WJ-ND200 series / WJ-NV200 series)

Via Encoder

Via Decoder

256 (with WJ-GXE500)

Recorder

Encoder

Decoder

Controller

Supported Image Format

Supported Image Resolution

100

64

H.264, MPEG-4 (i-PRO series), M-JPEG

2,048 x 1,536, 1,920 x 1,080,

1,280 x 960, 1,280 x 720, 960 x 720,

800 x 600, 640 x 480, 640 x 360,

320 x 240, 320 x 160

(depending on the source equipment)

16

Yes

Max. screens

AVMD Display (Frame and Tracking Line)

Multiple Monitors Supported

Map Function

Audio

Event Search (T&D, Event type etc.)

VMD Search

Yes (Live: 2-way, Playback: 1-way)

Yes

Yes

(with WJ-ND400 series,

Image Download

Visibility Enhancement

WJ-HD716/616, WJ-NV200)

Yes

Face Search *3

Face Matching *3

People counting *3

Age and Gender Statistics *3

1

20

Yes (Up to 3 monitors:

Operation / Live / Map)

Yes

*1 Specific Models only. Also, JPEG only is supported and camera control is not supported.

*2 WV-ASE203 x 5 licenses and 500 recorders are necessary.

*3 WV-ASF900 is necessary.

+WV-ASE202

Extension

Software

64

+WV-ASE201

+WV-ASE202

Extension

Software

+WV-ASE203

Extension

Software

+WV-ASE204

Extension

Software

WV-CU950

Max. 1,280 *2

Max. 32,000

(with WJ-ND400 series) *2

Max. 16,000

(with WJ-ND300 series) *2

Max. 8,000 *3

(with WJ-ND200 series) *2

Max. 1,280 *3

500 *3

320 *3

WV-GXD400

10

1

68

Yes (Up to 6 monitors:

Operation / Live / Map)

Yes

+WV-ASE205

Extension

Software

+WV-ASE231

Extension

Software

Yes

Yes

Yes

Yes

Yes

About the optional registration

<The extensive options for Fisheye network cameras>

To use the extensive options for Fisheye network cameras, registration is required. To register the options, it is necessary to enter the "Registration Key" obtained from the Key Management System.

Refer to the provided "Activation Key Card" to obtain the "Registration Key" of this software. Enter the following numbers for the Activation Key No. and the Registration ID.

Activation Key No. : 0401-0065-000A-1234 Registration ID : 2397-55CC

* To use the options, WV-ASM200 Ver.1.40 or later (option) is required. * Refer to "WV-ASM200 Series Setup Instructions (PDF)" for how to register the options for the product in use.

System Example

Analog Camera x 4 Network Camera x 28 Network Camera x 16

Switch

H.264/MPEG-4/

JPEG Encoder

WJ-GXE500

360-degree Camera

Network Disk Recorder

WJ-ND400 fish-eye Quad PTZ WV-CU950

Switch

Network Disk Recorder

WJ-NV200

Facial Recognition

Analytics Platform

WV-ASF900

PC

WV-ASM200 with WV-ASE201 and WV-ASE231

Specifications: WV-ASM200

GUI

Function

General

Network

Viewer

Software

Camera Control

(depending on the Camera)

Recorder Control

(depending on the Recorder)

Event Search

VMD Search

Multiscreen Mode

Sequence Display

Display Performance

Multi-Monitor *1

Camera Group Display

Number of Maps *1

Image Download

SD memory Download

Recorder/Camera Access

File Conversion

Camera Title Display

Clock Display

Alarm Source

Alarm Control

Alarm Action

Digital Zoom

Text Attachment

System Log

Recorder Log Download

User Management

Security Method

System Setup

GUI Language

Supported OS

Required PC

*2

CPU

Memory

Graphic accelerator

CD-ROM drive

Required HDD space

Monitor

Network interface

Proxy

FTP

Playback Control

Additional Functions

Web browser

Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256),Auto mode (SEQ, SORT, AUTO PAN, PATROL, AUTO TRACK), AUX 1 ~ 3,

Click centering, Wheel zoom, Drag and zoom

REC, PLAY, Rev PLAY, Pause, Stop, FF (up to 96x), REW (up to 96x), Prev Record, Next Record, Prev Image, Next Image, Skip (up to 60 min.),

Rev Skip, (up to 60 min.) Text

Target: Recorder (Camera) / Group / Map *1 , Search criteria: Time date, Event type, Text

In case with WJ-ND400 series, WJ-HD716/616, WJ-NV200, WV-ASR500

Spot / Quad (A-D) / 9 split / 16 split

10 programs, 64 steps/pattern, Spot / Quad / 9 split / 16 split Dwell time: 3s / 5s / 10s / 15s / 20s / 25s / 30s / 35s / 40s / 45s / 50s / 55s / 1min

30 ips x 16 screens at H.264 1.5 Mbps, 30 ips x 16 screens at MPEG-4 2 Mbps

Up to 3 monitors (Operation / Live / Map), Up to 20 cameras can be displayed (Operation-4, Live-16)

Up to 400 groups with 16 alphanumeric titles

Up to 100 maps (JPEG or Bit map), Link: 64 cameras and 20 maps / map

Recorded images of up to 64 cameras (in case with WJ-ND400) can be downloaded Manual download only. Viewer software can be extracted from the main software.

Indicates the function featured in some Panasonic's cameras that transfers H.264 video files (mp4 files) saved on the SD memory card equipped with the camera to a PC using the FTP function.

The access to the Recorder and Camera Web pages when logged in as admin

Convert a n3r file to the standard format (mp4)

On the GUI, Up to 16 characters

On the GUI. Time: 12H/24H, Date: 5 formats (When the image comes from the recorder)

Panasonic alarm protocol

Reset, Auto reset (OFF / 10s / 20s / 30s / 1min / 5min)

Up to 16 alarm images can be displayed on the live monitor. Corresponding camera icon on the map lights up. Alarm message on the GUI and buzzer.

Up to 4 times

Free comment can be attached for each record and reviewed at later time. Up to 200 characters

Operation (100,000), System (1,000), Network error (1,000), Rec order error (1,000), Alarm (30,000)

Operator access, Network error, Error, Event

Registration: Up to 32 users + Administrator, ID: 4-14 digit, PW: 4-8 digit, User level: 5 levels (Programmable), PW time limit: OFF / 31 / 92 / 184 / 366 days,

Auto login: ON / OFF

User authentication (ID and Password), Host authentication (IP address), Alteration detection, Activation Key Card

Setup page in English, French, Italian, Spanish, German, Russian, Chinese, Japanese

English, French, Italian, Spanish, German, Russian, Chinese, Japanese

Microsoft ® Windows ® 8.1 Pro 32bit/64bit *3 , Microsoft ® Windows ® 8 Pro 32bit/64bit *3 ,

Microsoft ® Windows ® 7 Professional SP1 32bit/64bit *3 , Microsoft ® Windows Vista ® Business SP2 32bit/64bit *3

The language of the OS must be same as selected GUI language.

Intel ® Core™ i5-2400, 2500, Intel ® Core™ i7-860 or faster

When adding the license for WV-ASE202 and displaying images on a 64-screen: Intel ® Core™ i7-3770

When adding the license for WV-ASE205 (Visibility enhancement function) : Intel ® Core™ i7-4770 or faster

*Recommend a PC exclusively for WV-ASE205.

3 GB or more,

When using more than one live window: 4 GB

VRAM: 512 MB or more (256 MB min.), compatible with Microsoft ® DirectX ® 9.0c or later

When using WV-ASE202: NVIDIA NVS510 x 2

When using WV-ASE205 (Visibility enhancement function): NVIDIA GeForce ® GTX 660 or more

(The version GeForce 332.21 or later is recommended for the driver software)

Necessary to install this software

Approx. 3GB

1280x800 pixels or more (1920x1080 pixels recommended), 24-bit True color or better (Full color recommended)

100/1000 Mbps Network interface card must be installed. When using WV-ASE202: FS215AA

Microsoft ® Internet Explorer ® 7.0, 8.0, 9.0

HTTP proxy supported (IP address and port No.)

Passive/Active

Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next Image

Alteration detection, Save as JPEG, Two times zoom, Print

*1 WV-ASE201 is necessary. *2 Microsoft ® Windows ® XP not supported

*3 It is out of warranty that you use the two graphical board together.

In case of 4 monitor output in a graphical board, you should design the followings only.

+ Operational monitor, Map monitor, live monitor 1 and live monitor 2

+ Operational monitor, live monitor 1, live monitor 2 and live monitor 3

Operation Window

Menu Bar Tool Bar Status Bar

Information

Display Area

Function Panel Operation Panel

Trademarks and registered trademarks

– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

– Intel and Intel Core are registered trademarks of Intel Corporation.

– NVIDIA, GeForce are registered trademarks of NVIDIA Corporation in the U.S. and/or other countries.

– "i-PRO SmartHD" logo is trademarks or registered trademarks of Panasonic Corporation.

Important

– Panasonic recommends a dedicated PC to prevent installation errors and to keep best performance.

– Safety Precaution: Carefully read the Important Information, Installation Guide and operating instructions before using this product.

– Panasonic cannot be responsible for the performance of the network and/or other manufacturers' products used on the network.

– When remote monitoring, please pay attention to the network design. For details, please contact your local Panasonic sales representatives.

DISTRIBUTED BY:

• All TV pictures are simulated.

• Masses and dimensions are approximate.

• Specifications are subject to change without notice.

http://security.panasonic.com

http://www.facebook.com/PanasonicNetworkCamera

(2A-081EL)
