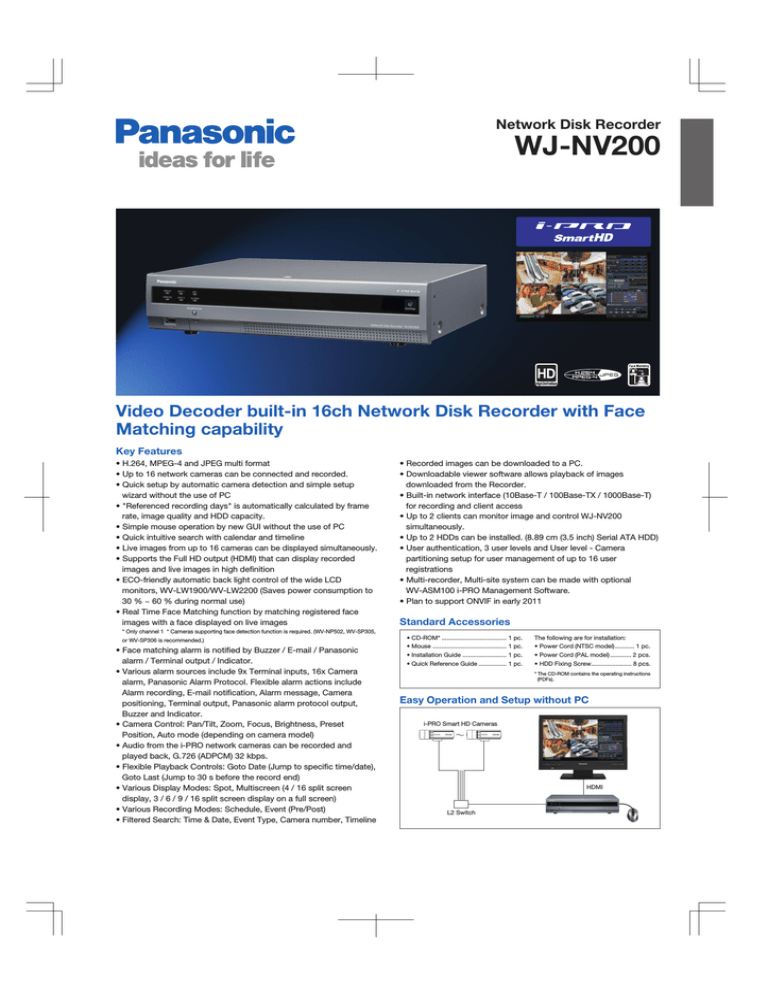

Network Disk Recorder
WJ-NV200
Video Decoder built-in 16ch Network Disk Recorder with Face
Matching capability
Key Features
• H.264, MPEG-4 and JPEG multi format
• Up to 16 network cameras can be connected and recorded.
• Quick setup by automatic camera detection and simple setup
wizard without the use of PC
• "Referenced recording days" is automatically calculated by frame
rate, image quality and HDD capacity.
• Simple mouse operation by new GUI without the use of PC
• Quick intuitive search with calendar and timeline
• Live images from up to 16 cameras can be displayed simultaneously.
• Supports the Full HD output (HDMI) that can display recorded
images and live images in high definition
• ECO-friendly automatic back light control of the wide LCD
monitors, WV-LW1900/WV-LW2200 (Saves power consumption to
30 % ~ 60 % during normal use)
• Real Time Face Matching function by matching registered face
images with a face displayed on live images
* Only channel 1 * Cameras supporting face detection function is required. (WV-NP502, WV-SP305,
or WV-SP306 is recommended.)
• Face matching alarm is notified by Buzzer / E-mail / Panasonic
alarm / Terminal output / Indicator.
• Various alarm sources include 9x Terminal inputs, 16x Camera
alarm, Panasonic Alarm Protocol. Flexible alarm actions include
Alarm recording, E-mail notification, Alarm message, Camera
positioning, Terminal output, Panasonic alarm protocol output,
Buzzer and Indicator.
• Camera Control: Pan/Tilt, Zoom, Focus, Brightness, Preset
Position, Auto mode (depending on camera model)
• Audio from the i-PRO network cameras can be recorded and
played back, G.726 (ADPCM) 32 kbps.
• Flexible Playback Controls: Goto Date (Jump to specific time/date),
Goto Last (Jump to 30 s before the record end)
• Various Display Modes: Spot, Multiscreen (4 / 16 split screen
display, 3 / 6 / 9 / 16 split screen display on a full screen)
• Various Recording Modes: Schedule, Event (Pre/Post)
• Filtered Search: Time & Date, Event Type, Camera number, Timeline
• Recorded images can be downloaded to a PC.
• Downloadable viewer software allows playback of images
downloaded from the Recorder.
• Built-in network interface (10Base-T / 100Base-TX / 1000Base-T)
for recording and client access
• Up to 2 clients can monitor image and control WJ-NV200
simultaneously.
• Up to 2 HDDs can be installed. (8.89 cm (3.5 inch) Serial ATA HDD)
• User authentication, 3 user levels and User level - Camera
partitioning setup for user management of up to 16 user
registrations
• Multi-recorder, Multi-site system can be made with optional
WV-ASM100 i-PRO Management Software.
• Plan to support ONVIF in early 2011
Standard Accessories
• CD-ROM* ..................................... 1 pc.
• Mouse .......................................... 1 pc.
• Installation Guide ......................... 1 pc.
• Quick Reference Guide ................ 1 pc.
The following are for installation:
• Power Cord (NTSC model) ........... 1 pc.
• Power Cord (PAL model) ............ 2 pcs.
• HDD Fixing Screw....................... 8 pcs.
* The CD-ROM contains the operating instructions
(PDFs).
Easy Operation and Setup without PC
i-PRO Smart HD Cameras
HDMI
L2 Switch
Specifications
Alarm/
Event
Alarm Source
Face Matching
Event Mode
Alarm Action
Alarm Control
Event Log
Input /
Spot Output Connector
Output
Monitor (HDMI) Connector
Audio Output Connector
Alarm/Control Alarm
Connector
Control
(25pin D-sub) Error/
Warning
Mouse Connection Port
Network Port
SDHC/SD Memory Card Slot
Network Maximum Bandwidth
Supported Protocol
E-mail
No. of Simultaneous Users
User Registration
User Level
Partitioning
Security Method
Other
Time Synchronization
Functions Summer Time
HDD
Type
Viewer
Playback Control
Software Additional Functions
Supported OS, Language
General
Safety/EMC Standard
Specifications
Power Source
Power Consumption
Front View
Status Indicators
Buzzer Stop Button
Mouse Connection Port
Restart Button
SDHC/SD Memory Card Slot
Rear View
Power Cord Inlet
Alarm/Control Connector (25pin D-sub)
Network Port
Spot Output Connector (BNC)
Audio Output Connector (RCA pin jack)
Monitor Output Connector (HDMI)
HDD Slots (HDD1/HDD2)
SIGNAL GND Terminal
Appearance
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– Axis is a registered trademark of Axis Communications AB.
– UniPhier is a registered trademark of Panasonic Corporation.
– "Super Dynamic", "SDII", "SDIII", "SD5", "SD5Link", "i-PRO" and "i-PRO SmartHD" logos are trademarks or registered trademarks of Panasonic Corporation.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
420(16-17/32")
210(8-1/4")
Required PC M-JPEG/
MPEG-4
H.264
Part Names and Functions
38
(1-1/2")
Copy
Camera Title
Clock Display
Digital Zoom
System Log
GUI Language
Supported OS and
Browser Combination
*1: Non-voltage make contact input, 50 kΩ +5 V DC pull-up
*2: Open collector output, 24 V DC, 100 mA max. *3: 200 mA max.
280(11-1/32")
Search Mode
Display Mode
Image Download
Mass (approx.)
NTSC
PAL
Main body: +5 °C ~ +45 °C (41 °F ~ 113 °F)
Mouse (provided): +5 °C ~ +40 °C (41 °F ~ 104 °F)
5 % ~ 90 % (without condensation)
2,000 m (6,562 feet) above sea level
420 mm (W) x 88 mm (H) x 300 mm (D)
(16-17/32" (W) x 3-15/32" (H) x 11-13/16" (D))
(excluding rubber feet and projections)
4.8 kg (10.6 lbs.) without HDD
5.6 kg (12.36 lbs.) with 1 HDD
6.4 kg (14.13 lbs.) with 2 HDDs
20
(13/16")
Playback Control
TV System
General
Ambient Operating
Specifications Temperature
Ambient Operating Humidity
Maximum Operating Altitude
Dimensions
88
(3-15/32")
Browser
GUI
Search Mode
Copy
Camera Title
Clock Display
Digital Zoom
System Log
System Setup
Camera Control
NTSC
PAL
Panasonic i-PRO series Network cameras (Contact Panasonic for Axis® cameras)
H.264, MPEG-4, M-JPEG
SXVGA (1,280 x 960), VGA (640 x 480), QVGA (320 x 240) (Depending on the camera)
G.726 (ADPCM) 32 kbps
16
Event, Schedule
Up to 15 seconds
2 programs, 3 time zones/day, Independent setup for each day of the week
Up to 30 ips (Depending on the Camera)
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256),
Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus
4 / 16 split screen display, 3 / 6 / 9 / 16 split screen display on a full screen
PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record,
Prev Image, Next Image, Goto Date, Goto Last (30 s)
Search criteria: Time date, Playback by designating a timeline, VMD
Recorded data of selected cameras and time date range can be copied to the SD (SDHC) card.
Up to 14 characters
Time: 12H/24H, Date: 5 formats
Live: 2x, 4x, 8x (only for 1-screen or 4-screen) Play: 2x, 4x, 8x
Operator access (100), Network error (100), Error (1,000), Event (750)
Setup page in English, French, Italian, Spanish, German, Russian, Japanese
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256),
Auto mode, Click centering, Wheel zoom, Zoom reset
REC, PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record,
Prev Image, Next Image, Goto Date, Goto Last (30 s)
Search criteria: Time date, Event type, VMD, Camera number
1 / 4 screen
Recorded data of selected camera and time range can be
downloaded to a PC. Viewer software can be downloaded separately.
Recorded data of selected cameras and time date range can be copied to the SD (SDHC) card.
Up to 14 characters
On the browser. Time: 12H/24H, Date: 5 formats
Live/Play: 2x, 4x (only for 1-screen)
Operator access (100), Network error (100), Error (1,000), Event (750)
English, French, Italian, Spanish, German, Russian, Japanese
Microsoft® Windows® 7 Professional 64 bit/32 bit & Windows® Internet Explorer® 8.0,
Microsoft® Windows Vista® Business SP1 32 bit & Windows® Internet Explorer® 7.0
The language of OS must be the same as selected GUI language.
CPU: Intel® Core™ 2 Duo 2.66 GHz or faster, RAM: 1 GB or more,
VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later
CPU: Intel® Core™ i7-920 or faster, RAM: 3 GB or more,
VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later
9x Terminal inputs, 16x Camera alarms, Panasonic Alarm Protocol
Off / On
Off / On
Alarm recording, e-mail notification, Alarm message, Camera positioning,
Terminal output, Panasonic alarm protocol output, Buzzer, Indicator
Reset
750
1x 1 V [p-p] / 75 Ω (BNC)
1x HDMI
1x −10 dBv, 600 Ω, Unbalanced (RCA)
Alarm input 1 ~ 9*1, Alarm output*2, Alarm reset input*1, Face matching output*2
Time adjustment input*1, +5 V output*3
Network error output*2, HDD error output*2, Camera error output*2,
Recorder error output*2, Recording error output*2
1x
1x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ-45)
SDHC/SD memory cards applicable (miniSD cards and microSD cards not applicable)
Total 80 Mbps or less
TCP/IP, UDP/IP, HTTP, FTP, SMTP, DNS, NTP, SNMP, RTP
Upon Alarm or Warning
2 or less
Up to 16 users
3 Levels (Programmable)
User level - Camera (View & Control, No Access)
User authentication (ID and Password), Alteration detection
Terminal (Slave), NTP (Server/Client)
User definable (using menu setup)
8.89 cm (3.5 inch) Serial ATA HDD, Up to 2x HDDs can be installed.
Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image
Alteration detection, Save as JPEG, Two times zoom, Print, Copy
Same as browser GUI, Language of the software will be English
UL (UL60065), FCC (Part15 ClassA), CE (EN60065, EN55022 ClassB,
C-UL (CAN/CSA C22.2 No.60065),
EN55024),
DOC (ICES003 ClassA)
GOST (GOST R 51558)
120 V AC, 60 Hz
220 ~ 240 V AC, 50 Hz/60 Hz
approx. 45 W
316(12-7/16")
10.5
(7/16")
TV System
Supported Supported Cameras
Cameras Supported Image Format
Supported Image Resolution
Supported Audio Format
Maximum Number of Cameras
Recording Recording Mode
Pre-alarm Recording
Scheduled Recording Mode
Frame Rate/Camera
Main Unit Camera Control
Functions
Multiscreen Mode
Playback Control
Unit: mm (inches)
• All TV pictures are simulated.
• Masses and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
