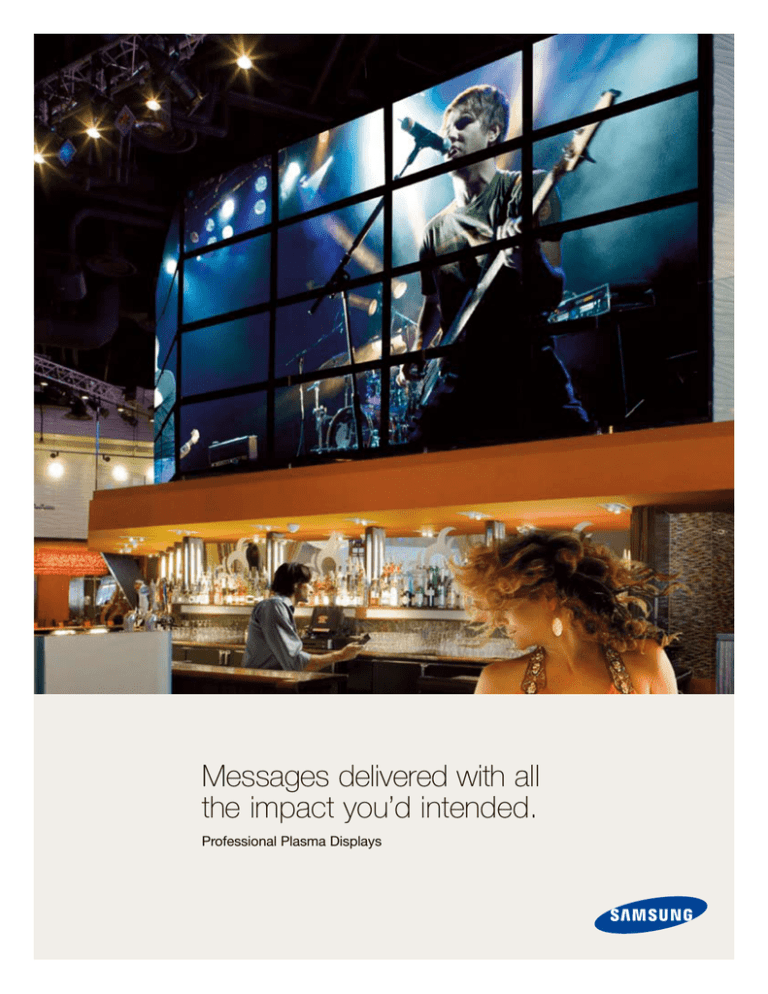

Messages delivered with all
the impact you’d intended.
Professional Plasma Displays
Samsung Professional Plasma Displays
H Series Displays
P42H, P50H
A cost-effective, best-in-class solution with slim connectivity
(PC: VGA/DVI, Video: CVBS/HDMI), and performance wellsuited to any type of motion video.
Indoor Entertainment Venues: Indoor stadiums, auditoriums, digital movie
theaters, civic centers, convention centers, museums, parks, hotel lobbies,
bars, casinos, clubs
Indoor Retail/Signage/Billboard: Point of Sale (POS) displays or instore TVs at convenience stores, book stores, movie theaters, quick-serve
restaurants, grocery stores, coffee shops, pharmacies, department stores
and shopping malls
Rental & Staging: Rental and transportable displays for staging, concerts,
trade shows and other events
HP Series Displays
P42HP, P50HP
A high-impact plasma with full connectivity (PC: VGA/DVI/
BNC, Video: CVBS/HDMI/Component), that’s perfect for
videoconferencing and distance learning, or for companywide employee communications.
Indoor Entertainment Venues: Indoor stadiums, auditoriums, digital movie
theaters, civic centers, convention centers, museums, parks, hotel lobbies,
bars, casinos, clubs
Indoor Retail/Signage/Billboard: Point of Sale (POS) displays or instore TVs at convenience stores, book stores, movie theaters, quick-serve
restaurants, grocery stores, coffee shops, pharmacies, department stores
and shopping malls
Rental & Staging: Rental and transportable displays for staging, concerts,
trade shows and other events
Samsung professional plasma displays are engineered for maximum performance, reliability and impact.
No matter your message, no matter your application, there’s a Samsung display that’s perfect for you.
F Series Displays
P50F, P63F
For environments that require a professional product
that can display 1080P full HD video content, with slim
connectivity (PC: VGA/DVI, Video: CVBS/HDMI) and
built-in speakers.
Indoor Entertainment Venues: Indoor stadiums, auditoriums, digital movie
theaters, civic centers, convention centers, museums, parks, hotel lobbies,
bars, casinos, clubs
Indoor Retail/Signage/Billboard: Point of Sale (POS) displays or instore TVs at convenience stores, book stores, movie theaters, quick-serve
restaurants, grocery stores, coffee shops, pharmacies, department stores
and shopping malls
TO COME
FP Series Displays
P50FP, P63FP
For motion video applications which demand greater
flexibility, enhanced display management and improved
screen performance, with 1080P full HD video content and
full connectivity (PC: VGA/DVI/BNC, Video: CVBS/HDMI/
Component).
Indoor Entertainment Venues: Indoor stadiums, auditoriums, digital movie
theaters, civic centers, convention centers, museums, parks, hotel lobbies,
bars, casinos, clubs
Indoor Retail/Signage/Billboard: Point of Sale (POS) displays or instore TVs at convenience stores, book stores, movie theaters, quick-serve
restaurants, grocery stores, coffee shops, pharmacies, department stores
and shopping malls
Long-Lasting Pictures
Longer Lifespan
Conventional Plasma
Samsung Plasma
Samsung prides itself on the long life of its plasma
displays. An average user who watches for 8 hours
a day can use it for the next 20 years (60,000 hours). Don’t
worry about product durability. You enjoy the premier-quality
Samsung Plasma Display for as long as you want.
6 Types of Anti Burn-in Protection
Samsung engineers plasma displays to last. One of the ways is with anti burn-in protection. An anti burn-in protection
timer in the OSD Menu lets you choose among six types of anti burn-in protection, as well as time period of operation and
duration of operation. For example, if you select All White, 1 hour period, 5 minutes operation time, the Samsung plasma display
automatically operates All White mode every hour for 5 minutes.
Pixel Shift
This option minutely moves pixels horizontally or vertically to prevent after-image.
All White
This option removes after-images by changing the color of all pixels to white. Use this function
when there are remaining after-images or symbols, especially when a still image has been
displayed for a long time.
Signal Pattern
This option removes after-images by moving all the pixels according to a pattern. This function is
useful when there are remaining after-images or symbols, especially when a still image has been
displayed for a long time.
Bar
This option removes after-images when the plasma display remains on for prolonged periods by
crossing a vertical white bar from left to right. Unlike All White and Signal Pattern, this function
can reduce burn-in while you watch the plasma display. The bar mode function interferes with
viewing when the vertical white bar crosses.
Inverse
This option removes after-images when the plasma display remains
on for prolonged periods by converting RGB input signal into GBR.
Unlike All White and Signal Pattern function, this function can reduce
burn-in while you watch the plasma display. Using the inverse
function interferes with viewing by reversing colors on the screen.
Bar and Inverse
This option combines the Bar and Inverse anti burn-in functions. It
removes after-images by crossing a vertical white bar from left to
right, and by converting RGB input signal into GBR. Unlike All White
and Signal Pattern function, this function can reduce burn-in while you
watch the plasma display. Using the bar and inverse function interferes
with viewing when the bar crosses and when the colors reverse.
Superior
SuperiorPictures
PicturesThrough
ThroughSuperior
SuperiorTechnologies
Technologies
Samsung fulfills the demand for lifelike picture quality by creating natural images with vivid color, precise
detail and rich contrast.
High Brightness and Contrast Ratio
Conventional Plasma
Contrast 3,000:1 /
Brightness 1,000 cd/m2
Samsung Plasma
Contrast 30,000:1 /
Brightness 1,300 cd/m2
High power consumption has often been
pointed out as a big weakness of plasma
displays. It’s a problem that can’t be resolved any further
within the confines of conventional plasma display cell
structure technology. So Samsung changed the entire panel
structure from rectangular to octagonal cells. The result is
high brightness levels of up to 1300 cd/m2 and contrast
ratios of up to 30,000:1 with lower power consumption.
HD Ready
The first thing you’ll notice about Samsung HDTV
is the exceptional clarity on a wide screen. With
Samsung’s cutting-edge technologies, HDTV displays deliver
incredible, razor-sharp images.
Conventional Plasma
Samsung Plasma
Stunning Full HD 1080p
Full HD 1080p support gives you the highest resolution digital images available. Images displayed at 1920 x 1080 employ 1.5 times
more scanning lines than conventional HD resolution, and are twice the resolution of standard HD.
1365
768
1920
1080
Versatile Display Control
Multi Display Control (MDC)
The more control the better, especially when it’s easy. The built-in RS-232C interface allows you to control up to 25
displays from your PC with Samsung’s MDC software, using the serial port (DB-9) of the display. Just install the free
MDC software supplied, list the units to be controlled, and click on the functions you want to control. It’s that simple.
Larger, More Natural Video Walls
Impressive Video Walls
A built-in video wall processor
in every Samsung professional
display lets you create huge
video walls up to 5 displays
high by 5 displays wide,
without any external controller
necessary.
Natural Mode
Vertical Image Capability
Samsung video walls let you display in
either Full or Natural mode. Full mode
displays the entire picture, just as it is. Natural mode
compensates for the bezel width, and displays a natural,
distortion-free image over the entire video wall.
Landscape idea or portrait idea? You’re not
limited with Samsung. Our plasma display can
be mounted either horizontally or vertically. A cooling fan
that operates automatically enables vertical mounting with
the same basic performance and functions as ordinary
horizontal mounting. They’re ideal as electronic signboards
for storefronts or public places.
Full Mode
Natural Mode
VESA Flat Display Mounting Support
Supporting VESA flat display mounting interface
standard, Samsung plasma monitors enable simple third
party installation. VESA wall mount standard holes are
incorporated into the design to allow enhanced installation
options and versatility.
Horizontal View
Vertical View
Versatile Connectivity
Full Connectivity with HDMI
Select Samsung plasma displays offer full connectivity, with PC inputs (VGA/DVI/BNC) and Video inputs (CVBS/HDMI/Component).
You’ll have unlimited flexibility in your content source.
a
c
b
d
e
g
f
h
i
j
k
Slim Connectivity with HDMI
Select Samsung plasma displays offer cost-effective slim connectivity with PC inputs (VGA/DVI) and Video inputs (CVBS/HDMI).
You get the connections you need, without paying for the ones you don’t.
a
b
c
d
a. POWER IN Connect the supplied power cord.
b. RS-232C
- OUT: Used for the MDC function when connecting with RS-232C input of
another PDP Display.
- IN: Used for the MDC function when connecting PC or RS-232C output
of another PDP Display.
c. DVI/PC/HDMI AUDIO IN Connect to the audio output jack on your PC or
DVI. AUDIO is an audio input jack for PC1 and PC2 modes.
d. HDMI IN Connect to the HDMI jack of a device with HDMI output.
- This input can also be used as a DVI connection with separate analog audio
inputs. An optional HDMI/DVI cable will be necessary to make this connection.
- When using an optional HDMI/DVI adapter, the DVI analog audio inputs on
your PDP Display allow you to receive left and right audio from your DVI device.
e. DVI IN Connect to the video output jack for device with DVI output.
e
f
g
h
i
j
f. RGB IN Connect for RGB HV video signal input from the PC.
(PC Mode from this page onward means PC1/PC2 mode using RGB1
[PC1] and RGB2[PC2].
g. DC OUT Connect this to the power connector of a TV tuner box or
network box.
h. AV IN (VIDEO) (Video Connection Terminal) connect the video terminal
of your monitor to the video output terminal of the external device using a
video cable.
i. AV AUDIO IN (L-AUDIO-R) LCD Display Audio Connection Terminal (input)
j. AV AUDIO OUT (L-AUDIO-R) LCD Display Audio Connection Terminal (output)
k. BNC/COMPONENT OUT/IN Video (Y/PB/PR) and audio (L/R) inputs for component.
- BNC Connection: Connecting the R, G, B, H, V ports.
- Component Connection: Connecting the PR, Y, PB ports.
Optional Set Back Boxes
Add expanded functionality to your display with
a Samsung set back box. The SBB-DT adds a
digital TV tuner for displaying over-the-air HD
content, while the SBB-NT adds a compact CPU
for easy content control via your network. And
both are quick and easy to install with a proprietary HDMI
connection. No professional installation required.
SBB-NT Instant Networking
The SBB-NT set back box makes controlling
content even easier. Install the set back
box, plug the display into your network, and
control your display with Samsung Magicinfo
Pro software over the network.
SBB-DT Digital TV Tuner
The SBB-DT set back box features
built-in analog and digital tuners that let
you receive and display 720p and 1080i
high-definition television broadcasts. Coaxial and HDMI connections
give you all the options you need to pull in all the content you want.
You can also access and display real-time caption content such
as weather reports, stock updates, flight schedules and more.
Network SBB
DTV Tuner SBB
DTV Tuner SBB
ATSC
DVB-T
The ace, the best October pitcher alive today, is healthy, fresh and throwing the ever-living
Professional Plasma
Display Dimensions
and Accessories
1.3"
3.1"
10.9"
1.9"
.3"
1.9"
.62"
.3"
.72"
1.3"
3.5"
1.6"
3.1"
5.1"
4.4"
4.4"
24.8"
28.5"
35.2"
Speaker
Speaker
3.1"
3.5"
.2"
4.4"
4.4"
24.8"
28.5"
24.8"
Speaker
Speaker
Speaker
Speaker
5.1"
Product
Name PSN6332B(S)
3.1"
3.1"
1.3"
Product Name STN-P4063D
Product Name WMN-5770D
Speaker
Speaker
36.7"
34.4"
31.5"
1.9"
10.5"
15.7"
21.0"
6.3"
0.5"
7.2"
4.4"
15.3"
15.7"
0.4"
2.4"
1.6"
1.7"
Stand
Speaker
Speaker
Wall Mount
0.4"
Speaker
Speaker
1.5"
8.7"
14.3"
11.6"
16.6"
5.8"
3.8"
8.9"
.3"
.7"
1.3"
3.5"
1.3"
.6"
35.2"
4.4"
.7"
4.4"
3.5"
1.6"
5.1"
5.9"
Speakers
.9
28.5"
5.5"
.3"
35.2"
3.1"
3.1"
.7"
3.1"
3.1"
3.1"
2.5"1.3"
1.3"
3.5"
1.6"
Product Name PSN5032B(S)
1.5"
.6"
2.4"
3.2"
Speakers
Product Name PSN4232B(S)
7.2"
.2"
Speakers
2.7"
3.8"
.62"
.2"
1.9"
3.1"
10.9"
11.1"
11.9"
3.5"
5.5"
.6"
2.7"
.91"
3.8"
.6"
1"
.7"
3.1"
2.5"
.91"
5.9"
.62"
1.5"
2.4" .3"
3.2"
2.4"
3.2"
.6"
.72"
7.5"
8.8"
1.9"
5.9"
.6"
.72"
SBB-DT (TV Tuner)
.7"
1"
8.8"
9"
.7"
1.3"
7.5"
SBB-NT (Network)
11.1"
11.9"
.6"
Set Back Boxes.7"
1.3"
Set Back Boxes
.6"
7.2"
.7"
.3"
.62"
1.5"
2.5"
7.5"
P63F/P63FP
7.2"
.62"
.62"
P50H/P50HP/P50F/P50FP
1"
8.8"
5.5"
11.1"
11.9"
10.9"
.7"
P42H/P42HP
Specifications
P42H
P42HP
P50H
P50HP
Screen Size
42"
42"
50"
50"
Native Resolution
1024 x 768
1024 x 768
1360 x 768
1360 x 768
Supporting Resolution (From PC)
640x350@70Hz, 640x480@60Hz,
720x400@70Hz, 640x480@67Hz,
832x624@75Hz, 1152x870@75Hz,
640x480@73Hz, 75Hz,
800x600@56Hz, 60Hz, 72Hz, 75Hz,
848x480@60Hz,
1024x768@60Hz, 70Hz, 75Hz
640x350@70Hz, 640x480@60Hz,
720x400@70Hz, 640x480@67Hz,
832x624@75Hz, 1152x870@75Hz,
640x480@73Hz, 75Hz,
800x600@56Hz, 60Hz, 72Hz, 75Hz,
848x480@60Hz,
1024x768@60Hz, 70Hz, 75Hz
640x350@70Hz, 640x480@60Hz,
720x400@70Hz, 640x480@67Hz,
832x624@75Hz, 1152x870@75Hz,
40x480@73Hz, 75Hz,
800x600@56Hz, 60Hz, 72Hz, 75Hz,
848x480@60Hz,
1024x768@60Hz, 70Hz, 75Hz,
1152x864@75Hz, 1280x768@60Hz,
1280x960@60Hz,
1280x1024@60Hz,
1280x1024@75Hz,
1360x768@60Hz
640x350@70Hz, 640x480@60Hz,
720x400@70Hz, 640x480@67Hz,
832x624@75Hz, 1152x870@75Hz,
640x480@73Hz, 75Hz,
800x600@56Hz, 60Hz, 72Hz, 75Hz,
848x480@60Hz,
1024x768@60Hz, 70Hz, 75Hz,
1152x864@75Hz, 1280x768@60Hz,
1280x960@60Hz,
1280x1024@60Hz,
1280x1024@75Hz,
1360x768@60Hz,
Brightness (typ.)
1300 cd/m2
1300 cd/m2
1300 cd/m2
1300 cd/m2
Contrast Ratio
10,000:1
10,000:1
10,000:1
10,000:1
60,000 hrs
60,000 hrs
60,000 hrs
60,000 hrs
VGA 15-pin D-Sub In (x1)
■/❏
■/❏
■/❏
■/❏
BNC In/Out (x3 / x3)
❏/❏
■/■
❏/❏
■/■
DVI-D (x 1)
■
■
■
■
HDMI (x 1)
■
■
■
■
Component In/Out (x 5/ x 5)
❏/❏
■/■
❏/❏
■/■
CVBS (AV) In/Out (x 1/ x 1)
■/❏
■/❏
■/❏
■/❏
S-Video In/Out (x 1 / x 1)
❏/❏
❏/❏
❏/❏
❏/❏
CI slot (x 1)
❏
❏
❏
❏
ANT In (x 1)
❏
❏
❏
❏
DVI/PC/BNC Audio In/Out (RCA x 1/ x1)
■/❏
■/❏
■/❏
■/❏
CVBS (AV)/Component Audio In/Out
(Mini Stereo 3.5mm L-R x 1/ x 1)
■/■
■/■
■/■
■/■
External Speaker Out (L-R x 2)
❏
❏
❏
❏
Integrated Speakers
■
■
■
■
RS232C In/Out
■/■
■/■
■/■
■/■
DTV SBB (SetBack Box) Option (SBB-DT)
■
■
■
■
Network SBB (SetBack Box) Option (SBB-NT)
■
■
■
■
Dimension (w/o stand) (W x H x D)
40.4 x 24.8 x 3.81"
40.4 x 24.8 x 3.81"
47.4 x 28.5 x 3.82"
47.4 x 28.5 x 3.82"
Dimension (packaging) (W x H x D)
44.5 x 30.5 x 12.4"
44.5 x 30.5 x 12.4"
52.1 x 34.2 x 15.6"
52.1 x 34.2 x 15.6"
Weight (set/package)
63.1 / 75.0 lbs.
63.1 / 75.0 lbs.
76.5 / 93.5 lbs.
76.5 / 93.5 lbs.
Cabinet Color
Matte Black
Matte Black
Matte Black
Matte Black
Wall Mount
600 x 400mm
600 x 400mm
600 x 400mm
600 x 400mm
Speakers
N/A
N/A
N/A
N/A
Wallmount
WMN-5770D
WMN-5770D
WMN-5770D
WMN-5770D
Stand
STN-P4263D
STN-P4263D
STN-P4263D
STN-P4263D
2 Years
2 Years
2 Years
2 Years
Emission Standard
EMC
EMC
EMC
EMC
RoHS Compliant
n
n
n
n
Product Recyclability
CCFL backlight contains mercury,
please dispose of properly
CCFL backlight contains mercury,
please dispose of properly
CCFL backlight contains mercury,
please dispose of properly
CCFL backlight contains mercury,
please dispose of properly
Packaging Recyclability
Packing materials recyclable
Packing materials recyclable
Packing materials recyclable
Packing materials recyclable
Plasma Panel
MTBF
MTBF
PC Conectivity
Video Conectivity
TV Tuner
Audio Connectivity
Network Connectivity
Mechanical Specs
Optional Accessories
Warranty
On-site Parts & Labor
Green Management
■ Available
❏ Not Available
P50F
P50FP
P63F
P63FP
50"
50"
63"
63"
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
640x350@70Hz, 640x480@60Hz,
720x400@70Hz, 640x480@67Hz,
832x624@75Hz, 1152x870@75Hz,
640x480@73Hz, 75Hz,
800x600@56Hz, 60Hz, 72Hz, 75Hz,
848x480@60Hz, 1024x768@60Hz, 70Hz, 75Hz,
1152x864@75Hz, 1280x768@60Hz,
1280x960@60Hz, 1280x1024@60Hz,
1280x1024@75Hz, 1360x768@60Hz,
1600x1200@60Hz, 1920x1080@60Hz
640x350@70Hz, 640x480@60Hz,
720x400@70Hz, 640x480@67Hz,
832x624@75Hz, 1152x870@75Hz,
640x480@73Hz, 75Hz,
800x600@56Hz, 60Hz, 72Hz, 75Hz,
848x480@60Hz, 1024x768@60Hz, 70Hz, 75Hz,
1152x864@75Hz, 1280x768@60Hz,
1280x960@60Hz, 1280x1024@60Hz,
1280x1024@75Hz, 1360x768@60Hz,
1600x1200@60Hz, 1920x1080@60Hz
640x350@70Hz, 640x480@60Hz,
720x400@70Hz, 640x480@67Hz,
832x624@75Hz, 1152x870@75Hz,
640x480@73Hz, 75Hz,
800x600@56Hz, 60Hz, 72Hz, 75Hz,
848x480@60Hz, 1024x768@60Hz, 70Hz, 75Hz,
1152x864@75Hz, 1280x768@60Hz,
1280x960@60Hz, 1280x1024@60Hz,
1280x1024@75Hz, 1360x768@60Hz,
1600x1200@60Hz, 1920x1080@60Hz
640x350@70Hz, 640x480@60Hz,
720x400@70Hz, 640x480@67Hz,
832x624@75Hz, 1152x870@75Hz,
640x480@73Hz, 75Hz,
800x600@56Hz, 60Hz, 72Hz, 75Hz,
848x480@60Hz, 1024x768@60Hz, 70Hz, 75Hz,
.1152x864@75Hz, 1280x768@60Hz,
1280x960@60Hz, 1280x1024@60Hz,
1280x1024@75Hz, 1360x768@60Hz,
1600x1200@60Hz, 1920x1080@60Hz
1300 cd/m2
1300 cd/m2
1300 cd/m2
1300 cd/m2
30,000:1
30,000:1
10,000:1
10,000:1
60,000 hrs
60,000 hrs
60,000 hrs
60,000 hrs
■/❏
■/❏
■/❏
■/❏
❏/❏
■/■
❏/❏
■/■
■
■
■
■
■
■
■
■
❏/❏
■/■
❏/❏
■/■
■/❏
■/❏
■/❏
■/❏
❏/❏
❏/❏
❏/❏
❏/❏
❏
❏
❏
❏
❏
❏
❏
❏
■/❏
■/❏
■/❏
■/❏
■/■
■/■
■/■
■/■
❏
❏
❏
❏
■
■
■
■
■/■
■/■
■/■
■/■
■
■
■
■
■
■
■
■
47.4 x 28.5 x 3.82"
47.4 x 28.5 x 3.82"
59.2 x 35.2 x 3.90"
59.2 x 35.2 x 3.90"
52.1 x 34.2 x 15.6"
52.1 x 34.2 x 15.6"
66.9 x 21.7 x 42.9"
66.9 x 21.7 x 42.9"
82.5 / 99.4 lbs.
82.5 / 99.4 lbs.
143 / 171 lbs.
143 / 171 lbs.
Matte Black
Matte Black
Matte Black
Matte Black
600 x 400mm
600 x 400mm
600 x 400mm
600 x 400mm
N/A
N/A
N/A
N/A
WMN-5770D
WMN-5770D
WMN-5770D
WMN-5770D
STN-P4263D
STN-P4263D
STN-P4263D
STN-P4263D
2 Years
2 Years
2 Years
2 Years
EMC
EMC
EMC
EMC
n
n
n
n
CCFL backlight contains mercury, please
dispose of properly
CCFL backlight contains mercury, please
dispose of properly
CCFL backlight contains mercury, please
dispose of properly
CCFL backlight contains mercury, please
dispose of properly
Packing materials recyclable
Packing materials recyclable
Packing materials recyclable
Packing materials recyclable
www.samsung.com/proav
1-866-SAM4BIZ
©2008 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd.
Specifications and designs are subject to change without notice. Non-metric weights and measurements are
approximate. All brand, product, service names and logos are trademarks and/or registered trademarks of their
respective manufacturers and companies. Simulated screen images. Printed in USA. LFD-PLASMALBRO-Jun08TR1
