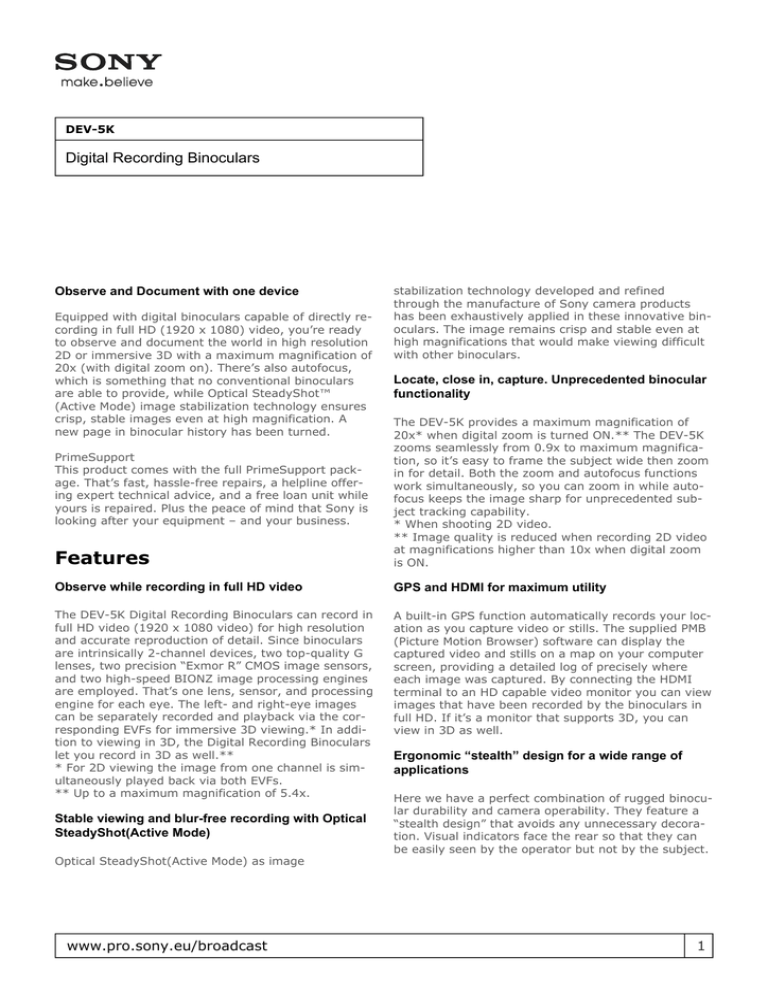

DEV-5K
Digital Recording Binoculars
Observe and Document with one device
Equipped with digital binoculars capable of directly recording in full HD (1920 x 1080) video, you’re ready
to observe and document the world in high resolution
2D or immersive 3D with a maximum magnification of
20x (with digital zoom on). There’s also autofocus,
which is something that no conventional binoculars
are able to provide, while Optical SteadyShot™
(Active Mode) image stabilization technology ensures
crisp, stable images even at high magnification. A
new page in binocular history has been turned.
stabilization technology developed and refined
through the manufacture of Sony camera products
has been exhaustively applied in these innovative binoculars. The image remains crisp and stable even at
high magnifications that would make viewing difficult
with other binoculars.
Locate, close in, capture. Unprecedented binocular
functionality
Features
The DEV-5K provides a maximum magnification of
20x* when digital zoom is turned ON.** The DEV-5K
zooms seamlessly from 0.9x to maximum magnification, so it’s easy to frame the subject wide then zoom
in for detail. Both the zoom and autofocus functions
work simultaneously, so you can zoom in while autofocus keeps the image sharp for unprecedented subject tracking capability.
* When shooting 2D video.
** Image quality is reduced when recording 2D video
at magnifications higher than 10x when digital zoom
is ON.
Observe while recording in full HD video
GPS and HDMI for maximum utility
The DEV-5K Digital Recording Binoculars can record in
full HD video (1920 x 1080 video) for high resolution
and accurate reproduction of detail. Since binoculars
are intrinsically 2-channel devices, two top-quality G
lenses, two precision “Exmor R” CMOS image sensors,
and two high-speed BIONZ image processing engines
are employed. That’s one lens, sensor, and processing
engine for each eye. The left- and right-eye images
can be separately recorded and playback via the corresponding EVFs for immersive 3D viewing.* In addition to viewing in 3D, the Digital Recording Binoculars
let you record in 3D as well.**
* For 2D viewing the image from one channel is simultaneously played back via both EVFs.
** Up to a maximum magnification of 5.4x.
A built-in GPS function automatically records your location as you capture video or stills. The supplied PMB
(Picture Motion Browser) software can display the
captured video and stills on a map on your computer
screen, providing a detailed log of precisely where
each image was captured. By connecting the HDMI
terminal to an HD capable video monitor you can view
images that have been recorded by the binoculars in
full HD. If it’s a monitor that supports 3D, you can
view in 3D as well.
PrimeSupport
This product comes with the full PrimeSupport package. That’s fast, hassle-free repairs, a helpline offering expert technical advice, and a free loan unit while
yours is repaired. Plus the peace of mind that Sony is
looking after your equipment – and your business.
Stable viewing and blur-free recording with Optical
SteadyShot(Active Mode)
Optical SteadyShot(Active Mode) as image
www.pro.sony.eu/broadcast
Ergonomic “stealth” design for a wide range of
applications
Here we have a perfect combination of rugged binocular durability and camera operability. They feature a
“stealth design” that avoids any unnecessary decoration. Visual indicators face the rear so that they can
be easily seen by the operator but not by the subject.
1
DEV-5K
Technical Specifications
Magnification (Movie
Mode)
Imaging Sensor
Imaging Sensor
Pixel Gross
2x 1/4 type(4.5mm) back-illuminated "Exmor R" CMOS
Sensor
Approx. 4200K pixels(2D) /
2x Approx. 4200K pixels(3D)
Magnification (Photo
Mode)*
Minimum Focus Distance
Recording
Media Type
Still Image Mode
Still Image Max Effective
Still Image Size(Photo
Mode)
Video Format
Video Mode(Resolution)
Movie Recording Rate
(Average Bit Rate/VBR)
Recording and Playback
Times
(32GB Memory
Card)(2ch)
Audio Format
Microphone/Speaker
No internal memory
Memory Stick PRO Duo ™
(Mark 2)
Memory Stick PRO-HG Duo™
SD/SDHC/SDXC Memory
Card(Class 4 or Higher)
3D Still Image: Not available/2D Still Image:JPEG
7.1 megapixels
7.1 megapixels (4:3)
(3072x2304)
5.3 megapixels (16:9)
(3072x1728)
1.9 megapixels (4:3)
(1600x1200)
307K pixels (4:3) (640x480)
2D HD: MPEG-4 AVC/H.264
AVCHD format Ver.2.0 compatible
3D HD: MPEG-4 MVC/H.264
AVCHD format Ver.2.0
compatible
2D HD: 1920x1080/60p,
50p (PS), 1920x1080/60i,
50i (FX,FH), 1440x1080/60i,
50i (HQ,LP)
3D HD: 2x 1920x1080/60i,
50i
2D HD
PS: Approx. 28Mbps/FX: Approx. 24Mbps/FH: Approx.
17Mbps/
HQ: Approx. 9Mbps/LP: Approx. 5Mbps
3D HD
3D: Approx. 28Mbps
2D HD PS: Approx. 2h30m
2D HD FX: Approx. 3h00m
2D HD FH: Approx. 4h05m
2D HD HQ: Approx. 7h20m
2D HD LP: Approx. 12h50m
3D HD
3D: Approx. 2h30m
Dolby® Digital 2ch Stereo
Built-in Microphone /
Monaural
Optics/Lens *Resolution is reduced at
zoomed magnifications.
Lens Type
Aperture
G Lens
F1.8 - F3.4
www.pro.sony.eu/broadcast
x0.9 - x10(2D:Digital zoom
is OFF) / x0.9 x20(2D:Digital zoom is ON)
/ x0.5 - x5.4(3D)
x0.5 - x20 (16:9) / x0.3 x15 (4:3)
Movie Mode
2D: Approx. 1cm (Wide) /
Approx. 80cm (Tele)
3D: Approx. 80cm (Wide) /
Approx. 7.5m (Tele)
Photo Mode
Approx. 1cm (Wide) / Approx. 80cm (Tele) /
Approx. 25cm (Tele Macro)
Viewfinder
Type
Diopter Adjustment
Eye relief
Apparent field of
view<br />(diagonal
dimension)
Interpupillary distance
adjust
Brightness Control
2x 0.45 type(1.1cm) Wide
(16:9)
1,226,880 dots
(852x3[RGB]x480)
Yes (-3.5 - +3.5)
14.3mm
35.6°(16:9)
55-75mm
Yes (5 steps)
Exposure System
Minimum Illumination
Standard:11 lux (1/60 Shutter Speed:60i, 1/50 Shutter
Speed:50i)
Convenience Features
Multiple Language
Display
Japanese, English, Simplified
English, Traditional Chinese,
Simplified Chinese, French,
Italian, German, Spanish,
Dutch, Russian, Romanian,
Portugese, Greek, Arabic,
Persian, Thai, Brazilian Portugese, Canadian French,
Latin American Spanish,
Korean, Turkish, Polish,
Czech, Hungarian, Indonesian, Malay
Advanced Features
Image Stabilization
Optical SteadyShot™ image
stabilization w/ Active mode
(Wide to Tele(2D) /
wide(3D))
Interface
Memory Card Slot
Memory Stick PRO Duo™
and SD/SDHC/SDXC
compatible
2
DEV-5K
STD Output
HD Output
3D HD Output
USB Port(s)
Headphone Jack
Microphone Input
DC IN
A/V Remote Terminal
Composite Video Out(A/V
connecting cable(supplied))
Component Video
Out(Component A/V cable
(supplied))
S Video Out(A/V connectiong
cable with S Video (sold
separately))
HDMI Out(mini)
Component Video
Out(Component A/V
cable(supplied))
HDMI Out(mini)
TypeA, mini-AB/USB2.0 Hispeed (mass-storage/MTP)
Stereo Minijack
Stereo Minijack
Yes
Video/S Video/Audio/Component Out/Remote
Weights and Measurements
Dimensions
(WxHxD)<br />(Body
only including
protrusion)
Dimensions
(WxHxD)<br />(Lens
cover,Large Eyecup and
protrusion)
Weight (Body only)
Weight (Including Battery, Lens Cover, Large
Eyecup and Memory
Stick PRO Duo)
Approx. 219 x 155 x 88 mm
(8.63 x 6.10 x 3.47 in.)
Approx. 270 x 166 x 120
mm (10.63 x 6.54 x 4.73
in.)
Approx. 1.2 kg (2.65 lb 42.3
oz)
Approx. 1.4 kg (3.09 lb 49.4
oz) (NP-FV100 as supplied
battery)
Power
Battery Type
Power Consumption in
recording
Power Requirements
InfoLITHIUM® with AccuPower™ Meter System (V
Series)
2D HD: 4.2W (FX)
3D HD: 4.8W
6.8V (battery pack); 8.4V
(AC Adaptor)
www.pro.sony.eu/broadcast
Recording time (2D)
Playback time (2D)
Recording time (3D)
Playback time (3D)
Approx. 3h05m NPFV70:(fully charged batt.)
Approx. 6h10m NPFV100:(fully charged batt.)
Approx. 4h50m NPFV70:(fully charged batt.)
Approx. 9h40m NPFV100:(fully charged batt.)
Approx. 2h40m NPFV70:(fully charged batt.)
Approx. 5h20m NPFV100:(fully charged batt.)
Approx. 4h20m NPFV70:(fully charged batt.)
Approx. 8h35m NPFV100:(fully charged batt.)
Supplied Accessories
Main Supplied Accessory
Rechargeable Battery
Pack(NP-FV100) (1)
AC adaptor/Charger ACVQV10 (1)
Power Cord (1)
Large Eyecup (2)
Lens Cover (1)
Finder Cap (1)
Neck Strap (1)
Carrying Case (1)
A/V Connecting Cable
(1)
Component A/V
Cable(1)
USB Cable (1)
USB Adaptor Cable
VMC-UAM1(1)
CD-ROM(Video Camera
Application Software)
(1)
Operating Guide (1)
Features and specifications are subject to
change without prior
notice.
