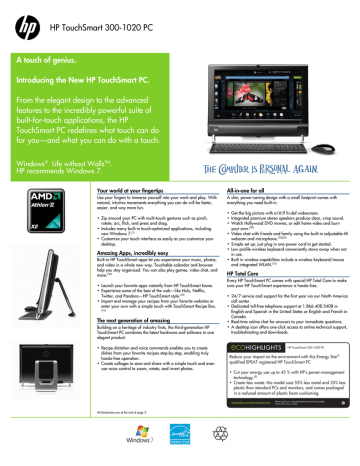

HP TouchSmart 300-1020 PC
A touch of genius.
Introducing the New HP TouchSmart PC.
From the elegant design to the advanced
features to the incredibly powerful suite of
built-for-touch applications, the HP
TouchSmart PC redefines what touch can do
for you—and what you can do with a touch.
Windows®. Life without WallsTM.
HP recommends Windows 7.
Your world at your fingertips
All-in-one for all
Use your fingers to immerse yourself into your work and play. With
natural, intuitive movements everything you can do will be faster,
easier, and way more fun.
A slim, power-saving design with a small footprint comes with
everything you need built-in.
• Zip around your PC with multi-touch gestures such as pinch,
rotate, arc, flick, and press and drag.
• Includes many built-in touch-optimized applications, including
new Windows 7.(1)
• Customize your touch interface as easily as you customize your
desktop.
Amazing Apps, incredibly easy
Built-in HP TouchSmart apps let you experience your music, photos,
and video in a whole new way. Touchable calendar and browser
help you stay organized. You can also play games, video chat, and
more.(30)
• Launch your favorite apps instantly from HP TouchSmart home.
• Experience some of the best of the web—like Hulu, Netflix,
Twitter, and Pandora—HP TouchSmart style.(10)
• Import and manage your recipes from your favorite websites or
enter your own with a simple touch with TouchSmart Recipe Box.
(10)
The next generation of amazing
Building on a heritage of industry firsts, the third-generation HP
TouchSmart PC combines the latest hardware and software in one
elegant product.
• Recipe dictation and voice commands enables you to create
dishes from your favorite recipes step-by-step, enabling truly
hands-free operation.
• Create collages to save and share with a simple touch and even
use voice control to zoom, rotate, and invert photos.
• Get the big picture with a16:9 hi-def widescreen.
• Integrated premium stereo speakers produce clear, crisp sound.
• Watch Hollywood DVD movies, or edit home video and burn
your own.(28)
• Video chat with friends and family using the built-in adjustable-tilt
webcam and microphone.(10)(30)
• Simple set up: just plug in one power cord to get started.
• Low profile wireless keyboard conveniently stows away when not
in use.
• Built in wireless capabilities include a wireless keyboard/mouse
and integrated WLAN.(10)
HP Total Care
Every HP TouchSmart PC comes with special HP Total Care to make
sure your HP TouchSmart experience is hassle-free.
• 24/7 service and support for the first year via our North America
call center.
• Dedicated toll-free telephone support at 1.866.408.5408 in
English and Spanish in the United States or English and French in
Canada.
• Real-time online chat for answers to your immediate questions.
• A desktop icon offers one-click access to online technical support,
troubleshooting and downloads.
HP TouchSmart 300-1020 PC
Reduce your impact on the environment with this Energy Star®
qualified EPEAT registered HP TouchSmart PC
• Cut your energy use up to 45 % with HP's power-management
technology.(8)
• Create less waste: this model uses 55% less metal and 35% less
plastic than standard PCs and monitors, and comes packaged
in a reduced amount of plastic foam cushioning.
Please recycle your computing hardware and printing supplies.
Find out how at our website.
All disclaimers are at the end of page 2.
HP TouchSmart 300-1020 PC
SPECIFICATIONS
OPERATING SYSTEM • Genuine Windows® 7 Home Premium 64-bit - makes everyday tasks simple—and makes
new things possible. (1)
PROCESSOR
• AMD Athlon™ II 235e Dual-Core Processor(2f)
PROCESSOR SPEED
• 2.70GHz(2)
CHIPSET
• AMD RS780MN
CACHE (L2)
• 2MB L2 Cache
BUS SPEED
• 4000MHz System Bus
MEMORY
• 4GB PC3-8500 DDR3 SDRAM memory(3)
HARD DRIVE
• 500GB 7200RPM Serial ATA hard drive(4)
OPTICAL DRIVE(S)
• Slot-load SuperMulti DVD Burner(6)
Write: 8x max DVD±R, 4x max DVD±R DL, 4x max DVD±RW, 5x max DVD-RAM, 16x
max CD-R, 10x max CD-RW Read: 8x max DVD-ROM, 24x max CD-ROM
VIDEO GRAPHICS
• ATI RadeonTM HD 3200 Graphics with 320MB integrated shared graphics memory. Up to
1919MB Total Available Graphics Memory as allocated by Windows® 7(16)
NETWORK
INTERFACE
• 10/100/1000Base-T network interface
WIRELESS
CONNECTIVITY
• Wireless LAN (802.11b/g/n) featuring Single-band (2.4Ghz) 2x2 MIMO technology(19)
SOUND
• Integrated High Definition Audio with 2.0 sound capabilities
• High-performance 2.0 Speakers
MEMORY SLOTS
• 2 DIMM (240-pin, DDR3) (occupied)
EXPANSION SLOTS
• 1 PCI-E x16 slot (MXM 3.0) (occupied)(24)
• 2 PCI-E x1 mini socket slots (occupied)(24)
EXTERNAL PORTS
• 6-in-1 memory card reader – supports Secure Digital (SD, SDHC), MultiMedia Card,
Memory Stick, Memory Stick Pro
• Headphone (Left Side)
• Line-in (Left Side)
• 6 USB 2.0 ports (2 right side, 3 back, 1 back bottom wireless dongle) (5 Available)
• Line-out (Back)
• Digital Audio Out (Back)
• RJ45 (10/100/1000 LAN) (Back)
MOUSE AND
KEYBOARD
• HP low-profile wireless keyboard with hide-away bay and numeric keypad
• HP wireless optical mouse
WEB CAMERA
• Adjustable webcam
INTEGRATED
DISPLAY
• Touch-enabled 20" diagonal HD LCD Display with Brightview technology
DIMENSIONS
• Unpackaged: 4.65" (W) x 20.47" (L/D) x 16.22" (H) approx.
• Packaged: 8.93" (W) x 23.39" (L/D) x 20.12" (H) approx.
WEIGHT
• Unpackaged: 24.39 lbs. approx.
• Packaged: 33.00 lbs. approx.
WARRANTY AND
SUPPORT
• Warranty Options:
-1 year limited hardware warranty and 1 year software support, offering 24x7 technical
assistance available online(10) or toll-free by phone
• Support Options:
-Desktop icon provides one click access to built-in desktop Help and Support Center.
-Easy, online access to questions, answers and troubleshooting information via
www.hp.com/support
- Direct, knowledgeable assistance available 24/7 toll-free by phone.
• Extended Service Plans:
-You can choose from a variety of Extended Service Plans from HP to meet your individual
needs by calling 1-866-234-1377 or by going to www.hp.com/go/totalcare
ACCESSORIES
• Cleaning Cloth
Windows®. Life without WallsTM.
HP recommends Windows 7.
SOFTWARE
TOUCHSMART
SOFTWARE
• HP TouchSmart Music - Create playlists with your favorite music
• HP TouchSmart Video - Watch, record and upload(10) your personal videos using touch
• HP TouchSmart Photo - Share your fun and memorable moments in life with family and
friends
• HP TouchSmart RSS Feeds - Get the latest news right at your fingertips(10)
• HP TouchSmart Browser - Browse the web in a whole new way(10)
• HP TouchSmart Calendar - Manage your busy schedule and stay in touch with family
• HP TouchSmart Notes - Quick and easy text and voice notes right at your fingertips
• Recipe Box - Import and manage your recipes from your favorite websites or enter your
own with a simple touch.
• Canvas - Create collages to save and share with touch and/or voice controls.
• HP TouchSmart Webcam - Add custom effects and embellishments and even avatars in real
time to create fun and personalized videos.
• Premium Web Content - Experience the best of the web with Netflix, Hulu, Pandora and
more.(10)
ENTERTAINMENT
• CyberLink DVD Suite Deluxe: Make movies and slideshows and burn to DVD or CD(13)
PRODUCTIVITY
• Microsoft® Works 9: Includes a word processor, spreadsheet, database and calendar
• HP Total Care Advisor 3.2: HP Advisor makes your PC easier to use -view your status at a
glance, access support, discover more ways to use your PC, and navigate easily to your
favorite software and services.
PC SECURITY
• Includes Norton Internet Security™ 2009. Protects your PC and your identity when you
email, bank and shop online. 60 days of protection updates included.(11)
ONLINE SERVICES
• Easy sign-up to major dial-up and broadband Internet Service Providers: (15)
- High Speed Internet Services Comparison Shopping
ADDITIONAL INFORMATION
PRODUCT NUMBER
• NY536AA#ABA
AD EMBARGO DATE • 11/15/2009
UPC CODE
• 884962290293
COUNTRY OF
ORIGIN
• China
TARIFF NUMBER
• 8471500085
PALLET
INFORMATION
•
•
•
•
•
Dimensions: 47.24"(L) x 40.16"(W) x 80.55"(H/D) approx.
Total weight: 1060.42 lbs. approx.
Layers: 8
Products per layer: 4
Total products per pallet: 32
VISIT WWW.HP.COM/GO/TOUCHSMART FOR MORE DETAILS!
(1)
This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
Internet access requires payment of additional fees or subscription for use. Offer does not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. Please make sure your access
number is local. A valid credit card is required to initiate the service. This offer valid in the U.S.A. only. Additional terms and conditions may apply, see AOL offer for details. (1c) This system may require upgrade and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7 for details. (2) Processor speed 2.70GHz, cMB L2 + cMB shared L3 cache, 4000MHz System Bus. This system requires a separately
purchased 64-bit operating system and 64-bit software products to take advantage of the 64-bit processing capabilities of the AMD AMD RS780MN processor. Given the wide range of software applications available, performance of a system including a 64-bit operating
system will vary. (3) Up to 256MB of main system memory may be allocated to support video graphics. (4) For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. (6) Actual speeds may vary. 24X Max CD-ROM Drive data transfer rates up to 3600 KB/s. 48X
Max CD-ROM Drive transfers data at a rate up to 7200 KB/s. 24X Max DVD/CD-RW Combo Drive data transfer rates may vary as follows: for recording to CD-R media, for reading CD media, the max transfer rate may be up to 3600 KB/s; for reading DVD media, the
max transfer rate may be up to 10,800 KB/s. 48X Max DVD/CD-RW Combo Drive data transfer rates vary up to 7200 Kbps. Actual speeds may vary. Actual speeds may vary. Does not permit copying of commercially available DVD movies or other copyright-protected
materials. Intended only for creation and storage of original material and other lawful uses. Double Layer is a new technology. Double Layer media compatibility will widely vary with some home DVD players and DVD-ROM drives. Note that DVD-RAM cannot read or write
to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media. Data transfer rates up to 3,600 KB/s (CD read/write) and 10,816 KB/s (DVD read/write). (8) According to estimates made using EPA statistics comparing PCs with and without power management. For
more information see: http://www.energystar.gov/ia/business/bulk_purchasing/bpsavings_calc/Calc_computers.xls . (10) Internet access required and sold separately. (11) Internet access required. First 60 days included; subscription required for live updates afterwards. (13)
Intended for your original content and other lawful uses. Do not copy copyright-protected materials. (14) The Microsoft® Office Home and Student Edition 2007 is a trial version; functionality is reduced after 60 days. The full version is sold separately. (15) Internet access
requires payment of additional fees or subscription for use. Offer does not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. Please make sure your access number is local. A
valid credit card is required to initiate the service. This offer valid in the U.S.A. only. Additional terms and conditions may apply, see AOL offer for details. (16) Part of the total system memory (RAM) is used for graphics/video performance. System memory dedicated to
graphics/video performance is not available for other use by other programs. (19) Wireless access point and Internet service sold separately. The specifications for the 802.11n WLAN are draft specifications and are not final. This may affect the ability of the PC to
communicate with other 802.11n WLAN devices. (24) Power supply upgrade may be required for graphics card upgrade, check with graphics card supplier. (25) Availability of applications on Touchsmart PC will vary by country. (26) Based on highest volume of PCs sold.
Source: IDC WW PC Tracker, December 2008. (27) Up to 30% performance increase versus GeForce 9300GE without hSLI and GeForce 8200 gfx chipset. Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated
to video performance is not available for other use by other programs. (28) Do not copy copyright-protected materials. (29) According to estimates made using EPA statistics comparing PCs with and without power management. (30) Third party software required.
Actual product may vary from image shown on datasheet.©2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. 08/27_r1 nq Product Number: NY536AA#ABA
(1)
HP TouchSmart 300-1025 PC
A touch of genius.
Introducing the New HP TouchSmart PC.
From the elegant design to the advanced
features to the incredibly powerful suite of
built-for-touch applications, the HP
TouchSmart PC redefines what touch can do
for you—and what you can do with a touch.
Windows®. Life without WallsTM.
HP recommends Windows 7.
Your world at your fingertips
All-in-one for all
Use your fingers to immerse yourself into your work and play. With
natural, intuitive movements everything you can do will be faster,
easier, and way more fun.
A slim, power-saving design with a small footprint comes with
everything you need built-in.
• Zip around your PC with multi-touch gestures such as pinch,
rotate, arc, flick, and press and drag.
• Includes many built-in touch-optimized applications, including
new Windows 7.(1)
• Customize your touch interface as easily as you customize your
desktop.
Amazing Apps, incredibly easy
Built-in HP TouchSmart apps let you experience your music, photos,
and video in a whole new way. Touchable calendar and browser
help you stay organized. You can also play games, video chat, and
more.(30)
• Launch your favorite apps instantly from HP TouchSmart home.
• Experience some of the best of the web—like Hulu, Netflix,
Twitter, and Pandora—HP TouchSmart style.(10)
• Import and manage your recipes from your favorite websites or
enter your own with a simple touch with TouchSmart Recipe Box.
(10)
• Transfer photos and images from a mobile phone via Bluetooth
with HP TouchSmart Link.
• Watch, pause, rewind, and record live TV with TouchSmart Live
TV.(17)
The next generation of amazing
Building on a heritage of industry firsts, the third-generation HP
TouchSmart PC combines the latest hardware and software in one
elegant product.
• Recipe dictation and voice commands enables you to create
dishes from your favorite recipes step-by-step, enabling truly
hands-free operation.
• Create collages to save and share with a simple touch and even
use voice control to zoom, rotate, and invert photos.
• Get the big picture with a16:9 hi-def widescreen.
• Integrated premium stereo speakers produce clear, crisp sound.
• Watch Hollywood DVD movies, or edit home video and burn
your own.(28)
• Video chat with friends and family using the built-in adjustable-tilt
webcam and microphone.(10)(30)
• Watch, pause, rewind, and record live TV.(17)
• Simple set up: just plug in one power cord to get started.
• Low profile wireless keyboard conveniently stows away when not
in use.
• Built in wireless capabilities include a wireless keyboard/mouse
and integrated WLAN.(10)
HP Total Care
Every HP TouchSmart PC comes with special HP Total Care to make
sure your HP TouchSmart experience is hassle-free.
• 24/7 service and support for the first year via our North America
call center.
• Dedicated toll-free telephone support at 1.866.408.5408 in
English and Spanish in the United States or English and French in
Canada.
• Real-time online chat for answers to your immediate questions.
• A desktop icon offers one-click access to online technical support,
troubleshooting and downloads.
HP TouchSmart 300-1025 PC
Reduce your impact on the environment with this Energy Star®
qualified EPEAT registered HP TouchSmart PC
• Cut your energy use up to 45 % with HP's power-management
technology.(8)
• Create less waste: this model uses 55% less metal and 35% less
plastic than standard PCs and monitors, and comes packaged
in a reduced amount of plastic foam cushioning.
Please recycle your computing hardware and printing supplies.
Find out how at our website.
All disclaimers are at the end of page 2.
HP TouchSmart 300-1025 PC
SPECIFICATIONS
Windows®. Life without WallsTM.
HP recommends Windows 7.
WARRANTY AND
SUPPORT
• Warranty Options:
-1 year limited hardware warranty and 1 year software support, offering 24x7 technical
assistance available online(10) or toll-free by phone
-Service Delivery: Customer Replaceable Parts; Return to hp for repair; Authorized Service
Provider.
• Support Options:
-Desktop icon provides one click access to built-in desktop Help and Support Center.
-Easy, online access to questions, answers and troubleshooting information via
www.hp.com/support
- Direct, knowledgeable assistance available 24/7 toll-free by phone.
• Extended Service Plans:
-You can choose from a variety of Extended Service Plans from HP to meet your individual
needs by calling 1-866-234-1377 or by going to www.hp.com/go/totalcare
ACCESSORIES
• Cleaning Cloth
®
OPERATING SYSTEM • Genuine Windows 7 Home Premium 64-bit - makes everyday tasks simple—and makes
new things possible.(1)
PROCESSOR
• AMD Athlon™ II X2 240e Dual-Core Processor(2f)
PROCESSOR SPEED
• 2.80GHz(2)
CHIPSET
• AMD RS780MN
CACHE (L2)
• 2MB L2 Cache
BUS SPEED
• 4000MHz System Bus
MEMORY
• 4GB PC3-8500 DDR3 SDRAM memory(3)
HARD DRIVE
• 640GB 7200RPM Serial ATA hard drive(4)
OPTICAL DRIVE(S)
• Slot Load SuperMulti DVD Burner with LightScribe Technology*Write: 8x max DVDR, 6x
max DVDR DL, 8x max DVD+RW, 6x max DVD-RW, 5x max DVD-RAM, 24x max CD-R,
24x max CD-RWRead: 8x max DVD-ROM, 24x max CD-ROM
VIDEO GRAPHICS
• ATI RadeonTM HD 3200 Graphics with 128MB graphics memory. Up to 1919MB Total
Available Graphics Memory as allocated by Windows® 7(16)
NETWORK
INTERFACE
• 10/100/1000Base-T network interface
WIRELESS
CONNECTIVITY
• Integrated Bluetooth® and Wireless LAN 802.11b/g/n featuring Single-band (2.4Ghz)
2x2 MIMO technology(19)
SOUND
• Integrated High Definition Audio with 2.0 sound capabilities
• High-performance 2.0 Speakers
PERSONAL VIDEO
RECORDER
• Built in HDTV Tuner watch, pause, rewind, and record live TV(17)
REMOTE CONTROL
• HP TouchSmart remote control with Media Center functionalities
MEMORY SLOTS
• 2 DIMM (240-pin, DDR3) (occupied)
EXPANSION SLOTS
• 1 PCI-E x16 slot (MXM 3.0) (occupied)(24)
• 2 PCI-E x1 mini socket slots (occupied)(24)
EXTERNAL PORTS
• 6-in-1 memory card reader – supports Secure Digital (SD, SDHC), MultiMedia Card,
Memory Stick, Memory Stick Pro
• Headphone (Left Side)
• Line-in (Left Side)
• 6 USB 2.0 ports (2 right side, 3 back, 1 back bottom wireless dongle) (5 Available)
• Line-out (Back)
• Digital Audio Out (Back)
• RJ45 (10/100/1000 LAN) (Back)
• IR blaster jack (Back)
• RF Input (Back)
• S-Video Input (Back)
• Audio Input (Back)
MOUSE AND
KEYBOARD
• HP low-profile wireless keyboard with hide-away bay and numeric keypad
• HP wireless optical mouse
WEB CAMERA
• Adjustable webcam
INTEGRATED
DISPLAY
• Touch-enabled 20" diagonal HD LCD Display with Brightview technology
DIMENSIONS
• Unpackaged: 4.65" (W) x 20.47" (L/D) x 16.22" (H) approx.
• Packaged: 8.93" (W) x 23.39" (L/D) x 20.12" (H) approx.
WEIGHT
• Unpackaged: 24.39 lbs. approx.
• Packaged: 33.00 lbs. approx.
SOFTWARE
TOUCHSMART
SOFTWARE
• HP TouchSmart Music - Create playlists with your favorite music
• HP TouchSmart Video - Watch, record and upload(10) your personal videos using touch
• HP TouchSmart Photo - Share your fun and memorable moments in life with family and
friends
• HP TouchSmart RSS Feeds - Get the latest news right at your fingertips(10)
• HP TouchSmart Browser - Browse the web in a whole new way(10)
• HP TouchSmart Calendar - Manage your busy schedule and stay in touch with family
• HP TouchSmart Notes - Quick and easy text and voice notes right at your fingertips
• Recipe Box - Import and manage your recipes from your favorite websites or enter your
own with a simple touch.
• HP TouchSmart Link - Transfer photos and images from a mobile phone via Bluetooth.
• Canvas - Create collages to save and share with touch and/or voice controls.
• HP TouchSmart Webcam - Add custom effects and embellishments and even avatars in real
time to create fun and personalized videos.
• Premium Web Content - Experience the best of the web with Netflix, Hulu, Pandora and
more.(10)
ENTERTAINMENT
• CyberLink DVD Suite Deluxe: Make movies and slideshows and burn to DVD or CD(13)
PRODUCTIVITY
• Microsoft® Works 9: Includes a word processor, spreadsheet, database and calendar
• HP Total Care Advisor 3.2: HP Advisor makes your PC easier to use -view your status at a
glance, access support, discover more ways to use your PC, and navigate easily to your
favorite software and services.
PC SECURITY
• Includes Norton Internet Security™ 2009. Protects your PC and your identity when you
email, bank and shop online. 60 days of protection updates included.(11)
ONLINE SERVICES
• Easy sign-up to major dial-up and broadband Internet Service Providers: (15)
- High Speed Internet Services Comparison Shopping
ADDITIONAL INFORMATION
PRODUCT NUMBER
• NY537AA#ABA
AD EMBARGO DATE • 11/15/2009
UPC CODE
• 884962290316
COUNTRY OF
ORIGIN
• China
• Mexico
TARIFF NUMBER
• 8471500085
PALLET
INFORMATION
•
•
•
•
•
Dimensions: 47.24"(L) x 40.16"(W) x 80.55"(H/D) approx.
Total weight: 1060.42 lbs. approx.
Layers: 8
Products per layer: 4
Total products per pallet: 32
VISIT WWW.HP.COM/GO/TOUCHSMART FOR MORE DETAILS!
(1)
This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
Internet access requires payment of additional fees or subscription for use. Offer does not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. Please make sure your access
number is local. A valid credit card is required to initiate the service. This offer valid in the U.S.A. only. Additional terms and conditions may apply, see AOL offer for details. This system may require upgrade and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7 for details. (2) Processor speed 2.80GHz, cMB L2 + cMB shared L3 cache, 2000MHz System Bus. This system requires a separately
purchased 64-bit operating system and 64-bit software products to take advantage of the 64-bit processing capabilities of the AMD RS780MN processor. Given the wide range of software applications available, performance of a system including a 64-bit operating system
will vary.
(3)
Up to 256MB of main system memory may be allocated to support video graphics. (4) For hard drives, GB = 1 billion bytes. Actual formatted capacity is less. (6) Actual speeds may vary. 24X Max CD-ROM Drive data transfer rates up to 3600 KB/s. 48X Max CD-ROM
Drive transfers data at a rate up to 7200 KB/s. 24X Max DVD/CD-RW Combo Drive data transfer rates may vary as follows: for recording to CD-R media, for reading CD media, the max transfer rate may be up to 3600 KB/s; for reading DVD media, the max transfer rate
may be up to 10,800 KB/s. 48X Max DVD/CD-RW Combo Drive data transfer rates vary up to 7200 Kbps. Actual speeds may vary. Actual speeds may vary. Does not permit copying of commercially available DVD movies or other copyright-protected materials. Intended
only for creation and storage of original material and other lawful uses. Data transfer rates up to 6,000 KB/s (CD read) and 21,632 KB/s (DVD read). (8) According to estimates made using EPA statistics comparing PCs with and without power management. For more
information see: http://www.energystar.gov/ia/business/bulk_purchasing/bpsavings_calc/Calc_computers.xls . (10) Internet access required and sold separately. (11) Internet access required. First 60 days included; subscription required for live updates afterwards. (12)
Internet access may be required. (13) Intended for your original content and other lawful uses. Do not copy copyright-protected materials. (14) The Microsoft® Office Home and Student Edition 2007 is a trial version; functionality is reduced after 60 days. The full version is sold
separately. (15) Internet access requires payment of additional fees or subscription for use. Offer does not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. Please make sure
your access number is local. A valid credit card is required to initiate the service. This offer valid in the U.S.A. only. Additional terms and conditions may apply, see AOL offer for details. (16) Part of the total system memory (RAM) is used for graphics/video performance.
System memory dedicated to graphics/video performance is not available for other use by other programs. (17) ATSC high-definition (HD) and NTSC source content varies and will depend on broadcast signal, antenna, geographic location and other factors. An external
over-the-air antenna that receives UHF and VHF signals is required for ATSC reception. Viewing HD content will require a compatible high-definition display. Ability to record, edit, or transfer broadcast content such as TV programming may be limited depending on the type
of content. Performance issues may arise, and do not constitute defects in the product. For optimal results, HP recommends closing all other applications while recording and watching television programs. (19) Wireless access point and Internet service sold separately. The
specifications for the 802.11n WLAN are draft specifications and are not final. This may affect the ability of the PC to communicate with other 802.11n WLAN devices. (24) Power supply upgrade may be required for graphics card upgrade, check with graphics card
supplier. (25) Availability of applications on Touchsmart PC will vary by country. (26) Based on highest volume of PCs sold. Source: IDC WW PC Tracker, December 2008. (27) Up to 30% performance increase versus GeForce 9300GE without hSLI and GeForce 8200 gfx
chipset. Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by other programs. (28) Do not copy copyright-protected materials. (29) According to estimates
made using EPA statistics comparing PCs with and without power management. (30) Third party software required.
Actual product may vary from image shown on datasheet.©2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. 09/04_r1 nq Product Number: NY537AA#ABA
(1)
HP TouchSmart 600-1050 PC
A touch of genius.
Introducing the New HP TouchSmart PC.
From the elegant design to the advanced
features to the incredibly powerful suite of
built-for-touch applications, the HP
TouchSmart PC redefines what touch can do
for you—and what you can do with a touch.
Windows®. Life without WallsTM.
HP recommends Windows 7.
Your world at your fingertips.
All-in-one for all
Use your fingers to immerse yourself into your work and play. With natural,
intuitive movements everything you can do will be faster, easier, and way
more fun.
A slim, power-saving design with a small footprint comes with everything
you need built-in.
• Zip around your PC with multi-touch gestures such as pinch, rotate, arc,
flick, and press and drag.
• Includes many built-in touch-optimized applications, including new
Windows 7.(1)
• Customize your touch interface as easily as you customize your desktop.
Amazing Apps, incredibly easy
Built-in HP TouchSmart apps let you experience your music, photos, and
video in a whole new way. Touchable calendar and browser help you stay
organized. You can also play games, video chat, and more.(30)
• Launch your favorite apps instantly from HP TouchSmart home.
• Experience some of the best of the web—like Hulu, Netflix, Twitter, and
Pandora—HP TouchSmart style.(10)
• Import and manage your recipes from your favorite websites or enter
your own with a simple touch with TouchSmart Recipe Box.(10)
• Transfer photos and images from a mobile phone via Bluetooth with HP
TouchSmart Link.
• Watch, pause, rewind, and record live TV with TouchSmart Live TV.(17)
The next generation of amazing
Building on a heritage of industry firsts, the third-generation HP TouchSmart
PC combines the latest hardware and software in one elegant product.
• Recipe dictation and voice commands enables you to create dishes from
your favorite recipes step-by-step, enabling truly hands-free operation.
• Create collages to save and share with a simple touch and even use
voice control to zoom, rotate, and invert photos.
• Get the big picture with a16:9 Full HD1080p widescreen.
• Integrated premium stereo speakers produce clear, crisp sound.
• Watch Hollywood DVD movies, or edit home video and burn your own.(28
)
• Video chat with friends and family using the built-in adjustable-tilt
webcam and
microphone.(10)(30)
• Watch, pause, rewind, and record live TV.(17)
• Simple set up: just plug in one power cord to get started.
• Low profile wireless keyboard conveniently stows away when not in use.
• Built in wireless capabilities include a wireless keyboard/mouse and
integrated WLAN.(10)
• HP Ambient Light lets you see your keyboard in the dark.
HP Total Care
Every HP TouchSmart PC comes with special HP Total Care to make sure
your HP TouchSmart experience is hassle-free.
• 24/7 service and support for the first year via our North America call
center.
• Dedicated toll-free telephone support at 1.866.408.5408 in English and
Spanish in the United States or English and French in Canada.
• Real-time online chat for answers to your immediate questions.
• A desktop icon offers one-click access to online technical support,
troubleshooting and downloads.
HP TouchSmart 600-1050 PC
Reduce your impact on the environment with this Energy Star® qualified
EPEAT registered HP TouchSmart PC
• Cut your energy use up to 45 % with HP's power-management
technology.(8)
• Create less waste: this model uses 55% less metal and 35% less plastic
than standard PCs and monitors, and comes packaged in a reduced
amount of plastic foam cushioning.
Please recycle your computing hardware and printing supplies.
Find out how at our website.
All disclaimers are at the end of page 2.
HP TouchSmart 600-1050 PC
SPECIFICATIONS
Windows®. Life without WallsTM.
HP recommends Windows 7.
WARRANTY AND
SUPPORT
• Warranty Options:
-1 year limited hardware warranty and 1 year software support, offering 24x7 technical
assistance available online(10) or toll-free by phone
• Support Options:
-Desktop icon provides one click access to built-in desktop Help and Support Center.
-Easy, online access to questions, answers and troubleshooting information via
www.hp.com/support
- Direct, knowledgeable assistance available 24/7 toll-free by phone.
• Extended Service Plans:
-You can choose from a variety of Extended Service Plans from HP to meet your individual
needs by calling 1-866-234-1377 or by going to www.hp.com/go/totalcare
ACCESSORIES
• Cleaning Cloth
®
OPERATING SYSTEM • Genuine Windows 7 Home Premium 64-bit Edition - makes everyday tasks simple—and
makes new things possible. (1)
PROCESSOR
• Intel® Core™2 Duo Processor T6500(2)
PROCESSOR SPEED
• 2.10GHz(2)
CHIPSET
• NVIDIA MCP7A-JC
CACHE (L2)
• 2MB L2 Cache
BUS SPEED
• 800MHz System Bus
MEMORY
• 4GB PC3-10600 DDR3-1333 SODIMM (2x2048)(3)
(4)
HARD DRIVE
• 750GB 7200RPM Serial ATA hard drive
OPTICAL DRIVE(S)
• Slot-load SuperMulti DVD Burner(6)
8x DVD-R, 8x DVD+RW, 6x DVD-RW, 6x DVD±R DL, 5x DVD-RAM, 8x DVD-ROM, 24x
CDR, 24x CDRW, 24x CD-ROM(6)
SOFTWARE
TOUCHSMART
SOFTWARE
• HP TouchSmart Music - Create playlists with your favorite music
• HP TouchSmart Video - Watch, record and upload(10) your personal videos using touch
• HP TouchSmart Photo - Share your fun and memorable moments in life with family and
friends
• HP TouchSmart RSS Feeds - Get the latest news right at your fingertips(10)
• HP TouchSmart Browser - Browse the web in a whole new way(10)
• HP TouchSmart Calendar - Manage your busy schedule and stay in touch with family
• HP TouchSmart Notes - Quick and easy text and voice notes right at your fingertips
• Recipe Box - Import and manage your recipes from your favorite websites or enter your
own with a simple touch.
• HP TouchSmart Link - Transfer photos and images from a mobile phone via Bluetooth.
• Canvas - Create collages to save and share with touch and/or voice controls.
• HP TouchSmart Webcam - Add custom effects and embellishments and even avatars in real
time to create fun and personalized videos.
• Premium Web Content - Experience the best of the web with Netflix, Hulu, Pandora and
more.(10)
ENTERTAINMENT
• CyberLink DVD Suite Deluxe: Make movies and slideshows and burn to DVD or CD(13)
PRODUCTIVITY
• Microsoft® Works 9: Includes a word processor, spreadsheet, database and calendar
• HP Total Care Advisor 3.2: HP Advisor makes your PC easier to use -view your status at a
glance, access support, discover more ways to use your PC, and navigate easily to your
favorite software and services.
PC SECURITY
• Includes Norton Internet Security™ 2009. Protects your PC and your identity when you
email, bank and shop online. 60 days of protection updates included.(11)
ONLINE SERVICES
• Easy sign-up to major dial-up and broadband Internet Service Providers: (15)
- High Speed Internet Services Comparison Shopping
®
VIDEO GRAPHICS
• NVIDIA GeForce G200 Graphics with 320MB integrated shared graphics memory. Up to
1919MB Total Available Graphics Memory as allocated by Windows® 7(16)
NETWORK
INTERFACE
• 10/100/1000Base-T network interface
WIRELESS
CONNECTIVITY
• Integrated Bluetooth® and Wireless LAN 802.11b/g/n featuring Single-band (2.4Ghz)
2x2 MIMO technology(19)
SOUND
• Integrated High Definition Audio with 2.0 sound capabilities
• High-performance 2.0 Speakers
PERSONAL VIDEO
RECORDER
• Built in HDTV Tuner watch, pause, rewind, and record live TV(17)
REMOTE CONTROL
• HP TouchSmart remote control with Media Center functionalities
MEMORY SLOTS
• 2 DIMM (240-pin, DDR3) (occupied)
EXPANSION SLOTS
• 1 PCI-E x16 slot (MXM)) (occupied)(24)
• 2 PCI-E x1 mini socket slots (occupied)(24)
EXTERNAL PORTS
• 6-in-1 memory card reader (Right) – supports Secure Digital (SD, SDHC), MultiMedia
Card, Memory Stick, Memory Stick Pro
• Headphone (Left Side)
• Line-in (Left Side)
• 6 USB 2.0 ports (5 Left Side, 1 Back) (6 Ports Available)
• Line-out (Back)
• RJ45 (10/100/1000 LAN) (Left)
• IR blaster jack (Left)
• RF Input (Left)
• S-Video Input (Left)
• Audio Input (Left)
MOUSE AND
KEYBOARD
• HP low-profile wireless keyboard with hide-away bay and numeric keypad
• HP wireless optical mouse
WEB CAMERA
• Adjustable webcam
INTEGRATED
DISPLAY
• Touch-enabled 23" diagonal Full HD 1080p LCD Display with Brightview technology
DIMENSIONS
• Unpackaged: 5.12" (W) x 23.00" (L/D) x 17.84" (H) approx.
• Packaged: 9.10" (W) x 26.57" (L/D) x 21.22" (H) approx.
WEIGHT
• Unpackaged: 33.07 lbs. approx.
• Packaged: 44.09 lbs. approx.
LIGHTING
• HP Ambient Light
ADDITIONAL INFORMATION
PRODUCT NUMBER
• NY538AA#ABA
AD EMBARGO DATE • 10/18/2009
SALES AND
FULFILLMENT
EMBARGO
• 10/22/2009
UPC CODE
• 884962290330
COUNTRY OF
ORIGIN
• China
TARIFF NUMBER
• 8471500085
PALLET
INFORMATION
•
•
•
•
•
Dimensions: 43.70"(L) x 40.16"(W) x 85.35"(H/D) approx.
Total weight: 1102.31 lbs. approx.
Layers: 4
Products per layer: 6
Total products per pallet: 24
VISIT WWW.HP.COM/GO/TOUCHSMART FOR MORE DETAILS!
(1)
This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
Internet access requires payment of additional fees or subscription for use. Offer does not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. Please make sure your access
number is local. A valid credit card is required to initiate the service. This offer valid in the U.S.A. only. Additional terms and conditions may apply, see AOL offer for details. This system may require upgraded and/or separately purchased hardware, drivers and/or
software to take full advantage of Windows Vista functionality. Check www.windowsvista.com/getready for details. (1c) This system may require upgrade and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage
of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7 for details. (2) Dual/Quad Core is a new technology designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use
of this technology. 64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel
64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information. (3) Up to 256MB of main system memory may be allocated to support video graphics. (4) For hard drives,
GB = 1 billion bytes. Actual formatted capacity is less. (6) Actual speeds may vary. 24X Max CD-ROM Drive data transfer rates up to 3600 KB/s. 48X Max CD-ROM Drive transfers data at a rate up to 7200 KB/s. 24X Max DVD/CD-RW Combo Drive data transfer rates
may vary as follows: for recording to CD-R media, for reading CD media, the max transfer rate may be up to 3600 KB/s; for reading DVD media, the max transfer rate may be up to 10,800 KB/s. 48X Max DVD/CD-RW Combo Drive data transfer rates vary up to 7200
Kbps. Actual speeds may vary. Actual speeds may vary. Does not permit copying of commercially available DVD movies or other copyright-protected materials. Intended only for creation and storage of original material and other lawful uses. Double Layer is a new
technology. Double Layer media compatibility will widely vary with some home DVD players and DVD-ROM drives. Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media. Data transfer rates up to 3,600 KB/s (CD
read/write) and 10,816 KB/s (DVD read/write) (TouchSmart - DVD+/-R/RW 8X SuperMulti Slim Slot SATA Std Bezel). (8) According to estimates made using EPA statistics comparing PCs with and without power management. For more information see:
http://www.energystar.gov/ia/business/bulk_purchasing/bpsavings_calc/Calc_computers.xls . (10) Internet access required and sold separately. (11) Internet access required. First 60 days included; subscription required for live updates afterwards. (13) Intended for your
original content and other lawful uses. Do not copy copyright-protected materials. (14) The Microsoft® Office Home and Student Edition 2007 is a trial version; functionality is reduced after 60 days. The full version is sold separately. (15) Internet access requires payment of
additional fees or subscription for use. Offer does not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. Please make sure your access number is local. A valid credit card is
required to initiate the service. This offer valid in the U.S.A. only. Additional terms and conditions may apply, see AOL offer for details. (16) Part of the total system memory (RAM) is used for graphics/video performance. System memory dedicated to graphics/video
performance is not available for other use by other programs. (17) ATSC high-definition (HD) and NTSC source content varies and will depend on broadcast signal, antenna, geographic location and other factors. An external over-the-air antenna that receives UHF and VHF
signals is required for ATSC reception. Viewing HD content will require a compatible high-definition display. Ability to record, edit, or transfer broadcast content such as TV programming may be limited depending on the type of content. Performance issues may arise, and
do not constitute defects in the product. For optimal results, HP recommends closing all other applications while recording and watching television programs. (19) Wireless access point and Internet service sold separately. The specifications for the 802.11n WLAN are draft
specifications and are not final. This may affect the ability of the PC to communicate with other 802.11n WLAN devices. (24) Power supply upgrade may be required for graphics card upgrade, check with graphics card supplier.(25) Availability of applications on Touchsmart
PC will vary by country. (26) Based on highest volume of PCs sold. Source: IDC WW PC Tracker, December 2008. (27) Up to 30% performance increase versus GeForce 9300GE without hSLI and GeForce 8200 gfx chipset. Shared video memory (UMA) uses part of the total
system memory for video performance. System memory dedicated to video performance is not available for other use by other programs. (28) Do not copy copyright-protected materials. (29) According to estimates made using EPA statistics comparing PCs with and without
power management. (30) Third party software required.
(1a)
Actual product may vary from image shown on datasheet.©2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. 09/03_r2 nq Product Number: NY538AA#ABA
HP TouchSmart 600-1055 PC
A touch of genius.
Introducing the New HP TouchSmart PC.
From the elegant design to the advanced
features to the incredibly powerful suite of
built-for-touch applications, the HP
TouchSmart PC redefines what touch can do
for you—and what you can do with a touch.
Windows®. Life without WallsTM.
HP recommends Windows 7.
Your world at your fingertips.
All-in-one for all
Use your fingers to immerse yourself into your work and play. With natural,
intuitive movements everything you can do will be faster, easier, and way
more fun.
A slim, power-saving design with a small footprint comes with everything
you need built-in.
• Zip around your PC with multi-touch gestures such as pinch, rotate, arc,
flick, and press and drag.
• Includes many built-in touch-optimized applications, including new
Windows 7.(1)
• Customize your touch interface as easily as you customize your desktop.
Amazing Apps, incredibly easy
Built-in HP TouchSmart apps let you experience your music, photos, and
video in a whole new way. Touchable calendar and browser help you stay
organized. You can also play games, video chat, and more.(30)
• Launch your favorite apps instantly from HP TouchSmart home.
• Experience some of the best of the web—like Hulu, Netflix, Twitter, and
Pandora—HP TouchSmart style.(10)
• Import and manage your recipes from your favorite websites or enter
your own with a simple touch with TouchSmart Recipe Box.(10)
• Transfer photos and images from a mobile phone via Bluetooth with HP
TouchSmart Link.
• Watch, pause, rewind, and record live TV with TouchSmart Live TV.(17)
The next generation of amazing
Building on a heritage of industry firsts, the third-generation HP TouchSmart
PC combines the latest hardware and software in one elegant product.
• Recipe dictation and voice commands enables you to create dishes from
your favorite recipes step-by-step, enabling truly hands-free operation.
• Create collages to save and share with a simple touch and even use
voice control to zoom, rotate, and invert photos.
• Connect your Xbox, Wii, or Playstation through the HDMI or composite
inputs.
• Get the big picture with a16:9 Full HD1080p widescreen.
• Integrated premium stereo speakers produce clear, crisp sound.
• Watch Hollywood BluRay and DVD movies, or edit home video and burn
your own.(28)(6)
• Video chat with friends and family using the built-in adjustable-tilt
webcam and microphone.(10)(30)
• Watch, pause, rewind, and record live TV.(17)
• Simple set up: just plug in one power cord to get started.
• Low profile wireless keyboard conveniently stows away when not in use.
• Built in wireless capabilities include a wireless keyboard/mouse and
integrated WLAN.(10)
• Colored HP Ambient Light lets you see your keyboard in the dark.
HP Total Care
Every HP TouchSmart PC comes with special HP Total Care to make sure
your HP TouchSmart experience is hassle-free.
• 24/7 service and support for the first year via our North America call
center.
• Dedicated toll-free telephone support at 1.866.408.5408 in English and
Spanish in the United States or English and French in Canada.
• Real-time online chat for answers to your immediate questions.
• A desktop icon offers one-click access to online technical support,
troubleshooting and downloads.
HP TouchSmart 600-1055 PC
Reduce your impact on the environment with this Energy Star® qualified
EPEAT registered HP TouchSmart PC
• Cut your energy use up to 45 % with HP's power-management
technology.(8)
• Create less waste: this model uses 55% less metal and 35% less plastic
than standard PCs and monitors, and comes packaged in a reduced
amount of plastic foam cushioning.
Please recycle your computing hardware and printing supplies.
Find out how at our website.
All disclaimers are at the end of page 2.
HP TouchSmart 600-1055 PC
SPECIFICATIONS
Windows®. Life without WallsTM.
HP recommends Windows 7.
WARRANTY AND
SUPPORT
• Warranty Options:
-1 year limited hardware warranty and 1 year software support, offering 24x7 technical assistance
available online(10) or toll-free by phone
-Service Delivery: Customer Replaceable Parts; Return to hp for repair; Authorized Service
Provider.
• Support Options:
-Desktop icon provides one click access to built-in desktop Help and Support Center.
-Easy, online access to questions, answers and troubleshooting information via
www.hp.com/support
- Direct, knowledgeable assistance available 24/7 toll-free by phone.
• Extended Service Plans:
-You can choose from a variety of Extended Service Plans from HP to meet your individual needs
by calling 1-866-234-1377 or by going to www.hp.com/go/totalcare
ACCESSORIES
• Cleaning Cloth
®
OPERATING SYSTEM • Genuine Windows 7 Home Premium 64-bit - makes everyday tasks simple—and makes new
things possible.(1)
PROCESSOR
• Intel® CoreTM 2 Duo Processor P7450(2)
PROCESSOR SPEED
• 2.13GHz(2)
CHIPSET
• NVIDIA MCP7A-JC
CACHE (L2)
• 3MB L2 Cache
BUS SPEED
• 1066MHz Front Side Bus
MEMORY
• 4GB PC3-10600 DDR3-1333 SODIMM (2x2048)
HARD DRIVE
• 750GB 7200RPM Serial ATA hard drive(4)
OPTICAL DRIVE(S)
• Slot-load Blu-ray player(6) & SuperMulti DVD burner(6)
Read: 8x DVD±R, 6x DVD±RW, 6x DVD±R DL, 5x DVD-RAM, 2x BD-ROM, 8x DVD-ROM, 6x
DVD-ROM DL, 24x CDR, 24x CDRW, 24x CD-ROM
Write: 8x DVD±R, 4x DVD±RW, 4x DVD±R DL, 5x DVD-RAM, 16x CDR, 10x CDRW(6)
VIDEO GRAPHICS
• NVIDIA GeForce GT230M with 1GB dedicated graphics memory and support for Blu-ray, and
Microsoft® DirectX® 10. Up to 2815MB Total Available Graphics Memory as allocated by
Windows® 7.
NETWORK
INTERFACE
• 10/100/1000Base-T network interface
WIRELESS
CONNECTIVITY
• Integrated Bluetooth® and Wireless LAN 802.11b/g/n featuring Single-band (2.4Ghz) 2x2
MIMO technology(19)
SOUND
• Integrated High Definition Audio with 2.0 sound capabilities
• High-performance 2.0 Speakers
PERSONAL VIDEO
RECORDER
• Built in HDTV Tuner watch, pause, rewind, and record live TV(17)
REMOTE CONTROL
• HP TouchSmart remote control with Media Center functionalities
MEMORY SLOTS
• 2 DIMM (240-pin, DDR3) (occupied)
EXPANSION SLOTS
• 1 PCI-E x16 slot (MXM)) (occupied)(24)
• 2 PCI-E x1 mini socket slots (occupied)(24)
EXTERNAL PORTS
• 6-in-1 memory card reader (Right) – supports Secure Digital (SD, SDHC), MultiMedia Card,
Memory Stick, Memory Stick Pro
• Headphone (Left Side)
• Line-in (Left Side)
• 6 USB 2.0 ports (5 Left Side, 1 Back) (6 Ports Available)
• Line-out (Back)
• RJ45 (10/100/1000 LAN) (Left)
• IR blaster jack (Left)
• RF Input (Left)
• S-Video Input (Left)
• Audio Input (Left)
• Game input (HDMI, Composite Video and Analog (L/R) Audio)
MOUSE AND
KEYBOARD
• HP low-profile wireless keyboard with hide-away bay and numeric keypad
• HP wireless optical mouse
WEB CAMERA
• Adjustable webcam
INTEGRATED
DISPLAY
• Touch-enabled 23" diagonal Full HD 1080p LCD Display with Brightview technology
DIMENSIONS
• Unpackaged: 5.12" (W) x 23.00" (L/D) x 17.84" (H) approx.
• Packaged: 9.10" (W) x 26.57" (L/D) x 21.22" (H) approx.
WEIGHT
• Unpackaged: 33.07 lbs. approx.
• Packaged: 44.09 lbs. approx.
LIGHTING
• Colored HP Ambient Light lets you set a mood, or see your keyboard in the dark.
SOFTWARE
TOUCHSMART
SOFTWARE
•
•
•
•
•
•
•
•
•
•
•
•
HP TouchSmart Music - Create playlists with your favorite music
HP TouchSmart Video - Watch, record and upload(10) your personal videos using touch
HP TouchSmart Photo - Share your fun and memorable moments in life with family and friends
HP TouchSmart RSS Feeds - Get the latest news right at your fingertips(10)
HP TouchSmart Browser - Browse the web in a whole new way(10)
HP TouchSmart Calendar - Manage your busy schedule and stay in touch with family
HP TouchSmart Notes - Quick and easy text and voice notes right at your fingertips
Recipe Box - Import and manage your recipes from your favorite websites or enter your own with a
simple touch.
HP TouchSmart Link - Transfer photos and images from a mobile phone via Bluetooth.
Canvas - Create collages to save and share with touch and/or voice controls.
HP TouchSmart Webcam - Add custom effects and embellishments and even avatars in real time to
create fun and personalized videos.
Premium Web Content - Experience the best of the web with Netflix, Hulu, Pandora and more.(10)
ENTERTAINMENT
• CyberLink DVD Suite Deluxe: Make movies and slideshows and burn to DVD or CD(13)
PRODUCTIVITY
• Microsoft® Works 9: Includes a word processor, spreadsheet, database and calendar
• HP Total Care Advisor 3.2: HP Advisor makes your PC easier to use -view your status at a glance,
access support, discover more ways to use your PC, and navigate easily to your favorite software
and services.
PC SECURITY
• Includes Norton Internet Security™ 2009. Protects your PC and your identity when you email, bank
and shop online. 60 days of protection updates included.(11)
ONLINE SERVICES
• Easy sign-up to major dial-up and broadband Internet Service Providers: (15)
- High Speed Internet Services Comparison Shopping
ADDITIONAL INFORMATION
PRODUCT NUMBER
• NY539AA#ABA
AD EMBARGO DATE • 10/18/2009
SALES AND
FULFILLMENT
EMBARGO
• 10/22/2009
UPC CODE
• 884962290354
COUNTRY OF
ORIGIN
• China
• Mexico
TARIFF NUMBER
• 8471500085
PALLET
INFORMATION
•
•
•
•
•
Dimensions: 43.70"(L) x 40.16"(W) x 85.35"(H/D) approx.
Total weight: 1102.31 lbs. approx.
Layers: 4
Products per layer: 6
Total products per pallet: 24
VISIT WWW.HP.COM/GO/TOUCHSMART FOR MORE DETAILS!
(1)
This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
Internet access requires payment of additional fees or subscription for use. Offer does not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. Please make sure your access
number is local. A valid credit card is required to initiate the service. This offer valid in the U.S.A. only. Additional terms and conditions may apply, see AOL offer for details. This system may require upgrade and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7 for details. (2) Dual/Quad Core is a new technology designed to improve performance of certain software products. Not all customers
or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors
will not operate (including 32-bit operation) without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information. (4) For hard drives, GB = 1 billion bytes.
Actual formatted capacity is less. (6) Actual speeds may vary. 24X Max CD-ROM Drive data transfer rates up to 3600 KB/s. 48X Max CD-ROM Drive transfers data at a rate up to 7200 KB/s. 24X Max DVD/CD-RW Combo Drive data transfer rates may vary as follows: for
recording to CD-R media, for reading CD media, the max transfer rate may be up to 3600 KB/s; for reading DVD media, the max transfer rate may be up to 10,800 KB/s. 48X Max DVD/CD-RW Combo Drive data transfer rates vary up to 7200 Kbps. Actual speeds may
vary. As HD DVD and Blu-ray are new formats containing new technologies, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for
some HD-DVD and Blu-ray titles to play, they may require a DVI or HDMI digital connection and your display may require HDCP support. Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media. Data transfer rates up to
6,000 KB/s (CD read/write), 21,632 KB/s (DVD read/write), 17,560 KB/S (BD write), 26,340 KB/s (BD read) and 13,383 KB/s (HD DVD read). Some HD DVD and Blu-ray advanced features may not be supported. CPU power is dedicated to support HD DVD and
Blu-ray playback functions. It is recommended that you close all other applications before and during HD DVD and Blu-ray playback. HD DVD and Blu-ray movies will only play through the HD DVD and Blu-ray player software. Advanced Access Content System (AACS)
keys are integrated into your PC for copy protection purposes. Occasional renewal of the AACS key is required, and easily done by connecting to the internet. (Blu-ray burner/HD DVD Player). (8) According to estimates made using EPA statistics comparing PCs with and
without power management. For more information see: http://www.energystar.gov/ia/business/bulk_purchasing/bpsavings_calc/Calc_computers.xls . (10) Internet access required and sold separately. (11) Internet access required. First 60 days included; subscription
required for live updates afterwards. (12) Internet access may be required. (13) Intended for your original content and other lawful uses. Do not copy copyright-protected materials. (14) The Microsoft® Office Home and Student Edition 2007 is a trial version; functionality is
reduced after 60 days. The full version is sold separately. (15) Internet access requires payment of additional fees or subscription for use. Offer does not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the
responsibility of the customer. Please make sure your access number is local. A valid credit card is required to initiate the service. This offer valid in the U.S.A. only. Additional terms and conditions may apply, see AOL offer for details. (17) ATSC high-definition (HD) and
NTSC source content varies and will depend on broadcast signal, antenna, geographic location and other factors. An external over-the-air antenna that receives UHF and VHF signals is required for ATSC reception. Viewing HD content will require a compatible
high-definition display. Ability to record, edit, or transfer broadcast content such as TV programming may be limited depending on the type of content. Performance issues may arise, and do not constitute defects in the product. For optimal results, HP recommends closing all
other applications while recording and watching television programs. (19) Wireless access point and Internet service sold separately. The specifications for the 802.11n WLAN are draft specifications and are not final. This may affect the ability of the PC to communicate with
other 802.11n WLAN devices. (24) Power supply upgrade may be required for graphics card upgrade, check with graphics card supplier. (25) Availability of applications on Touchsmart PC will vary by country. (26) Based on highest volume of PCs sold. Source: IDC WW PC
Tracker, December 2008. (27) Up to 30% performance increase versus GeForce 9300GE without hSLI and GeForce 8200 gfx chipset. Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance
is not available for other use by other programs. (28) Do not copy copyright-protected materials. (29) According to estimates made using EPA statistics comparing PCs with and without power management. (30) Third party software required.
(1a)
Actual product may vary from image shown on datasheet.©2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. 09/04_r1 nq Product Number: NY539AA#ABA
