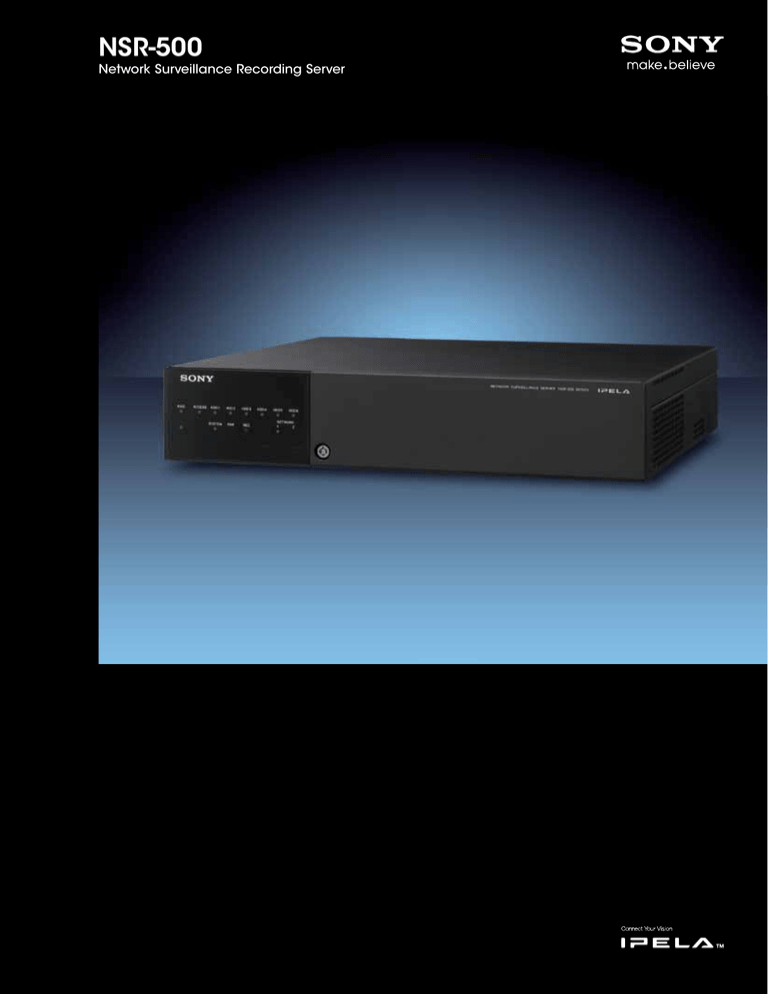

Sony NSR-500 digital video recorder

NSR-500
Network Surveillance Recording Server
The NSR-500 is Sony’s 16-channel Full-HD network surveillance
recording server delivering a very good cost-performance ratio.
Depending on system requirements, you can choose the very best
machine for your particular applications.
Expandability and Flexibility
As shown below, you can choose from two NSR-500 models, and increase the number of hard disk drive (HDD)
units to achieve your required storage capacity. RAID levels can also be selected according to your precise
requirements for reliability. To expand your choice of future upgrades, the optional NSBK-EB05 Analog Encoder
Board and NSBK-DH05 Display Accelerator Board are also available separately. Furthermore, with the optional
additional Camera License, you can also add extra cameras.
Number of HDDs
Storage Capacity
Model Number
Configurable RAID Level
0
–
NSR-500:00
–
–
–
–
RAID 0, RAID 1
–
RAID 5
1
2
3
4
5
6
1 TB (1 TB x 1)
2 TB (2 TB x 1)
2 TB (1 TB x 2)
4 TB (2 TB x 2)
3 TB (1 TB x 3)
6 TB (2 TB x 3)
4 TB (1 TB x 4)
NSR-500:04
8 TB (2 TB x 4)
–
5 TB (1 TB x 5)
10 TB (2 TB x 5)
6 TB (1 TB x 6)
12 TB (2 TB x 6)
RAID 10 (1+0), RAID 5, RAID 5 with hot spare
–
RAID 5, RAID 5 with hot spare
–
RAID 10 (1+0), RAID 5, RAID 5 with hot spare
Optional Accessories
n Analog Encoder Board NSBK-EB05
n Display Accelerator Board NSBK-DH05
n Additional Camera License for Four Channels NSBK-CL05
n Hard Disk Drive (1 TB) NSBK-HS05:01
n Hard Disk Drive (2 TB) NSBK-HS05:02
n System controller RM-NS1000
NSBK-EB05
2
NSBK-DH05
Features
Long-duration Recording
Easy Setup and Easy Operation
With a 12-TB HDD (2-TB x 6), you can record more than 300
The NSR-500 detects Sony’s network cameras in a network
hours of high-quality Full-HD images of 16 channels
and sets up all the parameters of each camera in a
compressed at 4 Mbps with a frame rate of 30 fps.
step-by-step manner with a dedicated setup wizard.
RAID Technology to
Prevent Disk-failure Data Loss
The hard disk storage units of the NSR-500 are configured
with high redundancy.
This drastically reduces the time required for system
installation. Images from cameras are assigned automatically
to a monitor layout menu, so that you can start monitoring
instantly.
They feature RAID implementations and hot-swappable
Backward System Compatibility
capabilities to protect important data against hard disk
The NSR-500 can be used with Sony’s existing recording
failure, 24 hours a day. You can choose from RAID 0, RAID 1,
systems such as the NSR-1000 Series, and RealShot Manager
RAID 10 (1+0), RAID 5, or RAID 5 + Hot Spare, depending on
Advanced, through the RealShot Manager Advanced client -
your system requirements.
software that can be downloaded from the NSR-500.
Ideal Replacement for
Existing Digital Video Recorders
With the optional NSBK-EB05 Analog Encoder Board, the
NSR-500 can replace digital video recorders (DVRs) in a
CCTV surveillance system, which can be used with existing
analog cameras.
The NSR-500 is a relatively small investment, equivalent to a
System Examples
Stand Alone Configuration
Analog Cameras
NSR-500 with NSBK-EB05 and NSBK-DH05
DVR purchase, yet it provides you with the opportunity to
gradually migrate to a network surveillance system in future.
Optional Licenses for Future System Expansion
The optional NSBK-CL05 allows you to add extra licenses, and
HDMI/RGB Monitor
Broadband
Router
Sony’s Network Cameras
you can connect up to 24 network cameras to a single
NSR-500 (including the original 16 cameras).
Client PC
(RSM Advanced installed)
Multi-location System
Branch 1
Connectors
Sony’s Network Cameras
NSR-500
Front Panel NSR-500
Network Switch
Third-Party Network Cameras
Rear Panel NSR-500 with NSBK-EB05 Analog Encoder Board
Monitoring Room
Branch 2
Analog Encoder Board (NSBK-EB05)
Client PC
(RSM Advanced installed)
Sony’s Network Cameras
Network Switch
Rear Panel NSR-500 with NSBK-DH05 Display Accelerator Board
Third-Party Network Cameras
NSR-1000 Series
HDMI/RGB Monitor
Display Accelerator Board (NSBK-DH05)
3
SPECIFICATIONS
NSR-500
Recording
NSBK-EB05
Video/Audio
Number of Cameras Supported
16 (Max. 24 with NSBK-CL05)
Total Recording Frame Rate
Max. 480 fps (Max. 64 Mbps)
Maximum Recording Frame Rate/Camera
Max. 30 fps/camera
Video Recording Format (IP Camera)
H.264, MPEG-4, JPEG
Audio Recording Format (IP Camera)
G.711, G.726
Number of Hard Disk Drives
NSR-500:00: None
NSR-500:04: 4 disks
Hard Disk Drive (Physical Capacity)
Expandable up to 12 TB (2 TB x 6)
NSR-500:00: None
NSR-500:04: 4 TB (1 TB x 4)
Hard Disk Drive (Interface)
SATA
Hard Disk Drive (RAID Level)
RAID 0, RAID 1 RAID 10 (1+0), RAID 5, RAID 5 with hot spare
Hard Disk Drive (Recording Capacity)
NSR-500:00: None
NSR-500:04 (default setting: RAID 5): Approx. 2.6 TB
Expansion Storage
iSCSI storage (Max. 16 TB)
Video Output
Monitor Output (Interface)*1
Analog RGB (D-sub 15-pin) (x1)
Monitor Output (Display Resolution)
1,920 x 1,200, 1,920 x 1,080, 1,360 x 768, 1,600 x 1,200,
1,280 x 1,024, 1,024 x 768
Display Frame Rate (Live)
Varies depending on system configuration
Display Frame Rate (Playback)
Varies depending on system configuration
Interface
Network Port
1000BASE-T, 100BASE-TX, 10BASE-T (RJ-45) (x2)
Serial Interface (for UPS)
RS-232C: D-sub 9-pin (x1)
USB
USB 2.0 (x4)
Sensor Input
Compatible with DC 3.3 V to 24 V photo coupler input (x8)*2
Alarm Output
Max. 24 V DC/1 A, mechanical relay output (x8)*2
Monitor Output*1
Analog RGB (D-sub 15-pin) (x1)
Audio Line Output
Stereo mini jack (x1)
General
Number of analog input
Input video format
Video codec
Motion detection
Noise reduction
Video resolution
Maximum frame rate
Video quality
Audio codec
Interface
Input connector
(by supplied cable)
Video input
connector (cable)
Audio input
connector (cable)
Operating temperature
Operating humidity
Dimensions (Board)
Mass
Board
Cable
NSBK-DH05
Video/Audio
Maximum Decoding
Resolution
Video Decoding Format *5
Monitor Output (Display
Resolution)
Display Frame Rate
Max. 250 W (100V to 240 V/3.5 A to 1.5 A)
Operating Temperature
5°C to 40°C (41°F to 104°F)
Operating Humidity
20% to 80% (no condensation)
Interface
Dimensions (W x H x D)
440 x 89 x 392 mm (17 3/8 x 3 1/2 x 15 1/2 inches) (2U)
(excluding protrusions)
Monitor Output *6
Audio Output
Mass
6.8 kg (15 lb) (NSR-500:00)
Supplied Accessories
Installation manual (1)
H.264/MPEG-4
1,920 x 1,200 (not supported by HDMI)/1,920 x 1,080/1,360 x 768/
1,600 x 1,200/1,280 x 1,024/1,024 x 768
Max. 60 fps (30 fps x 2 channels) at 1,920 x 1,080 at 4 Mbps
Max. 60 fps (15 fps x 4 channels) at 1,920 x 1,080 at 4 Mbps
Max. 120 fps (30 fps x 4 channels) at 1,280 x 720 at 2 Mbps
Max. 135 fps (15 fps x 9 channels) at 1,280 x 720 at 2 Mbps
Max. 270 fps (30 fps x 9 channels) at 720 x 480/576 at 1 Mbps
Max. 240 fps (15 fps x 16 channels) at 720 x 480/576 at 1 Mbps
General
Operating Temperature
Flyer (WEEE) (1)
Flyer (EU battery) (1)
Warranty booklet (1)
Warranty Sheet Assy (1) (J model only)
Up to 1,920 x 1,080
HDMI (x1), analog RGB (D-sub 15-pin) (x1)
1 channel (HDMI) *7
CD-ROM (User’s Guide) (1)
DVD-ROM (Setup Program) (1) (NSR-500:00 only)
5 to 40 ˚C (41 to 104 ˚F)
20 to 80%
Approx. 192 x 69 mm ( 7 5/8 x 2 3/4 inches)
(exclusive projections)
Approx. 100 g (3.5 oz)
Approx. 240 g (8.5 oz)
Analog video/audio input cable (1), Installation
manual (1), Warranty booklet (1)
Supplied accessories
100 V to 127 V AC, 200 V to 240 V (50/60 Hz)
HDD screw (24) (NSR-500:00 only)
5˚C to 40˚C (41˚F to 104˚F)
20% to 80%
170 mm x 80 mm x 27 mm
(6 3/4 inches x 3 1/4 inches x 1 1/8 inches) (exclusive projections)
130 g (5 oz)
Analog RGB cable (for internal wiring) (1), Connector cover (1),
Installation manual (1), Warranty booklet (1)
*5:Sony’s HVO-1000MD HD Video Recorder is not supported.
*6:Either the HDMI or analog RGB interface can be used.
*7:When using the HDMI interface, the alarm sound (beep tone) may not be properly
produced (this depends on the monitor connected). If so, please use the NSR-500’s audio
line output.
AC Power code (1) (J/CN model only)
*1:Monitor Output is designed for use in system configuration settings, not for live monitoring
applications. Display frame rates for live viewing and playback vary according to system
configurations.
*2:Insulated from the main unit.
Distributed by
MK10805V6OHB12OCT
RCA (x4) (white)
*3:The audio channels from No. 1 to No. 4 are allotted the video channels 1 to 4 respectively.
*4:When using a JPEG format, the total frame rate for the system is decreased to 240 fps in
High quality mode and 160 fps in Highest quality mode.
Power Consumption
Rubber feet (4)
BNC (x16) (black)
General
Power Requirements
HDD cover key (2)
Video input (x16)/Audio input (x4)*3
NTSC/PAL
H.264/JPEG
Yes
Yes
NTSC: 720 x 480, 720 x 240, 704 x 480, 704 x 240,
352 x 240
PAL: 720 x576, 720 x 288, 704 x 576, 704 x 288,
352 x 288
NTSC: 30 fps/camera (total 480 fps)
PAL: 25 fps/camera (total 400 fps)
Bitrate: 64 Kbps to 2 Mbps (H.264)
Quality: Low, Medium, High, Highest (JPEG)*4
G.711, 64 Kbps
NSBK-DH05
Display Resolution
1,920 x 1,080
1,280 x 720
720 x 480/576
1,920 x 1,080
1,280 x 720
720 x 480/576
1,920 x 1,080
1,280 x 720
720 x 480/576
1,920 x 1,080
1,280 x 720
720 x 480/576
Maximum Number of Monitor Frames
0
0
16
1
0
14
2
0
10
3
0
6
0
1
15
1
1
12
2
1
8
3
1
4
0
2
13
1
2
10
2
2
6
3
2
2
0
3
11
1
3
8
2
3
4
3
3
0
0
4
9
1
4
6
2
4
2
4
0
2
0
5
7
1
5
4
2
5
0
4
1
0
0
6
5
1
6
2
0
7
3
1
7
0
0
8
1
0
9
0
©2012 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are as of software version 1.4 for
the NSR-500 and NSBK-EB05, and as of software version 1.5.1 for
the NSBK-DH05, and subject to change without notice.
The values for mass and dimension are approximate.
“Sony”, “make.believe”, and “IPELA” are trademarks of Sony Corporation.
All other trademarks are the properties of their respective owners.
