Mitsubishi Electric OL-XL7100TZ projection lense

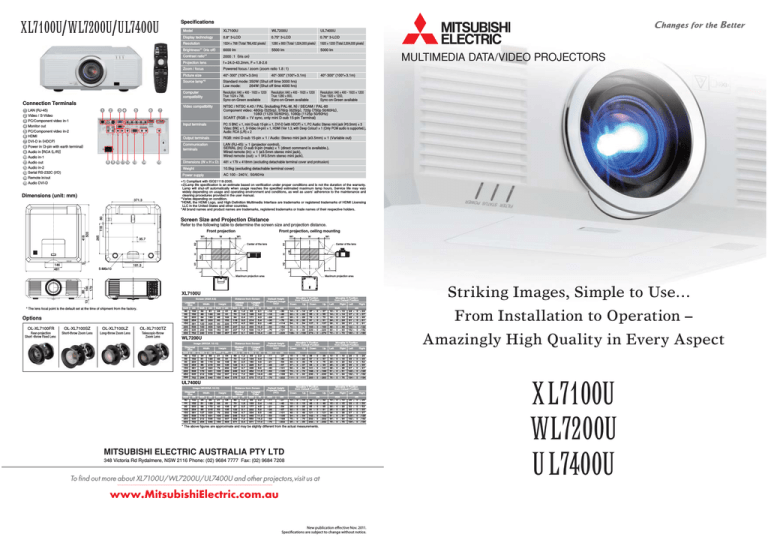

XL7100U/WL7200U/UL7400U
Connection Terminals
1
LAN (RJ-45)
Video / S-Video
PC/Component video in-1
Monitor out
PC/Component video in-2
HDMI
DVI-D in (HDCP)
Power in (3-pin with earth terminal)
Audio in [RCA (L/R)]
Audio in-1
Audio out
Audio in-2
Serial RS-232C (I/O)
Remote in/out
Audio DVI-D
2
3 4
5
6
8 9 10 11 12 13
14
Model
XL7100U
WL7200U
UL7400U
Display technology
0.8” 3-LCD
0.75” 3-LCD
0.76” 3-LCD
Resolution
1024 × 768 (Total 786,432 pixels)
1280 × 800 (Total 1,024,000 pixels)
1920 × 1200 (Total 2,304,000 pixels)
Brightness*1 (Iris off)
6000 lm
5500 lm
5000 lm
Contrast ratio*1
2000 : 1 (Iris on)
Projection lens
f = 24.0-43.2mm, F = 1.8-2.6
Zoom / focus
Powered focus / zoom (zoom ratio 1.8 : 1)
Picture size
40”- 300” (100”= 3.0m)
Source lamp*2
Standard mode: 350W (Shut off time 3000 hrs)
Low mode:
264W (Shut off time 4000 hrs)
Computer
compatibility
Resolution: 640 × 400 - 1920 × 1200
True: 1024 × 768,
Sync-on-Green available
Video compatibility
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz),
1080i (1125i 50/60Hz), 1080p (1125p 50/60Hz)
SCART (RGB + 1V sync, only mini D-sub 15-pin Terminal)
Input terminals
PC: 5 BNC × 1, mini D-sub 15-pin × 1, DVI-D (with HDCP) × 1, PC Audio: Stereo mini jack (ø3.5mm) × 3
Video: BNC × 1, S-Video (4-pin) × 1, HDMI (Ver 1.3, with Deep Colour) × 1 (Only PCM audio is supported.),
Audio: RCA (L/R) × 2
7
15
MULTIMEDIA DATA/VIDEO PROJECTORS
40”- 300” (100”= 3.1m)
40”- 300” (100”= 3.1m)
Resolution: 640 × 400 - 1920 × 1200
True: 1280 × 800,
Sync-on-Green available
Resolution: 640 × 400 - 1920 × 1200
True: 1920 × 1200,
Sync-on-Green available
Output terminals
RGB: mini D-sub 15-pin × 1 / Audio: Stereo mini jack (ø3.5mm) × 1 (Variable out)
Communication
terminals
LAN (RJ-45): × 1 (projector control),
SERIAL (in): D-sub 9-pin (male) × 1 (direct command is available.),
Wired remote (in): × 1 (ø3.5mm stereo mini jack),
Wired remote (out): × 1 (ø3.5mm stereo mini jack),
Dimensions (W × H × D)
481 × 179 × 418mm (excluding detachable terminal cover and protrusion)
Weight
10.5kg (excluding detachable terminal cover)
Power supply
AC 100 - 240 V, 50/60 Hz
Compliant with ISO21118-2005.
*1)
2)Lamp life specification is an estimate based on verification under proper conditions and is not the duration of the warranty.
*Lamp
will shut-off automatically when usage reaches the specified estimated maximum lamp hours. Service life may vary
Dimensions (unit: mm)
80
371.3
Screen Size and Projection Distance
118
Refer to the following table to determine the screen size and projection distance.
Front projection
265
W
W1
35.7
Front projection, ceiling mounting
W1
H2
418
503
widely depending on usage and operating environment and conditions, as well as users’ adherence to the maintenance and
cleaning procedures provided in the user manual.
*Varies depending on condition.
*HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
*All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
W
W1
W1
H1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Specifications
Center of the lens
H
H2
H1
181.3
5-M6x10
L
L
L
L
146
481
5
H0
H
H0
Center of the lens
Maximum projection area
88
166
179
Maximum projection area
Striking Images, Simple to Use…
XL7100U
Distance from Screen
13
Screen (XGA 4:3)
* The lens focal point is the default set at the time of shipment from the factory.
Options
OL-XL7100FR
OL-XL7100SZ
OL-XL7100LZ
OL-XL7100TZ
Rear-projection
Short -throw Fixed Lens
Short-throw Zoom Lens
Long-throw Zoom Lens
Telescopic-throw
Zoom Lens
Diagonal
Size
inch
cm
40
102
60
152
80
203
100
254
150
381
200
508
250
635
300
762
Width
inch
32
48
64
80
120
160
200
240
cm
81
122
163
203
305
406
508
610
Height
inch
24
36
48
60
90
120
150
180
cm
61
91
122
152
229
305
381
457
Shortest
(Wide)
inch
m
1.2
46
1.8
70
2.4
94
3.0
118
4.5
177
6.0
237
7.5
297
9.1
357
Longest
(Tele)
inch
m
2.1
85
3.2
128
4.3
171
5.4
214
322
8.2
10.9
430
13.7
538
16.4
646
Default Height
Projected Image
(HO)
inch
– 12
– 18
– 24
– 30
– 45
– 60
– 75
– 90
cm
– 30
– 46
– 61
– 76
– 114
– 152
– 191
– 229
Movable V Position
from Default Position
Down
inch
0
14
0
22
0
29
0
36
0
54
0
72
0
90
108 0
Up
14
22
29
36
54
72
90
108
Down
37
55
73
91
137
183
229
274
cm
0
0
0
0
0
0
0
0
Movable H Position
from Default Position
Up
Left
37
55
73
91
137
183
229
274
10
14
19
24
36
48
60
72
Up
Left
38
57
75
94
141
188
236
283
10
15
20
25
38
51
64
76
Up
Left
32
48
65
81
121
162
202
242
10
15
20
25
38
51
64
76
Right
inch
0
0
0
0
0
0
0
0
10
14
19
24
36
48
60
72
Left
24
37
49
61
91
122
152
183
Right
cm
0
0
0
0
0
0
0
0
24
37
49
61
91
122
152
183
WL7200U
Distance from Screen
Image (WXGA 16:10)
Diagonal
Size
inch
cm
40
102
60
152
80
203
100
254
150
381
200
508
250
635
300
762
Width
inch
34
51
68
85
127
170
212
254
cm
86
129
172
215
323
431
538
646
Height
inch
21
32
42
53
79
106
132
159
cm
54
81
108
135
202
269
337
404
Shortest
(Wide)
inch
m
1.2
48
1.9
73
2.5
99
3.1
124
4.7
187
6.3
249
7.9
312
9.5
375
Longest
(Tele)
inch
m
2.3
89
3.4
134
4.6
180
5.7
225
8.6
338
11.5
452
565
14.4
17.2
679
Default Height
Projected Image
(HO)
inch
– 11
– 16
– 21
– 26
– 40
– 53
– 66
– 79
cm
– 27
– 40
– 54
– 67
– 101
– 135
– 168
– 202
Movable V Position
from Default Position
Down
15
22
30
37
56
74
93
111
inch
0
0
0
0
0
0
0
0
Up
15
22
30
37
56
74
93
111
Down
38
57
75
94
141
188
236
283
cm
0
0
0
0
0
0
0
0
Movable H Position
from Default Position
Right
inch
0
0
0
0
0
0
0
0
10
15
20
25
38
51
64
76
Left
26
39
52
65
97
129
162
194
Distance from Screen
Image (WUXGA 16:10)
Width
inch
34
51
68
85
127
170
212
254
cm
86
129
172
215
323
431
538
646
Height
inch
21
32
42
53
79
106
132
159
cm
54
81
108
135
202
269
337
404
Shortest
(Wide)
inch
m
1.2
48
1.8
73
2.5
97
3.1
122
4.7
184
6.3
246
7.8
308
9.4
371
Longest
(Tele)
inch
m
2.2
88
3.4
133
4.5
177
5.6
222
8.5
334
11.3
446
14.2
559
17.0
671
Default Height
Projected Image
(HO)
inch
– 11
– 16
– 21
– 26
– 40
– 53
– 66
– 79
cm
– 27
– 40
– 54
– 67
– 101
– 135
– 168
– 202
Movable V Position
from Default Position
Down
13
19
25
32
48
64
79
95
inch
0
0
0
0
0
0
0
0
Up
13
19
25
32
48
64
79
95
Down
32
48
65
81
121
162
202
242
cm
0
0
0
0
0
0
0
0
26
39
52
65
97
129
162
194
Movable H Position
from Default Position
Right
inch
0
0
0
0
0
0
0
0
10
15
20
25
38
51
64
76
Left
26
39
52
65
97
129
162
194
Amazingly High Quality in Every Aspect
Right
cm
0
0
0
0
0
0
0
0
UL7400U
Diagonal
Size
inch
cm
40
102
60
152
80
203
100
254
150
381
200
508
250
635
300
762
From Installation to Operation –
Right
cm
0
0
0
0
0
0
0
0
26
39
52
65
97
129
162
194
* The above figures are approximate and may be slightly different from the actual measurements.
MITSUBISHI ELECTRIC AUSTRALIA PTY LTD
348 Victoria Rd Rydalmere, NSW 2116 Phone: (02) 9684 7777 Fax: (02) 9684 7208
To find out more about XL7100U/WL7200U/UL7400U and other projectors,visit us at
www.MitsubishiElectric.com.au
New publication effective Nov. 2011.
Specifications are subject to change without notice.
X L7100U
WL7200U
U L7400U
Advanced Multifunctional Projectors –
Ideal for large meeting rooms and theatre-like settings
Mitsubishi Electric 7000 series projectors offer high
levels of brightness and contrast, improved installation
ease and eco-conscious features in consideration of
the environment. Capable of ensuring clear, sharp
large-screen presentations in meeting rooms and theatre
areas, these user-friendly projectors are ideal for visual
communication with impact.
XL7100U/WL7200U/UL7400U
High Image Quality
Installation Flexibility
Impressive 6000lm*1 Brightness and 2000:1*2 High Contrast
Super Resolution
Wide-area Lens Shift
The XL7100U reproduces vivid images with a 6000lm*1 brightness and high
contrast ratio of 2000:1*2. Even in large meeting rooms and theatre areas,
its liquid-crystal projection system ensures clear, sharp presentation images
every time.
This innovative advanced image processing algorithm is a product of Mitsubishi
Electric. The technology analyses blurred components of the original images,
estimates the high-resolution data not provided in the original signal and
corrects the image quality. The result is the clear projection of images such
as people's faces in fine detail.
The WL7200U features a wide-area lens
adjustment range of ±70% vertically and
±30% horizontally, for greater installation
freedom. The zoom, focus and lens shift
functions are all motorised operations.
*1) WL7200U: 5500lm, UL7400U: 5000lm *2) With the iris on.
*XL7100U: ±60% vertically, +30% horizontally
UL7400U: ±60% vertically, ±30% horizontally
High-performance Lens
The lens is comprised of 17 lenses in 13 clusters,
including a high-performance ED (ultra-low
dispersion) lens that is more efficient than regular
glass lenses. Image resolution is greatly improved
all the way to the edge of the screen.
Estimation of resolution compensation data
Low-resolution image
Enlargement
ED Lens
Enlarged image (original)
Compensation
Natural Colour Matrix (NCM)
In addition to conventional red (R), green (G) and blue (B) colour gradations,
the intermediate colours of yellow (Y), magenta (M) and cyan (C) can each be
controlled independently. Accentuating specified colours according to certain
requirements takes the reproduction of vivid colour tones one step closer to
natural.
High resolution data that does not
exist in the enlarged image is
estimated by Mitsubishi’s proprietary
image processing algorithm.
Image processed by Super Resolution
High Reliability
Roll-up Filter
An inorganic liquid-crystal panel is incorporated, for an increased service life
compared to that of conventional organic liquid-crystal panels.
To help prevent dust from collecting on the liquid-crystal panel, a cartridgetype filter is added as standard equipment. It can be set so that the filter
rolls automatically every 500, 750 or 1,000 hours, or winding can be done
manually.
By optimising temperature control design, the light-source lamp can be used
for up to 4,000 hours. These improvements result in remarkable reductions in
operating costs.
*When used in low mode.
4,000-hour
lamp
Factory-installed lamp
First lamp replacement
Factory-installed lamp
Second lamp
replacement
First lamp replacement
3,000 hours 4,000 hours
6,000 hours
Lower
running
costs
±30%
J
screen
Cornerstone Correction
Pixel conversion is used to correct
trapezoidal and diagonal distortion that
causes oblique images, ensuring the
proper aspect ratio.
Availability area
for lens shift
Choose from four different lenses to best match the projection distance. Compared to previous lenses, each lens covers a wider range of projection ratios.
Bayonet Mount
Curved-surface Projection Correction
J
Projectors in the series are equipped with a
distortion correction function that can be used
when projecting images onto curved surfaces.
Coordinates at the image’s four corners are
adjusted, enabling the projection angle to
be adjusted at the time of angled or stacked
projection. It is extremely handy for unique
applications like projecting images onto special
surfaces such as pillars at event sites.
360° Projection Capability
Attractive Design
Images can be projected over a full 360° range along
the vertical axis* including reproduction on the ceiling
or floor.The application possibilities are limitless.
In consideration of ceiling-mounted installations and appearance in terms of room
décor, a modern centre-lens, white-based
design has been adopted and a terminal
cover that hides cables has been added.
The remote-control signal receiving section
is now located on the rear of the projector,
improving remote-control operation performance when mounted on the ceiling.
*Excluding use in high-altitude mode.
ID-compatible Remote Control
(set IDs for up to 63 projectors)
Extended-distance Remote Control (wireless: 30m, wired: 100m)
J
Lamp side replacement
J
J
Eco friendly
Lamp Life Comparison
3,000-hour
lamp
Trapezoidal distortion caused when the projector is not positioned directly in
front of the screen is corrected in both vertical and horizontal directions.
The bayonet mounting system incorporated
offers one-touch lens removal, making it
easy to change lenses after installation.
Simply unscrew and removed the anti-drop
cover, press down on the release button
and turn the lens to remove it. Similarly to
install a lens, just insert it and turn.
Inorganic Liquid-crystal Panel
4000hr Long-life Lamp*
Variety of Optional Lenses
Geometric Corrections
Keystone Correction
±70%
Lamp life specification is an estimate
based on verification under proper
conditions and is not the duration of the
warranty. Lamp will shut-off automatically
when usage reaches the specified
estimated maximum lamp hours. Service
life may vary widely depending on usage
and operating environment and
conditions, as well as users' adherence to
the maintenance and cleaning procedures
provided in the user manual.
4000hr Long-life Lamp*
Auto Power Off
A light-source lamp capable of operating up to 4,000 hours reduces both
operating costs and labour required for replacing lamps.
If no image signal is detected for a predetermined period of time*, power is
automatically turned off, increasing energy savings by reducing needless
power consumption.
*When used in low mode.
Stand-by Wattage under 0.3W*
Stand-by (low) mode power consumption is less than 0.3W, offering increased
energy savings and further contributing to environmental preservation.
8,000 hours
*Time preset by user
Paint-free Cabinet
*When in stand-by (low) mode. At this time, use of the LAN function is not possible.
As a measure to help protect the environment, eco-conscious paint-free cabinets are incorporated for the XL7100U, WL7200U and UL7400U projectors.
Network Connectivity
Quiet 30dB* Operation
J
These projectors are equipped with an RJ-45 LAN terminal for remote
operation. Additionally, when used with Crestron RoomView™, integrated
control of up to 250 projectors including power on/off control, message
display and confirmation of lamp service hours is possible. Mitsubishi
Electric 7000 series projectors are equipped with AMX Device Discovery
for simplified device management and are compatible with PJLink™.
Fan noise when the projector is in operation can be distracting during a
presentation or videoconference. The XL7100U and WL7200U projectors
operate at a significantly low noise level of only 30dB (i.e., in “low lamp”
mode). As a result, presentations and conferences can be held without
distracting projector noise in the background.
Additional Features
The trademark of PJLink is trademark applied for
registration or registered trademark in Japan,
the United States, and other countries and areas.
*UL7400U: 32dB
2-Screen mode
(PinP: XL7100U
Split: WL7200U/UL7400U)
Test pattern
Direct power off
J
J
*Existing languages:
Languages added:
Closed caption support
High-altitude mode (1,500 to 2,700m)
Virtual DICOM mode
OSD menu multilanguage compatibility
(20 languages*)
J
J
J
J
Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese,
Russian, Spanish, Swedish
Dutch, Indonesian, Malaysian, Norwegian, Thai, Turkish, Vietnamese, Arabic
