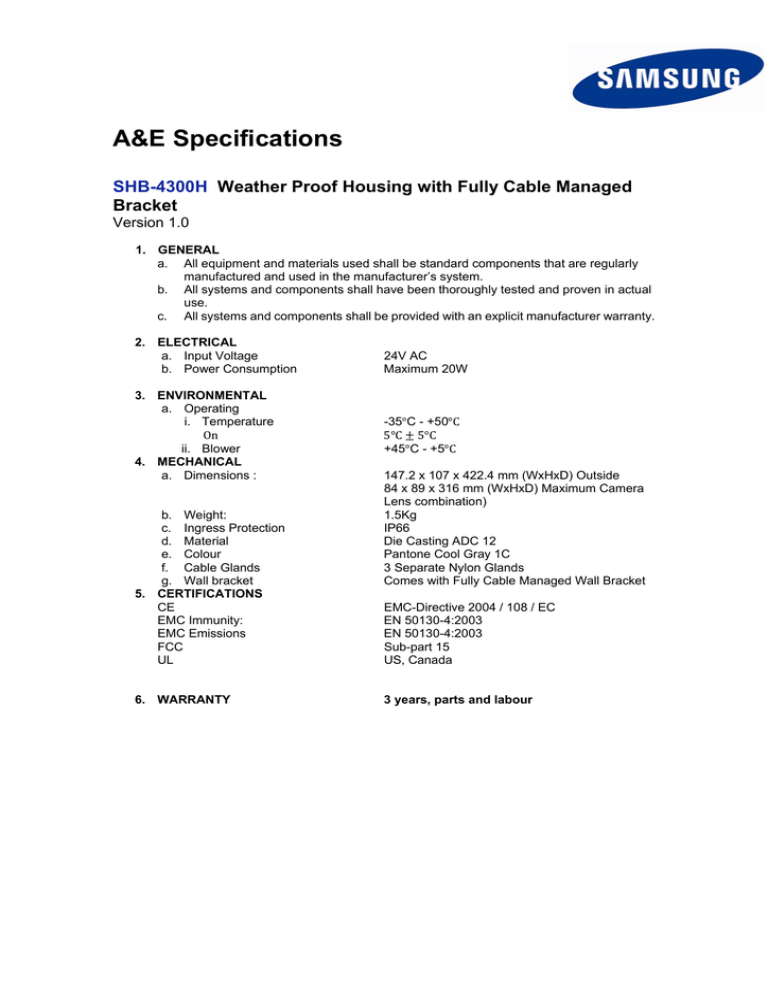

A&E Specifications
SHB-4300H Weather Proof Housing with Fully Cable Managed
Bracket
Version 1.0
1. GENERAL
a. All equipment and materials used shall be standard components that are regularly
manufactured and used in the manufacturer’s system.
b. All systems and components shall have been thoroughly tested and proven in actual
use.
c. All systems and components shall be provided with an explicit manufacturer warranty.
2. ELECTRICAL
a. Input Voltage
b. Power Consumption
3. ENVIRONMENTAL
a. Operating
i. Temperature
On ii. Blower
4. MECHANICAL
a. Dimensions :
b. Weight:
c. Ingress Protection
d. Material
e. Colour
f. Cable Glands
g. Wall bracket
5. CERTIFICATIONS
CE
EMC Immunity:
EMC Emissions
FCC
UL
6. WARRANTY
24V AC
Maximum 20W
-35°C - +50°C
5°C 5°C
+45°C - +5°C
147.2 x 107 x 422.4 mm (WxHxD) Outside
84 x 89 x 316 mm (WxHxD) Maximum Camera
Lens combination)
1.5Kg
IP66
Die Casting ADC 12
Pantone Cool Gray 1C
3 Separate Nylon Glands
Comes with Fully Cable Managed Wall Bracket
EMC-Directive 2004 / 108 / EC
EN 50130-4:2003
EN 50130-4:2003
Sub-part 15
US, Canada
3 years, parts and labour
