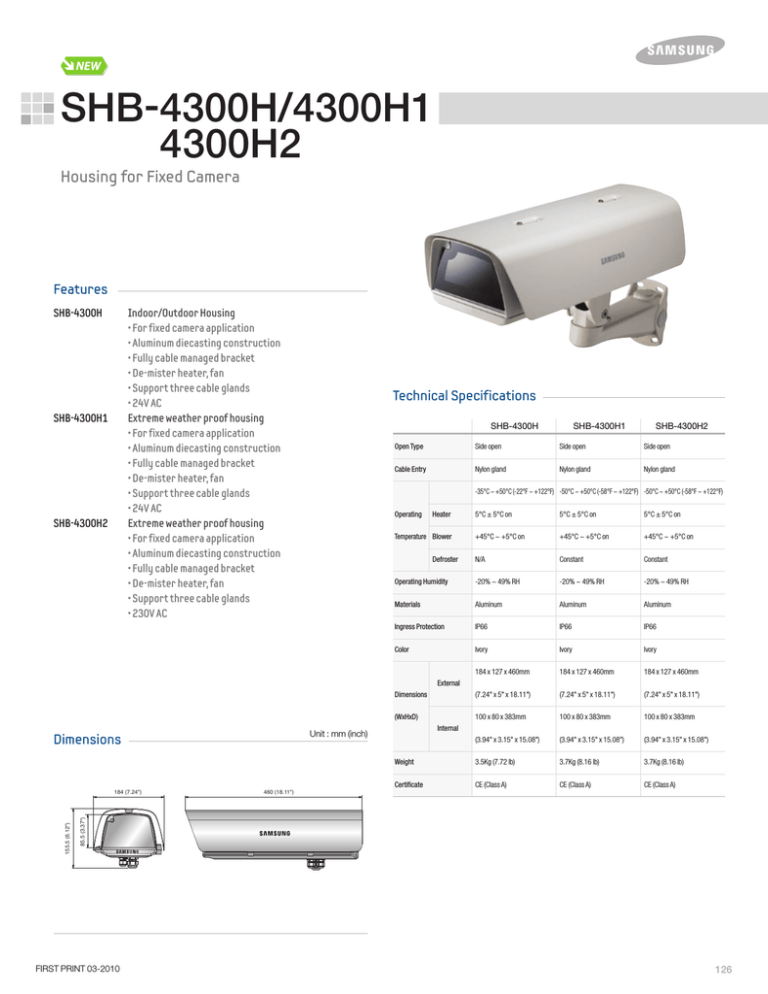

SHB-4300H/4300H1
4300H2
Housing for Fixed Camera
Features
SHB-4300H
SHB-4300H1
SHB-4300H2
Indoor/Outdoor Housing
• For fixed camera application
• Aluminum diecasting construction
• Fully cable managed bracket
• De-mister heater, fan
• Support three cable glands
• 24V AC
Extreme weather proof housing
• For fixed camera application
• Aluminum diecasting construction
• Fully cable managed bracket
• De-mister heater, fan
• Support three cable glands
• 24V AC
Extreme weather proof housing
• For fixed camera application
• Aluminum diecasting construction
• Fully cable managed bracket
• De-mister heater, fan
• Support three cable glands
• 230V AC
Technical Specifications
SHB-4300H
SHB-4300H1
SHB-4300H2
Open Type
Side open
Side open
Side open
Cable Entry
Nylon gland
Nylon gland
Nylon gland
-35°C ~ +50°C (-22°F ~ +122°F) -50°C ~ +50°C (-58°F ~ +122°F) -50°C ~ +50°C (-58°F ~ +122°F)
Operating
Heater
5°C ± 5°C on
5°C ± 5°C on
5°C ± 5°C on
Temperature Blower
+45°C ~ +5°C on
+45°C ~ +5°C on
+45°C ~ +5°C on
N/A
Constant
Constant
Operating Humidity
-20% ~ 49% RH
-20% ~ 49% RH
-20% ~ 49% RH
Materials
Aluminum
Aluminum
Aluminum
Ingress Protection
IP66
IP66
IP66
Color
Ivory
Ivory
Ivory
184 x 127 x 460mm
184 x 127 x 460mm
184 x 127 x 460mm
(7.24" x 5" x 18.11")
(7.24" x 5" x 18.11")
(7.24" x 5" x 18.11")
100 x 80 x 383mm
100 x 80 x 383mm
100 x 80 x 383mm
(3.94" x 3.15" x 15.08")
(3.94" x 3.15" x 15.08")
(3.94" x 3.15" x 15.08")
Weight
3.5Kg (7.72 lb)
3.7Kg (8.16 lb)
3.7Kg (8.16 lb)
Certificate
CE (Class A)
CE (Class A)
CE (Class A)
Defroster
External
Dimensions
(WxHxD)
Unit : mm (inch)
Dimensions
460 (18.11")
85.5 (3.37")
155.5 (6.12")
184 (7.24")
Internal
FIRST PRINT 03-2010
