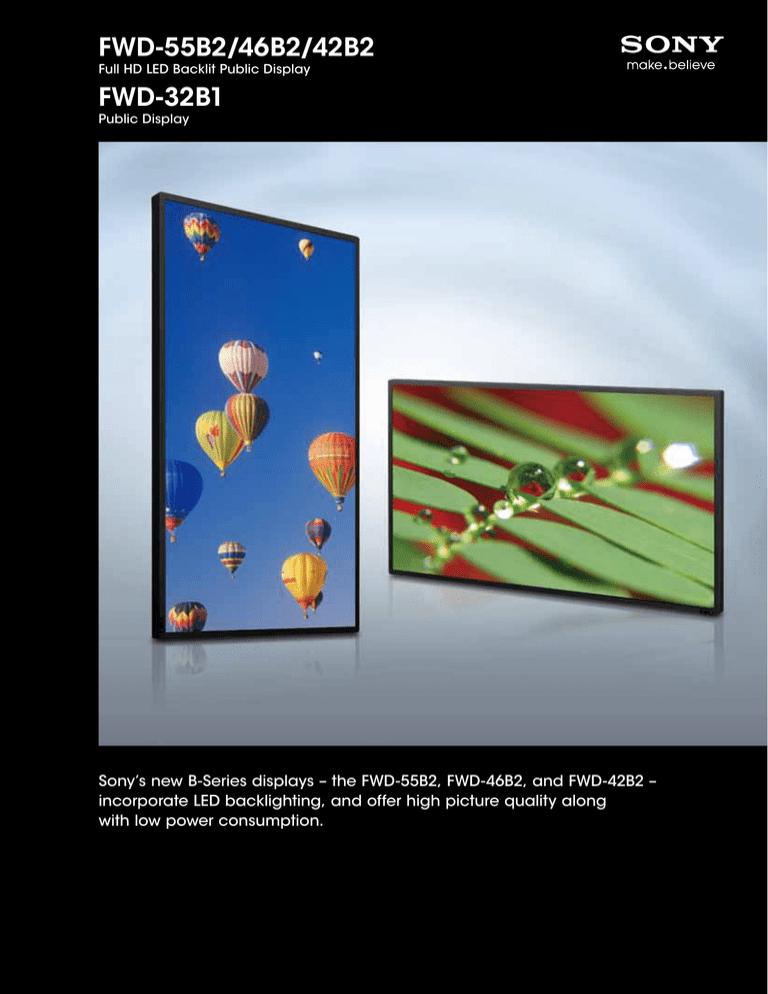

FWD-55B2/46B2/42B2
Full HD LED Backlit Public Display
FWD-32B1
Public Display
Sony’s new B-Series displays – the FWD-55B2, FWD-46B2, and FWD-42B2 –
incorporate LED backlighting, and offer high picture quality along
with low power consumption.
FWD-55B2/46B2/42B2 Full HD LED Backlit Public Display
FWD-32B1 Public Display
Low Power & Energy Efficient
Landscape/Portrait
The FWD-55B2, FWD-46B2, and FWD-42B2 offer low power
consumption with LED backlighting (approx. 30% less
than a conventional CCFL model from Sony*). This feature
helps to reduce the total cost of ownership by lowering
the running cost.
*Per unit area
High Quality Images
Because they use commercial-grade LCD panels and
cooling systems, these displays can be positioned either
vertically (portrait) or horizontally (landscape) with no
change in the backlight level or
service life. This flexibility in orientation
makes it possible to create many
different imaging effects in a wide
variety of spaces.
All B-Series displays achieve high brightness of 450 – 500
cd/m2 and a high contrast ratio of 4000:1*. This quality
helps to enable excellent color reproduction and high
visibility in indoor applications.
*The FWD-32B1 has a 3000:1 contrast ratio.
image simulated
Slim Installation Design
The depth of the FWD-55B2, FWD-46B2, and FWD-42B2 is at
least 30% less than that of a conventional CCFL model
from Sony. For slim installation, the Signal In and Signal
Out terminals are incorporated into this profile, and do
not protrude from the unit.
High contrast of 4000:1
FWD-46B2
Back aspect
connection type
Low contrast
image simulated
Network Display Management
Users can monitor the display status and control multiple
displays over a LAN, VPN, or the Internet using Microsoft®
Internet Explorer® 7.0 or later.
In and out terminals
Installed side view images
Multi-display
All B-Series displays can present a single large dynamic
image, simply by combining up to 16 display units (1x2,
1x3, 1x4, 2x1, 3x1, 4x1,2x2, 3x3, 4x4)*.
*Multi-display function supports progressive signals only.
LAN
Center
2
Screen Saver
User-friendly Remote Control
Images with constant brightness (such as data and still
images) can cause screen burn-in on a display. To
prevent this, three screen saver patterns are provided and
can be adapted for customer usage.
Each display comes with a dedicated remote
control unit, designed with careful attention
to button shapes, sizes, spacing, and layout.
When working with multiple displays, you
can use the remote’s ID MODE button to
control each display separately.
Eco Mode
With Eco mode function power consumption is reduced
using power-saving technology*. Compared with
Standard mode, power consumption using the High
setting is approximately 45% less in Eco mode and using
the Low setting is approximately 30% less in Eco mode.
Control Panel Lock
The control panel lock function can disable the control
panel of a display to prevent unauthorized changes to
display settings.
*Brightness is also lowered.
Power-on Delay
VESA-compliant Flexible Mounting
Switching on multiple displays at the same time can
potentially cause a damaging power surge. The Power-on
Delay feature avoids this risk by allowing the user to
staggering the timing so that each unit powers up at a
slightly different time.
VESA-compliant mounting points help ensure safety when
units are mounted. Optional mounting brackets sold
separately.
FWD-55B2, FWD-46B2, and FWD-42B2
OPTIONAL ACCESSORIES
VESA pitch: 400×400
FWD-32B1
VESA pitch: 200×200
SU-S02
SS-SPG02
Tabletop Stand
Speaker Systems
DIMENSIONS
763.3 (30 1/8)
700.7 (27 5/8)
395.3 (15 5/8)
66.9 (2 3/4)
457.9 (18 1/8)
506 (20)
608.2 (24)
116.9 (4 5/8)
534.6 (21 1/8)
292.6 (11 5/8)**
837.8 (33)
38 (1 1/2)
935.6 (36 7/8)
292.6 (11 5/8)**
650.8 (26 1/8)
699.4 (27 5/8)
292.6 (11 5/8)**
841.8 (33 1/4)
980.2 (38 5/8)
803.2 (31 5/8)
677.2 (26 3/4)
200 (7 7/8)
400 (15 3/4)
400 (15 3/4)
* with Speaker
200 (7 7/8)
400 (15 3/4)
400 (15 3/4)
400 (15 3/4)
400 (15 3/4)
292.6 (11 5/8)**
88 (3 1/2)
967.8 (38 1/8)
99.9 (4)*
608.8 (24)
34 (1 3/8)
1021.4 (40 1/4)
576 (22 3/4)
683.6 (27)
715.8 (28 1/4)
84 (3 3/8)
1053.6 (41 1/2)
95.9 (3 7/8)*
763.9 (30 1/8)
34 (1 3/8)
1212.8 (47 3/4)
FWD-32B1
528.5 (20 7/8)
84 (3 3/8)
1245 (49 1/8)
95.9 (3 7/8)*
FWD-42B2
560.7 (22 1/8)
FWD-46B2
656.3 (25 7/8)
FWD-55B2
** with Tabletop stand
Unit: mm (inches)
3
Specifications
FWD-55B2
FWD-46B2
FWD-42B2
FWD-32B1
Type
a-Si TFT Active Matrix LCD
Edge lit type LED Backlight
a-Si TFT Active Matrix LCD
Edge lit type LED Backlight
a-Si TFT Active Matrix LCD
Edge lit type LED Backlight
a-Si TFT Active Matrix LCD
CCFL Backlight
Panel Size (diagonal)
55 inches
46 inches
42 inches
32 inches
Picture Size (h x v)
1,209.6 x 680.4 mm
(47 5/8 x 26 3/4 inches)
1018.1 x 572.7 mm
(40 1/8 x 22 5/8 inches)
930.2 x 523.3 mm
(36 5/8 x 20 5/8 inches)
697.7 x 392.3 mm
(27 1/2 x 15 1/2 inches)
Panel Resolution (h x v)
1920 x 1080 pixels, Full HD
1920 x 1080 pixels, Full HD
1920 x 1080 pixels, Full HD
1366 x 768 pixels, WXGA
Pixel Pitch
0.63 x 0.63 mm
0.53 x 0.53 mm
0.48 x 0.48 mm
0.51 x 0.51 mm
Color Depth
8 bits + FRC, 1.06 billion colors
8 bits + FRC, 1.06 billion colors
8 bits + FRC, 1.06 billion colors
8 bits, 16.7 million colors
Brightness
450 cd/m2 (typical)
500 cd/m2 (typical)
500 cd/m2 (typical)
450 cd/m2 (typical)
Contrast Ratio
4,000 : 1 (typical)
4,000 : 1 (typical)
4,000 : 1 (typical)
3,000 : 1 (typical)
Viewing Angle*
178 degrees (typical)
178 degrees (typical)
178 degrees (typical)
178 degrees (typical)
Color System
NTSC, PAL
NTSC, PAL
NTSC, PAL
NTSC, PAL
Sampling Rate
13.5 MHz to 162 MHz
13.5 MHz to 162 MHz
13.5 MHz to 162 MHz
13.5 MHz to 162 MHz
Digital Video
HDMI(1080p) in with audio in
DVI in with audio in
Rev. 1.0 compliant
HDMI(1080p) in with audio in
DVI in with audio in
Rev. 1.0 compliant
HDMI(1080p) in with audio in
DVI in with audio in
Rev. 1.0 compliant
HDMI(1080p) in with audio in
DVI in with audio in
Rev. 1.0 compliant
Analog Video
HD15 in with audio in
(RGB/Component Video)
HD15 out
(RGB/Component Video)
Composite Video in/out with audio in**
(BNC (x2))
Component Video in with audio in**
(pin jack (x3))
HD15 in with audio in
(RGB/Component Video)
HD15 out
(RGB/Component Video)
Composite Video in/out with audio in**
(BNC (x2))
Component Video in with audio in**
(pin jack (x3))
HD15 in with audio in
(RGB/Component Video)
HD15 out
(RGB/Component Video)
Composite Video in/out with audio in**
(BNC (x2))
Component Video in with audio in**
(pin jack (x3))
HD15 in with audio in
(RGB/Component Video)
HD15 out
(RGB/Component Video)
Composite Video in/out with audio in**
(BNC (x2))
Component Video in with audio in**
(pin jack (x3))
Remote Control
Network port
(RJ45, 10BASE-T/100BASE-TX)
RS-232C (D-sub 9-pin, straight)
Network port
(RJ45, 10BASE-T/100BASE-TX)
RS-232C (D-sub 9-pin, straight)
Network port
(RJ45, 10BASE-T/100BASE-TX)
RS-232C (D-sub 9-pin, straight)
Network port
(RJ45, 10BASE-T/100BASE-TX)
RS-232C (D-sub 9-pin, straight)
Audio
Audio out (L/R, pin jack (x2))
Audio out (L/R, pin jack (x2))
Audio out (L/R, pin jack (x2))
Audio out (L/R, pin jack (x2))
Speaker Out
L/R, 7W + 7W, 6 ohms
L/R, 7W + 7W, 6 ohms
L/R, 7W + 7W, 6 ohms
– (Internal Speaker, L/R, 7W + 7W, 6 ohms)
Power Requirements
AC 100 V to 240 V, 50/60 Hz,
1.5 A (maximum)
AC 100 V to 240 V, 50/60 Hz,
1.3 A (maximum)
AC 100 V to 240 V, 50/60 Hz,
1.4 A (maximum)
AC 100 V to 240 V, 50/60 Hz,
1.1 A (maximum)
Power Consumption
130 W (typical)
150 W (maximum)
110 W (typical)
130 W (maximum)
120 W (typical)
135 W (maximum)
85 W (typical)
110 W (maximum)
Operating Temperature
0°C to 40°C (32°F to 104°F)
0°C to 40°C (32°F to 104°F)
0°C to 40°C (32°F to 104°F)
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 40°C (14°F to 104°F)
-10°C to 40°C (14°F to 104°F)
-10°C to 40°C (14°F to 104°F)
-10°C to 40°C (14°F to 104°F)
Humidity
20% to 90%, no condensation
20% to 90%, no condensation
20% to 90%, no condensation
20% to 90%, no condensation
Dimensions (w x h x d)
1,245.0 x 715.8 x 84.0 mm
(49 1/8 x 28 1/4 x 3 3/8 inches)
(excluding protruding parts)
1,053.6 x 608.2 x 84.0 mm
(41 1/2 x 24 x 3 3/8 inches)
(excluding protruding parts)
967.8 x 560.7 x 88.0 mm
(38 1/8 x 22 1/8 x 3 1/2 inches)
(excluding protruding parts)
763.3 x 457.9 x 116.9 mm
(30 1/8 x 18 1/8 x 4 5/8 inches)
(excluding protruding parts)
Mass
29.5 kg (65.0 lb)
22.4 kg (49.4 lb)
20.2 kg (44.5 lb)
13.4 kg (29.5 lb)
Regulation Compliance
UL, CSA, CE, GOST-R, IEC, FCC Class B,
IC, CISPR, ErP Lot6
UL, CSA, CE, GOST-R, IEC, FCC Class B,
IC, CISPR, ErP Lot6
UL, CSA, CE, GOST-R, IEC, FCC Class B,
IC, CISPR, ErP Lot6
UL, CSA, CE, GOST-R, IEC, FCC Class B,
IC, CISPR, ErP Lot6
Supplied Accessories
AC power cord (x1), AC plub holder (x2),
Cable holder (x6),
Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
AC power cord (x1), AC plub holder (x2),
Cable holder (x6),
Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
AC power cord (x1), AC plub holder (x2),
Cable holder (x6),
Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
AC power cord (x1), AC plub holder (x2),
Cable holder (x3),
Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
LCD Panel
Signal
Inputs/Outputs
General
*Measured at athe contrast ration of more than 10:1
**Component video and composite video share an audio input (stereo mini jack (x1))
CONNECTOR PANEL
AC IN socket
AC IN socket
Main power switch
Distributed by
MK10937V1OHB12APR
Main power switch
SPEAKER socket
(FWD-55B2, FWD-46B2, FWD-42B2)
SPEAKER socket
(FWD-55B2, FWD-46B2, FWD-42B2)
©2012 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for mass and dimension are approximate.
“SONY”, and “make.believe” are trademarks of Sony Corporation.
HDMI is a trademark of HDMI Licensing, LLC.
All other trademarks are the property of their respective owners.
