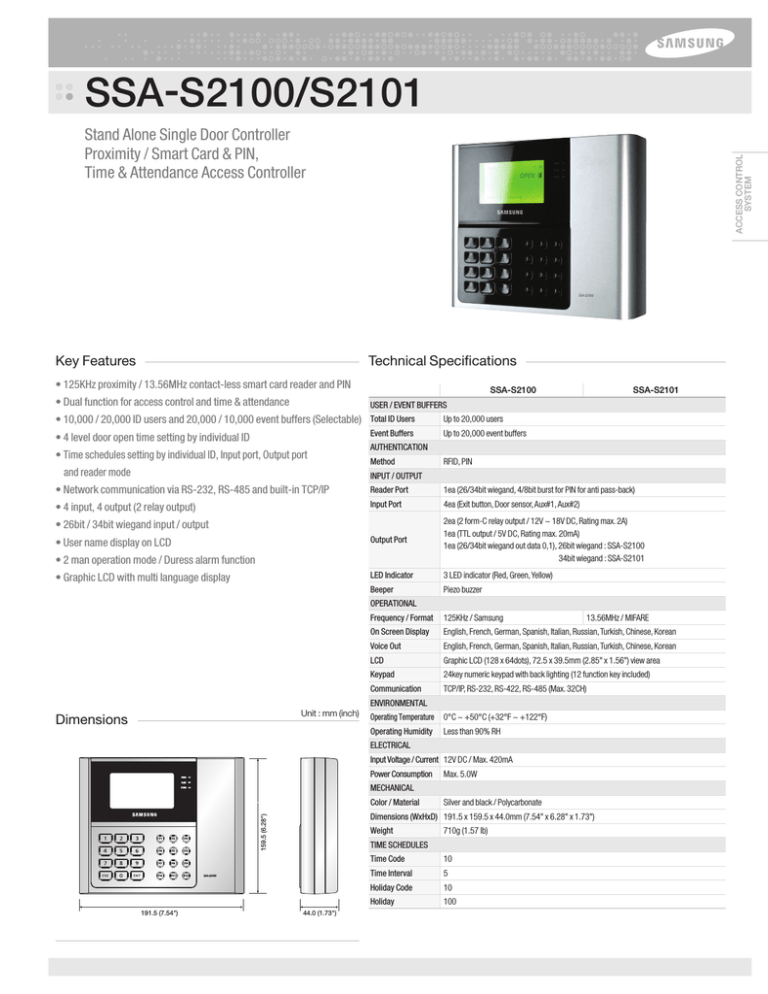

SSA-S2100/S2101
104.0 (4.09")
65.0 (2.56")
51.8 (2.04")
48.5 (1.91")
Technical Specifications
• 125KHz proximity / 13.56MHz contact-less smart card reader and PIN
SSA-S2100
USER / EVENT BUFFERS
• 10,000 / 20,000 ID users and 20,000 / 10,000 event buffers (Selectable)
Total ID Users
Up to 20,000 users
Event Buffers
Up to 20,000 event buffers
• 4 level door open time setting by individual ID
159.5 (6.28")
• Dual function for access control and time & attendance
• T ime schedules setting by individual ID, Input port, Output port
and reader mode
SSA-S2101
109.0 (4.29")
Key Features
ACCESS CONTROL
SYSTEM
Stand Alone Single Door Controller
Proximity / Smart Card & PIN,
Time & Attendance Access Controller
AUTHENTICATION
Method
RFID, PIN
INPUT / OUTPUT
• Network communication via RS-232, RS-485 and built-in TCP/IP
Reader Port
1ea (26/34bit wiegand, 4/8bit burst for PIN for anti pass-back)
• 4 input, 4 output (2 relay output)
Input Port
4ea (Exit button, Door sensor, Aux#1, Aux#2)
Output Port
2ea (2 form-C relay output / 12V ~ 18V DC, Rating max. 2A)
1ea (TTL output / 5V DC, Rating max. 20mA) 87.0 (3.43")
1ea (26/34bit wiegand out data 0,1), 2 6bit wiegand : SSA-S2100
34bit wiegand : SSA-S2101
LED Indicator
3 LED indicator (Red, Green, Yellow)
Beeper
Piezo buzzer
• 26bit / 34bit wiegand input / output
191.5 (7.54")
44.0 (1.73")
• User name display on LCD
• 2 man operation mode / Duress alarm function
• Graphic LCD with multi language display
31.0 (1.22")
OPERATIONAL
Frequency / Format
125KHz / Samsung On Screen Display
English, French, German, Spanish, Italian, Russian, Turkish, Chinese, Korean
Voice Out
English, French, German, Spanish, Italian, Russian, Turkish, Chinese, Korean
LCD
Graphic LCD (128 x 64dots), 72.5 x 39.5mm (2.85" x 1.56") view area
Keypad
24key numeric keypad with back lighting (12 function key included)
Communication
TCP/IP, RS-232, RS-422, RS-485 (Max. 32CH)
13.56MHz / MIFARE
ENVIRONMENTAL
Unit : mm (inch)
Dimensions
Operating Temperature
0°C ~ +50°C (+32°F ~ +122°F)
Operating Humidity
Less than 90% RH
ELECTRICAL
Input Voltage / Current 12V DC / Max. 420mA
Power Consumption
Max. 5.0W
Color / Material
159.5 (6.28")
191.5 (7.54")
Silver and black / Polycarbonate
Dimensions (WxHxD) 191.5 x 159.5 x 44.0mm (7.54" x 6.28" x 1.73")
Weight
710g (1.57 lb)
122.0 (4.8")
MECHANICAL
TIME SCHEDULES
44.0 (1.73")
Time Code
10
Time Interval
5
Holiday Code
10
Holiday
100
75.3 (2.96")
26.0 (1.02")
