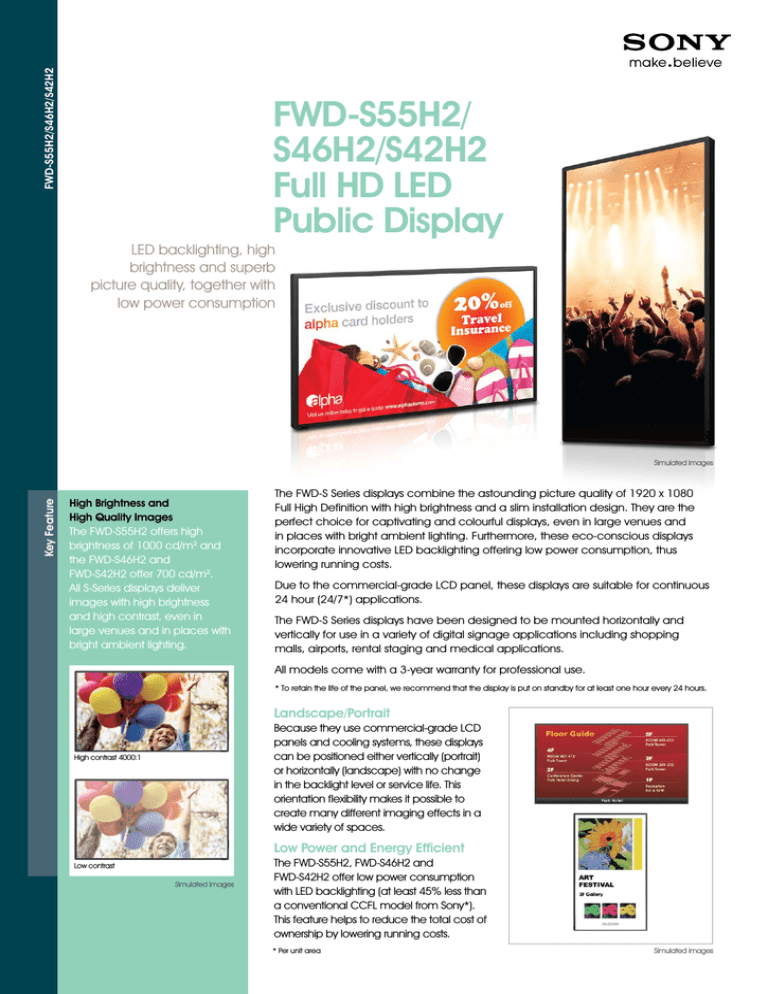

FWD-S55H2/S46H2/S42H2
FWD-S55H2/
S46H2/S42H2
Full HD LED
Public Display
LED backlighting, high
brightness and superb
picture quality, together with
low power consumption
Key Feature
Simulated images
High Brightness and
High Quality Images
The FWD-S55H2 offers high
brightness of 1000 cd/m2 and
the FWD-S46H2 and
FWD-S42H2 offer 700 cd/m2.
All S-Series displays deliver
images with high brightness
and high contrast, even in
large venues and in places with
bright ambient lighting.
The FWD-S Series displays combine the astounding picture quality of 1920 x 1080
Full High Definition with high brightness and a slim installation design. They are the
perfect choice for captivating and colourful displays, even in large venues and
in places with bright ambient lighting. Furthermore, these eco-conscious displays
incorporate innovative LED backlighting offering low power consumption, thus
lowering running costs.
Due to the commercial-grade LCD panel, these displays are suitable for continuous
24 hour (24/7*) applications.
The FWD-S Series displays have been designed to be mounted horizontally and
vertically for use in a variety of digital signage applications including shopping
malls, airports, rental staging and medical applications.
All models come with a 3-year warranty for professional use.
* To retain the life of the panel, we recommend that the display is put on standby for at least one hour every 24 hours.
Landscape/Portrait
Because they use commercial-grade LCD
panels and cooling systems, these displays
can be positioned either vertically (portrait)
or horizontally (landscape) with no change
in the backlight level or service life. This
orientation flexibility makes it possible to
create many different imaging effects in a
wide variety of spaces.
High contrast 4000:1
Low Power and Energy Efficient
Low contrast
Simulated images
The FWD-S55H2, FWD-S46H2 and
FWD-S42H2 offer low power consumption
with LED backlighting (at least 45% less than
a conventional CCFL model from Sony*).
This feature helps to reduce the total cost of
ownership by lowering running costs.
* Per unit area
Simulated images
FWD-S55H2/S46H2/S42H2 Full HD LED Public Display
Picture-in-Picture
VESA-compliant Flexible Mounting
All S-Series displays allow the picture from a secondary
source to be displayed within the main picture.
VESA-compliant mounting points help ensure safety
when units are mounted. Optional mounting brackets
are sold separately.
Display Control Via RS232C/RJ45
Users can monitor the display status and control multiple
displays over LAN, VPN, or the Internet using Microsoft®
Internet Explorer® 7.0 or later.
VESA pitch:
400x400
LAN
FWD-S55H2, FWD-S46H2, and FWD-S42H2
Centre
Multi-display
All S-Series displays can present a single large dynamic
image, simply by combining up to 16 display units (1x2,
1x3, 1x4, 2x1, 3x1, 4x1, 2x2, 3x3, 4x4)*.
Slim Installation Design
The depth of the displays is at least 20% less than
that of a conventional CCFL model from Sony. For
slim installation, the Signal In and Signal Out terminals
are incorporated into this profile and do not protrude
from the unit.
Back aspect
FWD-S55H2 connection type
* Multi-display function supports progressive signals only.
Screen Saver
Images with constant brightness (such as data and
still images) can cause screen burn-in on a display. To
prevent this, three screen saver patterns are provided
and can be adapted for customer usage.
Eco mode
In Eco mode, power consumption is reduced using
power-saving technology*. Compared with Standard
mode, power consumption using the High setting is
approximately 50% less in Eco mode and using the
Low setting is approximately 30% less in Eco mode.
In and out terminals
* Brightness is also lowered.
Installed side view images
DICOM-simulated Gamma Setting
The gamma setting is in accordance with the DICOM
(Digital Imaging and Communications in Medicine)
GSDF (Grayscale Standard Display Function) standard.
User-friendly Remote Control
Each display comes with a dedicated remote control
unit, designed with careful attention to button shapes,
sizes, spacing and layout. When working with multiple
displays, the operator can use the remote’s ID MODE
button to control each display separately.
Control Panel Lock
The control panel lock function can disable the control
panel of a display to prevent unauthorised changes to
display settings.
Power-on Delay
Standard Gamma
(Mid mode)
DICOM-simulated
Gamma
Simulated images
Switching on multiple displays at the same time can
potentially cause a damaging power surge. The Poweron Delay feature minimises this risk by allowing the user
to stagger the timing so that each unit powers up at a
slightly different time.
Dimensions
FWD-S55H2
120.0 (4 3/4)
292.6 (11 5/8)**
841.8 (33 1/4)
967.8 (38 1/8
34.0 (1 3/8)
608.2 (24)
1021.4 (40 1/4)
576.0 (22 3/4)
95.9 (3 7/8)*
723.8 (28 1/2)
771.9 (30 1/2)**
680.4 (26 7/8)
84.0 (3 3/8)
1053.6 (41 1/2)
70.0 (2 7/8)
1209.6 (47 5/8)
99.9 (4)*
650.8 (26 1/8
699.4 (27 5/8)
837.8 (33)
292.6 (11 5/8)**
980.2 (38 5/8)
292.6 (11 5/8)**
400.0 (15 3/4)
400.0 (15 3/4)
400.0 (15 3/4)
* with Speaker ** with Tabletop stand
unit: mm (inches)
FWD-S42H2
650.8 (26 1/8)
650.8 (26 1/8)
292.6 (11
5/8)**
803.2
(31 5/8)
803.2 (31 5/8)
400.0 (15 3/4)
400.0 (15 3/4)
528.5 (20 7/8)
608.8 (24)**
38.0 (1 1/2)
560.7 (22 1/8)
608.8 (24)**
528.5 (20 7/8)
292.6 (11 5/8)**
88.0 (3 1/2)
88.0 (3 1/2)
400.0 (15 3/4)
400.0 (15 3/4)
967.8 (38 1/8)
38.0 (1 1/2)
935.6 (36 7/8)
400.0 (15 3/4)
400.0 (15 3/4)
967.8 (38 1/8)
935.6 (36 7/8)
99.9 (4)*
99.9 (4)*
560.7 (22 1/8)
34.0 (1 3/8)
608.2 (24)
400.0 (15 3/4)
608.2 (24)
841.8 (33 1/4)
656.3 (25 7/8)**
699.4 (27 5/8)
292.6 (11 5/8)**
841.8 (33 1/4)
576.0 (22 3/4)
699.4 (27 5/8)
292.6 (11 5/8)**
723.8 (28 1/2)
771.9 (30 1/2)**
84.0 (3 3/8)
84.0 (3 3/8)
656.3 (25 7/8)**
1053.6 (41 1/2)
34.0 (1 3/8)
1021.4 (40 1/4)
1021.4 (40 1/4)
95.9 (3 7/8)*
576.0 (22 3/4)
1053.6 (41 1/2)
95.9 (3 7/8)*
400.0 (15 3/4)
120.0 (4 3/4)
70.0 (2 7/8)
Connector Panel
FWD-S55H2
803.2 (31 5/8
400.0 (15 3/4
400.0 (15 3/4)
FWD-S46H2
935.6 (36 7/8
656.3 (25 7/8)**
1253.0 (49 3/8)
132.1 (5 1/4)*
FWD-S46H2 and FWD-S42H2
1. AC In Socket
2. Main Power Switch
3. Speaker Socket
4. Option Slot
Specifications
FWD-S55H2
FWD-S46H2
FWD-S42H2
LCD Panel
Type
Panel Size (diagonal)
Picture Size (h x v)
Panel Resolution (h x v)
Pixel Pitch
Colour Depth
Brightness
Contrast Ratio
Viewing Angle*
a-Si TFT Active Matrix LCD Direct lit type LED Backlight a-Si TFT Active Matrix LCD Edge lit type LED Backlight a-Si TFT Active Matrix LCD Edge lit type LED Backlight
55 inches
46 inches
42 inches
1,209.6 x 680.4 mm (47 5/8 x 26 3/4 inches)
1018.1 x 572.7 mm (40 1/8 x 22 5/8 inches)
930.2 x 523.3 mm (36 5/8 x 20 5/8 inches)
1920 x 1080 pixels, Full HD
1920 x 1080 pixels, Full HD
1920 x 1080 pixels, Full HD
0.63 x 0.63 mm
0.53 x 0.53 mm
0.48 x 0.48 mm
8 bits + FRC, 1.06 billion colours
8 bits + FRC, 1.06 billion colours
8 bits + FRC, 1.06 billion colours
1000 cd/m2 (typical)
700 cd/m2 (typical)
700 cd/m2 (typical)
4,000 : 1 (typical)
4,000 : 1 (typical)
4,000 : 1 (typical)
178 degrees (typical)
178 degrees (typical)
178 degrees (typical)
Signal
Colour System
Sampling Rate
NTSC, PAL
13.5 MHz to 162 MHz
NTSC, PAL
13.5 MHz to 165 MHz
NTSC, PAL
13.5 MHz to 165 MHz
HDMI (1080p) in with audio in
DVI in with audio in Rev. 1.0 compliant
HDMI(1080p) in with audio in
DVI in with audio in Rev. 1.0 compliant
DVI out
HDMI(1080p) in with audio in
DVI in with audio in Rev. 1.0 compliant
DVI out
Analogue Video
HD15 in with audio in (RGB/Component Video)
HD15 out (RGB/Component Video)
Composite Video in/out with audio in**
(BNC (x2))
Component Video in with audio in**
(pin jack (x3))
HD15 in with audio in (RGB/Component Video)
HD15 out (RGB/Component Video)
Composite Video in/out with audio in**
(BNC (x2))
Component Video in with audio in**
(pin jack (x3))
HD15 in with audio in (RGB/Component Video)
HD15 out (RGB/Component Video)
Composite Video in/out with audio in**
(BNC (x2))
Component Video in with audio in**
(pin jack (x3))
Remote Control
Network port (RJ45, 10BASE-T/100BASE-TX)
RS-232C (D-sub 9-pin, straight)
Network port (RJ45, 10BASE-T/100BASE-TX)
RS-232C (D-sub 9-pin, straight)
Network port (RJ45, 10BASE-T/100BASE-TX)
RS-232C (D-sub 9-pin, straight)
Audio out (L/R, pin jack (x2))
L/R, 7 W + 7 W, 6 ohms
x1 for BKM-FW16
Audio out (L/R, pin jack (x2))
L/R, 7 W + 7 W, 6 ohms
x1 for BKM-FW16
Audio out (L/R, pin jack (x2))
L/R, 7 W + 7 W, 6 ohms
x1 for BKM-FW16
AC 100 V to 240 V, 50/60 Hz, 2.9 A (maximum)
AC 100 V to 240 V, 50/60 Hz, 1.4 A (maximum)
AC 100 V to 240 V, 50/60 Hz, 1.45 A (maximum)
250 W (typical)
290 W (maximum)
100 W (typical)
140 W (maximum)
108 W (typical)
145 W (maximum)
0°C to 40°C (32°F to 104°F)
-10°C to 40°C (14°F to 104°F)
20% to 90%, no condensation
1,253.0 x 723.8 x 120.0 mm
(49 3/8 x 28 1/2 x 4 3/4 inches)
(excluding protruding parts)
35.7 kg (78.7 lb)
0°C to 40°C (32°F to 104°F)
-10°C to 40°C (14°F to 104°F)
20% to 90%, no condensation
1,053.6 x 608.2 x 84.0 mm
(41 1/2 x 24 x 3 3/8 inches)
(excluding protruding parts)
22.7 kg (50.0 lb)
0°C to 40°C (32°F to 104°F)
-10°C to 40°C (14°F to 104°F)
20% to 90%, no condensation
967.8 x 560.7 x 88.0 mm
(38 1/8 x 22 1/8 x 3 1/2 inches)
(excluding protruding parts)
20.2 kg (44.5 lb)
UL, CSA, CE, GOST-R, IEC, FCC Class B, IC, CISPR,
ErP Lot6
UL, CSA, CE, GOST-R, IEC, FCC Class B, IC, CISPR,
ErP Lot6
UL, CSA, CE, GOST-R, IEC, FCC Class B, IC, CISPR,
ErP Lot6
AC power cord (x1), AC plug holder (x2),
Cable holder (x6), Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
AC power cord (x1), AC plug holder (x2),
Cable holder (x6), Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
AC power cord (x1), AC plug holder (x2),
Cable holder (x6), Remote Control RM-FW002 (x1),
Size AA (R6) batteries (x2),
Operating instructions (x1)
Inputs/Outputs
Digital Video
Audio
Speaker Out
Option Slot
General
Power Requirements
Power Consumption
Operating Temperature
Storage Temperature
Humidity
Dimensions (w x h x d)
Mass
Regulation Compliance
Supplied Accessories
* Measured at contrast ratio of more than 10:1
** Component video and composite video share an audio input (stereo mini jack (x1))
Optional Accessories
HD-SDI/SDI Input Adaptor
BKM-FW16
Tabletop Stand
SU-S02
Speaker Systems
SS-SPG02
Wall Bracket
WBPM1-Slim
For full features visit www.pro.sony.eu/products/publicdisplay
© 2012 Sony Corporation. All rights reserved. Reproduction in whole or in part without permission is prohibited. Features and specifications are subject to change without notice. All non-metric weights and measurements are
approximate. Sony and make.believe are trademarks of Sony Corporation. All other trademarks are the property of their respective owners.
Distributed by
Professional Solutions Europe is the leading supplier of AV/IT solutions to businesses across a wide variety of sectors including, Media and
Broadcast, Video Security and Retail, Transport & Large Venue markets. It delivers products, systems and applications to enable the creation,
manipulation and distribution of digital audio-visual content that add value to businesses and their customers. With over 25 years’ experience
in delivering innovative market-leading products, Professional Solutions Europe is ideally placed to deliver exceptional quality and value to its
customers. Sony’s Professional Services division, its systems integration arm, offers its customers access to the expertise and local knowledge of
skilled professionals across Europe. Collaborating with a network of established technology partners, Professional Solutions Europe delivers end to
end solutions that address the customer’s needs, integrating software and systems to achieve each organisations’ individual business goals. For
more information please visit www.pro.sony.eu
HCT_FWDS55_S46_S42_datasheet_J1121_UK_28/09/2012
