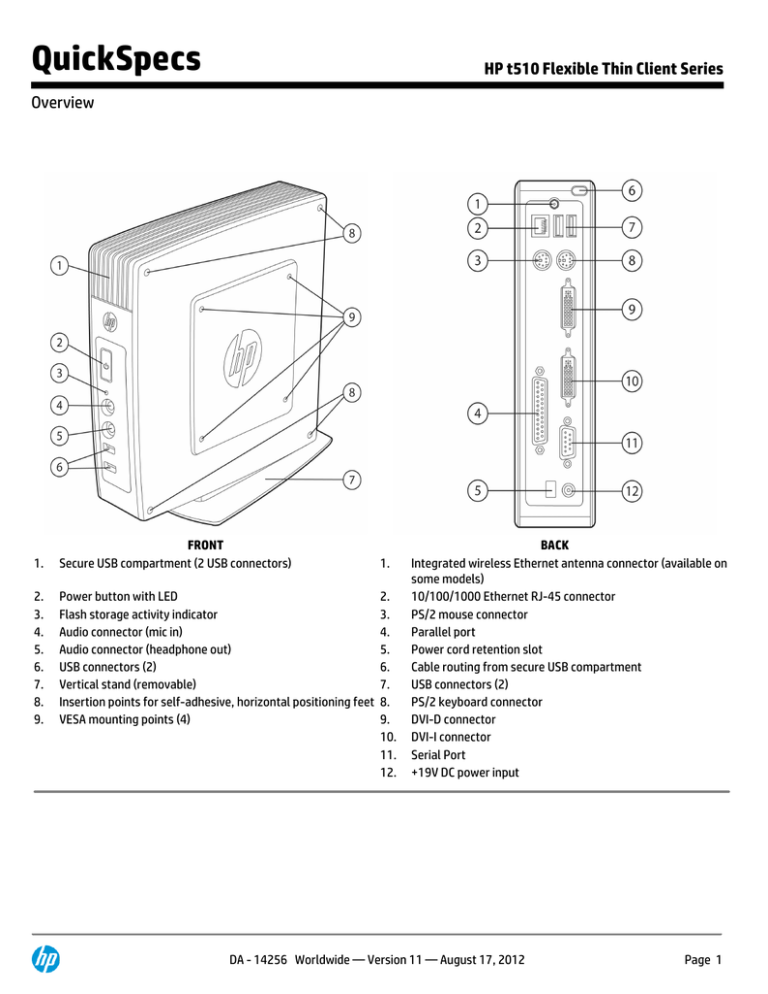

QuickSpecs
HP t510 Flexible Thin Client Series
Overview
1.
FRONT
Secure USB compartment (2 USB connectors)
2.
3.
4.
5.
6.
7.
8.
9.
Power button with LED
Flash storage activity indicator
Audio connector (mic in)
Audio connector (headphone out)
USB connectors (2)
Vertical stand (removable)
Insertion points for self-adhesive, horizontal positioning feet
VESA mounting points (4)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
BACK
Integrated wireless Ethernet antenna connector (available on
some models)
10/100/1000 Ethernet RJ-45 connector
PS/2 mouse connector
Parallel port
Power cord retention slot
Cable routing from secure USB compartment
USB connectors (2)
PS/2 keyboard connector
DVI-D connector
DVI-I connector
Serial Port
+19V DC power input
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 1
QuickSpecs
HP t510 Flexible Thin Client Series
Overview
TOP
1.
Cable lock slot - secures unit and secure USB compartment
2.
Secure USB compartment with cover removed – 2 USB
connectors
At A Glance
Hardware features:
VIA Eden X2 U4200 (1 GHz, 2 cores) processor for great performance
VIA VX900 chipse
2 GB 1066 MHz DDR3 RAM (128 MB reserved for video)
1, 2 or 16GB Flash memory (depending on operating system) provides ample storage for applications and drivers
6 USB 2.0 ports
Secure USB compartment is ideal for protecting USB wireless and USB Flash devices or for securing USB keyboard and mouse)
Legacy support includes parallel, serial, and PS/2 connections
Built in dual monitor support (DVI-I and DVI-D native, with DVI-I-to-VGA adapter included in carton)
Energy Star® qualified and EPEAT® Gold registered where applicable/supported. See http://www.epeat.net for registration
status by country.
BFR/PVC free
Contains over 10% post-consumer recycled plastics (by weight)
NOTE: HP t510 Flexible Thin Client series is brominated flame retardant and polyvinyl chloride free (BFR/PVC-free); meeting the
evolving definition of "BFR/PVC-free" as set forth in the "iNEMI Position Statement on the 'Definition of Low-Halogen Electronics
(BFR/CFR/PVC-Free).'" Plastic parts contain <1,000 ppm (0.1 percent) of bromine (if the Br source is from BFRs) and <1,000 ppm (0.1
percent) of chlorine (if the Cl source is from CFRs or PVC or PVC copolymers). All printed circuit board (PCB) and substrate laminates
contain bromine/chlorine total <1,500 ppm (0.15 percent) with a maximum chlorine of 900 ppm (0.09 percent) and maximum bromine
being 900 ppm (0.09 percent). Service parts after purchase may not be BFR/PVC-free. External power supply, power cords, keyboard,
mouse, and DVI-to-VGA adapter may not be BFR/PVC free
Software features for HP t510 ThinPro Flexible Thin Client:
HP ThinPro operating system provides a single console interface for dashboard visibility to all user and administrative touch
points with user and administrator logins for added security.
HP ThinPro supports modular software updates that can be applied remotely over the network with less bandwidth overhead.
This type of update mechanism also improves HP's ability to deliver time to market client-side updates from third party
software partners such as Citrix and VMware.
ICA, PCoIP, and RDP support for accessing Windows and Citrix resources
VDI broker support includes VMware View, Citrix XenDesktop (with CDA mode utility))
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 2
QuickSpecs
HP t510 Flexible Thin Client Series
Overview
Multimedia and USB redirection support
Citrix HDX MediaStream (multimedia redirection)
Citrix HDX Plug-n-Play (USB redirection)
Preinstalled Video Codecs: MPEG 1, WMV 7/8/9
Preinstalled Audio Codecs: MP3, WMA, ALAW, MULAW
HP Easy Tools
HP Easy Setup Wizard: Guides administrators through one time setup
HP Easy Update: Keep your software current
HP Easy Config: Purpose your HP t510 as an optimized VDI appliance
HP ThinState: Capture your master image or settings and port to USB key or HP Automatic Update repository
HP Automatic Update: Automate configuration changes and/or software updates to multiple devices
NOTE: run devices in stateless mode, or cache settings locally in persistent mode
HP Device Manager simplifies visibility and management for small and large thin client deployments scattered across multiple
subnets and NATed environments.
Native HP TeemTalk terminal emulation suite and local XDMCP/X.11 for accessing legacy application resources such as
mainframes and mid-range servers or Unix/Linux X-window environments.
Improved Quality of Experience for End User using HP Velocity
Available only on HP thin clients
HP Velocity enables IT managers to monitor network activity and optimize end-user experience
HP Velocity intelligently reduces network packet loss and retransmissions providing a better experience for the end user
Software features for HP t510 Flexible Thin Client with Smart Zero Technology:
HP Smart Smart Zero technology, just boot and connect!
Smart zero client Experience
Fast boot, quick connect and responsive interaction
User boots into their host environment with no local desktop complexity
User preferences can be set and retained without leaving the login screen
On-screen controls are streamlined to eliminate desktop clutter
Citrix Optimization:
Full screen 1080P HDX multimedia capability at an affordable price
Dock bar for convenient access to multiple published applications
Smooth roaming assures that your applications follow you
Automatic Intelligence
Intelligence is automatically inherited by HP Smart Zero Client Services
Support for Broadcast and DHCP Tag to discover Smart Zero Client Services
Leverages remote intelligence resources to minimize desktop overhead
Installation wizard establishes desktop environment for all devices in minutes
Automatic broadcast system finds HP Smart Zero Client Services & delivers user desktop in seconds
Profile editor allows connection changes to be made in just a few clicks
Seamless updates from the cloud allow users work instead of waiting for installs
Uncompromised IT
Unique device purposing, choose from ICA-HDX or RDP or View with PCoIP
HP Smart Zero Client Services integrates with host to maintain a clean IT environment
Your desktop attack surface is minimized with no local apps
Console visibility, asset information and reboot through HP Device Manager.
Improved Quality of Experience for End User using HP Velocity
Available only on HP thin clients
HP Velocity enables IT managers to monitor network activity and optimize end-user experience
HP Velocity intelligently reduces network packet loss and retransmissions providing a better experience for the end user
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 3
QuickSpecs
HP t510 Flexible Thin Client Series
Overview
Software features for HP t510 WES 7 Flexible Thin Client:
Microsoft® Windows® Embedded Standard 7 SP1 with support for Remote FX and local applications, providing a richer user
experience
Supports latest Internet Explorer 8 (IE8)
Excellent rich multimedia experience and enhanced USB device support in VDI environments
Latest protocol support from Citrix On-Line Plug in (ICA) 13, RDP 7.1 w/Remote FX, and VMware View 5.0
Enhanced Write Filter and File-Based Write Filter provide complete flexibility to protect the entire Flash disk, or configure areas
of the disk for persistent access by local applications
Microsoft Firewall for enhanced data security
Support 802.1x LAN-based authentication for greater security
HP Universal Print Driver provides instant access to a range of HP print devices without downloading separate drivers.
www.hp.com/go/upd
Improved Quality of Experience for End User using HP Velocity
Available only on HP thin clients
HP Velocity enables IT managers to monitor network activity and optimize end-user experience
HP Velocity intelligently reduces network packet loss and retransmissions providing a better experience for the end user
Software features for HP t510 WES 2009 Flexible Thin Client:
Windows Embedded Standard 2009 OS with support for local applications
Supports latest Internet Explorer 8 (IE8)
Excellent rich multimedia experience and enhanced USB device support in VDI environments
Latest Protocol support from Citrix On-Line Plug in (ICA) 13, RDP 7, and VMware View 5.0
HP Velocity (improves network QoS for virtualized resources including streaming multimedia running over the network)
Enhanced Write Filter and File-Based Write Filter provide complete flexibility to protect the entire Flash disk, or configure areas
of the disk for persistent access by local applications
Improved Quality of Experience for End User using HP Velocity
Available only on HP thin clients
HP Velocity enables IT managers to monitor network activity and optimize end-user experience
HP Velocity intelligently reduces network packet loss and retransmissions providing a better experience for the end user
Symantec Endpoint Protection for enhanced data security
Support 802.1x LAN-based authentication for greater security
Software features for HP t510 Windows CE Flexible Thin Client:
Windows Embedded CE 6.0 R3 OS ideal for general office applications (CE6 "Release 3")
Suited for customers needing light browsing and terminal emulation
Internet Explorer 6 (IE6.0)
Protocol support from Citrix On-Line Plug in (ICA) 10, RDP 6.0, and VMware View 4.0 4.5
Supports 802.1x wired LAN
Warranty:
HP Total Care Warranty and Services: limited three-year hardware warranty in most regions. HP Care Pack Services extend service
contracts beyond your standard warranties. For more details visit: http://www.hp.com/go/lookuptool.
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 4
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
OPERATING SYSTEM
HP t510 Flexible Thin Client models are pre-configured with one of the following operating systems.
HP ThinPro
HP Smart Zero Technology
Genuine Windows® Embedded Standard 2009
Genuine Windows® Embedded Standard 7
Windows Embedded CE 6.0 R3 (CE 6 Release 3)
PROCESSOR / CHIPSET
VIA Eden X2 U4200 (1 GHz, 2 cores)
VIA VX900
MEMORY
HP t510 ThinPro
Flexible Thin
Client
Flash (boot drive)
memory
System memory
System memory
reserved for graphics
(minimum)
Maximum system
memory
Memory slots
1 GB
HP t510 Flexible HP t510 WES 2009
Thin Client with
Flexible Thin
Smart Zero
Client
Technology
1 GB
2 GB
HP t510 WES 7
Flexible Thin
Client
HP t510 CE 6
Flexible Thin
Client
16 GB
1 GB
2 GB DDR3 1066 MHz
128 MB
4 GB DDR3
1 SODIMM
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 5
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
GRAPHICS
VIA ChromotionHD 2.0 Integrated Graphics Processor
Mode
Color depth
Refresh rate (Hz)
640 x 480
800 x 600
848 x 480
1024 x 480
1024 x 768
1280 x 720
1280 x 768
1280 x 1024
1360 x 768
1368 x 768
1400 x 1050
1440 x 900
1600 x 1200
1680 x 1050
1920 x 1080
1920 x 1200
60, 72, 75, 85 Hz
60, 72, 75, 85 Hz
60, 75, 85 Hz
60 Hz
60, 70, 72, 75, 85 Hz
60, 75, 85 Hz
60 Hz
60, 75, 85 Hz
60 Hz
60, 75, 85 Hz
60, 75, 85 Hz
60, 75, 85 Hz
60, 75 ,85 Hz
60, 75 Hz
60, 75 Hz
60, 75, 85 Hz
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
8, 16, 32 bit
INPUT/OUTPUT (peripheral support)
Keyboard
USB or PS/2 (varies by region)
Mouse
USB or PS/2 (varies by region)
Printer
Local and/or network printers (RDP, ICA, LPD)
Video
DVI-I & DVI-D digital video output (plus included DVI-I-to-VGA adapter)
Output
Internal amplified speaker
1/8-inch mini-jack, 24-bit stereo,
192 kHz sample rate
1/8-inch microphone mini-jack, 20-bit stereo,
96 kHz sample rate
MP3
AAC stereo & HE AAC
WMA stereo
MPEG-1
MPEG-4 part 2 (DivX, Xvid, H.263)
MPEG-4 part 10 (H.264, AVC)
WMV 7/8/9/ VC-1 & ASF Demuxer
AUDIO
Input
Audio codecs
Video codecs
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 6
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
HARDWARE SECURITY
Security lock slot (cable lock sold separately)
Secure USB compartment with 2 USB 2.0 ports
NETWORKING
Hardware networking
10/100/1000 Gigabit Ethernet (RJ-45)
Wake on LAN (WOL)
PXE
TCP/IP with DNS and DHCP
Software networking
HP t510 ThinPro
Flexible Thin
Client
Point-to-Point Protocol
(PPP)
Point-to-Point over
Ethernet (PPPoE)
Direct Connection
through RS-232
Point-to-Point Tunneling
Protocol (PPTP)
Layer-2 Tunneling
Protocol (L2TP)
Server Network Time
Protocol (SNTP)
HP t510 Flexible HP t510 WES 2009
Thin Client with
Flexible Thin
Smart Zero
Client
Technology
HP t510 WES 7
Flexible Thin
Client
HP t510 CE 6
Flexible Thin
Client
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
WIRELESS LAN (select models)
Adapter
Atheros 802.11a/b/g/n WIFI Adapter
Form Factor
PCI-Express Half Mini Card
Security7
Supports 64- and 128-bit WEP, WPA, WPA2, AES, TKIP, 802.1x
authentication types EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, LEAP
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 7
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
I/O PORTS & CONNECTORS
HP t510 Flexible Series Thin Clients
6 USB 2.0 (two in front, two in rear, two in secure USB compartment)
1 Serial
1 Parallel
2 PS/2
1 RJ-45
1 DVI-I
1 DVI-D
1 DVI-I to VGA adapter included in carton
SERVER OS COMPATIBILITY/SUPPORT
Citrix XenApp 5 and 6
Citrix XenDesktop 5.5
Citrix Presentation Server 4.0
Windows Server 2008 Terminal Services
Windows 2000/2003 Server families; Windows 2000/2003 Server Terminal Services
VMware Virtual Desktop Infrastructure using RDP or PCoIP
LANGUAGES (MUI)
English, French, German, Spanish, Simplified Chinese, and Japanese
NOTE: Languages are selectable from the HP ThinPro Control Panel or Easy Config wizard
SOFTWARE for HP t510 ThinPro Flexible Thin Client Models:
Operating System
HP ThinPro (preinstalled)
Protocols
ICA, RDP, and PCoIP
Protocol clients
Browser supported
VMware View 4.6
rDesktop 1.6
Xwindows X11R6
HP TeemTalk Terminal Emulator 7
Mozilla Firefox 8
Security
802.1x
Session brokers
Preinstalled:
VMware View 4.6
Management
HP Device Manager agent
HP ThinState for rapid deployment
HP Easy Tools GUI (avail as add-on) guides you through initial setup and configurations
NOTE: Other add-on software available (see: www.hp.com/support for latest list of available add-ons)
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 8
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
SOFTWARE for HP t510 Flexible Thin Client with Smart Zero Technology Models
Operating System
HP Smart Zero Technology (preinstalled)
Protocols
Citrix ICA
Citrix HDX
PCoIP
Microsoft RDP
Citrix ICA 12.0
VMware View 4.6
HP TeemTalk Terminal Emulator 7
HP RGS Receiver 5.x
Firefox 8
Protocol clients
Browser supported
Session brokers
Management
Preinstalled:
Citrix Desktop Delivery Controller enabled
through web browser
VMware View 5.0
HP Smart Zero Client Services
Available from vendor's website:
Leostream Desktop Connection Broker
Provision Networks (Quest) broker
Installation Wizard
Automatic Intelligence:
Client Kits (ICA-HDX, RDP & View) preinstalled
Profile Repository (connections / settings)
Profile Editor (connections / settings)
Intelligent Delivery: Broadcast, DHCP Tag
HP Device Manager preinstalled
NOTE: Other add-on software available (see: www.hp.com/support for latest list of available add-ons)
SOFTWARE for HP t510 WES 7 Flexible Thin Client Models
Operating System
Genuine Windows Embedded Standard 7 SP1 (preinstalled)
Protocols
Microsoft RDP 7.1 w/RFX
Citrix ICA / HDX
VMware View through PCoIP or RDP
Citrix Receiver 3/Online Plug-in 13
VMware View 5.0
HP TeemTalk Terminal Emulator 7.3
Microsoft Internet Explorer 8
Protocol clients
Browser supported
Security
Session brokers
Enhanced Write Filter and File-Based Write Filter
Microsoft Firewall
LogOn Manager (password logon)
Citrix Desktop Delivery Controller enabled through web browser
VMware View 5.0
HP Remote Graphics Software v5.4
Available from vendor's website:
Leostream Desktop Connection Broker
Provision Networks (Quest) broker
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 9
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
Management
HP Device Manager agent
HP ThinState for rapid deployment
Microsoft SCCM/EDM agent
HP Easy Tools:
HP Easy Setup: Configuration setup wizard
HP Easy Config: Purpose thin client as an optimized VDI appliance
HP Easy Update: Automatically check for and install new software updates
Additional components
Universal Print Driver
Adobe PDF Reader (available as add-on)
HP Connection Manager
NOTE: Other add-on software available (see: www.hp.com/support for latest list of available add-ons)
SOFTWARE for HP t510 WES 2009 Flexible Thin Client Models:
Operating System
Genuine Windows® Embedded Standard 2009
Protocols
(Client Virtualization)
Microsoft RDP 7.0
Citrix ICA 13
VMware View 5.0 (RDP and PCoIP)
Citrix Online Plug-in 13
VMware View 5.0 (RDP and PCoIP)
HP TeemTalk Terminal Emulator 7
Internet Explorer 8 (IE8)
Protocol Clients
Browser supported
Security
Session brokers
Management
Enhanced Write Filter and File-Based Write Filter
Symantec Endpoint Protection
LogOn Manager (password logon)
Citrix Desktop Delivery Controller enabled through web browser
VMware View 5.0
Available from vendor's website:
Leostream Desktop Connection Broker
Provision Networks (Quest) broker
HP Device Manager agent
HP ThinState for rapid deployment
HP Easy Tools:
HP Easy Setup: Configuration setup wizard
HP Easy Config: Purpose thin client as an optimized VDI appliance
HP Easy Update: Automatically check for and install new software updates
Additional components
HP Connection Manager
Microsoft .NET Framework 2.0 SP2, 3.0 SP2 & 3.5 SP1
Microsoft Windows Media Player v12.0
Adobe PDF Reader (available as add-on)
NOTE: Other add-on software available (see: www.hp.com/support for latest list of available add-ons)
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 10
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
SOFTWARE for HP t510 Windows CE 6.0 R3 Flexible Thin Client Models:
Operating System
Windows® Embedded CE 6.0 R3
Protocols
(Client Virtualization)
Microsoft RDP 6.0
Citrix ICA 10.x
VMware View 4.x (RDP and PCoIP)
Citrix Online Plug-in 10.x
VMware View 4.x (RDP and PCoIP)
HP TeemTalk Terminal Emulator
Internet Explorer 6.0 for Windows CE
Protocol Clients
Browser supported
Security
Session brokers
Management
Enhanced Write Filter and File-Based Write Filter
Symantec Endpoint Protection
LogOn Manager (password logon)
Citrix Desktop Delivery Controller enabled through web browser
VMware View 4.5
Available from vendor's website:
Leostream Desktop Connection Broker
HP Device Manager agent 4.0 Agent
HP ThinState for rapid deployment
HPCA
Altiris agent (license not included)
HP Easy Tools:
Additional components
HP Easy Setup: Configuration setup wizard
HP Easy Config: Purpose thin client as an optimized VDI appliance
HP Easy Update: Automatically check for and install new software updates
HP ThinConnect Connection Manager
JetCET Print Professional
Txtpad
Microsoft Windows Media Player v9.0 for Windows CE
Viewers for Microsoft Office 2003: Excel, Powerpoint, Word
DIMENSIONS (WxDxH)
Without stand
2.3 x 8.5 x 8.25 in (5.84 x 21.59 x 20.95 cm)
With stand
2.3 x 8.5 x 8.65 in (5.84 x 21.59 x 21.97 cm)
NOTE: Dimensions are approximate
WEIGHT - Standard Chassis
With stand
3.3 lbs (1.49 kg)
Without stand
3.2 lbs (1.45 kg)
NOTE: Weights are approximate
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 11
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
POWER
65 W
Worldwide auto-sensing 100-240 VAC, 50-60 Hz
Energy-saving automatic power-down
Surge-tolerant
ENVIRONMENTAL
Operating temperature
range
Standard
50° to 104° F (10° to 40° C
Using Quick Release with a flat panel monitor
50° to 95° F (10° to 35° C)
Non-operating
temperature range
Humidity
Using PCI Expansion Unit
50° to 104° F (10° to 40° C)
22° to 140° F (-30° to 60° C)
Condensing
20% to 80%
Non-condensing
10% to 90% non-condensing
NOTE: Specifications are at sea level with altitude derating of 1° C/300m (1.8° F/1000ft) to a maximum of 3 Km (10,000 ft),
with no direct, sustained sunlight. Upper limit may be limited by the type and number of options installed.
REGULATORY COMPLIANCE
Ergonomics
German ZH1/618; EN29241-3, approved
Safety
UL 1950, CSA 950; TÜV-GS (EN60 950) approved
RF Interference
FCC Class B; CE Mark; EN55022B; VCCI
EMULATIONS
HP TeemTalk Terminal Emulator supports these emulations. SSH is supported in terminal emulation mode allowing users to
secure their connections to the host.
Emulation
Terminal ID
ADDS Viewpoint A2
AIXTerm
ANSI BBS
AT&T AT 386
AT&T Dataspeed 4410
Bull BQ3107
Data General Dasher
410/412
ADDS-A2
Aixterm
Ansi
at386-m
att4410
VIP7700, VIP7760
dg410
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 12
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
Hewlett Packard HP70092/96
Hazeltine 1500
IBM 3151
IBM 3270
2392A, 2622A, 70092, 70094, 70096
HZ1500
11, 11-28, 31, 31-28
3278-2 (24x80 Mono),
3278-3 (32x80 Mono),
3278-4 (43x80 Mono),
3278-5 (27x132 Mono),
3278-2-E (24x80 Color),
3278-3-E (32x80 Color),
3278-4-E (43x80 Color),
3278-5-E (27x132 Color),
3279-2 (24x80 Color),
3279-3 (32x80 Color),
3279-4 (43x80 Color),
3279-5 (27x132 Color),
3287-1 (Printer)
IBM 5250
3179-2 (24x80 Color),
3180-2 (27x132 Mono Msg),
3196-A1 (24x80 Mono),
3477-FC (27x132 Color Msg),
3477-FG (27x132 Mono Msg),
3486-BA (24x80 Mono),
3487-HA (27x132 Mono),
3487-HC (27x132 Color),
3812-1 (Printer),
5251-11 (24x80 Mono),
5291-1 (24x80 Mono),
5292-2 (24x80 Color),
5553-B01 (DBCS Printer),
5555-B01 (DBCS 24x80 Mono),
5555-C01 (DBCS 24x80 Color)
McDonnell Douglas Prism- tty
8, Prism-12
McDonnell Douglas Prism- tty
9
Prime PT250
pt250
SCO Console
ansi
Siemens 97801
97801
Stratus V102
v102
Tandem TA6526, TA6530 tn6530-8
Televideo 910
TVI910
Televideo 920
TVI920
Televideo 925
TVI925
Televideo 950
TVI950
Televideo 955
TVI955
Unisys T27
UNISYS-TD830
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 13
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications
Viewdata 40
Viewdata 80
Viewdata Split
DEC VT PCTerm
DEC VT100
DEC VT100+
DEC VT500 7-bit
DEC VT500 8-bit
VIEWDATA - 40
VIEWDATA - 80
VIEWDATA - SPLIT
VT-PCTERM
m2200, vt100, vt101, vt102, vt125, vt131, vt132, vt220, vt240, vt320, vt340, vt420, vt510,
vt520, vt525
VT100+
m2200, vt100, vt101, vt102, vt125, vt131, vt132, vt220, vt240, vt320, vt340, vt420, vt510,
vt520, vt525
m2200, vt100, vt101, vt102, vt125, vt131, vt132, vt220, vt240, vt320, vt340, vt420, vt510,
vt520, vt525
DEC VT 52
m2200, vt100, vt101, vt102, vt125, vt131, vt132, vt220, vt240, vt320, vt340, vt420, vt510,
vt520, vt525
VT HP220
vt220
VT UTF8
VT-UTF8
Wyse WY370
WYSE-370
Wyse WY50
WYSE-50
Wyse WY50+
WYSE-50
Wyse WY60
WYSE-60
Wyse PCTerm
WYSE-PCTERM
NOTE: Wireless features, performance and support may vary depending on environmental variables such placement, settings
and firmware of your access points. Please contact your wireless vendor for support of your wireless environment.
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 14
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications – Environmental Data
ECO-LABEL CERTIFICATIONS & DECLARATIONS
This product has received or is in the process of being certified to the following approvals and may be labeled with one or
more of these markets:
ENERGY STAR® Category B
EPEAT® Gold registered where applicable/supported, see www.epeat.net for registration status by country
BFR/PVC-free product
NOTE: Products are brominated flame retardant and polyvinyl chloride free (BFR/PVC-free); meeting the evolving definition
of "BFR/PVC-free" as set forth in the "iNEMI Position Statement on the 'Definition of Low-Halogen Electronics (BFR/CFR/PVCFree).'" Plastic parts contain <1,000 ppm (0.1 percent) of bromine (if the Br source is from BFRs) and <1,000 ppm (0.1
percent) of chlorine (if the Cl source is from CFRs or PVC or PVC copolymers). All printed circuit board (PCB) and substrate
laminates contain bromine/chlorine total <1,500 ppm (0.15 percent) with a maximum chlorine of 900 ppm (0.09 percent) and
maximum bromine being 900 ppm (0.09 percent). Service parts after purchase may not be BFR/PVC-free. External power
supply, power cords, keyboard, mouse, and DVI-to-VGA adapter are not BFR/PVC free
ENERGY CONSUMPTION
115 VAC (60Hz)
230 VAC (50Hz)
100 VAC (60Hz)
Standard Models
Idle State:
9.8 W
9.8 W
10.80 W
Off Mode:
0.44 W
0.45 W
0.45 W
NOTE: This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled. Off Mode measurements
are made with WOL disabled.
NOTE: The actual power consumption at your location could vary and is dependent on many factors including but not limited
to software load on the thin client, attached peripherals, and environmental factors.
HEAT DISSIPATION
115 VAC (60Hz)
230 VAC (50Hz)
100 VAC (60Hz)
Idle State:
33.44 BTU/hr
33.44 BTU/hr
33.23 BTU/hr
Off Mode:
1.50 BTU/hr
1.54 BTU/hr
1.54 BTU/hr
NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour
BATTERIES
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Battery size: CR2032 (coin cell)
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 15
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications – Environmental Data
Battery type: Lithium
RECYCLED MATERIAL
Product
Packaging
This product containsat least 10% recycled materials (by weight).
This product isat least 90% (by weight) recyclable when disposed of properly at end of life.
The EPE foam packaging material contains at least 5% (by weight) post-consumer
recycled content.
The corrugated paper packaging materials contains at least 80% (by weight) postconsumer recycled content.
The packaging for this product is 100% (by weight) recyclable when disposed of properly.
RoHS COMPLIANCE
Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations, including the European
Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the
requirements of the RoHS Directive on a worldwide basis. From July 1, 2006, RoHS substances will be virtually eliminated
(virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely
recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
MATERIAL USAGE
This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General
Specification for the Environment at: http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been voluntarily removed from
most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 16
QuickSpecs
HP t510 Flexible Thin Client Series
Technical Specifications – Environmental Data
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your
product, please go to: http://www.hp.com/recycle or contact your nearest HP sales office. Products returned to HP will be
recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use
by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:
http://www.hp.com/go/recyclers.
These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate
and re-sell HP equipment.
Hewlett-Packard Corporate Environmental Information
For more information about HP's commitment to the environment:
Global Citizenship Report:
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications:
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 17
QuickSpecs
HP t510 Flexible Thin Client Series
Options and Accessories (sold separately)
Part Number
EM870AA
LH526AA
BV411AA
AZ552AA
Accessories
HP Quick Release Kit
HP Integrated Work Center Stand
HP Keyed Cable Lock (BFR/PVC free)
65 Watt External Power Supply replacement
Input Devices
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB CCID Smartcard Keyboard (BFR/PVC free)
HP PS/2 2-Button Optical Mouse
HP USB 2-Button Optical Scroll Mouse
DT527A
DT528A
BV813AA
EY703AA
DC172B
Storage
HP USB External CD/DVD R/RW Drive (read only support)
BU516AA
Security
HP USB CCID Smartcard Keyboard (BFR/PVC free)
Gemalto PC USB-TR Card Reader1
Gemalto .NET v2+ Smart Card1
SCM SCR331 USB Smart Card Reader1
HP Keyed Cable Lock (BFR/PVC free)
Care Pack Services2
9x5 Next-Business-Day Advanced Exchange - 3 Years3
9x5 Next-Business-Day On-Site Coverage - 3 Years
Hardware Installation
BV813AA
HWP117685A
HWP115303B
HWP115647C
904054
BV411AA
331653-001;
U4847E
331655-001;
U4849E
331686-001;
UJ865E
1Option, drivers, warranty, and support are available directly from third party.
2Service levels and response times for HP Care Pack Services may vary depending on your geographic
location. Restrictions and limitations apply. For details, visit: www.hp.com/go/carepack.
3U4847E is available in all regions; U4849E is available in Latin America and Asia-Pacific/Japan.
© 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice and is
provided "as is" without warranty of any kind. The warranties for HP products and services are set forth in the express limited warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows are trademarks of the
Microsoft Group of Companies. ENERGY STAR is a registered mark owned by the U.S. government.
DA - 14256 Worldwide — Version 11 — August 17, 2012
Page 18
