Canon High Resolution Barrier 180g/m 17"

Large Format Media

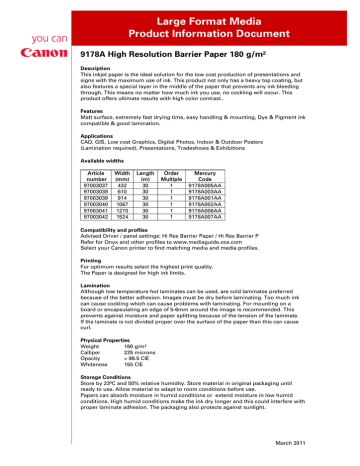

Product Information Document
9178A High Resolution Barrier Paper 180 g/m²
Description
This inkjet paper is the ideal solution for the low cost production of presentations and
signs with the maximum use of ink. This product not only has a heavy top coating, but
also features a special layer in the middle of the paper that prevents any ink bleeding
through. This means no matter how much ink you use, no cockling will occur. This
product offers ultimate results with high color contrast..
Features
Matt surface, extremely fast drying time, easy handling & mounting, Dye & Pigment ink
compatible & good lamination.
Applications
CAD, GIS, Low cost Graphics, Digital Photos, Indoor & Outdoor Posters
(Lamination required), Presentations, Tradeshows & Exhibitions
Available widths
Article
number
97003037
97003038
97003039
97003040
97003041
97003042
Width
(mm)
432
610
914
1067
1270
1524
Length
(m)
30
30
30
30
30
30
Order
Multiple
1
1
1
1
1
1
Mercury
Code
9178A005AA
9178A003AA
9178A001AA
9178A002AA
9178A006AA
9178A007AA
Compatibility and profiles
Advised Driver / panel settings: Hi Res Barrier Paper / Hi Res Barrier P
Refer for Onyx and other profiles to www.mediaguide.oce.com
Select your Canon printer to find matching media and media profiles.
Printing
For optimum results select the highest print quality.
The Paper is designed for high ink limits.
Lamination
Although low temperature hot laminates can be used, are cold laminates preferred
because of the better adhesion. Images must be dry before laminating. Too much ink
can cause cockling which can cause problems with laminating. For mounting on a
board or encapsulating an edge of 5-6mm around the image is recommended. This
prevents against moisture and paper splitting because of the tension of the laminate.
If the laminate is not divided proper over the surface of the paper than this can cause
curl.
Physical Properties
Weight
180 g/m²
Calliper
225 microns
Opacity
> 98.5 CIE
Whiteness
155 CIE
Storage Conditions
Store by 23ºC and 50% relative humidity. Store material in original packaging until
ready to use. Allow material to adapt to room conditions before use.
Papers can absorb moisture in humid conditions or extend moisture in low humid
conditions. High humid conditions make the ink dry longer and this could interfere with
proper laminate adhesion. The packaging also protects against sunlight.
March 2011
Shelf Life
2 years from shipping date when stored under ideal conditions (see above)
March 2011
