QuickSpecs
HP Notebook Stands
Overview
Introduction
HP Notebook Stands include a range of convenient solutions and space-saving designs that easily connect to your HP Business
Notebook and enable easy viewing and an ideal desktop computing environment.
Models
HP Adjustable Dual Display Stand
HP Display and Notebook II Stand New!
HP Display and Notebook Stand
HP Dual Hinge II Notebook Stand New!
HP Dual Hinge Notebook Stand
HP Adjustable Display Stand
HP LCD Monitor Stand
HP Single Monitor Arm
AW664AA
E8G00AA
AW662AA
E8F99AA
AW661AA
AW663AA
QM196AA
BT861AA

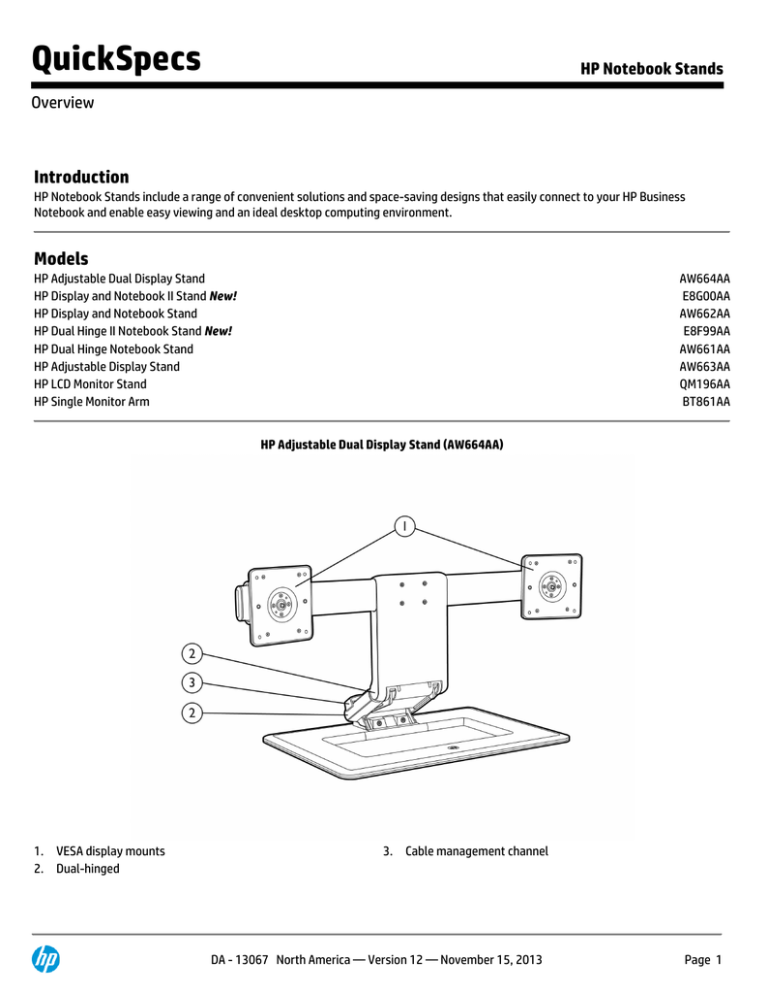

HP Adjustable Dual Display Stand (AW664AA)
1. VESA display mounts
2. Dual-hinged
3. Cable management channel
DA - 13067 North America — Version 12 — November 15, 2013
Page 1
QuickSpecs
HP Notebook Stands
Overview
Dimensions (H x W x D)
Product weight
Maximum individual
monitor weight
Rev B
Rev A
15.7 x 19.7 x 14.0 in
(40.0 x 50.0 x 35.5 cm)
12.3 lb (5.6 kg)
15.7 x 19.7 x 14.0 in
(40.0 x 50.0 x 35.5 cm)
12.3 lb (5.6 kg)
5.0-13.2 lbs. ( 2.3-6.0 Kg)
7.28-15.4 lbs. (3.3-7.0 kg)
Compatible displays
HP LCD display up to 24" with 100mm
HP LCD display up to 24" with 100mm
or 75mm VESA mounting pattern
VESA mounting pattern
Dual-hinged display stand The dual-hinged, smooth-motion display stand allows for greater distance, height, and tilt adjustment for
maximum comfort.
Cable management
Organizes and hides accessory cables in a central location to help reduce clutter when connecting multiple
devices.
channels
Service and support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as
well as online support forums.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Kit contents
Base, riser, bow, two(2) sliding monitor brackets, hardware kit and documentation
HP Display and Notebook II Stand (E8G00AA)
1.
2.
3.
4.
VESA display mounts
Docking posts
Convertible platform
Eject button
6.
7.
8.
9.
Notebook Platform
Cable management channel (not shown)
Dual-hinged
Horizontal adjustment bracket
DA - 13067 North America — Version 12 — November 15, 2013
Page 2
QuickSpecs
HP Notebook Stands
Overview
5. Adjustable shelf
Dimensions (H x W x D)
18.9 x 27.2 x 18.5.0 in (48.0 x 69.0 x 47.0 cm)
Product weight
14.9 lbs. (6.8 kg)
Weight capacity
8.8-26.9 lbs. (4.0-12.2kg)
Display up to 13.2 lbs. (6.0 kg); notebooks 3.7-7.7 lbs. (1.7-3.5 kg); docks up to 6 lbs. (2.7kg)
Maximum monitor weight 5.0-13.2 lbs. ( 2.3-6.0 Kg)
Compatible displays
HP LCD display up to 24" with 100mm or 75mm VESA mounting pattern
Notebooks supported
12-17.3"
Docks supported
HP 90W/230W Docking Stations, 120w/230W Advanced Docking Stations, UltraSlim Docks, 2570p Docking
Station.
The dual-hinged, smooth-motion display stand allows for greater distance, height, and tilt adjustment for
maximum comfort.
Dual-hinged display
stand
Horizontal adjustment
bracket
Adjusts the horizontal position of your display.
Adjustable shelf
Adjusts for different-sized notebook PCs.
Docking posts
Aligns and secures the docking station to the stand.
Removable convertible
platform
Three-way convertible platform allows user to switch between HP 90W/230W Docking Stations,
120w/230W Advanced Docking Stations, UltraSlim Docks, 2570p Docking Station or no dock configuration
Cable management
channels
Organizes and hides accessory cables in a central location to help reduce clutter when connecting multiple
devices.
Service and support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as
well as online support forums.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Kit contents
Stand, notebook platform, one height-adjustable sliding monitor bracket, hardware kit and
documentation.
Ships assembled in the Basic/Advanced Dock configuration
HP Display and Notebook Stand (AW662AA)
DA - 13067 North America — Version 12 — November 15, 2013
Page 3
QuickSpecs
HP Notebook Stands
Overview
1.
2.
3.
4.
VESA display mounts
Docking posts
Eject button
Adjustable shelf
5.
6.
7.
8.
Dimensions (H x W x D)
18.9 x 27.2 x 18.5 in (48.0 x 69.0 x 47.0 cm)
Product weight
14.6 lbs. (6.6 kg)
Notebook platform
Cable management channel (not shown)
Dual-hinged
Horizontal adjustment bracket
Weight capacity
11.0-29.1 lbs. (5.0-13.2 kg)
Display up to 14.3 lbs. (6.5 kg); notebooks 3.7-7.7 lbs. (1.7-3.5 kg); docks up to 6 lbs. (2.7kg)
Maximum monitor weight 7.28-15.4 lbs. (3.3-7.0 kg)
Compatible displays
HP LCD display up to 24" with 100mm VESA mounting pattern
Notebooks supported
12-17.3"
Docks supported
HP 90W/230W Docking Stations, 120w/230W Advanced Docking Stations, 2570p Docking Station
Dual-hinged display
stand
The dual-hinged, smooth-motion display stand allows for greater distance, height, and tilt adjustment for
maximum comfort.
Horizontal adjustment
bracket
Adjusts the horizontal position of your display.
Adjustable shelf
Adjusts for different-sized notebook PCs.
Docking posts
Aligns and secures the docking station to the stand.
Cable management
channels
Organizes and hides accessory cables in a central location to help reduce clutter when connecting multiple
devices.
DA - 13067 North America — Version 12 — November 15, 2013
Page 4
QuickSpecs
HP Notebook Stands
Overview
Service and support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as
well as online support forums.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Kit contents
Stand, notebook platform, universal docking notebook platform cover, one height-adjustable sliding
monitor bracket, hardware kit and documentation
HP Dual Hinge II Notebook Stand (E8F99AA)
1. Docking posts
2. Convertible platform
3. Eject button
4. Adjustable shelf
5. Dual-hinged
6. Base
DA - 13067 North America — Version 12 — November 15, 2013
Page 5
QuickSpecs
HP Notebook Stands
Overview
Dimensions (H x W x D)
8.7 x 11.8 x 14.2 in (22.0 x 30.0 x 36.0 cm)
Product weight
7.9 lbs. (3.6 kg)
Weight capacity
3.7-13.6 lbs. (1.7-6.2 kg) Notebook or notebook and docking station
Notebooks supported
12-17.3 in
Docks supported
Dual-hinged display
stand
HP 90W/230W Docking Stations, 120w/230W Advanced Docking Stations, UltraSlim Docks, 2570p Docking
Station
The dual-hinged, smooth-motion display stand allows for greater distance, height, and tilt adjustment for
maximum comfort.
Docking posts
Aligns and secures the docking station to the stand and helps secure a connected docking station.
Removable convertible
platform
Three-way convertible platform allows user to switch between HP 90W/230W Docking Stations,
120w/230W Advanced Docking Stations, UltraSlim Docks, 2570p Docking Station or no dock configuration
Cable management
channels
Organizes and hides accessory cables in a central location to help reduce clutter when connecting multiple
devices.
Service and support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as
well as online support forums.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Kit contents
HP Dual Hinge II Notebook Stand and documentation.
Ships fully assembled in the Basic/Advanced Dock configuration
HP Dual Hinge Notebook Stand (AW661AA)
1. Eject button
2. Adjustable shelf
4. Dual-hinged
5. Cable management channel
DA - 13067 North America — Version 12 — November 15, 2013
Page 6
QuickSpecs
HP Notebook Stands
Overview
3. Base
6. Docking posts
Dimensions (H x W x D)
8.7 x 11.8 x 14.2 in (22.0 x 30.0 x 36.0 cm)
Product weight
7.9 lbs. (3.6 kg)
Weight capacity
3.7-13.6 lbs. (1.7-6.2 kg) Notebook or notebook and docking station
Notebooks supported
12-17.3 in
Docks supported
HP 90W/230W Docking Stations, 120w/230W Advanced Docking Stations, 2570p Docking Station.
Dual-hinged display
stand
The dual-hinged, smooth-motion display stand allows for greater distance, height, and tilt adjustment for
maximum comfort.
Docking posts
Aligns and secures the docking station to the stand and helps secure a connected docking station.
Adjustable shelf
Adjusts for different-sized notebook PCs.
Cable management
channels
Organizes and hides accessory cables in a central location to help reduce clutter when connecting multiple
devices.
Service and support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as
well as online support forums.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Kit contents
HP Dual Hinge Notebook Stand and documentation.
Ships fully assembled
HP Adjustable Display Stand (AW663AA)
1. VESA display mount
2. Docking posts
4. Dual-hinged
5. Cable management channel
DA - 13067 North America — Version 12 — November 15, 2013
Page 7
QuickSpecs
HP Notebook Stands
Overview
3. Eject button
Dimensions (H x W x D)
Product weight
Rev B
Rev A
16.9 x 13.8 x 15.7 in
(43.0 x 35.0 x 40.0 cm)
8.4 lbs. (3.8 kg)
16.9 x 13.8 x 15.7 in
(43.0 x 35.0 x 40.0 cm)
8.4 lbs. (3.8 kg)
Maximum monitor weight 5.0-13.2 lbs. ( 2.3-6.0 Kg)
7.28-14.3 lbs. (3.3-7.0 kg)
Compatible displays
HP LCD display up to 24" with 100mm VESA
mounting pattern
Notebook supported
Docks supported
HP LCD display up to 24" with 100mm
or 75mm VESA mounting pattern
12-17.3 in
HP 90W/230W Docking Stations, 120w/230W Advanced Docking Stations, UltraSlim Docks, 2570p Docking
Station.
Dual-hinged display stand The dual-hinged, smooth-motion display stand allows for greater distance, height, and tilt adjustment for
maximum comfort.
Docking posts
Aligns and secures the docking station to the stand and helps secure a connected docking station.
Cable management
channels
Organizes and hides accessory cables in a central location to help reduce clutter when connecting multiple
devices.
Service and support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as
well as online support forums.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Kit contents
Stand, riser, monitor bracket, hardware, kit and documentation
HP LCD Monitor Stand (QM196AA)
1.
2.
3.
Docking posts
Docking release post
Eject button
4.
5.
Sliding tray button
Sliding tray
DA - 13067 North America — Version 12 — November 15, 2013
Page 8
QuickSpecs
HP Notebook Stands
Overview
Dimensions (H x W x D)
Product weight
Monitor supported
Notebooks supported
Docks supported
Upper platform : 13.8" W x 10.8" D (35.0 x 27.5 cm)
Notebook platform: 16" D x 5" H x 13.8" W (40.7 x 12.7 x 35.1 cm)
6.8 lbs. (3.1 kg)
LCD Display with base are not exceeding 12.4" W x 9.8" D (3.15 x 25.0 cm), not weighting more than 25 lbs.
(11.3kg)
12-17.3 in
Power button
HP 90W/230W Docking Stations, 120w/230W Advanced Docking Stations, UltraSlim Docks, 2570p Docking
Station.
Turns on power to the system. The light is turned on when the docked computer is turned on.
AC power light
Lights up when the docking station is connected to the AC power.
Dock light
Lights up when the computer is successfully docked to the docking station.
MultiBay II activity light
Indicates MultiBay II drive activity (on Advanced Docking Station only).
Docking posts
Aligns and secures the docking station to the stand.
Docking release post
Secures a connected docking station.
Release button
Releases the docking station from the stand.
Tray slide button
Adjusts the position of the docking station and notebook PC.
Docking station cable
Connects the docking station so you can use the monitor stand power button and activity light.
Service and support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as
well as online support forums.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
Power button - (not supported on UltraSlim Docks)
AC power light - add at the end (not supported on UltraSlim Docks)
Dock light - add at the end (not supported on UltraSlim Docks)
Docking Station cable (not supported on UltraSlim Docks)
HP LCD Monitor Stand and documentation
Kit contents
HP Single Monitor Arm (BT861AA)
Dimensions (H x W x D)
N/A
Product weight
7.91 lbs. (3.59 kg)
Maximum monitor weight 7-20 lbs. (3.1-9.1 kg)
Compatible displays
HP LCD display up to 24" with 100mm or 75mm VESA mounting pattern
Kit contents
Arm, extension, desk clamp and grommet mount bases
© Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
September 2013
DA - 13067 North America — Version 12 — November 15, 2013
Page 9
