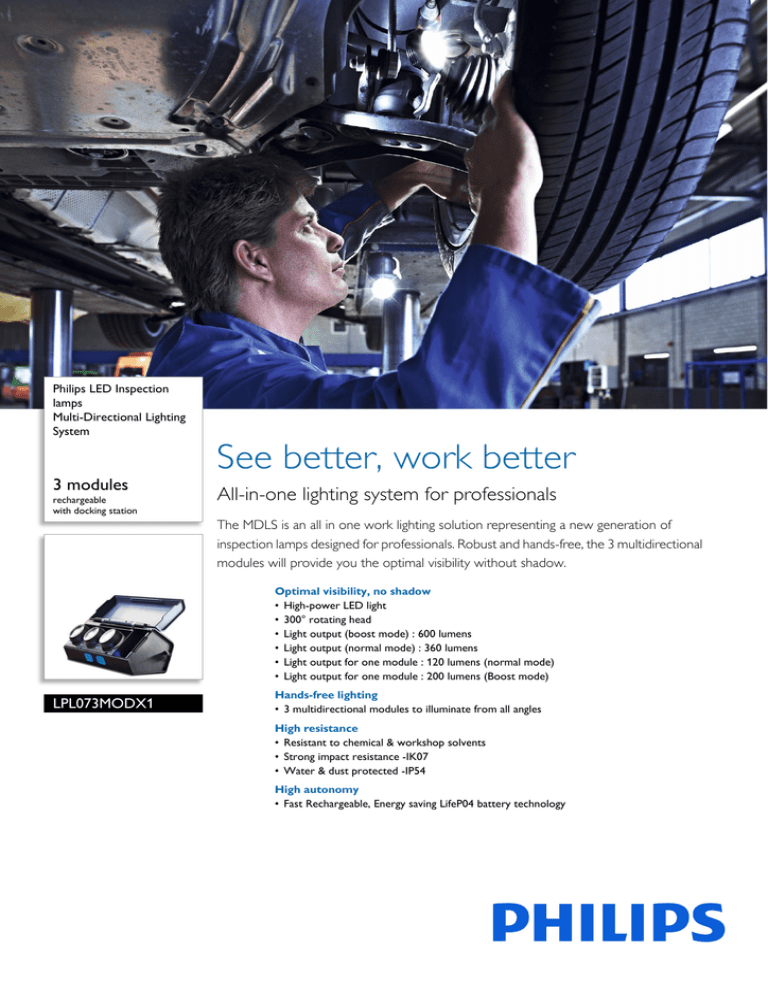

Philips Multi-Directional Lighting System LPL073MODX1

Philips LED Inspection
lamps
Multi-Directional Lighting
System
3 modules
rechargeable
with docking station
See better, work better
All-in-one lighting system for professionals
The MDLS is an all in one work lighting solution representing a new generation of
inspection lamps designed for professionals. Robust and hands-free, the 3 multidirectional
modules will provide you the optimal visibility without shadow.
Optimal visibility, no shadow
• High-power LED light
• 300° rotating head
• Light output (boost mode) : 600 lumens
• Light output (normal mode) : 360 lumens
• Light output for one module : 120 lumens (normal mode)
• Light output for one module : 200 lumens (Boost mode)
LPL073MODX1
Hands-free lighting
• 3 multidirectional modules to illuminate from all angles
High resistance
• Resistant to chemical & workshop solvents
• Strong impact resistance -IK07
• Water & dust protected -IP54
High autonomy
• Fast Rechargeable, Energy saving LifeP04 battery technology
LPL073MODX1
Multi-Directional Lighting System
3 modules rechargeable, with docking station
Highlights
Light output (boost mode)
Light output for one module
The combined light output of the 3 modules in
boost mode amounts to 600 lumens. With 600
lumens light output you can rest assured that
you will not be left in the dark when trying to
spot even the smallest details.
Every module of the MDLS solution will
provide you a light output of 120 lumens in
normal mode. In normal mode the light will last
for 5 hours.
3 multidirectional modules
Light output
The combined light output of the 3 modules in
normal mode amounts to 360 lumens. With
360 lumens light output should provide you
with sufficient light in any environment with
background lighting. If that is not enough you
can easily switch to boost mode with a flick of
the switch.
300° rotating head
The 300° rotating head will enable you to
achieve a shadow-free workspace for optimum
safety and efficiency.
Fast Rechargeable
The 3 multidirectional modules will provide
you full visibility of work space with no shadow
while focusing on specific parts. By placing each
of the 3 different modules in a different angle,
no area will remain unlit. 360 degrees
illumination!
Water & dust protected -IP54
Fast Rechargeable, Energy saving LifeP04
battery technology. Since the modules are fast
charging, whenever one of the modules is
charged and ready for the job, you can take it
out directly.
High-power LED light
Light output for one module
The LED inspection lamp is water resistant,
and conforms to IP54.
Strong impact resistance -IK07
Every module of the MDLS solution will
provide you a light output of 200 lumens in
boost mode. In boost mode the light will last
for 3 hours.
Strong impact resistance -IK07
As the international market leader in car
lighting, we have years of experience and
know-how in light. The Philips LED inspection
lamps are equipped with high power LEDs.
Our LEDs combine strong light performance
with a natural color rendering for fatigue-free
work.
LPL073MODX1
Multi-Directional Lighting System
3 modules rechargeable, with docking station
Specifications
Maximum visibility
• Color temperature: 5500 K
• Light output (Boost mode): 600 lumens
• Light output (Normal mode): 360 lumens
Robust
• Impact protection rating (IK): IK07
• Ingress protection ration (IP): IP54
• Operating temperature: -30° to 50°
Power
• Battery life time: up to 5 hr
Technical specifications
•
•
•
•
•
Operating line voltage: 100-240V
Battery run time: boost mode: 3 hours
Battery run time: normal mode: 5 hours
Charging time: 1 module: 1 hours
Charging time: 3 modules: 2 hours
Outer Carton
•
•
•
•
Number of consumer packagings: 1
Outer carton (L x W x H): 33.1 x 15.7 x 14.8 cm
Gross weight: 2.1 kg
EAN: 87 27900 38770 4
•
Issue date 2014-07-24
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 3.1.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 9237 956 90301
EAN: 87 27900 38770 4
