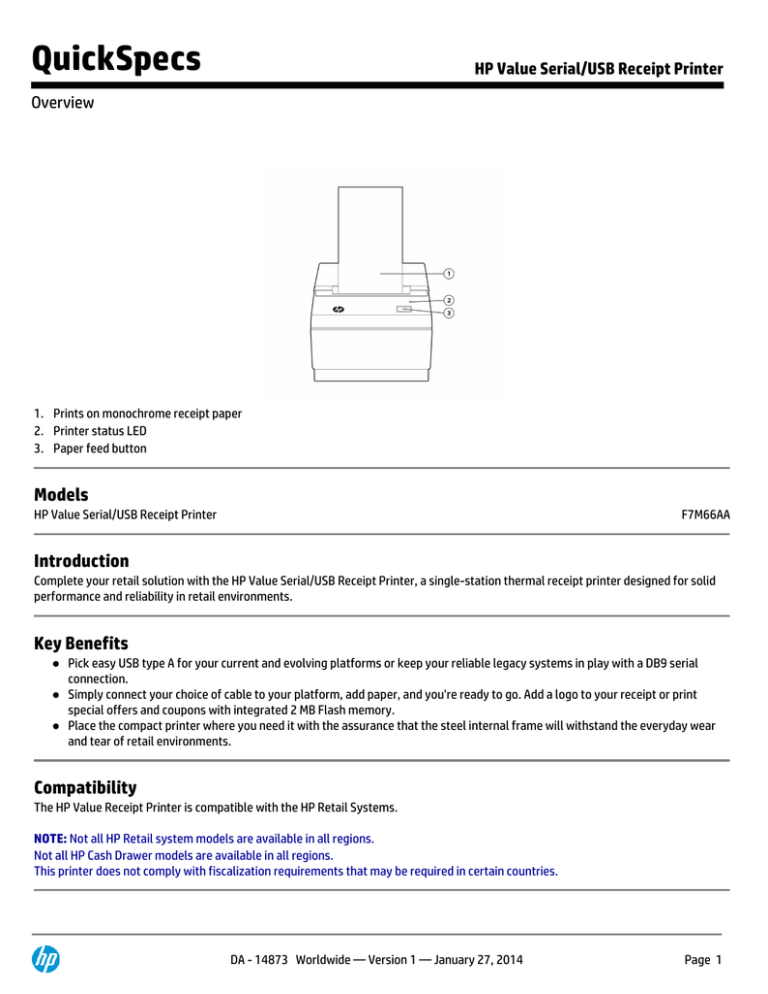

QuickSpecs
HP Value Serial/USB Receipt Printer
Overview
1. Prints on monochrome receipt paper
2. Printer status LED
3. Paper feed button
Models
HP Value Serial/USB Receipt Printer
F7M66AA
Introduction
Complete your retail solution with the HP Value Serial/USB Receipt Printer, a single-station thermal receipt printer designed for solid
performance and reliability in retail environments.
Key Benefits
Pick easy USB type A for your current and evolving platforms or keep your reliable legacy systems in play with a DB9 serial
connection.
Simply connect your choice of cable to your platform, add paper, and you're ready to go. Add a logo to your receipt or print
special offers and coupons with integrated 2 MB Flash memory.
Place the compact printer where you need it with the assurance that the steel internal frame will withstand the everyday wear
and tear of retail environments.
Compatibility
The HP Value Receipt Printer is compatible with the HP Retail Systems.
NOTE: Not all HP Retail system models are available in all regions.
Not all HP Cash Drawer models are available in all regions.
This printer does not comply with fiscalization requirements that may be required in certain countries.
DA - 14873 Worldwide — Version 1 — January 27, 2014
Page 1
QuickSpecs
HP Value Serial/USB Receipt Printer
Overview
Service and Support
Your HP Peripheral Limited Warranty is a three (3) year (HP Option Limited Warranty Period) parts replacement warranty. Additional HP
Care Pack Services options are available to extend warranty coverage.
DA - 14873 Worldwide — Version 1 — January 27, 2014
Page 2
QuickSpecs
HP Value Serial/USB Receipt Printer
Technical Specifications
General
Supported Character Sets Resident Code Pages:
437 (US)
737 (Greek)
850 (Multilingual)
852 (Slavic)
857 (Turkish)
858 (with Eurosymbol)
860 (Portuguese)
862 (Hebrew)
863 (French Canadian)
865 (Nordic)
866 (Cyrillic)
1251 (Cyrillic)
1252 (Windows Latin 1)
1255 (Hebrew)
KZ_1048 (Kazakh)
Print Speed
150mm/Sec
Receipt-Columns
44/56
Paper Roll Size
3.1" x 3.55" (80 mm x 90 mm)
Paper Thickness Range
2.0-3.4 mil
Resolution
203 DPI
Knife
Self-sharpening ceramic rotary
Flash Memory
2 MB
RAM
128 KB
Cash Drawers
Print method
1 connector can drive 2 cash drawers with separately purchased splitter cable
(default configuration is connection to 1 cash drawer)
UPC-A, UPC-E, JAN8(EAN), JAN13 (EAN), Code 39, Code 93, Interleaved 2 of 5,
Codabar, Code 128, EAN 128, GS1 Databar, QR, and PDF-417 two dimensional
codes.
Direct thermal
Paper type
Direct thermal POS Grade(s)
Dimensions (WxDxH)
5.65"x7.27"x5.27"
(144mm x 185mm x 134mm)
3 lbs. 4oz (1.47 kg) (printer only)
6 lbs. (2.72 kg) (approximate w/packaging & accessories)
HP Carbonite
Bar Codes
Mechanical
Weight
Color
Interface/Connection
Interface
Power
External power supply
RS232 (9-Pin Female to 9-Pin Female NULL modem cable) or standard USB 2.0
cable. (Interface cables included)
24 V Cash Drawer support with RJ11 interface
60w
Operating Voltage
24 V
Full load Current
2.3 A w/active power management system
Idle Current
48mA
Idle Power
1.2W
DA - 14873 Worldwide — Version 1 — January 27, 2014
Page 3
QuickSpecs
HP Value Serial/USB Receipt Printer
Technical Specifications
Cable Length
Temperature Range
Operating
AC power cord 6 ft., 1.83m, (most models)
Serial printer cable 9.8 ft. (3m)
USB cable 6 ft., (1.83m)
40° to 125° F (5 to 50° C) at 10% to 90% humidity (non-condensing at ambient)
Non-operating
Drivers
Operating Systems
(Compatible with)
Transit range: 14°F to 122°F (-10°C to 50°C ) 5% to 90% humidity
Storage range: -40°F to 140°F (-40°C to 60°C) 5% to 95% humidity
Windows native, OPOS, JPOS
Windows
Windows 7 Professional 32 and 64-bit
Windows Embedded POSReady 7 32 and 64-bit
Windows Embedded POSReady 2009
Windows XP Professional
Genuine Windows 8/8.1 Professional 32bit & 64bit
Genuine Windows Industry 8/8.1 32 and 64 bit
Linux
Reliability
Option kit contents
Red Hat/CentOS 5 and 6 (32/64 bit)
Suse Linux Enterprise POS 11 (32/64 bit)
Ubuntu 12.04 (32/64 bit)
MCBF Printlines 60 million
MCBF Knife Cuts 2.3 million
Printhead Life 242 km)
HP Value Serial/USB Receipt Printer, Starter paper roll, 24V external power supply, AC power cord, serial
null printer cable, USB cable, HP Point of Sale System Software and Documentation CD
