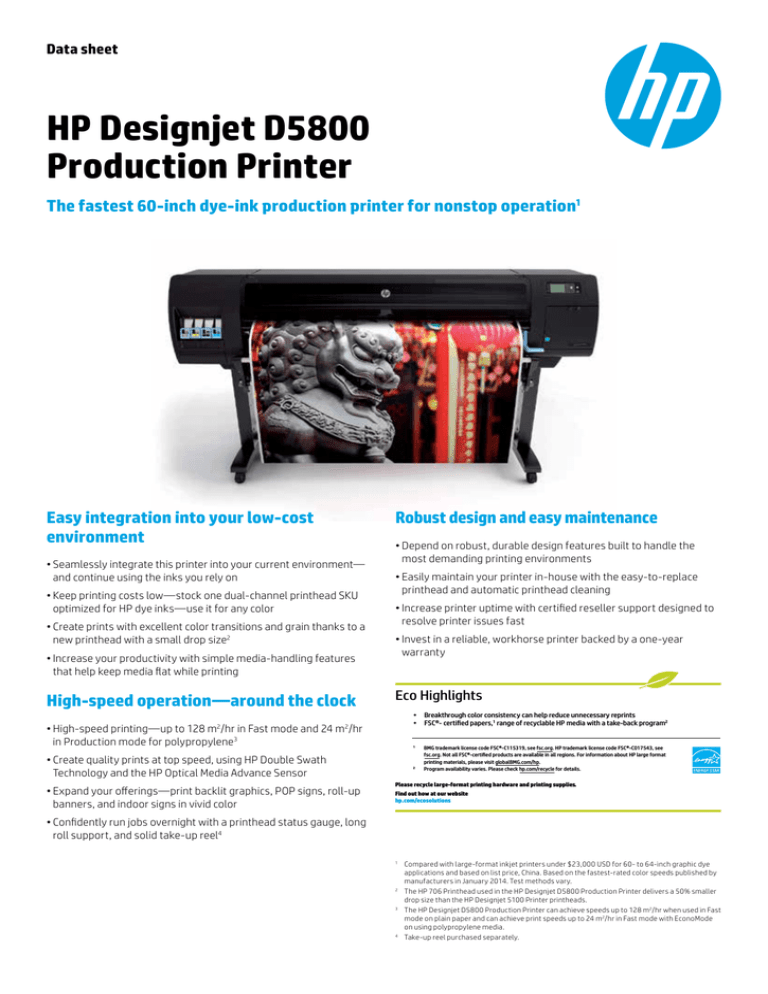

Data sheet
HP Designjet D5800
Production Printer
The fastest 60-inch dye-ink production printer for nonstop operation1
Easy integration into your low-cost
environment
Robust design and easy maintenance
•Seamlessly integrate this printer into your current environment—
and continue using the inks you rely on
•Keep printing costs low—stock one dual-channel printhead SKU
optimized for HP dye inks—use it for any color
•Create prints with excellent color transitions and grain thanks to a
new printhead with a small drop size2
•Increase your productivity with simple media-handling features
that help keep media flat while printing
High-speed operation—around the clock
•Depend on robust, durable design features built to handle the
most demanding printing environments
•Easily maintain your printer in-house with the easy-to-replace
printhead and automatic printhead cleaning
•Increase printer uptime with certified reseller support designed to
resolve printer issues fast
•Invest in a reliable, workhorse printer backed by a one-year
warranty
Eco Highlights
•High-speed printing—up to 128 m /hr in Fast mode and 24 m /hr
in Production mode for polypropylene3
2
2
•Create quality prints at top speed, using HP Double Swath
Technology and the HP Optical Media Advance Sensor
•Expand your offerings—print backlit graphics, POP signs, roll-up
banners, and indoor signs in vivid color
•
•
Breakthrough color consistency can help reduce unnecessary reprints
FSC®- certified papers,1 range of recyclable HP media with a take-back program2
1
BMG trademark license code FSC®-C115319, see fsc.org. HP trademark license code FSC®-C017543, see
fsc.org. Not all FSC®-certified products are available in all regions. For information about HP large format
printing materials, please visit globalBMG.com/hp.
Program availability varies. Please check hp.com/recycle for details.
2
Please recycle large-format printing hardware and printing supplies.
Find out how at our website
hp.com/ecosolutions
•Confidently run jobs overnight with a printhead status gauge, long
roll support, and solid take-up reel4
Compared with large-format inkjet printers under $23,000 USD for 60- to 64-inch graphic dye
applications and based on list price, China. Based on the fastest-rated color speeds published by
manufacturers in January 2014. Test methods vary.
2
The HP 706 Printhead used in the HP Designjet D5800 Production Printer delivers a 50% smaller
drop size than the HP Designjet 5100 Printer printheads.
3
The HP Designjet D5800 Production Printer can achieve speeds up to 128 m2/hr when used in Fast
mode on plain paper and can achieve print speeds up to 24 m2/hr in Fast mode with EconoMode
on using polypropylene media.
4
Take-up reel purchased separately.
1
Data sheet | HP Designjet D5800 Production Printer
Technical specifications
Ordering information
Print
Max print speed5
128 m²/hr (1378 ft²/hr) on plain media
Product
F2L45A
HP Designjet D5800 60-in Production Printer
Color images6
Best: 3.53 min/page on A1/D or up to 12.4 m²/hr (133 ft²/hr) on glossy media
Normal: 2.51 min/page on A1/D or up to 18.17 m²/hr (195 ft²/hr) on glossy media
Accessories
CQ745B
HP Designjet PostScript/PDF Upgrade Kit
CQ754A
HP Designjet 60-in Spindle
J8025A
HP Jetdirect 640n Print Server
Q6715A
HP Designjet User Maintenance Kit
Print resolution
Up to 2400 x 1200 optimized dpi
Margins
5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
Ink types
Dye-based
Ink cartridges
Cyan, magenta, yellow, black
Line accuracy
+/- 0.1%7
Take-up Reel
Media Edge Clips
Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
quality
Media
Color accuracy
Median < 1.6 dE2000, 95% of colors < 3.75 dE2000
Short-term color
stability
< 1 dE2000 in less than 5 minutes
Long-term
print-to-print
repeatability
Average < 0.5 dE2000, 95% of colors < 1.25 dE2000
Maximum optical
density
6 L* min/2.15 D
Handling
Media types
9
Original HP
printheads
HP 81 680-ml Black Ink Cartridge
HP 81 680-ml Cyan Ink Cartridge
HP 81 680-ml Magenta Ink Cartridge
C4933A
HP 81 680-ml Yellow Ink Cartridge
C5066A
HP 81 680-ml Black 3-ink Multipack
C5067A
HP 81 680-ml Cyan 3-ink Multipack
Roll feed, automatic cutter
C5068A
HP 81 680-ml Magenta 3-ink Multipack
Coated paper, technical paper, photographic paper, backlit, self-adhesive,
banner and sign
C5069A
HP 81 680 ml Yellow 3-ink Multipack
COF22A
HP Everyday Adhesive Matte Polypropylene, 2 Pack
1524 mm x 22.9 m (60 in x 75 ft)
CH027A
HP Everyday Matte Polypropylene, 2 Pack
1524 mm x 30.5 m (60 in x 100 ft)
Q6578A
HP Universal Instant-dry Gloss Photo Paper (FSC® certified)13
1524 mm x 30.5 m (60 in x 100 ft)
Q6583A
HP Universal Instant-dry Satin Photo Paper (FSC® certified)13
1524 mm x 30.5 m (60 in x 100 ft)
Q1428B
HP Universal Gloss Photo Paper
1067 mm x 30.5 m (42 in x 100 ft)
Q1422B
HP Universal Satin Photo Paper
1067 mm x 30.5 m (42 in x 100 ft)
Q8750A
HP Premium Vivid Color Backlit Film
1524 mm x 30.5 m (60 in x 100 ft)
C6568B
HP Coated Paper (PEFC TM certified)13
1372 mm x 45.7 m (54 in x 150 ft)
Q1398A
HP Universal Bond Paper (FSC® certified)13
1067 mm x 45.7 m (42 in x 150 ft)
C6977C
HP Heavyweight Coated Paper (PEFC TM certified)13
1524 mm x 30.5 m (60 in x 100 ft)
10
Size
279 to 1524-mm (11 to 60-in) rolls
Thickness
Up to 0.56 mm (22 mil)
64 GB (virtual)11, 320 GB hard disk
Connectivity
Interfaces
(standard)
Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
Print languages
(standard)
HP-GL/2, HP-RTL, CALS G4
Print languages
(optional)
Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
Printing paths
Printer driver, HP Embedded Web Server
Drivers (included)
HP-GL/2, HP-RTL drivers for Windows; PostScript Windows and Mac
drivers with optional PostScript/PDF Upgrade Kit
Dimensions Printer
(w x d x h)
Shipping
2430 x 690 x 1370 mm (95.7 x 27.2 x 53.9 in)
Weight
Printer
180 kg (397 lb)
Shipping
213 kg (470 lb)
Original HP
large format
printing
materials
2700 x 750 x 1200 mm (106.3 x 29.5 x 47.2 in)
What’s in
the box
HP Designjet D5800 Production Printer, spindle, printheads, maintenance cartridge, printer
stand, 3-in spindle adapter kit, quick reference guide, setup poster, startup software, power
cord
Environmental
ranges
Operating
temperature
5 to 40°C (41 to 104°F)
Storage
temperature
-20 to 55°C (-4 to 131°F)
12
14
14
12
15
15
15
Service and support
H4518E
HP Installation Service with Network Setup
U1XV5E
HP 2 year Next Business Day Onsite Support with DMR16
U1XV6E
HP 3 year Next Business Day Onsite Support with DMR16
U1XV7E
HP 5 year Next Business Day Onsite Support with DMR16
Operating humidity 20 to 80% RH
U1ZM3PE
HP 1 year Post Warranty, Next Business Day Onsite Support with DMR16
Sound pressure
U1ZM2PE
HP 2 year Post Warranty, Next Business Day Onsite Support with DMR16
U1XV4E
HP Preventive Maintenance Service
53 dB(A) (printing); 39 dB(A) (ready); 39 dB(A) (sleep)
Sound power
7.0 B(A) (printing); 5.5 B(A) (ready); 5.5 B(A) (sleep)
Consumption
270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); < 0.3 watts
(off)
Requirements
Input voltage (auto ranging): 100 to 127 VAC (+/- 10%), 5 A; 220 to 240
VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)
Certification Safety
Warranty
HP 771 Designjet Maintenance Cartridge
C4932A
Memory
Power
HP 706 Designjet Printhead
CH644A
Original HP ink C4930A
cartridges
C4931A
Applications Posters, POP/POS, Banners, Mockups, Photos, Light boxes – film, Proofs, Displays
Acoustic
F9J49A
USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant),
Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico
(NYCE), Korea (KC)
Electromagnetic
Compliant with Class A requirements, including: USA (FCC rules), Canada
(ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China
(CCC), Japan (VCCI), Korea (MSIP), Korea (MSIP)
Environmental
ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH
One-year limited hardware warranty
For more information, please visit
hp.com/go/DesignjetD5800
For the entire HP Large Format Printing Materials portfolio, please see globalBMG.com/hp.
Mechanical printing time. Printed in Fast mode with Economode on with Original HP inks.
Mechanical printing time. Printed with Original HP inks.
7
+/- 0.1% of the specified vector length or +/- 0.2 mm (whichever greater) at 23°C (73°F), 50-60%
relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks.
8
ICC absolute colorimetric accuracy on HP Premium Instant Dry gloss photo paper with Original HP
inks.
9
With HP Premium Instant-dry Gloss Photo Paper with Original HP inks, right after calibration.
10
With HP Premium Instant-dry Gloss Photo Paper with Original HP inks.
11
Based on 1 GB RAM. Expandable to 1.5 GB RAM through an HP Designjet qualified SODIMM
included only in the optional HP Designjet PostScript/PDF Upgrade Kit accessory.
12
HP Large Format Media take-back program availability varies. Recycling programs may not exist
in your area. See globalBMG.com/hp/ecosolutions for details.
13
BMG trademark license code FSC®-C115319, see fsc.org. HP trademark license code
FSC®-C017543, see fsc.org. BMG trademark license code PEFC™/29-31-261, see pefc.org. HP
trademark license code PEFC™/29- 31-198, see pefc.org. Not all FSC®- or PEFC™-certified
products are available in all regions.
14
In Asia (including Japan), recyclable in consumer collection systems that can accept mixed paper
(may not be recyclable in your area).
15
Can be recycled through commonly available recycling programs.
16
Defective Media Retention keeps your sensitive data safe. To comply with security regulations
you can keep the defective hard-drive or data-retentive memory component while getting a new
replacement disk or memory.
5
6
© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Adobe, PostScript, and Adobe PostScript 3 are trademarks of Adobe Systems Incorporated. ENERGY STAR and the ENERGY STAR mark are registered
U.S. marks. Windows is a U.S. registered trademark of Microsoft Corporation. Mac and the Mac logo are trademarks of Apple Computer, Inc.,
registered in the U.S. and other countries.
4AA5-2188EEAP, April 2014
