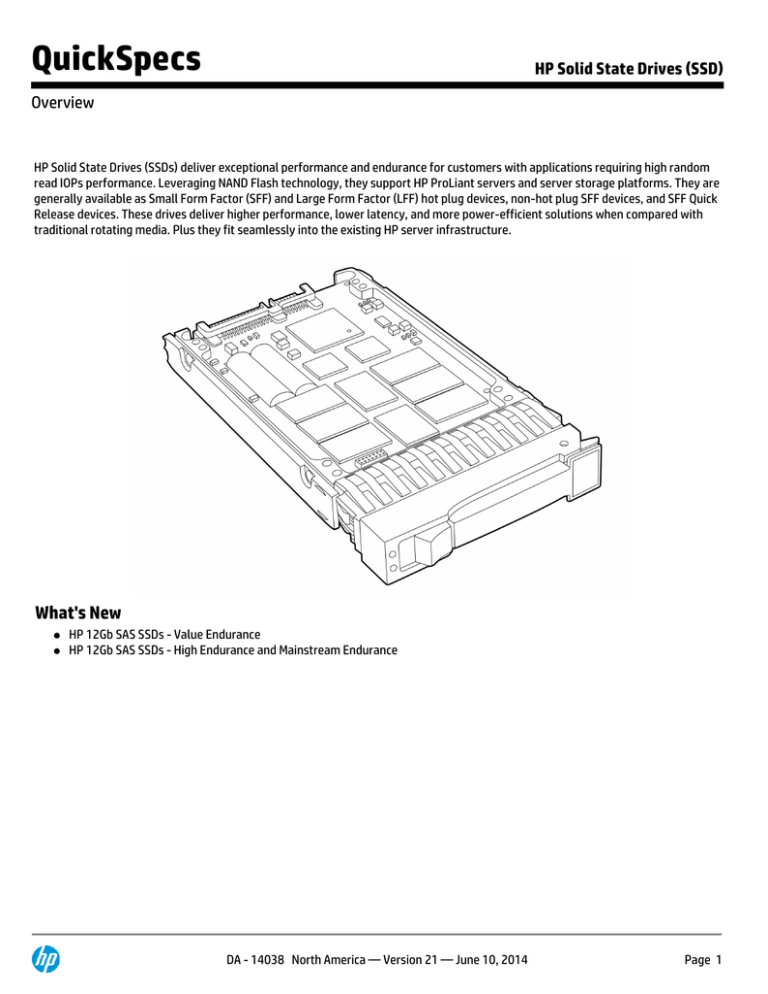

QuickSpecs
HP Solid State Drives (SSD)
Overview
HP Solid State Drives (SSDs) deliver exceptional performance and endurance for customers with applications requiring high random
read IOPs performance. Leveraging NAND Flash technology, they support HP ProLiant servers and server storage platforms. They are
generally available as Small Form Factor (SFF) and Large Form Factor (LFF) hot plug devices, non-hot plug SFF devices, and SFF Quick
Release devices. These drives deliver higher performance, lower latency, and more power-efficient solutions when compared with
traditional rotating media. Plus they fit seamlessly into the existing HP server infrastructure.
What's New
HP 12Gb SAS SSDs - Value Endurance
HP 12Gb SAS SSDs - High Endurance and Mainstream Endurance
DA - 14038 North America — Version 21 — June 10, 2014
Page 1
QuickSpecs
HP Solid State Drives (SSD)
Models
Models
HP Solid State Drives (SSD)
HP SSD SAS Drives
12G SAS Value Endurance Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 800GB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
12G SAS Value Endurance Hot Plug LFF (3.5-inch) Enterprise Performance Solid State Drives
HP 800GB 12G SAS Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 1.6TB 12G SAS Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
12G SAS High Endurance Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 800GB 12G SAS High Endurance SFF 2.5-in SC Enterprise Performance 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 800GB 12G SAS High Endurance SFF 2.5-in Enterprise Performance 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 400GB 12G SAS High Endurance SFF 2.5-in SC Enterprise Performance 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 400GB 12G SAS High Endurance SFF 2.5-in Enterprise Performance 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 200GB 12G SAS High Endurance SFF 2.5-in SC Enterprise Performance 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 200GB 12G SAS High Endurance SFF 2.5-in Enterprise Performance 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
12G SAS Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 12G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 800GB 12G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 400GB 12G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 400GB 12G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 200GB 12G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 200GB 12G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP SSD SATA Drives
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 120GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
DA - 14038 North America — Version 21 — June 10, 2014
762261-B21
762263-B21
762270-B21
762272-B21
741159-B21
741157-B21
741155-B21
741153-B21
741151-B21
741148-B21
741146-B21
741144-B21
741142-B21
741140-B21
741138-B21
741136-B21
717965-B21
728726-B21
Page 2
QuickSpecs
HP Solid State Drives (SSD)
Models
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 80GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 120GB 6G SATA Value Endurance LFF 3.5-in Enterprise Boot 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 80GB 6G SATA Value Endurance LFF 3.5-in Enterprise Boot 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives
HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 800GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 480GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 600GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 300GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drives supports Gen8 servers and beyond only.
HP 240GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives
HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 800GB 6G SATA Value Endurance LFF 3.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 600GB 6G SATA Value Endurance LFF 3.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
DA - 14038 North America — Version 21 — June 10, 2014
734360-B21
734366-B21
718171-B21
728732-B21
734362-B21
734368-B21
717973-B21
728743-B21
717971-B21
728739-B21
739898-B21
739888-B21
739904-B21
739894-B21
717969-B21
728735-B21
718189-B21
728745-B21
739900-B21
739906-B21
718183-B21
Page 3
QuickSpecs
HP Solid State Drives (SSD)
Models
HP 480GB 6G SATA Value Endurance LFF 3.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 300GB 6G SATA Value Endurance LFF 3.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers and beyond only.
HP 240GB 6G SATA Value Endurance LFF 3.5-in Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive supports G7 servers only.
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
NOTE: These drives support Gen8 servers and beyond only.
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
6G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives
NOTE: These drives support Gen8 servers and beyond only.
HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
NOTE: These drives support G6 and G7 servers only.
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty Solid State Drive
HP SSD SAS Drives
6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers only.
HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Warranty Solid State Drive
NOTE: This drive supports G6 and G7 servers only.
HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers only.
HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid State Drive
NOTE: This drive supports G6 and G7 servers only.
HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
NOTE: This drive supports Gen8 servers only.
HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Warranty Solid State Drive
NOTE: This drive supports G6 and G7 servers only.
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive
NOTE: This drive supports Gen8 servers only.
DA - 14038 North America — Version 21 — June 10, 2014
728741-B21
739890-B21
739896-B21
718177-B21
728737-B21
691868-B21
691866-B21
691864-B21
691862-B21
691860-B21
691856-B21
691854-B21
691852-B21
730065-B21
730063-B21
730061-B21
730059-B21
690829-B21
690823-B21
690827-B21
690821-B21
690825-B21
690819-B21
653082-B21
Page 4
QuickSpecs
HP Solid State Drives (SSD)
Models
HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive
NOTE: This drive supports G6 and G7 servers only.
HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive
NOTE: This drive supports Gen8 servers only.
HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive
NOTE: This drive supports G6 and G7 servers only.
HP SSD SATA Quick Release Drives
6G SATA Value Endurance Quick Release SFF (2.5-inch) Enterprise Boot Solid State Drives
NOTE: These drives are supported by the SL230s Gen8 and SL250s Gen8 only.
HP 120GB 6G SATA Value Endurance SFF 2.5-in Quick-release Enterprise Boot 3yr Wty Solid State Drive
HP 80GB 6G SATA Value Endurance SFF 2.5-in Quick-release Enterprise Boot 3yr Wty Solid State Drive
6G SATA Value Endurance Quick Release SFF (2.5-inch) Enterprise Value Solid State Drives
NOTE: These drives are supported by the SL230s Gen8 and SL250s Gen8 only.
HP 800GB 6G SATA Value Endurance SFF 2.5-in Quick-release Enterprise Value 3y Wty Solid State Drive
HP 600GB 6G SATA Value Endurance SFF 2.5-in Quick-release Enterprise Value 3yr Wty Solid State Drive
HP 480GB 6G SATA Value Endurance SFF 2.5-in Quick-release Enterprise Value 3yr Wty Solid State Drive
HP 300GB 6G SATA Value Endurance SFF 2.5-in Quick-release Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive also supports the Moonshot System.
HP 240GB 6G SATA Value Endurance SFF 2.5-in Quick-release Enterprise Value 3yr Wty Solid State Drive
NOTE: This drive also supports the Moonshot System.
6G SATA ME Quick Release SFF (2.5-inch) Enterprise Mainstream Solid State Drives
NOTE: These drives are supported by the SL230s Gen8 and SL250s Gen8 only.
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in QR Enterprise Mainstream 3yr Wty Solid State Drive
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in QR Enterprise Mainstream 3yr Wty Solid State Drive
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in QR Enterprise Mainstream 3yr Wty Solid State Drive
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in QR Enterprise Mainstream 3yr Wty Solid State Drive
3G SATA MLC Quick Release SFF (2.5-inch) Enterprise Mainstream Solid State Drives
NOTE: These drives support G6, G7, and Gen8 servers only.
HP 400GB 3G SATA MLC SFF (2.5-inch) Quick-release Enterprise Mainstream 3yr Wty Solid State Drive
DA - 14038 North America — Version 21 — June 10, 2014
632494-B21
653078-B21
632492-B21
718174-B21
734364-B21
718192-B21
739902-B21
718186-B21
739892-B21
718180-B21
730057-B21
730055-B21
730053-B21
730051-B21
636625-B21
Page 5
QuickSpecs
HP Solid State Drives (SSD)
Standard Features
What is SSD?
An enduring data storage device using semiconductor technology to store and access data which is nonvolatile without the aid of an auxiliary power source.
SSD Quality
Today's distributed enterprise is seeing larger, more complex applications, an increase of mission-critical
data moving to the server, increasing demand for transaction processing and critical server consolidation.
In this environment, storage has become a critical component of the information system, significantly
defining both the systems reliability and performance. This is why HP drives undergo an intense
qualification process that eliminates firmware and O/S incompatibilities. All drive firmware is specific to
our drives and is designed to maximize both functionality and compatibility. All of our drives are proven to
be reliable and tuned for optimum performance in the HP equipment for which they were designed.
Integration
Many issues customers have with third party drives are "simple" integration issues. When buying from
another supplier, there is no guarantee that a drive has been correctly set for proper operation with
ProLiant servers and storage systems. These incompatibilities can create problems in configuration, can
rob your system of performance, or at their worst, can cause you to lose data. HP drives are specifically
designed and tested for flawless operation in your HP equipment. The integration of solid state drives in
HP systems means that associated components are right for your ProLiant server.
Support Matrix
Please see the following URL for the latest list of supported servers and enclosures:
http://h18004.www1.hp.com/products/servers/proliantstorage/drives-enclosures/docs/index.html
NOTE: Non-hot plug devices are 15mm Z-height which restricts them to those servers that can accept a
15mm device
Maximum Usage
Limitations
NAND Flash devices use semiconductor technology that has a finite number of data that can be written to
the device, defined as the Maximum Usage Limit, commonly called write endurance.
Write Endurance - Write endurance is measured while running 100% random 4KiB writes across the entire
SSD
Drive Writes Per Day - Workload environment is based on 100% random 4KiB writes for five (5) years
Drive
Write endurance specifications for 6G SATA Value Endurance (VE) SSDs
Lifetime Writes
Drive Writes Per Day for Five (5)
Years (using JESD219 workload)
VE Enterprise Boot 80GB
40TB
0.3
VE Enterprise Boot
120GB
75TB
0.3
VE Enterprise Value
240GB
145TB
0.3
VE Enterprise Value
480GB
290TB
0.3
VE Enterprise Value
800GB
490TB
0.3
DA - 14038 North America — Version 21 — June 10, 2014
Page 6
QuickSpecs
HP Solid State Drives (SSD)
Standard Features
Drive
Write endurance specifications for 12G SAS Value Endurance (VE) SSDs
Lifetime Writes
Drive Writes Per Day for Five (5)
Years (using JESD219 workload)
12G SAS VE Enterprise
Value 800GB
1800TB
1
12G SAS VE Enterprise
Value 1600GB
3700TB
1
Drive
Write endurance specifications for 12G SAS High Endurance (HE) SSDs
Lifetime Writes
Drive Writes Per Day for Five (5)
Years (using JESD219 workload)
12G SAS HE Enterprise
Performance 200GB
9.3PB
25
12G SAS HE Enterprise
Performance 400GB
19.1PB
25
12G SAS HE Enterprise
Performance 800GB
38.3PB
25
Drive
Write endurance specifications for 12G SAS Mainstream Endurance (ME)
SSDs
Lifetime Writes
Drive Writes Per Day for Five (5)
Years (using JESD219 workload)
12G SAS ME Enterprise
Mainstream 200GB
4.1PB
10
12G SAS ME Enterprise
Mainstream 400GB
8.6PB
10
12G SAS ME Enterprise
Mainstream 800GB
15.6PB
10
Drive
Write endurance specifications for 6G SATA Mainstream Endurance (ME)
SSDs
Lifetime Writes
Drive Writes Per Day for Five (5)
Years (using JESD219 workload)
ME Enterprise
Mainstream 100GB
1.8PB
10
ME Enterprise
Mainstream 200GB
3.6PB
10
ME Enterprise
Mainstream 400GB
7.2PB
10
ME Enterprise
Mainstream 800GB
14.6PB
10
Drive
Write endurance specifications for 6G SAS SSD Devices
ME Enterprise
Mainstream 200GB
Lifetime Writes
Drive Writes Per Day for Five (5)
Years
Up to 1.5PB
4.4
DA - 14038 North America — Version 21 — June 10, 2014
Page 7
QuickSpecs
HP Solid State Drives (SSD)
Standard Features
ME Enterprise
Mainstream 400GB
Up to 3.3PB
4.4
ME Enterprise
Mainstream 800GB
Up to 6.5PB
4.4
200GB MLC
Up to 550TB
1.5
400GB MLC
Up to 1PB
1.5
800GB MLC
Up to 2PB
1.5
200GB SLC
Up to 4.5PB
14
400GB SLC
Up to 8.9PB
14
Drive
Write endurance specifications for 3G SATA SSD Devices
Lifetime Writes
Drive Writes Per Day for Five (5)
Years
100GB MLC
Up to 981TB
5.5
200GB MLC
Up to 1.9PB
5.5
400GB MLC
Up to 3.9PB
5.5
HP Solid State Drives are equipped with tools that can report the amount of lifetime remaining. Introducing
HP SMARTSSD Wear Gauge™. In order to take advantage of SMARTSSD Wear Gauge™, Smart Array
Firmware version 5.0 or greater is required and HP Array Configuration Utility (ACU) or HP Diagnostic Utility
(ADU) must be running.
SNMP Storage Agents for both Microsoft® Windows® and Linux provide status and condition updates
through traps, OS event logs and the HP System Management Homepage
(http://h18013.www1.hp.com/products/servers/management/agents/index.html).
The HP SMARTSSD Wear Gauge™ requires a controller listed below (for pre-Gen8 servers) or a Gen8 Smart
Array controller for HP ProLiant Gen8 servers.
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P411 Controller
HP Smart Array P711m Controller
HP Smart Array P712m Controller
HP Smart Array P812 Controller
NOTE: Subject to maximum usage/maximum supported lifetime limitations. Maximum Supported Lifetime
is the period in years set to equal the warranty for the device. Maximum usage limit is the maximum
amount of data that can be written to the device before reaching the device's write endurance limit.
HP Direct Connect to the HP Smart Array B110i SATA RAID Controller is not supported in this tool.
Data Retention
Data Retention is the period of time for retaining the data in the NAND once the maximum rated endurance
level has occurred. These SSD's are rated for 3 months if no power is applied once the SSD has reached
maximum rated write endurance.
DA - 14038 North America — Version 21 — June 10, 2014
Page 8
QuickSpecs
HP Solid State Drives (SSD)
Standard Features
Warranty
3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit:
This is the maximum amount of data that can be written to the drive. Drives that have reached this limit
will not be eligible for warranty coverage.
DA - 14038 North America — Version 21 — June 10, 2014
Page 9
QuickSpecs
HP Solid State Drives (SSD)
Service and Support
Service and Support
HP Technology Services for ProLiant Servers
Capitalizing on HP ProLiant server capabilities requires a service partner who understands your
increasingly complex business technology environment. That's why it makes sense to team up with the
people who know HP infrastructure hardware and software best - the experienced professionals at HP
Services.
Protect your business beyond warranty with HP Care Pack Services
HP Care Pack services offer complete care and support expertise with committed response choices
designed to meet your IT and business needs.
HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. HP Proactive Care delivers high levels of system availability through proactive service management
and advanced technical response.
Recommended HP Care Pack Services for your HP product
Optimized Care
3-Year HP 6 hour Call to Repair Response, Proactive Care
Combined reactive and proactive support for hardware and software helping optimize your systems and
delivering high levels of availability through proactive service management and advanced technical
response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the
initial service request. A Technical Account Manager, as your single point of contact, will own your call or
issue end to end until resolved.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf
HP Installation of ProLiant Add On Options Service
This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware or software
is installed smoothly, efficiently, and with minimal disruption of your IT and business.
Standard Care
3-Year HP 24x7 4 hour response, Proactive Care Service
This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf
HP Installation of ProLiant Add On Options Service
This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware or software
is installed smoothly, efficiently, and with minimal disruption of your IT and business.
DA - 14038 North America — Version 21 — June 10, 2014
Page 10
QuickSpecs
HP Solid State Drives (SSD)
Service and Support
Related Services
Proactive Care Personalized Support - Environmental Option
The Personalized Support option provides an assigned Account Support Manager who can bring best
practices from across the industry plus extra technical skills to your IT team. This option is only available
as an add-on to HP Proactive Care Support.
HP Proactive Select Service
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf
NOTE: Additional HP Care Pack services can be found at: http://hp.com/go/cpc
Insight Remote
Support/Insight Online
HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem
resolution. This comes at no additional cost with your HP solution. Learn more about Insight Remote
Support http://www.hp.com/go/insightremotesupport and Insight Online
http://h18013.www1.hp.com/products/servers/management/insight-online/index.html
NOTE: Insight Remote Support is a prerequisite for HP Proactive Care.
HP Support Center
Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate with
peers. Learn more http://www.hp.com/go/hpsc
HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty,
HP Care Pack or HP contractual support agreement.
NOTE: HP Support Center Mobile App above is subject to local availability.
Parts and materials
HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.
DA - 14038 North America — Version 21 — June 10, 2014
Page 11
QuickSpecs
HP Solid State Drives (SSD)
Service and Support
Warranty / Service
Coverage
For ProLiant servers and storage systems, the service on the main product covers HP-branded hardware
options not designated by HP as requiring separate coverage, that are qualified for the server, purchased
at the same time or afterward and internal to the enclosure. These items will be covered at the same
service level and for the same coverage period as the server unless the maximum supported lifetime
and/or the maximum usage limitation has been reached.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction. It does not apply Disk or SSD/Flash Drives that have not failed.
SSD/Flash Drives that are specified by HP as consumable parts and/or that have reached maximum
supported lifetime and/or the maximum usage limits as set forth in the manufacturer's operating manual,
the product QuickSpecs, or the technical data sheet are not eligible for the defective media retention
service feature option.
Subject to: Maximum supported lifetime: This is a period in years set to equal the warranty for the specific
drive. After this period no further service coverage will be available for the drive. Maximum usage limit:
This is the maximum amount of data that can be written to the drive. Drives that have reached this limit
will not be eligible for services coverage.
For more information
To learn more on services for HP ESSN Options, please contact your HP sales representative or HP
Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant or
www.hp.com/services/bladesystem
DA - 14038 North America — Version 21 — June 10, 2014
Page 12
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP Solid State Drives
Application Information
Solid State Drives offer high performance, low latency, low power solutions that fit seamlessly into the HP
server infrastructure using HP's universal hot plug drive carrier
NOTE: Any drive with SC in the product description is for Gen8 hot plug server bays servers only. They
cannot be used in any other server generation.
HP SSD SAS Drives
12G SAS Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16. Sequential Performance is based on maximum device
throughput.
HP 1.6TB 12G SAS Value
762263-B21
Capacity
1600GB
Endurance SFF 2.5-in SC
Height
15mm
Enterprise Value 3yr Wty
Length x Width
Standard SFF
Solid State Drive
Interface
SAS
HP 800GB 12G SAS Value
Endurance SFF 2.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
762261-B21
Transfer Rate
Synchronous (Maximum)
12Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
96,000 IOP/s
25,000 IOP/s
1,000 MiB/s
385 MiB/s
512 bytes
N/A
91,000 IOP/s
28,000 IOP/s
1,000 MiB/s
390 MiB/s
512 bytes
Page 13
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
12G SAS Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16. Sequential Performance is based on maximum device
throughput.
HP 1.6TB 12G SAS Value
762272-B21
Capacity
1600GB
Endurance LFF 3.5-in SC
Height
15mm
Converter Enterprise
Length x Width
Standard SFF
Value 3yr Wty Solid State
Interface
SAS
Drive
Transfer Rate
12Gbps
Synchronous (Maximum)
Performance
HP 800GB 12G SAS Value
Endurance LFF 3.5-in SC
Converter Enterprise
Value 3yr Wty Solid State
Drive
762270-B21
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
N/A
96,000 IOP/s
25,000 IOP/s
1,000 MiB/s
385 MiB/s
512 bytes
N/A
91,000 IOP/s
28,000 IOP/s
1,000 MiB/s
390 MiB/s
512 bytes
12G SAS High Endurance Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.
HP 800GB 12G SAS High
Endurance SFF 2.5-in SC
Enterprise Performance
741159-B21
Capacity
800GB
Height
15mm
DA - 14038 North America — Version 21 — June 10, 2014
Page 14
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
Enterprise Performance
3yr Wty Solid State Drive
HP 800GB 12G SAS High
Endurance SFF 2.5-in
Enterprise Performance
3yr Wty Solid State Drive
741157-B21
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
87,000 IOP/s
73,000 IOP/s
1,000 MiB/s
560 MiB/s
512 bytes
N/A
87,000 IOP/s
73,000 IOP/s
1,000 MiB/s
560 MiB/s
512 bytes
Page 15
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 400GB 12G SAS High
Endurance SFF 2.5-in SC
Enterprise Performance
3yr Wty Solid State Drive
HP 400GB 12G SAS High
Endurance SFF 2.5-in
Enterprise Performance
3yr Wty Solid State Drive
741155-B21
741153-B21
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
N/A
86,000 IOP/s
73,000 IOP/s
960 MiB/s
Physical Configuration
Sequential Writes
Logical Blocks
585 MiB/s
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
86,000 IOP/s
73,000 IOP/s
960 MiB/s
585 MiB/s
512 bytes
Page 16
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 200GB 12G SAS High
Endurance SFF 2.5-in SC
Enterprise Performance
3yr Wty Solid State Drive
HP 200GB 12G SAS High
Endurance SFF 2.5-in
Enterprise Performance
3yr Wty Solid State Drive
741151-B21
741148-B21
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
N/A
84,000 IOP/s
66,000 IOP/s
960 MiB/s
Physical Configuration
Sequential Writes
Logical Blocks
520 MiB/s
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
84,000 IOP/s
66,000 IOP/s
960 MiB/s
520 MiB/s
512 bytes
Page 17
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
12G SAS Mainstream Endurance Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State
Drives
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.
HP 800GB 12G SAS
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 800GB 12G SAS
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Wty Solid
State Drive
741146-B21
741144-B21
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
87,000 IOP/s
58,000 IOP/s
1,000 MiB/s
570 MiB/s
512 bytes
N/A
87,000 IOP/s
58,000 IOP/s
1,000 MiB/s
570 MiB/s
512 bytes
Page 18
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 400GB 12G SAS
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 400GB 12G SAS
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Wty Solid
State Drive
741142-B21
741140-B21
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
N/A
86,000 IOP/s
58,000 IOP/s
1,000 MiB/s
Physical Configuration
Sequential Writes
Logical Blocks
625 MiB/s
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
86,000 IOP/s
58,000 IOP/s
1,000 MiB/s
625 MiB/s
512 bytes
Page 19
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 200GB 12G SAS
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 200GB 12G SAS
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Wty Solid
State Drive
741138-B21
741136-B21
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
N/A
84,000 IOP/s
42,000 IOP/s
1,000 MiB/s
Physical Configuration
Sequential Writes
Logical Blocks
450 MiB/s
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
12Gbs
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
84,000 IOP/s
42,000 IOP/s
1,000 MiB/s
450 MiB/s
512 bytes
Page 20
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP SSD SATA Drives
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives
NOTE: The 80GB and 120GB Enterprise Boot SSDs with Endurance Manager enabled are targeted for Boot/Swap applications and may
have performance throttled due to write workloads. Write performance shown for 80GB and 120GB Enterprise Boot SSDs is based on
no endurance throttling.
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.
HP 120GB 6G SATA Value
Endurance SFF 2.5-in SC
Enterprise Boot 3yr Wty
Solid State Drive
HP 120GB 6G SATA Value
Endurance SFF 2.5-in
Enterprise Boot 3yr Wty
Solid State Drive
717965-B21
728726-B21
Capacity
120GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
120GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
N/A
64,000 IOP/s
4,700 IOP/s
410 MiB/s
Sequential Writes
130 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
64,000 IOP/s
4,700 IOP/s
410 MiB/s
130 MiB/s
512 bytes
Page 21
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 80GB 6G SATA Value
Endurance SFF 2.5-in SC
Enterprise Boot 3yr Wty
Solid State Drive
HP 80GB 6G SATA Value
Endurance SFF 2.5-in
Enterprise Boot 3yr Wty
Solid State Drive
734360-B21
734366-B21
Capacity
80GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
N/A
59,000 IOP/s
7,700 IOPS
335MiB/s
Sequential Writes
100 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
80GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
N/A
59,000 IOP/s
7,700 IOPS
335MiB/s
100 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
Page 22
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives
NOTE: The 80GB and 120GB Enterprise Boot SSDs with Endurance Manager enabled are targeted for Boot/Swap applications and may
have performance throttled due to write workloads. Write performance shown for 80GB and 120GB Enterprise Boot SSDs is based on
no endurance throttling.
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.
HP 120GB 6G SATA Value
Endurance LFF 3.5-in SC
Enterprise Boot 3yr Wty
Solid State Drive
HP 120GB 6G SATA Value
Endurance LFF 3.5-in
Enterprise Boot 3yr Wty
Solid State Drive
718171-B21
728732-B21
Capacity
120GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
N/A
64,000 IOP/s
4,700 IOP/s
410 MiB/s
130 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
120GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
N/A
64,000 IOP/s
4,700 IOP/s
410 MiB/s
130 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
Page 23
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 80GB 6G SATA Value
Endurance LFF 3.5-in SC
Enterprise Boot 3yr Wty
Solid State Drive
HP 80GB 6G SATA Value
Endurance LFF 3.5-in
Enterprise Boot 3yr Wty
Solid State Drive
734362-B21
734368-B21
Capacity
80GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
N/A
59,000 IOP/s
7,700 IOPS
335MiB/s
Sequential Writes
100 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
80GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
N/A
59,000 IOP/ s
7,700 IOPS
335MiB/s
100 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
Page 24
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.
HP 800GB 6G SATA Value
Endurance SFF 2.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 800GB 6G SATA Value
Endurance SFF 2.5-in
Enterprise Value 3yr Wty
Solid State Drive
717973-B21
728743-B21
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
64,000 IOP/s
12,000 IOP/s
480MiB/s
445 MiB/s
512 bytes
N/A
64,000 IOP/s
12,000 IOP/s
480 MiB/s
445 MiB/s
512 bytes
Page 25
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 600GB 6G SATA Value
Endurance SFF 2.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 600GB 6G SATA Value
Endurance SFF 2.5-in
Enterprise Value 3yr Wty
Solid State Drive
739898-B21
739904-B21
Capacity
600GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
61,000 IOP/s
15,000 IOP/s
Physical Configuration
Sequential Reads
475 MiB/s
Sequential Writes (Write 435 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
600GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
15,000 IOP/s
475 MiB/s
435 MiB/s
512 bytes
Page 26
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 480GB 6G SATA Value
Endurance SFF 2.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 480GB 6G SATA Value
Endurance SFF 2.5-in
Enterprise Value 3yr Wty
Solid State Drive
717971-B21
728739-B21
Capacity
480GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
64,000 IOP/s
10,000 IOP/s
Physical Configuration
Sequential Reads
480MiB/s
Sequential Writes (Write 400 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
480GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
64,000 IOP/s
10,000 IOP/s
480 MiB/s
400 MiB/s
512 bytes
Page 27
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 300GB 6G SATA Value
Endurance SFF 2.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 300GB 6G SATA Value
Endurance SFF 2.5-in
Enterprise Value 3yr Wty
Solid State Drive
739888-B21
739894-B21
Capacity
300GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
61,000 IOP/s
9,200 IOP/s
Physical Configuration
Sequential Reads
475 MiB/s
Sequential Writes (Write 300 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
300GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
9,200 IOP/s
475 MiB/s
300 MiB/s
512 bytes
Page 28
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 240GB 6G SATA Value
Endurance SFF 2.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 240GB 6G SATA Value
Endurance SFF 2.5-in
Enterprise Value 3yr Wty
Solid State Drive
717969-B21
728735-B21
Capacity
240GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
64,000 IOP/s
8,000 IOP/s
Physical Configuration
Sequential Reads
475 MiB/s
Sequential Writes (Write 250 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
240GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
64,000 IOP/s
8,000 IOP/s
475 MiB/s
250 MiB/s
512 bytes
Page 29
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.
HP 800GB 6G SATA Value
Endurance LFF 3.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 800GB 6G SATA Value
Endurance LFF 3.5-in
Enterprise Value 3yr Wty
Solid State Drive
718189-B21
728745-B21
Capacity
800GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
800GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
64,000 IOP/s
12,000 IOP/s
480 MiB/s
445 MiB/s
512 bytes
N/A
64,000 IOP/s
12,000 IOP/s
480 MiB/s
445 MiB/s
512 bytes
Page 30
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 600GB 6G SATA Value
Endurance LFF 3.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 600GB 6G SATA Value
Endurance LFF 3.5-in
Enterprise Value 3yr Wty
Solid State Drive
739900-B21
739906-B21
Capacity
600GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
61,000 IOP/s
15,000 IOP/s
Physical Configuration
Sequential Reads
475 MiB/s
Sequential Writes (Write 435 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
600GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
15,000 IOP/s
475 MiB/s
435 MiB/s
512 bytes
Page 31
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 480GB 6G SATA Value
Endurance LFF 3.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 480GB 6G SATA Value
Endurance LFF 3.5-in
Enterprise Value 3yr Wty
Solid State Drive
718183-B21
728741-B21
Capacity
480GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
64,000 IOP/s
10,000 IOP/s
Physical Configuration
Sequential Reads
480 MiB/s
Sequential Writes (Write 400 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
480GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
64,000 IOP/s
10,000 IOP/s
480 MiB/s
400 MiB/s
512 bytes
Page 32
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 300GB 6G SATA Value
Endurance LFF 3.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 300GB 6G SATA Value
Endurance LFF 3.5-in
Enterprise Value 3yr Wty
Solid State Drive
739890-B21
739896-B21
Capacity
300GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
61,000 IOP/s
9,200 IOP/s
Physical Configuration
Sequential Reads
475 MiB/s
Sequential Writes (Write 300 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
300GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
9,200 IOP/s
475 MiB/s
300 MiB/s
512 bytes
Page 33
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 240GB 6G SATA Value
Endurance LFF 3.5-in SC
Enterprise Value 3yr Wty
Solid State Drive
HP 240GB 6G SATA Value
Endurance LFF 3.5-in
Enterprise Value 3yr Wty
Solid State Drive
718177-B21
728737-B21
Capacity
240GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
64,000 IOP/s
8,000 IOP/s
Physical Configuration
Sequential Reads
475 MiB/s
Sequential Writes (Write 250 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
240GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
64,000 IOP/s
8,000 IOP/s
475 MiB/s
250 MiB/s
512 bytes
Page 34
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 400GB 6G SATA
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
691868-B21
691866-B21
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
35,000 IOP/s
480MiB/s
450MiB/s
512 bytes
N/A
63,000 IOP/s
35,000 IOP/s
480MiB/s
450MiB/s
512 bytes
Page 35
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 200GB 6G SATA
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 100GB 6G SATA
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
691864-B21
691862-B21
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
63,000 IOP/s
32,000 IOP/s
Physical Configuration
Sequential Reads
480MiB/s
Sequential Writes (Write 350MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
100GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
63,000 IOP/s
19,200 IOP/s
480MiB/s
185MiB/s
512 bytes
Page 36
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
6G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA
Mainstream Endurance
LFF 3.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 400GB 6G SATA
Mainstream Endurance
LFF 3.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
691860-B21
691856-B21
Capacity
800GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
400GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
35,000 IOP/s
480MiB/s
450MiB/s
512 bytes
N/A
63,000 IOP/s
35,000 IOP/s
480MiB/s
450MiB/s
512 bytes
Page 37
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 200GB 6G SATA
Mainstream Endurance
LFF 3.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 100GB 6G SATA
Mainstream Endurance
LFF 3.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
691854-B21
691852-B21
Capacity
200GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
63,000 IOP/s
32,000 IOP/s
Physical Configuration
Sequential Reads
480MiB/s
Sequential Writes (Write 350MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
100GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
63,000 IOP/s
19,200 IOP/s
480MiB/s
185MiB/s
512 bytes
Page 38
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 400GB 6G SATA
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Wty Solid
State Drive
730065-B21
730063-B21
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
35,000 IOP/s
480MiB/s
450MiB/s
512 bytes
N/A
63,000 IOP/s
35,000 IOP/s
480MiB/s
450MiB/s
512 bytes
Page 39
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 200GB 6G SATA
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 100GB 6G SATA
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Wty Solid
State Drive
730061-B21
730059-B21
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
63,000 IOP/s
32,000 IOP/s
Physical Configuration
Sequential Reads
480MiB/s
Sequential Writes (Write 350MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
100GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
63,000 IOP/s
19,200 IOP/s
480MiB/s
185MiB/s
512 bytes
Page 40
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP SSD SAS Drives
6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SAS
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 800GB 6G SAS
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Warranty
Solid State Drive
690829-B21
690823-B21
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
N/A
51,700 IOP/s
13,000 IOP/s
Physical Configuration
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
422MiB/s
175MiB/s
512 bytes
N/A
51,700 IOP/s
13,000 IOP/s
422MiB/s
175MiB/s
512 bytes
Page 41
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 400GB 6G SAS
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 400GB 6G SAS
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Warranty
Solid State Drive
690827-B21
690821-B21
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
46,200 IOP/s
9,800 IOP/s
Physical Configuration
Sequential Reads
370MiB/s
Sequential Writes (Write 150MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
46,200 IOP/s
9,800 IOP/s
370MiB/s
150MiB/s
512 bytes
Page 42
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 200GB 6G SAS
Mainstream Endurance
SFF 2.5-in SC Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 200GB 6G SAS
Mainstream Endurance
SFF 2.5-in Enterprise
Mainstream 3yr Warranty
Solid State Drive
690825-B21
690819-B21
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
46,200 IOP/s
9,800 IOP/s
Physical Configuration
Sequential Reads
370MiB/s
Sequential Writes (Write 150MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
46,200 IOP/s
9,800 IOP/s
370MiB/s
150MiB/s
512 bytes
Page 43
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF
(2.5-inch) SC Enterprise
Performance 3yr
Warranty Solid State
Drive
HP 400GB 6G SAS SLC SFF
(2.5-inch) Enterprise
Performance 3yr
Warranty Solid State
Drive
653082-B21
632494-B21
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
N/A
40,000 IOP/s
14.5K IOP/s
Physical Configuration
Sequential Reads
Sequential Writes
Logical Blocks
415MiB/s
180MiB/s
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
O-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
40,000 IOP/s
14.5K IOP/s
415MiB/s
180MiB/s
512 bytes
Page 44
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 200GB 6G SAS SLC SFF
(2.5-inch) SC Enterprise
Performance 3yr
Warranty Solid State
Drive
HP 200GB 6G SAS SLC SFF
(2.5-inch) Enterprise
Performance 3yr
Warranty Solid State
Drive
653078-B21
632492-B21
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
N/A
40,000 IOP/s
14.5K IOP/s
415MiB/s
Physical Configuration
Sequential Writes
Logical Blocks
180MiB/s
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SAS
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
O-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
40,000 IOP/s
13,000 IOP/s
350MiB/s
160MiB/s
512 bytes
Page 45
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP SSD SATA Quick Release Drives
6G SATA Value Endurance Quick Release (2.5-inch) Enterprise Boot Solid State Drives
NOTE: The 80GB and 120GB Enterprise Boot SSDs with Endurance Manager enabled are targeted for Boot/Swap applications and may
have performance throttled due to write workloads. Write performance shown for 80GB and 120GB Enterprise Boot SSDs is based on
no endurance throttling.
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.
HP 120GB 6G SATA Value
Endurance SFF 2.5-in
Quick-release Enterprise
Boot 3yr Wty Solid State
Drive
HP 80GB 6G SATA Value
Endurance SFF 2.5-in
Quick-release Enterprise
Boot 3yr Wty Solid State
Drive
718174-B21
734364-B21
Capacity
120GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
N/A
64,000 IOP/s
4,700 IOP/s
410 MiB/s
130 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
80GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
N/A
59,000 IOP/s
7,700 IOPS
335MiB/s
100 MiB/s
Physical Configuration
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
Page 46
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
6G SATA Value Endurance Quick Release SFF (2.5-inch) Enterprise Value Solid State Drives
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.
HP 800GB 6G SATA Value
Endurance SFF 2.5-in
Quick-release Enterprise
Value 3y Wty Solid State
Drive
HP 600GB 6G SATA Value
Endurance SFF 2.5-in
Quick-release Enterprise
Value 3yr Wty Solid State
Drive
718192-B21
739902-B21
Capacity
800GB
Height
15mm
Length x Width
Standard LFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
Capacity
600GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
64,000 IOP/s
12,000 IOP/s
480 MiB/s
445 MiB/s
512 bytes
N/A
61,000 IOP/s
15,000 IOP/s
475 MiB/s
435 MiB/s
512 bytes
Page 47
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 480GB 6G SATA Value
Endurance SFF 2.5-in
Quick-release Enterprise
Value 3yr Wty Solid State
Drive
HP 300GB 6G SATA Value
Endurance SFF 2.5-in
Quick-release Enterprise
Value 3yr Wty Solid State
Drive
718186-B21
739892-B21
Capacity
480GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
64,000 IOP/s
10,000 IOP/s
Physical Configuration
Sequential Reads
480 MiB/s
Sequential Writes (Write 400 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
300GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
9,200 IOP/s
475 MiB/s
300 MiB/s
512 bytes
Page 48
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 240GB 6G SATA Value
Endurance SFF 2.5-in
Quick-release Enterprise
Value 3yr Wty Solid State
Drive
718180-B21
Capacity
240GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
64,000 IOP/s
8,000 IOP/s
Physical Configuration
Sequential Reads
475 MiB/s
Sequential Writes (Write 250 MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
6G SATA ME Quick Release SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA
Mainstream Endurance
SFF 2.5-in QR Enterprise
Mainstream 3yr Wty Solid
State Drive
730057-B21
Capacity
800GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
61,000 IOP/s
35,000 IOP/s
480MiB/s
450MiB/s
512 bytes
Page 49
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 400GB 6G SATA
Mainstream Endurance
SFF 2.5-in QR Enterprise
Mainstream 3yr Wty Solid
State Drive
HP 200GB 6G SATA
Mainstream Endurance
SFF 2.5-in QR Enterprise
Mainstream 3yr Wty Solid
State Drive
730055-B21
730053-B21
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
63,000 IOP/s
35,000 IOP/s
Physical Configuration
Sequential Reads
480MiB/s
Sequential Writes (Write 450MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
Capacity
200GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
Sequential Reads
Sequential Writes (Write
Cache off)
Logical Blocks
Power
9W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
63,000 IOP/s
32,000 IOP/s
480MiB/s
350MiB/s
512 bytes
Page 50
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
HP 100GB 6G SATA
Mainstream Endurance
SFF 2.5-in QR Enterprise
Mainstream 3yr Wty Solid
State Drive
730051-B21
Capacity
100GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
6Gbps
Performance
Rotational Speed
Random Reads
Random Writes (Write
Cache Off)
N/A
63,000 IOP/s
19,200 IOP/s
Physical Configuration
Sequential Reads
480MiB/s
Sequential Writes (Write 185MiB/s
Cache off)
Logical Blocks
512 bytes
Power
9W
Operating Temperature
0-60°C
3G SATA MLC Quick Release SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 400GB 3G SATA MLC
SFF (2.5-inch) Quick
Release Enterprise
Mainstream 3yr Wty Solid
State Drive
636625-B21
Capacity
400GB
Height
15mm
Length x Width
Standard SFF
Interface
SATA
Transfer Rate
Synchronous (Maximum)
3Gbps
Performance
Physical Configuration
Rotational Speed
Random Reads
Random Writes
Sequential Reads
Sequential Writes
Logical Blocks
Power
7W
Operating Temperature
0-60°C
DA - 14038 North America — Version 21 — June 10, 2014
N/A
32,000 IOP/s
10,000 IOP/s
257MiB/s
235MiB/s
512 bytes
Page 51
QuickSpecs
HP Solid State Drives (SSD)
Technical Specifications
Environment-friendly
Products and Approach
End-of-life Management Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
and Recycling
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 14038 North America — Version 21 — June 10, 2014
Page 52
