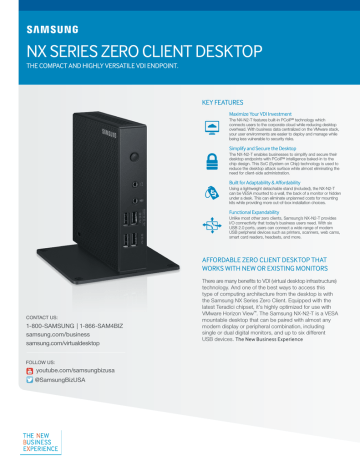

NX SERIES ZERO CLIENT DESKTOP
THE COMPACT AND HIGHLY VERSATILE VDI ENDPOINT.
KEY FEATURES
Maximize Your VDI Investment
The NX-N2-T features built-in PCoIP® technology which
connects users to the corporate cloud while reducing desktop
overhead. With business data centralized on the VMware stack,
your user environments are easier to deploy and manage while
being less vulnerable to security risks.
Simplify and Secure the Desktop
The NX-N2-T enables businesses to simplify and secure their
desktop endpoints with PCoIP® intelligence baked-in to the
chip design. This SoC (System on Chip) technology is used to
reduce the desktop attack surface while almost eliminating the
need for client-side administration.
Built for Adaptability & Affordability
Using a lightweight detachable stand (included), the NX-N2-T
can be VESA mounted to a wall, the back of a monitor or hidden
under a desk. This can eliminate unplanned costs for mounting
kits while providing more out-of-box installation choices.
Functional Expandability
Unlike most other zero clients, Samsung’s NX-N2-T provides
I/O connectivity that today’s business users need. With six
USB 2.0 ports, users can connect a wide range of modern
USB peripheral devices such as printers, scanners, web cams,
smart card readers, headsets, and more.
AFFORDABLE ZERO CLIENT DESKTOP THAT
WORKS WITH NEW OR EXISTING MONITORS
CONTACT US:
1-800-SAMSUNG | 1-866-SAM4BIZ
samsung.com/business
samsung.com/virtualdesktop
FOLLOW US:
youtube.com/samsungbizusa
@SamsungBizUSA
There are many benefits to VDI (virtual desktop infrastructure)
technology. And one of the best ways to access this
type of computing architecture from the desktop is with
the Samsung NX Series Zero Client. Equipped with the
latest Teradici chipset, it’s highly optimized for use with
VMware Horizon View™. The Samsung NX-N2-T is a VESA
mountable desktop that can be paired with almost any
modern display or peripheral combination, including
single or dual digital monitors, and up to six different
USB devices. The New Business Experience
Samsung
VDI NX-N2-T
KEY SPECIFICATIONS
Client
Power
For complete product specifications, visit samsung.com/virtualdesktop
Model Number
NX-N2-T (TAA Compliant)
Material Code
LF-NXN2N/GO
Processor
Teradici Tera2321 (Tera2)
Supported VDI and DaaS Hosts
VMware View, VMware Horizon View, VMware Horizon DaaS, Amazon Workspaces (AWS)
RAM
DDR3 512MB
Flash
256M bit (32M Byte)
Audio
Realtek ALC886
VMware / Citrix Certification
VMware View 5.1 Pending
Ethernet
Gigabit Ethernet (10/100/1000 Auto Sensing)
Fan/Fanless
Fanless
Maximum resolution (H x V) (Dual Screen)
Single Display Port: 2560 x 1600, Single DVI: 1920x1200 (2560 x 1600 w/Splitter), Dual Display Port + DVI: 1920 x 1200
Input / Output
10/100/1000 Ethernet (RJ45), USB 2.0 x 6 (2 Front, 4 Back), Headphone Out, Audio Out, MIC In, DisplayPort 1.2 Out, DVI-I Out
Speaker
1W Speaker
Mount Pattern
Stand: VESA 100 x 100 (mm)
Input
14V DC Input
Power Supply
External (Small Form Factor)
Power-On
Cabinet Color
OSD
Accessory (Supplied)
Dimension
Weight
Certifications
Maximum
19.4W
Typical
7.3W
Standby
1W
Front
Black
Back
Black
OSD Language Provided
Korean / Japanese / Chinese / English / German / Spanish / French / Italian / Swedish / Russian / Portuguese / Turkish / Hungarian / Polish
Included in package
User Manual, Power Cord / Adapter, Quick Setup Guide, Warranty Card
Device with Stand (W x H x D) - Horizontal
5.9" x 1.5" x 5.1"
Device with Stand (W x H x D) - Vertical
1.2" x 6.2" x 5.1"
Device without Stand (W x H x D) - Horizontal
5.9" x 1.2" x 5.1"
Device without Stand (W x H x D) - Vertical
1.2" x 5.9" x 5.1"
Packaged: W" x H" x D"
7.5" x 12.9" x 8.8"
Stand: W" x H" x D"
4.5" x 0.56" x 4.5"
Net
15 oz. (425 g)
Gross
2.9 lbs. (1.3 Kg)
Federal/DoD Trade Compliance
TAA Compliant
Safety
UL (USA), CSA (Canada), NEMKO (Norway), IRAM (Argentina)
EMC
FCC (USA), CE (Europe), VCCI (Japan), KCC (Korea), C-TICK (Australia), CCC (China)
CONNECTIVITY
1. USB 2.0
2. Microphone In
3. Headphone Out
4. AC Power On/Off
INCLUDED
5. DisplayPort Out
6. DVI-I Out
7. RJ45 LAN
8. DC 14V
1
STAND
2
3
4
1
5
6
7
8
For complete product information and accessories, visit samsung.com/business or samsung.com/virtualdesktop
Sales Support: 1-800-SAMSUNG or 1-866-SAM4BIZ | Follow us:
youtube.com/samsungbizusa |
@SamsungBizUSA
Samsung Electronics has been named 2013 ENERGY STAR Partner of the Year in the product manufacturing category by the U.S. Environmental Protection Agency (EPA).
©2014 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd. Specifications and designs are subject to change without notice. Non-metric weights and measurements are approximate.
All other brand, product, service names and logos are trademarks and/or registered trademarks of their respective manufacturers and companies. Simulated screen images. See samsung.com for detailed information. Printed in USA.
VDI-NXN2TB2BDSHT-JUN14T
