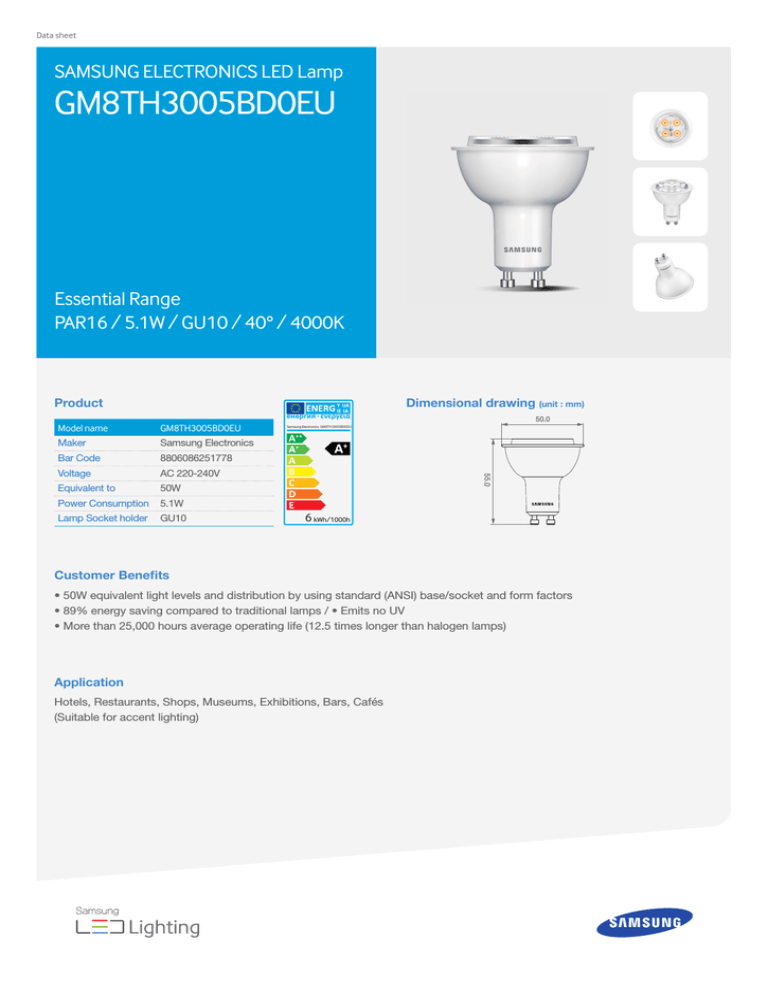

Samsung GM8TH3005BD0EU energy-saving lamp

Data sheet
SAMSUNG ELECTRONICS LED Lamp
GM8TH3005BD0EU
Essential Range
PAR16 / 5.1W / GU10 / 40° / 4000K
Product
Dimensional drawing (unit : mm)
GM8TH3005BD0EU
Maker
Samsung Electronics
Bar Code
8806086251778
Voltage
AC 220-240V
Equivalent to
50W
Power Consumption
5.1W
Lamp Socket holder
GU10
50.0
Samsung Electronics GM8TH3005BD0EU
55.0
Model name
6 kWh/1000h
Customer Benefits
• 50W equivalent light levels and distribution by using standard (ANSI) base/socket and form factors
• 89% energy saving compared to traditional lamps / • Emits no UV
• More than 25,000 hours average operating life (12.5 times longer than halogen lamps)
Application
Hotels, Restaurants, Shops, Museums, Exhibitions, Bars, Cafés
(Suitable for accent lighting)
SAMSUNG ELECTRONICS LED Lamp
GM8TH3005BD0EU
Specifications
Lighting Data
Model name
GM8TH3005BD0EU
Nominal useful luminous flux (lm)
350
Rated useful luminous flux (lm)
350
Nominal luminous flux (lm)
350
Lamp efficacy (lm/W)
68
Luminous intensity (cd)
400
Frequency (Hz)
50/60
Input current (mA)
26
Nominal power consumption (W)
5.1
Rated power consumption (W)
5.1
Power factor
0.7
Lumen Maintenance Factor
L70
Warm-up time (60%)
Instant Full Light
Starting time (s)
0.5
On/Off cycles
50,000
Nominal beam angle (°)
40
Rated beam angle (°)
40
Operating temperature (°C)
-20~+40
Nominal lamp life time (hrs)
25,000
Rated lamp life time (hrs)
25,000
Color description
Neutral White
• Single Box (1pc) : 70mm×55mm×91mm / 90g
Color temperature (K)
4000
• Middle Box (6pc/box) : 180mm×81mm×192mm / 625g
CRI (Ra)
80
• Outer Carton (24pc/box) : 357mm×192mm×203mm / 2,750g
Color consistency (ANSI)
≤ MacAdam 6-step
Dimmable
No
Weight (g)
65
Energy efficiency index
A+
Energy consumption (kWh/1000h)
6
Certification
CE, CB, SIRIM
※ Specifications are subject to change without notice
(0~180)
(90~270)
(uni : cd)
600 500 400 300 200
90°
1m
400 lx
2m
100 lx
3m
44 lx
90°
60°
60°
30°
30°
0°
Spectral power density [Arb.]
Light Distribution
Illuminance (lx)
1.0
0.8
0.6
0.4
0.2
0.0
200
300
400
500
600
700
800
Wavelength [nm]
Spectral Power Distribution
Packaging Details
