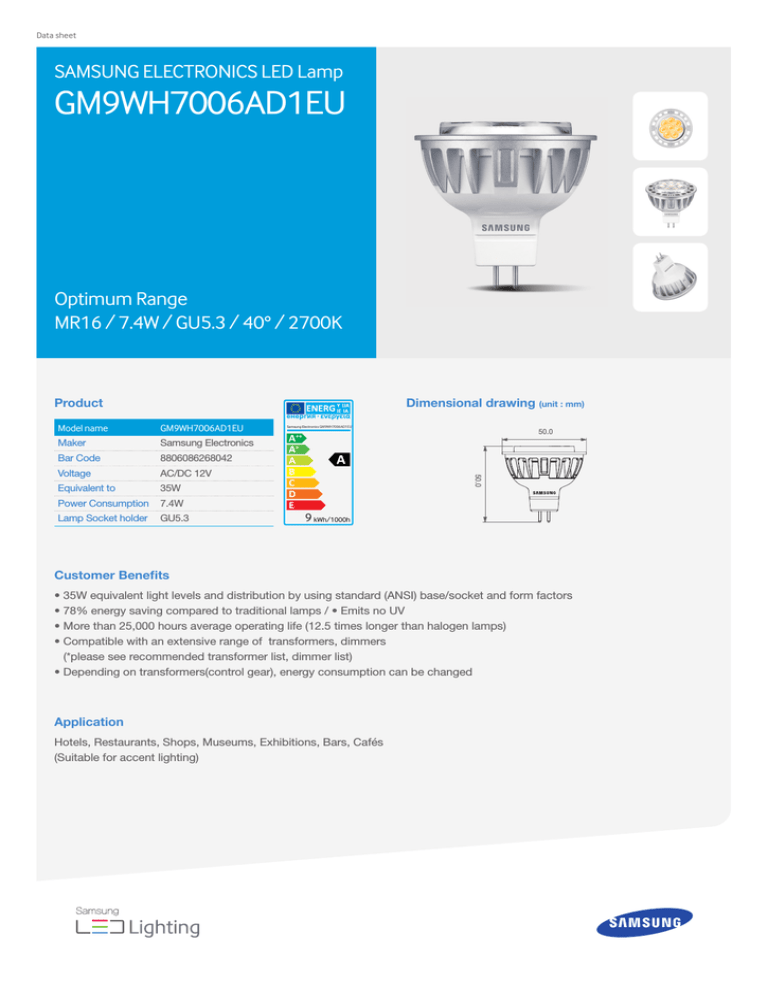

Data sheet
SAMSUNG ELECTRONICS LED Lamp
GM9WH7006AD1EU
Optimum Range
MR16 / 7.4W / GU5.3 / 40° / 2700K
Product
Model name GM9WH7006AD1EU
Maker
Bar Code
Voltage
Equivalent to
Samsung Electronics
8806086268042
AC/DC 12V
35W
Power Consumption 7.4W
Lamp Socket holder GU5.3
Samsung Electronics GM9WH7006AD1EU
9 kWh/1000h
Dimensional drawing
(unit : mm)
50.0
Customer Benefits
• 35W equivalent light levels and distribution by using standard (ANSI) base/socket and form factors
• 78% energy saving compared to traditional lamps / • Emits no UV
• More than 25,000 hours average operating life (12.5 times longer than halogen lamps)
• Compatible with an extensive range of transformers, dimmers
(*please see recommended transformer list, dimmer list)
• Depending on transformers(control gear), energy consumption can be changed
Application
Hotels, Restaurants, Shops, Museums, Exhibitions, Bars, Cafés
(Suitable for accent lighting)
SAMSUNG ELECTRONICS LED Lamp
GM9WH7006AD1EU
Specifications
Model name
Nominal useful luminous flux (lm)
Rated useful luminous flux (lm)
Nominal luminous flux (lm)
Lamp efficacy (lm/W)
GM9WH7006AD1EU
400
400
400
54
Luminous intensity (cd)
Frequency (Hz)
Input current (mA)
910
50/60
660
Nominal power consumption (W) 7.4
Rated power consumption (W)
Lumen Maintenance Factor
Warm-up time (60%)
Starting time (s)
On/Off cycles
Nominal beam angle (°)
Rated beam angle (°)
Operating temperature (°C)
Nominal lamp life time (hrs)
Rated lamp life time (hrs)
Color description
Color temperature (K)
CRI (Ra)
Color consistency (ANSI)
Dimmable
Weight (g)
Energy efficiency index A
Energy consumption (kWh/1000h) 9
Certification CE, CB
7.4
L70
Instant full light
0.2
50,000
40
40
-20~+40
25,000
25,000
Warm White
2700
90
≤ MacAdam 6-step
Yes
50
※ Specifications are subject to change without notice
Lighting Data
(0~180)
1,000 800 600 400
(90~270)
90 °
(uni : cd )
90 °
60° 60°
30° 30°
0°
Light Distribution
0.6
0.5
0.4
0.3
1.0
0.9
0.8
0.7
0.2
0.1
0.0
200 300 400 500
Wavelength [nm]
600 700
Spectral Power Distribution
800
1m
2m
3m
910 lx
227 lx
101 lx
Illuminance (lx)
Packaging Details
• Single Box (1pc) : 52mm×52mm×64mm / 60g
• Middle Box (10pc/box) : 275mm×111mm×70mm / 700g
• Outer Carton (40pc/box) : 239mm×286mm×164mm / 3,300g
Dimmer / Transformer Compatibility
Dimmer
Transformer
No.
1
No. Manufacturer Models
1
BUSCH-JAEGER
6513U-102
2 GIRA 0307/00
Power
Manufacturer OSRAM
Models HTM70
Power
Country
40~420W EU
60~400W EU
3 ELKO 315GLE 20~315W EU
4 Schneider electric SBD315RC 20-315VA EU
20-70W
EU
Working
Working
Working
Working
5 Schneider electric SBD630RC 20~630W EU NC
2
OSRAM
3
CONARD
ET-PARROT105 574223
35-105W 10-60W
EU
Good
Good
EU
Working
Good
Good
Good
Good
Good
Working
NC
4
OSRAM
5
TCI
ET-REDBACK MW70LED
20-60W
EU
Good
Poor
NC
NC
Poor
1-50W
EU
Working
Working
Good
Good
Good
Note 1. Dimming Performance : Good(Dimming Coverage without flicker : 75%↑), Working(41~74% ), Poor(40%↓), N/C(Not Compatible)
2. This result can only be used as reference. The result may vary according to actual field conditions.
6
PHIILPS
7
HATCH
Certaline RS12-80BF-277
60W 80W
EU
Working
NC
EU
Good
NC
Poor
Poor
NC
Working
Working
Good
