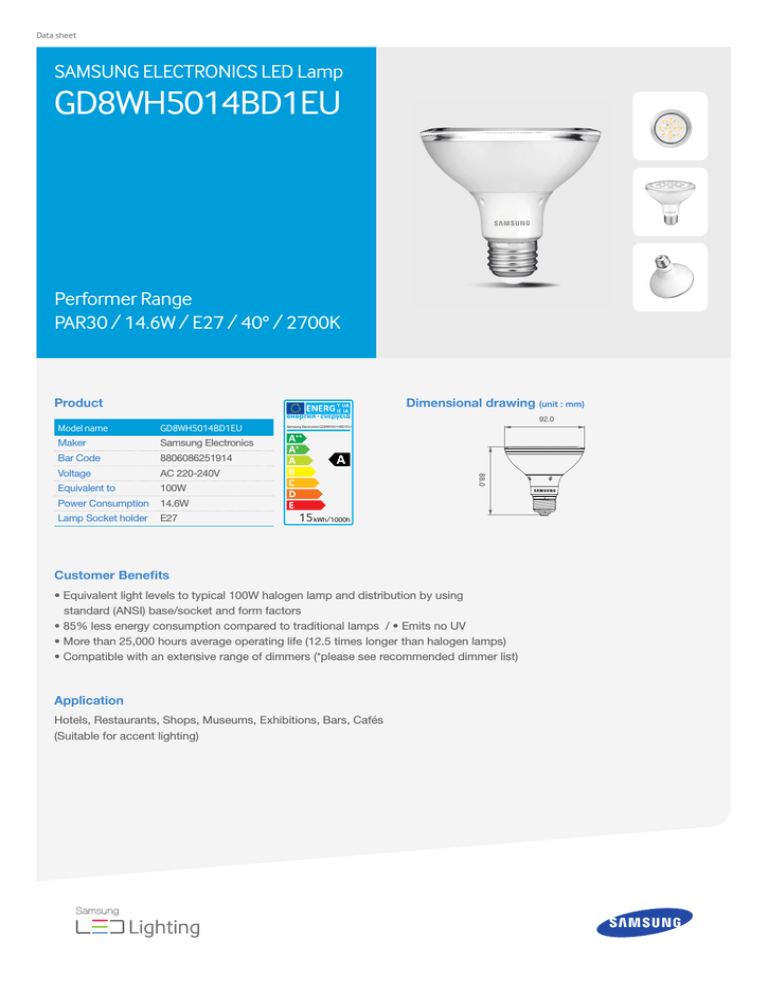

Samsung GD8WH5014BD1EU LED lamp

Data sheet
SAMSUNG ELECTRONICS LED Lamp
GD8WH5014BD1EU
Performer Range
PAR30 / 14.6W / E27 / 40° / 2700K
Product
Dimensional drawing (unit : mm)
AC 220-240V
Equivalent to
100W
Power Consumption
14.6W
Lamp Socket holder
E27
15 kWh/1000h
Customer Benefits
• Equivalent light levels to typical 100W halogen lamp and distribution by using
standard (ANSI) base/socket and form factors
• 85% less energy consumption compared to traditional lamps / • Emits no UV
• More than 25,000 hours average operating life (12.5 times longer than halogen lamps)
• Compatible with an extensive range of dimmers (*please see recommended dimmer list)
Application
Hotels, Restaurants, Shops, Museums, Exhibitions, Bars, Cafés
(Suitable for accent lighting)
91.5
8806086251914
Voltage
24.0
Samsung Electronics
Bar Code
61.5
Maker
92.0
Samsung Electronics GD8WH5014BD1EU
24.0
GD8WH5014BD1EU
88.0
Model name
SAMSUNG ELECTRONICS LED Lamp
GD8WH5014BD1EU
Specifications
Lighting Data
Model name
GD8WH5014BD1EU
Nominal useful luminous flux (lm)
865
Rated useful luminous flux (lm)
865
Nominal luminous flux (lm)
920
Lamp efficacy (lm/W)
63
Luminous intensity (cd)
1,475
Frequency (Hz)
50/60
Input current (mA)
67
Nominal power consumption (W)
14.6
Rated power consumption (W)
14.6
Power factor
0.9
Lumen Maintenance Factor
L70
Warm-up time (60%)
Instant Full Light
Starting time (s)
0.3
On/Off cycles
50,000
Nominal beam angle (°)
40
Rated beam angle (°)
40
Operating temperature (°C)
-20~+40
Nominal lamp life time (hrs)
25,000
Rated lamp life time (hrs)
25,000
Color description
Warm White
• Single Box (1pc) : 97mm×97mm×104mm / 291g
Color temperature (K)
2700
• Middle Box (4pc/box) : 210mm×210mm×114mm / 1,267g
CRI (Ra)
80
• Outer Carton (16pc/box) : 440mm×224mm×254mm / 5,370g
Color consistency (ANSI)
≤ MacAdam 6-step
Dimmable
Yes
Weight (g)
200
Energy efficiency index
A
Energy consumption (kWh/1000h)
15
Certification
CE, CB, SIRIM
※ Specifications are subject to change without notice
(0~180)
1500 1200 900 600
(uni : cd)
300
90°
1m
1,475 lx
2m
368 lx
3m
163 lx
90°
60°
60°
30°
30°
0°
Relative Spectral power [Arb.]
Light Distribution
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
200
300
400
500
600
Illuminance (lx)
700
800
Wavelength [nm]
Spectral Power Distribution
Packaging Details
Dimmer Compatibility
Dimming Level Dimming Performance
@ 1 lamp (flux%) @ Multi-­Lamps
Dimmer
No. Manufacturer
Models
Power
Input
Frequency
Max
Min
1 Lamp
2 Lamp
3 Lamp
4 Lamp
5 Lamp
1
LEGRAND
773617
40-300W
230V
50Hz
95%
6%
Good
Good
Good
Good
Good
2
SCHNEIDER
PEK-6
60-600W
230V
50Hz
100%
0%
Good
Good
Good
Good
Good
3
PEHA
434
60~400W
230V
50/60Hz
86%
0%
Good
Good
Good
Good
Good
4
JUNG
266GDE
60-600W
230V~240V
50Hz
94%
1%
Good
Working
Working
Working
Working
5
JUNG
211GDE
100~1000W 230V~240V
50Hz
95%
42%
Good
Good
Good
Good
Good
6
NIKO
310-01X00
60~250W,
60~300W
230V
50Hz
97%
3%
Good
Good
Good
Good
Good
7
JUNG
225NVDE
20~500W
230V~240V
50Hz
92%
0%
Good
Good
Good
Good
Good
8
Schneider
electric
MEK-S 300LR
20~300W
230V
50Hz
92%
0%
Good
Good
Good
Good
Good
9
BTICINO
A5702
60~500W
230V
50Hz
80%
13%
Good
Good
Good
Good
Good
10
GIRA
0302 00/I01
60~600W
230V~240V
50Hz
95%
10%
Good
Good
Good
Good
Good
11
BUSCH-JAEGER 2247U
500W
230V
50Hz
94%
0%
Good
Good
Good
Good
Good
12
BUSCH-JAEGER 6513U-102
40~420W
230V
50Hz
97%
25%
Good
Good
Good
Good
Good
13
BUSCH
6591U-101
420W
230V
50/60Hz
97%
20%
Good
Good
Good
Good
Good
14
GIRA
0307/00
60~400W
230V
50Hz
97%
9%
Good
Good
Good
Good
Good
15
ELKO
315GLE
20~315W
230V
50Hz
97%
10%
Good
Good
Good
Good
Good
16
ELKO
400GLI
40~400W
230V
50Hz
97%
0%
Good
Good
Good
Good
Good
17
SCHNEIDER
SBD315RC
20-315W
230V
50Hz
97%
9%
Good
Good
Good
Good
Good
18
SCHNEIDER
WDE002349
40~400W
230
50Hz
89%
0%
Good
Good
Good
Good
Good
19
Berker
2878
500W
230
50Hz
92%
0%
Good
Good
Good
Good
Good
20
SCHNEIDER
SBD630RC
20~630W
230
50Hz
97%
9%
Good
Good
Good
Good
Good
Note 1. Dimming Performance : Good(Dimming Coverage without flicker : 75% ↑), Working(41~74% ), Poor(40% ↓), N/C(Not Compatible)
2. This result can only be used as reference. The result may vary according to actual field conditions.
