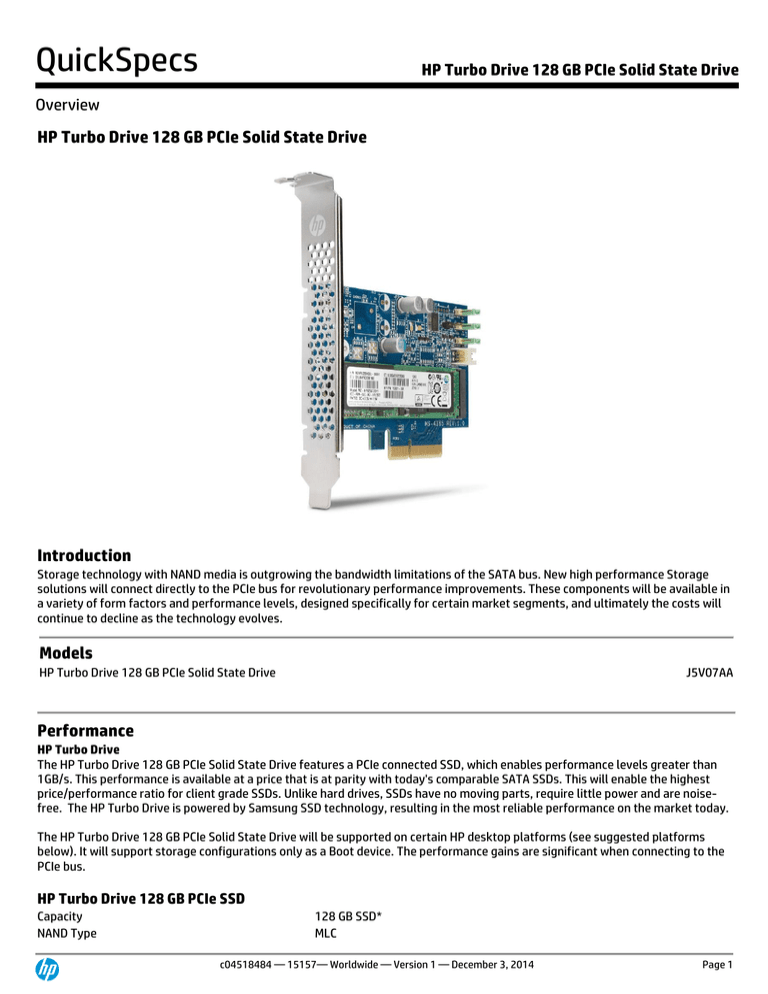

QuickSpecs
HP Turbo Drive 128 GB PCIe Solid State Drive
Overview
HP Turbo Drive 128 GB PCIe Solid State Drive
Introduction
Storage technology with NAND media is outgrowing the bandwidth limitations of the SATA bus. New high performance Storage
solutions will connect directly to the PCIe bus for revolutionary performance improvements. These components will be available in
a variety of form factors and performance levels, designed specifically for certain market segments, and ultimately the costs will
continue to decline as the technology evolves.
Models
HP Turbo Drive 128 GB PCIe Solid State Drive
J5V07AA
Performance
HP Turbo Drive
The HP Turbo Drive 128 GB PCIe Solid State Drive features a PCIe connected SSD, which enables performance levels greater than
1GB/s. This performance is available at a price that is at parity with today's comparable SATA SSDs. This will enable the highest
price/performance ratio for client grade SSDs. Unlike hard drives, SSDs have no moving parts, require little power and are noisefree. The HP Turbo Drive is powered by Samsung SSD technology, resulting in the most reliable performance on the market today.
The HP Turbo Drive 128 GB PCIe Solid State Drive will be supported on certain HP desktop platforms (see suggested platforms
below). It will support storage configurations only as a Boot device. The performance gains are significant when connecting to the
PCIe bus.
HP Turbo Drive 128 GB PCIe SSD
Capacity
NAND Type
128 GB SSD*
MLC
c04518484 — 15157— Worldwide — Version 1 — December 3, 2014
Page 1
QuickSpecs
HP Turbo Drive 128 GB PCIe Solid State Drive
Overview
Read Bandwidth (128KB)
1.00 GB/s
Write Bandwidth (1MB)
450 MB/s
Random Read IOPS (4KB)
110K
Random Write IOPS (4KB)
40K
Endurance (Total Bytes Written)
73 TB
Weight
1.8oz (51g)
Form Factor
Half-height, half-length**
*For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for
Windows 7) and 36 GB (for Windows 8.1) of system disk is reserved for the system recovery software.
**Roughly, actual length is 4 inches (100cm)
Supported Operating Systems:
Microsoft Windows 7, Microsoft Windows 8, Microsoft Windows 8.1
Supported BIOS:
Supports bios version v2.53 or newer
Supported Platforms:
HP EliteDesk 800 SFF, HP EliteDesk 800 Tower
c04518484 — 15157— Worldwide — Version 1 — December 3, 2014
Page 2
QuickSpecs
HP Turbo Drive
Technical Specifications
Storage / Hard Drives
HP Turbo Drive 128 GB
SSD
Capacity
128 GB*
Interface
PCI Express 2.0 x4 electrical x4 physical
Operating Temperature 32° to 158° F (0° to 70° C)
*For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for
Windows 7) and 36 GB (for Windows 8.1) of system disk is reserved for the system recovery software.
© Copyright 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows
are U.S. registered trademarks of the Microsoft group of companies.
c04518484 — 15157— Worldwide — Version 1 — December 3, 2014
Page 3
QuickSpecs
HP Turbo Drive
Summary of changes
Date
change:
of Version
History:
Description of change:
c04518484 — 15157— Worldwide — Version 1 — December 3, 2014
Page 4
