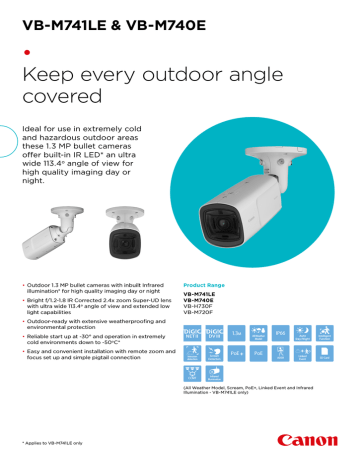

VB-M741LE & VB-M740E
•
Keep every outdoor angle
covered
Ideal for use in extremely cold
and hazardous outdoor areas
these 1.3 MP bullet cameras
offer built-in IR LED* an ultra
wide 113.4o angle of view for
high quality imaging day or
night.
• Outdoor 1.3 MP bullet cameras with inbuilt Infrared
illumination* for high quality imaging day or night
• Bright f/1.2-1.8 IR Corrected 2.4x zoom Super-UD lens
with ultra wide 113.4o angle of view and extended low
light capabilities
Product Range
VB-M741LE
VB-M740E
VB-H730F
VB-M720F
• Outdoor-ready with extensive weatherproofing and
environmental protection
1.3M
• Reliable start up at -30° and operation in extremely
cold environments down to -50oC*
• Easy and convenient installation with remote zoom and
focus set up and simple pigtail connection
Intrusion
detection
Scream
Detection
CCMT
Infrared
Illumination
PoE
All Weather
Model
PoE
IP66
ADSR
Intelligent
Function
Linked
Event
(All Weather Model, Scream, PoE+, Linked Event and Infrared
Illumination - VB-M741LE only)
* Applies to VB-M741LE only
SD Card
VB-M741LE & VB-M740E
•
Technical Specifications
VB-M741LE
VB-M740E
CAMERA
Image Sensor
Audio
Compression
Method
1/3 type CMOS (primary color filter)
Number of
Effective Pixels
Approx. 1.3 million pixels
Scanning Method
Audio
Communication
Method
Progressive
Lens
2.4 optical zoom (4x digital zoom) lens (electric drive)
Focal Length
Audio File
Playback
2.55 (W) – 6.12 mm (T)
F-number
F1.2 (W) – F1.8 (T)
Viewing Angle
For 16:9 aspect ratios
Horizontal: 113.4° (W) – 46.5° (T)
Vertical: 61.4° (W) – 26.2° (T)
For 4:3 aspect ratios
Horizontal: 113.4° (W) – 46.5° (T)
Vertical: 83.0° (W) – 34.9° (T)
Day/Night Switch
Auto / Manual
Min. Subject
Illumination
Preset
(F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
Day Mode (colour) : 0.02 lux
Night Mode (mono): 0 lux (with IR lamp on)
0.001 lux (with IR lamp off)
Focus
Auto / One-shot AF / Manual / Fixed at infinity
Shooting Distance
(from front of lens)
Shutter Speed
Privacy Mask
Day Mode: 0.3 m (12 in.) – infinity
Night Mode: 0.3 m (12 in.) – infinity
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/8000, 1/10000, 1/16000 sec.
Exposure
Auto / Auto (Flickerless) / Auto (Shutter-priority AE) / Manual
(Shutter Speed, Aperture, Gain)
White Balance
Auto / Light Source / Manual
Light Source: Daylight Fluorescent / White Fluorescent / Warm Fluorescent
/ Mercury Lamp / Sodium Lamp / Halogen Lamp
Manual: One-shot WB / R Gain / B Gain
Metering Mode
Center-Weighted / Average / Spot
Exposure
Compensation
9 levels
Smart Shade
Control
30 m (98.4 ft.) (When using
24 V AC, PoE+)
344° (±172°)
Tilt Angle Range
93° (-3° – +90°)
– Camera is at 0° when attached to the ceiling and facing strait down, and
90° when at a horizontal position.
344° (±172°)
Event Trigger Type
JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality
JPEG, H.264: 10 levels
Frame Rate
JPEG: 0.1 – 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
Security
Protocol
Volume Detection, Scream
Detection
External Device Input, Intelligent
Function (Video), Intelligent
Function (Audio), Timer, Day/Night
Switch
Intelligent Function (Video), Timer,
Day/Night Switch
FTP/HTTP/SMTP (e-mail)
HTTP/SMTP (e-mail)
Digital PTZ
Cropping sizes: 640 x 360 / 512 x 288 / 384 x 216 / 256 x 144 / 128 x 72
640 x 480 / 512 x 384 / 384 x 288 / 256 x 192 / 128 x 96
APPLICATION
Viewer
Admin Tools
Language
Operating
Environment
(PC specifications
and OS (does not
apply to RM-Lite))
Camera-side: Admin Viewer
VB Viewer
Client-side: RM-Lite Viewer
Privacy Mask Setting Tool
Intelligent Function Setting Tool
Log Viewer
Recorded Video Utility
Camera Management Tool
Camera Angle Setting Tool
RM-Lite
Proxy Authentication Admin Tools/Admin Viewer
German/English/Spanish/French/Italian/Russian/Turkish/Chinese
(Simplified)/Japanese
OS:
Windows Vista Ultimate / Business / Enterprise /
Home Premium SP2 32 / 64-bit
Operating System Language:
German / English / Spanish / French / Italian / Russian / Turkish / Chinese
(Simplified) / Japanese
– Language switching environment using language-packs is not supported
Compatible Browser:
Internet Explorer 8/9 32-bit
Internet Explorer 10/11
– Must be configured to allow use of JavaScript, XAML browser
applications, and IFRAME (html tag).
– For VB Viewer only, cookies must be enabled
0.5/1/1.5/2/3/4/5 sec.
Software (Runtime Libraries):
.NET Framework 3.5 SP1 (When using Internet Explorer 8/9)
– Must be installed on Windows Vista and Windows Server 2008 systems
Target Bit Rate: 64 / 128 / 256 / 384 / 512 / 768 / 1024 / 2048 / 3072 /
4096 / 6144 / 8192 / 10240/ 12288 / 14336 / 16384 kbps
ADSR: Areaspecific Data Size
Reduction
Detection Types: Moving Object Detection, Abandoned Object Detection,
Removed Object Detection, Camera Tampering Detection, Passing
Detection, and Intrusion Detection
Available
Max. 30 Clients + 1 Admin Client
– H.264: Max. 10 Clients
Bit Rate Control
Number of registers: Max. 20 positions (+Home Position)
Available
Maximum frame rate when used in the following combinations:
When streaming H.264(1) (1280 x 720) and H.264(2) (1280 x 720)
simultaneously: 15 fps
When streaming H.264(1) (1280 x 960) and H.264(2) (1280 x 960)
simultaneously: 15 fps
Simultaneous
Client Access
–
Daylight Saving
Time
– Values represent streaming performance from the camera.
– The frame rate may be reduced due to Viewer computer’s specs, the
number of clients accessing at the same time, network loads, video quality
setting, type or movement of the subject or other reasons.
I-Frame Interval
Number of registration: Max. 8
places, Number of mask colors: 1
(select from 9 colors)
On-Screen Display
JPEG, H.264
Video Size
–
Number of Linked Events: 2
Included Software
SERVER
Video
Compression
Method
Available (audio files can be played
back when an event is triggered by
the intelligent function or external
device input.)
– A third-party amplifier speaker is
necessary
–
Pan Angle Range
Rotation Angle
Range
–
Detection Settings: Max. 15
Intelligent
Function (Audio)
Image Cropping
Function
2 levels (digital)
IR Illumination
Range
Full-duplex (two-way) – Echo
cancellation function compliant
RTP, Sound Transfer Protocol by
Canon
Number of Preset Tour Route: Max. 1
Intelligent
Function (Video)
Event Notification
6 levels
Image Stabilizer
–
Items to Reg.: Digital Pan/Digital Tilt/Digital Zoom, Exposure, Smart Shade
Control, Focus, White Balance, Video Quality Adjustment, Day/Night, Haze
Compensation
Image Upload
Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
AGC Limit
VB-M740E
Linked Event Conditions: AND, OR
(whether or not there is a sequence
to events)
Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
– Brightens shaded areas of a video
Haze
Compensation
VB-M741LE
G.711 μ-law (64 kbps)
.NET Framework 4.5 (When using Internet Explorer 10/11)
– Must be installed on Windows 7 and Windows Server 2008 R2 systems
Number of Specified Areas: Max. 8 areas
CPU (Recommended):
Intel Core i7-2600 or higher
Camera Control: Administrator, Authorized user, Guest user (level of control
varies depending on user)
Access Control: User authority (user name and password), Host Access
Restrictions (IPv4, IPv6)
IEEE802.1X: EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
Encrypted Communications: SSL/TLS, IPsec
IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client),
DNS (Client), mDNS, ARP, ICMP, POP3 (Client), NTP (Client), SMTP
authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP,
RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF
(Profile S, Profile G)
IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client),
mDNS, ICMPv6, POP3 (Client), NTP (Client), SMTP authentication
(POP before SMTP, SMTP-AUTH), RTP/RTCP, RTSP, SSL/TLS, IPsec,
WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G)
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
© Canon Europa N.V.,2015
Graphics Board (Recommended):
Not specified
Memory (Recommended):
2 GB or higher
Viewer Display (Recommended):
1920 x 1080 or higher
INTERFACE
Network Terminal
Audio Input
Terminal
(common for LINE
IN & MIC IN)
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
ϕ3.5 mm (ϕ0.14 in.) mini-jack
connector (monaural)
LINE IN (connect to an amplifier
microphone) or MIC IN (connect to
a microphone w/o amplifier)
– Switch LINE IN/MIC IN in the
setting page.
-
VB-M741LE & VB-M740E
•
Technical Specifications
VB-M741LE
VB-M740E
Audio Output
Terminal (LINE
OUT)
ϕ3.5 mm (ϕ0.14 in.) mini-jack
connector (monaural)
LINE OUT
(connect to an amplifier speaker)
-
External Device
I/O Terminal
Input x 2, Output x 2
-
Memory Card
SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible.
Recorded Content: Log, Video (Event, Manual, ONVIF, Timer, Upload)
Frame Rate: Max. 1 fps (JPEG)
Max. 30 fps (H.264)
Power Supply
Power
Consumption
OTHER
Operating
Environment
Temperature
Operating Temperature Range
(including direct sun exposure)
AC, PoE+: -50°C – +55°C
(-58°F – +131°F)
DC, PoE: -10°C – +55°C
(+14°F – +131°F)
Start-up Temperature Range
(including direct sun exposure)
AC, PoE+: -30°C – +55°C
(-22°F – +131°F)
DC, PoE: -10°C – +55°C
(+14°F – +131°F)
Temperature
Operating Temperature Range
(including direct sun exposure)
PoE: -10°C – +55°C (+14°F – +131°F)
Humidity
5% – 85% (without condensation)
Dimensions
Weight
Dust-resistant/
Waterproof
Specification
VB-M741LE
VB-M740E
PoE: PoE+ power supply via LAN
connector
(IEEE802.3at Type2 compliant)
AC Adapter: PA-V18
(100 – 240 V AC) (sold separately)
External power source: 24 V AC/12
V DC
PoE: PoE power supply via LAN
connector (IEEE802.3at Type1
compliant)
PoE+: Max. approx. 21.2 W
PoE: Max. approx. 10.1 W
AC Adapter PA-V18:
Max. approx. 12.8 W (100 V AC)
Max. approx. 12.8 W (240 V AC)
DC: Max. approx. 11.1 W
AC: Max. approx. 22.2 W
PoE: Max. approx. 7.4 W
(H x W x D) 111 x 102 x 214 mm (4.37 x 4.02 x 8.43 in.) (camera body only)
– Length when joint fully extended (D): 384 mm (15.12 in.)
Approx. 2120 g (4.68 lb.)
Approx. 2040 g (4.50 lb.)
IP66 rated
NEMA Type 4X, IEC 60950-1/22
Humidity
5% – 85% (without condensation)
What’s in the box?
• Setup CD-ROM
• I/O Interface Cable
• Safety Wire & fixing screw
• Installation Guide
• Ceiling Plate & fixing screws
• Warranty Card
• Wrench
• Leaflet of Warranty Card
• Template
• Packaging
• Power Interface Cable
Dimensions
Compatible Accessories
PC640-VB
Pendant Mounting Kit
CB740-VB
Conduit Box
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
© Canon Europa N.V.,2015
PA-V17 / PA-V18
AC Power Supply
*Available in Euro 2-Pin
& UK 3-Pin plug
