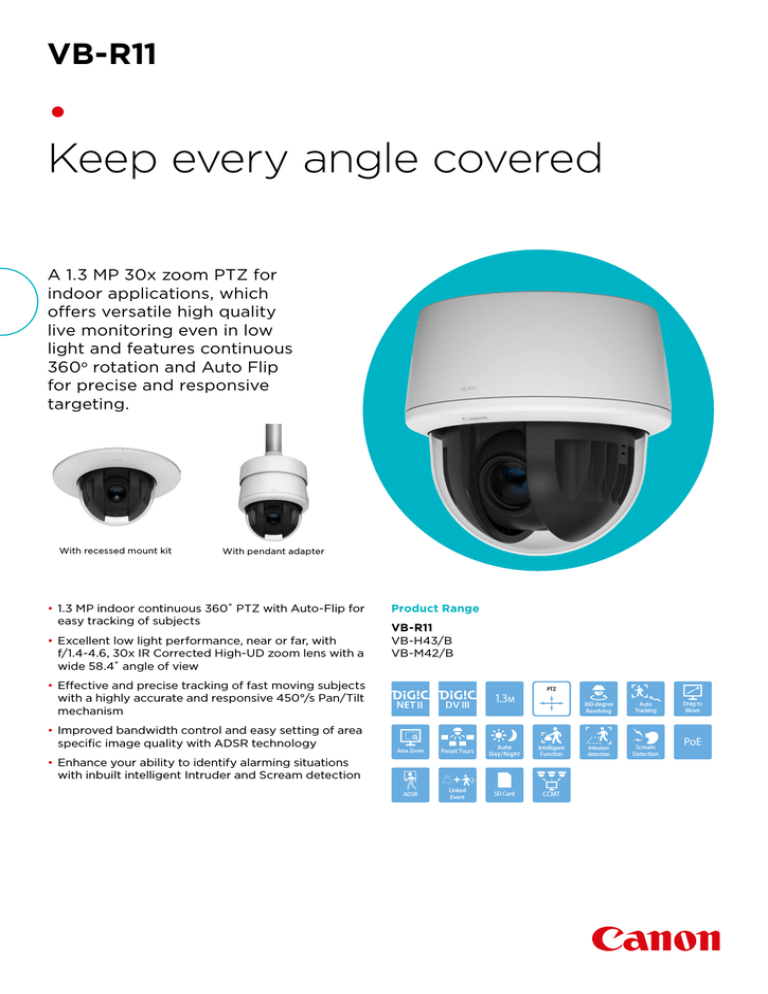

VB-R11
•
Keep every angle covered
A 1.3 MP 30x zoom PTZ for
indoor applications, which
offers versatile high quality
live monitoring even in low
light and features continuous
360o rotation and Auto Flip
for precise and responsive
targeting.
With recessed mount kit
With pendant adapter
• 1.3 MP indoor continuous 360˚ PTZ with Auto-Flip for
easy tracking of subjects
• Excellent low light performance, near or far, with
f/1.4-4.6, 30x IR Corrected High-UD zoom lens with a
wide 58.4˚ angle of view
Product Range
VB-R11
VB-H43/B
VB-M42/B
• Effective and precise tracking of fast moving subjects
with a highly accurate and responsive 450°/s Pan/Tilt
mechanism
• Improved bandwidth control and easy setting of area
specific image quality with ADSR technology
1.3M
Area Zoom
Preset Tours
ADSR
Linked
Event
PTZ
Intelligent
Function
• Enhance your ability to identify alarming situations
with inbuilt intelligent Intruder and Scream detection
SD Card
CCMT
360-degree
Revolving
Auto
Tracking
Intrusion
detection
Scream
Detection
Drag to
Move
PoE
VB-R11
•
Technical Specifications
CAMERA
Protocol
Image Sensor
1/3 type CMOS (primary color filter)
Number of Effective Pixels
Approx. 1.3 million pixels
Scanning Method
Progressive
Lens
30x optical zoom (20x digital zoom) lens with auto focus
Focal Length
4.4 (W) – 132 mm (T)*1
F-number
F1.4 (W) – F4.6 (T)
Viewing Angle
For 16:9 aspect ratios:
Horizontal: 58.4° (W) – 2.1° (T)
Vertical: 34.1° (W) – 1.2° (T)
For 4:3 aspect ratios
Horizontal: 58.4° (W) – 2.1° (T)
Vertical: 45.0° (W) – 1.6° (T)
Day/Night Switch
Auto / Manual
Min. Subject Illumination
(F1.4, shutter speed 1/30 sec., when smart shade control is
off, 50IRE)
Day Mode (colour):0.03 lux
Night Mode (mono): 0.002 lux
When using the Dome Unit (Smoked) (sold separately)
Day Mode (colour): 0.06 lux
Night Mode (mono): 0.004 lux
IPv4: T
CP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client),
DHCP (Client), DNS (Client), mDNS,ARP, ICMP, POP3
(Client), NTP (Client), SMTP authentication (POP before
SMTP, SMTP-AUTH),AutoIP, RTP/RTCP, RTSP, SSL/TLS,
IPsec, WV-HTTP (Canon proprietary), ONVIF
(Profile S, Profile G)
IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client),
DNS (Client), mDNS, ICMPv6, POP3 (Client), NTP (Client),
SMTP authentication (POP before SMTP, SMTP-AUTH),
RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon
proprietary), ONVIF (Profile S, Profile G)
Audio Compression Method
G.711 μ-law (64 kbps)
Audio Communication
Method
Full-duplex (two-way) – Echo cancellation function compliant
RTP, Sound Transfer Protocol by Canon
Audio File Playback
Available (audio files can be played back when an event is
triggered by the intelligent function or external device input.)
– A third-party amplifier speaker is necessary
Privacy Mask
Number of registration: Max. 8 places, Number of mask colors: 1
(select from 9 colors)
View Restriction
Available
Preset
Number of registers: Max. 256 positions (+Home Position)
Items to Reg.: Pan / Tilt / Zoom, Exposure, Smart Shade Control,
Focus, White Balance, Video Quality Adjustment, Day / Night,
Haze Compensation
Number of Preset Tour Route: Max. 5
Intelligent Function (Video)
Detection Types: Moving Object Detection, Abandoned Object
Detection, Removed Object Detection, Camera Tampering
Detection, Passing Detection, Intrusion Detection, and Auto
Tracking
Detection Settings: Max. 15
Focus
Auto / One-shot AF / Manual / Fixed at infinity
Shooting Distance (from front
of lens)
Day Mode: 0.3 m (12 in.) – infinity (W), 2.0 m (6.6 ft.) – infinity (T)
Night Mode: 1.0 m (3.3 ft.) – infinity (W), 2.0 m (6.6 ft.) – infinity (T)
Shutter Speed
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000,
1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec.
Exposure
Auto / Auto (Flickerless) /Auto (Shutter-priority AE) / Manual
(Shutter Speed, Aperture, Gain)
Intelligent Function (Audio)
Volume Detection, Scream Detection
White Balance
Auto / Light Source / Manual
Light Source: Daylight Fluorescent / White Fluorescent / Warm
Fluorescent / Mercury Lamp / Sodium Lamp/
Halogen Lamp
Manual: One-shot WB / R Gain / B Gain
Event Trigger Type
External Device Input, Intelligent Function (Video), Intelligent
Function (Audio), Timer, Day / Night Switch
Number of Linked Events: 2
Linked Event Conditions: AND, OR (whether or not there is a
sequence to events)
Metering Mode
Center-Weighted / Average / Spot
Image Upload
FTP/HTTP/SMTP (e-mail)
Exposure Compensation
9 levels
Event Notification
HTTP/SMTP (e-mail)
Smart Shade Control
Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
– Brightens shaded areas of a video
On-Screen Display
Available
Daylight Saving Time
Available
Haze Compensation
Auto/Manual / Disable
Auto: 3 levels
Manual: 7 levels
APPLICATION
AGC Limit
6 levels
Image Stabilizer
2 levels (digital)
Pan Angle Range
360°continuous panning
Tilt Angle Range
180° (ceiling-mounted position: 0° – 180°)
– When the horizontal direction of the camera is 0°
Moving Speed
Pan: Max. 450°/sec.
Tilt: Max. 450°/sec.
SERVER
Video Compression Method
JPEG, H.264
Video Size
JPEG, H.264: 1 280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality
JPEG, H.264: 10 levels
Frame Rate
JPEG: 0.1 – 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
– Values represent streaming performance from the camera.
– The frame rate may be reduced due to Viewer computer’s
specs, the number of clients accessing at the same time, network
loads, video quality setting, type or movement of the subject or
other reasons.
Maximum frame rate when used in the following combinations:
When streaming H.264(1) (1280 x 720) and H.264(2) (1280 x
720) simultaneously: 15 fps
When streaming H.264(1) (1280 x 960) and H.264(2) (1280 x
960) simultaneously: 15 fps
I-Frame Interval
0.5/1/1.5/2/3/4/5 sec.
Simultaneous Client Access
Max. 30 Clients + 1 Admin Client
– H.264: Max. 10 Clients
Bit Rate Control
Target Bit Rate: 64 / 128 / 256 / 384 / 512 / 768 / 1024 / 2048 /
3072 / 4096 / 6144 / 8192 / 10240 / 12288 / 14336 / 16384 kbps
ADSR: Area-specific Data
Size Reduction
Number of Specified Areas: Max. 8 areas
Security
Camera Control: Administrator, Authorized user, Guest user
(level of control varies depending on user)
Access Control: User authority (user name and password), Host
Access Restrictions (IPv4, IPv6)
IEEE802.1X: EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
Encrypted Communications: SSL/TLS, IPsec
Viewer
Camera-side: Admin Viewer
VB Viewer
Client-side: RM-Lite Viewer
Admin Tools
Privacy Mask Setting Tool
Panorama Creation Tool
View Restriction Setting Tool
Intelligent Function Setting Tool
Log Viewer
Recorded Video Utility
Included Software
Camera Management Tool
RM-Lite
Proxy Authentication Admin Tools/Admin Viewer
Language
German / English / Spanish / French / Italian / Russian / Turkish
/ Chinese (Simplified) / Japanese
Operating Environment
OS:
Windows Vista Ultimate / Business / Enterprise / Home Premium
SP2 32/64-bit
(PC specifications and OS
(does not apply to RM-Lite))
Operating System Language:
German / English / Spanish / French / Italian / Russian / Turkish
/ Chinese (Simplified) / Japanese
– Language switching environment using language-packs is not
supported
Compatible Browser:
Internet Explorer 8/9 32-bit
Internet Explorer 10/11
– Must be configured to allow use of JavaScript, XAML browser
applications, and IFRAME (html tag).
– For VB Viewer only, cookies must be enable
Software (Runtime Libraries)
.NET Framework 3.5 SP1 (When using Internet Explorer 8/9)
– Must be installed on Windows Vista and Windows Server 2008
systems
.NET Framework 4.5 (When using Internet Explorer 10/11)
– Must be installed on Windows 7 and Windows Server 2008
R2 systems
CPU (Recommended)
Intel Core i7-2600 or higher
Graphics Board (Recommended)
Not specified
Memory (Recommended)
2 GB or higher
Viewer Display (Recommended)
1920 x 1080 or higher
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
© Canon Europa N.V.,2015
VB-R11
•
Technical Specifications
INTERFACE
OTHER
Network Terminal
LAN x 1 (RJ45, 100Base-TX (auto / full-duplex / half-duplex))
Audio Input Terminal
(common for LINE IN &
MIC IN)
ϕ3.5 mm (ϕ0.14 in.) mini-jack connector (monaural)
LINE IN (connect to an amplifier microphone) or MIC IN (connect
to a microphone w/o amplifier)
– Switch LINE IN / MIC IN in the setting page.
Audio Output Terminal (LINE
OUT)
ϕ3.5 mm (ϕ0.14 in.) mini-jack connector (monaural)
Operating Environment
Humidity
5% – 85% (without condensation)
Power Supply
PoE: PoE power supply via LAN connector (IEEE802.3at Type1
compliant)
AC Adapter: PA-V18 (100 – 240 V AC) (sold separately)
External power source: 24 V AC/12 V DC
Power Consumption
PoE: Max. approx. 9.5 W
AC Adapter PA-V18: M
ax. approx. 9.6 W (100 V AC)
Max. approx. 9.8 W (240 V AC)
DC: Max. approx. 8.8 W
AC: Max. approx. 9.2 W
Dimensions
(ϕ x H) ϕ199 x 199 mm (ϕ7.83 x 7.83 in.)
– Camera only (excluding Ceiling Plate)
Weight
Approx. 1990 g (4.39 lb.)
LINE OUT (connect to an amplifier speaker)
External Device I/O Terminal
Input x 2, Output x 2
Memory Card
SD Memory Card, SDHC Memory Card, SDXC Memory Card
Compatible.
Recorded Content: Log, Video
(Event, Manual, ONVIF, Timer, Upload)
Frame Rate: M
ax. 1 fps (JPEG)
Max. 30 fps (H.264)
Temperature
AC, DC, PoE: -10°C – +50°C (+14°F – +122°F)
What’s in the box?
• VB-R11 Main Unit
• Power Connector
• Setup CD-ROM
• Installation Guide
• Ceiling Plate
• Warranty Card
• Wrench
• Leaflet of Warranty Card
• Template
• Packaging
Dimensions
Compatible Accessories
SR11-S-VB
Recessed mounting Kit
PA-V17 / PA-V18
AC Power Supply
*Available in Euro 2-Pin
& UK 3-Pin plug
DU10-S-VB
Smoked Dome Unit
