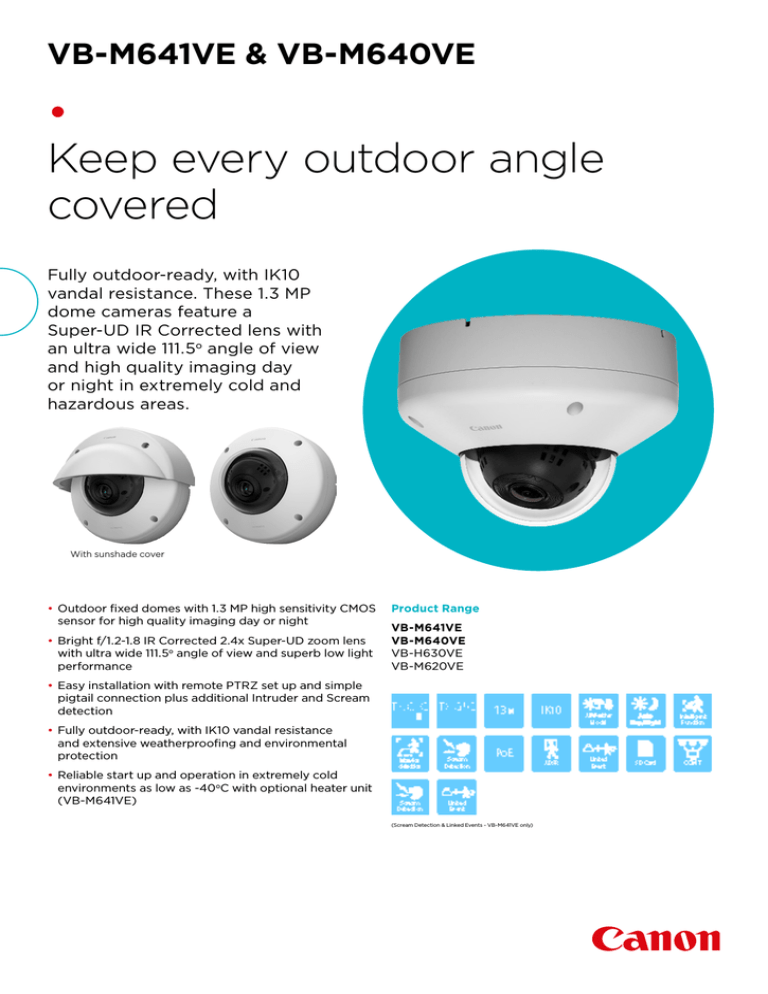

VB-M641VE & VB-M640VE
•
Keep every outdoor angle
covered
Fully outdoor-ready, with IK10
vandal resistance. These 1.3 MP
dome cameras feature a
Super-UD IR Corrected lens with
an ultra wide 111.5o angle of view
and high quality imaging day
or night in extremely cold and
hazardous areas.
With sunshade cover
• Outdoor fixed domes with 1.3 MP high sensitivity CMOS
sensor for high quality imaging day or night
• Bright f/1.2-1.8 IR Corrected 2.4x Super-UD zoom lens
with ultra wide 111.5o angle of view and superb low light
performance
Product Range
VB-M641VE
VB-M640VE
VB-H630VE
VB-M620VE
• Easy installation with remote PTRZ set up and simple
pigtail connection plus additional Intruder and Scream
detection
• Fully outdoor-ready, with IK10 vandal resistance
and extensive weatherproofing and environmental
protection
• Reliable start up and operation in extremely cold
environments as low as -40oC with optional heater unit
(VB-M641VE)
(Scream Detection & Linked Events - VB-M641VE only)
•
Technical Specifications
VB-M641VE
VB-M641VE & VB-M640VE
VB-M640VE
CAMERA
VB-M641VE
Security
Image Sensor
1/3 type CMOS (primary color filter)
Number of
Effective Pixels
Approx. 1.3 million pixels
Scanning Method
Progressive
Lens
2.4 optical zoom (4x digital zoom) lens (electric drive)
Focal Length
Protocol
2.55 (W) – 6.12 mm (T)
F-number
F1.2 (W) – F1.8 (T)
Viewing Angle
For 16:9 aspect ratios:
Horizontal: 111.5° (W) – 46.2° (T)
Vertical: 60.5° (W) – 25.9° (T)
Day/Night Switch
Min. Subject
Illumination
Auto / Manual
(F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
Day Mode (colour): 0.02 lux
Night Mode (mono): 0.001 lux
When using the Dome Unit (Smoked) (sold separately)
Day Mode (colour): 0.04 lux
Night Mode (mono): 0.002 lux
Focus
Auto / One-shot AF / Manual / Fixed at infinity
Shooting Distance
(from front of lens)
Shutter Speed
Exposure
Day Mode: 0.3 m (12 in.) – infinity
Night Mode: 0.3 m (12 in.) – infinity
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/8000, 1/10000, 1/16000 sec.
Auto / Auto (Flickerless) / Auto (Shutter-priority AE) / Manual (Shutter
Speed, Aperture, Gain)
White Balance
Auto / Light Source / Manual
Light Source: Daylight Fluorescent / White Fluorescent / Warm
Fluorescent / Mercury Lamp /Sodium Lamp /
Halogen Lamp
Manual: One-shot WB / R Gain / B Gain
Metering Mode
Center-Weighted / Average / Spot
Exposure
Compensation
9 levels
Smart Shade
Control
Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
– Brightens shaded areas of a video
Haze
Compensation
Audio
Communication
Method
Audio File
Playback
2 levels (digital)
Pan Angle Range
350° (±175°)
Tilt Angle Range
150° (±75°)
Rotation Angle
Range
350° (±175°)
Moving Speed
Pan: 20.1°/sec.
Tilt: 20.7°/sec.
Rotation: 40.0°/sec.
– When Using Camera Angle Setting Tool
SERVER
Video
Compression
Method
JPEG, H.264
Video Size
JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality
JPEG: 0.1 – 30 fps
H.264: 1 / 2 / 3 / 5 / 6 / 10 / 15 / 30 fps
– Values represent streaming performance from the camera.
– The frame rate may be reduced due to Viewer computer’s specs, the
number of clients accessing at the same time, network loads, video
quality setting, type or movement of the subject or other reasons.
Maximum frame rate when used in the following combinations:
When streaming H.264(1) (1280 x 720) and H.264(2) (1280 x 720)
simultaneously: 15 fps
When streaming H.264(1) (1280 x 960) and H.264(2) (1280 x 960)
simultaneously: 15 fps
I-Frame Interval
0.5 / 1 / 1.5 / 2 / 3 / 4 / 5 sec.
Simultaneous
Client Access
Max. 30 Clients + 1 Admin Client
– H.264: Max. 10 Clients
Target Bit Rate: 64 / 128 / 256 / 384 / 512 / 768 / 1024 / 2048 / 3072 /
4096 / 6144 / 8192 / 10240 / 12288 / 14336 / 16384 kbps
ADSR: Areaspecific Data Size
Reduction
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
© Canon Europa N.V.,2015
Number of Specified Areas: Max. 8 areas
TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS
(Client), mDNS, ICMPv6, POP3 (Client), NTP (Client), SMTP
authentication (POP before SMTP, SMTP-AUTH), RTP/RTCP, RTSP,
SSL/TLS, IPsec, WV-HTTP (Canon proprietary),
ONVIF (Profile S, Profile G)
G.711 μ-law (64 kbps)
–
Full-duplex (two-way) – Echo
cancellation function compliant
RTP, Sound Transfer Protocol by
Canon
–
Available (audio files can be
played back when an event
is triggered by the intelligent
function or external device input.)
– A third-party amplifier speaker
is necessary
–
Number of registration: Max. 8 places, Number of mask colors: 1 (select
from 9 colors)
Preset
Number of registers: Max. 20 positions (+Home Position)
Items to Reg.: Digital Pan / Digital Tilt / Digital Zoom, Exposure, Smart
Shade Control, Focus, White Balance, Video Quality Adjustment, Day /
Night, Haze Compensation
Number of Preset Tour Route: Max. 1
Intelligent
Function (Video)
Intelligent
Function (Audio)
Event Trigger Type
Detection Types: Moving Object Detection, Abandoned Object Detection,
Removed Object Detection, Camera Tampering Detection, Passing
Detection, and Intrusion Detection
Detection Settings: Max. 15
Volume Detection, Scream
Detection
Intelligent Function (Video),
Timer, Day / Night Switch
FTP/HTTP/SMTP (e-mail)
Event Notification
Image Cropping
Function
–
External Device Input, Intelligent
Function (Video), Intelligent
Function (Audio), Timer, Day /
Night Switch
Number of Linked Events: 2
Linked Event Conditions: AND,
OR (whether or not there is a
sequence to events)
Image Upload
HTTP/SMTP (e-mail)
Digital PTZ
Cropping sizes:640 x 360/512 x 288/384 x 216/256 x 144/128 x 72
640 x 480/512 x 384/384 x 288/256 x 192/128 x 96
On-Screen Display
Available
Daylight Saving
Time
Available
APPLICATION
Viewer
Admin Tools
JPEG, H.264: 10 levels
Frame Rate
TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP
(Client), DNS (Client), mDNS,
ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP
before SMTP, SMTP-AUTH),
AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon
proprietary), ONVIF (Profile S, Profile G)
Privacy Mask
6 levels
Image Stabilizer
Bit Rate Control
Audio
Compression
Method
Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
AGC Limit
IPv4: IPv6: For 4:3 aspect ratios
Horizontal: 111.5° (W) – 46.2° (T)
Vertical: 81.7° (W) – 34.6° (T)
VB-M640VE
Camera Control: Administrator, Authorized user, Guest user (level of
control varies depending on user)
Access Control: User authority (user name and password), Host Access
Restrictions (IPv4, IPv6)
IEEE802.1X: EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
Encrypted Communications: SSL/TLS, IPsec
Included Software
Language
Operating
Environment
(PC specifications
and OS (does not
apply to RM-Lite))
Camera-side: Admin Viewer
VB Viewer
Client-side: RM-Lite Viewer
Privacy Mask Setting Tool
Intelligent Function Setting Tool
Log Viewer
Recorded Video Utility
Camera Management Tool
Camera Angle Setting Tool
RM-Lite
Proxy Authentication Admin Tools/Admin Viewer
German / English / Spanish / French/ Italian / Russian / Turkish /Chinese
(Simplified) / Japanese
OS:
Windows Vista Ultimate /Business /Enterprise / Home Premium SP2
32/64-bit
Operating System Language:
German / English / Spanish / French / Italian / Russian / Turkish / Chinese
(Simplified) / Japanese
– Language switching environment
using language-packs is not
supported
Compatible Browser:
Internet Explorer 8/9 32-bit
Internet Explorer 10/11
– Must be configured to allow use of
JavaScript, XAML browser
applications, and IFRAME
(html tag).
– For VB Viewer only, cookies must
be enabled
•
Technical Specifications
VB-M641VE
VB-M641VE & VB-M640VE
VB-M640VE
Software (Runtime Libraries)
.NET Framework 3.5 SP1 (When using Internet Explorer 8/9)
– Must be installed on Windows
Vista and Windows Server 2008
systems
.NET Framework 4.5 (When using Internet Explorer 10/11)
– Must be installed on Windows 7and
Windows Server 2008
R2 systems
Operating
Environment
CPU (Recommended)
Intel Core i7-2600 or higher
Graphics Board (Recommended)
Not specified
Viewer Display (Recommended)
1920 x 1080 or higher
INTERFACE
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex / half-duplex))
Audio Input
Terminal
(common for LINE
IN & MIC IN)
Audio Output
Terminal (LINE
OUT)
ϕ3.5 mm (ϕ0.14 in.) mini-jack
connector (monaural)
LINE IN (connect to an amplifier
microphone) or MIC IN (connect
to a microphone w/o amplifier)
– Switch LINE IN/MIC IN in the
setting page.
ϕ3.5 mm (ϕ0.14 in.) mini-jack
connector (monaural)
LINE OUT (connect to an amplifier
speaker)
External Device
I/O Terminal
Memory Card
Input x 2, Output x 2
VB-M640VE
Temperature
When the heater unit (sold
separately) is installed
Operating Temperature Range:
AC: -40°C – +55°C
(-40°F – +131°F)
DC, PoE: -10°C – +55°C
(+14°F – +131°F)
Start-up Temperature Range:
AC: -30°C – +55°C (-22°F – +131°F)
DC, PoE: -10°C – +55°C
(+14°F – +131°F)
Temperature
PoE: -10°C – +55°C
(+14°F – +131°F)
– Sunshade cover (sold separately)
necessary when under direct sun
exposure
Humidity
5% – 85% (without condensation)
– Sunshade cover (sold separately)
necessary when under direct
sun exposure
When the heater unit (sold
separately) is not installed
AC, DC, PoE: -10°C – +55°C
(+14°F – +131°F)
– Sunshade cover (sold separately)
necessary when under direct
sun exposure
Memory (Recommended)
2 GB or higher
Network Terminal
VB-M641VE
OTHER
Humidity
5% – 85% (without condensation)
–
Power Supply
PoE: PoE power supply via LAN
connector
(IEEE802.3at Type1 compliant)
–
PoE: PoE power supply via LAN
connector
(IEEE802.3at Type1 compliant)
AC Adapter: PA-V18 (100 – 240 V
AC) (sold separately)
External power source: 24 V
AC/12 V DC
Power
Consumption
PoE: Max. approx. 8.9 W
AC Adapter PA-V18: Max. approx.
10.5 W (100 V AC)
Max. approx. 10.6W (240 V AC)
DC: Max. approx. 9.5 W
AC: Max. approx. 9.1 W
Max. approx. 21.7 W*
* When the heater unit (sold
separately) is installed
PoE: Max. approx. 8.9 W
–
microSD Memory Card, microSDHC Memory Card, microSDXC Memory
Card Compatible.
Recorded Content: Log, Video (Event, Manual, ONVIF, Timer, Upload)
Frame Rate: Max. 1 fps (JPEG)
Max. 30 fps (H.264)
Dimensions
Weight
(ϕ x H) ϕ180 x 131 mm (ϕ7.09 x 5.16 in.)
– Camera only (excluding Ceiling Plate)
Approx. 1600 g (3.53 lb.)
Impact Resistance
Dust-resistant/
Waterproof
Specification
Approx. 1570 g (3.47 lb.)
IK10 (20J)
IP66 rated
NEMA Type 4X, IEC 60950-1/22
What’s in the box?
• Setup CD-ROM
• Wrench
• Installation Guide
• Ceiling Plate
• Template
• Warranty Card
• Fixing Screw
• Power Interface Cable
• S
afety Wire & Fixing
Screw
• I/O Interface Cable
• L
eaflet of Warranty
Card
• Packaging
Compatible Accessories.
Dimensions
All dimensions are in mm
PC640-VB
Sunshade Cover
DU640-S-VB
HU641-VB
Smoked Dome Unit
CA640-VB
Conduit Adaptor
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
© Canon Europa N.V.,2015
SC640-VB
Pendant Mounting Kit
Heater Unit
PA-V17 / PA-V18
AC Power Supply
*Available in Euro 2-Pin
& UK 3-Pin plug
